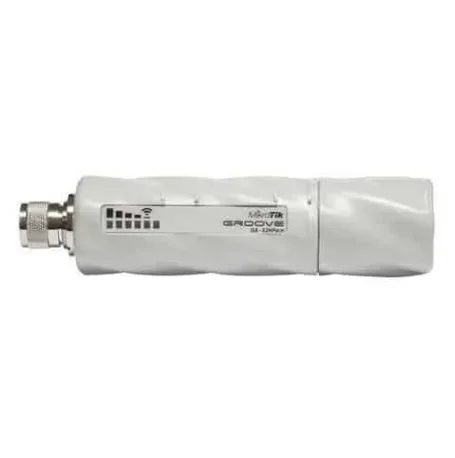

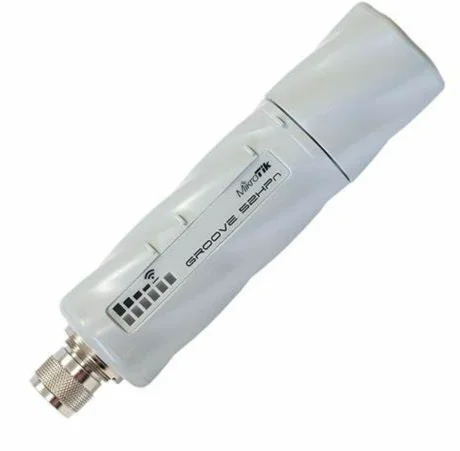

RBGroove 52HPacn MikroTik Gigabit dual band I wireless bridge AP coverage
- Category: >>>
- Supplier: Shenzhen Toptoday Network Co. Ltd.
Share on (1601009202674):
Product Overview
Description
Product specifications
| Details | |
|---|---|
| Product code | RBGroove52HPn |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | AR9342 |
| Wireless standards | 802.11a/b/g/n |
| PoE in | Yes |
| Supported input voltage | 9 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 177x44x44mm, 193g |
| Operating System | RouterOS |
| Tested ambient temperature | -30C to +70C |
| License level | 3 |
| CPU | AR9342 |
| Max Power consumption | 6W |
| Number of chains | 1 |
| Storage type | FLASH |
| Storage size | 16 MB |
| 5 GHz | |||
|---|---|---|---|
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 6MBit/s | 27 | -93 | 501 |
| 54MBit/s | 23 | -75 | 200 |
| MCS0 | 26 | -93 | 398 |
| MCS7 | 22 | -70 | 158 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Included parts
Ethernet test results
| RBGroove52HPn | AR9342 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
