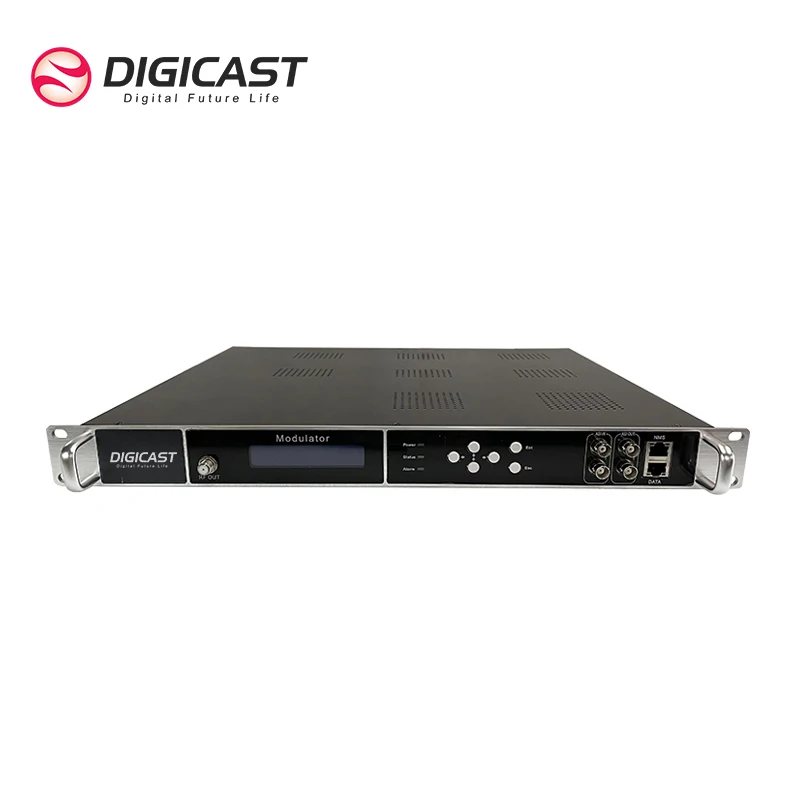

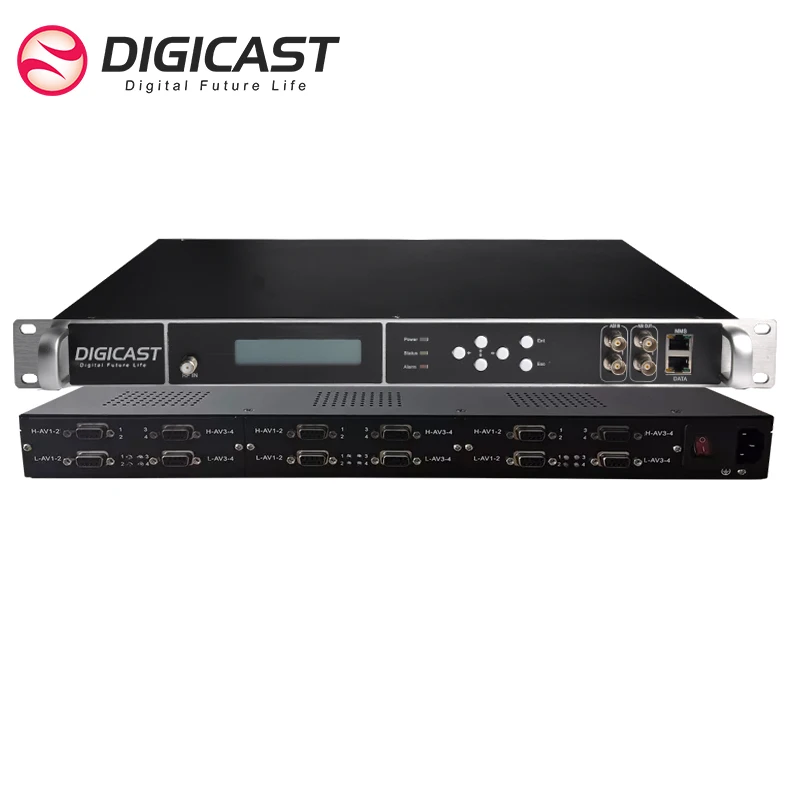

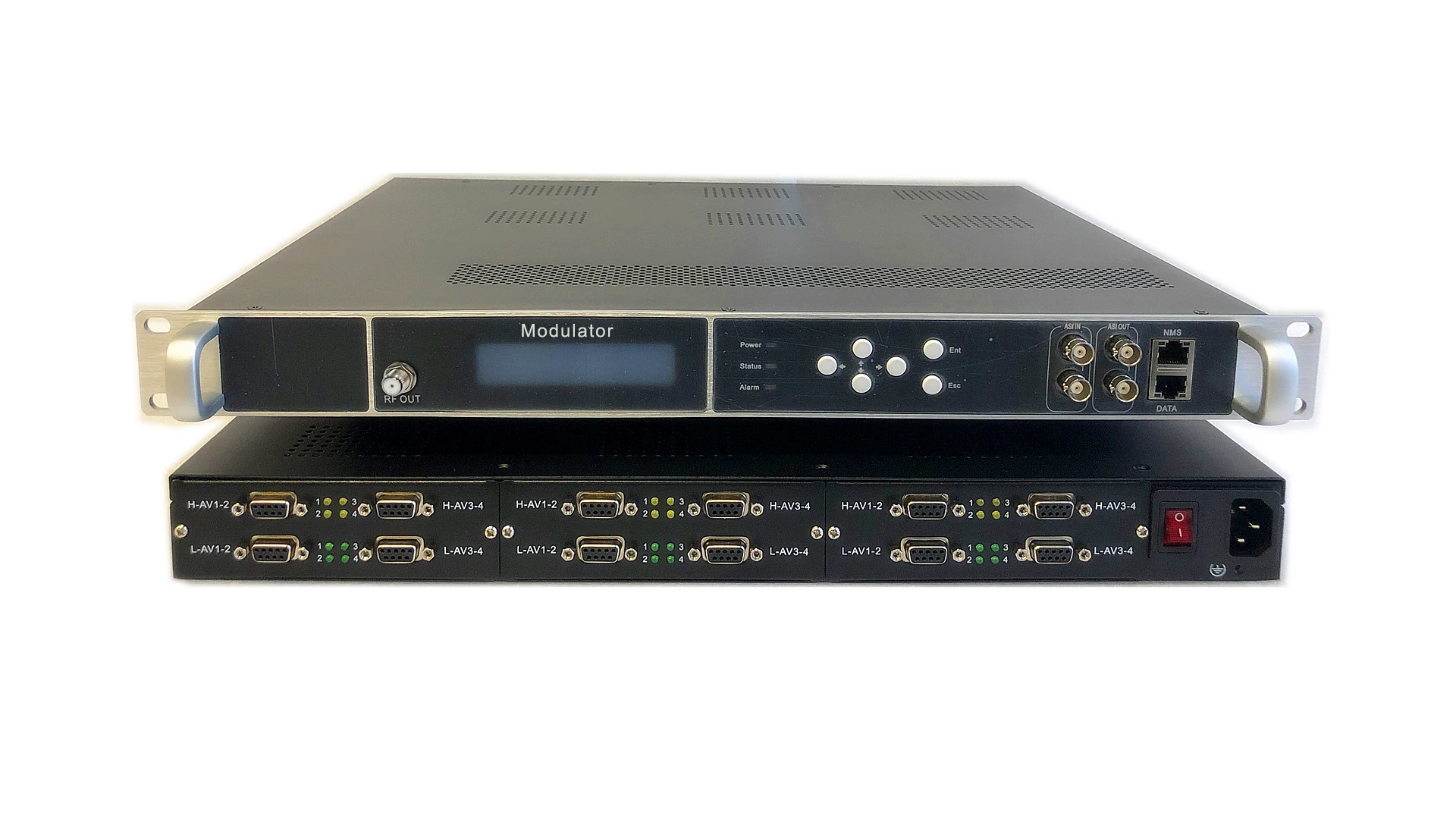

SD Modulator Digital Encoder 12 VGA 24 CVBS to RF DVB T DVB C ISDBT CATV RF Modulator
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (1601009207270):
Product Overview
Description
Product Description
Overview
DMB-9580 MPEG-2 24-Channel SD Encoder is a broadcast level encoding platform that adopts advanced compression technology with features of ultra-low bit rate and low latency. It can provide high quality images even at low bit rate. DMB-9580 is integrated with 24 channels. Provided with an external 2*ASI input, it can be multiplexed with the local multi-programs to eliminate the needs of multiplexers, and also cascading with several encoders, to simplify the network architecture for high reliability solutions. The device supports output interfaces of ASI and IP(TSoIP) out, while the TS over IP out provides 1*MPTS or 24*SPTS over IP change by software. DMB-9580 is coupled with user-friendly NMS, to be easily upgraded via software to add new functions or improve features and enhance performance. It is the preferred device for DTV service providers and customers for its unrivaled performance, flexibility, advanced compression and high affordability per channel.
Features
* Video compression: MPEG-2 4:2:0 MP@ML
* Industry leading compression technology for MPEG-2
* Audio compression: MPEG-1 Layer2, HE-AAC and LC-AAC(optional)
* Providing ASI and IP(UDP/IP) output
* Ultra-low bit rate:1 ~ 15Mbps
* Built in PCR capability
* Dynamic GOP automatic management
* Multiplexing with external ASI in
* Providing PSI/SI compilation and NIT, LCN insertion
* PAL/NTSC modes available
* Controlled by keyboard on front-panel, LCD display
* Managed by web browser via Ethernet interface
* Upgraded via Ethernet interface
* Industry leading compression technology for MPEG-2
* Audio compression: MPEG-1 Layer2, HE-AAC and LC-AAC(optional)
* Providing ASI and IP(UDP/IP) output
* Ultra-low bit rate:1 ~ 15Mbps
* Built in PCR capability
* Dynamic GOP automatic management
* Multiplexing with external ASI in
* Providing PSI/SI compilation and NIT, LCN insertion
* PAL/NTSC modes available
* Controlled by keyboard on front-panel, LCD display
* Managed by web browser via Ethernet interface
* Upgraded via Ethernet interface
Specifications | ||||||||
VIDEO SPECIFICATIONS | Video compression: MPEG-2 4:2:0 MP@ML Video inputs: 12*VGA（1*VGA/2*RCA），total 24*RCA CVBS input Analog video input mode: PAL, NTSC Resolution: NTSC: 720*480_59.94i, 544*480_59.94i, 352*240_59.94i 320*240_59.94i, 176*240_59.94i, 160*120_59.94i PAL: 720*576_50i, 640*576_50i, 352*288_50i 320*288_50i, 176*288_50i, 176*144_50i Aspect ratio: 4:3/16:9 adjustable Bit-rate: 0.8 ~ 19Mbps, CBR/VBR Video pre-processing: De-interlacing, Noise reduction, Sharpen | |||||||
AUDIO SPECIFICATIONS | Audio compression: MPEG-1 Layer2, HE-AAC and LC-AAC(optional) Audio inputs: unbalanced L&R, BNC interface Sampling rate: 48KHz Sampling accuracy: 24-bit Encoding bit rate: 32 ~ 384Kbps | |||||||
INPUTS AND OUTPUTS | ||||||||
ASI Input | Channel: 2*ASI(Independent) Interface: BNC, 75 ohm Signal Level 200-800mVp-p Packet Length: 188 bytes Maximum bit-rate: per port ≤100Mbps Packet mode: Byte mode | |||||||
ASI Output | 2 Separate ASI (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) | |||||||
IP Output | RJ45 Port,100/1000M GigE Port Simultaneous output with N*SPTS (N==HDMI channels) and 1*MPTS (modulation or MPTS channels) MPEG-2 TS over RTP,UDP unicast and multicast streaming Configurable packet size(2-7)x188Bytes Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate) | |||||||
MODULATION (4*RF out switchable from UI) | ||||||||
All | Connector: 1 Port, F-Type, 75Ω Output Return Loss: 14 dB MER ≥40dB RF output level: -30 ~ -10dbm,0.1db step RF frequency: 47-860Mhz, 1KHz step Numbers of RF Channel: 4/8 Modulation Mode: DVB-C, DVB-T, ATSC, ISDB-T, DTMB | |||||||
DVB-T Modulation | Channel: DVB-T adjacent frequencies Modulation standard: EN300744 Bandwidth: 6M, 7M, 8M FFT mode: 2K, 8K Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
ATSC-T Modulation | Channel: 8VSB adjacent frequencies Constellation: 8VSB Frequency range:96~864MHz,1Khz one step Constellation: 8VSB TS bit rate <19 Mbit/s MER≧40 dB | |||||||
ISDB-T Modulation | Channel: ISDB-T frequency Frequency range: 96~864MHz,1Khz one step ISDB-T Standard ARIB STD-B31 Constellation: DQPSK, QPSK, 16QAM, 64QAM Guard Interval:1/32, 1/16, 1/8, 1/4 Transmission Mode:2K,4K,8K Code rate:1/2, 3/4, 5/6, 7/8 Bandwidth:6MHz TS bit rate＜21 Mbit/s MER≥40 dB | |||||||
DTMB Standard GB20600-2006 | Constellation: 4QAM, 16QAM, 32QAM, 64QAM Code rate: 0.4, 0.6, 0.8 Guard Interval: 420, 595, 945 IONS | |||||||
DVB-C Modulation | Channel: 16*DVB-C adjacent frequencies Frequency range:96~864MHz,1Khz one step MER≥40 dB Symbol rate:5~7Mbaud DVB-C standard DVB-C (J83.A, J83.B, J83.C) | ||||||
Carrier | Annex A | Annex B | Annex C | ||
Constellation (QAM) | 16, 32, 64, 128, 256 | 64 | 256 | 64,256 | |
Bandwidth (MHz) | 8 | 6 | 6 | 6 | |
Symbol Rate ( Mbaud) | 5-7 | 5.057 | 5.361 | 4.2-5.3 | |

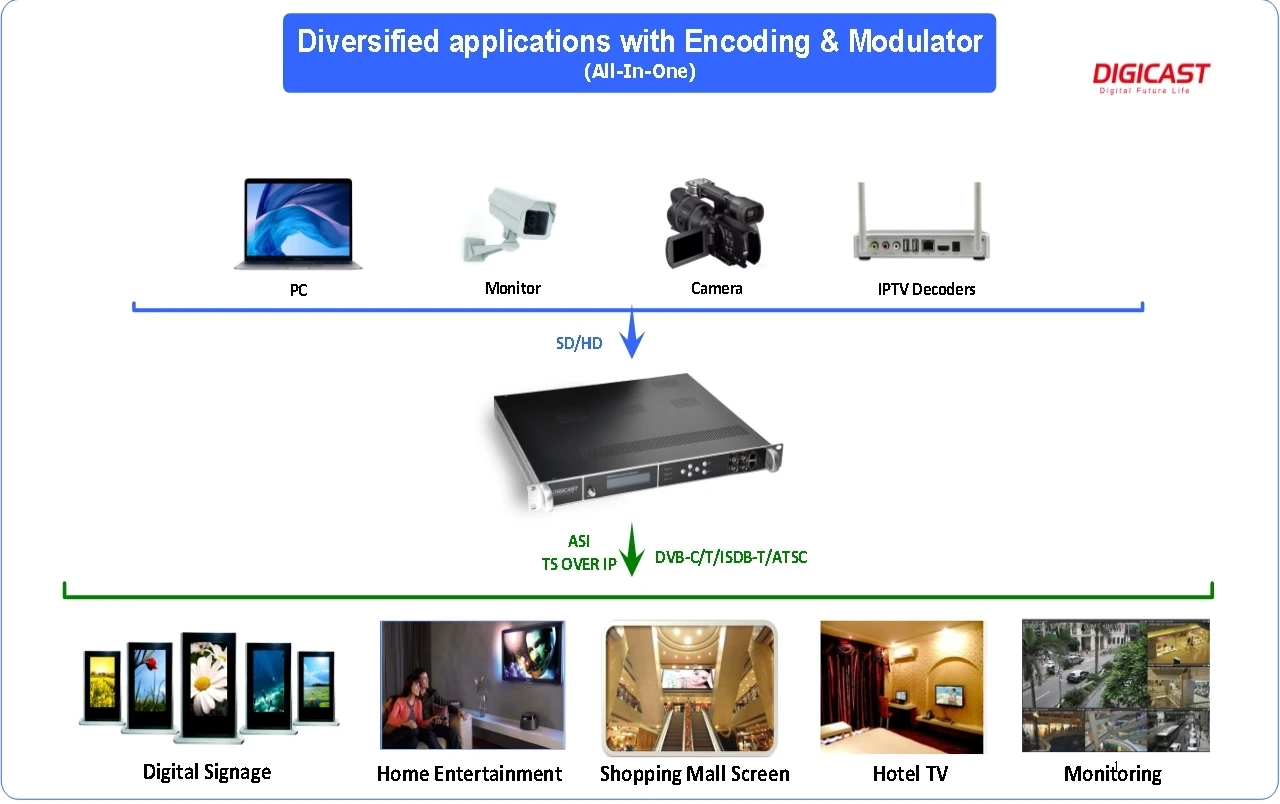

Application & Diagram
