Price:$3,746.40 - $3,959.60

Quantity:


Product Overview

Description



VR


You may also like




Product Description

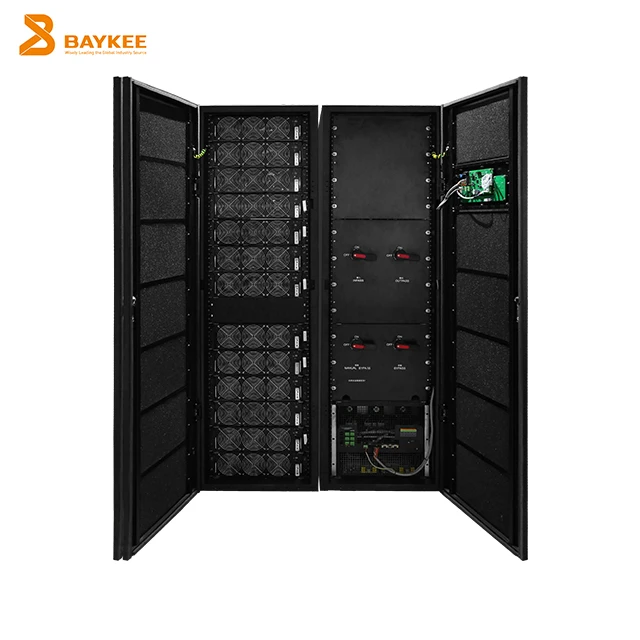

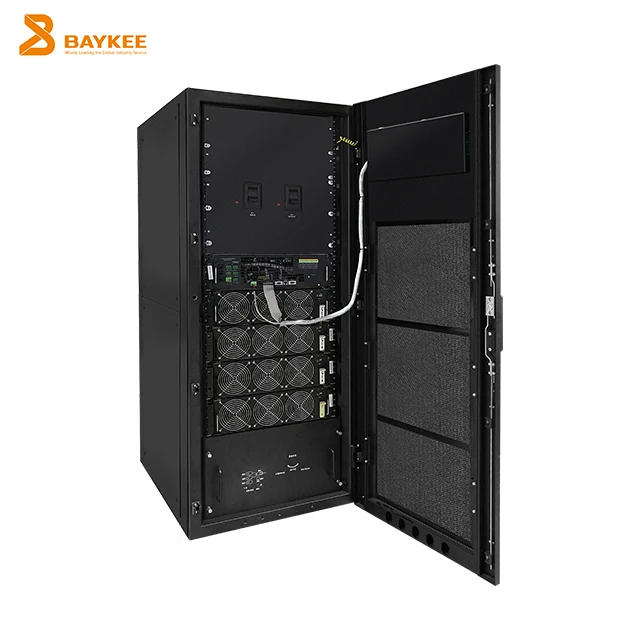

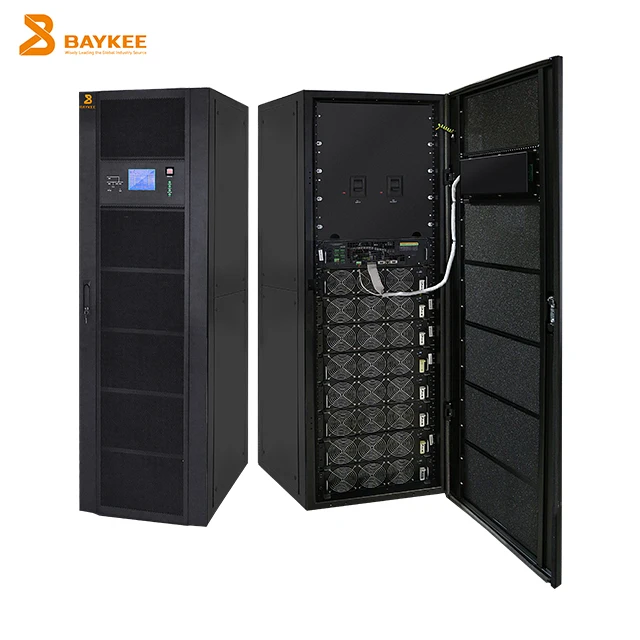

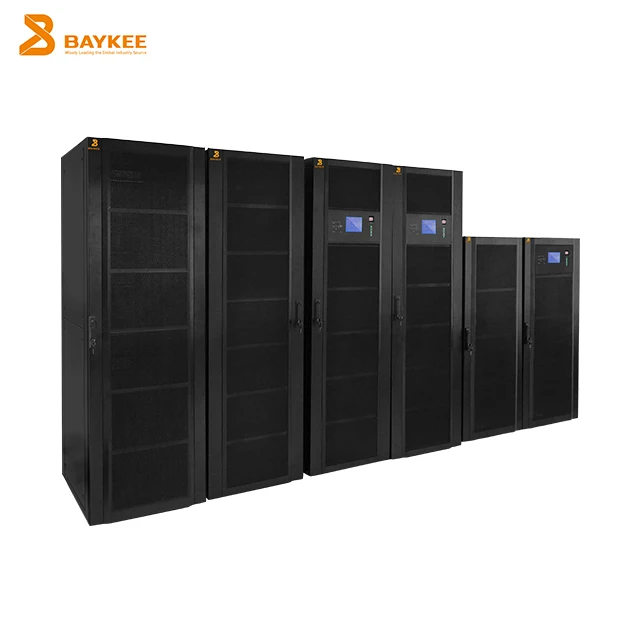

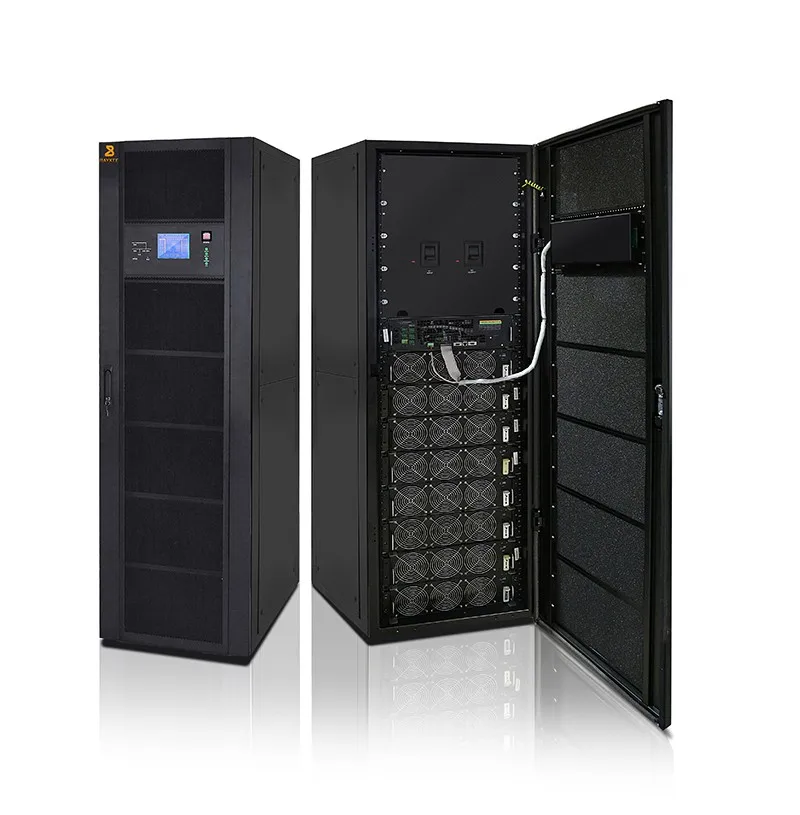

BKH Series Three phase Modular UPS
BKH series modular UPS is Baykee featured highly reliable modular online UPS, efficiency up to 96%, reach the international level UPS energy saving performance. In addition to adhering to the traditional modular UPS. Technology advantages, this product particularly in device control, system monitoring software has been greatly improved: with double DSP+ double CPLD, support no bypass module operation, high accuracy of output voltage, flexibility and stability, and no single point of failure.
This type of modular ups, can be swapped, each module range from 10kVA to 50kVA. The capacity of a single cabinet is 200kVA and that of combined cabinets reaches 400kVA.
Main features:
* Modular design, N+X redundancy, hot plugging
* Strong load adaptability and loading capacity, and excellent power grid applicability
* Overall efficiency>95%, input power factor> 0.99, (THDi)<3%
* Dual DSP for independent control of power module, no single point of failure
* Digital control of rectification, inverter, charging and discharging via DSP
* Integrated and packaged IGBT
* LCD+LED touch screen display, easier to maintenance
* Battery management system
* Parallel connection via the parallel card
* Easy to install, space-saving.
* Redundancy and intelligent adjustable-speed fan, low noise, low power consumption
* Integrated distribution system with low investment by user
* Good matching performance with motor
* DC starting (cold boot) for easy operation
* Three-proofing treatment of all circuit boards.
* Optional standard battery bank or extension battery bank






Specification


 M1-10kVA per module
Model
BKH-M1A-G30k
BKH-M1A-G60k
BKH-M1A-G100k
BKH-M1A-G120k
Capacity
10kVA-30kVA
10kVA-60kVA
10kVA-100kVA
10kVA-120kVA
Power module capacity
10kVA
Power module weight
14KG
Power module number(MAX)
3
6
10
12
Physical parameter
Power module size (W*D*H)
19"*509mm*"2U
Power module weight
14KG/unit
Cabinet size (W*D*H)mm
600*800*1600
600*800*2000
Cabinet weight
180
197
245
260
Mains input(AC )
Phase
3 phase 4 wires/single phase 2 wires+G
Voltage range
291~492V (line-line) full load;
Frequency range
30Hz~80Hz
THDi
<3%
Power factor
0.995
Bypass range
-10%~10% (can customized -10%~-30%, +10%~+20%)
Battery
Connection type
Positive and negative battery supply
Rated voltage
+/- 384VDC (+/-32*12V series)
Battery number
64pcs/set
Charging current
20% * system power(Can be set according to battery capacity)
Output(inverter)
Output voltage
3 phase 380VAC/1 phase 220VAC +G
Voltage regulation
<+/-1%
Phase lock range
50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)
Output frequency
50Hz/60Hz+/-0.01Hz (if phase locked then mains frequency)
Power factor
0.9
Crest factor
3:1
THDu
THD<1.0% (linear load), THD<3%(non-linear load)
Three phase voltage unbalance degree
Balance load: 0.2% 100% unbalance load : 0.5%
Dynamic voltage transient range
<2%
Transient recovery Time
0ms
Three phase voltage deviation
Mains:0.1; battery :0.1
Overload capacity
125% for 10min: 150% for 1min; >150% for 200ms (linear load)
System efficiency
>94%
Environment indicator
Noise
<60dB @100%load, cooling fan adopt intelligent speed control
Display
Touch screen LCD+LED
Interface
Standard: RS232, RS485, dry contacts, SNMP card optional
Operation temperature
Temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%
IP class
IP30( Removable dust filter)
NOTES: subject to change without further notice!


 M2-20kVA per module
Model
BKH-M2A-T60k
BKH-M2A-T100k
BKH-M2A-T160k
BKH-M2A-T200k
Capacity
20kVA-60kVA
20kVA-100kVA
20kVA-160kVA
20kVA-200kVA
Power module capacity
20kVA
Module size(W*D*H)
19"*690mm*"3U
Module weight
28KG/unit
Mains input(AC )
Phase
3 phase +N+PE
Voltage range
291~492 V(line-line) full load; 200V~291V linearly decrease
Frequency range
35Hz~70Hz
THDi
<3%(full linear load)
Power factor
0.995
Bypass range
-10%~10% (can customized -10%~-30%, +10%~+20%)
Battery
Connection type
Positive series and negative series battery
Rated voltage
+/- 240VDC (positive and negative each 20pcs*12V series), can customized
Battery number
40pcs/set (can customize 30~50pcs/set optional)
Charging current
20% * system power(Can be set according to battery capacity)
Output(inverter)
Output voltage
380VAC 3 phase 4 wires+PE
Voltage regulation
<+/-1%
Phase lock range
50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)
Output frequency
50Hz/60Hz+/-0.01(turn into mains frequency if phase locked)
Power factor
1
Crest factor
3:1
THDu
THD<2.0% (linear load), THD<3%(non-linear load)
Three phase voltage unbalance degree
Balance load: 0.5% 100% unbalance load : 1%
Dynamic voltage transient range
<3%
Transient Recovery Time
0ms
Three phase voltage deviation
Mains:0.4; battery :0.3
Transfer time
Mains to battery: 0ms; inverter to bypass: 0ms
Overload capacity
125% for 10min: 150% for 1min; >150% for 200ms (linear load)
System efficiency
>96%
Environment indicator
Noise
<60dB @100%load, cooling fan adopt intelligent speed control
Display
Touch screen LCD+LED
Interface
Standard: RS232, RS485, dry contacts, SNMP card optional
Operation temperature
Temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%
IP class
IP30( Removable dust filter)
Physical parameter
Cabinet size (W*D*H)mm
600*800*1250
600*1100*2000
600*1100*2000
Cabinet weight
130
295
305
310
Modules No.(Max)
3
5
8
10
NOTES: subject to change without further notice!




 M3-30kVA per module
Model
BKH-M3A-T90k
BKH-M3A-T150k
BKH-32A-T240k
BKH-M3A-T300k
Capacity
30kVA-90kVA
30kVA-150kVA
30kVA-240kVA
30kVA-300kVA
Power module capacity
30kVA
Module size(W*D*H)
19"*690mm*"3U
Module weight
36KG/unit
Mains input(AC )
Phase
3 phase +N+PE
Voltage range
291~492 V(line-line) full load; 200V~291V linearly decrease
Frequency range
35Hz~70Hz
THDi
<3%(full linear load)
Power factor
0.995
Bypass range
-10%~10% (can customized -10%~-30%, +10%~+20%)
Battery
Connection type
Positive series and negative series battery
Rated voltage
+/- 240VDC (positive and negative each 20pcs*12V series), can customized
Battery number
40pcs/set (can customize 30~50pcs/set optional)
Charging current
20% * system power(Can be set according to battery capacity)
Output(inverter)
Output voltage
380VAC 3 phase 4 wires+PE
Voltage regulation
<+/-1%
Phase lock range
50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)
Output frequency
50Hz/60Hz+/-0.01(turn into mains frequency if phase locked)
Power factor
1
Crest factor
3:1
THDu
THD<2.0% (linear load), THD<3%(non-linear load)
Three phase voltage unbalance degree

Balance load: 0.5% 100% unbalance load : 1%
Dynamic voltage transient range
<3%
Transient recovery Time
0ms
Three phase voltage deviation
Mains:0.4; battery :0.3
Transfer time
Mains to battery: 0ms; inverter to bypass: 0ms
Overload capacity
125% for 10min: 150% for 1min; >150% for 200ms (linear load)
System efficiency
>96%
Environment indicator
Noise
<65dB @100%load, cooling fan adopt intelligent speed control
Display
Touch screen LCD+LED
Interface
Standard: RS232, RS485, dry contacts, SNMP card optional
Operation temperature
Temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%
IP class
IP30( Removable dust filter)
Physical parameter
Cabinet size (W*D*H)mm
600*800*1250
Cabinet weight
130
Modules No.(Max)
3
NOTES: subject to change without further notice!


M4-40kVA per module
Model
BKH-M4A-T120k
BKH-M4A-T200k
BKH-M7A-T320k
BKH-M4A-T520k
Capacity
40kVA-120kVA
40kVA-200kVA
40kVA-320kVA
40kVA-520kVA
Power module capacity
40KVA
Module size(W*D*H)
19"*690mm*"3U
Module weight
39KG/unit
Mains input(AC )
Phase
3 phase +N+PE
Voltage range
291~492 V(line-line) full load; 200V~291V linearly decrease
Frequency range
35Hz~70Hz
THDi
<3%(full linear load)
Power factor
0.995
Bypass range
-10%~10% (can customized -10%~-30%, +10%~+20%)
Battery
Connection type
Positive series and negative series battery
Rated voltage
+/- 240VDC (positive and negative each 20pcs*12V series), can customized
Battery number
40pcs/set (can customize 30~50pcs/set optional)
Charging current
20% * system power(Can be set according to battery capacity)
Output(inverter)
Output voltage
380VAC 3 phase 4 wires+PE
Voltage regulation
<+/-1%
Phase lock range
50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)
Output frequency
50Hz/60Hz+/-0.01(turn into mains frequency if phase locked)
Power factor
0.9
Crest factor
3:1
THDu
THD<2.0% (linear load), THD<3%(non-linear load)
Three phase voltage unbalance degree
Balance load: 0.5% 100% unbalance load : 1%
Dynamic voltage transient range
<3%
Transient Recovery Time
0ms
Three phase voltage deviation
Mains:0.4; battery :0.3
Transfer time
Mains to battery: 0ms; inverter to bypass: 0ms
Overload capacity
125% for 10min: 150% for 1min; >150% for 200ms (linear load)
System efficiency
>96%
Environment indicator
Noise
<68dB @100%load, cooling fan adopt intelligent speed control
Display
Touch screen LCD+LED
Interface
Standard: RS232, RS485, dry contacts, SNMP card optional
Operation temperature
Temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%
IP class
IP30( Removable dust filter)
Physical parameter
Cabinet size (W*D*H)mm
600*800*1250
600*1100*2000
600*1100*2000
1200*1100*2000
Cabinet weight
130
295
305
578
Modules No.(Max)
3
5
8
13
NOTES: subject to change without further notice!


 M5-50kVA per module
Model
BKH-M5A-T200k
BKH-M5A-T300k
BKH-M5A-T500k
BKH-M5A-T600k
Capacity
50kVA-200kVA
50kVA-300kVA
50kVA-500kVA
50kVA-600kVA
Power module capacity
50kVA
Module size(W*D*H)
19"*690mm*"3U
Module weight
39KG/unit
Mains input(AC )
Phase
3 phase +N+PE
Voltage range
291~492 V(line-line) full load; 200V~291V linearly decrease
Frequency range
35Hz~70Hz
THDi
<3%(full linear load)
Power factor
0.995
Bypass range
-10%~10% (can customized -10%~-30%, +10%~+20%)
Battery
Connection type
Positive series and negative series battery
Rated voltage
+/- 240VDC (positive and negative each 20pcs*12V series), can customized
Battery number
40pcs/set (can customize 30~50pcs/set optional)
Charging current
20% * system power(Can be set according to battery capacity)
Output(inverter)
Output voltage
380VAC 3 phase 4 wires+PE
Voltage regulation
<+/-1%
Phase lock range
50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)
Output frequency
50Hz/60Hz+/-0.01(turn into mains frequency if phase locked)
Power factor
0.9
Crest factor
3:1
THDu
THD<2.0% (linear load), THD<3%(non-linear load)
Three phase voltage Unbalance degree
Balance load: 0.5% 100% unbalance load : 1.5%
Dynamic voltage transient range
<3%
Transient Recovery Time
0ms
Three phase voltage deviation
Mains:0.4; battery :0.3
Transfer time
Mains to battery: 0ms; inverter to bypass: 0ms
Overload capacity
125% for 10min: 150% for 1min; >150% for 200ms (linear load)
System efficiency
>95%
Environment indicator
Noise
<70dB @100%load, cooling fan adopt intelligent speed control
Display
Touch screen LCD+LED
Interface
Standard: RS232, RS485, dry contacts, SNMP card optional
Operation temperature
Temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%
IP class
IP30( Removable dust filter)
Physical parameter
Cabinet size (W*D*H)mm
600*800*1250
600*1100*2000
1200*1100*2000
Cabinet weight
295
305
578
600
Modules No.(Max)
4
6
10
12
NOTES: subject to change without further notice!




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Aerospace Baykee (Guangdong) Technology Co., Ltd. is a backbone enterprise engaged in the research and development of cutting-edge power supply technology under the China Aerospace Science and Technology Corporation and a pathfinder for the application of my country's power supply technology in the field of "advanced, precise and cutting-edge". Aerospace Baykee is established in 2007, a professional manufacturer and exporter with R&D in improving power quality products like uninterrupted power supply (UPS), EPS, solar inverters, modular data center, MPPT solar charge controller, energy storage system, etc. Headquarter in Foshan, the earliest cooperation in China power industry passed and approved by the ISO 9001 & ISO 14001, OHSMS 18001, CE, IEC, 3C, TCL and CQC quality standard. Aerospace Baykee also actively participates in the "One Belt, One Road" initiative by setting up branches and agents in Pakistan, Australia, Philippines, Vietnam, Yemen, and Nigeria to launch company's self-developed products. Currently, Aerospace Baykee is the first-line brand in Pakistan.








Application case






Exhibition






FAQ


Q: Why choose us?
A: We are China Leading UPS &solar system Manufacturer, 14 years experience in producing and marketing
UPS & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 1 years warranty and if possible we provide on-site installation and repairing.
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC, IEC authentication, and Chinese energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.

If you have some problems about TYN series off grid soalr inverter , or want to know more details about 3 phase online UPS system, off grid solar inverter system, solar energy storage system, outdoor online UPS, lithium battery, MPPT solar charge controller ,etc. Welcome to contact us!
Looking forward to your inquiry in alibaba.


We Recommend

New Arrivals

New products from manufacturers at wholesale prices

5.0064 s.
