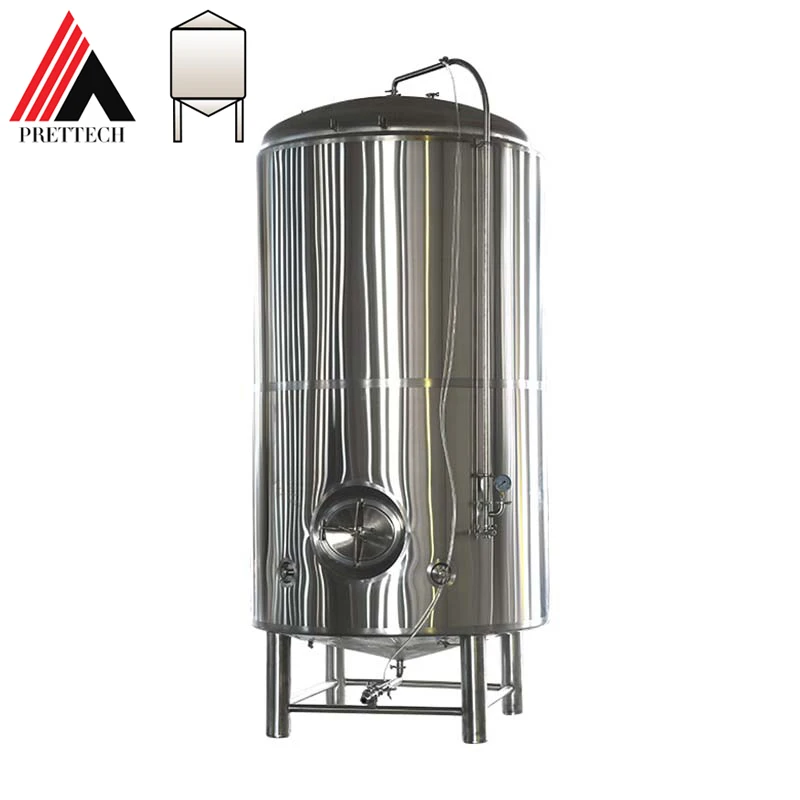

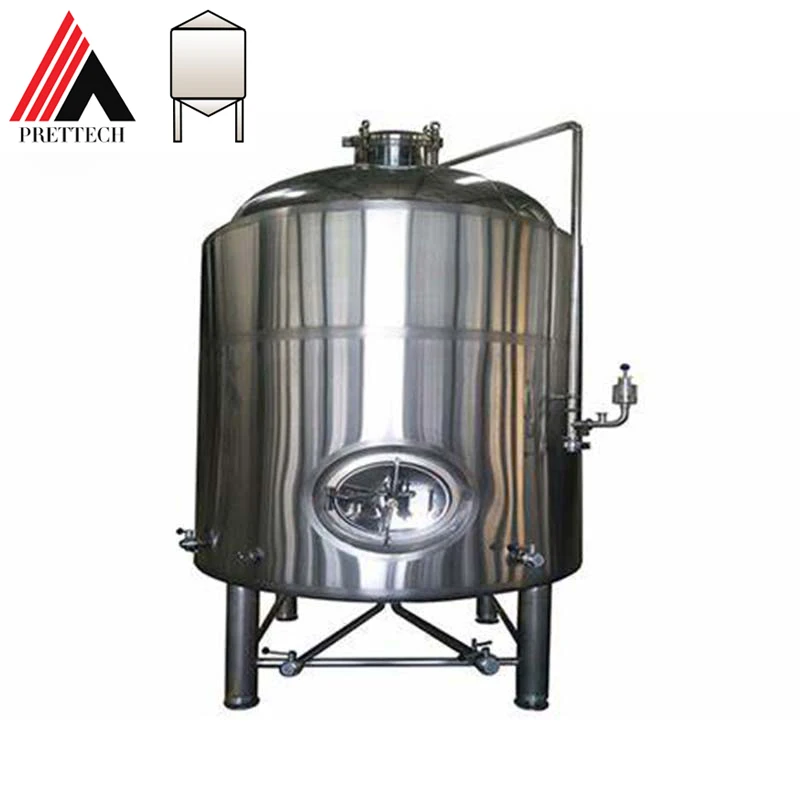

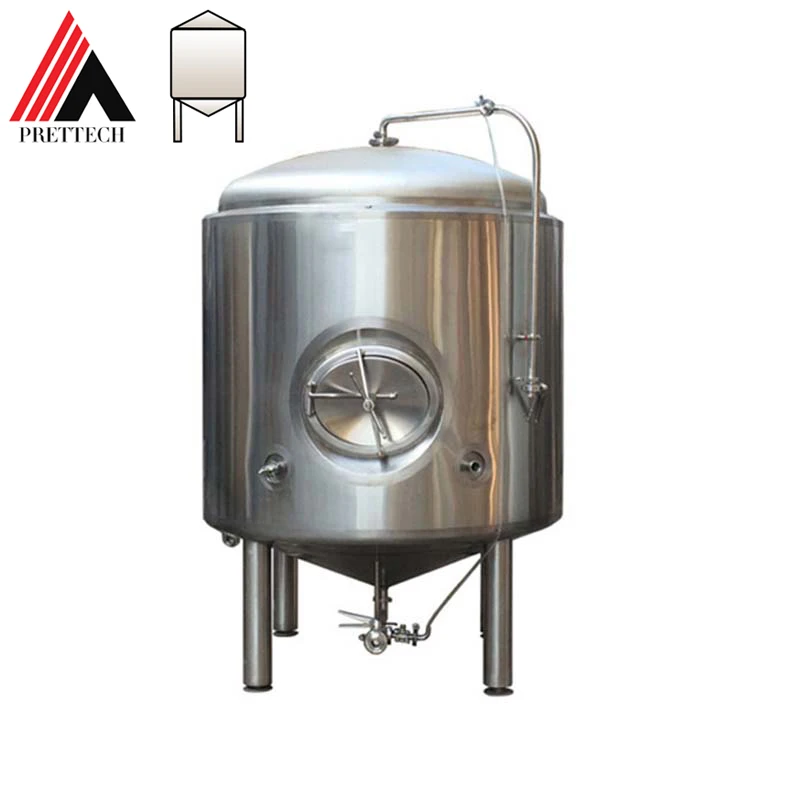

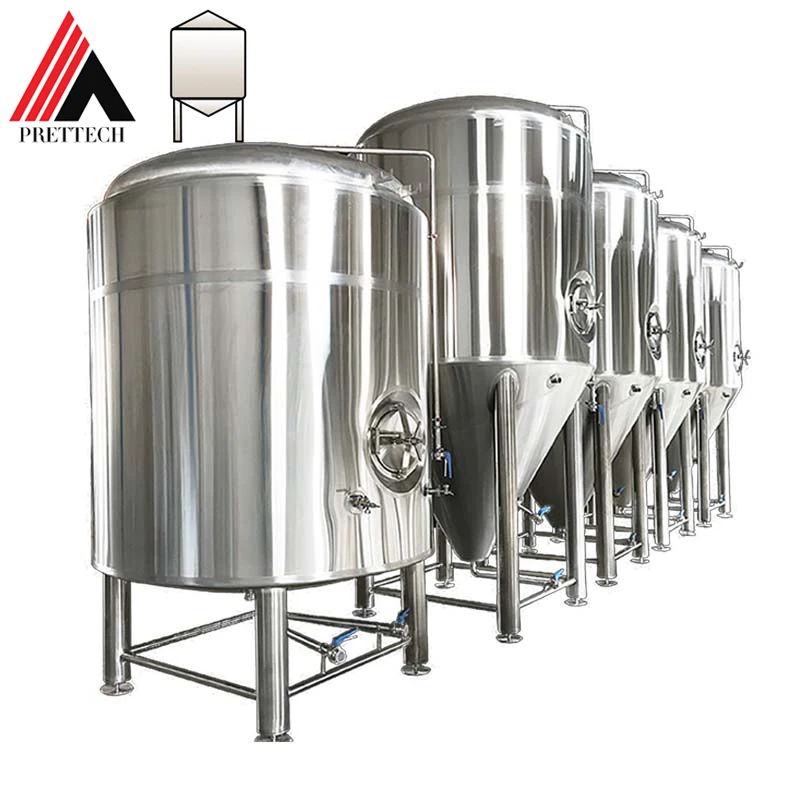

double wall bright Kombucha tank capacity 5000 liters BBT with dimple jacket
- Category: >>>
- Supplier: Jiangsu Pretank Process Co. Ltd
Share on (1601009246300):
Product Overview
Description
Product Introduction
Product Display

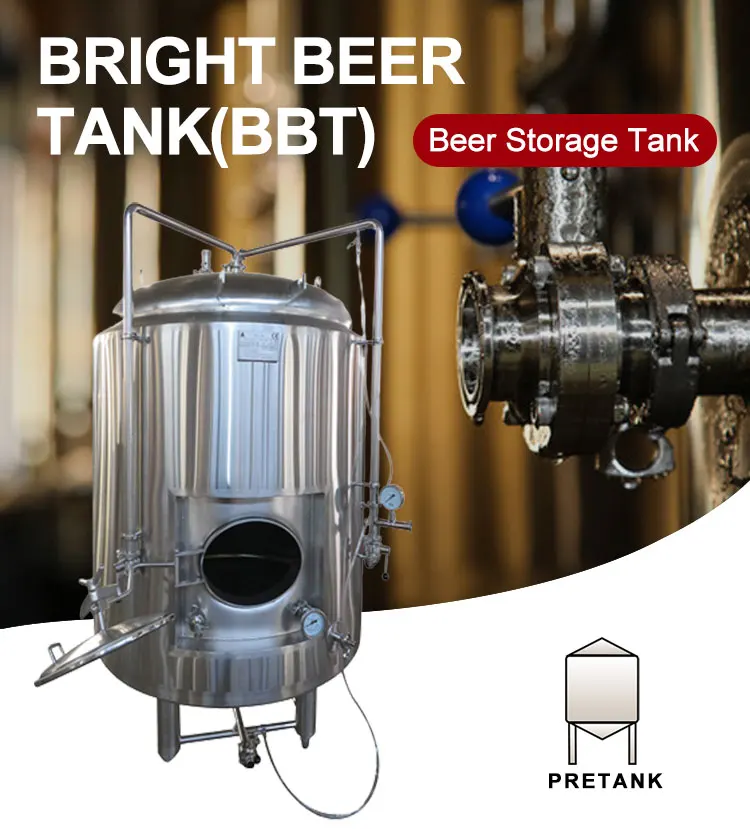

BRIGHT BEER
TANK (BBT)
Features
Bright beer tank capacity ranges from 100L to 300KL, with single wall or double walls, constructedby high quality of stainless steel 304, sanitary fabricated&polished，100% TIG welded. All of thebeer tanks are inspected seriously and pressuretested before delivery
Application

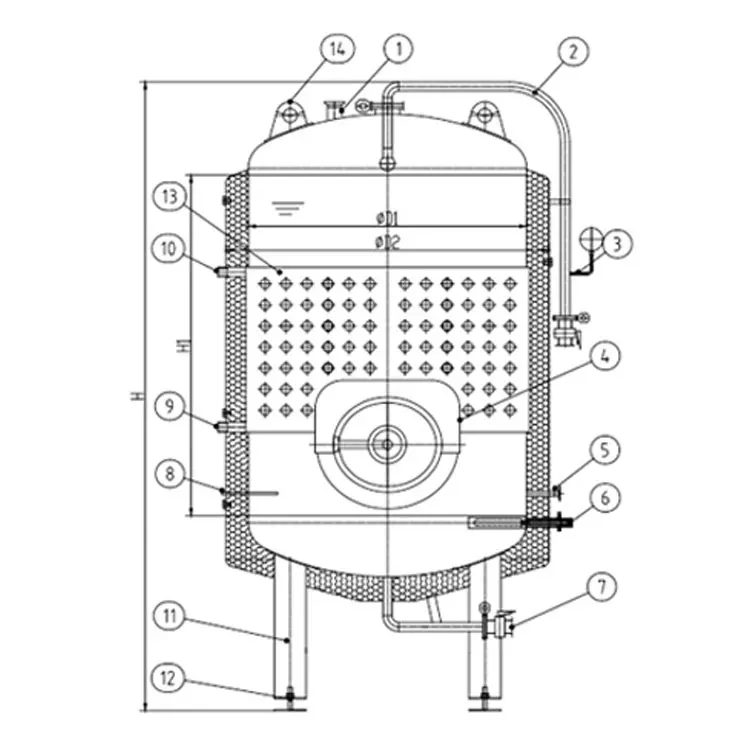

Configurations
• Material:SS304
• Finish: Exterior brushed, interior polished<0.4um,welds groundedsanitary
• Head space:25%
• Designing pressure: 0.2MPa, working pressure: 0.15MPa
• Dished top, conical bottom 60- 70 degree
• Dimple jacket on shell and bottom
• 4 legs with adjustable feet
• Elliptical manhole 450*350mm
• Outlet tube 2" with ferrule and
butterfly valve
• Temperature probe
• Glycol water inlet/outlet NPT1"
• Safety valve

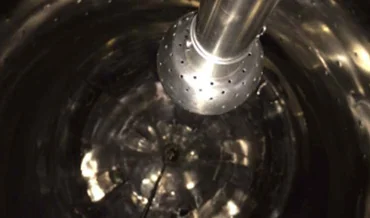

• CIP ball and tubes with ferrule

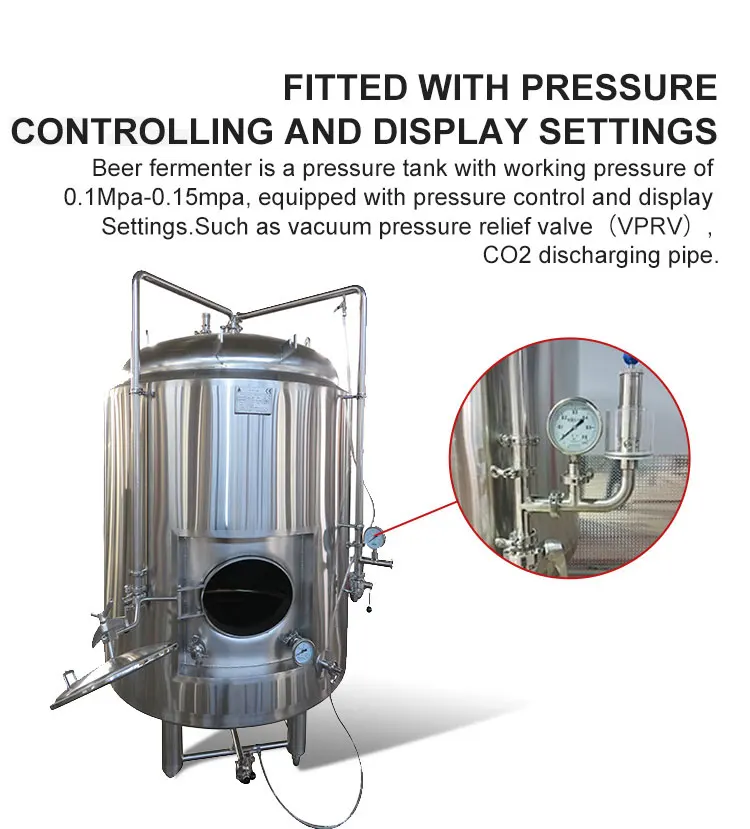

• Pressure vacuum relieve valve with pressure gauge and butterfly valve
• Carbonation stone
• Finish: Exterior brushed, interior polished<0.4um,welds groundedsanitary
• Head space:25%
• Designing pressure: 0.2MPa, working pressure: 0.15MPa
• Dished top, conical bottom 60- 70 degree
• Dimple jacket on shell and bottom
• 4 legs with adjustable feet
• Elliptical manhole 450*350mm
• Outlet tube 2" with ferrule and
butterfly valve
• Temperature probe
• Glycol water inlet/outlet NPT1"
• Safety valve
• CIP ball and tubes with ferrule
• Pressure vacuum relieve valve with pressure gauge and butterfly valve
• Carbonation stone
NetVolume | Diameter | Height | Legs | Gross Volume | ||||||
Internal Dia. | External Dia.. | Shell H | Total H | Diameter | piece | |||||
2BBL | 600 | 720 | 810 | 1600 | 76 | 3 | 2.48BBL | |||
3BBL | 750 | 910 | 810 | 1800 | 76 | 3 | 3.94BBL | |||
5BBL | 900 | 1050 | 915 | 2000 | 89 | 3 | 6.45BBL | |||
7BBL | 950 | 1100 | 1220 | 2270 | 89 | 3 | 9.10BBL | |||
10HL | 1000 | 1160 | 1220 | 2250 | 108 | 4 | 13.70HL | |||
10BBL | 1050 | 1210 | 1400 | 3100 | 108 | 4 | 13.00BBL | |||
15HL | 1250 | 1460 | 1219 | 2400 | 114 | 4 | 20.00HL | |||
15BBL | 1250 | 1360 | 135 | 2400 | 114 | 4 | 18.10BBL | |||
20HL | 1400 | 1560 | 1220 | 2400 | 114 | 4 | 25.00HL | |||
20BBL | 1400 | 1560 | 1500 | 2650 | 114 | 4 | 26.32BBL | |||
30HL | 1400 | 1560 | 1830 | 3860 | 114 | 4 | 37.50HL | |||
30BBL | 1600 | 1760 | 1700 | 3100 | 133 | 4 | 37.60BBL | |||
40HL | 1600 | 1760 | 2000 | 3500 | 133 | 4 | 49.20HL | |||
40BBL | 1600 | 1760 | 2250 | 3545 | 133 | 4 | 47.80BBL | |||
50HL | 1800 | 1960 | 1800 | 3050 | 159 | 4 | 5800HL | |||
50BBL | 1900 | 2060 | 2250 | 3800 | 159 | 4 | 65.72BBL | |||
60BBL | 2000 | 2200 | 2200 | 4915 | 159 | 4 | 76.65BBL | |||
80BBL | 2000 | 2160 | 3200 | 4855 | 168 | 4 | 98.00BBL | |||
90BBL | 2000 | 2160 | 3500 | 5050 | 168 | 4 | 108.0BBL | |||
100BBL | 2000 | 2160 | 3660 | 5400 | 219 | 4 | 130.3BBL | |||
120BBL | 2100 | 2260 | 4200 | 5700 | 219 | 4 | 145.3BBL | |||
All of tanks have the characteristics as below.
1.Made by sanitary stainless steel AlSI 304 orAISI316L.
2.Exterior brushed finish for beautiful looking andeasy cleaning, interior 2B finish or polished.
3.Cylindricals are butt welded onto the ends andports, easy for washing.
4.Internal welds are grounded and acid passivation.
5.All accessories have high quality, butterflyvalvehave multi-position to adjust liquid flow, sanitaryEPDM sealing gasket is wear proof.
For other dimension and volumes please inquire individually
Why Choose Us
About Us

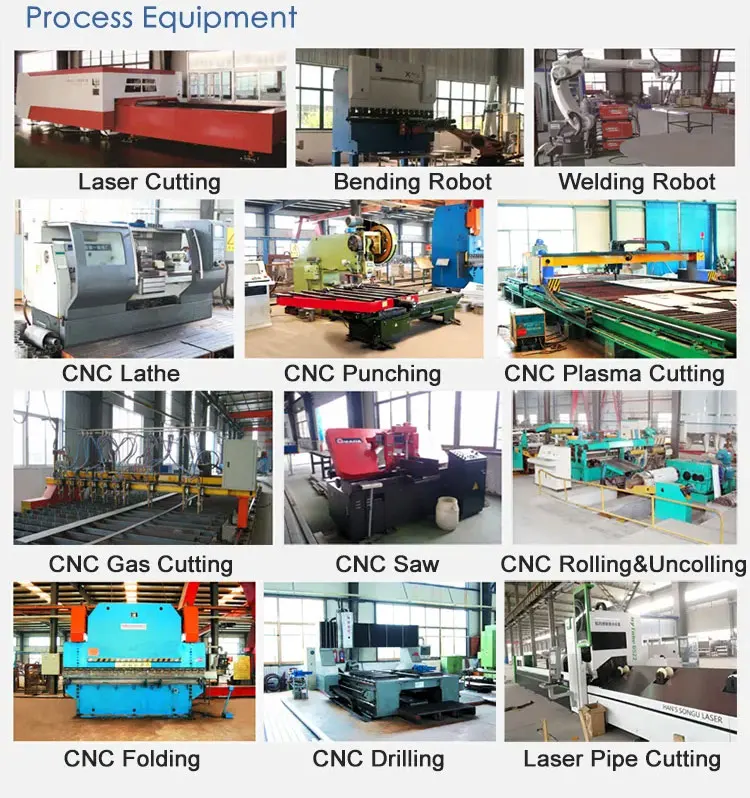

Jiangsu Pretank Process CoLtd(called PRT below) has been in designing and fabricatingsanitary stainless steel tanks for 20s years, we have the most advantage technology R& D capability in the industry, adopt PDM, 3D and FEM to design vessels according to standard ofGB,API,UL,AS and NZS, and provide relative certificates, Laser and auto. Machines are used forimproving quality and shorten construction period,all welders are certified, every PRT'stanks aretested and inspected strictly before delivery,all of such works make sure the tanks are made infirst quality and delivered to the clients in perfect conditions.
The over engineered and heavy-duty made stainless steel vessels are used to solve materialtransferring, boiling, mashing, fermenting, processing, mixing and distilling in following industries
1.Food& Beverage,inclding all kinds of juice(wine)liquir, spirits and other non-alcohol drinks.
2.Chemicals& Daily chemicals(shampoo,soap,detergent)
3.Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4.Pharmaceuticals and biological products
5.Environment protection, such as water treatmen.
6.Flavorings, such as vinegar, soy saucev
7.Low-pressure vessel, thermal oil, paper making equipment.
8.Oil& Fats
2.Chemicals& Daily chemicals(shampoo,soap,detergent)
3.Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4.Pharmaceuticals and biological products
5.Environment protection, such as water treatmen.
6.Flavorings, such as vinegar, soy saucev
7.Low-pressure vessel, thermal oil, paper making equipment.
8.Oil& Fats

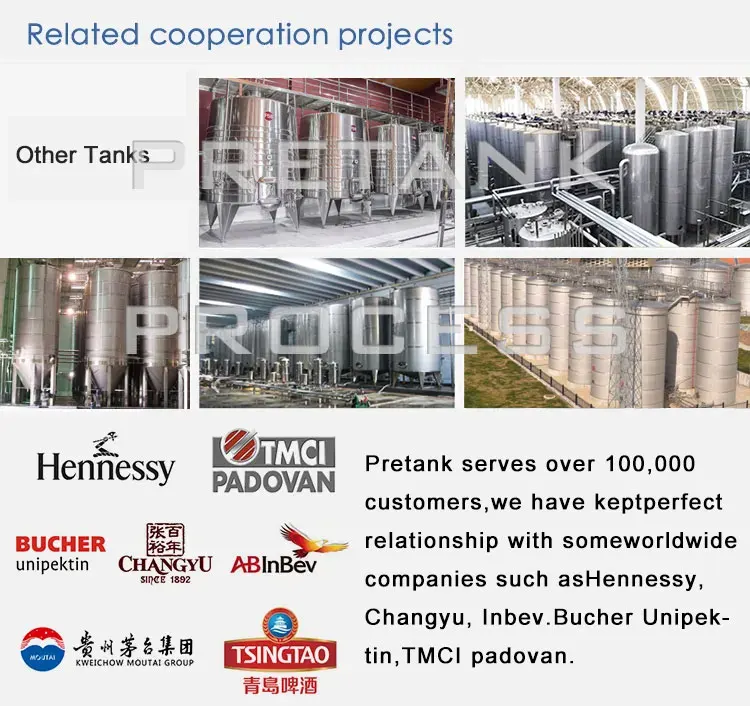

PRT have served for 100, 000 customers home and abroad, the sanitary stainless steel tanks areexported to over 100 countries of Asia, Europe, America, Africa, our excellent product quality andservices get most favorable praise and notices, the whole of Prettech group wish to offer furtherconstructive solutions for fluid processing.

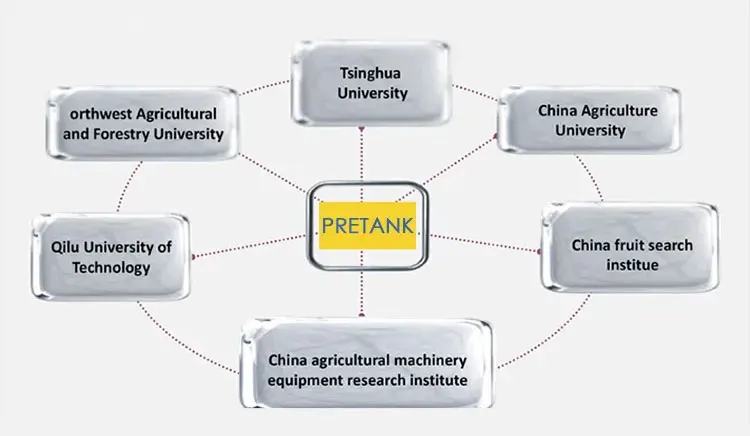

Strategy R&D Union
