No Limit Free Cutting 12V 24V Dotless Cob Led Strip For No Darkness Aluminum Profile Light
- Category: >>>
- Supplier: Shenzhen M-Lighting Technology Co. Ltd.
Share on (1601009247590):
Product Overview
Description
Specification

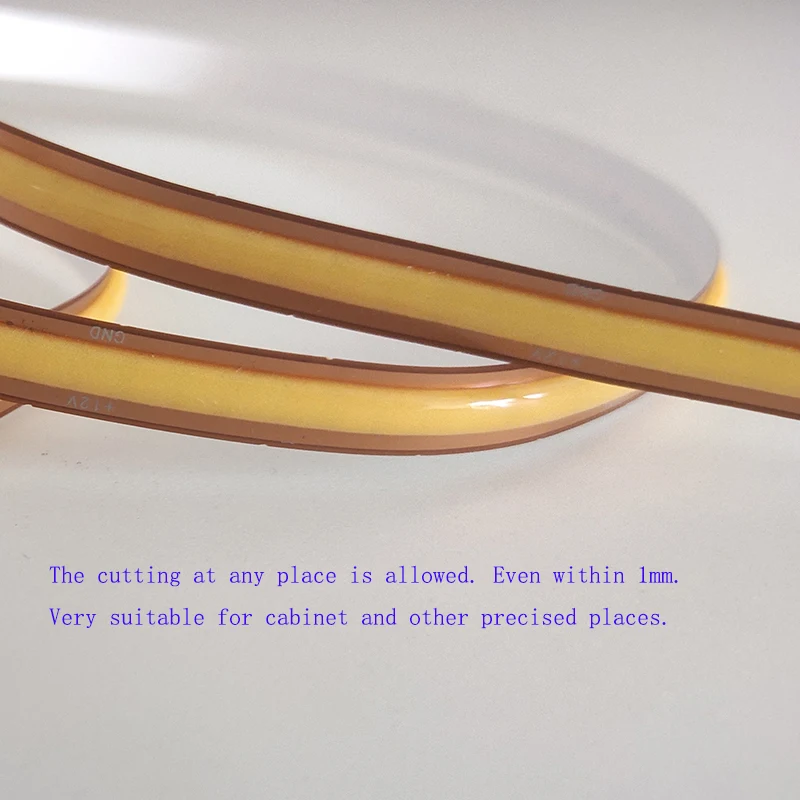

Free Cutting Cob Led Strip

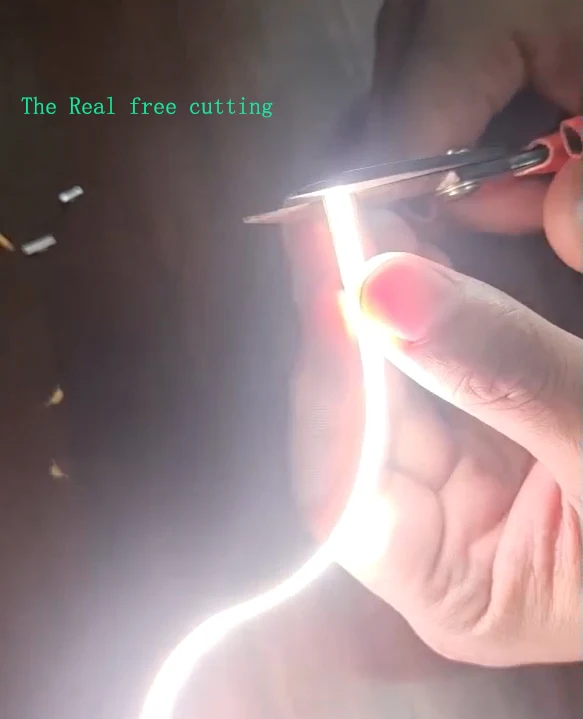

For some places people need the strips to be very precised length. It is not 1cm or 2cm cuttable, it is any point cuttable. Even your cutting length is less than 1mm it is no problem. We bring this real free cutting cob led strip to fit this demand. And it is dotless to provide very smooth lighting effect.
Product Name | COB Led Strip Light |
Model No. | LR9001 (Free Cutting) |
LED Qty(pcs/m) | 528 |
Voltage | 12V |
Power | 13W/m |
Emitted colors | 3000K/4000K/6000K Customize: Red/Green/Blue/Yellow/Purple/Pink/Ice Blue/Orange |
Cutting Size | any length |
Ra | 90 |
PCB Width | 8mm |
IP Rating | IP20/IP65/IP67/IP68 |
Bean Angel | 180° |
Certification | CE/RoHS |
Product Description

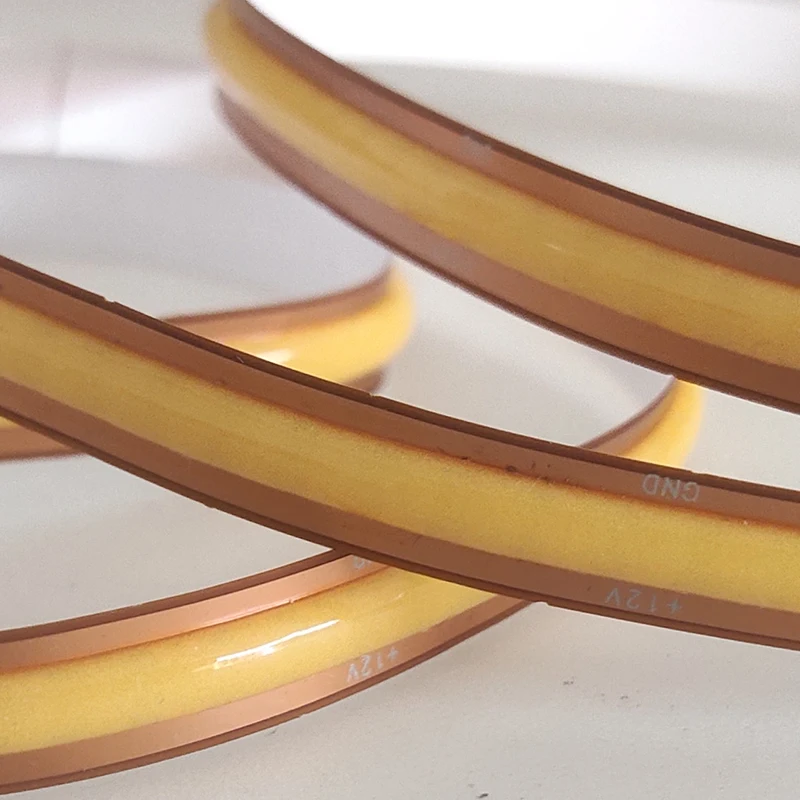

Flexible COB LED strip, also called FOB LED Strip, It took the flip chip technical to die-bond the chip directly on the FPC board and then cover it by phosphor & silicone gel.
Compare with traditional SMD led strip, there are several main advantage for COB led strip:
1) Smooth light(no light dots) and bigger view angle(180 degree)
2)The filip-chip could be die-bond on the FPC directly which makes the strips more flexible and with better heat radiation.
3) For the Filip-chip the electrical connection is surface(not point as normal-chip), it can stand higher current impact. And it can stand higher pushing force(2000g compare to 10g).
Easy Connection

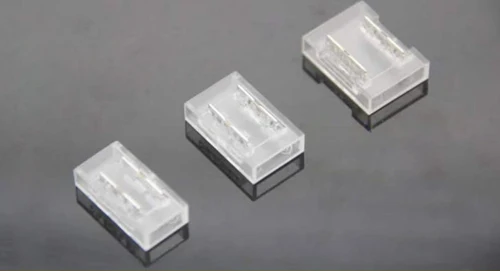

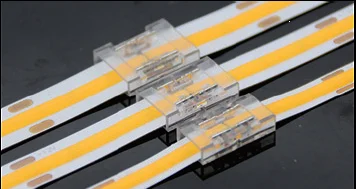

Cuttable and rejoinable with the transparent solder-free quick connector for COB led strip.There are 2pins 3pins 4pins Solderless Connectors for 6mm 8mm 10mm Single color RGB CCT Cob Led Strips. Please kindly click for more information.
Application

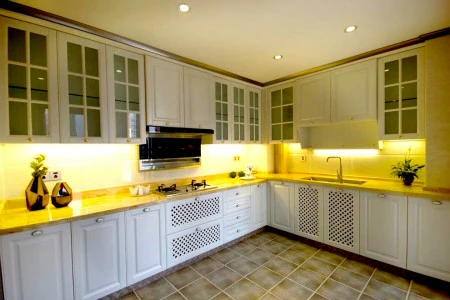

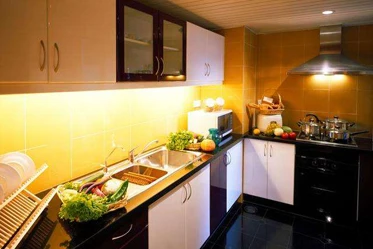

Just use it to replace the normal SMD led strip as a lighting source. No lighting spots and high brightness can provide better wall washing effect.
Application

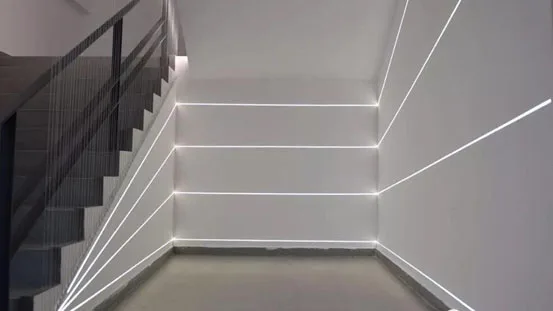

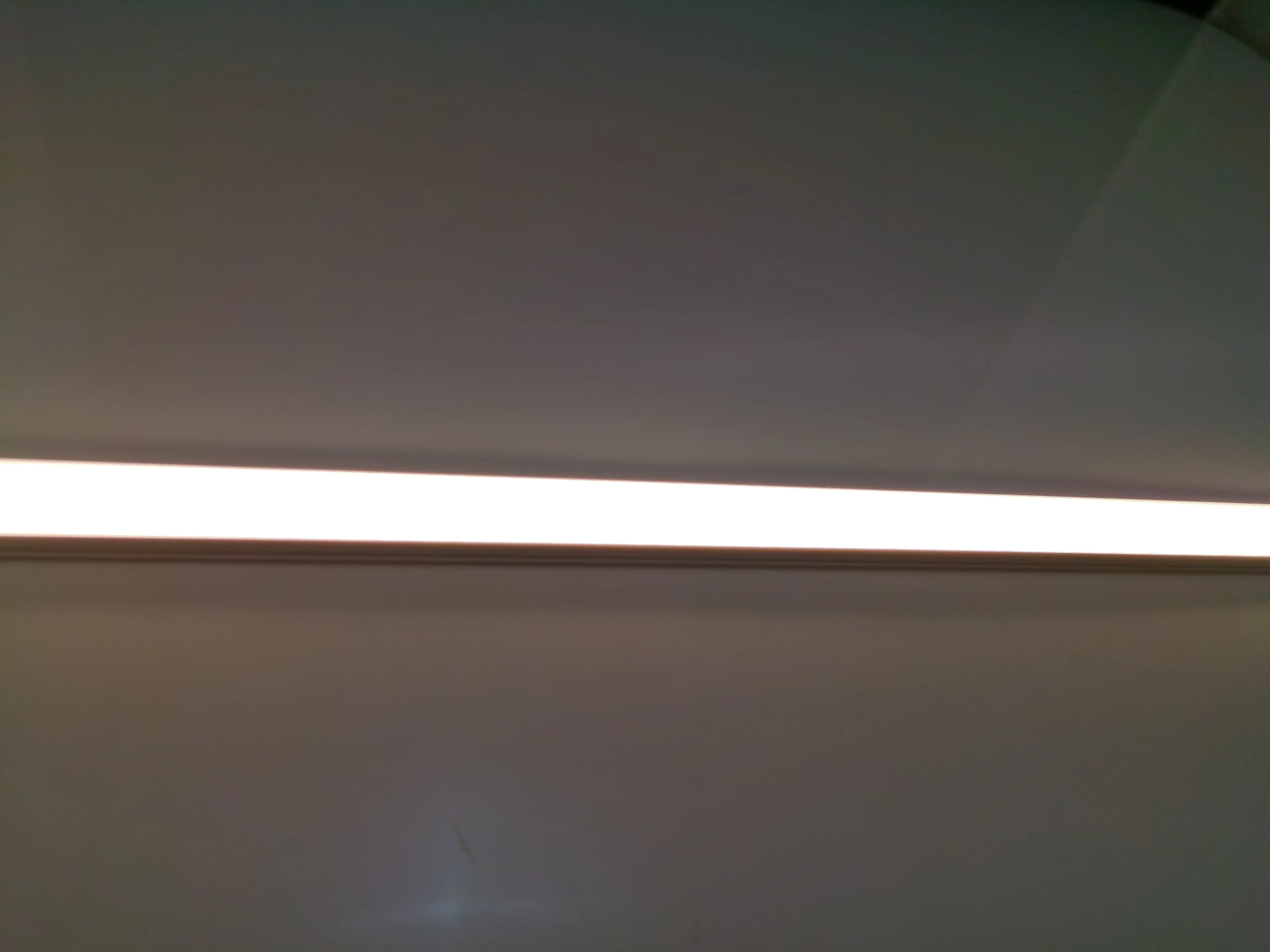

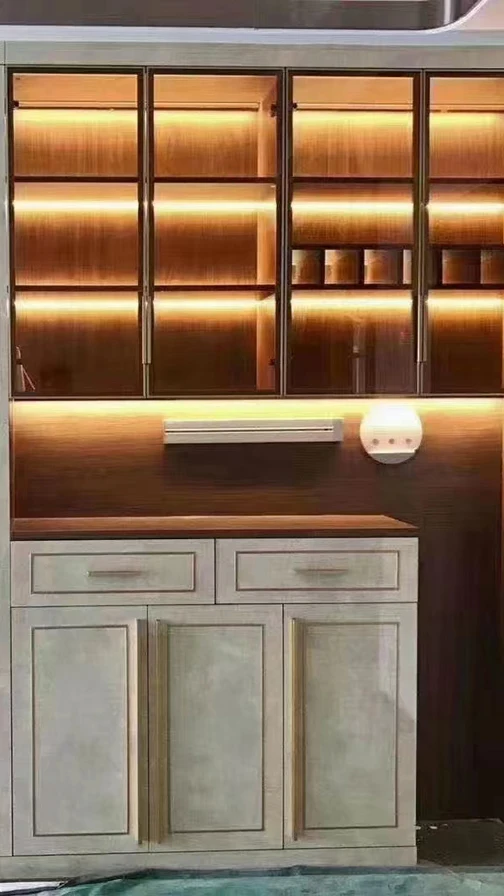

Put the cob strip into the led profile. No dots can be saw even in very thin&narrow profile.
Application

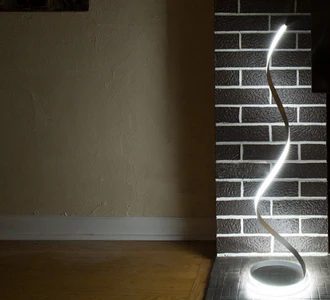

For special bendable led profile application. The bendable led profiles are very thin in which the normal smd led strip can be saw the light dots obviously. Only the cob strips can solve this problem.
Packing & Delivery
5m Rolled with plastic shell and then in anti Static Bag
5m,10m and 15m package (16*16*5cm)
300m per box(58*24*28cm)
By DHL,Fedex,UPS,TNT | 4~7days | Fast |
Standard shipment | 10~15days | Economical |
By air | 7~14days | For goods above 100kgs |
By sea | Above 20days | For bulk shipment |
Company Profile
Shenzhen M-Lighting Co. Ltd i a high-tech enterprise, founded in 2008, which is professionally engaged in researching, developing and manufacturing energy saving products, mainly specialize in led lighting products. The factory is located in ShenZhen City of Guangdong province (factory area about 3,000sqm) which started the production since 2008. We cooperated assisting with many overseas importers and manufacturers to increase their market shares.
Certificates and Patents
FAQ
Q1 How about your product's quality A: We use the big chip which is different with the cheap small chip, to make sure good quality.
Q2: Can I take samples?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FEDEX, TNT (3-7 working days), air or sea
