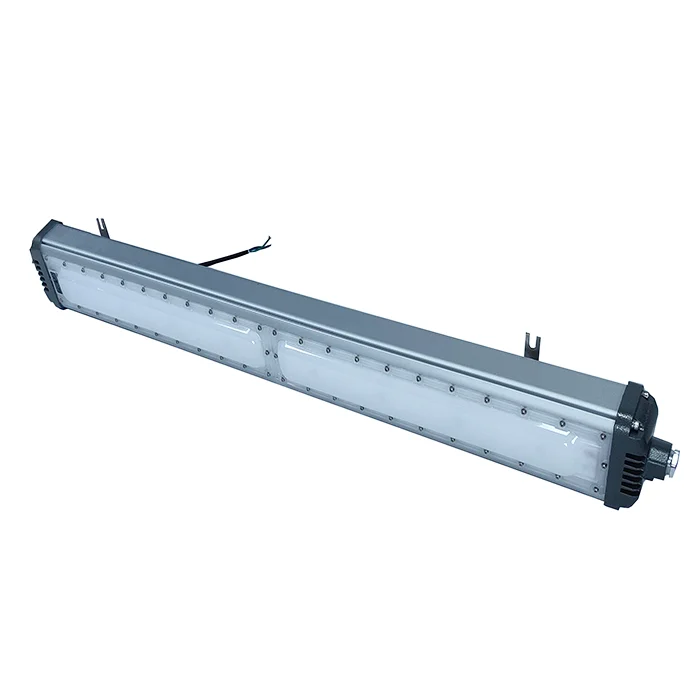

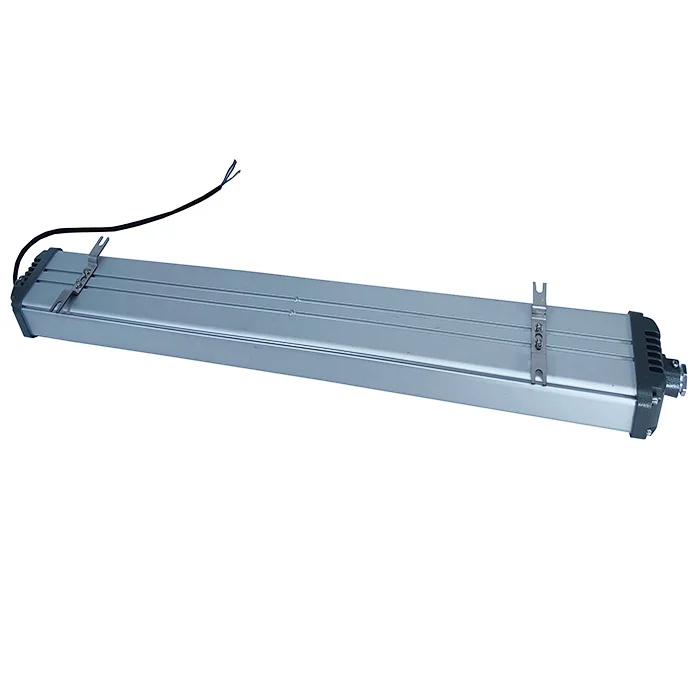

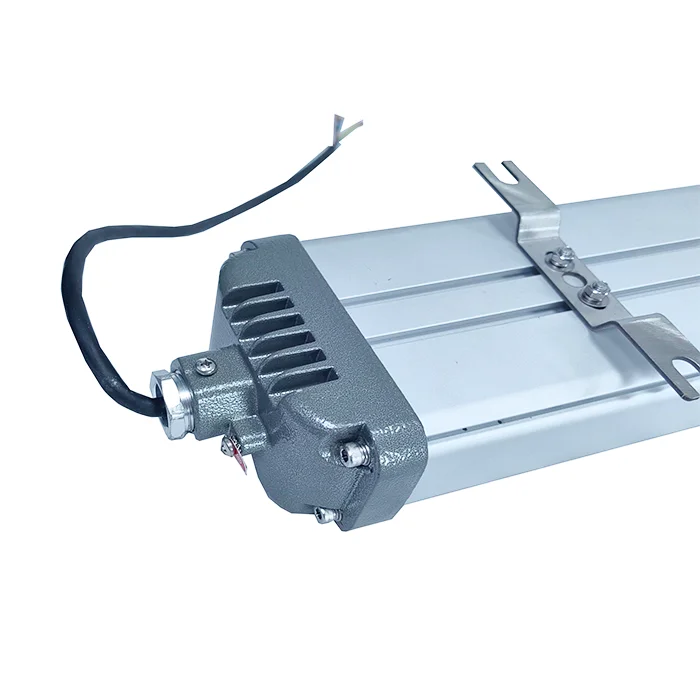

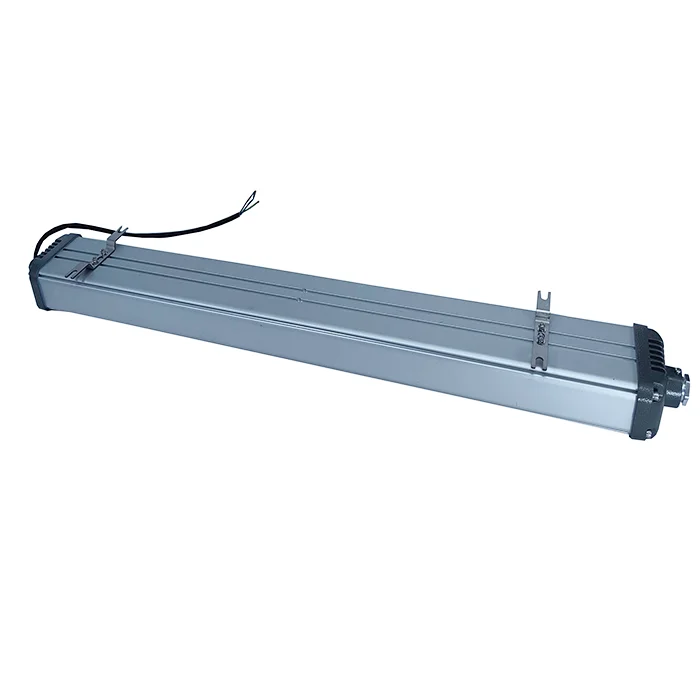

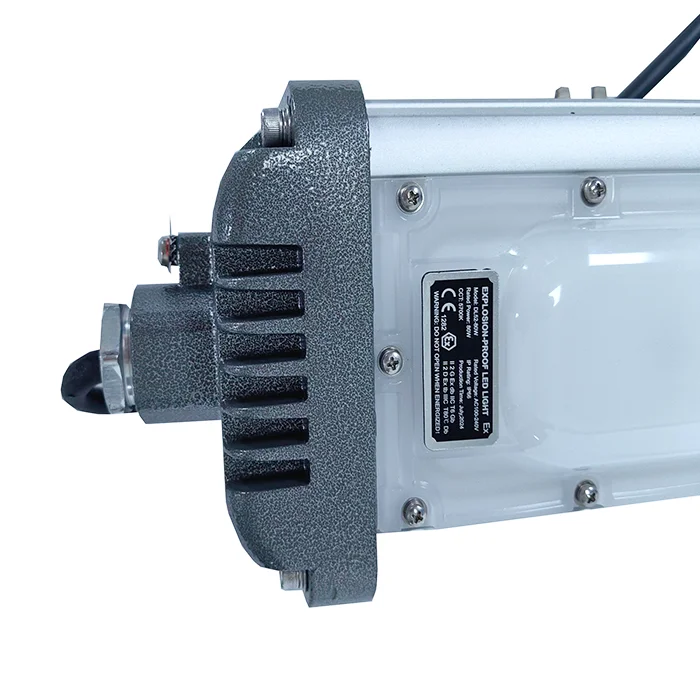

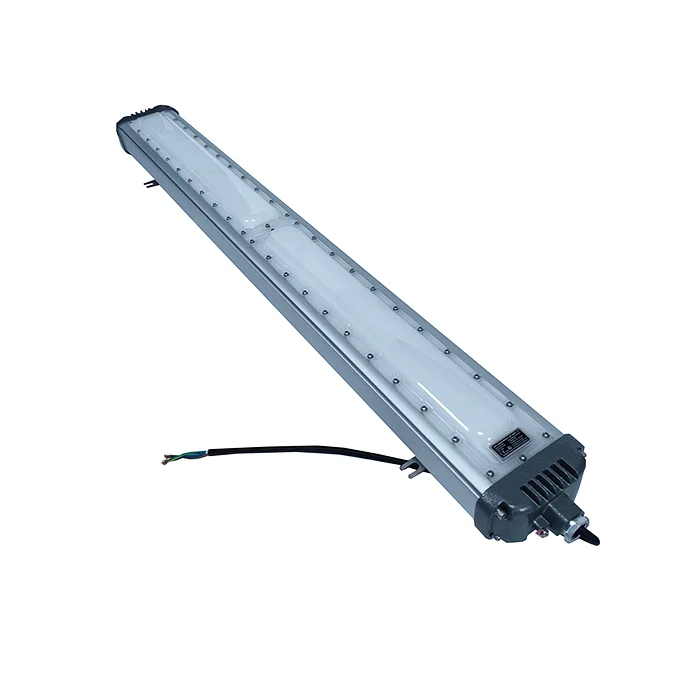

DL52 Zone 1 and Zone 2 LED explosion proof linear light 40~120W explosion proof led light

DL52 Zone 1 and Zone 2 LED explosion proof linear light 40~120W explosion proof led light is suitable for Zone 1 and zone 2 of explosive gas environment, Zone IIA, IIB, IIC, similar explosive gas environment, Zone 21 and zone 22 of combustible dust environment; And T1-T6(T5) group temperature group


Product Paramenters


Model number
DL52
Power
40W,60W,80W,100W,120W
Frequency
50/60Hz
Rated Voltage
AC110~240V
Light Source
Bridgelux 2835
Light efficiency
120 lumen /w
Operating Temperature
-20~40℃
Power factor
>0.95PF
IP Rating(IP):
IP66
Anti-corrosion grade
WF2
Ex mark
ExdIICT6
Correlate Color Temperature
3000-6500K
Size (40w and 60w)
670*100*132mm
Size (80w,100w and 120w)
1143*125*77mm
Weight(40W and 60W)
3.2kg
Weight(80W,100W and 120w)
4.9kg


Details Images






Product advantages


1 .The light source uses LED light-emitting chip, super-high light efficiency, the average service life of up to 100,000 hours, the power supply uses MeanWell the latest wide voltage technology processing, with constant current output, short Circuit, over-voltage protection and other functions. Heat dissipation design: the radiator uses the integral type profile extrusion molding, the structure is tight, has the fine heat conduction and the heat dissipation performance.
2 .It is designed strictly according to the national explosion-proof standard GB3836, and its explosion-proof performance is reliable. It can reach and exceed the national explosion-proof standard grade and design requirements
3 .Using high-intensity optical PC material, anti-corrosion and anti-impact, light transmittance can reach 95% ~ 98% , uniform soft light irradiation, anti-glare
4 The surface of the lamp body radiator is treated by anodic oxidation, the die-casting parts are treated by high-voltage electrostatic spraying, the screw fasteners are made of stainless steel, with high precision processing technology, with high anti-corrosion, high water-proof, high dust-proof and other characteristics, to meet the lamp in all kinds of harsh environment can work normally for a long time.
5. According to the needs of the ceiling, suction wall, bending rod and other installation methods, to meet the low ceiling, platform, high ceiling, high shed and other places as fixed lighting use, the products are made of aseismic material and shock absorption structure, especially suitable for various high frequency and strong vibration places
6.The appearance follows the family chemical industry elements and the structure perfect fusion, the design is exquisite, beautiful and generous, uses the hammer gray and the metal silver color matching, suits collocates each kind of factory area environment

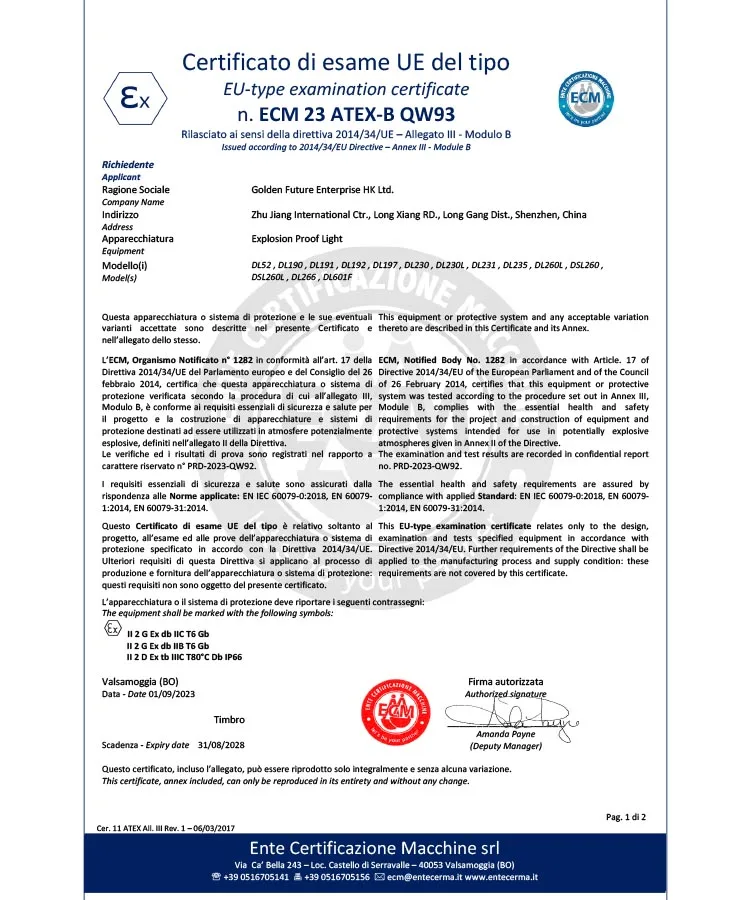

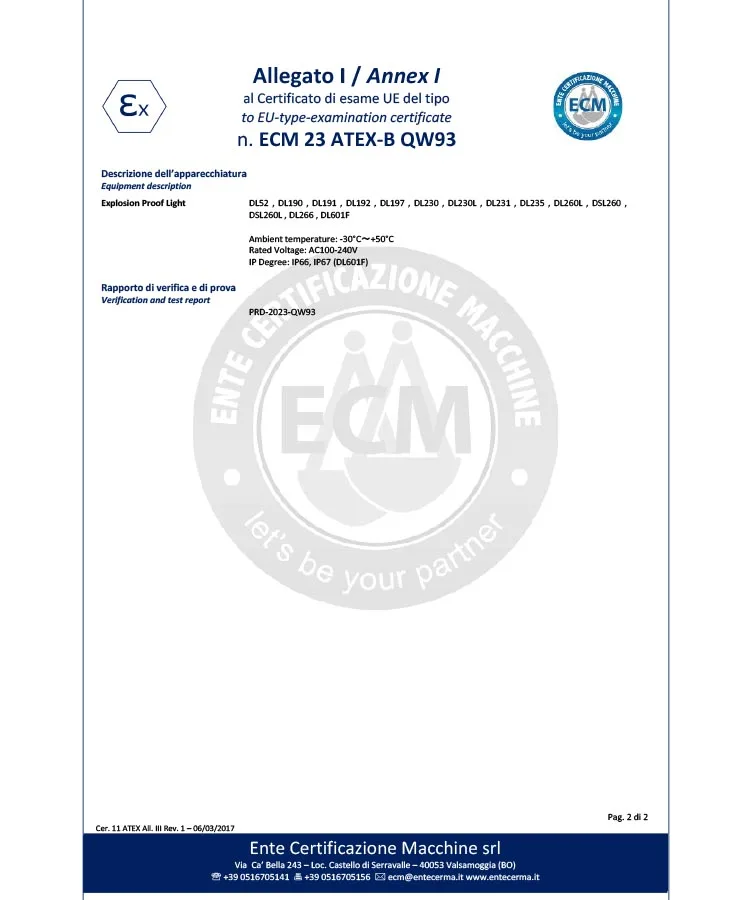

Certification
