SZ HCS05 EDM surfacing tungsten bar harden machine with mould soldering machine

Product Overview

Description

SZ-HCS05 EDM surfacing tungsten bar harden machine with mould soldering machine

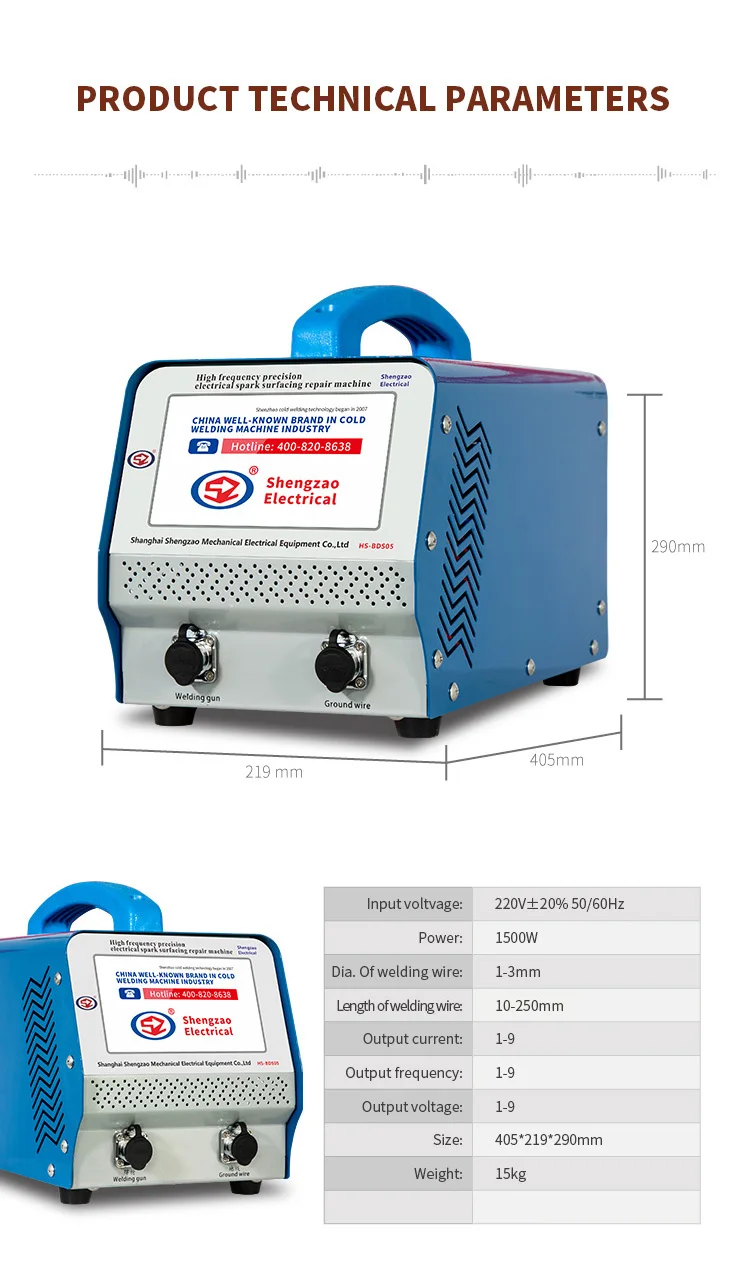

PARAMETERS

1.Model:SZ-HCS05        2.Max Power: 1500W;

3.Input electricity supply:Single phase AC220V±20% 50/60Hz

4.Workable Electrode diameter:1mm-3mm

5.Workable Electrode length:10mm-250mm;

6.Pre-stored channels: 6 quick selection channels

7.Output Current:9 grade adjustable

8.Output frequency: 9 grade adjustable

9.Output voltage: 9 grade adjustable

10.Dimension:420mm*220mm*290mm

11.Net weight:15KGS



PRODUCT OVERVIEW:

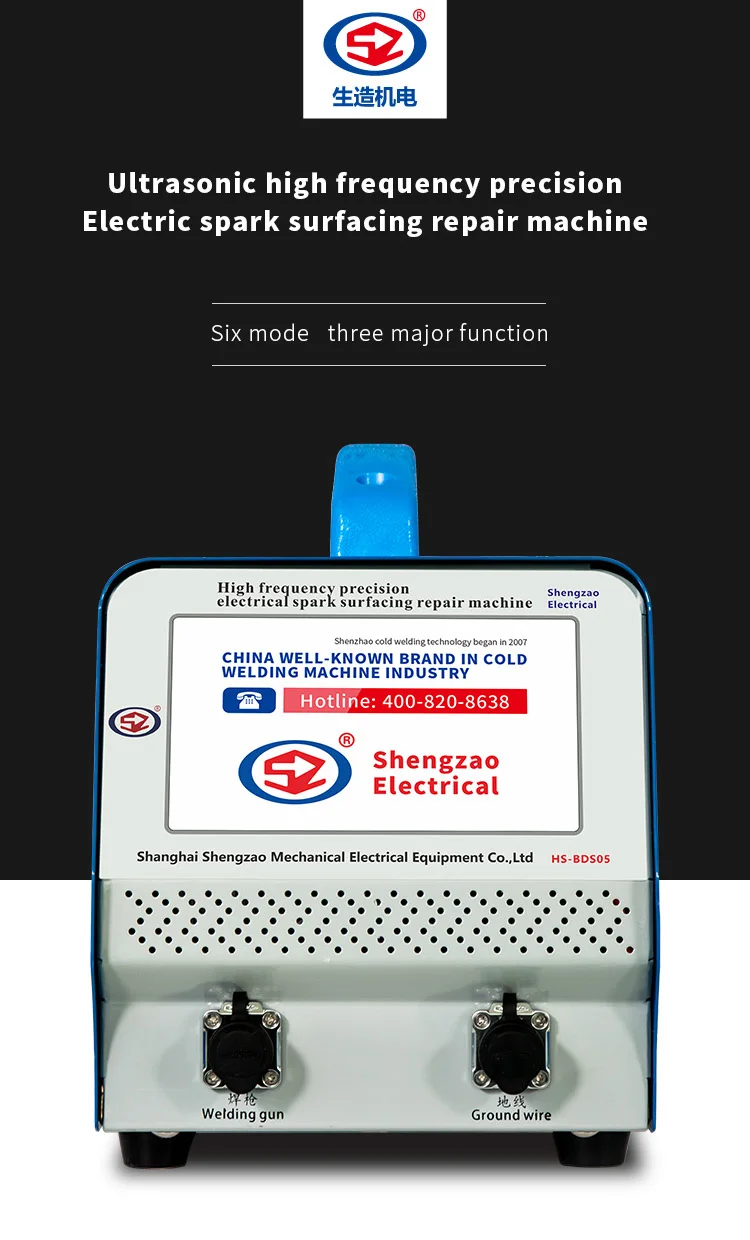

SZ-HCS05 high frequency precision EDM surfacing repair machine is a new type of cold welder integrating a number of technologies. The application of ultrasonic technology on the basis of EDM surfacing not only reduces the dilution rate, but also greatly improves the melting rate. Improve the welding nozzle fixing technology, expand the length of welding material. The operation part adopts a 7-inch touch screen, the liquid crystal display operation is intuitive, and the preset six groups of fast selection channels greatly improve the work efficiency and strengthen the repair effect.



PRINCIPLE OF THIS MACHINE:When the welding material with positive charge discharges the work pieces with negative charge, a small amount of welding material will be transferred to the work pieces, the machine uses a new generation of ultrasonic high frequency vibration to achieve repeated discharge transfer, so as to surfacing the welding material to the position of the workpiece that needs to be repaired to complete the repair of the defect.



MAIN CHARATERISTIC

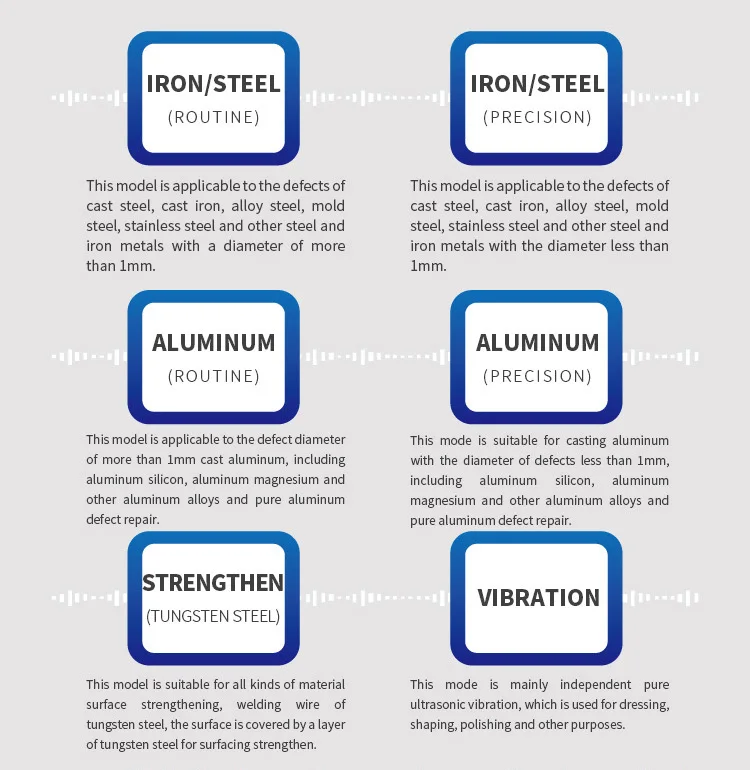

Full LCD touch panel with quick-select channel type display. Fast track types are: iron/steel (conventional); Iron/steel (precision); Aluminum (conventional); Aluminum (precision); Reinforced (tungsten steel); Vibration.

Note: The value corresponding to the quick selection key is the more reasonable repair power of various materials. If the corresponding material has particularity, the "frequency", "current" and "voltage" can be appropriately increased or decreased to achieve the ideal repair effect.

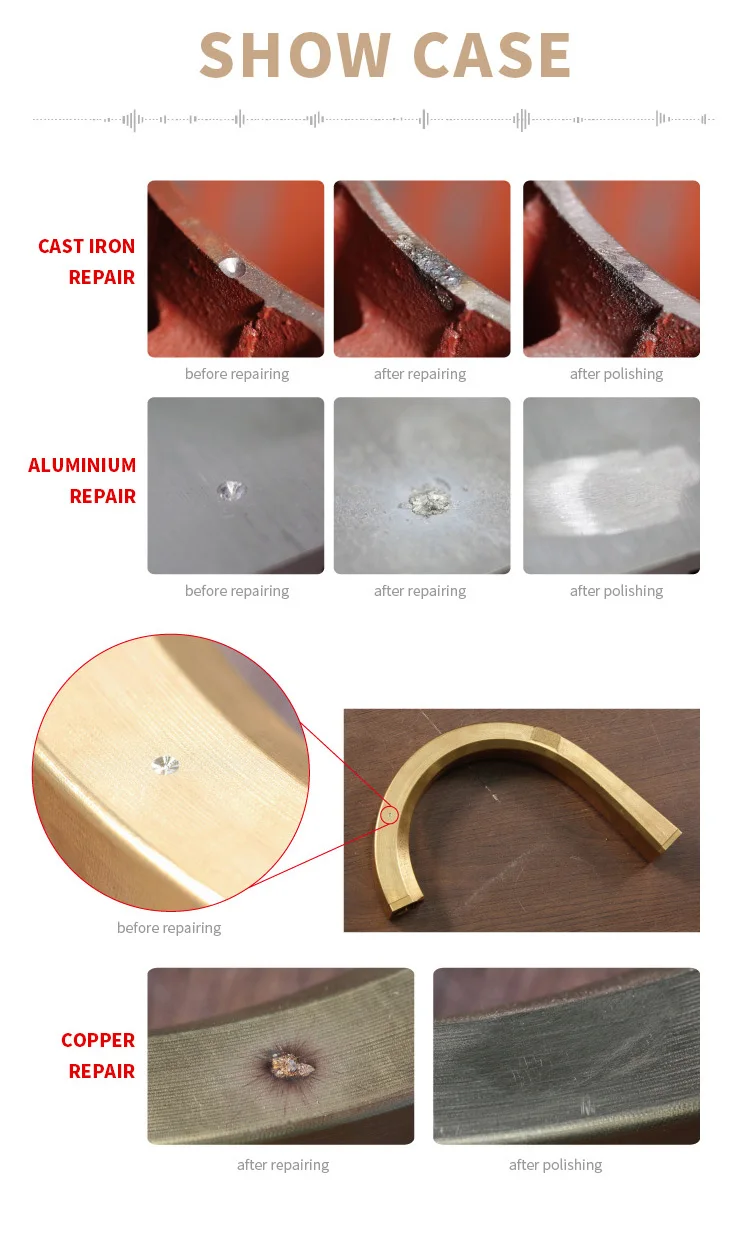

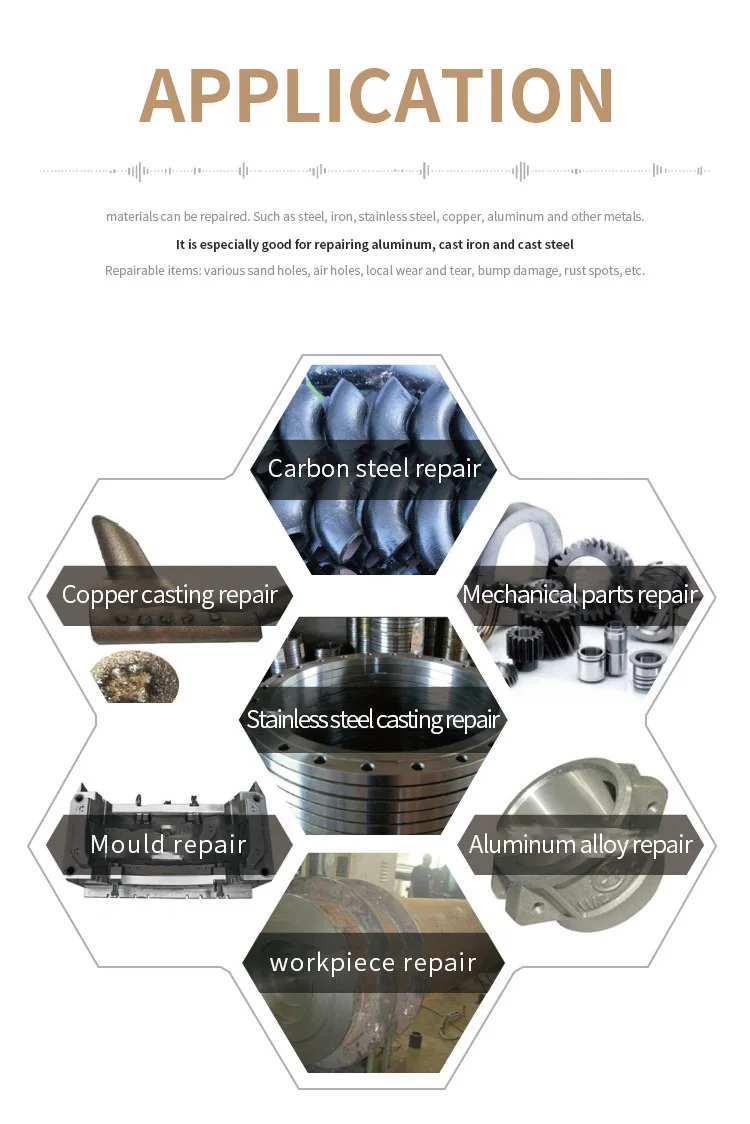

SCOPE OF APPLICATION: This machine can repair all kinds of metal. Such as steel, iron, stainless steel, copper, aluminum and other metals. The repair effect on aluminum, cast iron and cast steel is particularly good. Repairable items: various sand holes, pores, local wear, bump damage, rust spots, etc.

Core technical advantages:

1. New surfacing technology, no argon can also complete the surfacing welding, more energy saving, more convenient.

2. With more than 20,000 ultrasonic vibrations per second to drive the EDM surfacing process, the repair effect is better and the speed is faster.

3. Small heat and no stress during surfacing welding. After repair, the work pieces does not bite, no annealing, no deformation.

4. Wide range of applications, all kinds of steel (cast iron, cast steel), aluminum (cast aluminum) can be repaired, can also be used for cemented carbide surface strengthening.

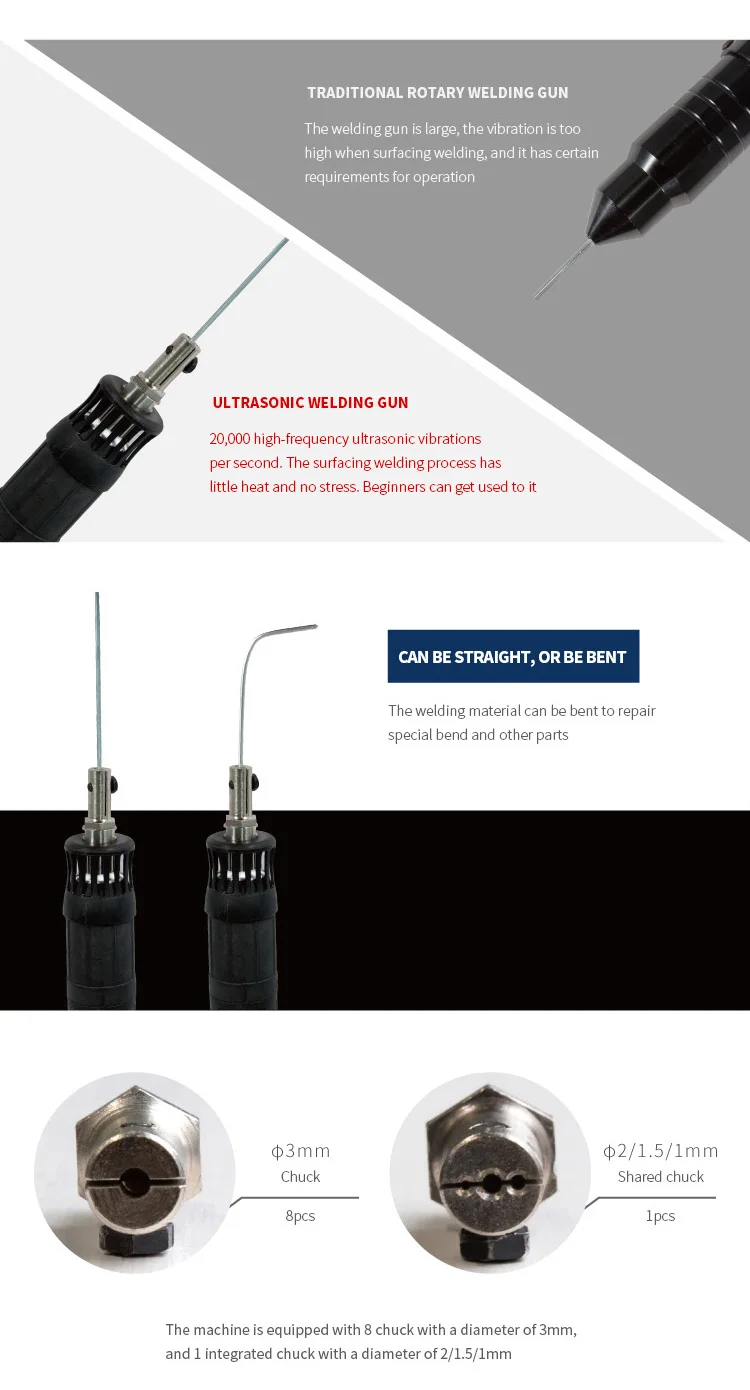

5. The length of solder from 10MM-250MM can be used normally, and the welding material can also be bent to repair special bends and other parts.

6. Easy to operate, six preset channels, novices can also quickly master repair technology.
