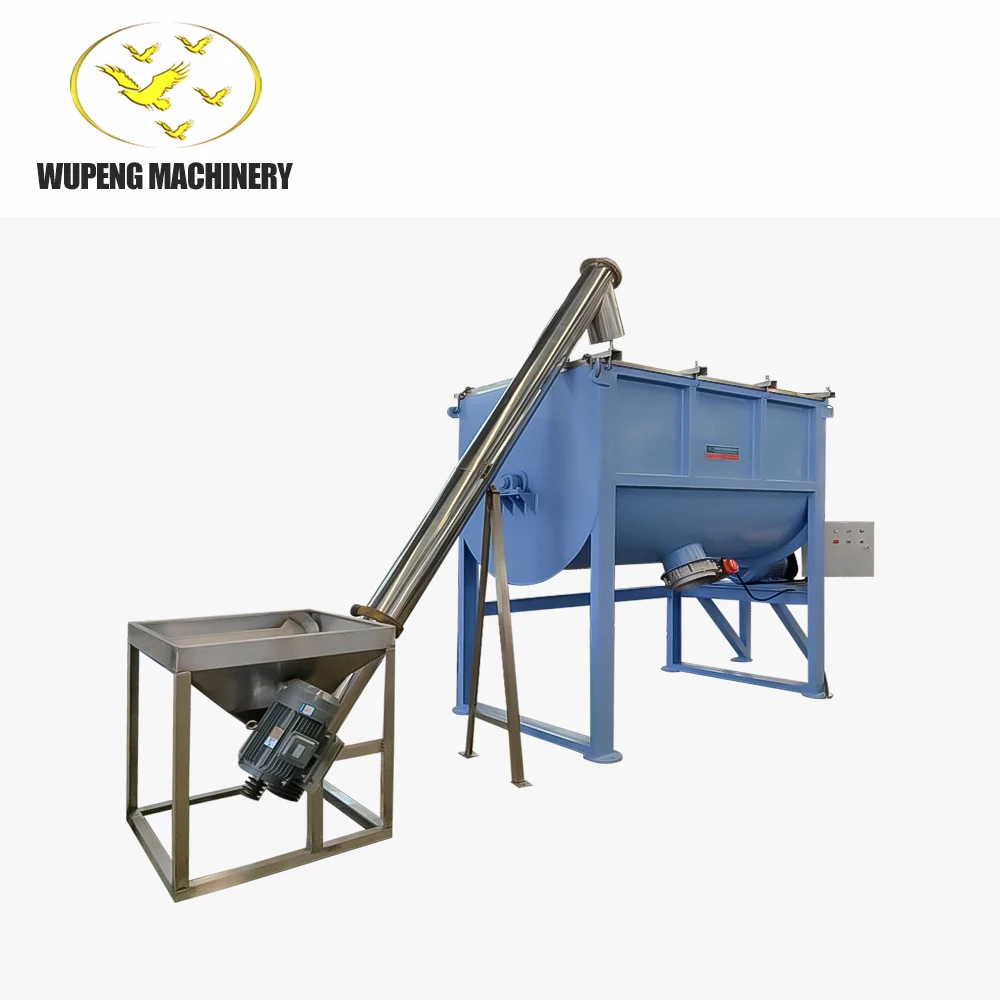

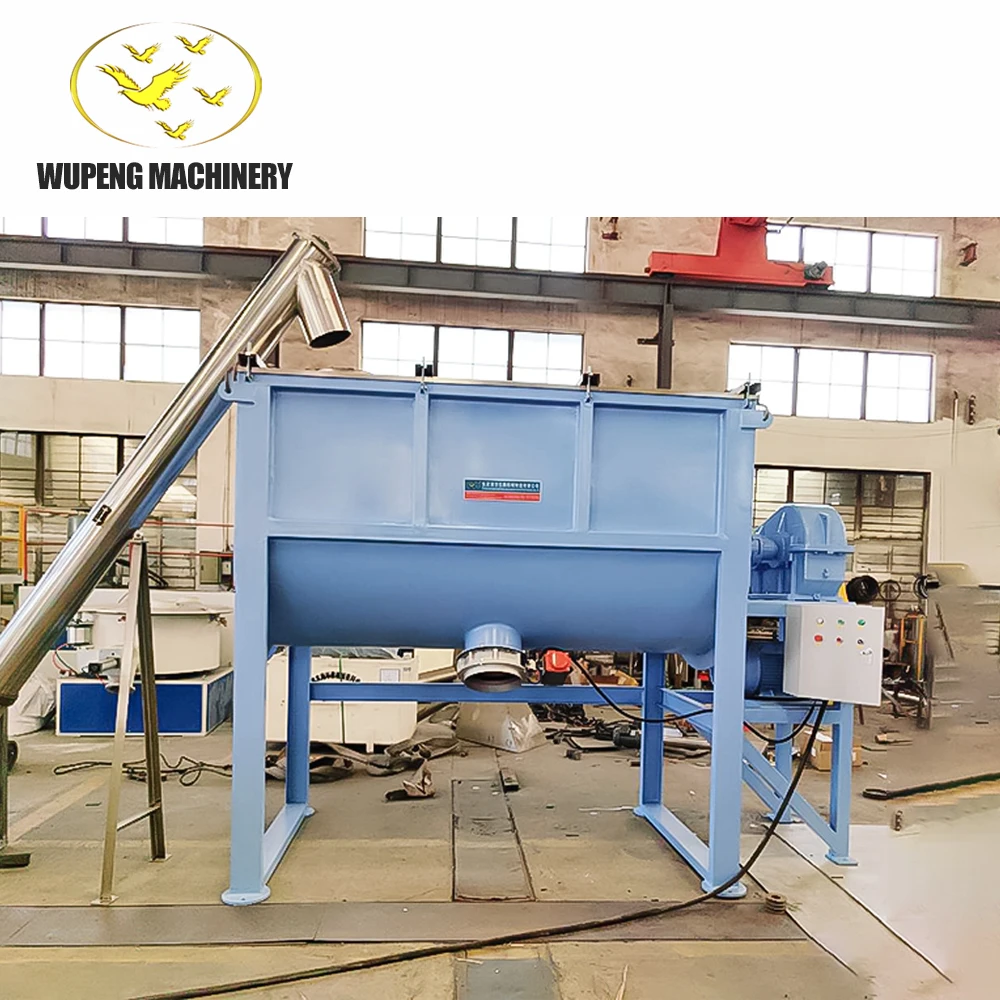

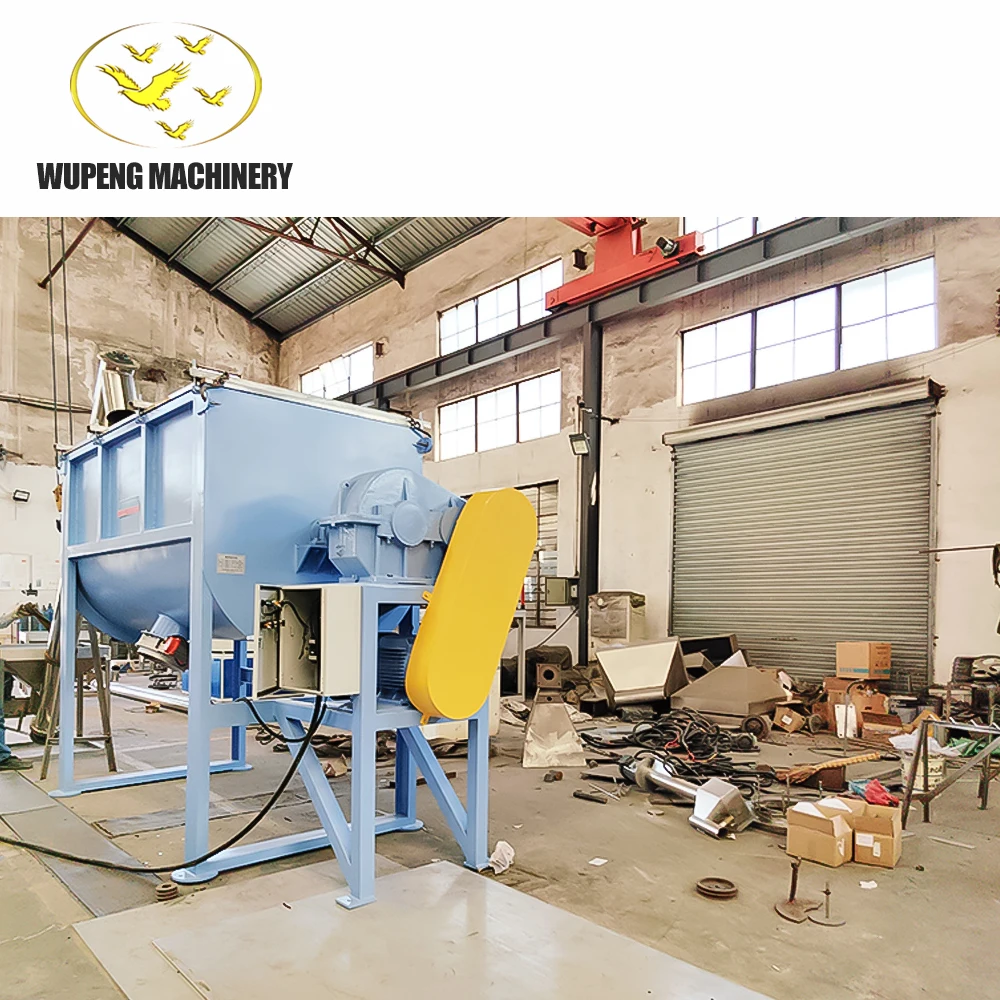

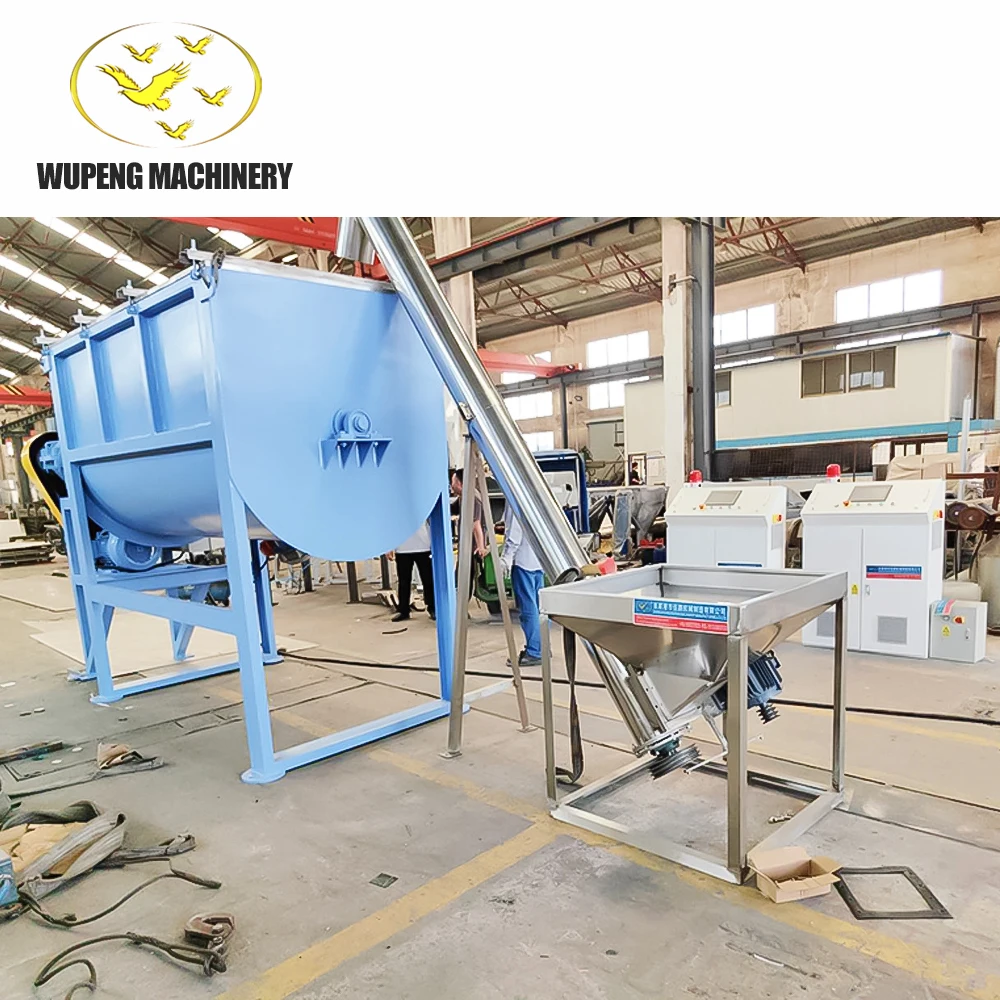

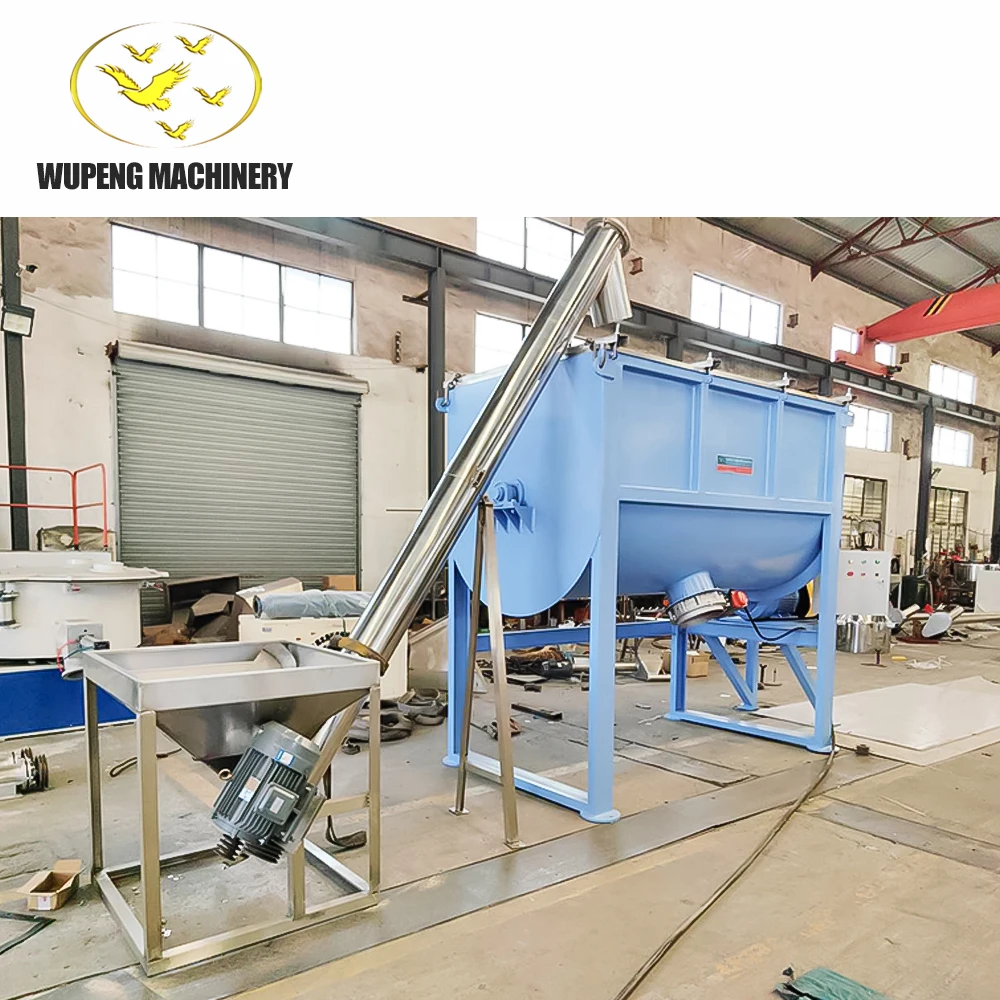

High Speed Frequency Mixing Machine Plastic Granule Particles Blender with Automatic Feeding Machine
- Category: >>>
- Supplier: Zhangjiagang Wupeng Machinery Manufacturing Co. Ltd.
Share on (1601009328904):
Product Overview
Description
Products Description

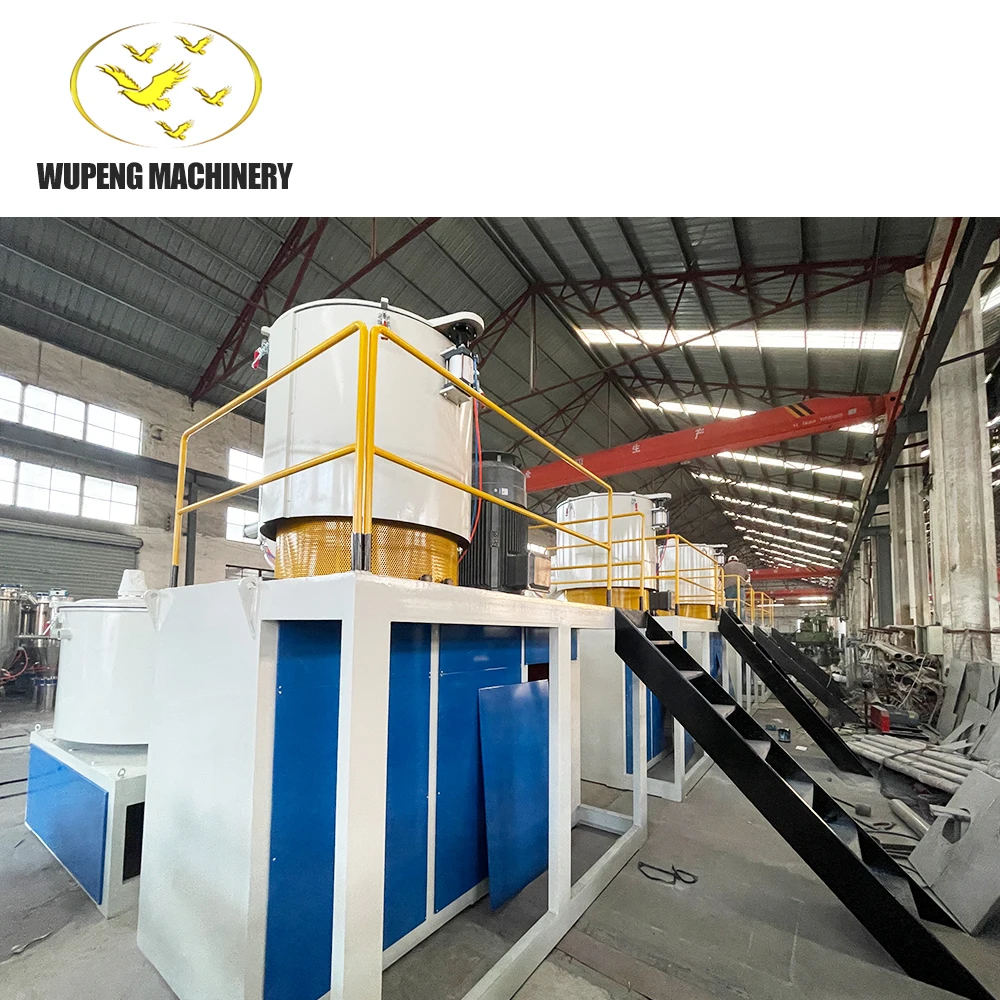

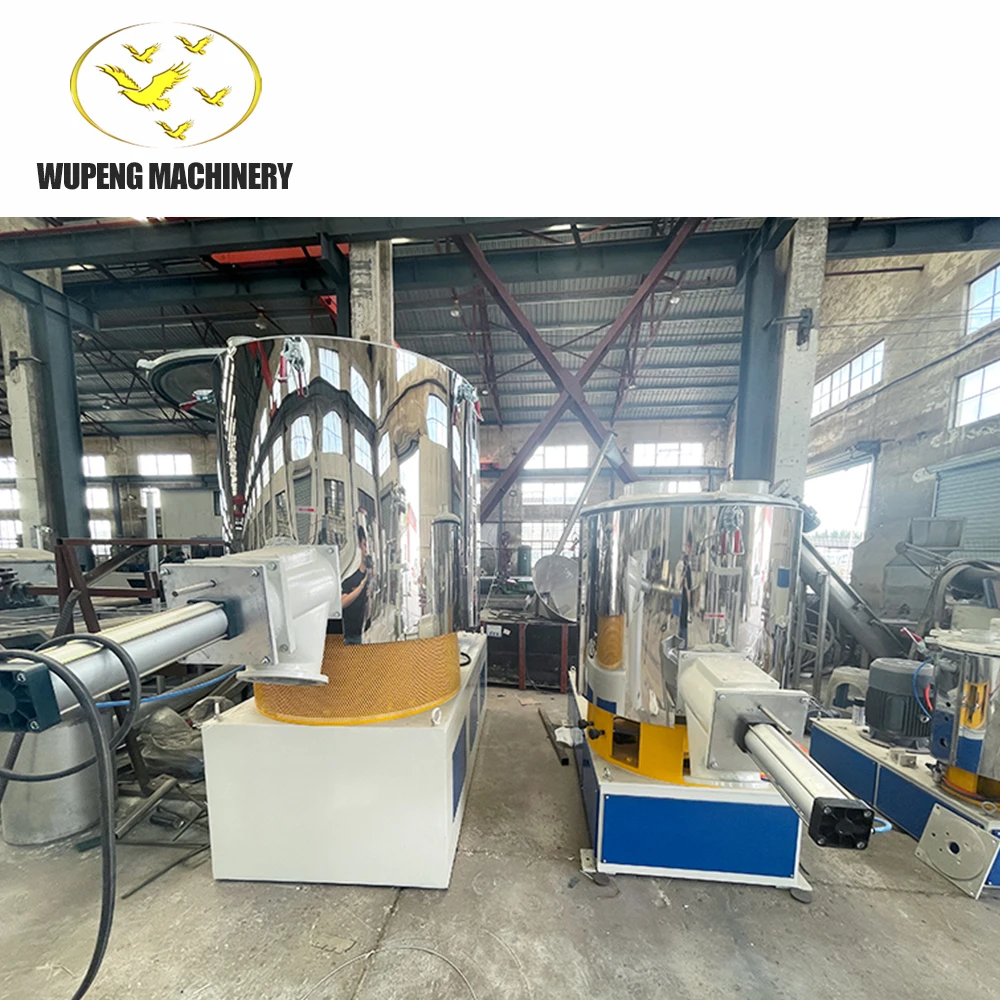

PVC High Speed Mixer / Plastic Powder Mixer
More years experince guarantees the good quality and excellent services
More years experince guarantees the good quality and excellent services
Uses and Features
1. It is used in mixing, drying, colouring and other processing. It is the most ideal equipment for producing shaped plastic material and plastics pipes.
2. The technology of the mainshaft sealed apparatus and it has two functions of electric and steam heating.
3. Two layers of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
4. The electric control section with the programmable logic control adopted well-known imported meters and control components.
5. It could be equipped with the dust removing device.
6. The blades have been passed the test of the dynamic and static balance testing machine.
7. Manual feeding, vaccum feeding or screw feeding is available.
2. The technology of the mainshaft sealed apparatus and it has two functions of electric and steam heating.
3. Two layers of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
4. The electric control section with the programmable logic control adopted well-known imported meters and control components.
5. It could be equipped with the dust removing device.
6. The blades have been passed the test of the dynamic and static balance testing machine.
7. Manual feeding, vaccum feeding or screw feeding is available.
Product Paramenters

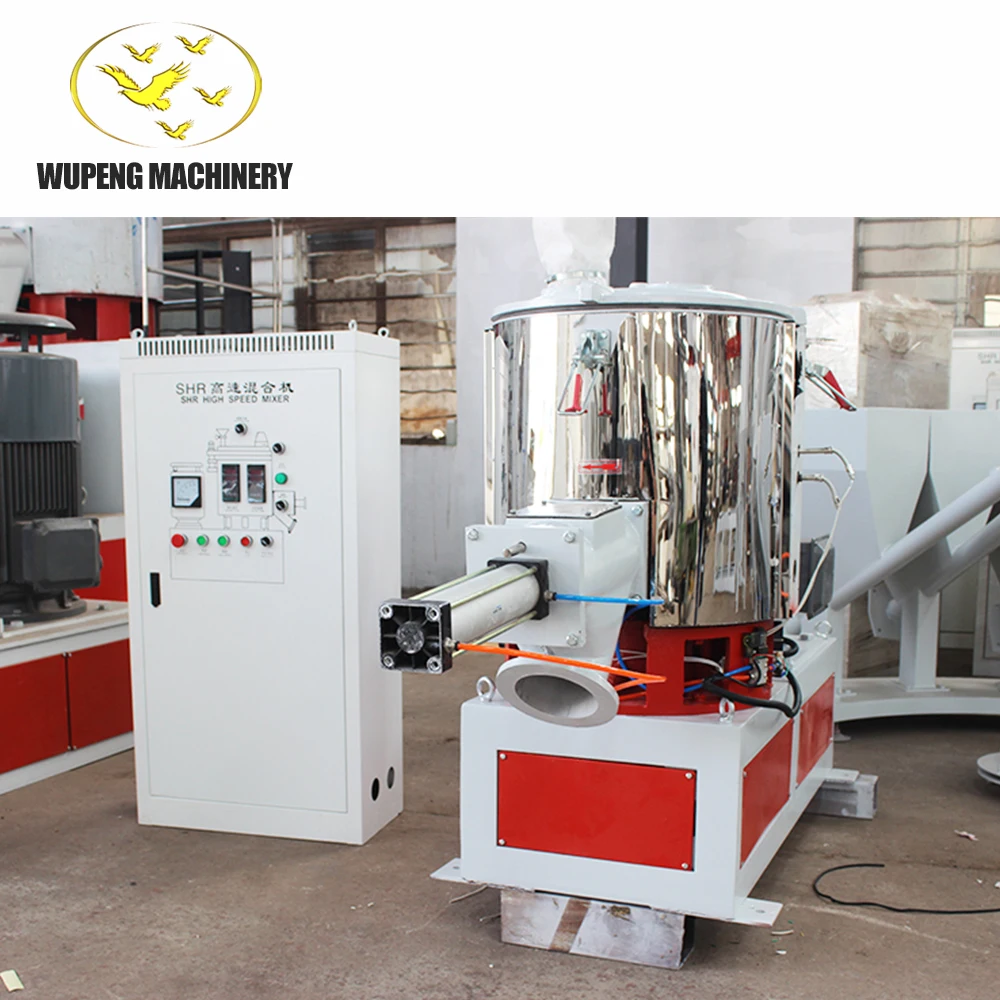

Mixer Unit SHR
Item Model | Total volume(L) | Effective volume(L) | Rotating Speed (r/min) | Motor power (kw) | Mixing time (min.) |
SHR-100 | 100 | 75 | 650/1300 | 14/22 | <=10 |
SHR-200 | 200 | 150 | 475/950 | 30/42 | <=10 |
SHR-300 | 300 | 225 | 475/950 | 40/55 | <=10 |
SHR-500 | 500 | 375 | 430/860 | 55/75 | <=10 |
SHR-800 | 800 | 600 | 357/714 | 83/110 | <=10 |
SHR-1000 | 1000 | 750 | 325/650 | 110/160 | <=10 |
SHR-1500 | 1500 | 1100 | 250/500 | 160/220 | <=10 |

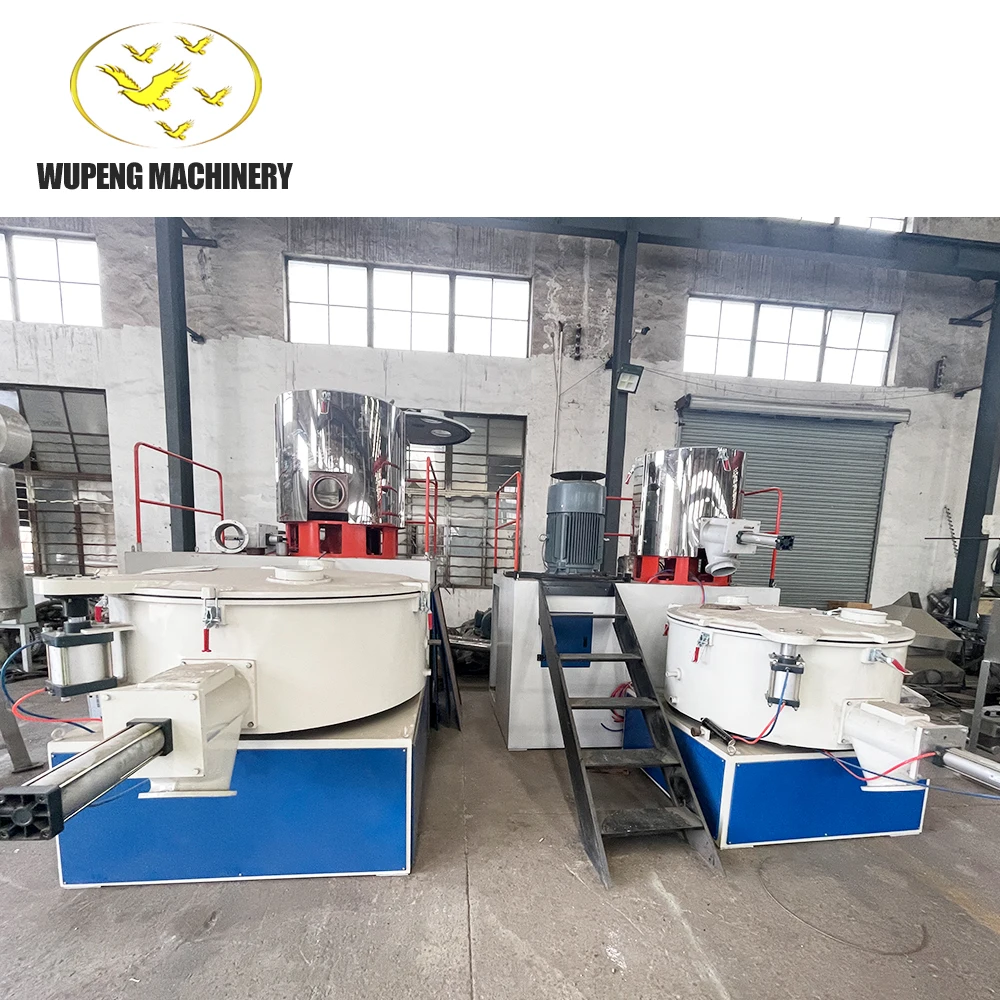

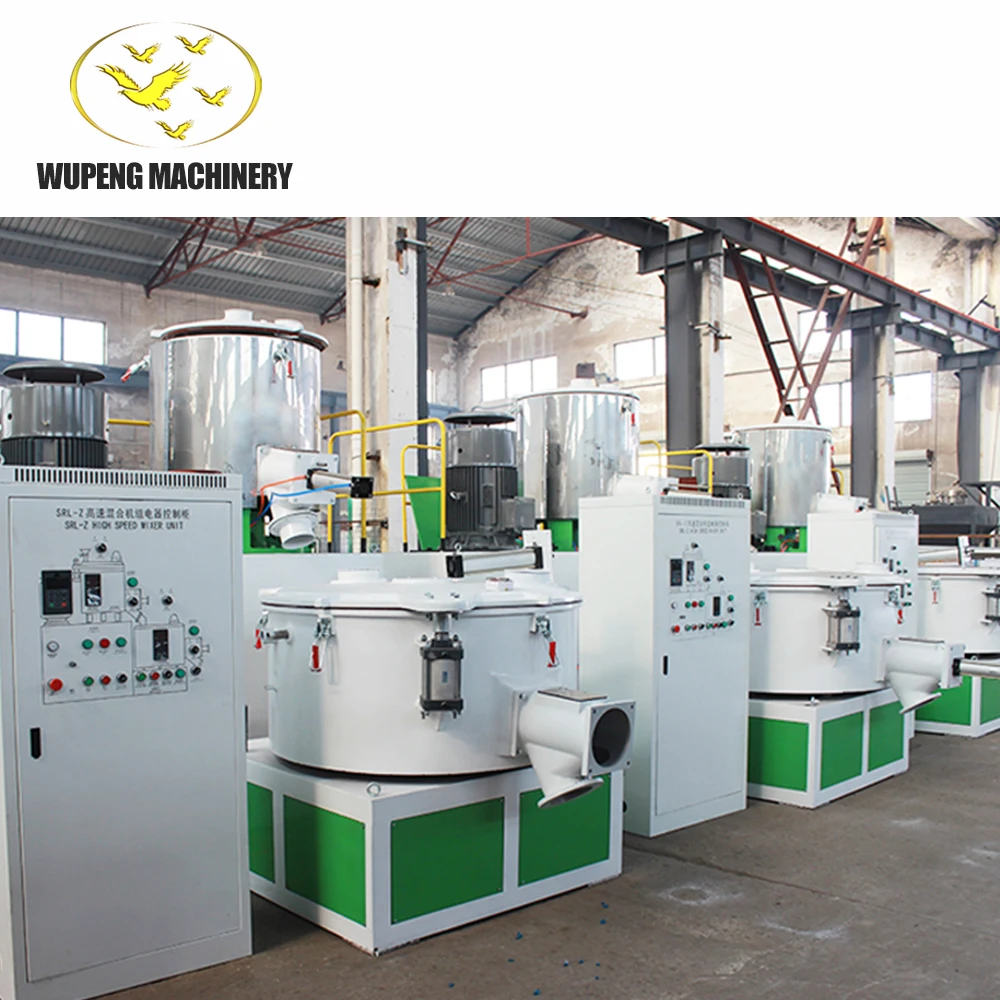

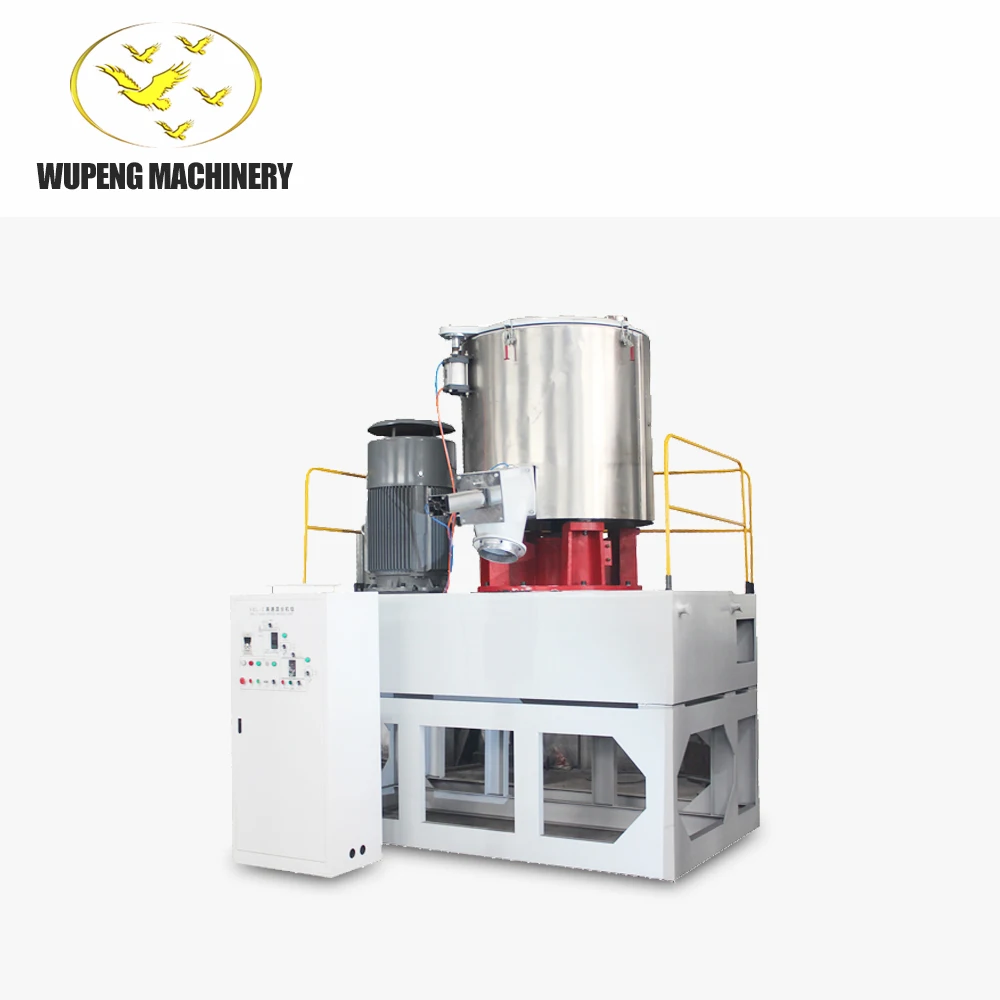

Plastic Mixer Main technical parameters SRL-Z:
plastic material high speed hot mixer , SRL-W plastic horizontal mixter , SRL-Z vertical plastic mixer
model | capacity(L) | effective capacity(L) | paddle speed(rpm) | motor&heating power(kw) | Gas consumption m3/min | Weight(T) | Discharge method |
SRL-Z50/100 | 50/100 | 32/75 | 750/1500180 | 7/11-5.5 | ≤0.3 | 1.8 | Manual or automatic |
SRL-Z100/200 | 100/200 | 75/160 | 650/1300180 | 14/22-7.5 | ≤0.3 | 2.5 | Manual or automatic |
SRL-Z200/500 | 200/500 | 150/320 | 475/950-87 | 30/42-11 | ≤0.35 | 3.6 | Manual or automatic |
SRL-Z300/600 | 300/600 | 200/360 | 475/950-87 | 40/55-11 | ≤0.35 | 4.5 | Manual or automatic |
SRL-Z300/1000B | 300/1000 | 200/640 | 475/950-60 | 40/55-11 | ≤0.35 | 4.9 | Manual or automatic |
SRL-Z500/1000A | 500/1000 | 375/650 | 430/860-60 | 55/75-18.5 | ≤0.5 | 5.8 | Manual or automatic |
SRL-Z500/1600B | 500/1600 | 375/1200 | 430/860-60 | 55/75-18.5 | ≤0.5 | 6.5 | Manual or automatic |
SRL-Z800/1600A | 800/1600 | 600/1024 | 357/714-60 | 83/110-22 | ≤0.6 | 8.3 | Manual or automatic |
SRL-Z800/2500A | 800/2500 | 600/1500 | 357/714-50 | 83/110-30 | ≤0.6 | 8.8 | Manual or automatic |
SRL-Z1000/3000A | 1000/3000 | 700/1800 | 325/650-50 | 110/160-37 | ≤0.6 | 11.5 | Manual or automatic |

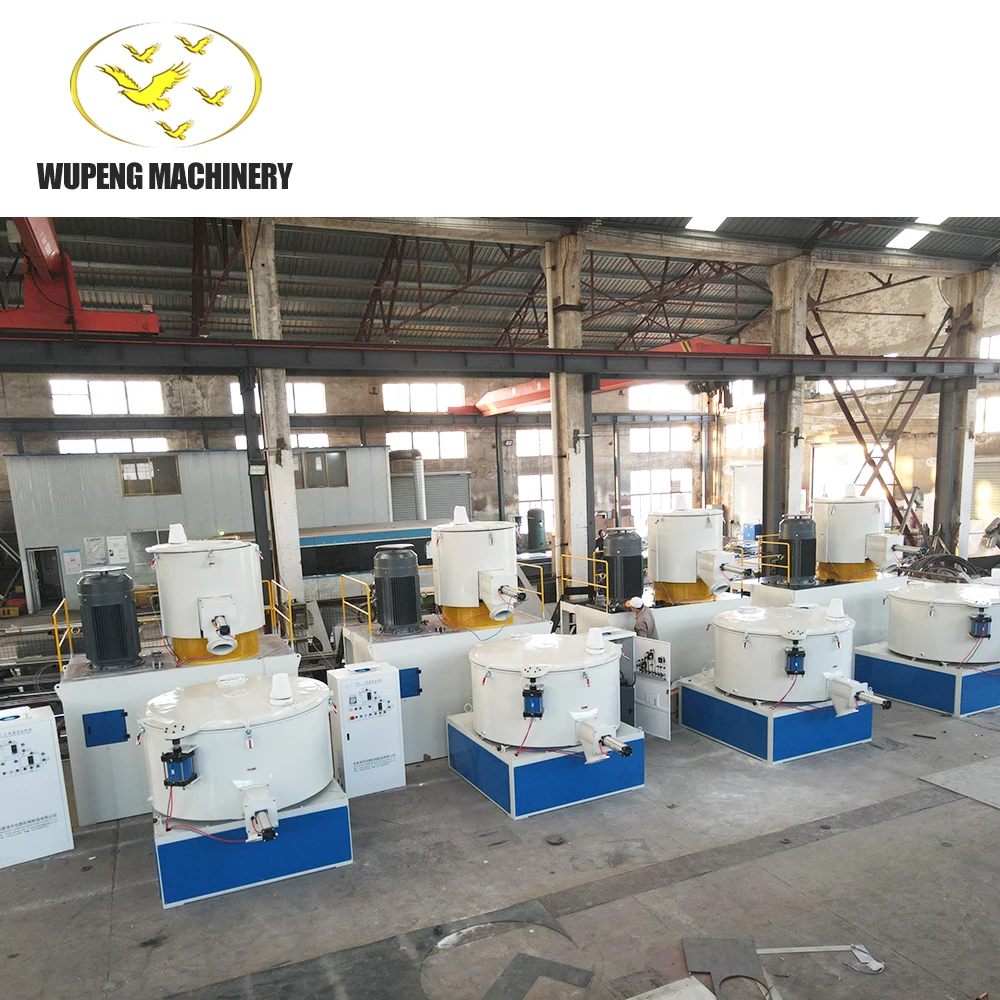

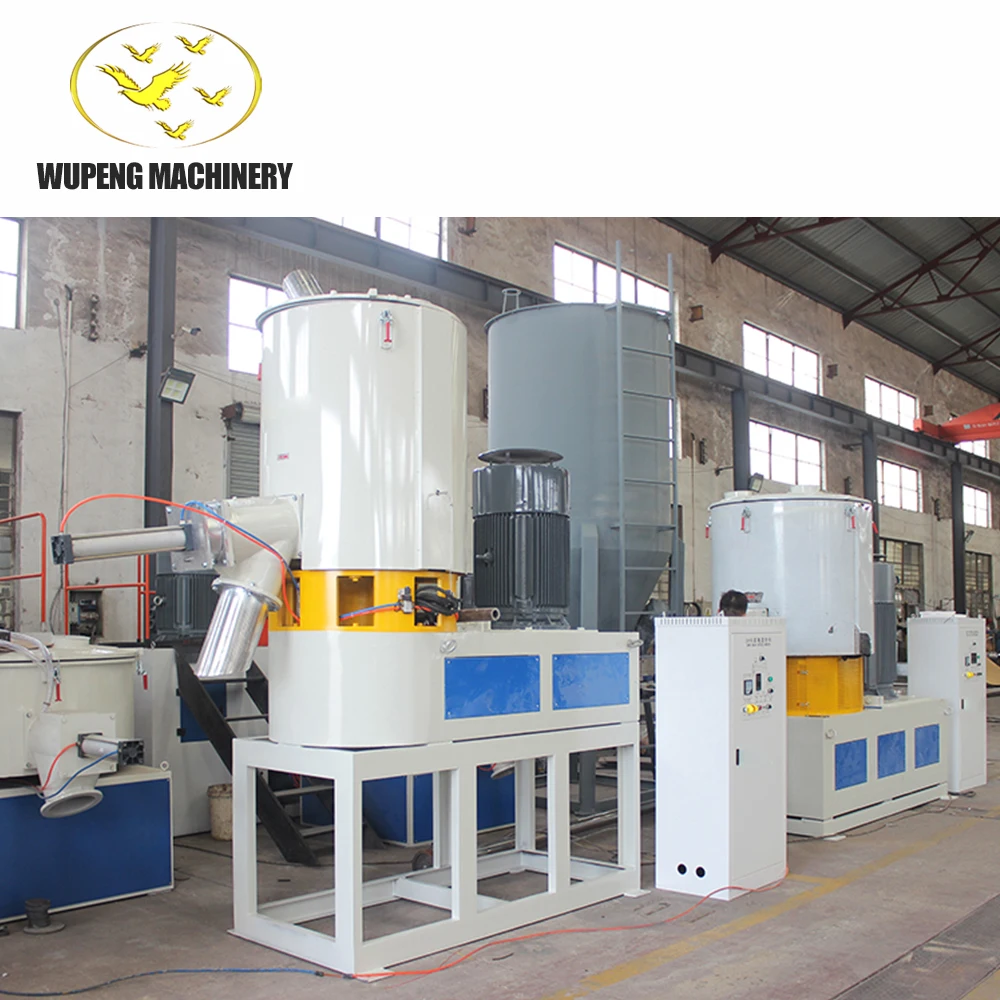

SRL-Z series plast mixer machine/pppe pellet mixer unit is applicable for mixing, coloring, and drying of various resin powder. The mixer unit combines heating mixing and cooling mixing craft together. The materials after heating mixing can be got into cooling mixer automatically for cooling, exhausts remaining gases and prevent agglomeration.
The plast mixer machine unit is designed by imported advanced technology. Adopting PLC control and automatic computer control, it features high automatic level and good quality mixing result. Heating mixing has such functions as self-friction and electric heating.
The vanes has passed the test of dynamic and static equilibrium. The cover adopts double concave-convex seal. Main axis seal adopts special technology of our company, also equipped with pulse dust catching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing pvc pipe, plate and special profile etc.
The plast mixer machine unit is designed by imported advanced technology. Adopting PLC control and automatic computer control, it features high automatic level and good quality mixing result. Heating mixing has such functions as self-friction and electric heating.
The vanes has passed the test of dynamic and static equilibrium. The cover adopts double concave-convex seal. Main axis seal adopts special technology of our company, also equipped with pulse dust catching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing pvc pipe, plate and special profile etc.

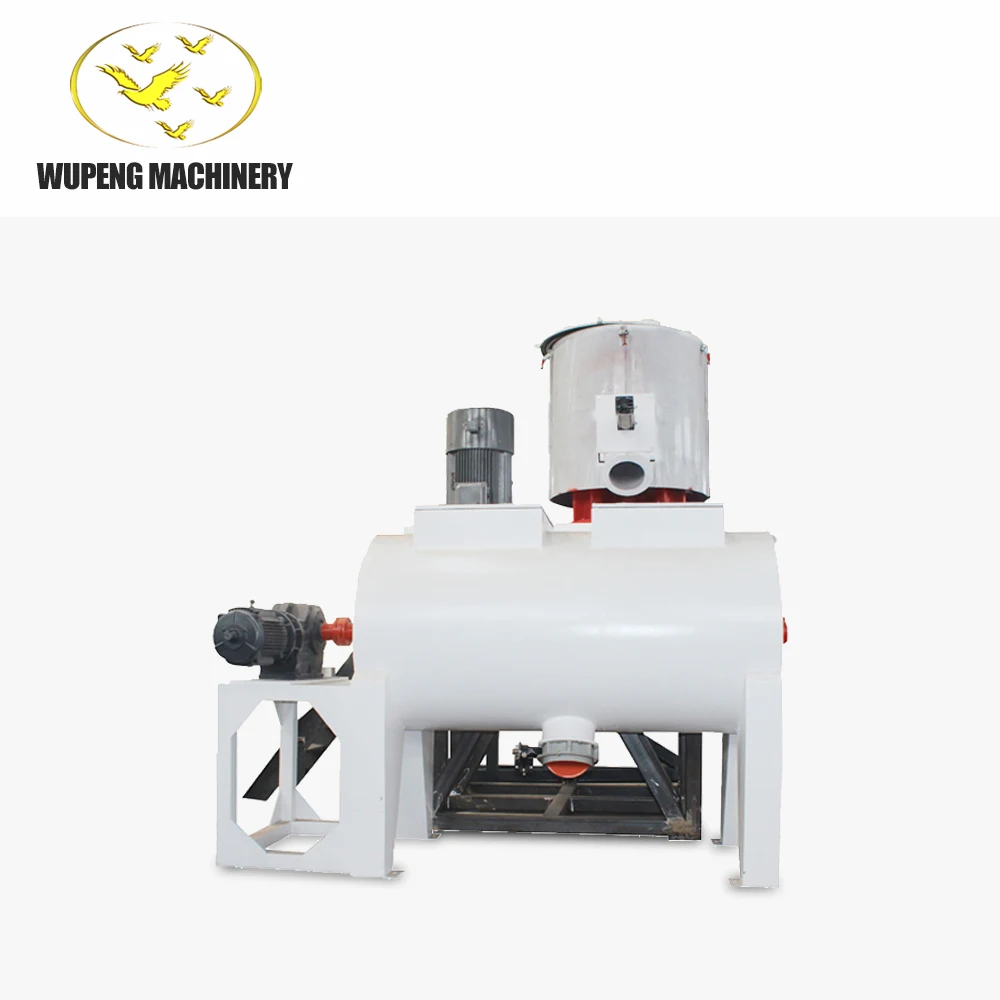

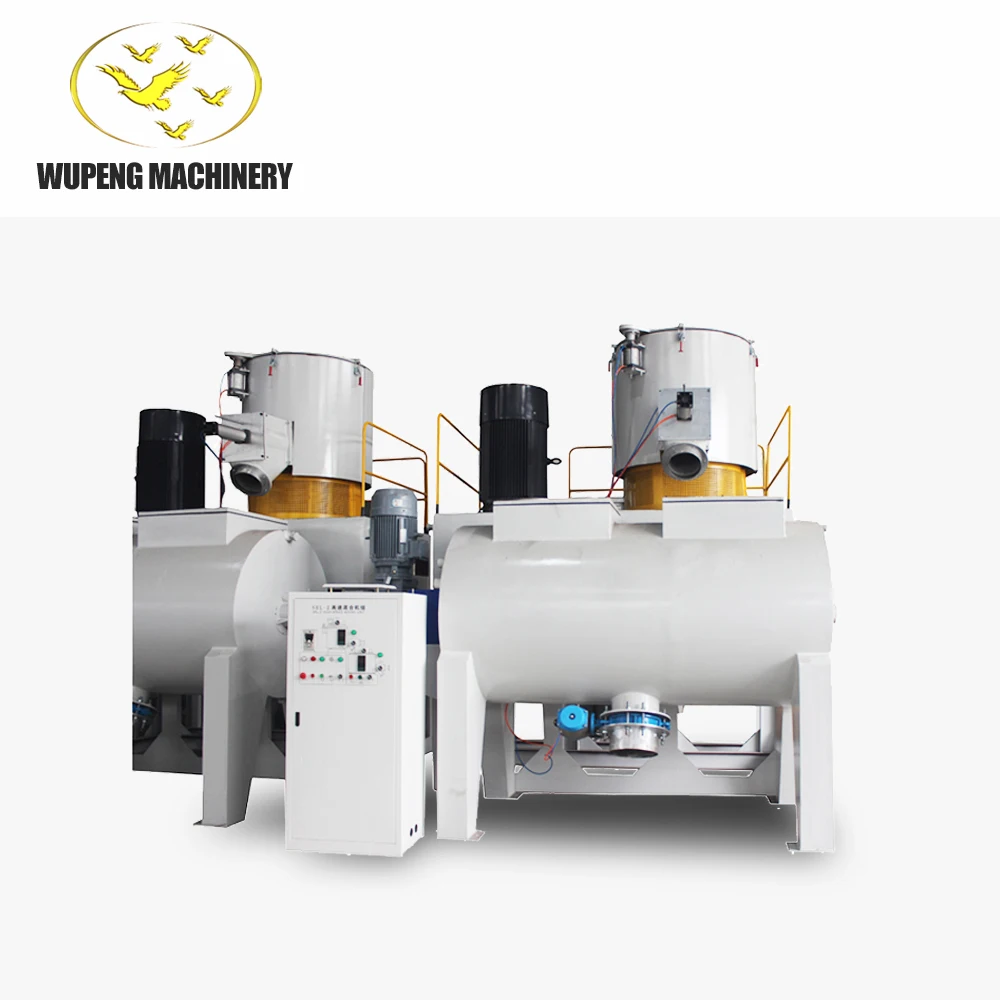

Mixer Group SRL-W
model param | SRL-W500/2000 | SRL-W800/2500 | SRL-W1000/3500 | SRL-W1300/4500 | |
hot mixer | total volume | 500 | 800 | 1000 | 1300 |
effective volume | 375 | 600 | 750 | 900 | |
feeding capacity per batch | ≤160KG | ≤250KG | ≤325KG | ≤500KG | |
blade | 3 | 3 | 3 | 3 | |
mixing time | 8-10min/batch | 8-12min/batch | 8-12min/batch | 8-12min/batch | |
motor power | 55/75 | 83/110 | 110/160 | 132/200 | |
cooling mixer | total volume | 2000 | 2500 | 3500 | 4500 |
effective volume | 1500 | 1870 | 2500 | 3500 | |
cooling time | 6-8min/batch | 6-10min/batch | 6-10min/batch | 6-10min/batch |

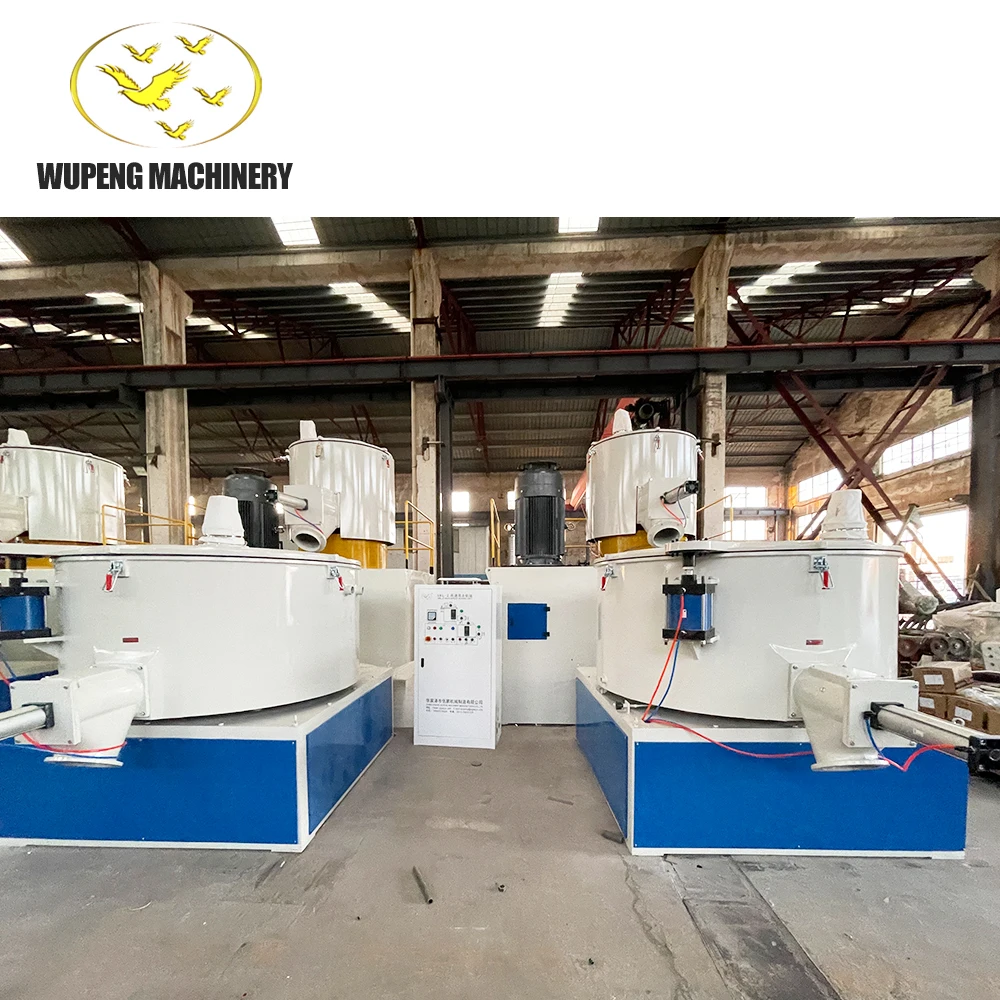

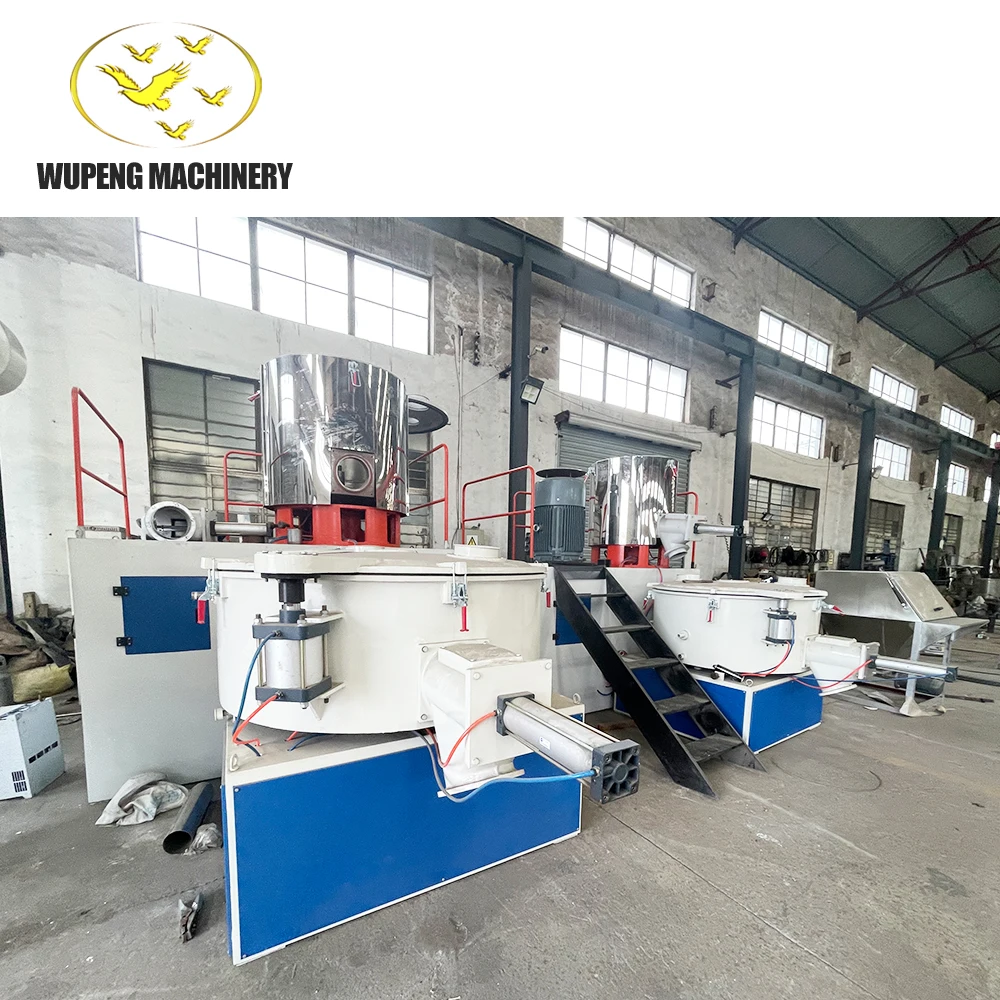

SRL-W Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
By high temperature and water cooling to mixture pvc and some other materials, this machine is necessary one in plastic extrusion and injection parts.
Additionally, we have other plastic mixers, such as color mixer, and big capacity automatic mixing production line.
By high temperature and water cooling to mixture pvc and some other materials, this machine is necessary one in plastic extrusion and injection parts.
Additionally, we have other plastic mixers, such as color mixer, and big capacity automatic mixing production line.
Application Area

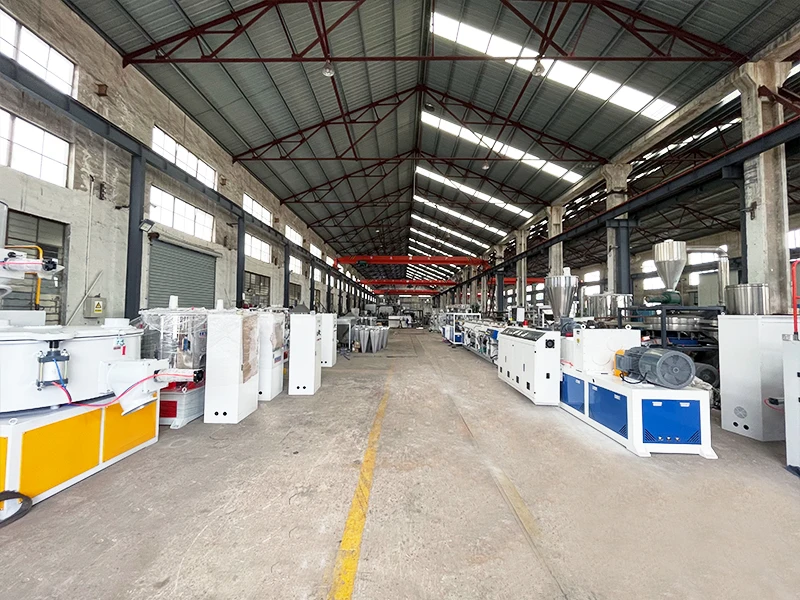

Company Profile
Zhangjiagang Wupeng Machinery Manufacturing Co., Ltd.

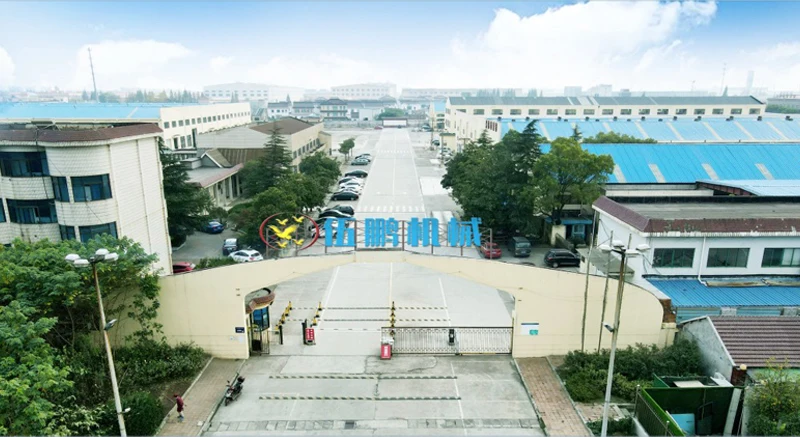

Zhangjiagang Wupeng Machinery Manufacturing Co., ltd. is located in Zhangjiagang City, Jiangsu Province, which is a national civilized and health city with prosperous economy and beautiful scenery. Shanghai Nantong high-speed railway, highway along the Yangtze River, port of Yangtze River and Hongqiao Airport are all within walking distance.
Convenient transportation and good environment provide the driving force for the development of wupeng machinery
Convenient transportation and good environment provide the driving force for the development of wupeng machinery

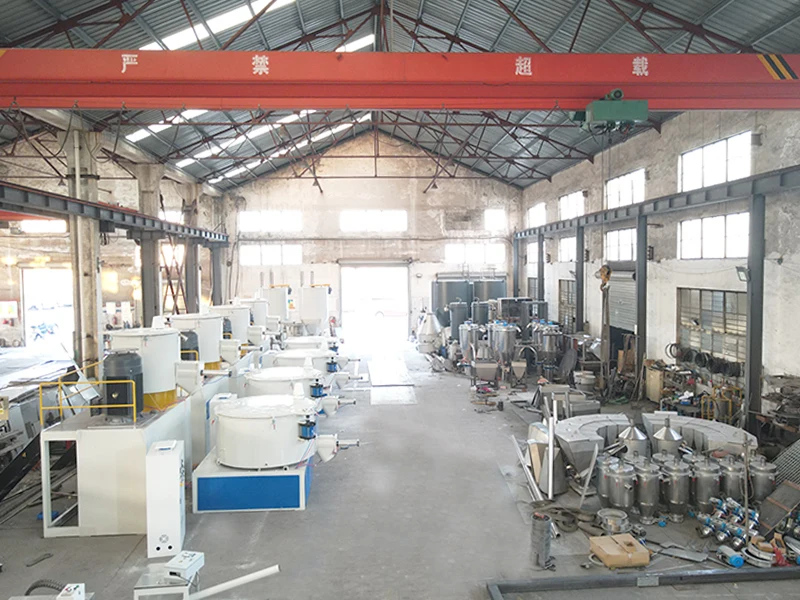

Zhangjiagang wupeng Machinery Manufacturing Co., Ltd. is a mature plastic machinery manufacturer integrating design, R & D and production. Our company has many years of experience in plastic machinery production and manufacturing, has perfect processing equipment and supporting processing facilities, and the production process is relatively mature. In the years of market use, it has been constantly updated through cooperation and communication with customers, make us more mature.
