Fire truck is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

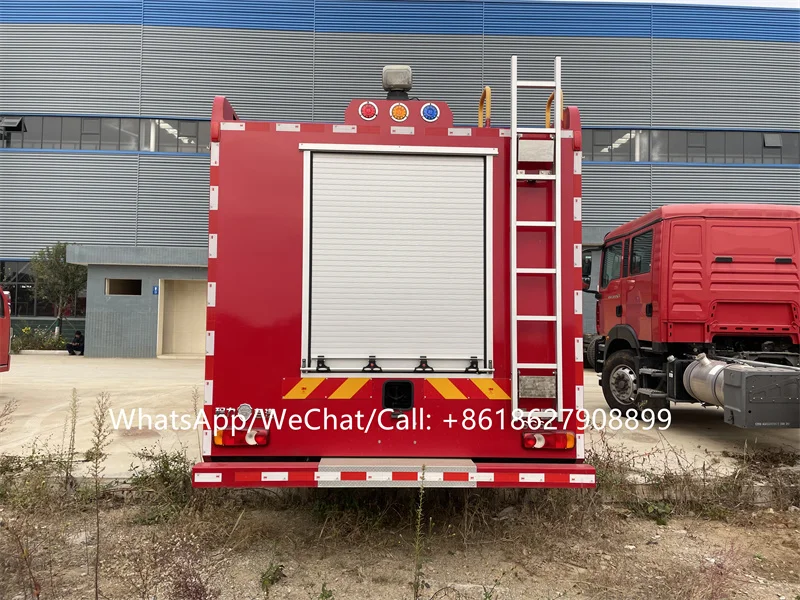

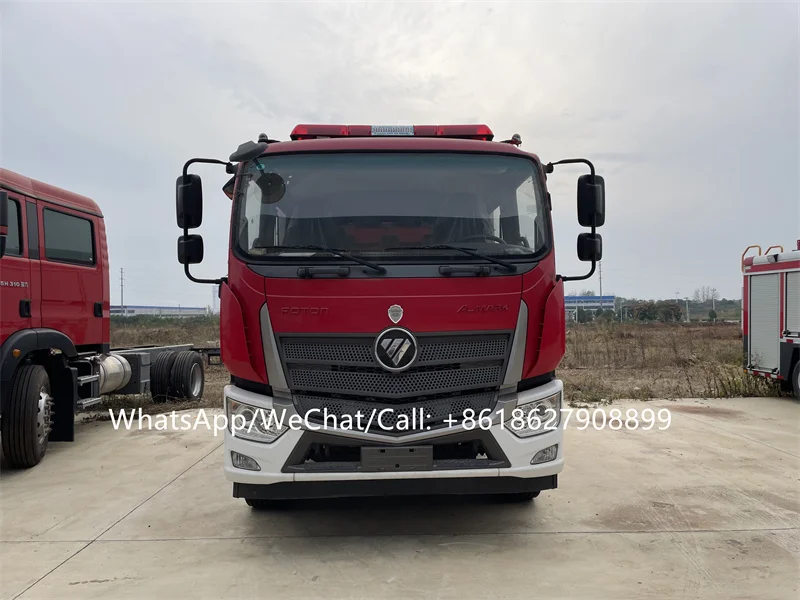

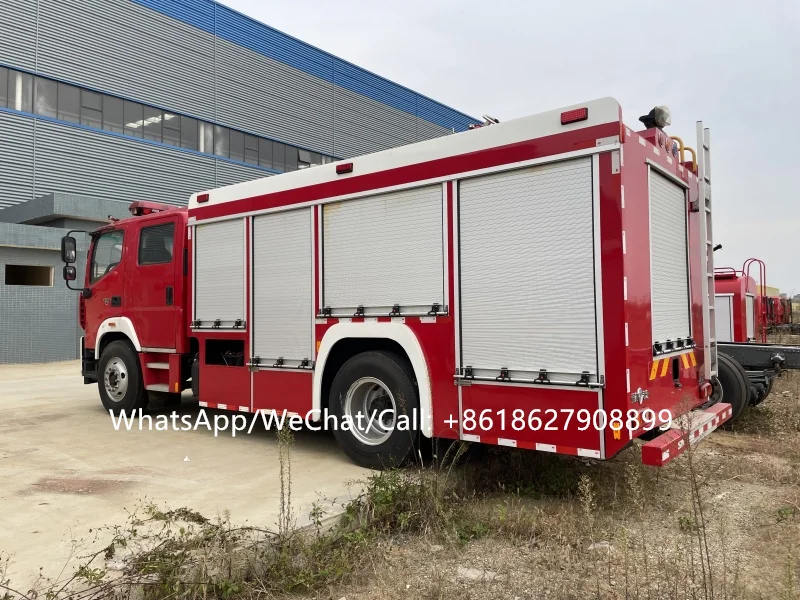

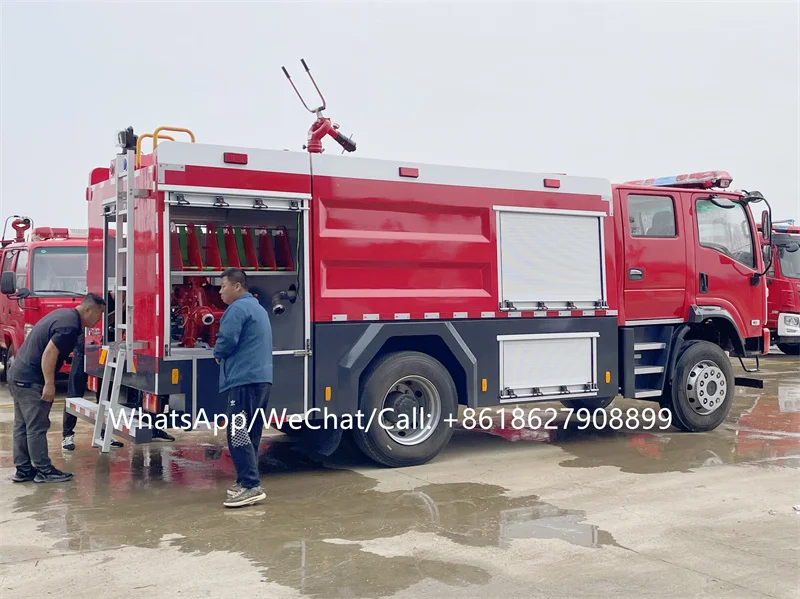

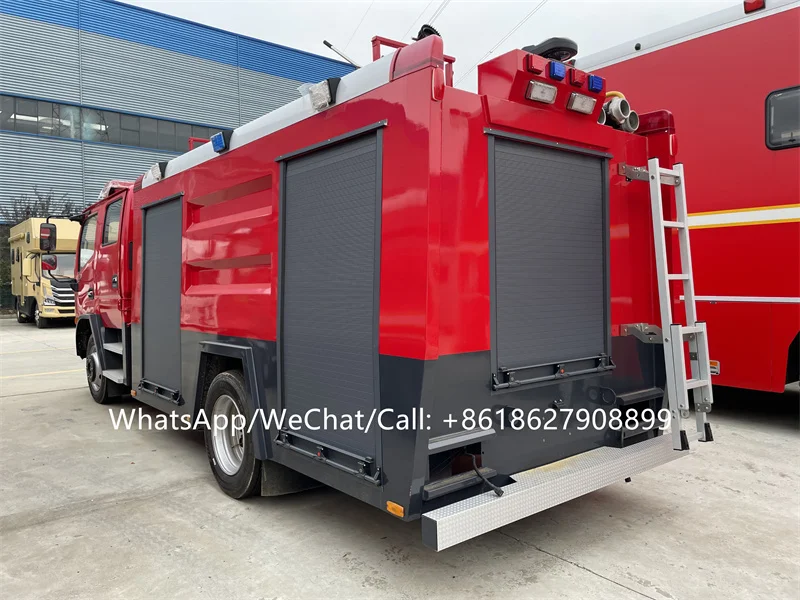

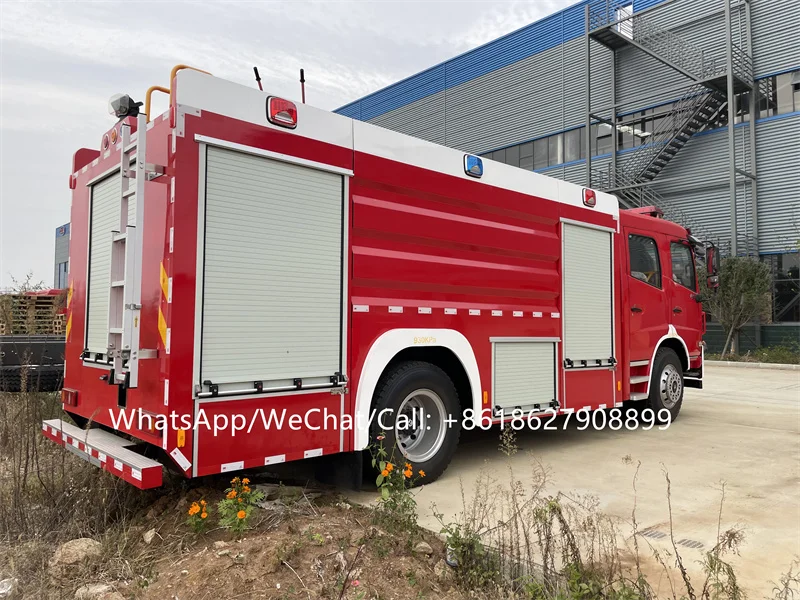

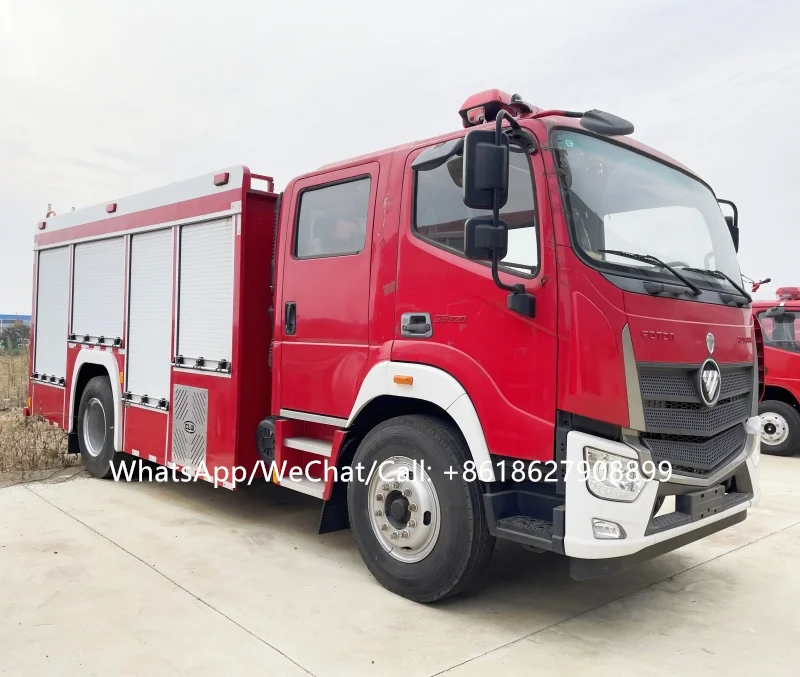

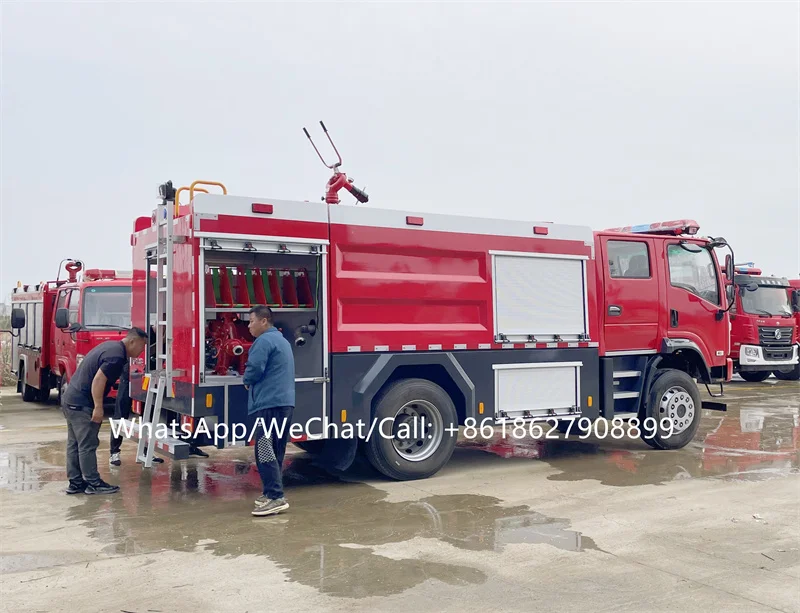

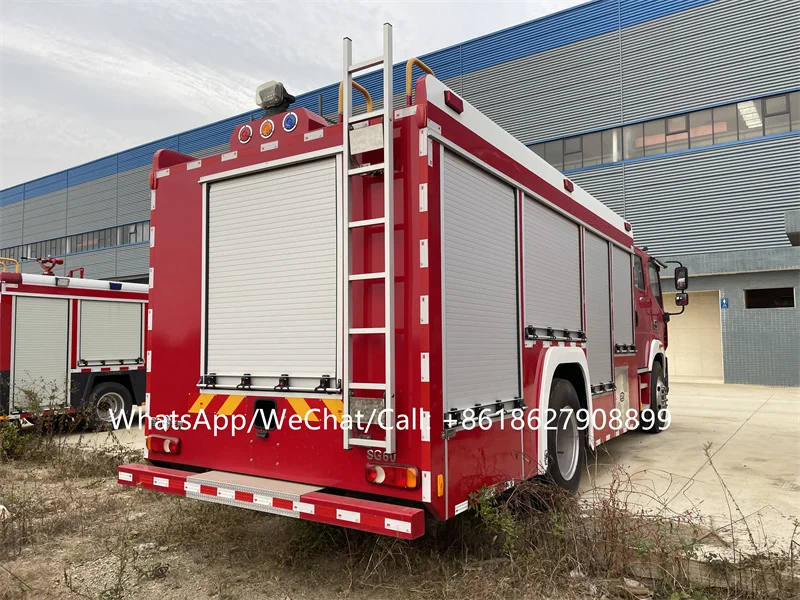

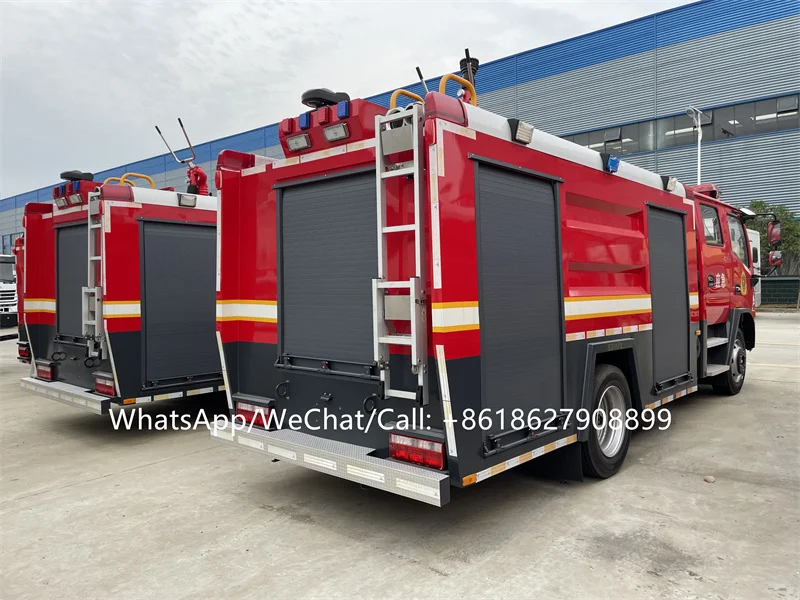

The ChengLiWei brand foam fire truck is modified from the Foton brand firetruck chassis. The whole vehicle is composed of the firefighter crew room and the body. The crew room is the original double row and can take 3 + 3 people. The car is a built-in tank structure, and the two sides of the body are equipment boxes, the middle is the water tank, and the back is the pump room. The liquid carrying tank is high quality carbon steel, which is elastic connected with the chassis, carrying 4000kg water and foam 2000 KG. It is equipped with low pressure fire pump with rated flow of 40L / S, and the PS40 vehicle fire gun produced by Wist Fire Machinery Co., Ltd is installed on the roof. The vehicle has a compact structure, complete configuration and strong mobility, which can timely respond to the fire of enterprises, communities or key fire units, and can form a small combat capacity in the first time for initial fire fighting and evacuation. Can be widely used in fire rescue stations, government full-time fire brigade, enterprise full-time fire brigade, etc.
The fire fighting performance of the vehicle meets the requirements of Chinese national standard GB7956-2014; the chassis passes the national mandatory product certification; the engine emission meets the requirements of GB17691-2018 (national standard); the vehicle passes the National Fire Equipment Quality Supervision and Inspection Center.
Chegnli fire fighting truck for sale
Main specifications:
1> Water canon:
Model:PL24
Pressure:1.0MPa
Flow:20L/s
Water range:>45m; Foam range:>40m
Water vertical height: >30m
2> Water pump:
Model: CB10/30
Water flow: >30 L/s
Suction time: <30s
For more models and types fire trucks, welcome to contact me directly: WhatsApp/WeChat/Call: +8618627908899
Main Technical Parameters | |
Overall | |
Item | Parameters |
Product name | 6000kgs Fire Fighting Truck |
Product model | CLWBJ50AFT |
Overall dimensions | 7200*2200*2800mm |
Fact water cubage | 6000kgs foam tanker |
GVW | 9400kg |
Curb Weight | 5600kg |
Chassis | |
Chassis model | BJ5090GXFD |
Wheel base | 3800mm |
F/R track base | 1831/1640mm |
Approach/departure angle | 20//11℃ |
Transmission | 5 Speeds |
Max speed | 95km/h |
Tire specification | 7Nos 8.25R16 |
Number of axles | 2 |
Allowable passengers in cab | 6 |
Traction system | 4x2 |
Engine | |
Engine model | CY4102-C3C |
Engine power | 3856ML/120HP |
Fuel Consumption | 22.4L/100KM |
Fire system | |
Water canon | Model:PS30 |
Pressure:1.0MPa | |
Flow:20L/s | |
Water range>55m | |
Water pump | CB10/30 |
Rate flow: 1.0Mpa,span>30 L/s | |
Suction time:min30s |
We are original manufacturer of fire trucks, welcome to contact me directly for building up long term cooperation ship!
Our factory is near to the WUAHN TIANHE Airport and Hankou Railway Station , welcome to visit us whenevery you convenient.
Ms.Ruby Yan +8618627908899 (WhatsApp/WeChat/Call)
--- Packing: Waxed or nude, and covered with tarpaulin.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
CLW GROUP

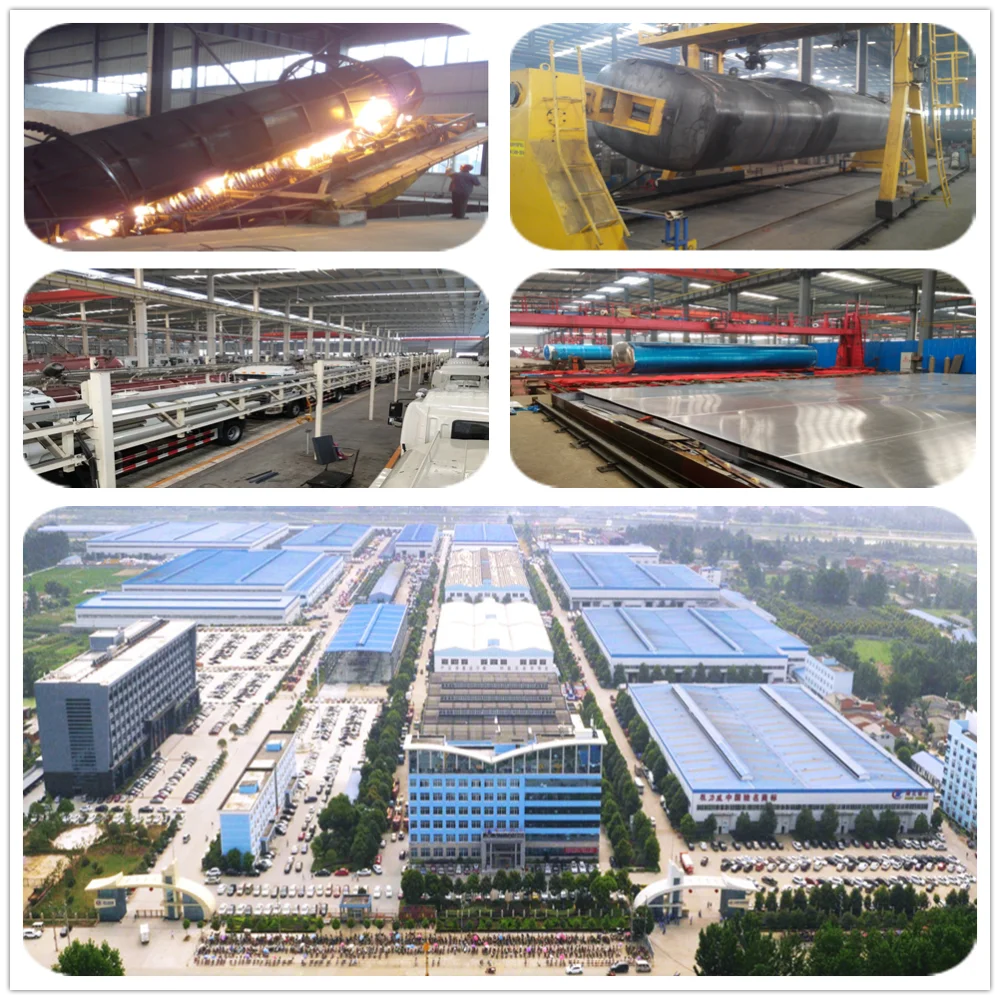

ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
1. The total assets of CLW Group is 300,000,000 USD.
2. Our headquarter covers an area of more than 200 acres.
3. We have more than 8000 employees, of which more than 500 technical engineers,
more than 2000 technical workers.
4. Our annual production capacity is 100,000 sets of special vehicles.
5. We have more than 2000 sets of large production equipment, more than 200 sets
of testing equipment, some of which the machining centers and production lines are
in the world leading level.
6. We have more than 100 independent innovation products obtained national patent,
the vehicle type sewage purification device, gas lighting fire trucks and other projects
to get third-prize progress of science and technology.
7. More than 840 CLW brand products are included in the national bulletin directory.
1.You are factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2.Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
