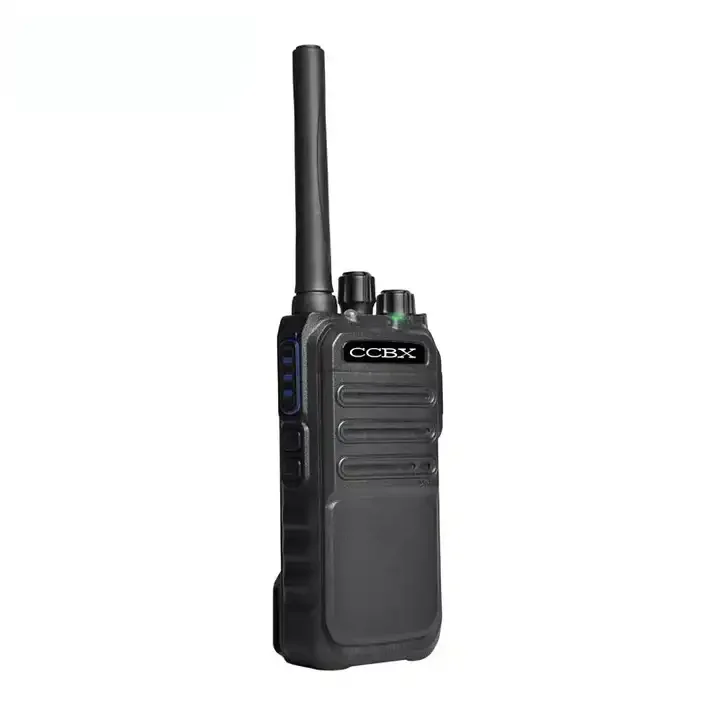

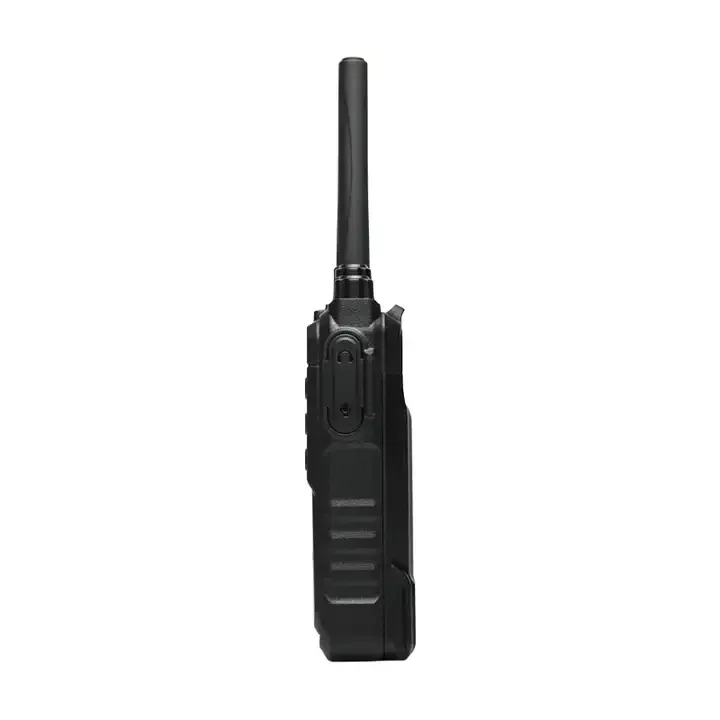

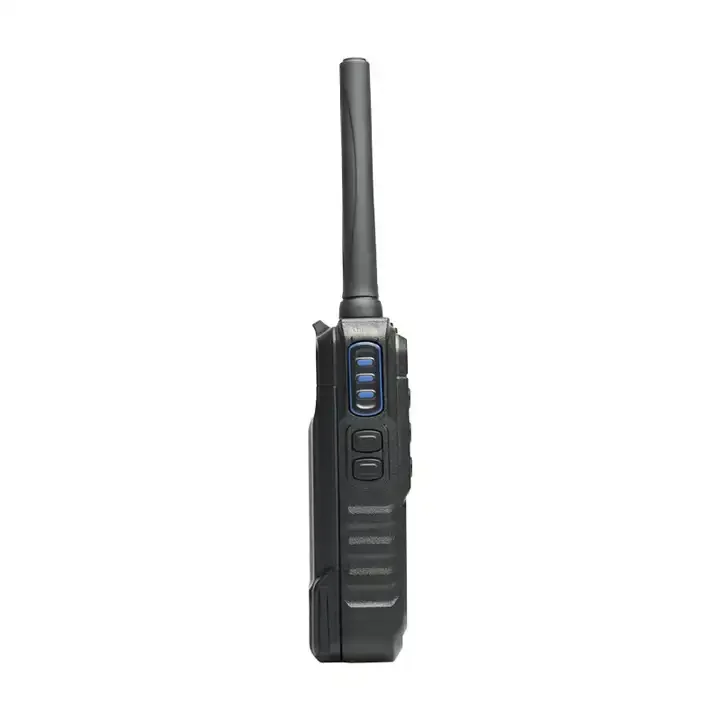

CCBX TD522 dmr walkie talkie Ultra long standby, multiple warnings, 24 hour long call digital handheld two way radio
CCBX-TD522 dmr walkie talkie Ultra-long standby, multiple warnings, 24-hour long call digital handheld two way radio
CCBX-TD522 dmr walkie talkie Ultra-long standby, multiple warnings, 24-hour long call digital handheld two way radio
CCBX-TD522 dmr walkie talkie Ultra-long standby, multiple warnings, 24-hour long call digital handheld two way radio
CCBX-TD522 dmr walkie talkie Ultra-long standby, multiple warnings, 24-hour long call digital handheld two way radio
CCBX-TD522 dmr walkie talkie Ultra-long standby, multiple warnings, 24-hour long call digital handheld two way radio

CCBX TD522 dmr walkie talkie Ultra long standby, multiple warnings, 24 hour long call digital handheld two way radio

Share on (1601009397257):


Price:$62.00 - $64.00

Quantity:


Product Overview

Description







Product Description




Specification


dmr radio
dmr walkie talkie
walkie talkie dmr


Frequency Range
UHF:400-480MHz
Channel Capacity
256
Zones
16
Channel Spacing
12.5KHz/25KHz
Operating Voltage
DC 3.7V ( 20%)
Battery Capacity
4000mAh
Battery Life 5/5/90
Digital: 24 Hours / Analog: 18 Hours
Frequency Stability
1.5ppm
Antenna Impedance
50
Dimensions (L W H)
59 L *36 (W) *115 (H)mm
Weight
252g (Including Battery)
Transmitter
RF Output Power
High:5W / Middle:3W / Low:1W
4FSK Modulation
12.5kHz Only data 7K60FXD
12.5kHz data and audio 7K60FXE
FM Modulation
12.5 kHz 8K50F3E
25 kHz 16K F3E
Modulation Limiting
+/- 2.5kHz @ 12.5kHz;
+/- 5kHz @ 25kHz
FM Noise
-40dB
Conducted Emission
-36 dBm 1GHz/-30 dBm 1GHz
Adjacent Channel Power
-60dB
Audio Response
+1/-3dB
Audio Distortion
3%
Digital Voice coder Type
AMBE
Receiver
Digital Sensitivity
5% BER 0.25uV
Analog Sensitivity
0.25uV (12dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Response Rejection
60dB
FM Noise
-40dB
Audio Response
+1/-3dB
Rated Audio Output Power
500mW
Maximum Audio Output Power
1W
Audio Distortion
3% (Typical)
Conducted Spurious Emission
-57dBm
Transmitter
Working Temperature
-20 +60
Storage Temperature
-30 +85
Moisture Proof
MIL-STD-810C/D/E/F/G
Vibration & Shock
MIL-STD-810C/D/E/F/G


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

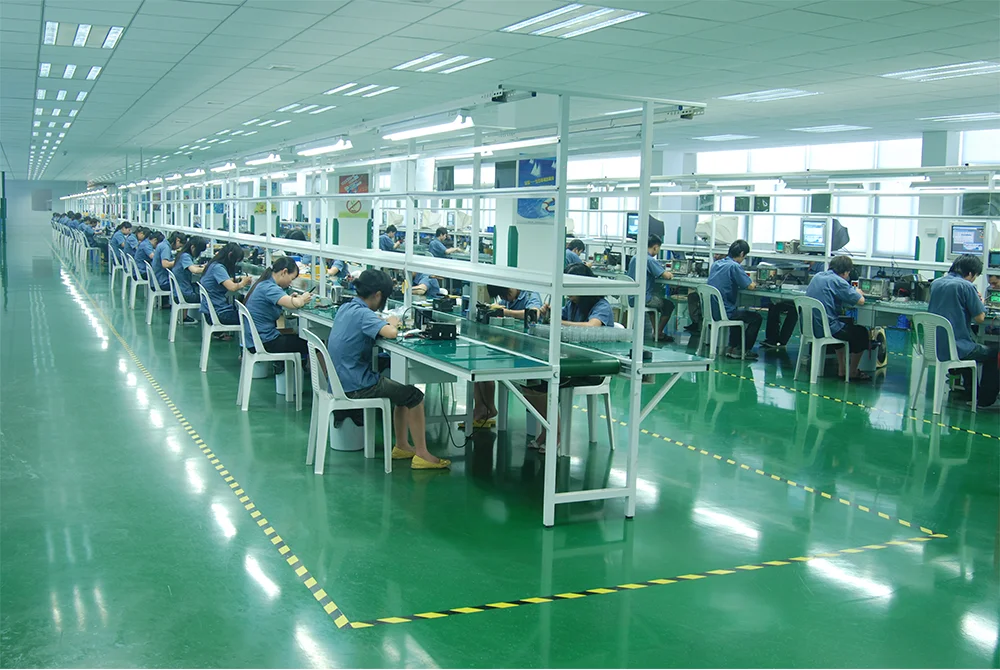

Company Profile










Chengdu Bingxin Technology Co., Ltd. which was established in 2005, focus on the independent design, research, and sales of ICD. We provide the solution of the wireless signal coverage, as well as OEM and ODM. Honesty reputation has been accumulated over the years. We are also innovative and flexible, to provide dynamic professional products.


FAQ


1. who are we?
We are based in Sichuan, China, start from 2010,sell to Domestic Market(70.00%),Mid East(5.00%),Africa(3.00%),Southeast Asia(3.00%),North America(3.00%),Eastern Europe(3.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),South America(2.00%),Oceania(1.00%),South Asia(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
walkie talkie,satellite phones,repeater,fiber optic equipment,electronic products

4. why should you buy from us not from other suppliers?
Chengdu Bingxin Technology Co., Ltd. which was established in 2005, focus on the independent design, research, and sales of ICD. We provide the solution of the wireless signal coverage, as well as OEM and ODM.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Japanese
