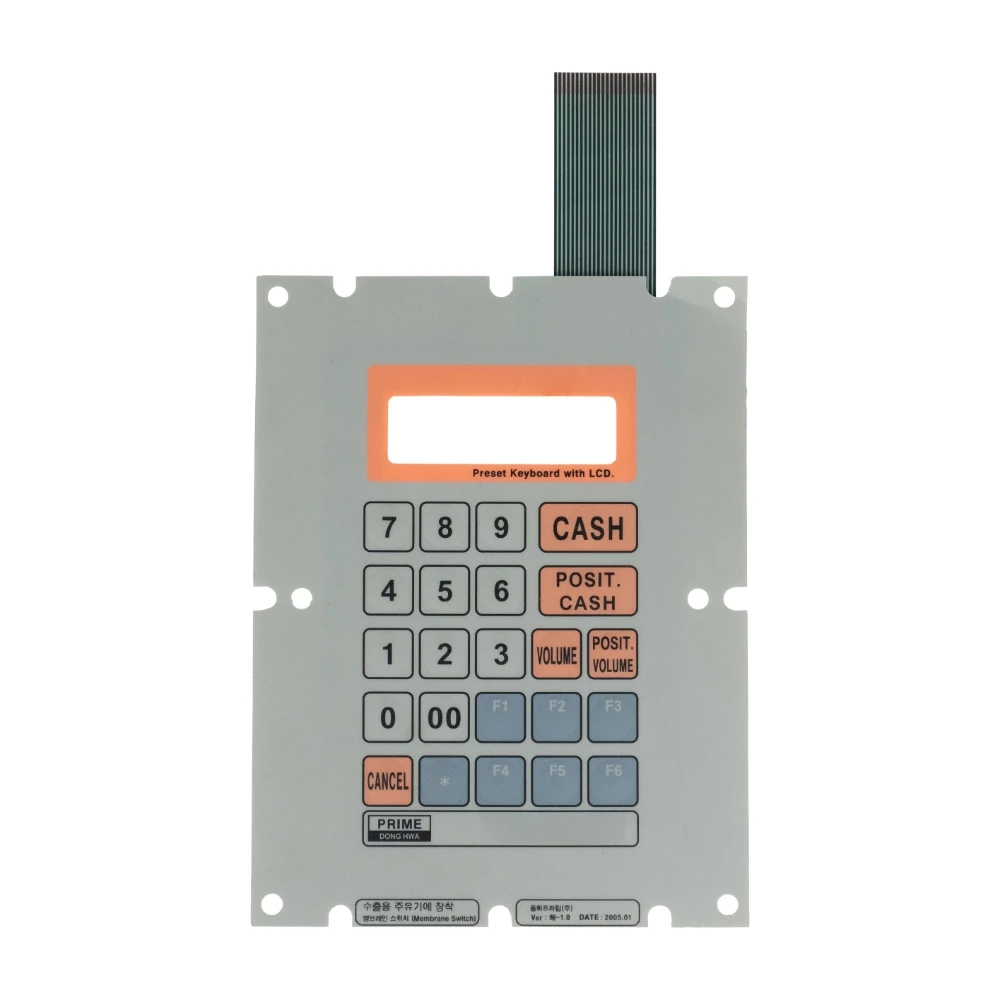

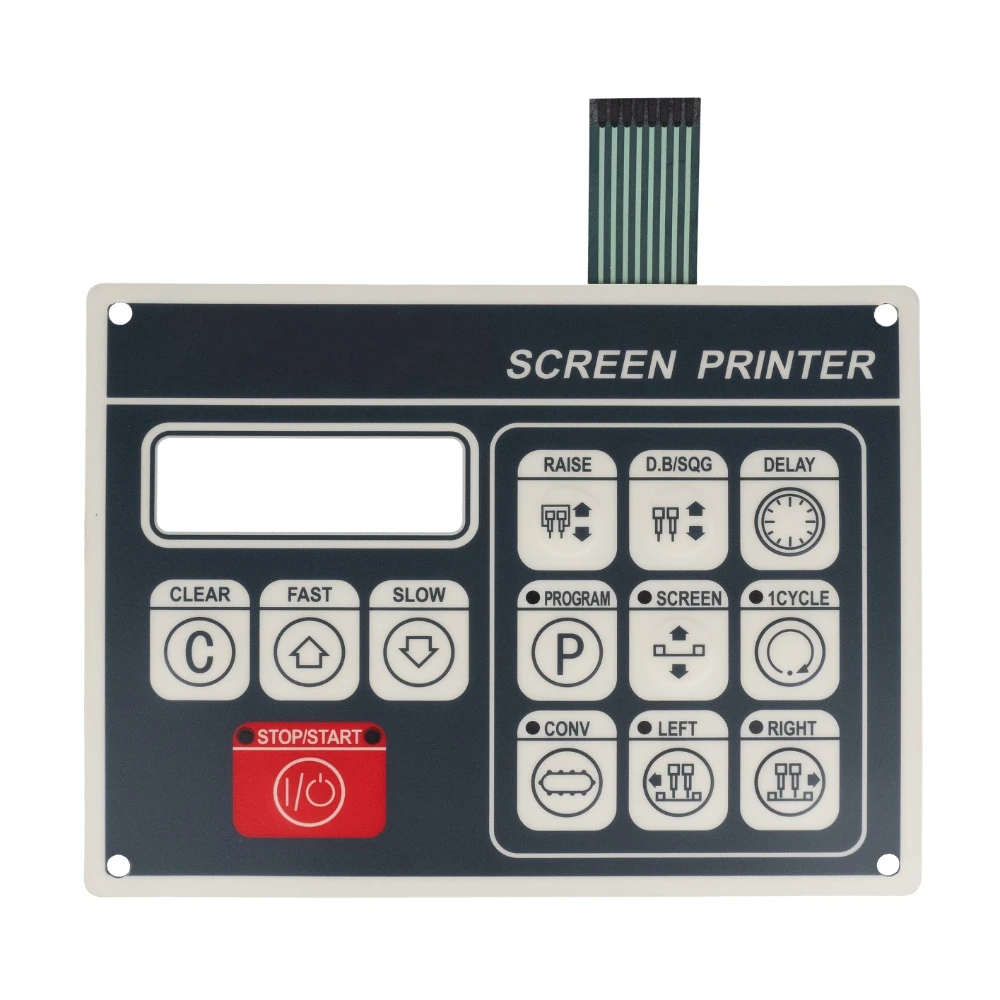

Design Wholesale Price Membrane Switch Spacer Golden Supplier Membrane Switch membrane switch keyboard
- Category: >>>
- Supplier: Dongguan Soushine Industry Co. Ltd.
Share on (1601009427472):
Product Overview
Description

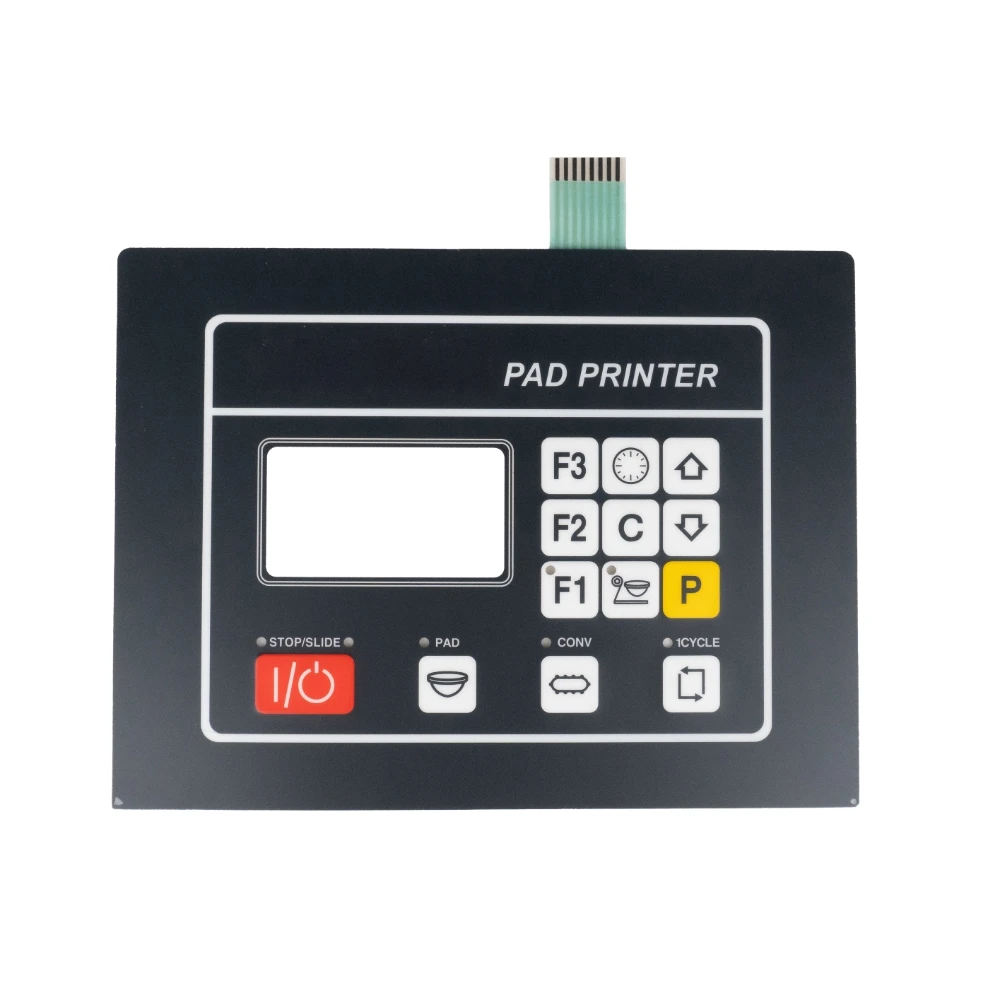

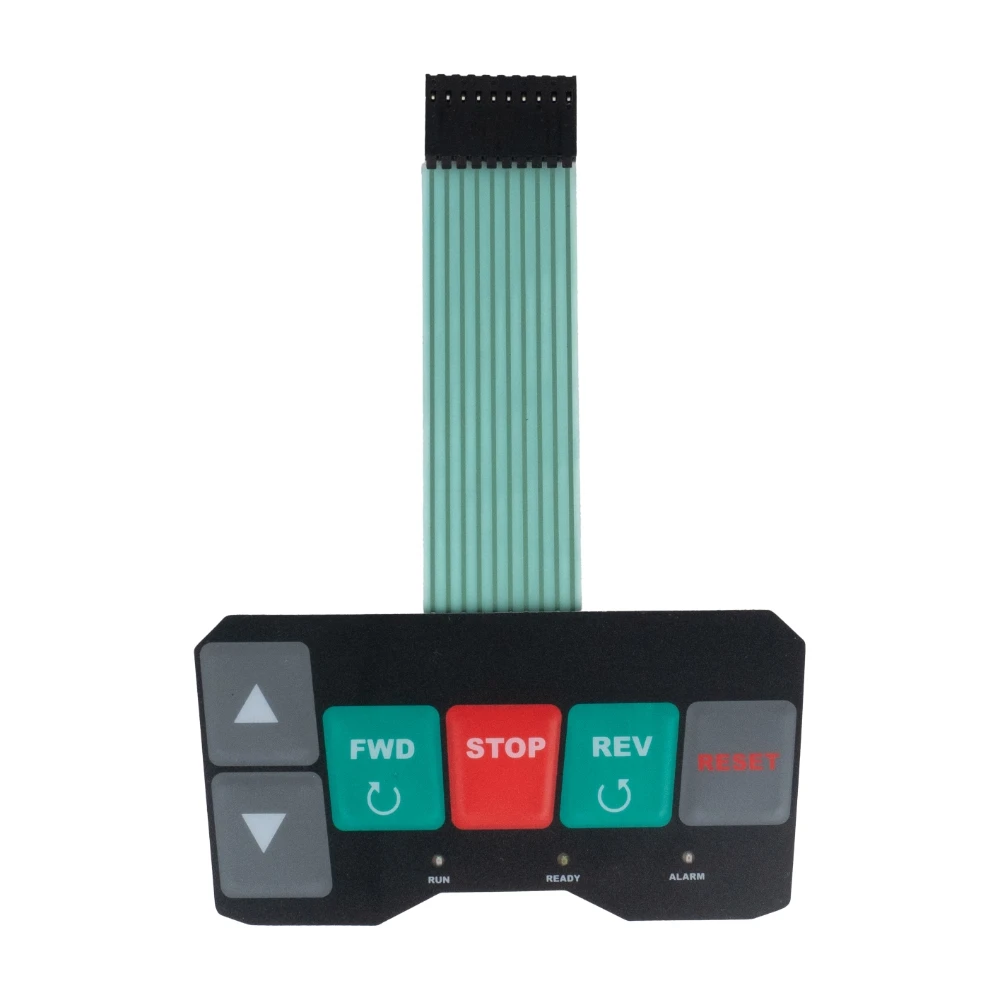

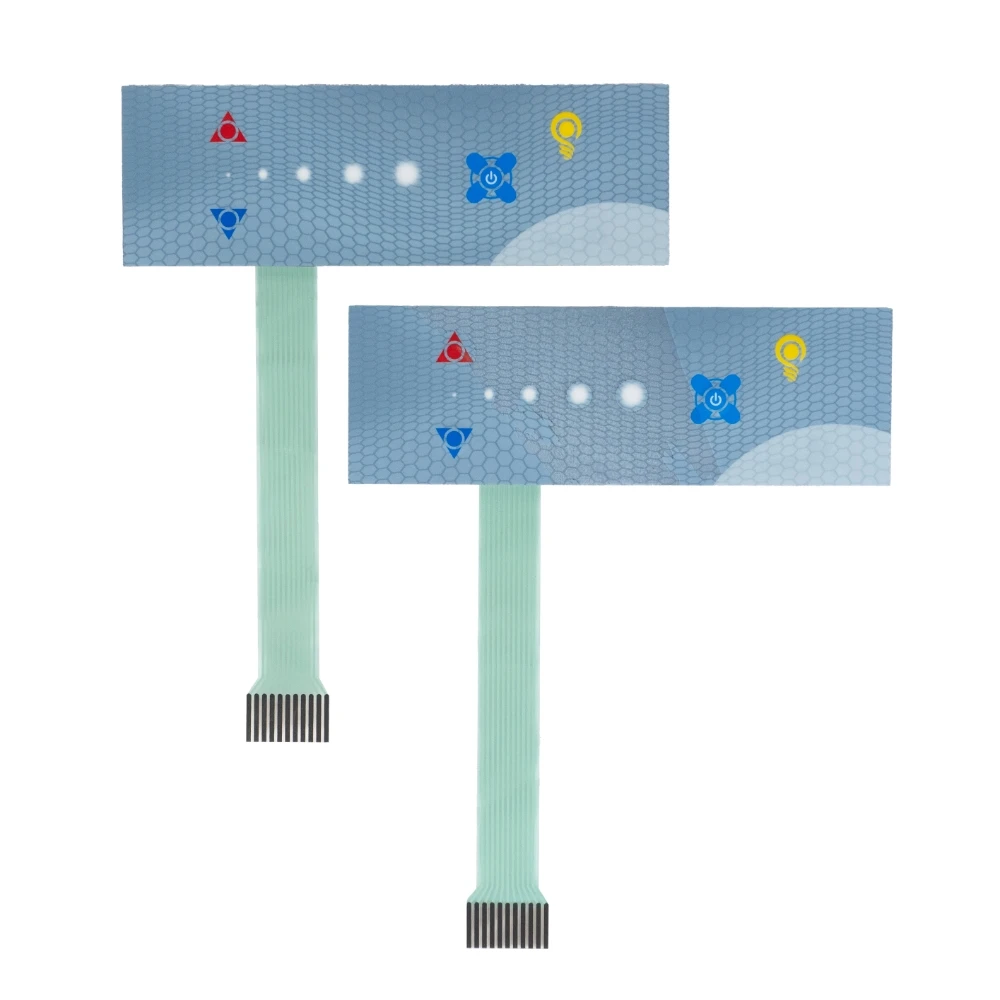

Wholesale Price Matrix Membrane Smart Switch With Ied Waterproof Panel Membrane Switch Keyboard
Products Description
Membrane Switch With aluminumback support
six layers:
graphic overlay
Total thickness rang from 0.6-0.8mm
six layers:
graphic overlay
Total thickness rang from 0.6-0.8mm
Overlay Material | PET, PC, EBG180, EGA180, Glass, Acrylic |
Artwork Format | CorelDraw, AI, CAD, CDR, PDF |
Color | Pantone and RALcolor matching system |
Button options | Tactile: metal dome, poly dome, silicone button |
Non-tactile: flat button, printed silver spot on the circuit | |
Connector | ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch |
Female connector with 2.54mmpitch | |
Circuit option | Silver printed conductive inks, FPC, PCB |
Printing | Screen printing, Semi-Auto matic printing, Automatic Printing |
Window | Transparent, translucent red/black/white etc window |
Surface | Glossy surface or matte surface |
Rear Adhesive | 3M467,3M468, 3M9448MP, 3M300LSE, 3M93420 etc. |
Certificate | ISO9001、RoHS、CE、TUV |
Circuit level | 35V (DC), 100mA, 1W |
Contact resistance | 10 Ω~ 500 Ω (varies according to the length and material of outgoing |
Insulation impedance | 100M Ω 100V |
Dielectric withstand voltage | no breakdown or flashover after 250V RMS (50-60Hz 1min) test |
Contact jitter time | ≤5ms |
Service life | plane type ≥5 million times |
Touch type | ≥1 million times |
Operating pressure | plane type 57~ 284g (2 ~ 10oz) |
Tactile type | 170-397g (6-14oz) |
Switch stroke | plane type 0.1~ 0.5mm |
1、Cheap and cost-effective
2、Adjustable touch of buttons
3、Easy to clean and lightweight
4、The button can be used for glue dripping process
.
1、High temperature resistance
2. Waterproof and UV resistant
3. Long service life, good pressure resistance and anti breakdown
1、Adjustable touch of buttons
2、High lifespan
3、Laser with backlight effect
4、Imported raw materials and accessories
Recommend products
company strength
About us
Dongguan Nanhuang Industry Co., Ltd. was founded in October 2000, headquartered Located in Zhangmutou Town, Dongguan City,Guangdong Province, with a plant area of 10,000 square meters. More than 20 years of focus, is engaged in丨membrane switch丨panel
The company has more than 20 utility model patents. The company has more than 20 utility model patents. The company has advanced production equipment, complete R & D laboratory, has passed the ISO9001 quality The company has passed ISO9001 quality system certification and strictly implements RoHS2.0 and EU environmental protection requirements.
The company has more than 20 utility model patents. The company has more than 20 utility model patents. The company has advanced production equipment, complete R & D laboratory, has passed the ISO9001 quality The company has passed ISO9001 quality system certification and strictly implements RoHS2.0 and EU environmental protection requirements.
FAQ
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the material,specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.
Q3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass
goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
Q2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks
Q3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass
goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
