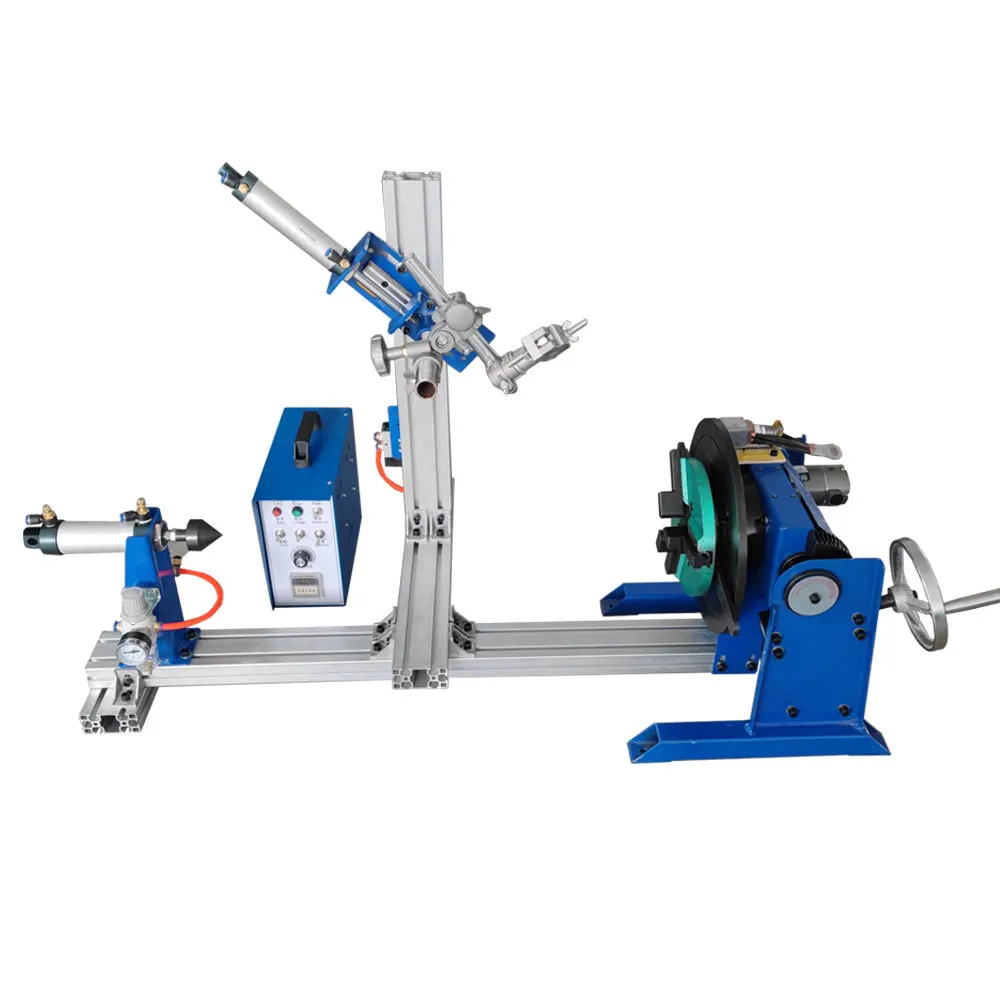

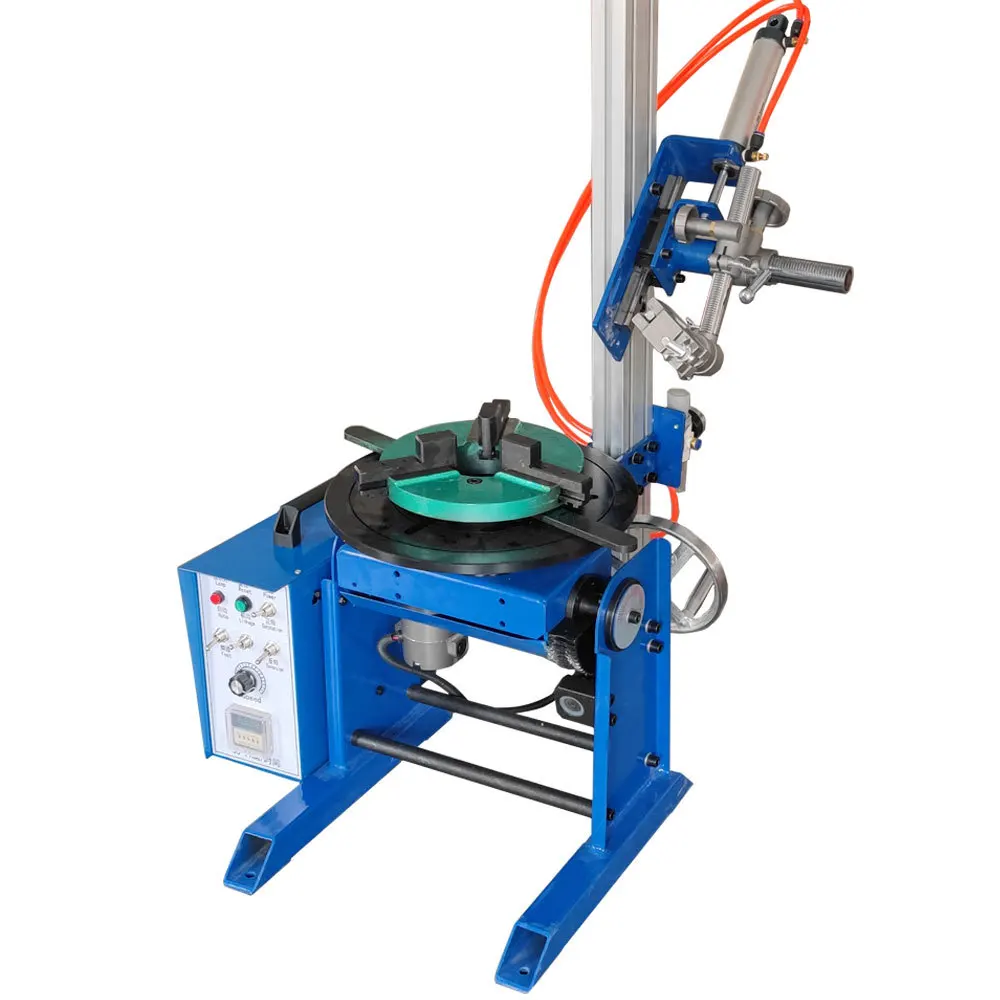

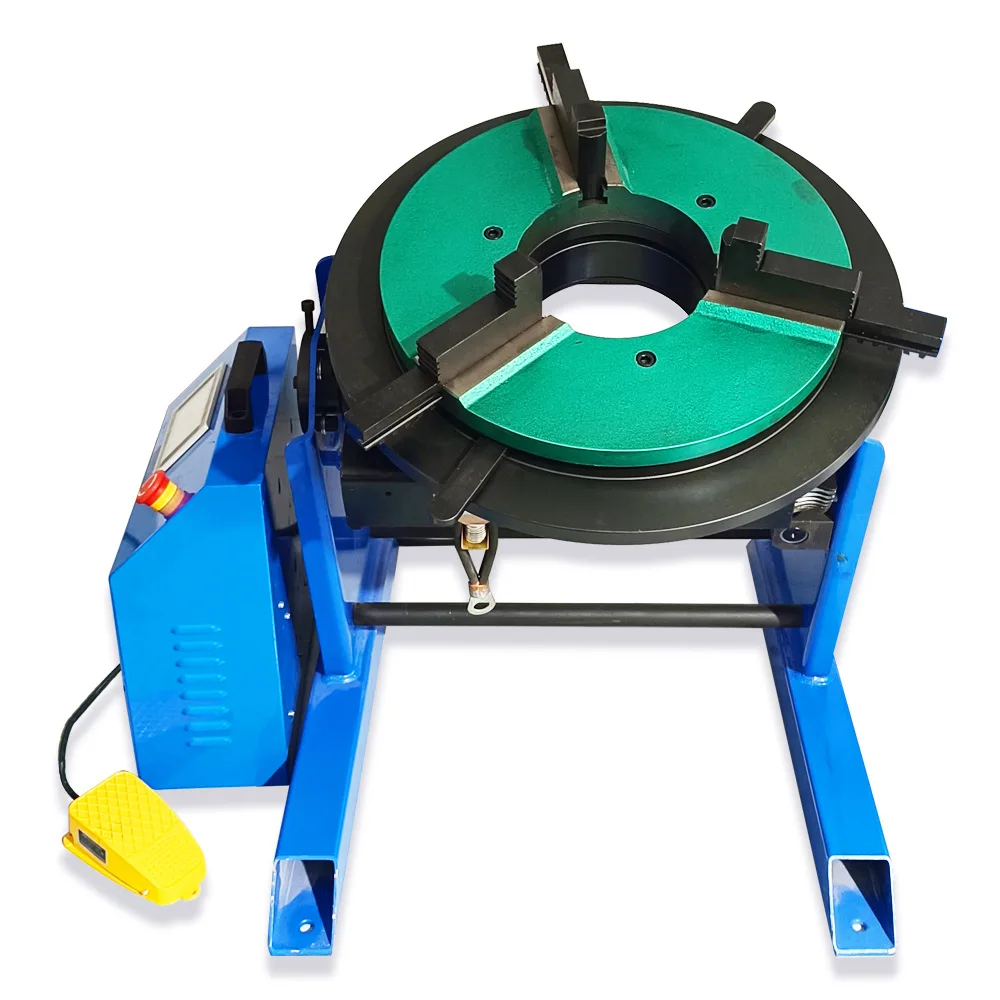

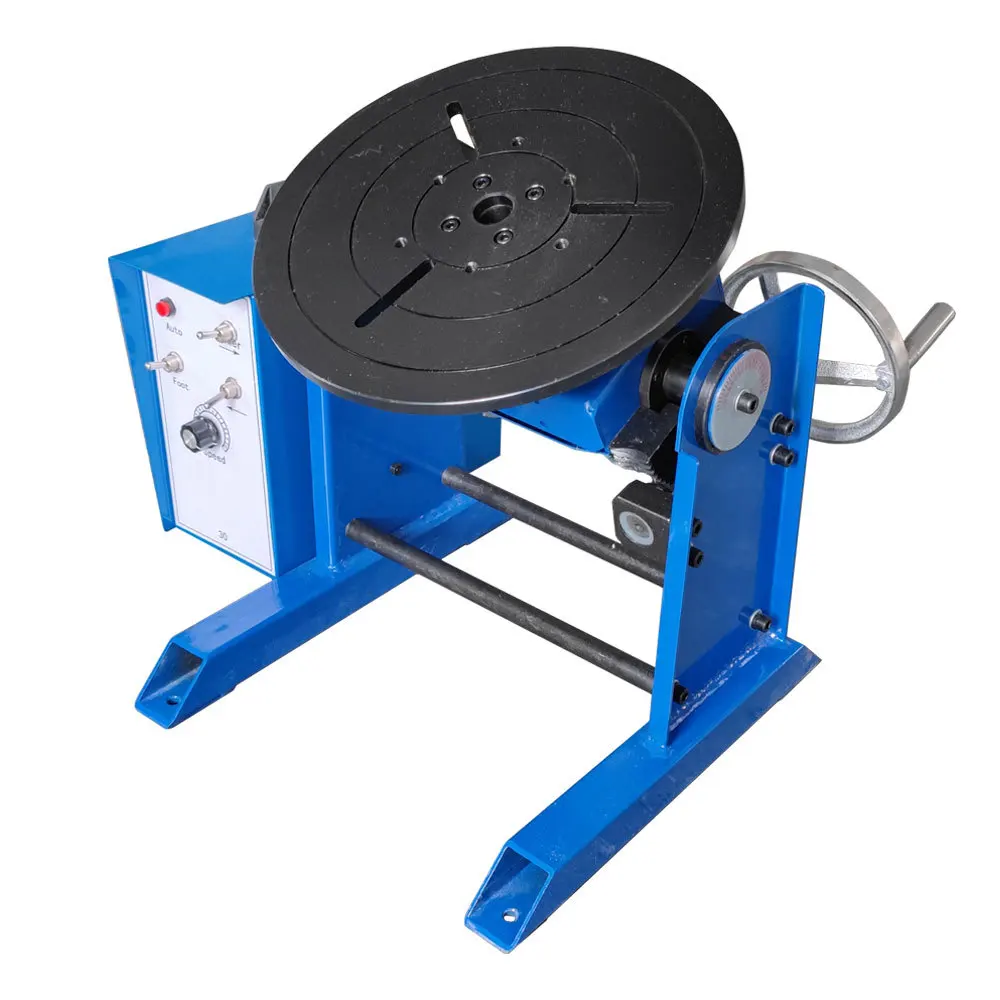

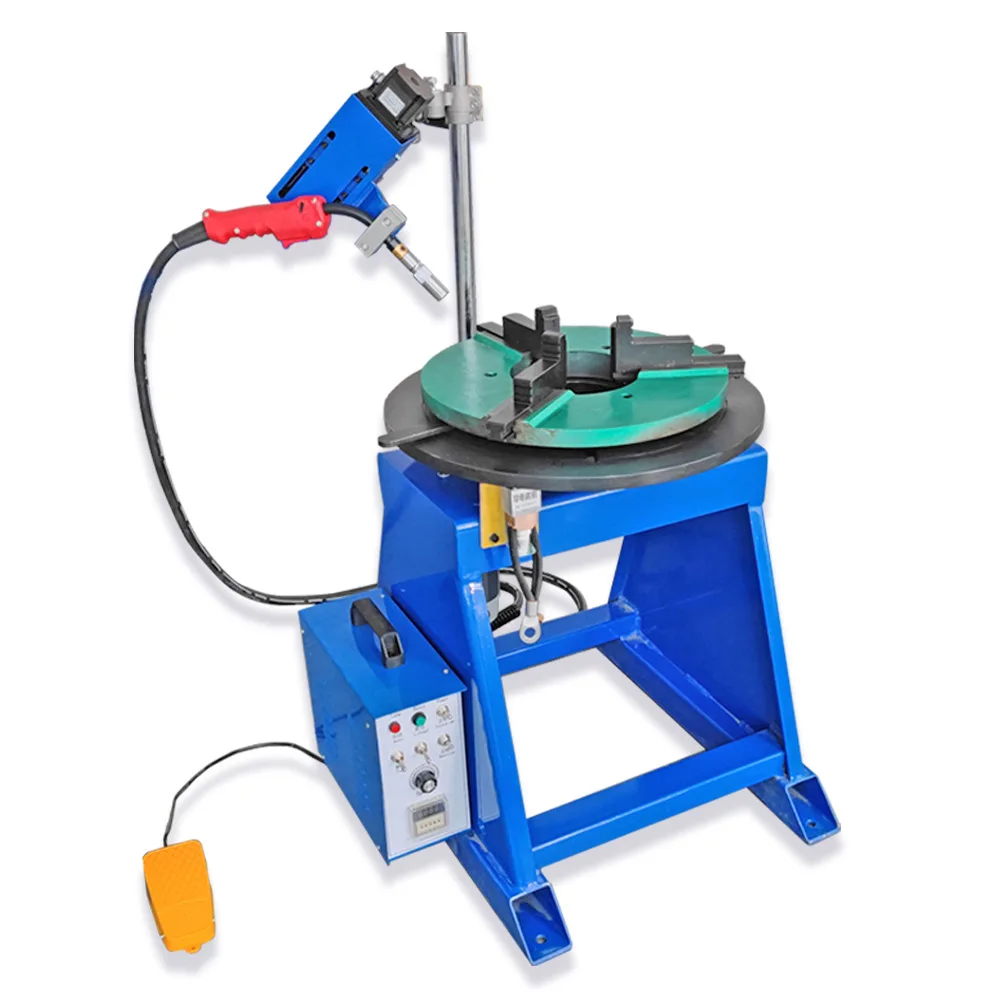

200Kg Plate Welding Positioner 220V linkage welding Mig Tig industrial Rotary welding Turntable
- Category: >>>
- Supplier: Shandong Chenxuan Robot Technology Co. Ltd.
Share on (1601009429205):
Product Overview
Description
Product Description
Structure Introduction
The single-axis horizontal servo positioner is mainly composed of integral fixed base, rotary spindle box, horizontal rotary disk,
AC servo motor and RV precision reducer, conductive mechanism, protective shield and electric control system. The fixed base iswelded with high-quality profiles. After annealing and stress relieving, it shall be processed by professional machining to ensure high machining accuracy and use precision of key positions. The surface is sprayed with anti-rust appearance paint, which is beautiful and generous, and the color can be customized according to customer requirements.
The high-quality profile steel selected for the rotary spindle box can ensure its long-term durability and stability after welding
and annealing and professional machining. The horizontal rotary disk is welded with high-quality profiles. After annealing
treatment, professional machining can ensure the degree of finish of the surface and its own stability. The upper surface is
machined with screw holes with standard spacing, which is convenient for customers to install and fix the positioning tooling.
Selecting AC servo motor and RV reducer as power mechanism can ensure the stability of rotation, accuracy of positioning, long durability and low failure rate. The conductive mechanism is made of brass, which has a good conductive effect. The conductive base adopts integral insulation, which can effectively protect servo motor, robot and welding power source.
The electric control system adopts Japanese Omron PLC to control the positioner, with stable performance and low failure rate. The electrical components are selected from famous brands at home and abroad to ensure the quality and stability of use.
AC servo motor and RV precision reducer, conductive mechanism, protective shield and electric control system. The fixed base iswelded with high-quality profiles. After annealing and stress relieving, it shall be processed by professional machining to ensure high machining accuracy and use precision of key positions. The surface is sprayed with anti-rust appearance paint, which is beautiful and generous, and the color can be customized according to customer requirements.
The high-quality profile steel selected for the rotary spindle box can ensure its long-term durability and stability after welding
and annealing and professional machining. The horizontal rotary disk is welded with high-quality profiles. After annealing
treatment, professional machining can ensure the degree of finish of the surface and its own stability. The upper surface is
machined with screw holes with standard spacing, which is convenient for customers to install and fix the positioning tooling.
Selecting AC servo motor and RV reducer as power mechanism can ensure the stability of rotation, accuracy of positioning, long durability and low failure rate. The conductive mechanism is made of brass, which has a good conductive effect. The conductive base adopts integral insulation, which can effectively protect servo motor, robot and welding power source.
The electric control system adopts Japanese Omron PLC to control the positioner, with stable performance and low failure rate. The electrical components are selected from famous brands at home and abroad to ensure the quality and stability of use.
C-type dual axis servo positioner
L-type dual axis servo positioner
U-type dual axis servo positioner
Single axis horizontal servo positioner
Single axis main tail box type servo positioner
Spindle box type single axis servo positioner
Vertical flipping three-axis servo positioner
Horizontal rotary three-axis servo positioner
Small welding positioner
Vertical flipping three-axis servo positioner
Horizontal rotary three-axis servo positioner
Small welding positioner
Heavy duty welding positioner
Transfer robot
Welding robot
Stamping machine
Cooperative Robot
Conveyor line
Positioner
Silo
Ground track
Specification
CX-CNC-50 | CX-CNC-100 | CX-CNC-200 | CX-CNC-300 |
AC220V | AC220V | AC220V | AC220V |
300mm | 400mm | 400mm | 500mm |
50kg/25kg | 100kg/50kg | 200kg/1000kg | 300kg/150kg |
57 steps | 86 steps | 86 steps | 86 steps |
0.1-5rpm | 0.1-5rpm | 0.1-2rpm | 0.1-2rpm |
65mm | 80mm/170mm | 80mm/170mm | 90mm/170mm |
Manual | Manual | Manual | Manual/Electric |
360 * 380 * 380 | 500 * 530 * 520 | 500 * 530 * 520 | 590 * 650 * 650 |
Single-axis | Single-axis horizontal servo positioner | ||||
PROJECTS | Parameter | Parameter | REMARKS | ||
Rated load | 200kg | 500kg | Within R300mm/ R400mm radius of main axis | ||
Standard radius of gyration | R300mm | R400mm | |||
Maximum rotating angle | ±360° | ±360° | |||
Rated rotating speed | 70°/S | 70°/S | |||
Repeat positioning accuracy | ±0.08mm | ±0.10mm | |||
Size of horizontal rotary disc | Φ600 | Φ800 | |||
Boundary dimension of displacement frame (length×width×height) | - | - | |||
Overall dimension of position shifter (length×width×height) | 770mm ×600mm ×800mm | 900mm ×700mm ×800mm | |||
Spindle rotary disk | - | - | |||
Center height of the first axis rotation | 800mm | 800mm | |||
Power supply conditions | Three-phase 200V±10%50HZ | Three-phase 200V±10%50HZ | With isolation transformer | ||
Insulation class | H | H | |||
Net weight of equipment | About 200kg | About 400kg | |||
Single-axis | Single-axis main trunk type servo positioner | ||||||
PROJECTS | Parameter | Parameter | Parameter | REMARKS | |||
Rated load | 500kg | 800kg | 1200kg | Within R400mm/R500mm/ R750mm radius of main axis | |||
Standard radius of gyration | R600mm | R700mm | R900mm | ||||
Maximum rotating angle | ±360° | ±360° | ±360° | ||||
Rated rotating speed | 70°/S | 70°/S | 50°/S | ||||
Repeat positioning accuracy | ±0.10mm | ±0.12mm | ±0.15mm | ||||
Size of horizontal rotary disc | - | - | |||||
Boundary dimension of displacement frame (length×width×height) | 2200mm ×800mm×90 | 3200mm ×1000mm ×110mm | 4200mm ×1200mm ×110mm | ||||
Overall dimension of position shifter (length×width×height) | 2900mm ×650mm ×1100mm | 4200mm ×850mm ×1350mm | 5400mm ×1000mm ×1500mm | ||||
Spindle rotary disk | Φ360mm | Φ400mm | Φ450mm | ||||
Center height of the first axis rotation | 850mm | 950mm | 1100mm | ||||
Power supply conditions | Three-phase 200V±10%50HZ | Three-phase 200V±10%50HZ | Three-phase 200V±10%50HZ | With isolation transformer | |||
Insulation class | H | H | H | ||||
Net weight of equipment | About 500kg | About 1000kg | About 1600kg | ||||
Single-axis | Spindle box type single-axis servo positioner | ||||
PROJECTS | Parameter | Parameter | REMARKS | ||
Rated load | 200kg | 500kg | It is within R300mm radius of spindle axis | ||
Standard radius of gyration | R600mm | R600mm | |||
Maximum rotating angle | ±360° | ±360° | |||
Rated rotating speed | 70°/S | 70°/S | |||
Repeat positioning accuracy | ±0.08mm | ±0.10mm | |||
Size of horizontal rotary disc | - | - | |||
Boundary dimension of displacement frame (length×width×height) | - | - | |||
Overall dimension of position shifter (length×width×height) | 1050mm ×620mm ×1050mm | 1200mm ×750mm ×1200mm | |||
Spindle rotary disk | Φ360mm | Φ400mm | |||
Center height of the first axis rotation | 850mm | 900mm | |||
Power supply conditions | Three-phase 200V±10%50HZ | Three-phase 200V±10%50HZ | With isolation transformer | ||
Insulation class | H | H | |||
Net weight of equipment | About 200kg | About 300kg | |||
