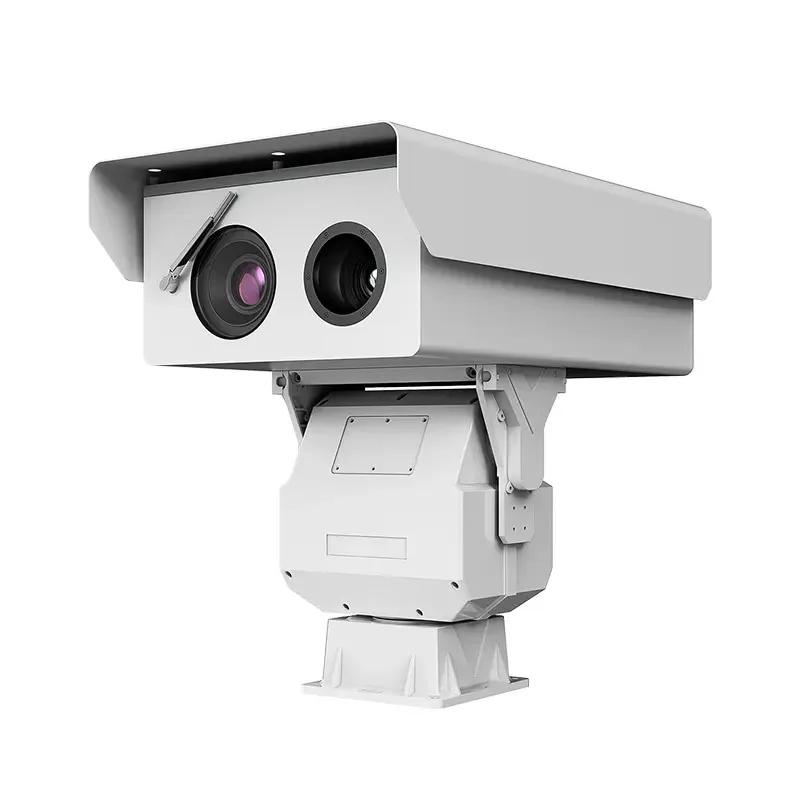

640*480 with 25 100mm 4x lens long range bi spectrum thermal & optical detection 2km PTZ camera

Product Overview

Description

Product Introduction:

 -Integrated with weather-proof high speed PTZ.

-It combines with cameras ,intelligent PTZ and decoder ,cover housing, wipers,automatic heater, windows defroster and defogger, sun-shield housing.

-It integrates with high-end motor, good stability and low noise.

-Heavy wind resistance ,smoothly running ,ensure accurate positioning.

-Weather-proof design, with sun-shield housing, wiper

-High die-cast aluminum casing, anti-shock, anti-corrosion ,IP 66

-High sensitivity thermal module with 640*480 resolution with 100mm or 25-100mm 4x zoom lens ,detecting distance >= 2000m for human and 5000m for vehicle

-NETD is less than 50 mk (@25° C, F#=1.0

-Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

-Powerful perimeter protection , based on intelligent algorithm: Line crossing, intrusion, region entrance & exit

- equiped with 52x optical zoom 4.0mp ,focus lens length 6.7-348mm lens ,day vision >=5km .

-Reliable temperature-anomaly alarmAdvanced fire detection algorithm

Techical Data :

Thermal imaging detection distance		4km
Model	BSD10T-64TH75
Thermal imaging detector	Detector type	Uncooled focal plane microthermal type
	Pixels	640*512 can scaled up to 1024*768 with 25mm~100mm lens
	Wave length/ Pixel pitch	17um
	NETD	less than 40mk(@25°C,F#=1.0)
	digit Zoom	2x,4x,8x
	Focal length	25-100mm
	View angle	10.76X8.12°
	Human detection	5Km
	Vehicle detection	4.5KM
	Human Identify	0.8KM
	Vehicle Identify	2.5KM
Visible light distance		3.5KM
Starlight Telephoto fog lens	Image	1/1.8" Progressive Scan CMOS
	Interface	C
	Focal length	6.8-348mm
	Variable factor	52X
	Aperature(F)	F1.8-F 4.8
	pixel	4.0MP or 2.0MP
	Focal zoom	Electric zoom
	View angle	38.4~0.48 °
	Aperture function	Automatic iris (DC driving)
	Min illumination	Color:0.05 Lux @(F1.8,AGC ON)White black:0.01Lux @(F1.8,AGC ON)
	Automatic iris	DC  driving
	Day/night	ICR IR filter
	Image	1920 × 1080
	Image frame rate	50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720)        60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
	Day/night	ICR Infrared filter automatic switching
	Image setting	Saturation, brightness, contrast, sharpness adjustable
	Through fog	Support
	Special function	Wide dynamic light suppression / 3D digital noise reduction / backlight compensation / electronic shutter auto iris / slow shutter
Network transmission compression method	Video compression standard	H.265 / H.264 / MJPEG
	H.265 code	Main Profile
	H.264  code	BaseLine Profile / Main Profile / High Profile
	Compressed output bit rate	32 Kbps~16Mbps
	Storage	Support Micro SD/SDHC/SDXC card(128G)
		Broken network local storage,NAS(NFS,SMB/CIFS all support)
	Interface protocol	ONVIF,PSIA,CGI,ISAPI,GB28181
	Support protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
PTZ	Pan preset speed	40°/s
	Tilt preset speed	20°/s
	Pan control speed	0°~60°/S
	Tilt control speed	0°~40°/S
	Pan range	360°endless rotation
	Tilt range	+90° ~ -90°
	Preset positions,Tracking	256 positions  6 tracking
	Control Way	RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional
	Relative Humidity	Less than 90%
	IP Grade	IP66
	Working Temperature	-35° ~ +55°
	Impact resistance requirements	≥4G
	Wiper	Support
	Voltage input	DC24V/15A
	Installation	Variety of installation according to the environment
	Weight	30Kg

 Diameter :

Product Case:

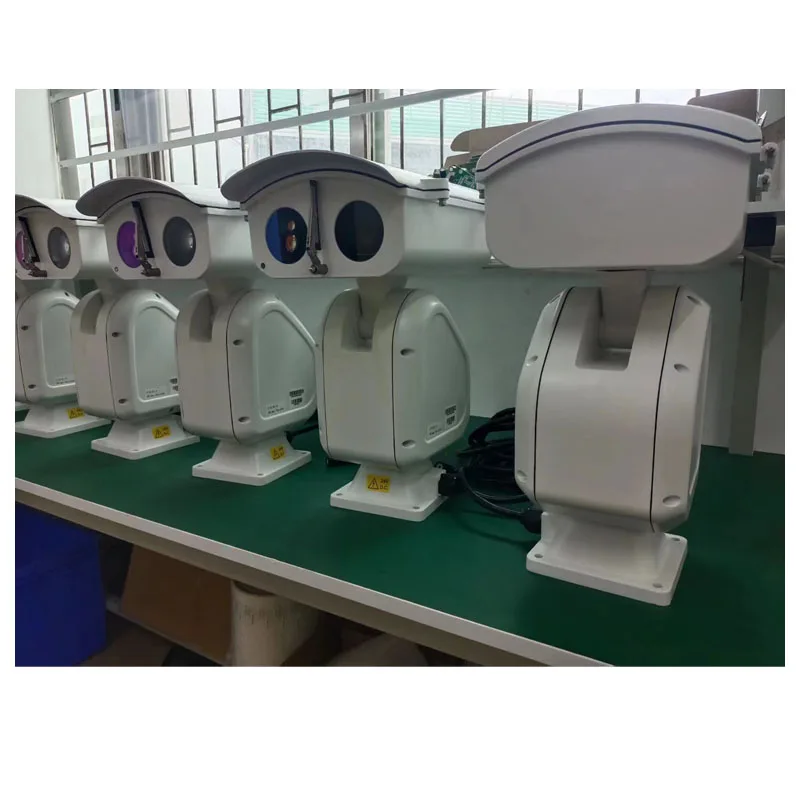

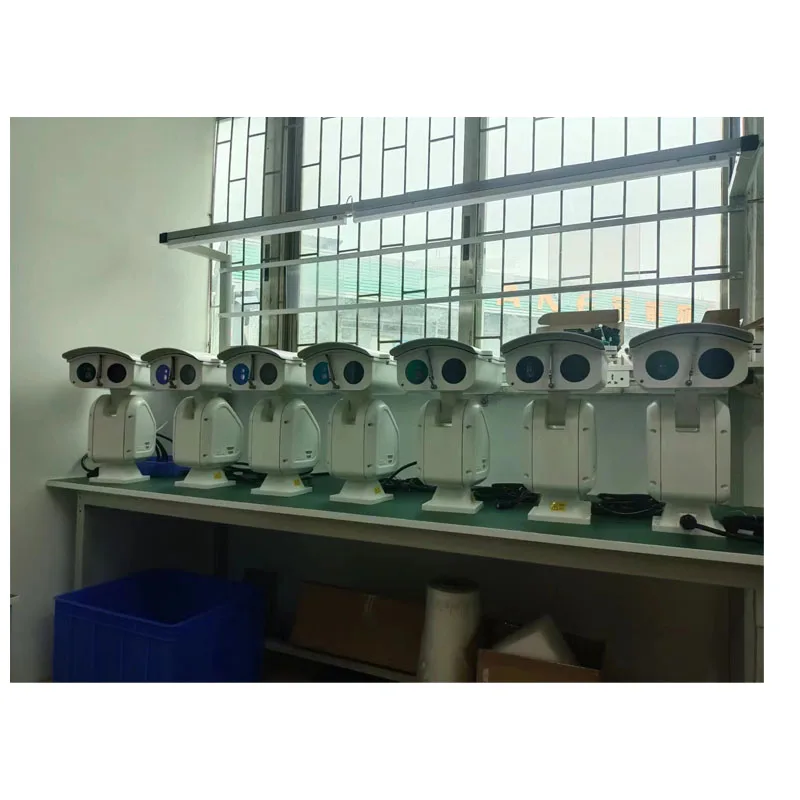

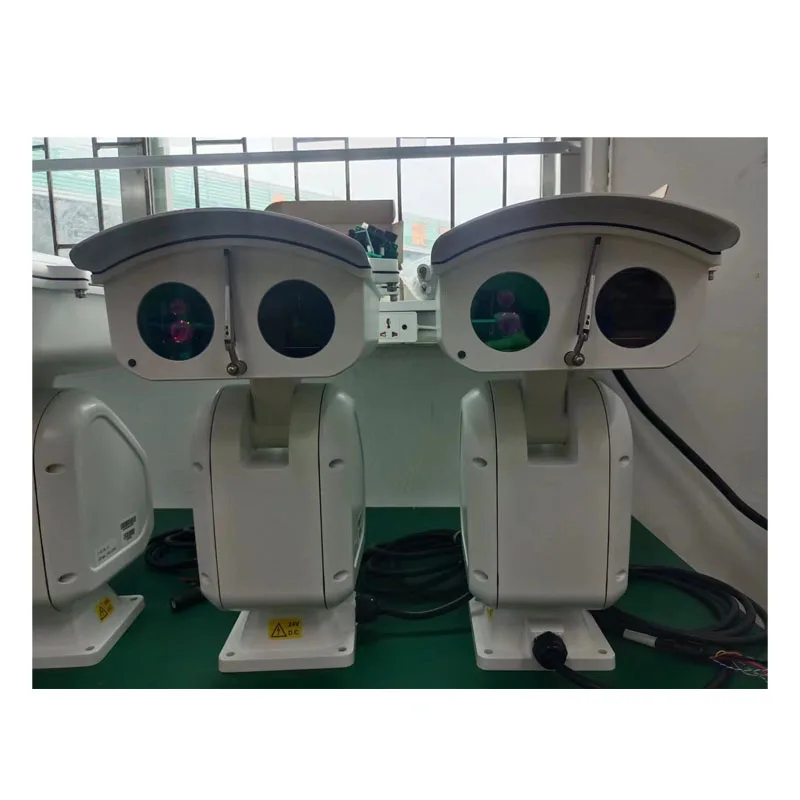

Company photo:
