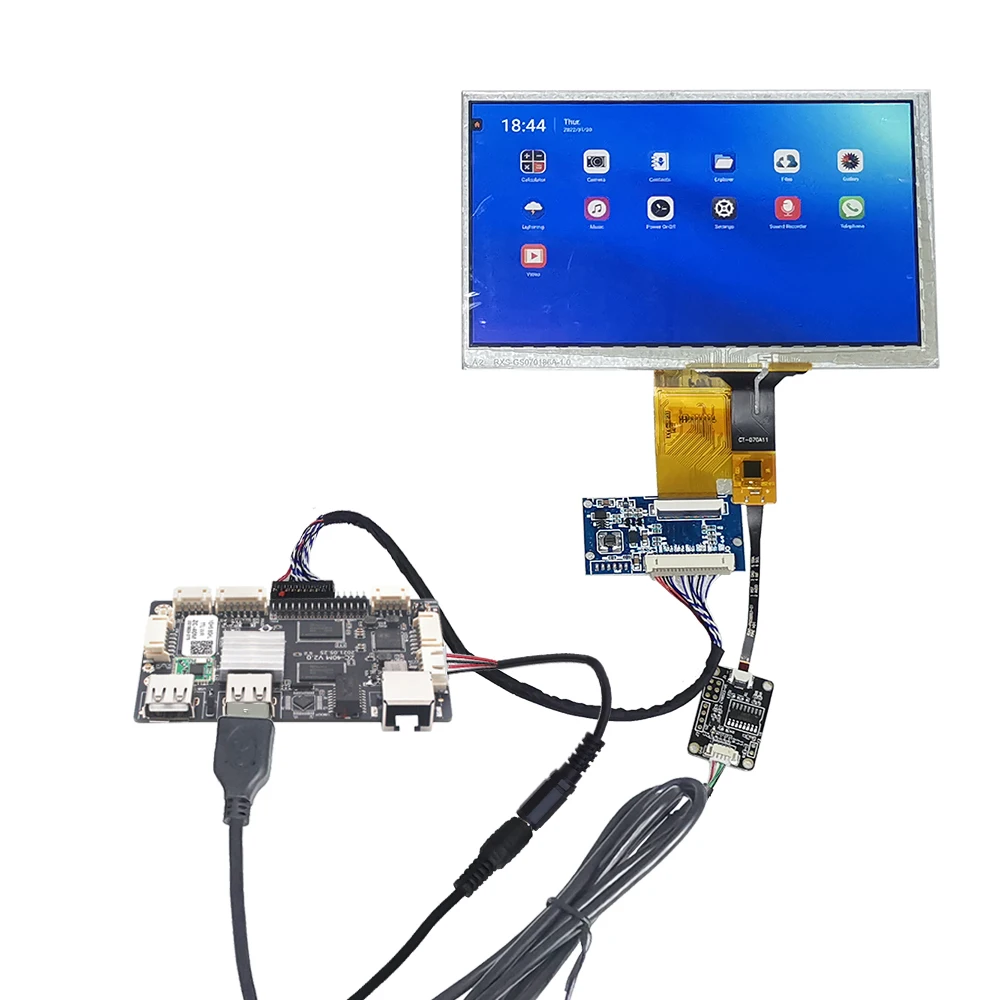

Low Price Lcd Display Module Kit Pcba Assembly Android lcd Controller Board Kit wiht A40I cortex a7 Android Linux
- Category: >>>
- Supplier: Shenzhen Wuhe Tiancheng Technology Co. Ltd.
Share on (1601009603167):
Product Overview
Description

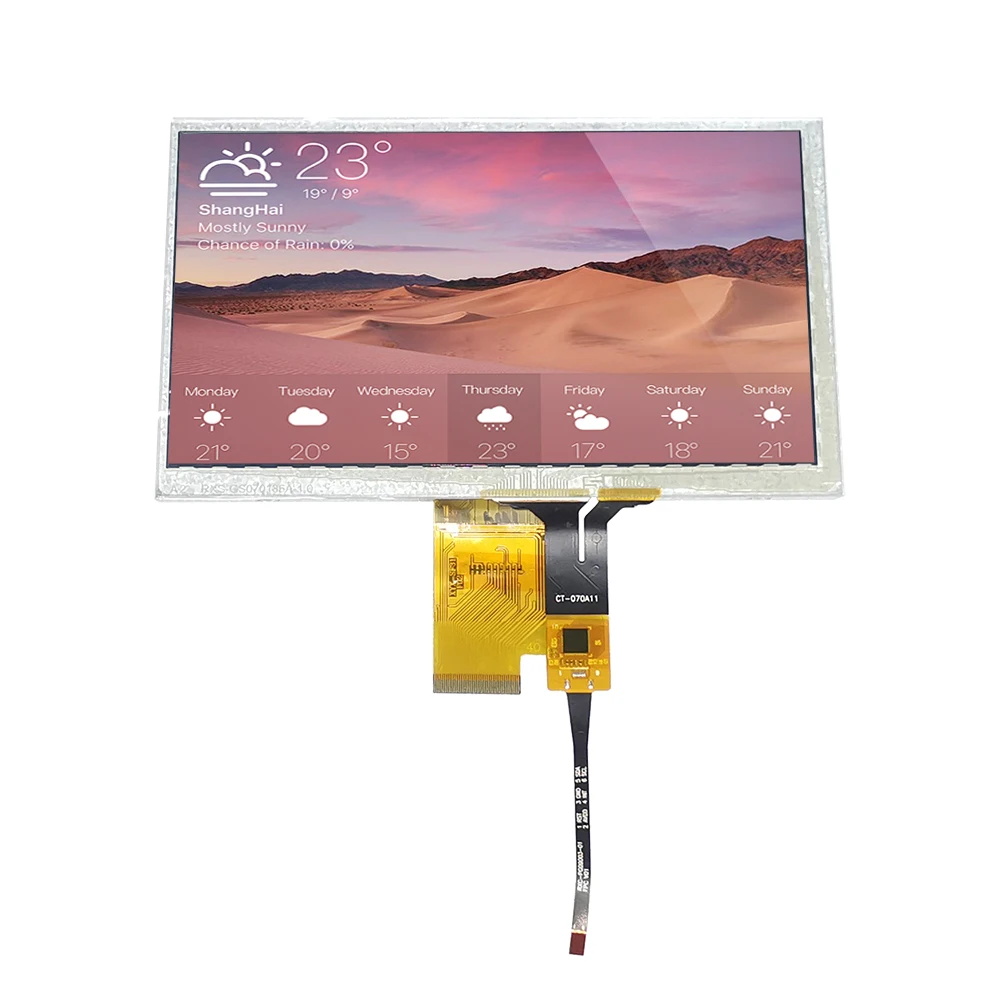

Low Price Lcd Display Module Kit Pcba Assembly Android lcd Controller Board Kit wiht A40I cortex-a7 Android Linux
Function Feature:
1. 7 inch 1024x600 tft lcd panel
1. 7 inch 1024x600 tft lcd panel
2. touch screen (capacitance touch panel resistance touch screen Optional)
3. LVDS 40pin ，High Brightness 300~1000 nits Customized
3. LVDS 40pin ，High Brightness 300~1000 nits Customized
4. Android 7.1 board
3. OEM and ODM service is acceptable. The development charge can returned.
5. Application: Automotive display, digital photo frame, Netbook PC, Pad&tablet, MID UMPC...
3. OEM and ODM service is acceptable. The development charge can returned.
5. Application: Automotive display, digital photo frame, Netbook PC, Pad&tablet, MID UMPC...
Product Paramenters
Product Name: | ||||
Feature | Spec | |||
Characteristics | LCD Size | 7 inch | ||
Display Format | 1024X 600 | |||
Interface | LVDS | |||
Display color | 16.7M | |||
Display Mode | Normally white, transmissive | |||
Touch screen | resistive capacitance touch Optional | |||
Viewing Direction | IPS | |||
Brightness | 300cd/m2 | |||

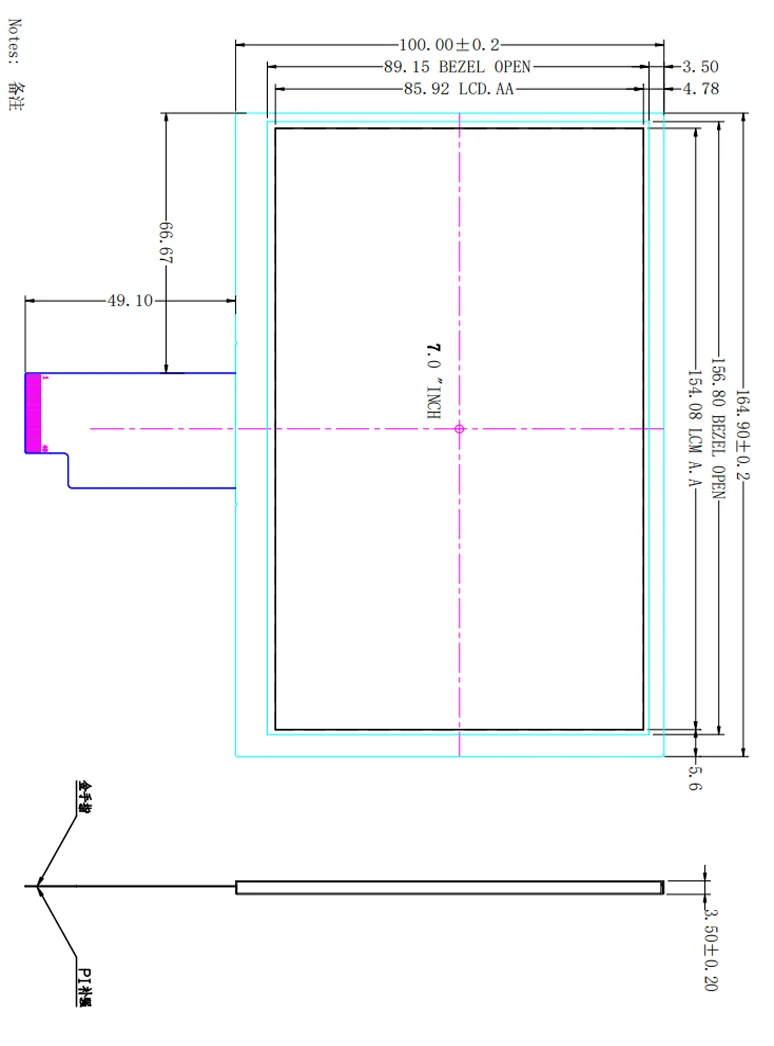

Mechanical | LCM (WxHxD) (mm) | 164.9*100*3.5 mm | ||
Active Area (mm) | 154.2(H)*85.92(V) | |||
With/Without TSP | Without TSP | |||
Weight (g) | TBD | |||
Backlight Type | WLED | |||
LCD Controller | Android | Android 7.1 | ||
chip | Quad cortex-A7 | |||
FLASH | 8GB | |||
Memory | DDR3 1G | |||
Video Format | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 ETC | |||
picture | BMP, JPEG, PNG, GIF | |||

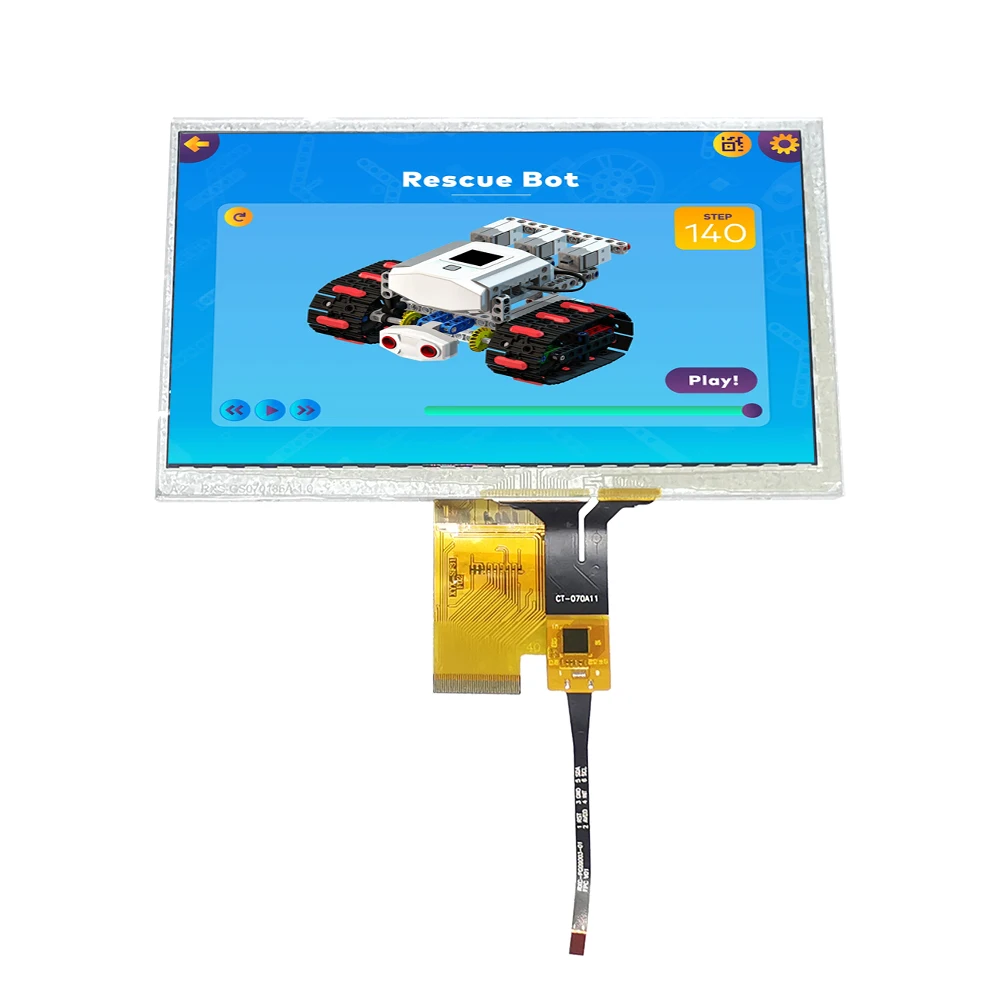

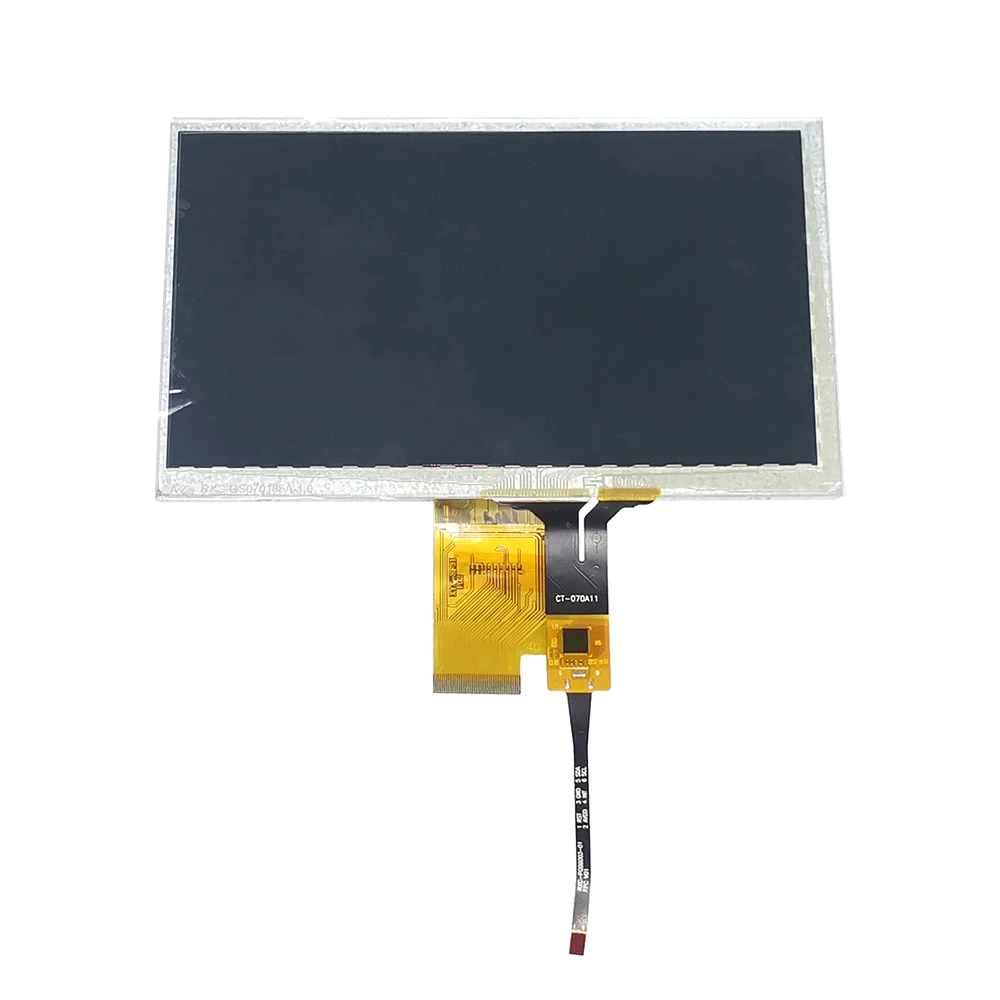

Details Images
Low Price Lcd Display Module Kit Pcba Assembly Android lcd Controller Board Kit wiht A40I cortex-a7 Android Linux
Low Price Lcd Display Module Kit Pcba Assembly Android lcd Controller Board Kit wiht A40I cortex-a7 Android Linux
Low Price Lcd Display Module Kit Pcba Assembly Android lcd Controller Board Kit wiht A40I cortex-a7 Android Linux
LCD Driver board module Application
Size | Model No | Resolution | Interface | Brightness | Viewing angle | Touch Screen |
0.96 inch | MC096VX | 128x64 | IIC | 350 | IPS | nc |
1.54 inch | W015P18S1SI | 128x128 | SPI | 200 | 6 O'clock | NC |
2.0 inch | W020P18S1SI | 240*320 | SPI | 1000 | IPS | RTP/CTP |
2.4 inch | W024P18S1SN | 240*320 | SPI | 300 | 6 O'clock / IPS | RTP/CTP |
2.4 inch | W024P40S1RN | 240*320 | RGB | 300 | 6 O'clock / IPS | RTP/CTP |
2.4 inch | W024P37S1CI | 240*320 | MCU | 300 | 6 O'clock / IPS | RTP/CTP |
2.8 inch | W028P18S1SN | 240*320 | SPI | 400 | 12 O'clock / IPS | RTP/CTP |
2.8 inch | W028P40S1RI | 240*320 | RGB | 400 | 12 O'clock / IPS | RTP/CTP |
2.8 inch | W028P37S1CN | 240*320 | MCU | 400 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P18S1SN | 240*320 | SPI | 300 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P40S1RI | 240*320 | RGB | 300 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P37S1CN | 240*320 | MCU | 300 | 6 O'clock / IPS | RTP/CTP |
3.34 inch | W034P17MI | 320*320 | MIPI | 600 | IPS | RTP/CTP |
3.4 inch | W034P17MIB | 800*800 | MIPI | 350 | IPS | RTP/CTP |
3.5 inch | W035P54S1RN | 320*240 | RGB / SPI | 1000 | 12 O'Clock | RTP/CTP |
3.5 inch | W035P54S1RI | 320*240 | RGB / SPI | 1000 | IPS | RTP/CTP |
3.5 inch | W035P40H1RN | 320*480 | RGB / MCU | 300 | 12 O'Clock | RTP/CTP |
3.5 inch | W035P40H1RI | 320*480 | RGB / MCU | 300 | IPS | RTP/CTP |
3.5 inch | W035P40H2RI | 640*480 | RGB / SPI | 300 | IPS | RTP/CTP |
4.3 inch | W043P40S1RN | 480*272 | RGB | 300 | 12 O'Clock | RTP/CTP |
4.3 inch | W043P40S1RN-1000 | 480*272 | RGB | 1000 | 12 O'clock | RTP/CTP |
4.3 inch | W043P40S1RI | 480*272 | RGB | 300 | IPS | RTP/CTP |
4.3 inch | W043P40S1RI-1000 | 480*272 | RGB | 1000 | IPS | RTP/CTP |
4.3 inch | W043P40H2RI | 800*480 | RGB | 300 | IPS | RTP/CTP |
4.3 inch | W043P40H2RI-1000 | 800*480 | RGB | 1000 | IPS | RTP/CTP |
4.82 inch | W043P24H1MI | 480*1120 | MIPI | 280 | IPS | RTP/CTP |
5.0 inch | W050P40S1RN | 480*272 | RGB | 300 | 12 O'Clock | RTP/CTP |
5.0 inch | W050P40H1RN | 800*480 | RGB | 500 | TN | RTP/CTP |
5.0 inch | W050P40H1RI | 800*480 | RGB | 500 | IPS | RTP/CTP |
5.0 inch | W050P40H1RI | 800*480 | RGB | 1000 | IPS | RTP/CTP |
5.0 inch | W050P24H5MI | 1080*1920 | MIPI | 380 | IPS | RTP/CTP |
7.0 inch | W070P40S1RN | 800*480 | RGB | 300 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S1RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S2RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S3RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50H3RN | 1024*600 | RGB | 400 | IPS | RTP/CTP |
7.0 inch | W070P40H1LN | 1024*600 | LVDS | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P40H1LI | 1024*600 | LVDS | 400 | IPS | RTP/CTP |
7.0 inch | W070P30H1MI | 1024*600 | MIPI | 300 | IPS | RTP/CTP |
7.0 inch | W070C30H2MI | 720*1280 | MIPI | 300 | IPS | RTP/CTP |
7.0 inch | W070C31H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080P50S2RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
8.0 inch | W080P40H1RN | 1024*600 | RGB | 400 | 12 O'Clock | RTP/CTP |
8.0 inch | W080C30H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C31H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C40H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C40H4MI | 1200*1920 | MIPI | 500 | IPS | CTP |
9.0 inch | W090P50S3RN | 800*480 | RGB | 300 | 12 O'Clock | RTP/CTP |
9.0 inch | W090P50H3RI | 1024*600 | RGB | 300 | 12 O'Clock | RTP/CTP |
9.0 inch | W090C40H1MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101P50H1RN | 1024*600 | RGB | 300 | 12 O'Clock | RTP/CTP |
10.1 inch | W101P50H1RI | 1024*600 | RGB | 300 | IPS | RTP/CTP |
10.1 inch | W101P40H1LI | 1024*600 | LVDS | 300 | IPS | RTP/CTP |
10.1 inch | W101P30H1MI | 1024*600 | MIPI | 300 | IPS | RTP/CTP |
10.1 inch | W101C31H2MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C40H3MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C30H1MI | 1280*800 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C40H1LI | 1280*800 | LVDS | 300 | IPS | CTP |
10.4 inch | W104P401LN | 1024*768 | LVDS | 500 | 12 O'Clock | RTP/CTP |
11.6 inch | W116C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
13.3 inch | W133C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
15.0 inch | W150C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
15.6 inch | W156C30H1I | 1920*1080 | eDP | 300 | IPS | CTP |
Factory show

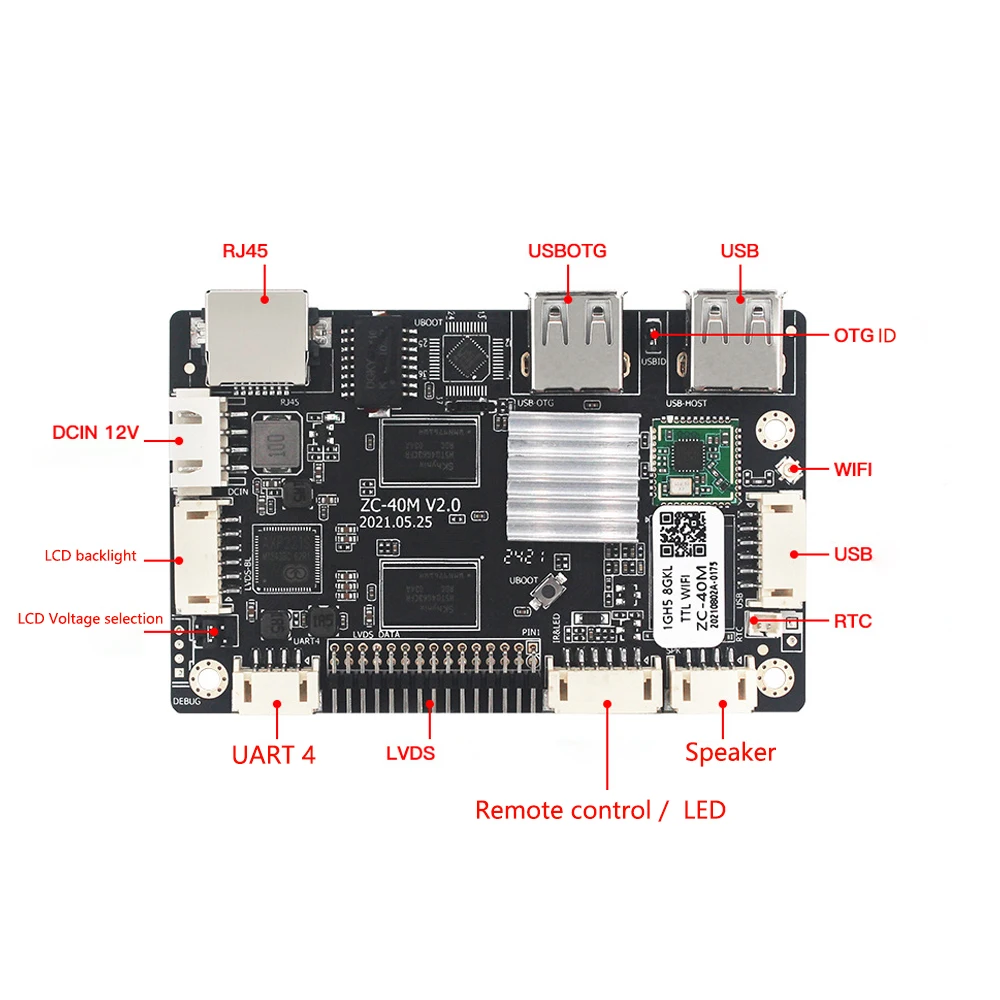

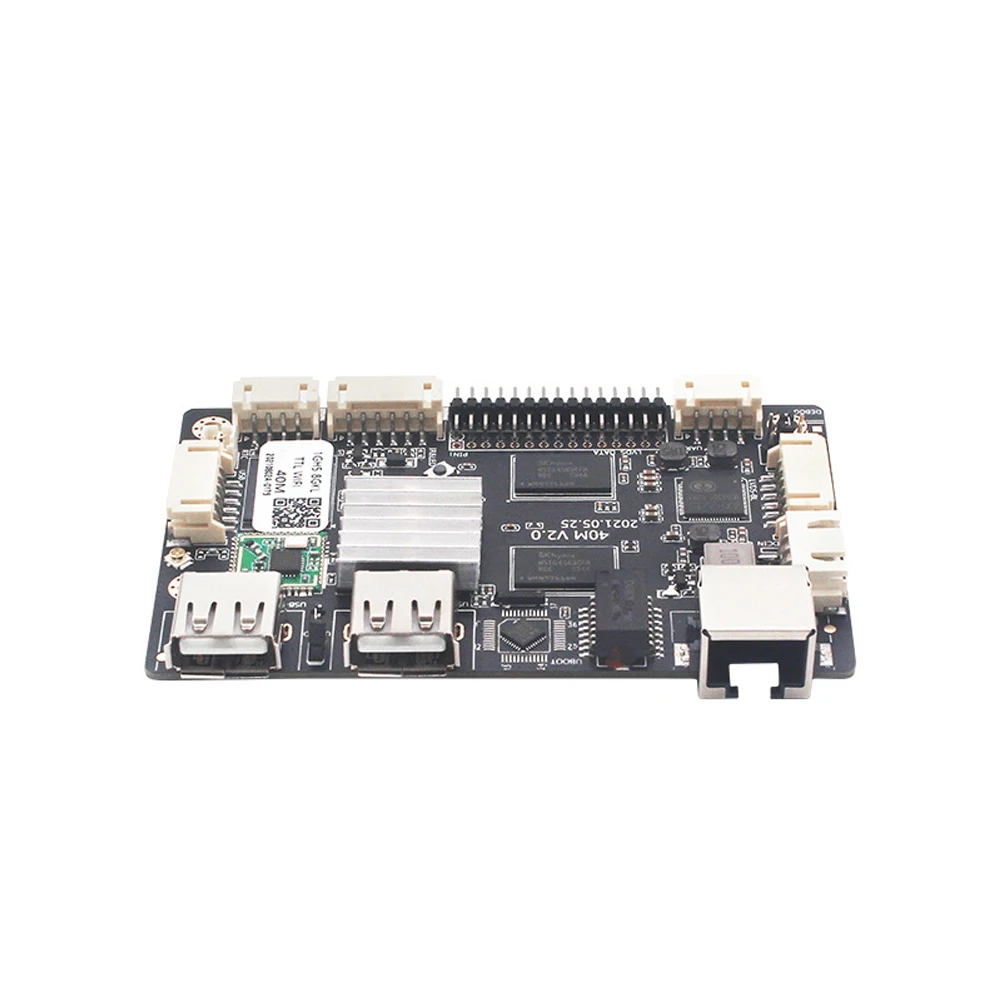

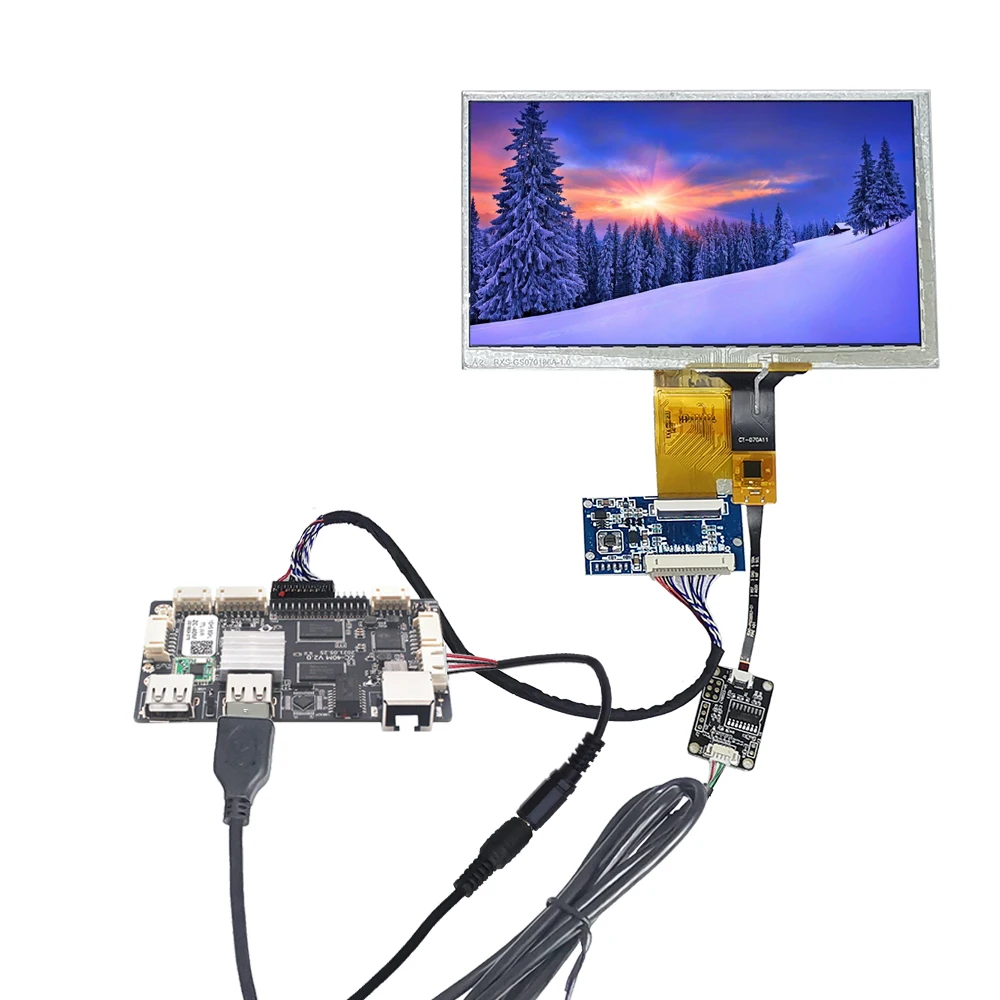

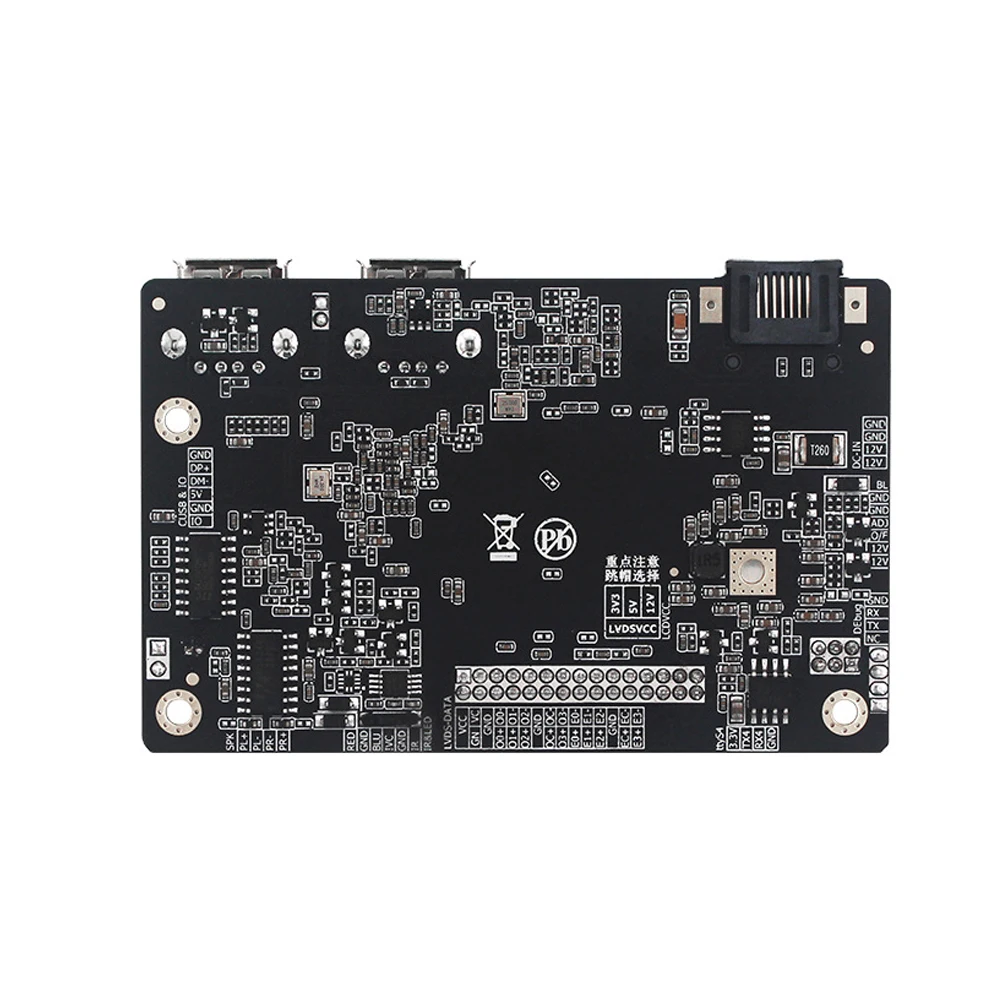

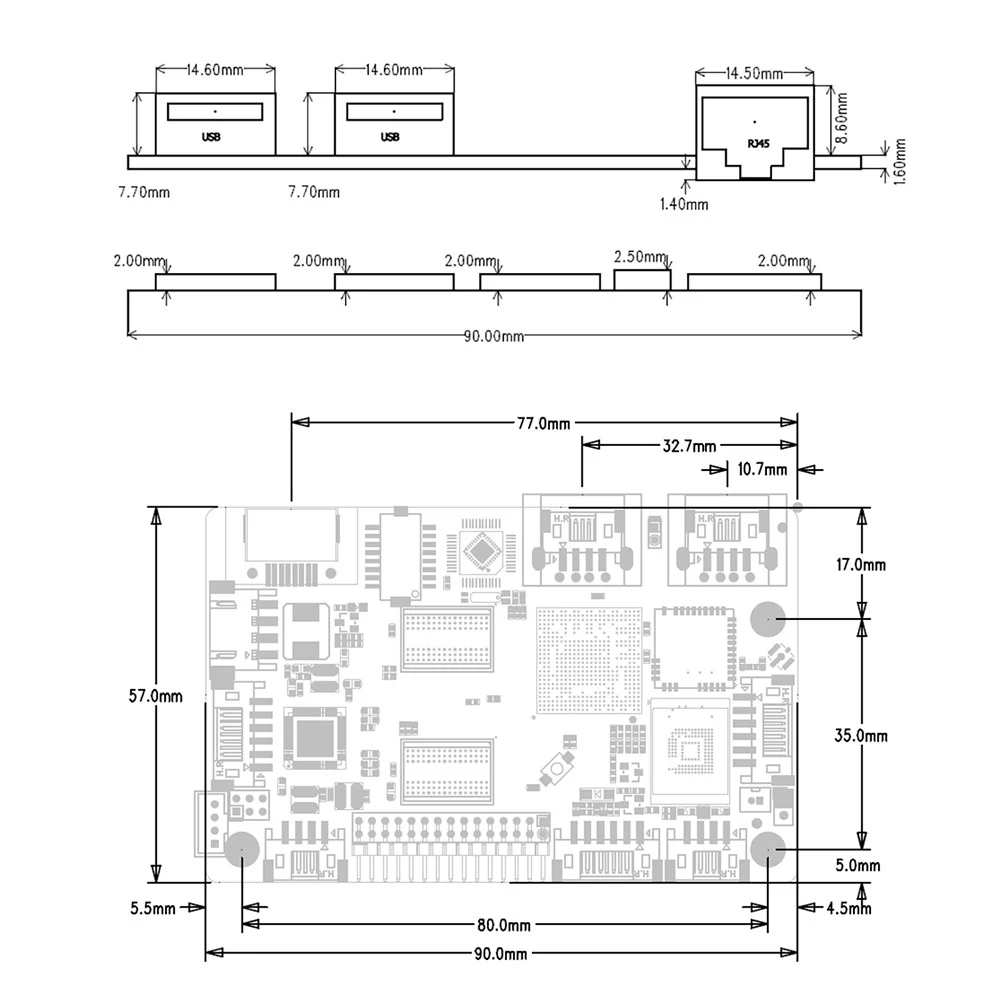

Drive control board Kit
Support resolution：
1024*600, 1024*768 1920x1080 etc
1024*600, 1024*768 1920x1080 etc
Signal input：
1. RG45 input x1
2. USB input x2
Power ：
1. DC 12V input.
Recommend Products
Our Advantages
Provide professional OEM / ODM
Applications
Product packaging
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
