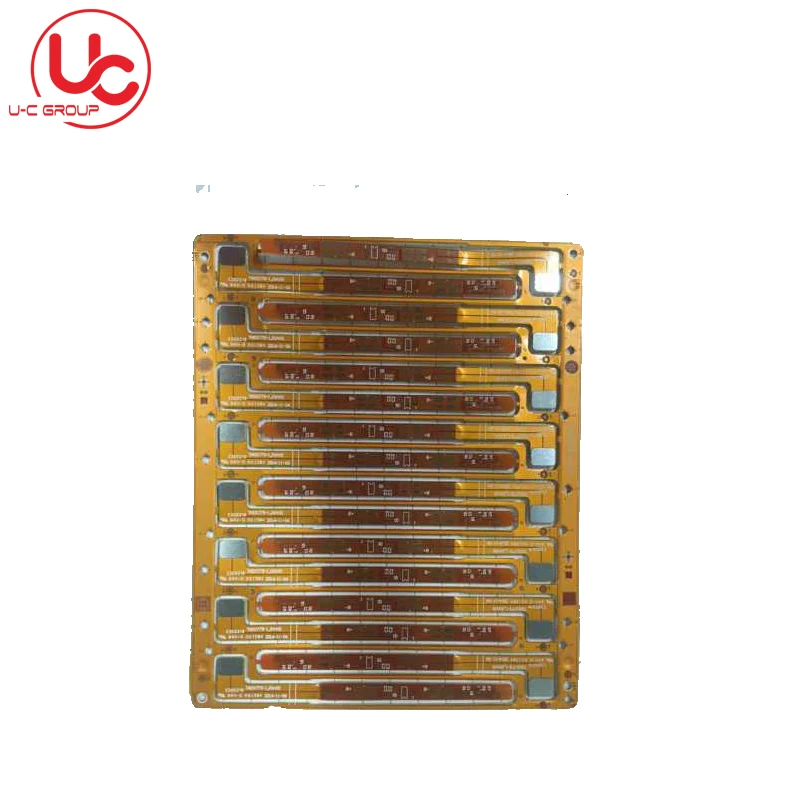

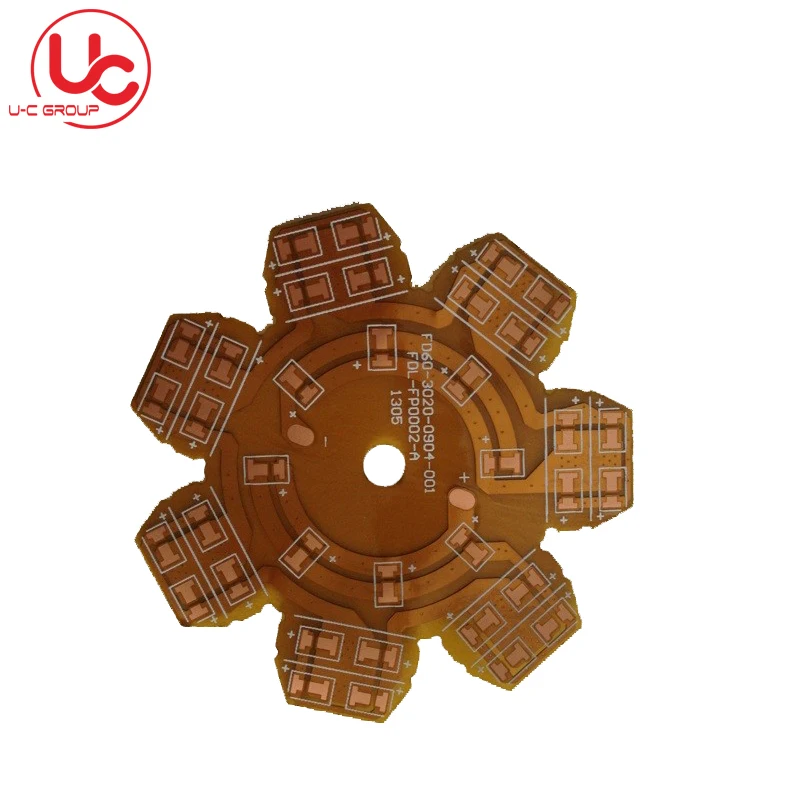

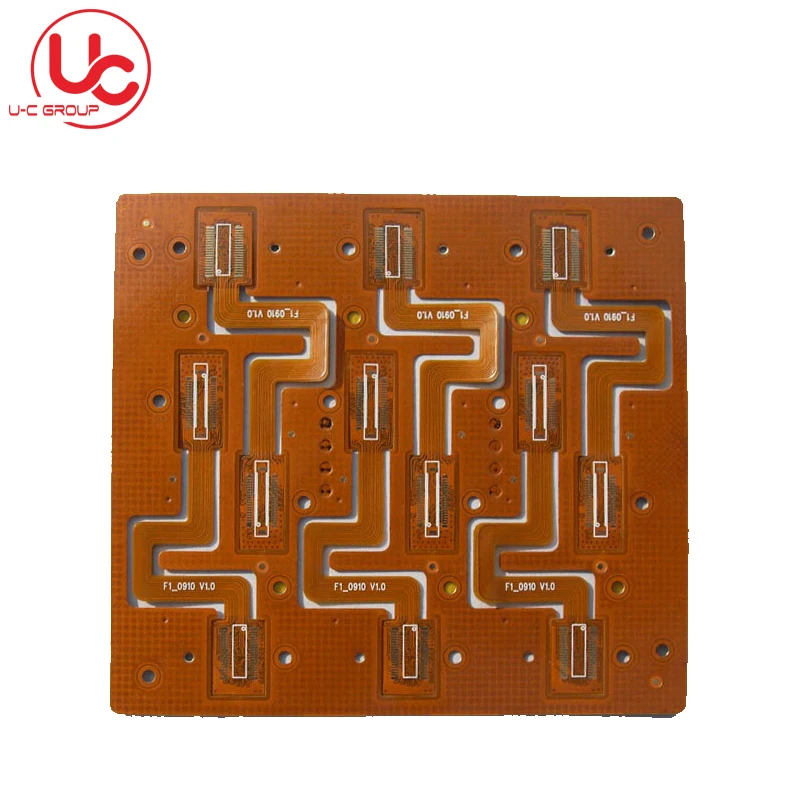

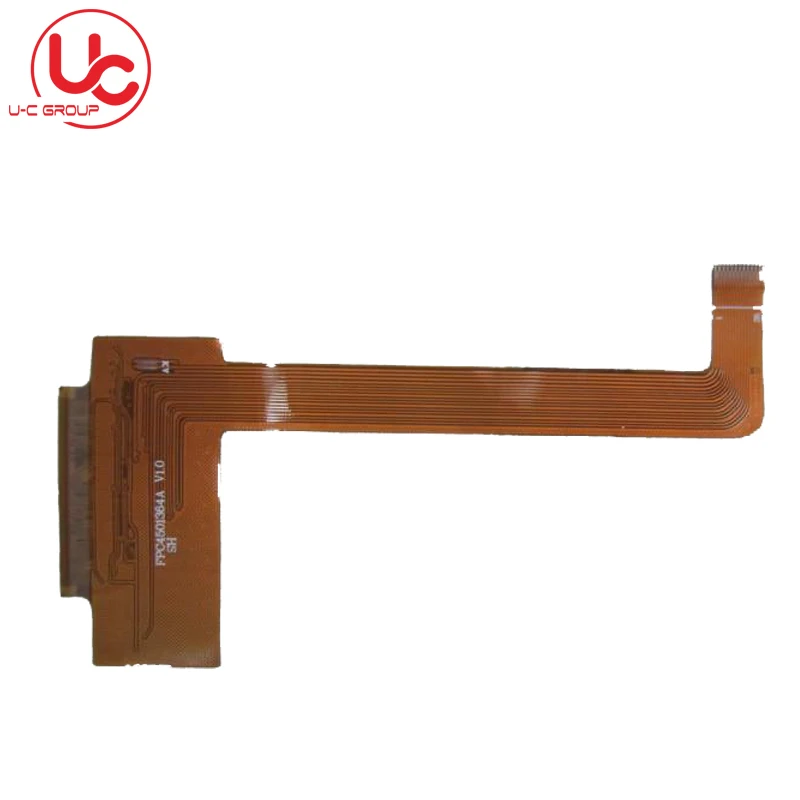

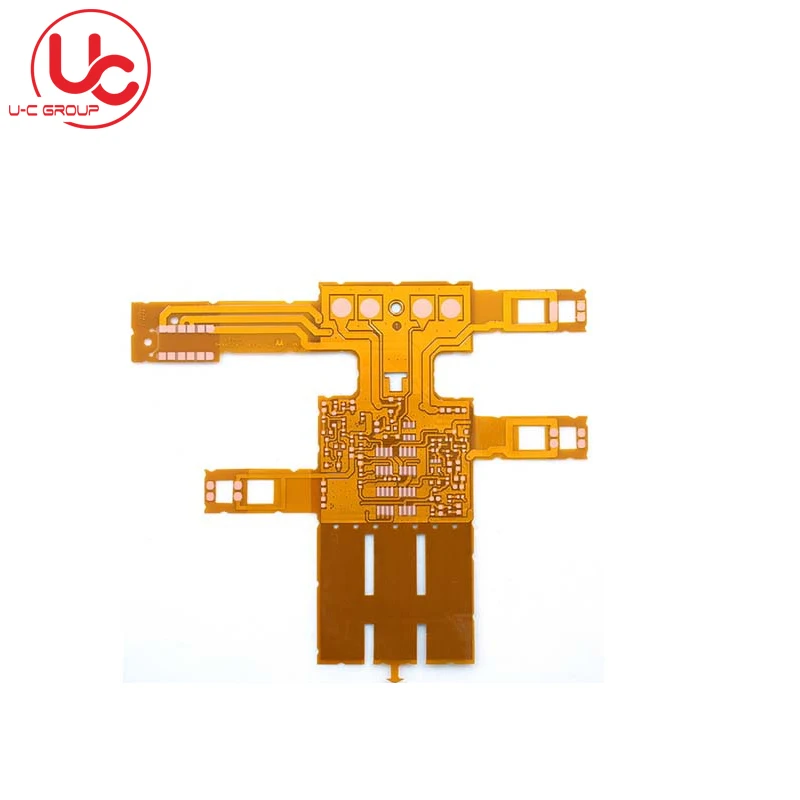

Fpcb With Stiffener Fpcb Pcba Sample Circuit Board Electronic Pcb Assembly Fr4 Flex Board Assemble Manufacturer
- Category: >>>
- Supplier: Shenzhen UC Industrail Limited
Share on (1601009638826):
Product Overview
Description
Double Side Green Silver Copper Mask Layer
Chip Surface Solder FPC Manufacturer FPC FPCB Circuit Board Assembly
Company Profile
Customer Photos
Pictures of some customers' visits
We welcome customers to visit our factory. A site visit will give you a better understanding of our annual output value, service content and factory strength.
Exhibition
Hongkong GRS Spring 19 Electronic Components Exhibition
These photos were taken in 2019 when we attended the Global Sources Electronic Components Show in Hong Kong, we also attended the Fall 2019 show, and we also attended the same show in Russia in '18 and received many customer requests for factory visits as well as orders. After the epidemic is over, we will rejoin various related exhibitions and look forward to seeing you in the future
Certifications
Products Description
Layer | 1-32layers |
Material | FR4 , CEM1 , CEM3 , Hight TG , Rogers , F4B , Taconic , FR1 , FR2 , 94v0 , Aluminum |
Order Quantity | 1 -500 , 000 |
Board shape | Rectangular , round , slots , cutouts ,complex , irregular |
Board type | Rigid ,flexible ,rigid-flexible |
Board cutting | Shear , V-score , tab-routed , counter sunk |
Board thickness | 0 . 2-8 . 0mm , Flex 0.01-0.25 " |
Copper weight | 0 . 5oZ-12oZ |
Solder mask | Double-sided green LPI , Also support red , white , yellow , blue , black , purple , etc |
Silk scree | Double-sided or single-sided in white , yellow , black , or negative |
Min line width / space | 0.06 / 0 . 06mm |
Max board dimensions | 25 . 6inch*43 .3inch or 650mm *1100mm |
Min drill hole diameter | 0 . 1mm |
Min Laser Drill hole diameter | 0 . 075mm |
Surface finish | HASL , ENIG , Immission Tin , Immisson Silver ,OSP ,ENEPIG ,etc |
Board thickness tolerance | ±10% |
Minimal slot width | 0.12" ,3 .0mm , or 120mils |
V-score depth | 20-25% of board thickness |
PTH Wall Thickness | > 0 . 025mm |
PTH Hole Dia Tolerance | ± 0 . 076mm |
Non PTH Hole Dia Tolerance | ± 0 . 05mm |
Hole Position Deviation | ± 0 . 076mm |
Sink holes | Yes |
Quality Standard | IPC-A600F / MIL-STD-105D |
Design file format | Ki-CAD , Pro-E Gerber RS-274X , 274D , Eagle and AutoCAD'S DXF , DWG |
Item# | Item Name | PCBA Capability |
1 | Assembly Options | Surface Mount ( SMT ) . Thru-Hole ( THT ) . Box building , COB , Conformal Coating , Potting and Encapsulations , IC Programming & Marking Gringing & Lettering |
2 | Types of Solder | Leaded and Lead-free (RoHS Compliant ) PCB assembly services |
3 | Stencils | Laser cut stainless steel stencils |
4 | Minimum Order | 1 pieces |
5 | Component Size | Passive Component : we can accept components as small as 01005 . 0201BGA : we have the ability to handle BGA of 0 . 25mm pitch with X-ray testing Fine Pitch Parts : we can assemble 0 . 25mm fine pitch parts . POP ( Package on Package ) . QFP CCGA , CSP etc Max Component Height : 25mm ( SMT ), Top 120mm / Bot 15mm ( Wave-Solder ) |
6 | Component Package | We accept parts in Reels , Cut Tape , Tube &Tray , Loose Parts and Bulk |
7 | Board Dimension | Min Board Size : No LimitedMax Board Size : 680x500mm |
8 | Board Shape | We can assemble boards in Rectangular, Circular and any Odd Shapes |
9 | Board Type | Rigid PCB . Flexible PCB,Rigid-flex PCB, Metal PCB |
10 | Repair& Rework | Repair and rework accepted , Our BGA reballing service with which we can safely remove the misplaced BGA , reball it and put it back on the PCB correctly . It is cost-effective |
11 | Testing | ICT . AOI , X-Ray , Function Test ( FCT ) , Aging Test |
12 | OutPut | 12 SMT lines and 5 DIP lines |
13 | Quality Standard | IPC-A-610E , IS0 13485 : 2003 , ISO 16949 : 2011 , ISO 14001 : 2004 |
