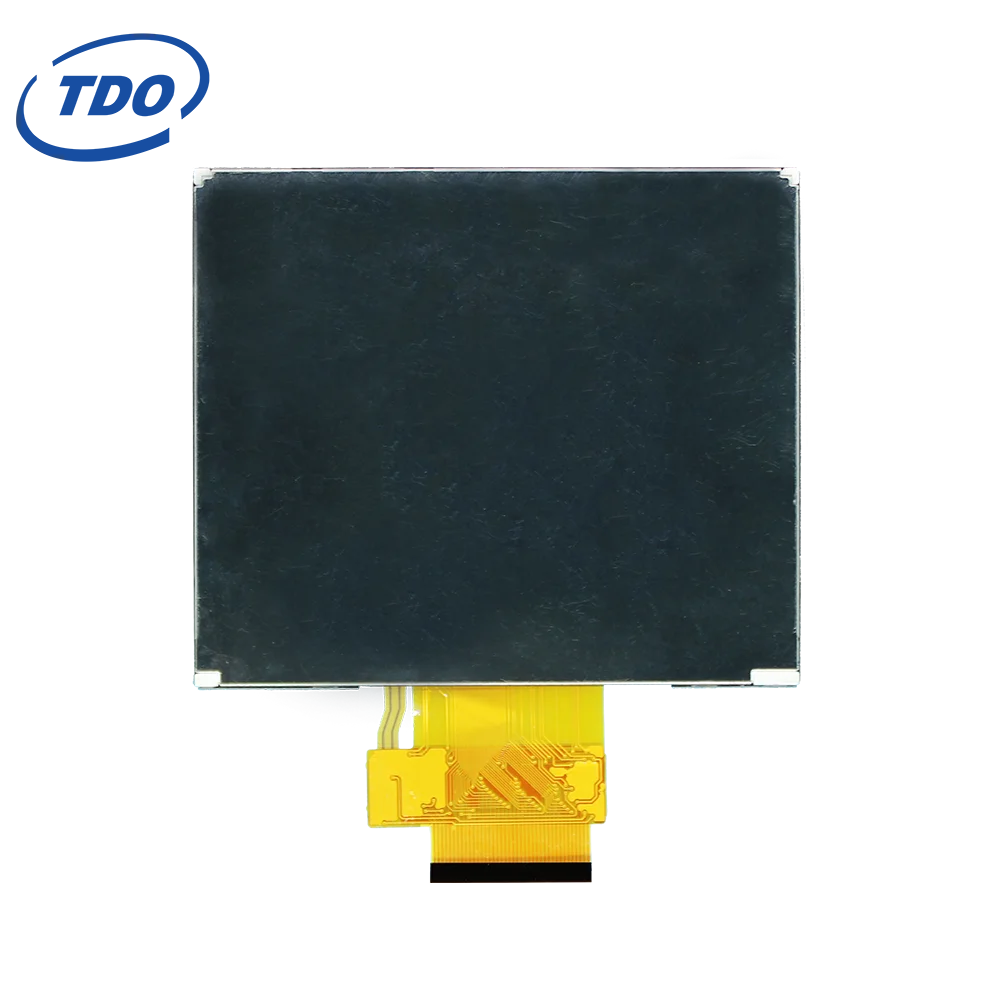

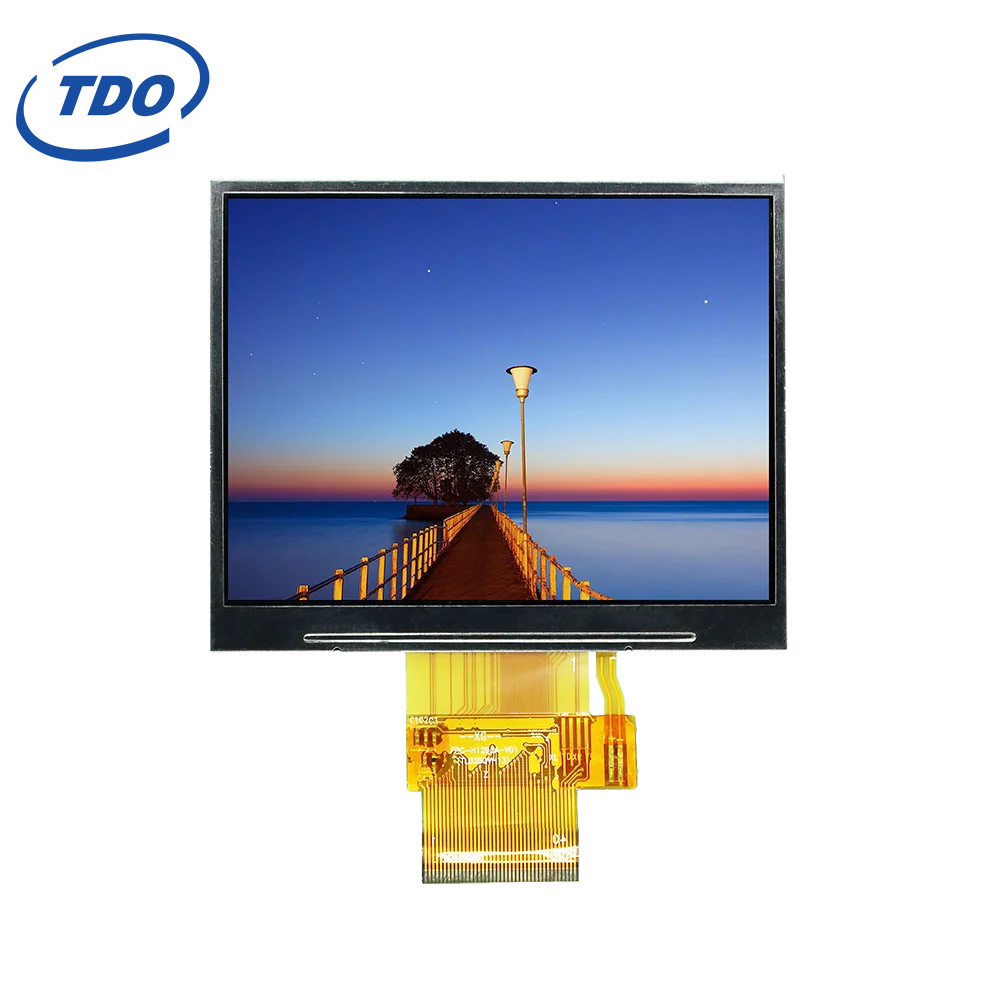

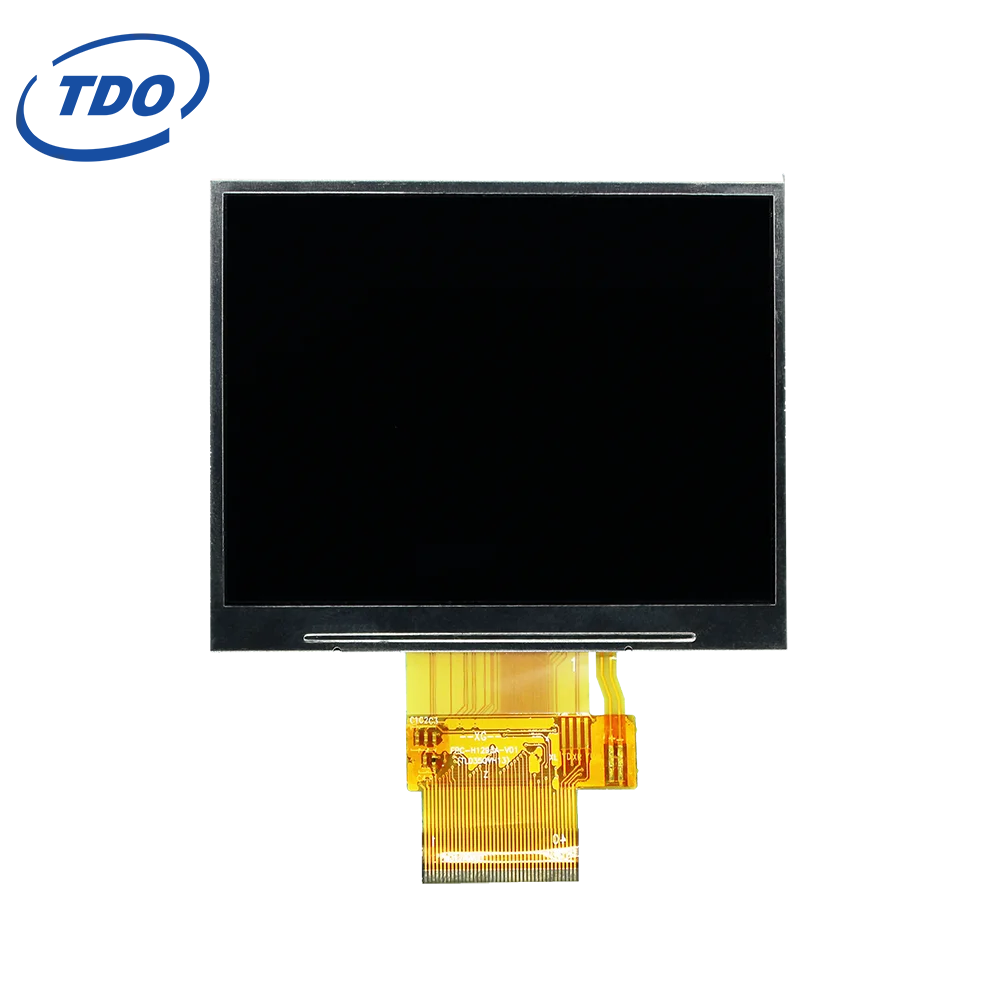

320*240 ips tft lcd display 3.5 inch

Share on (1601009651775):


Price:$9.12 - $9.53

Quantity:


Product Overview

Description



Product Description


 320*240 ips tft lcd display 3.5 inch






































































Feature



Specifications









Display Spec.



LCD type



3.5 inch



Resolution (H*V)



320(RGB)×240



Technology Type



IPS



Pixel Configuration



R.G.B. Vertical Stripe



Display Mode



Normally Black



Viewing Direction



All









Mechanical Characteristics



Outline Dimensions (W x H x T) (mm)



76.9*63.9*2.85



Active Area(mm)



70.08*52.56



With /Without Touch screen



Without



Connector Type



0.5pitch, 30pin



Backlight Type



White LED






Electrical Characteristics



Interface



RGB24BIT



Driver IC



ST7272A

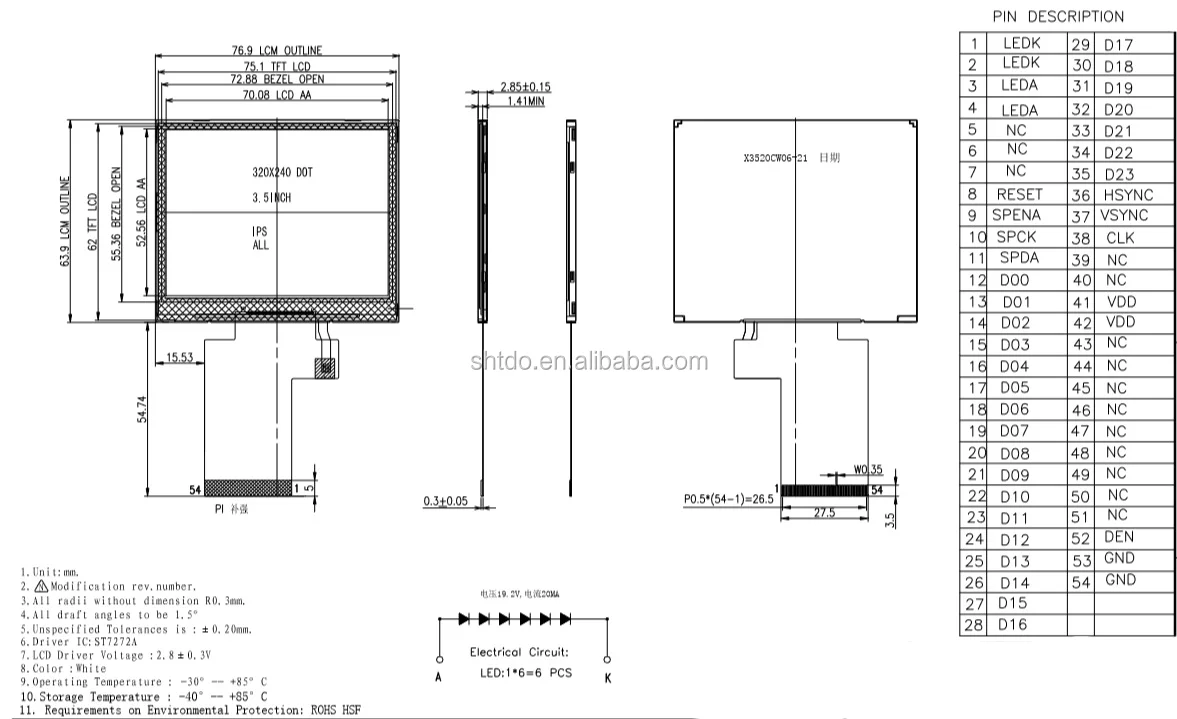

Structure diagram


-1_03.jpg 1545968487.jpg





Company Information


Shanghai Top Display Optoelectronics (TDO) dedicates to be the leader in Display module, intelligent display program and 3D printing optical engine program, which focus on the professional application market including Industry, Medical, Military, Mapping, charging pile, 3D printing, etc.


TDO is founded by a core team with more than 10 years’ experience in display industry, having first-class technical innovation and integration capabilities, in this condition, we researched and developed several technical programs independently such as Theaview™ Outdoor Sunlight Readable Display Module, TGUS™ Intelligent Serial-port and 3D printing optical engine. In addition, we have applied more than 20 patents, including 3 invention patents and 3 software copyright patents, 15 patents in these were authorized.


TDO has made a lot of achievements: the Award of The third China Innovation and Entrepreneurship Competition, Shanghai SME Innovation Fund Project, Minghang Industry-University-Research Collaboration, Mihang Patent demonstration project, etc. In 2016, TDO became one of the high-tech enterprises of Shanghai.







ISO9001 certification
