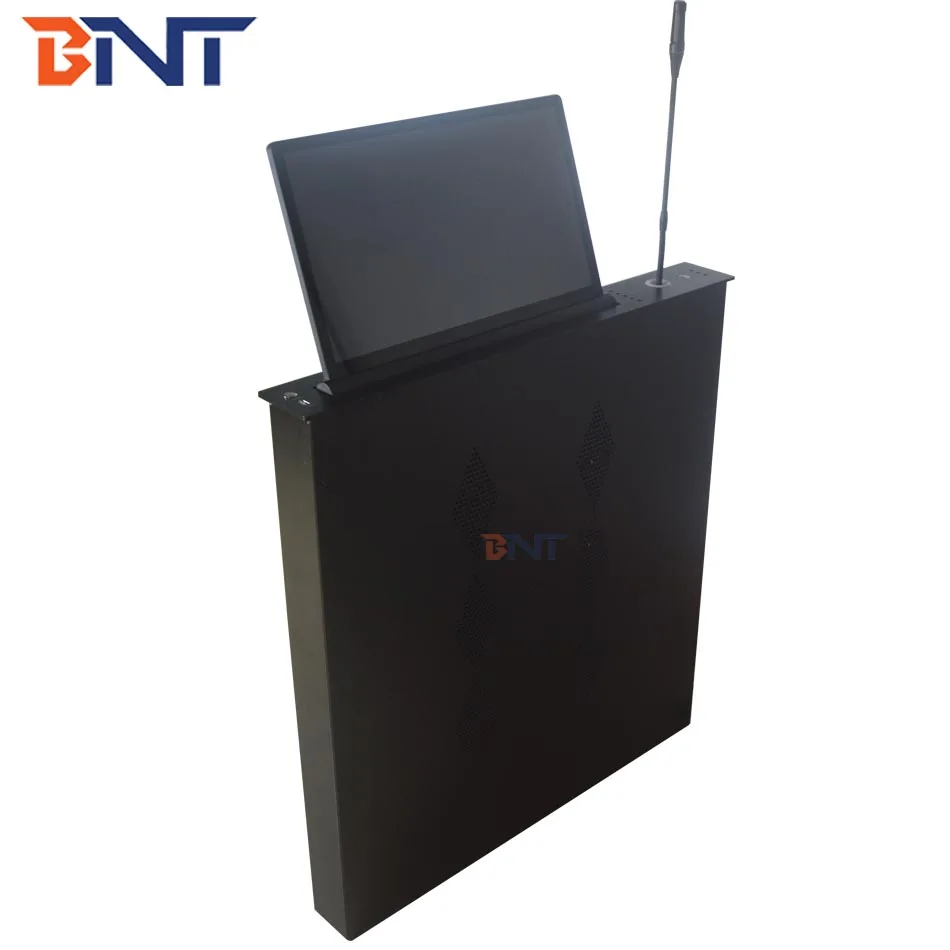

BNT conference system ultra thin LCD LED monitor lift customized touch screen paperless meeting with camera

Share on (1601009654501):


Price:$210.00 - $380.00

Quantity:


Product Overview

Description































































































































































































































Description


Model No.


AML-17.3


Product Name


Ultra Light Retractable Monitor Lift With Mic


Meterial


Aluminum Alloy


Color


Black/Silver


Panel Size


615*80*5mm


Box Size


602*71*730mm


Cutout Size


434*73mm


Screen Size


377*238mm


Monitor


15.6 Inch FHD screen(16:9)


Resolution Ratio


1980*1080


Automatic Pitch Angle


20 degree


Interface


H-DMI+USB+RS232 I/O


Adjustable Angle


0-30 Degree


Protection System


With Anti-pinch Hand Protect


G.Weight


9.5kgs


Max Power


28W


Power Sipply


220V-50HZ,110V/60HZ


Working Sound


Less than 15 decibels


Control Way


Switch Button/Remote Control/Central Control

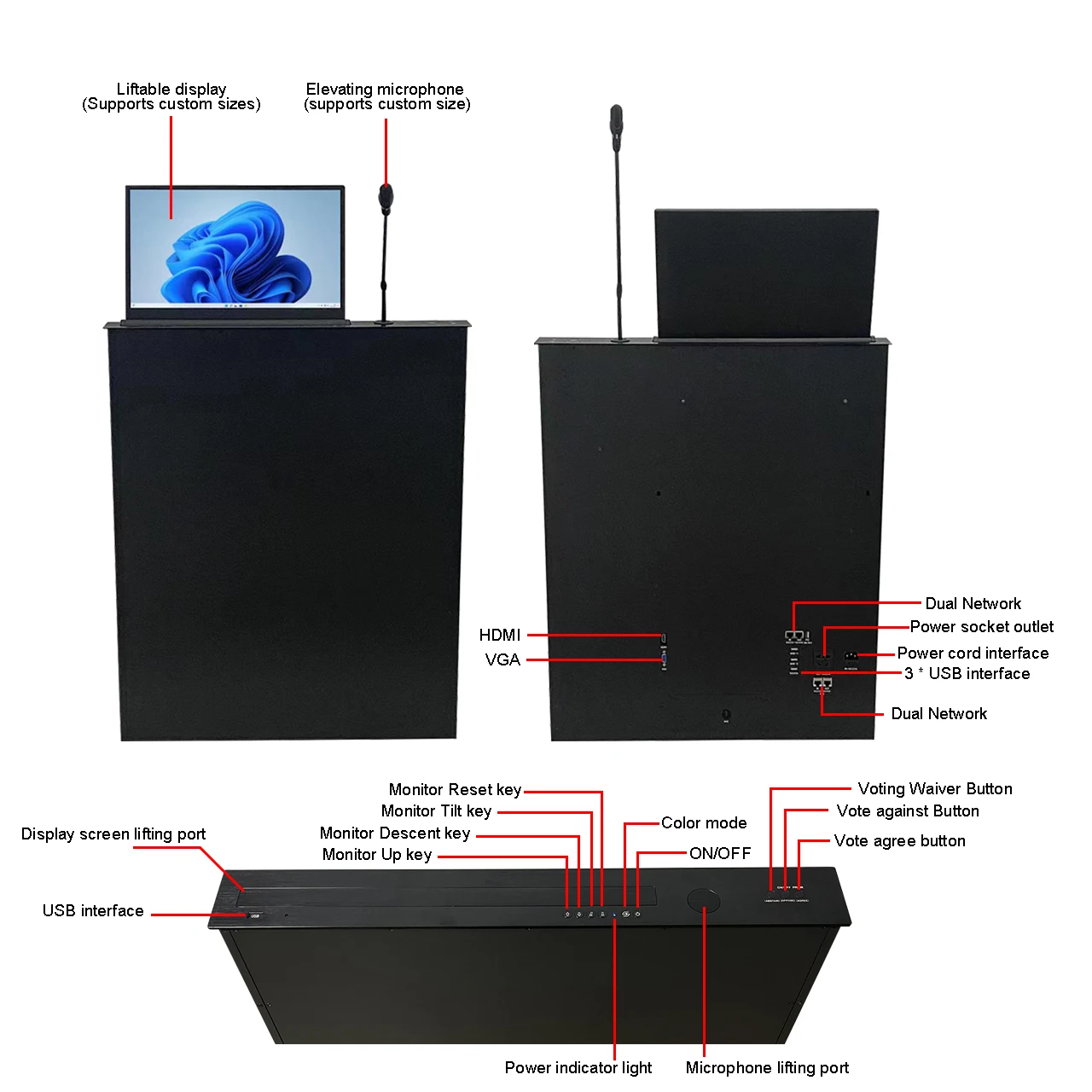

Panel Button Detial



UP/DOWNS/STOP For Monitor Operation


Titt/Bck For Angle Adjustable


Signal Switching For H-DMI To VGA


Adjust Brightness And Color For Screen














Integrated Item Selection



Full HD Touch Screen


Conference Syetem Discussion/Video/Voting Microphone


Full HD Camera


Smart AIO PC


Office Automatic Paperless System

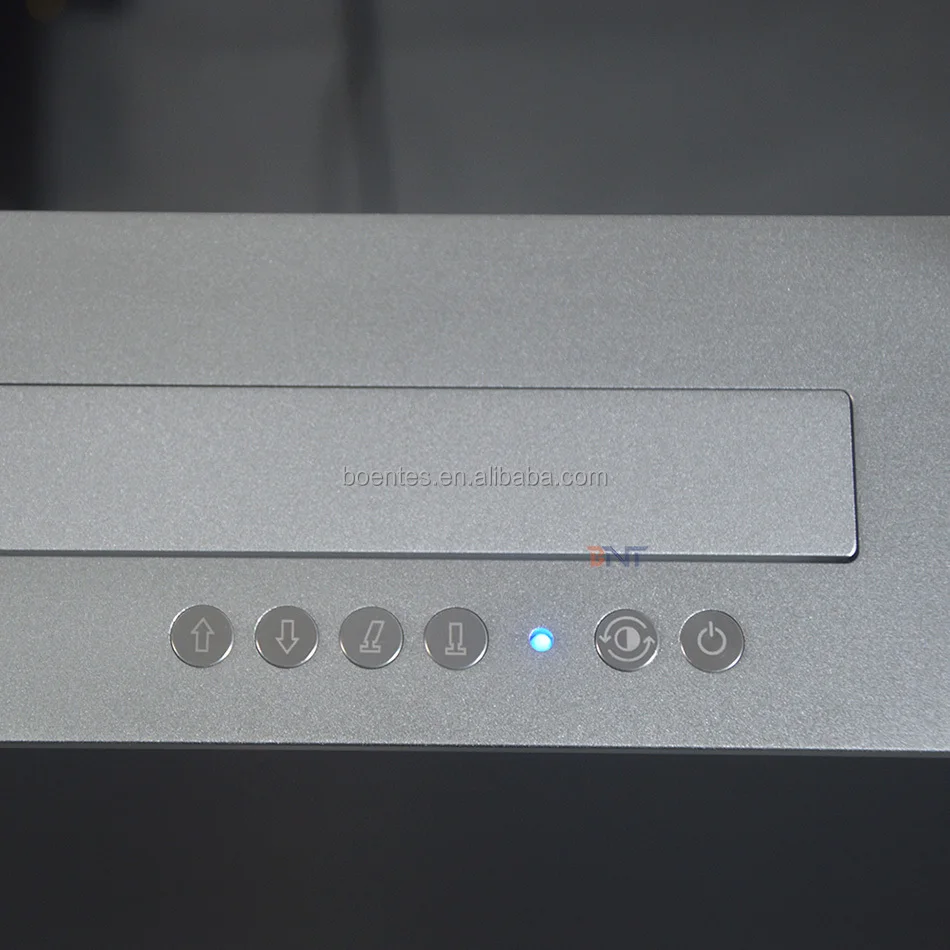

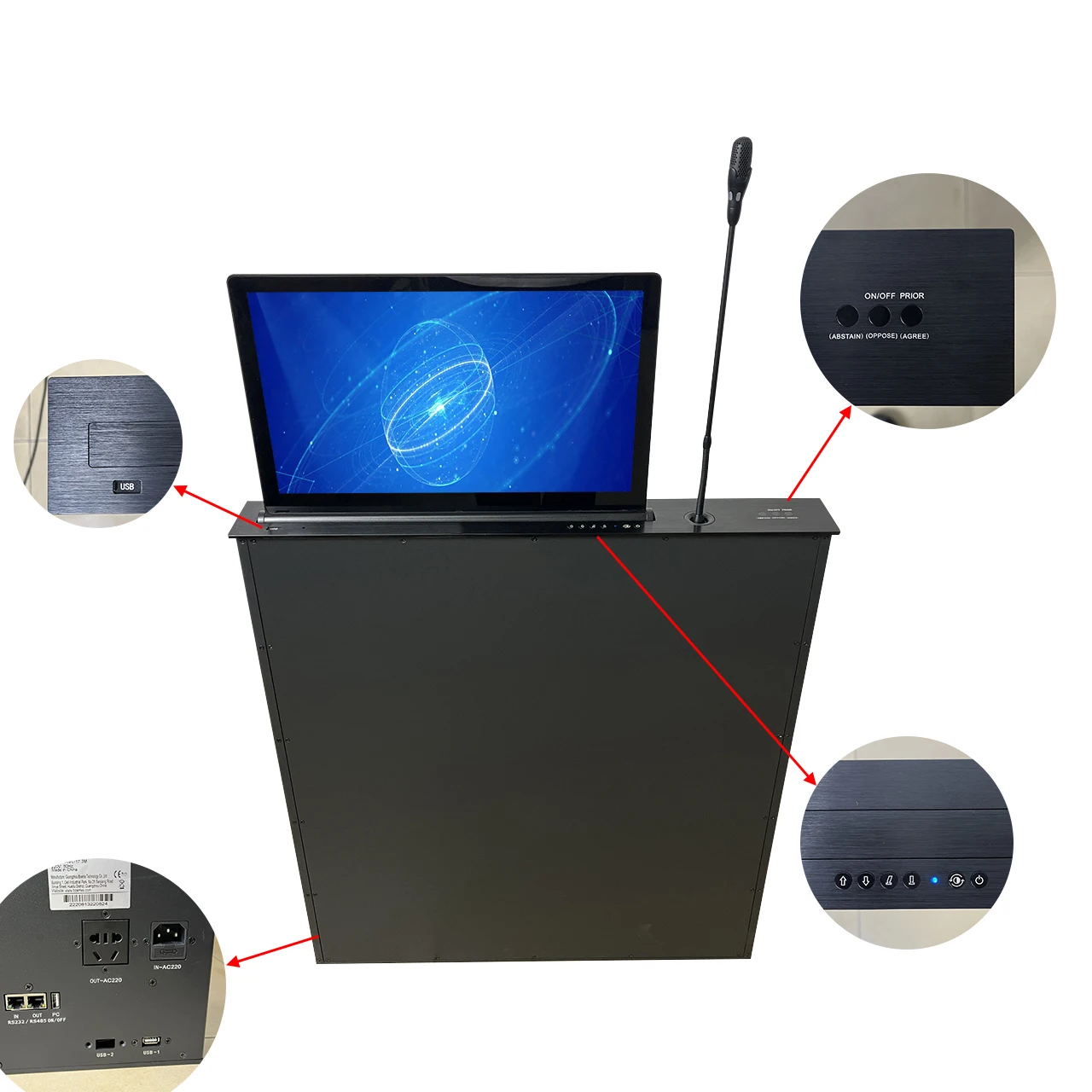

In addition to the up/down stop tilt back, the button also adds a signal switch button, a screen color adjustment button and a screen brightness adjustment button










Standard English language operating system, other national languages ​​can be set as needed.























Ultra-light design, all aluminum alloy (including the bottom box, including all the parts inside)

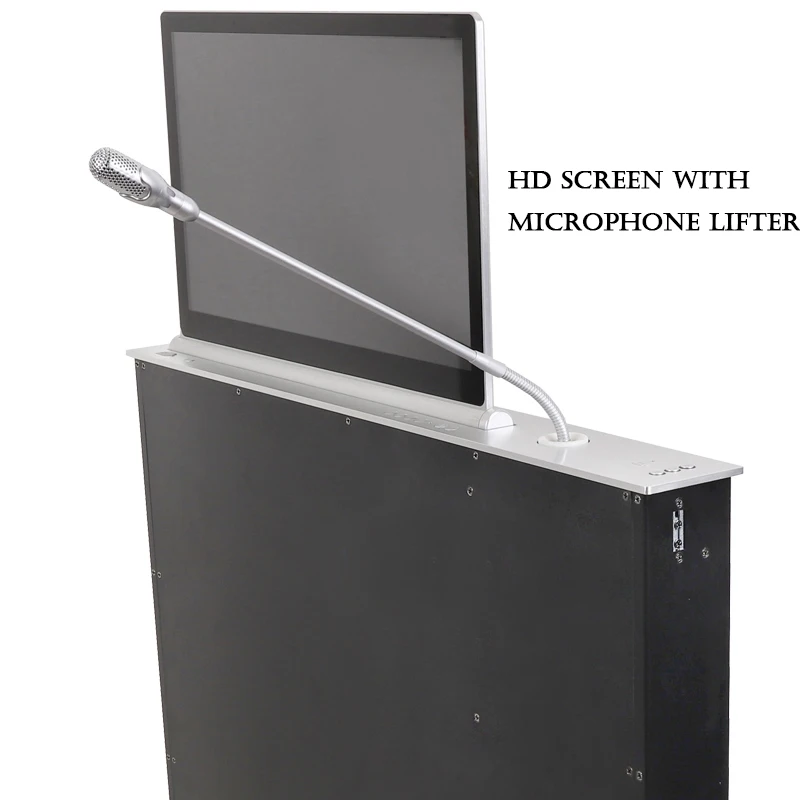

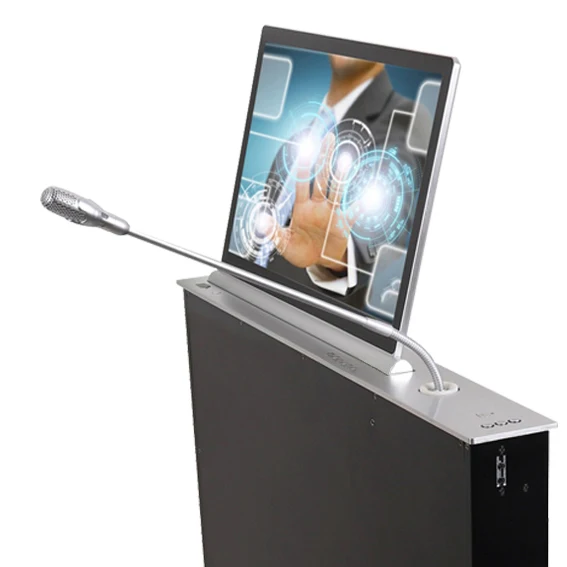

Built-in electric lifting microphone, which can make the microphone rise and fall with the display screen synchronously or asynchronously






















Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, front camera according to requirements






The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel

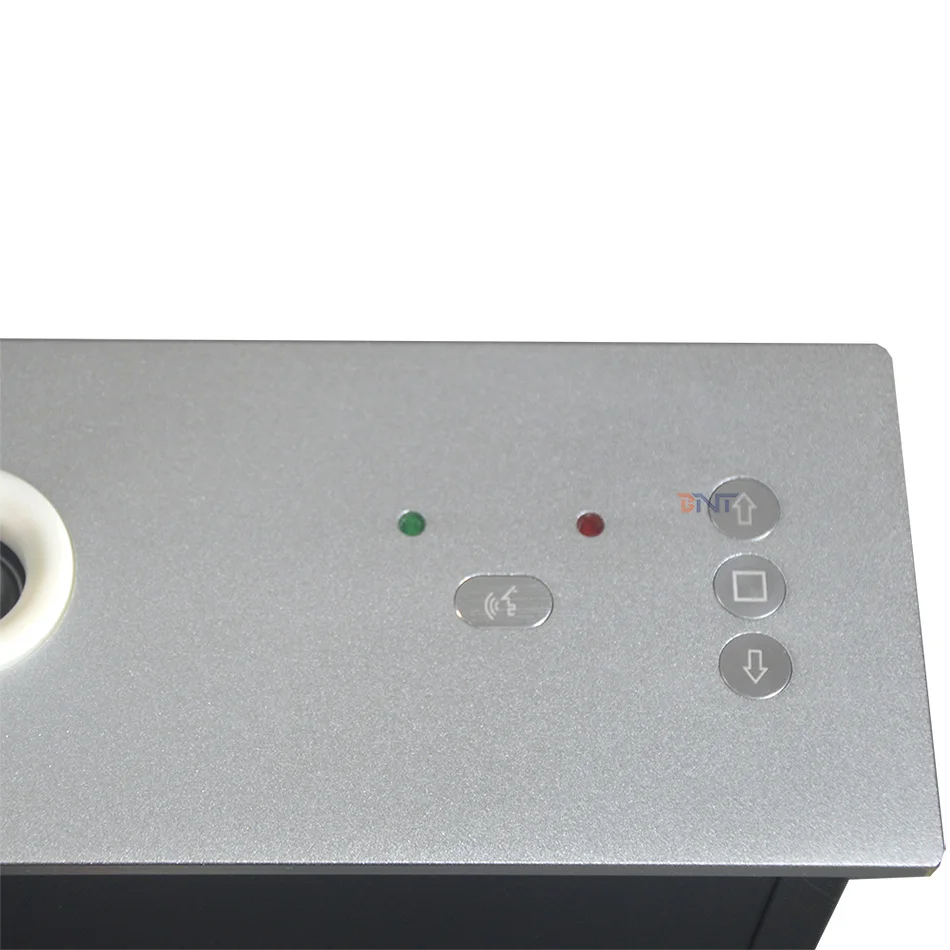

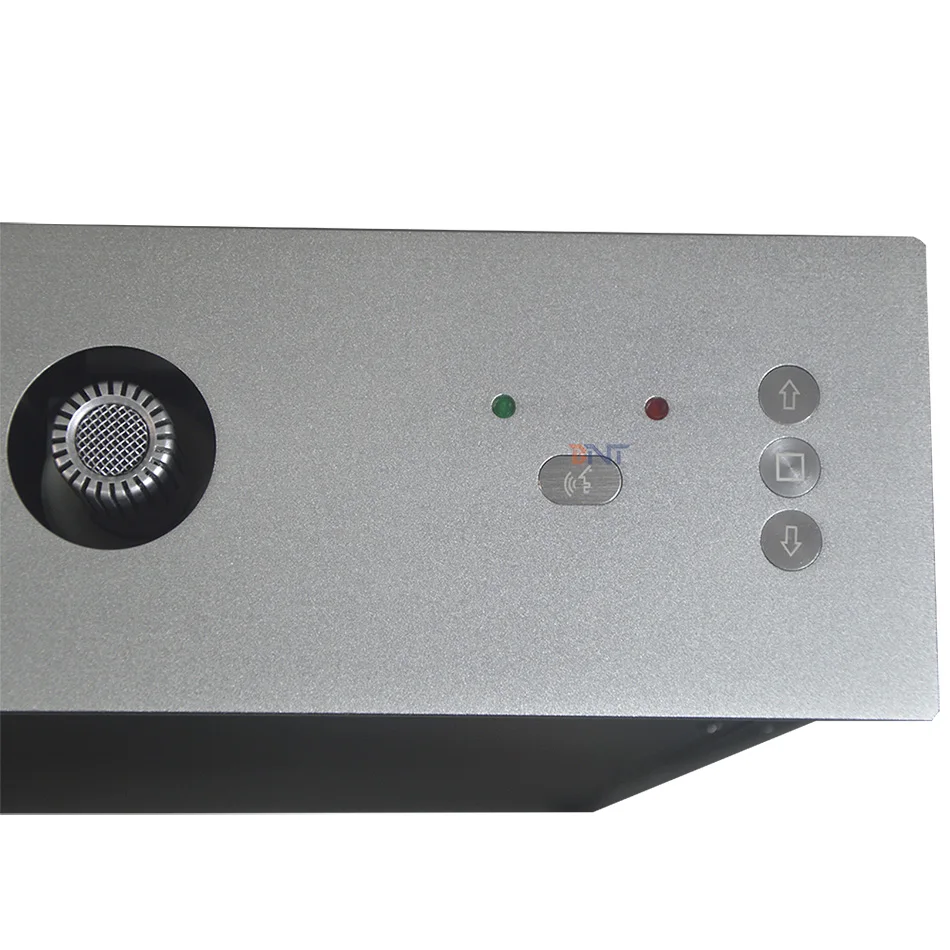

When you need to speak, you can speak by clicking the button. There is an indicator light on the top, and the whole is simple and generous, and it is clear at a glance











Can be controlled manually, remotely, centrally, Key to raise all devices Or down











Practical and simple design, minus the cumbersomeness for meeting use, making things easier and smoother






















The tilt angle is 15-20 degrees, which can be adjusted to 0-30 degrees electrically, and can be set to 45-60 degrees if required
















Ultra-light design, all aluminum alloy (including the bottom box, including all the parts inside)

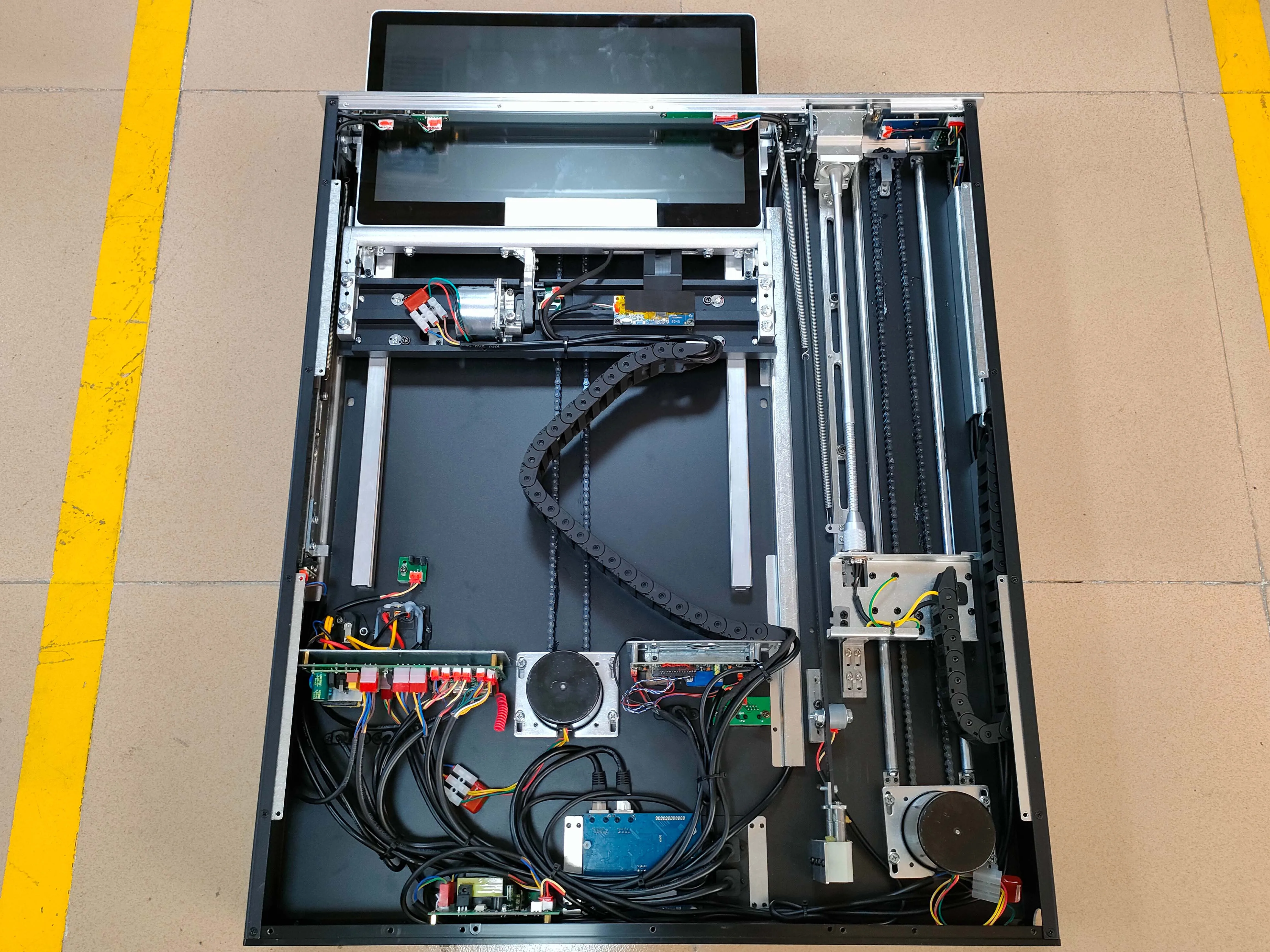

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.





Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.

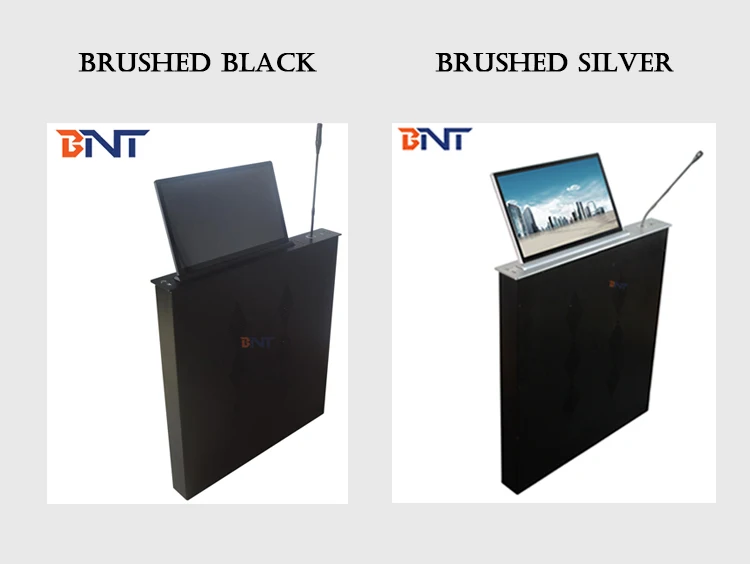

The motorized monitor lift has the above two colors to choose from, of course, you can also choose the color you want to customize. For more information, please contact customer service.

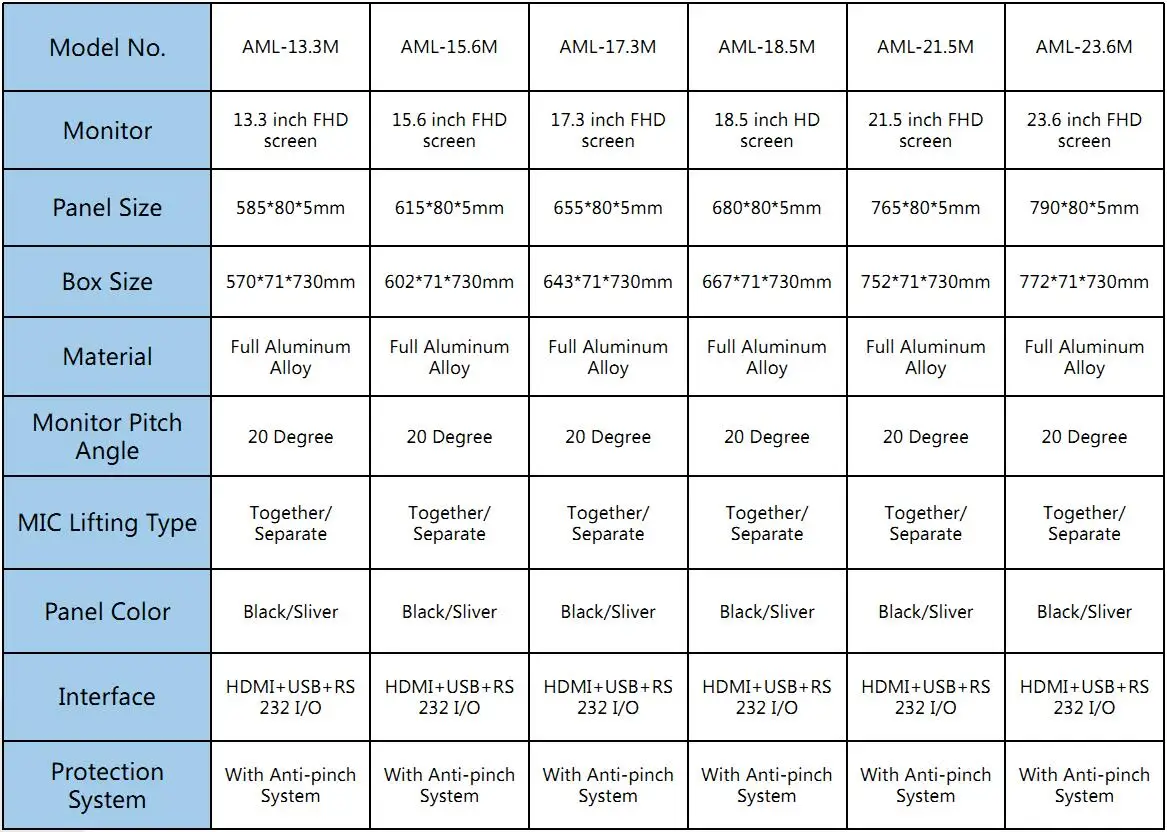

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.
































Company Profile





Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.

13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.

Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. Product quality is recognized by AH, One element and become their partner.
