Antipinch function swing out bus door for minibus van




EMC certificate , Yutong nominated , High Reliability , Fast delivery, Good service








I. Product Description

Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.

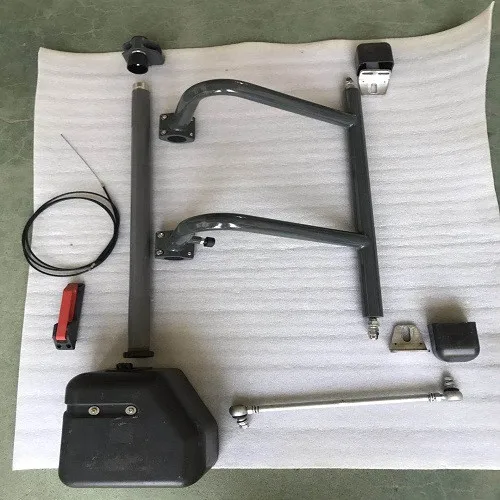

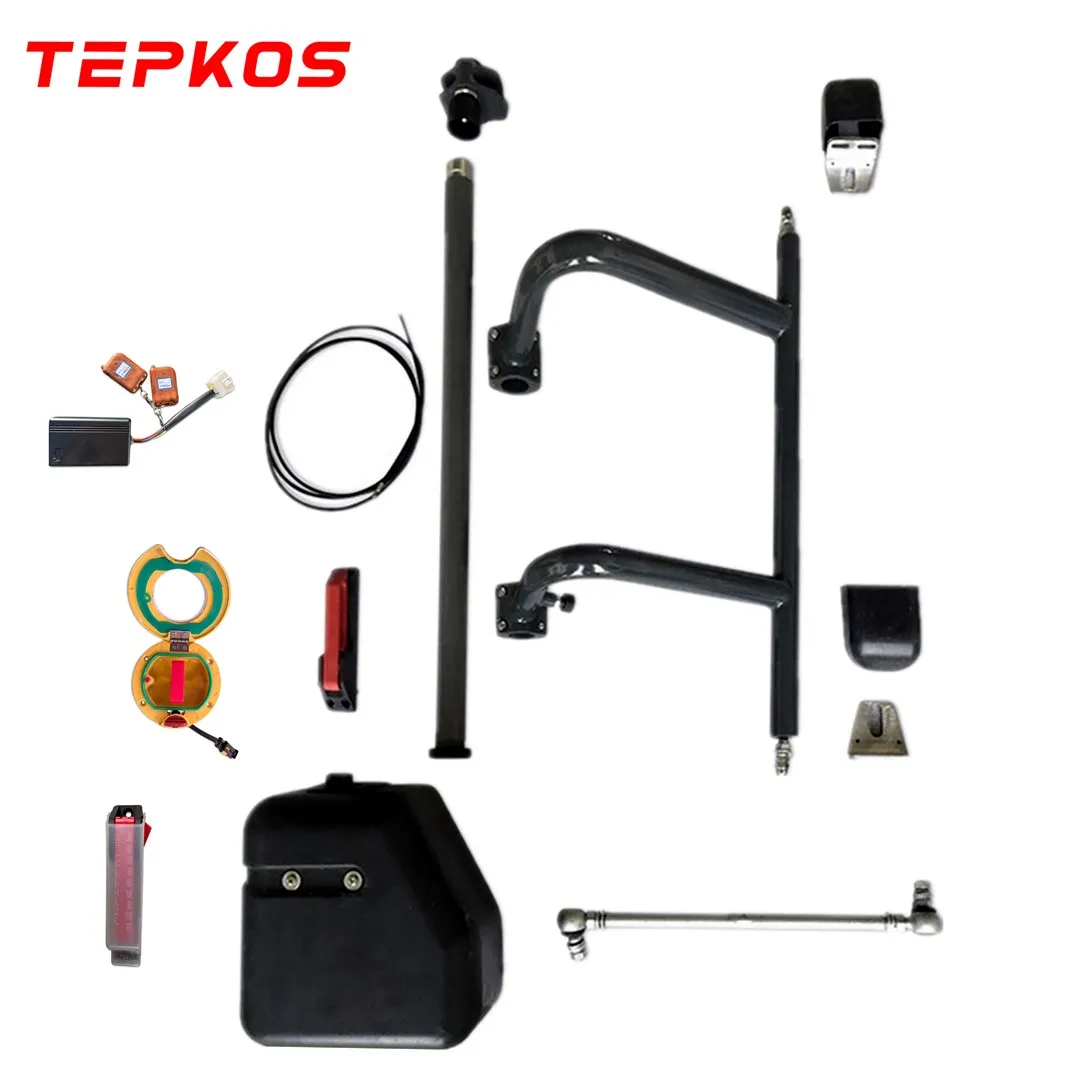

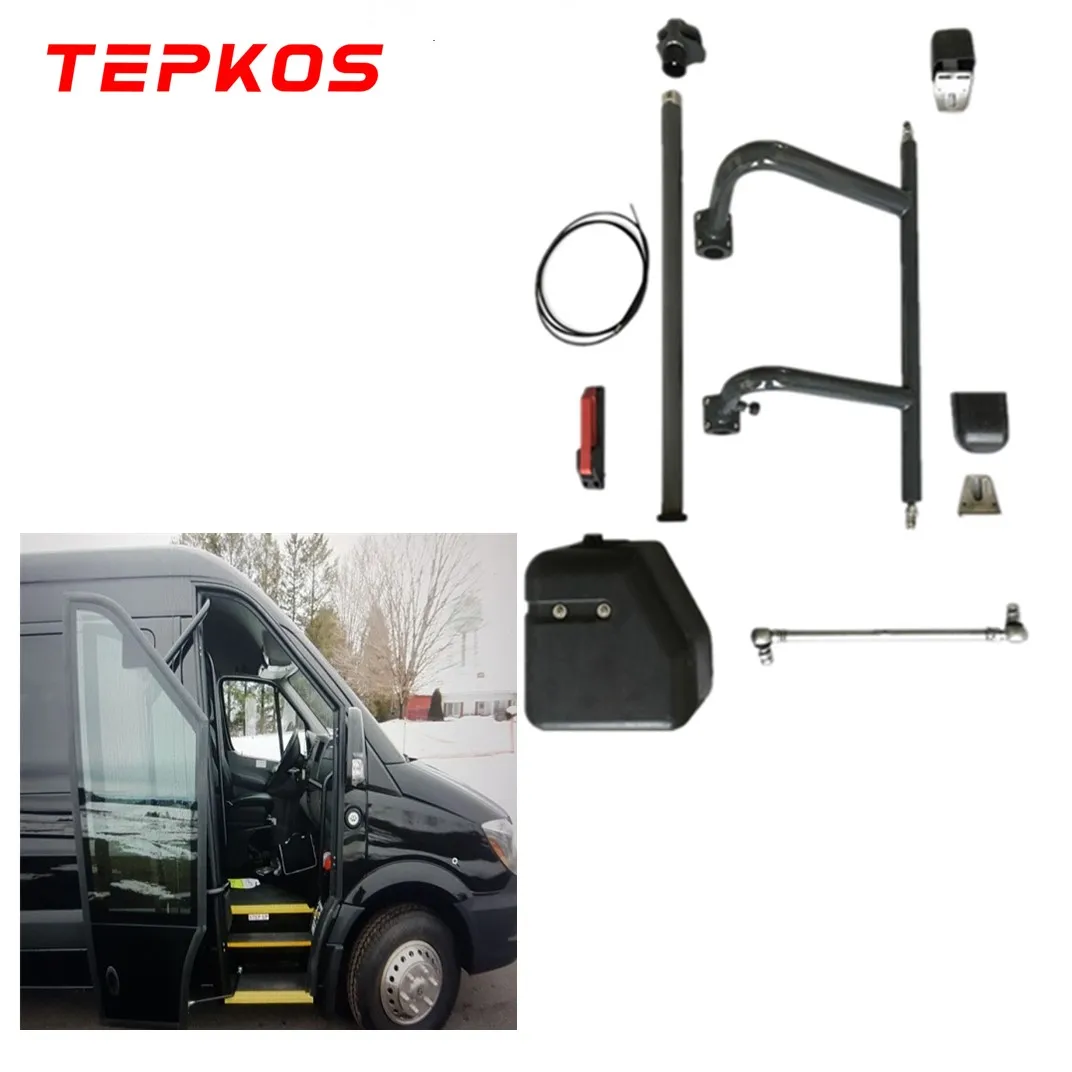

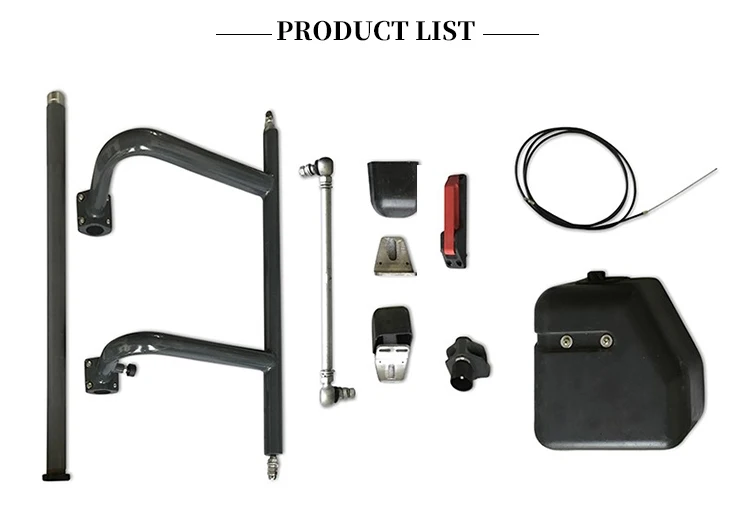

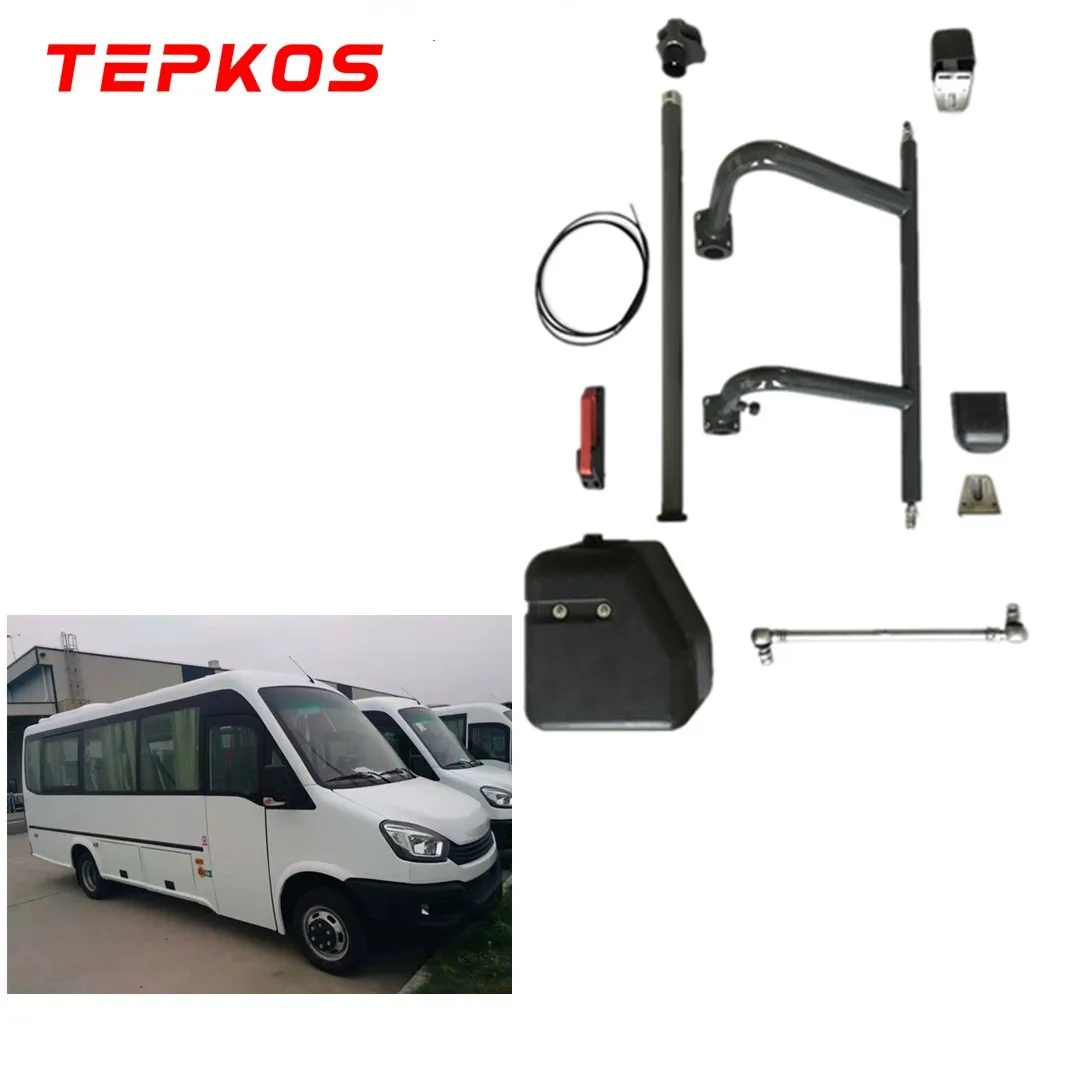

System Component: Rotary actuator assembly, Shaft assembly and Door panel assembly.

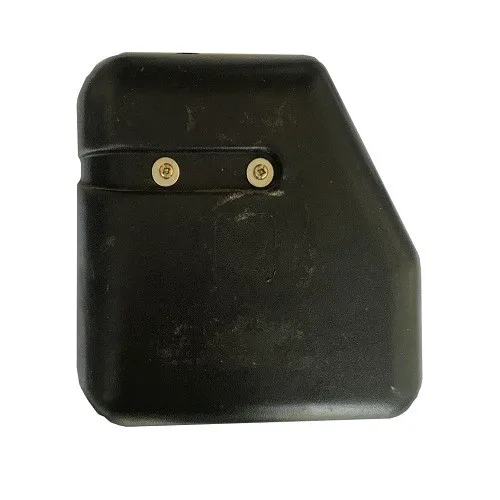

1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.
2) The shaft assembly is designed for easy installation and maintenance.

3) The door panel is made of aluminum alloy, which has the attributes of light weight, high strength and long life.






II.Core Advantages:

1. EMC certificated motor, we manufactuer motor by ourselves which passed EMC certificate

2. we do 100% test before shipment to ensure quality

3. The door driven motor are develop and made in house for better quality control and lower cost

III. Product Feature

1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.
2)Emergency release: In case of emergency, put the red handle in "manual" position, the door can be opened by hand easily.
3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.

IV. Main Parameters



































Voltage


12V/24V


Life Cycle


500000 times


Loading Capacity


less than 1000N


Power


60W


Working Temperature


-40℃~65℃


Open Direction


LH/RH












swing out bus doorswing out bus doorswing out bus doorswing out bus doorswing out bus door








Applications

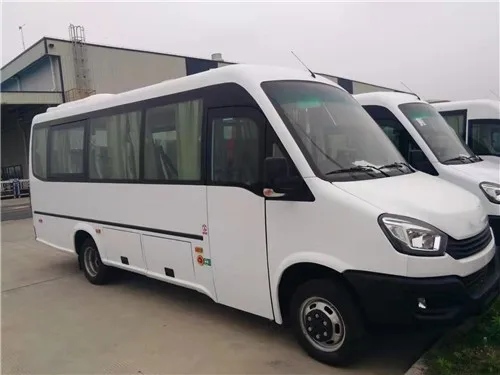

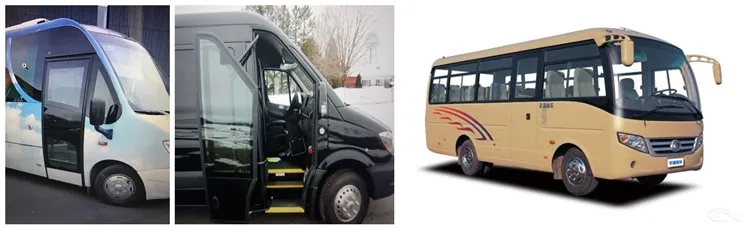

Application of electric bus folding door pump is electric mini bus,city bus, bus, Iveco bus, Toyota coaster bus, and vehicle without air resources.


swing out bus door






Company Information



swing out bus door


ABOUT




Shanghai TRION Industrial Co.,Ltd., located in Shanghai, China, is specialized in the R&D and manufature of automotive parts, covering R&D, manufature, sales and service. We focus on the automotive body parts ,electronics and our products are widely equipped on different type of vehicles. We have been concentrating ourselves in automotive part domain for more than 10 years, and have accumulated abundant experience and resources.





We strive our best to satify our customers on various demands of functionality, performance and price. Meanwhile, we have set up dedicated teams for body, chasis and electical parts, which enbales us communicate with our customers effectively and efficiently on technical subjects, for example the customized development.







Our purpose is to serve our customers by developing the best cost performance products with accurate understanding of their requirements via efficient communication, professional know-how and abundant resources; by providing high quality products through excellent project management skills and quality control methods.


We adhere to the management philosophy that quality makes survival,technology brings development, market shows direction and service strengthens purpose. We are willing to provide customers with completed,pluralistic and multi-level service, and willing to work sincerely with all partners to create brilliant future!
