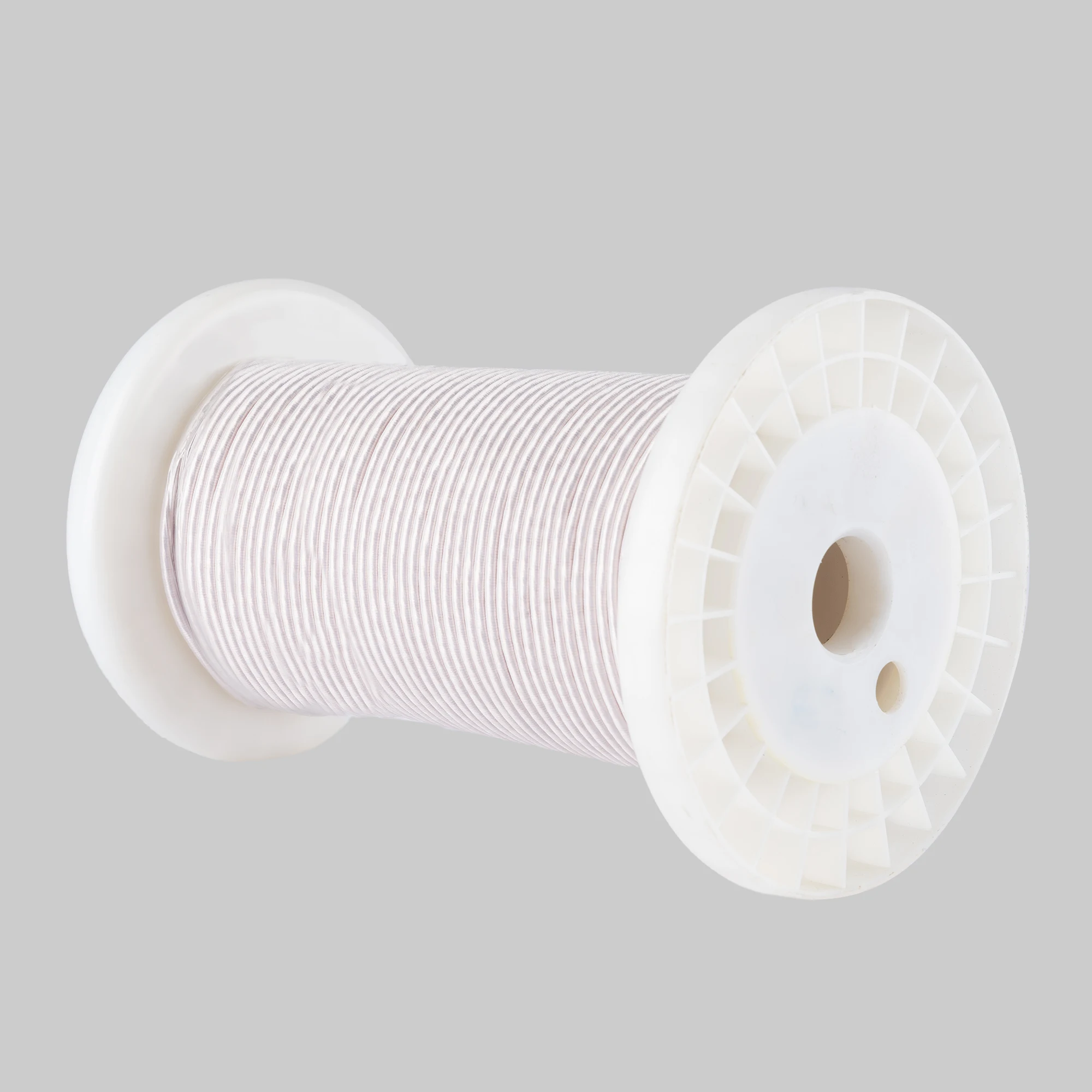

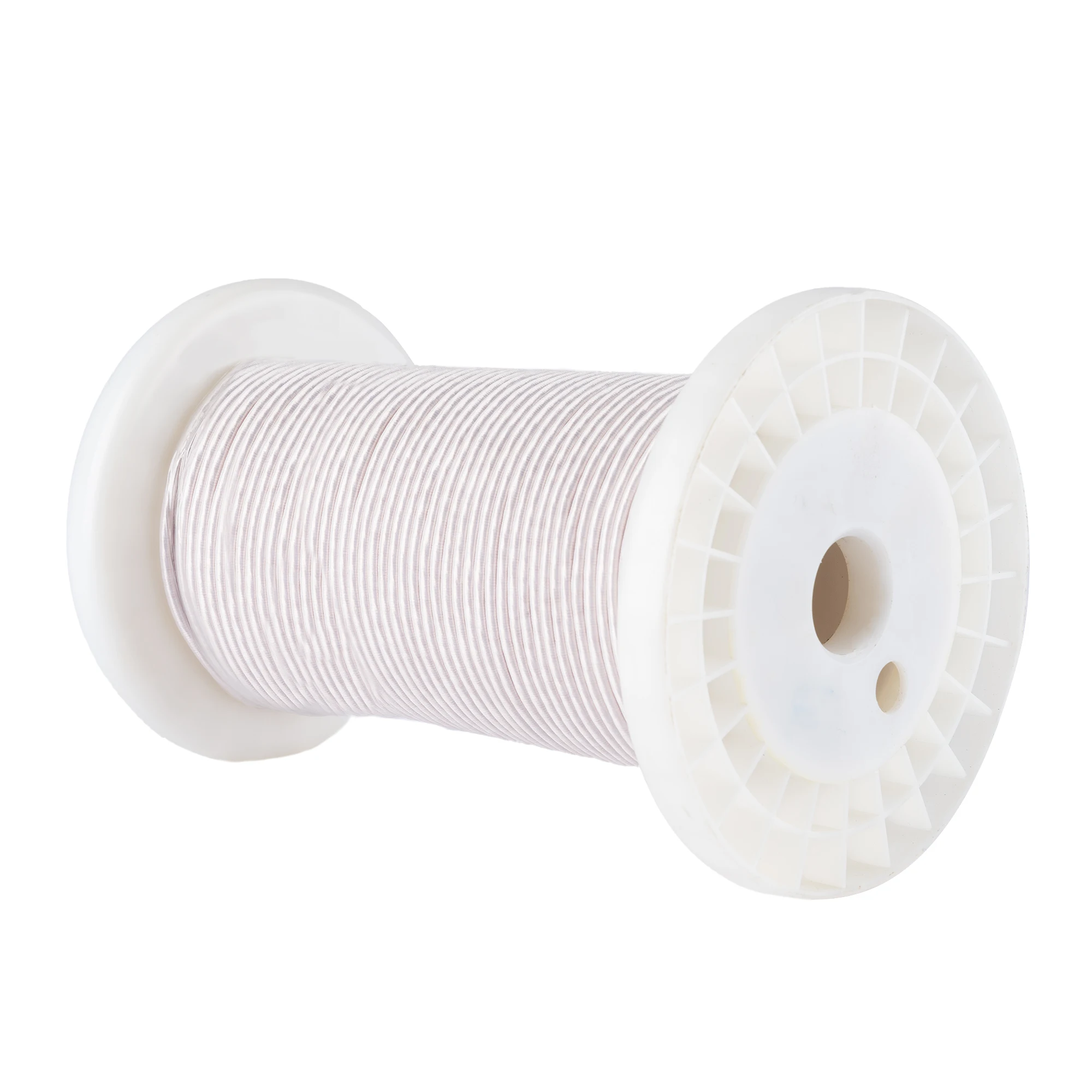

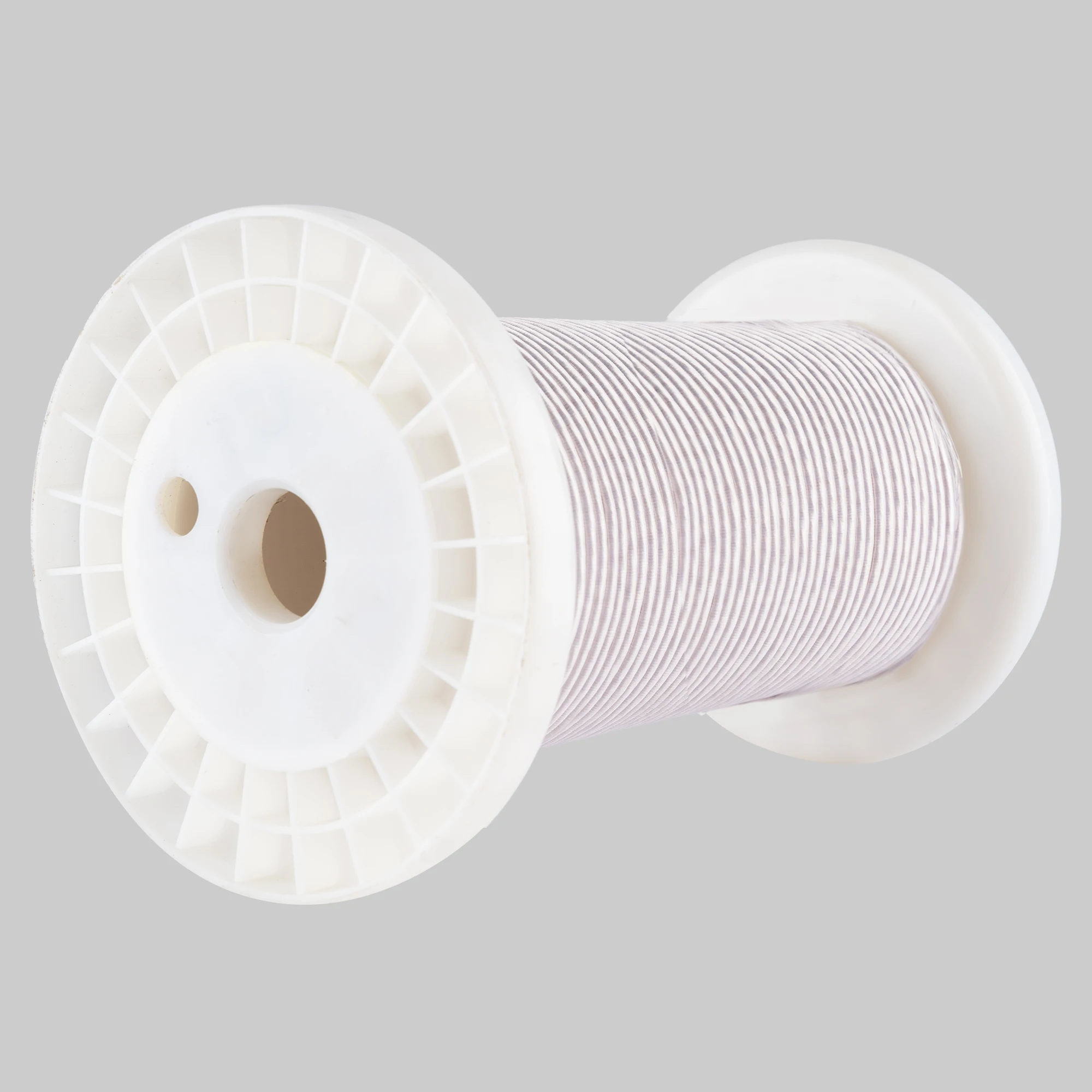

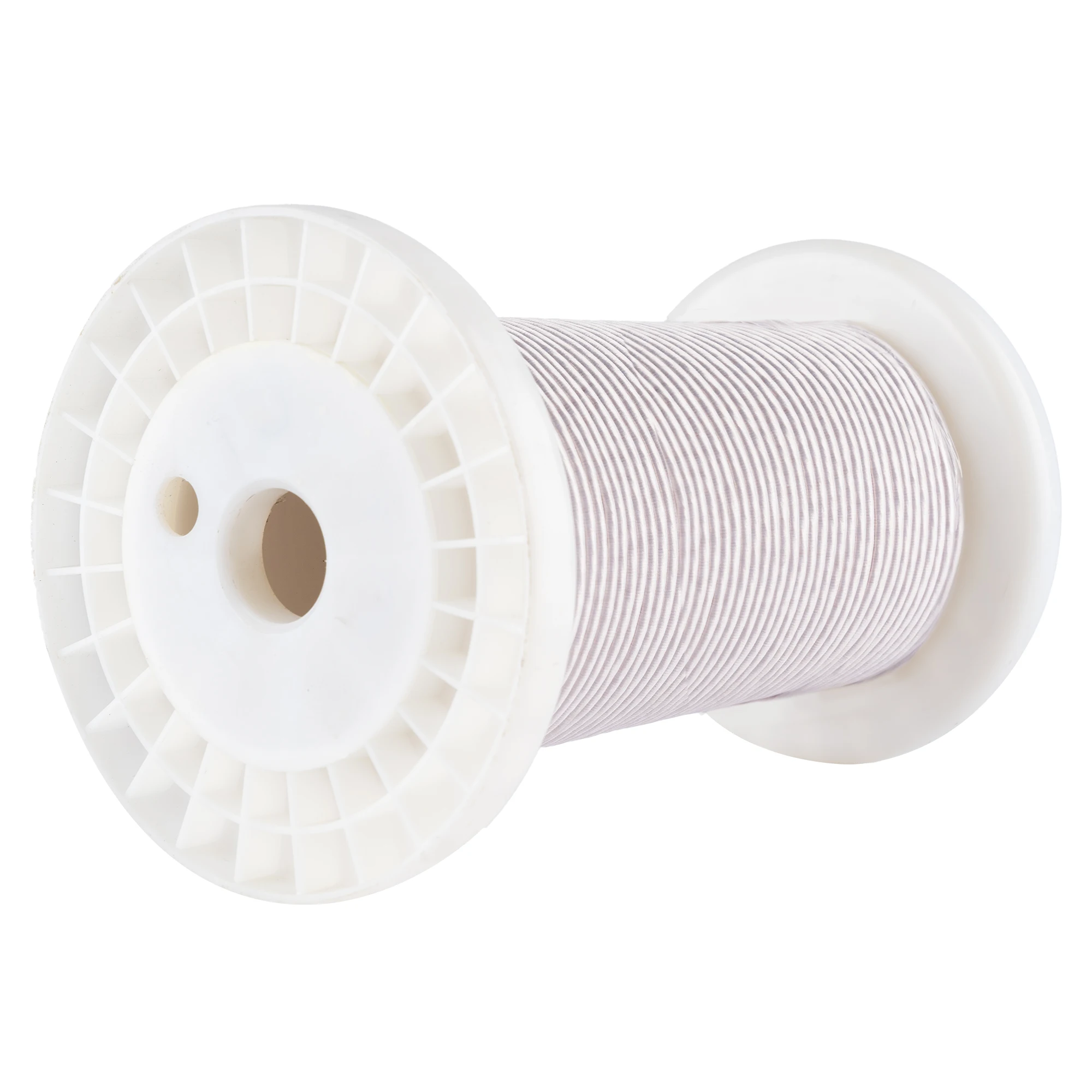

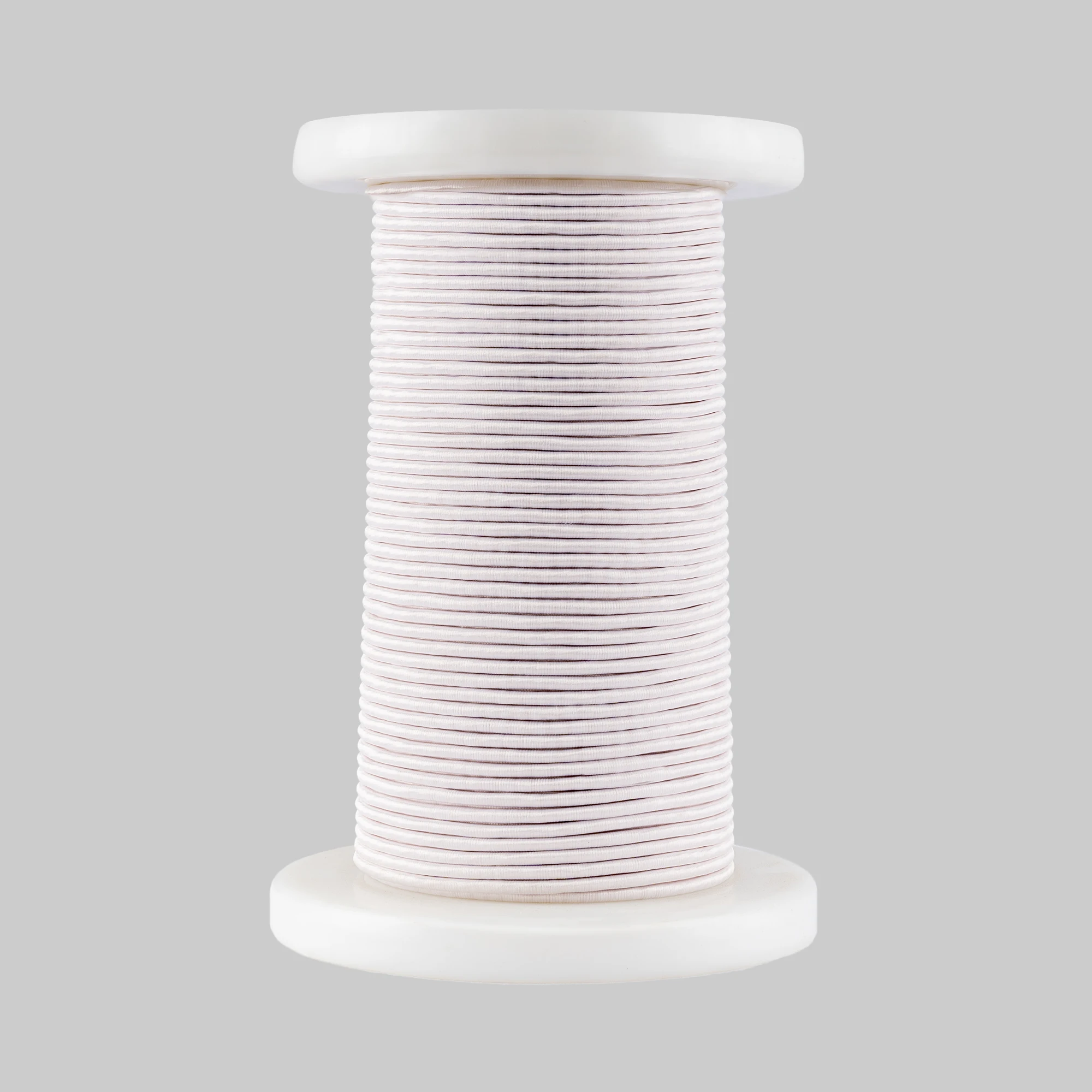

New Product Class 155 Class 180 Hf Silk Covered Litz Wire
- Category: >>>
- Supplier: Shanghai Zhihong Electronic Co. Ltd.
Share on (1601009686064):
Product Overview
Description
Product Description
Welcome to Zhihong, you may get many winding wire from us!

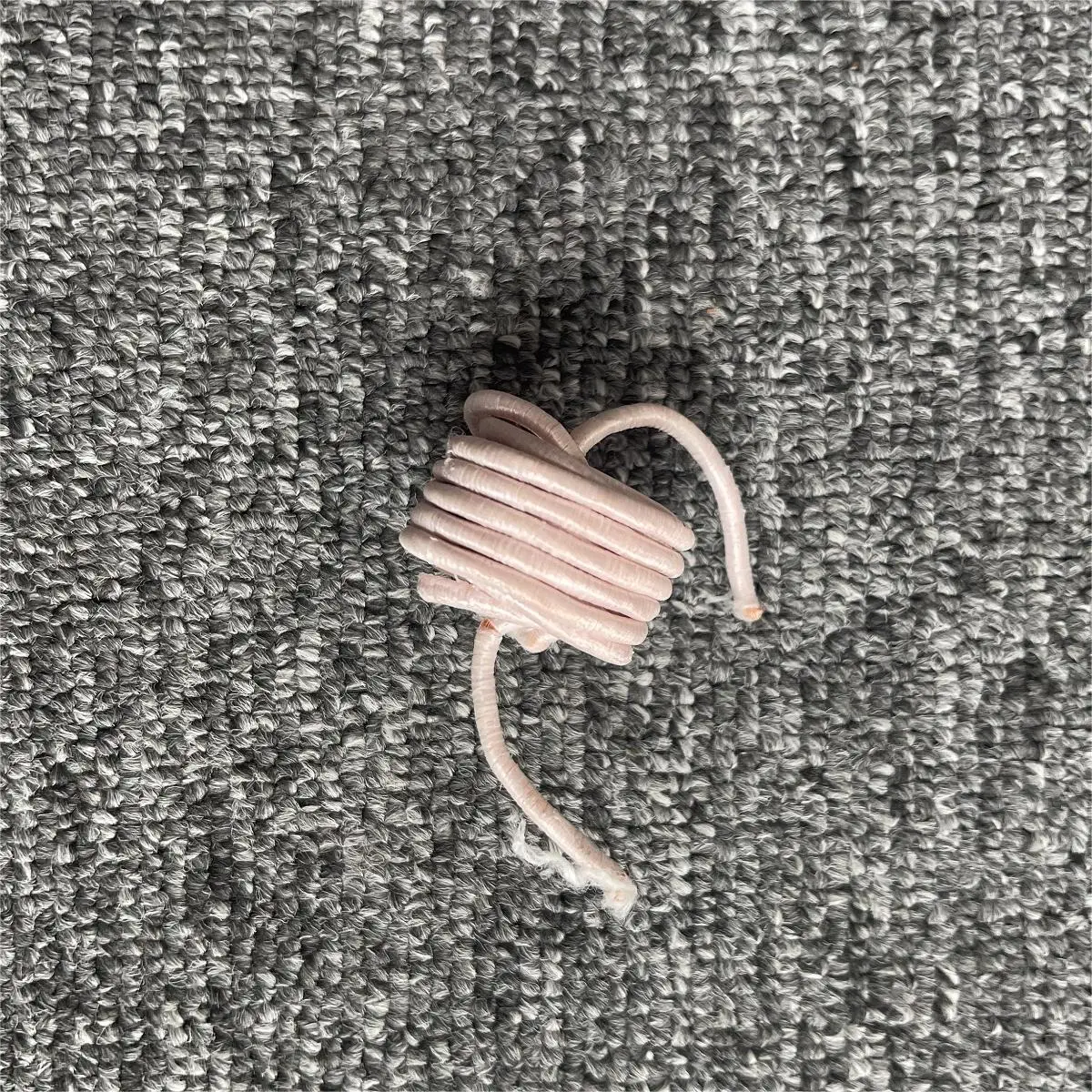

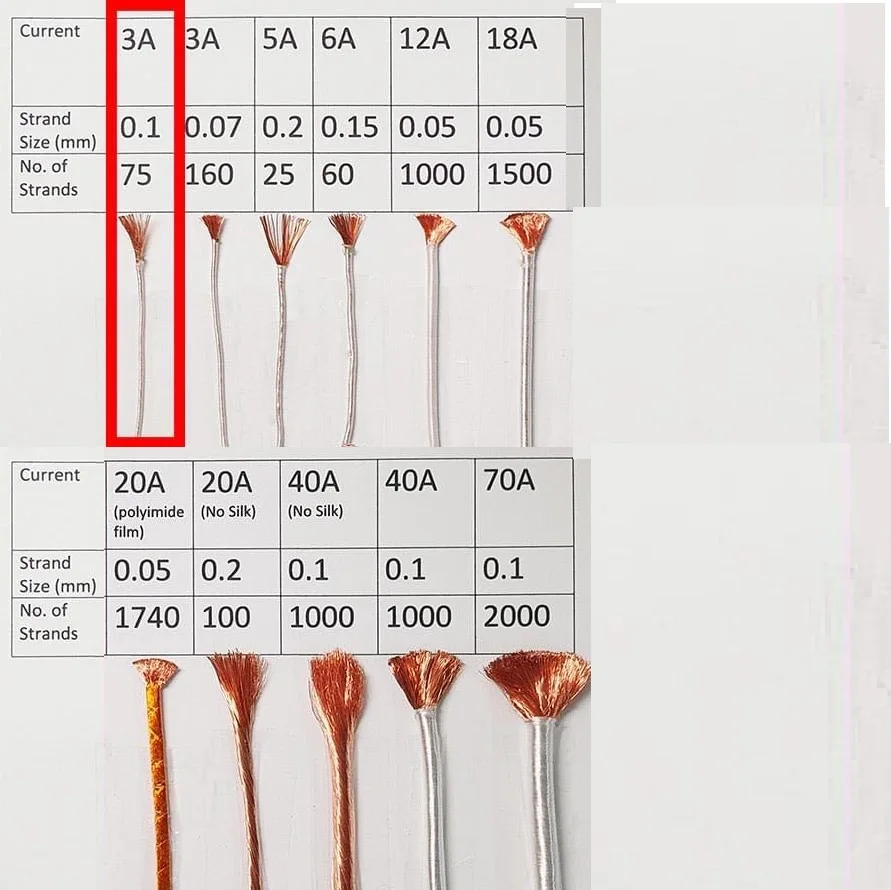

Here is our silk covered litz wire page , from below pictures you will see there are a huge range of silk covered litz wire we can
offer you.
1. Nylon silk covered copper wire;
2. Polyester silk covered copper wire;
3. Self-bonding silk covered copper wire;
4. Rectangular / flat silk covered copper wire;
Silk covered litz wire compare with litz wire, it has stable appearance , good heat dissipation , lower Q value and higher
breakdown voltage.
For the conductor, normally we use enameled copper wire, 155deg C or 180 deg C, diameter from 0.03 mm to 1.00mm single wire,
strands qty, pitch, groups could produce based on your request ;

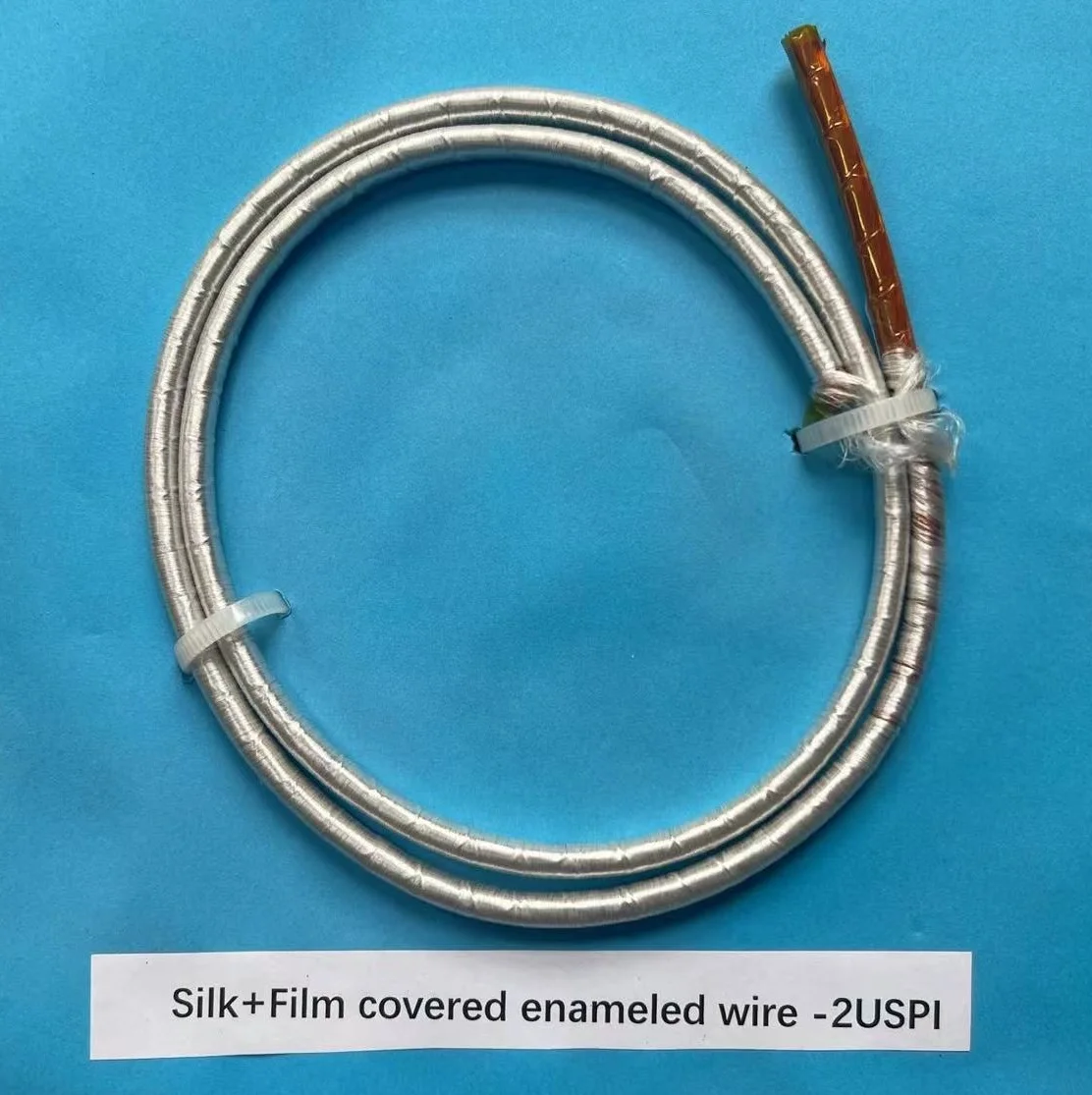

For silk, we have nylon, polyester, and also film+nylon; single layer or double layers,
you may just let us know you need specification , we could make sample for you .
Here is our silk covered litz wire page , from below pictures you will see there are a huge range of silk covered litz wire we can
offer you.
1. Nylon silk covered copper wire;
2. Polyester silk covered copper wire;
3. Self-bonding silk covered copper wire;
4. Rectangular / flat silk covered copper wire;
Silk covered litz wire compare with litz wire, it has stable appearance , good heat dissipation , lower Q value and higher
breakdown voltage.
For the conductor, normally we use enameled copper wire, 155deg C or 180 deg C, diameter from 0.03 mm to 1.00mm single wire,
strands qty, pitch, groups could produce based on your request ;
For silk, we have nylon, polyester, and also film+nylon; single layer or double layers,
you may just let us know you need specification , we could make sample for you .
You may offer you need diameter and strands qty, we will design and arrange customized production for you soon.
And also we can offer you best solution for automatic winding machines, semi-automatic winding machines and cutting and tinned
winding wire.
If you can not confirm your specification , you may let us know your application size, number of turns, currency , power and other
request parameters, our engineer will suggest you best choice.
Some common items, like 0.1*100strands, 0.05*250 strands, we have regular buffer stock in warehouse , can ship to you very soon .
Welcome to send your inquiry to us here. you will get quick reply.
And also we can offer you best solution for automatic winding machines, semi-automatic winding machines and cutting and tinned
winding wire.
If you can not confirm your specification , you may let us know your application size, number of turns, currency , power and other
request parameters, our engineer will suggest you best choice.
Some common items, like 0.1*100strands, 0.05*250 strands, we have regular buffer stock in warehouse , can ship to you very soon .
Welcome to send your inquiry to us here. you will get quick reply.
Specification
SILK COVERED LITZ WIRE | |
Temperature rate | 130deg C; 155 deg C ; 180deg C;200deg C; 220 deg C Class B; Class F; Class H;Class C; Class N |
Conductor type | enameled copper wire; enameled Aluminum wire |
Conductor diameter | Copper 0.03 to 1.00mm; Aluminum : 0.03 to 1.00mm |
insulation material | Nylon silk , or Polyester silk, or silk+film |
Sectional area of conductors | 0.03 to 100 m㎡ |
Strands qty range | 1 to 6000 strands |
Stranded mode | Single twisting/Multiple twisting |
Layers of silk | 1/2/4; Single or double or 4laryers |
Material of silk | Nylon/polyester/natural silk/acerate |
Color of silk | White/red/black/blue/green/other |
Breakdown voltage | >1800V |
Pitch | 20-130mm |
Twist direction | Clockwise (S)/Anti-clockwise(Z) |
direct current resistance | Single wire resistance/strands qty * 1.03 |
Outer diameter of finished wire | <15mm |
standard | IEC, JIS, GB |
Certification | UL, VDE, CE |
MOQ | 10KG |
Spool | PT-4/PT-10/PT-15/PT-30 |
For conductor size, our most common size is 0.05mm and 0.1mm,other AWG and SWG size we could offer.
Just contact us here, and offer your needed spec, you could get our customized production service. As we have enough production
lines , and it is easy for us to adjust our production plan for you.
Just contact us here, and offer your needed spec, you could get our customized production service. As we have enough production
lines , and it is easy for us to adjust our production plan for you.

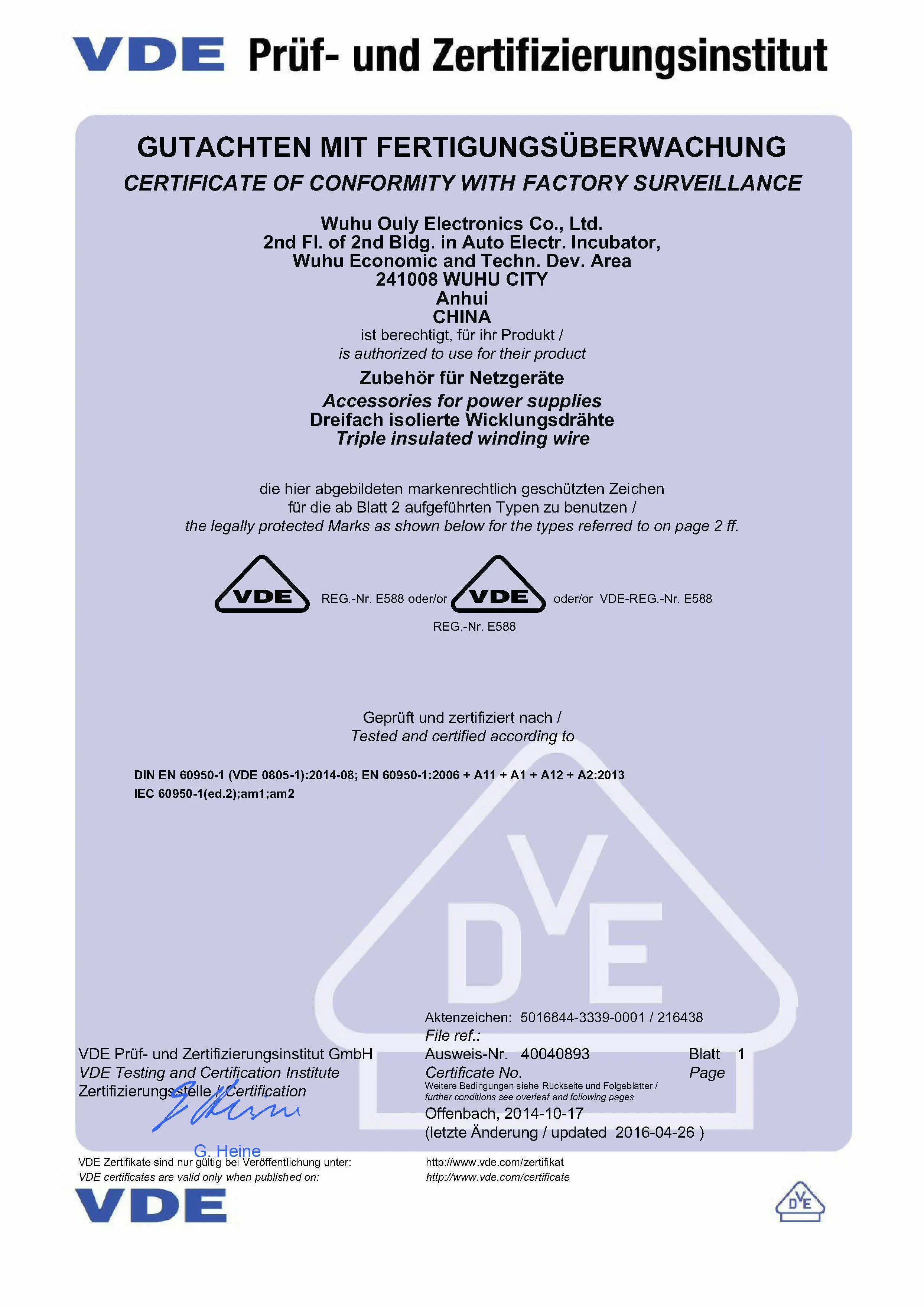

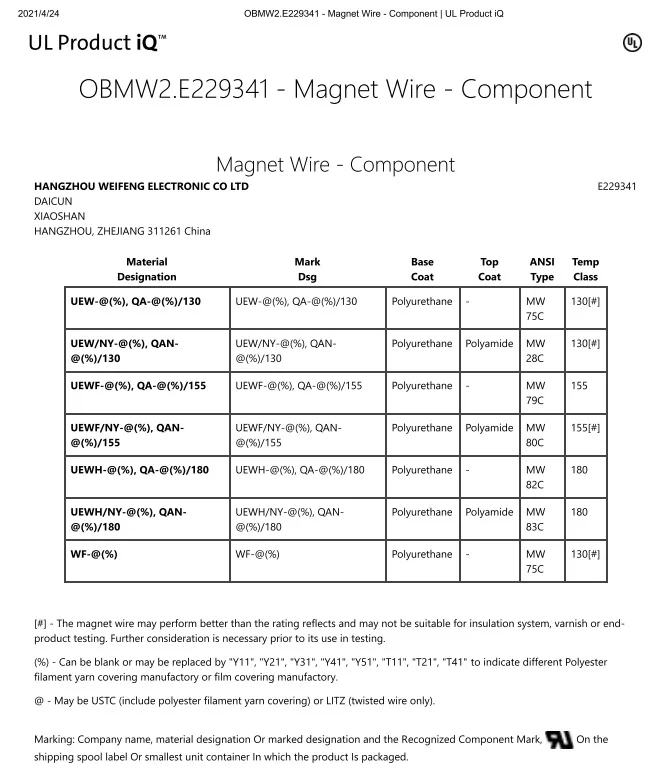

Certifications
Company Profile

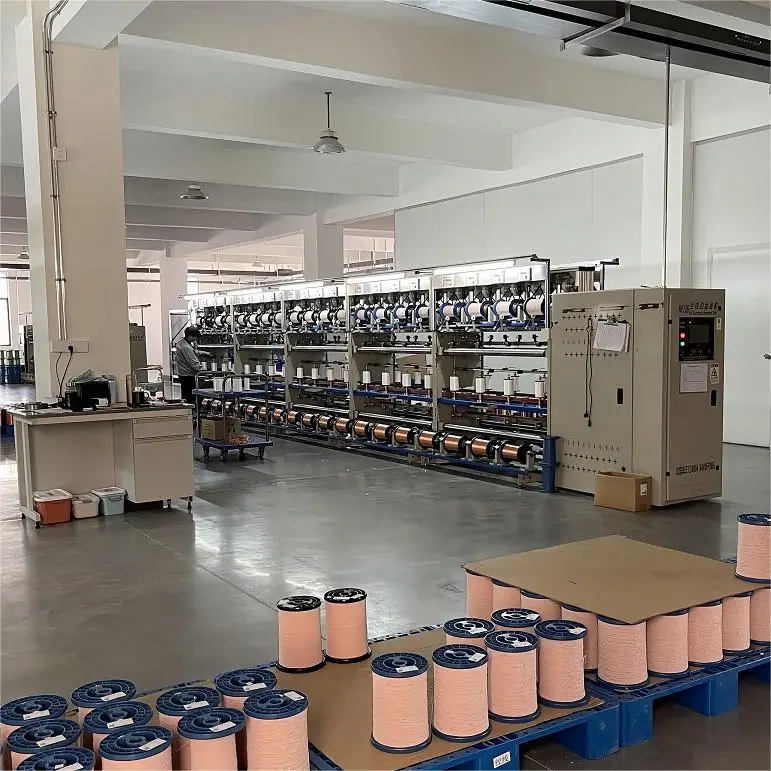

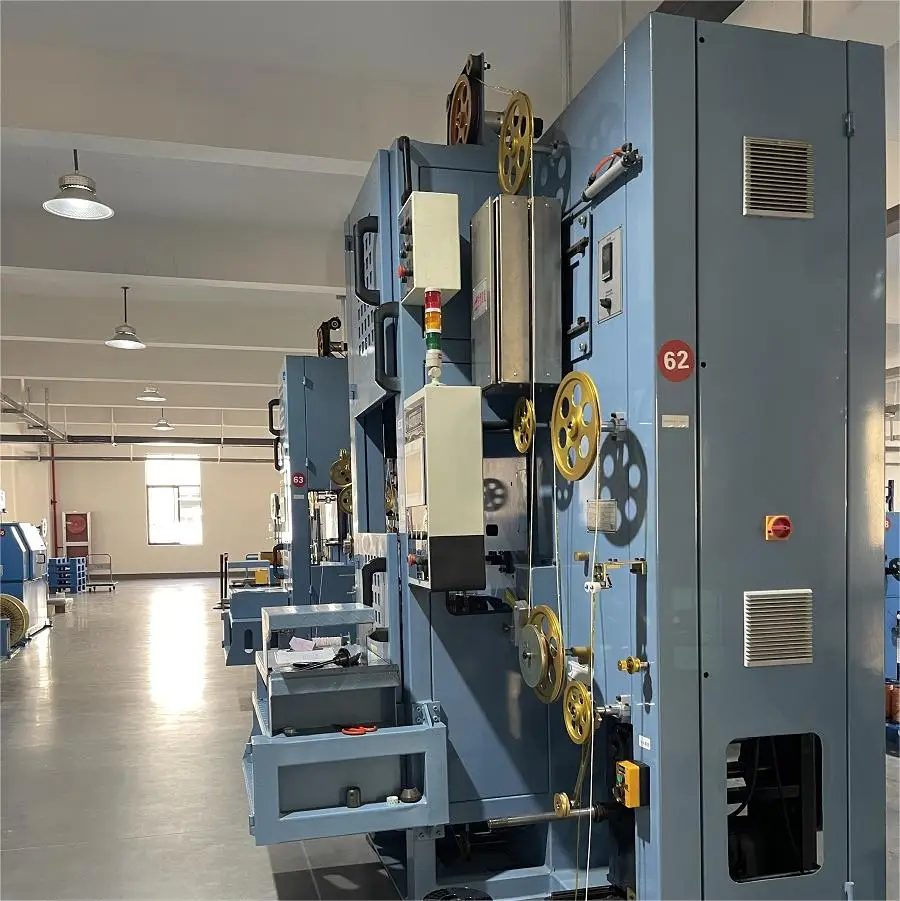

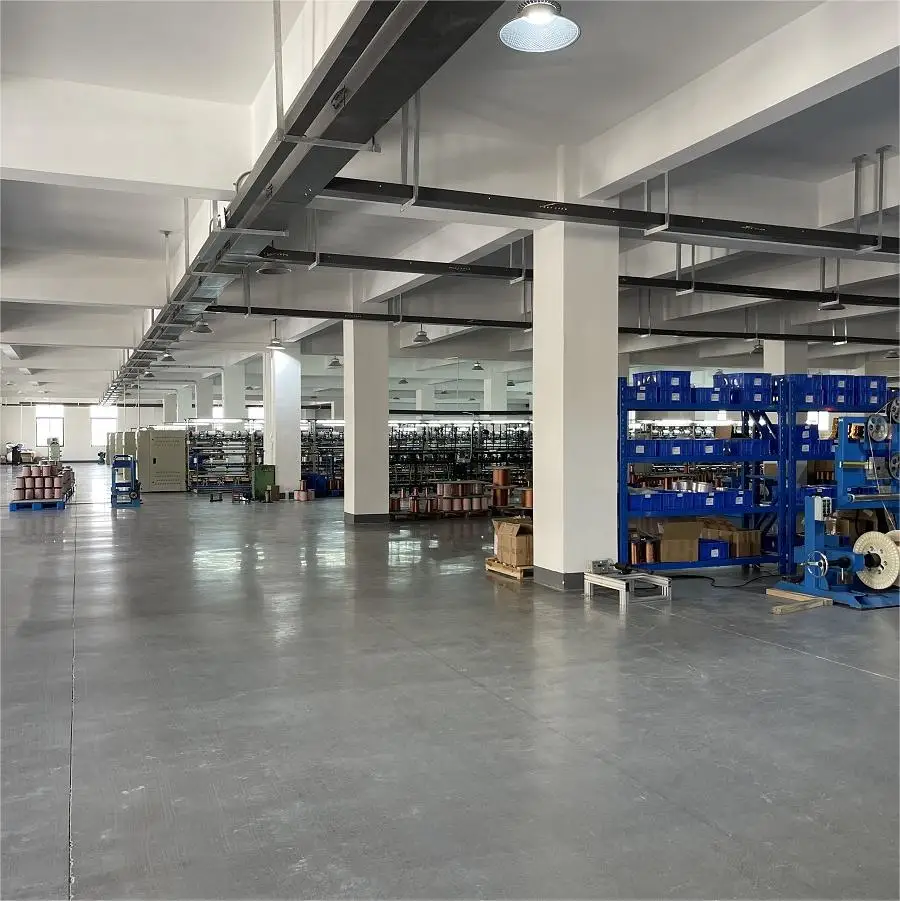

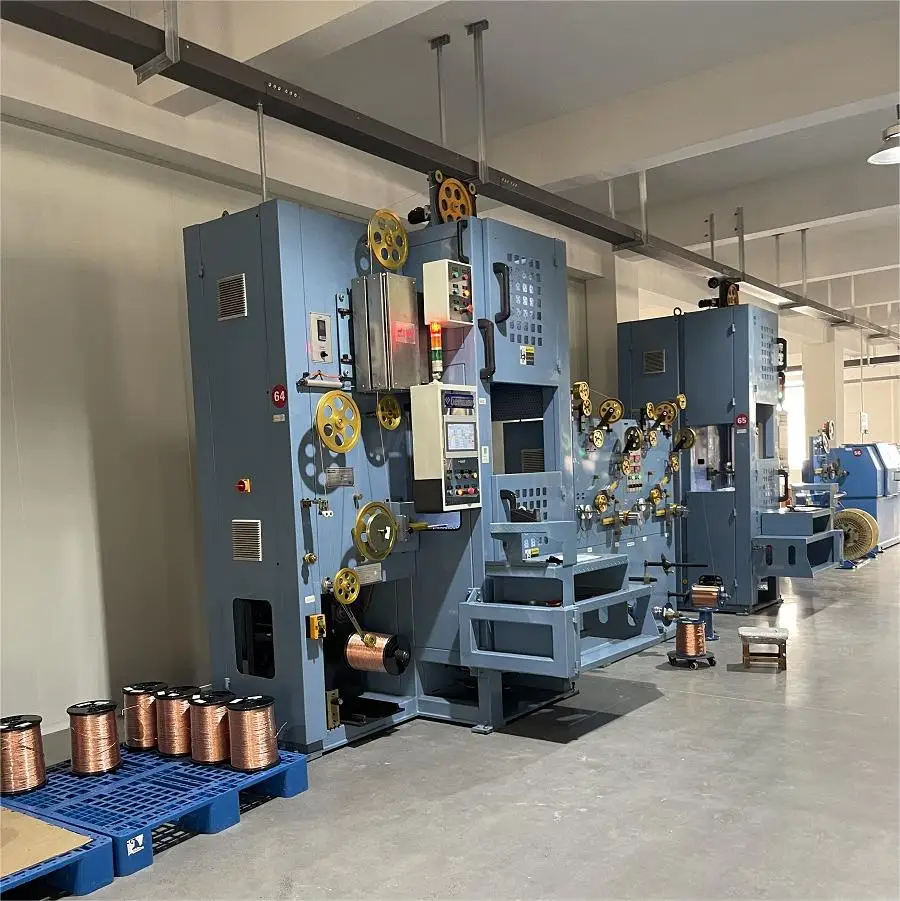

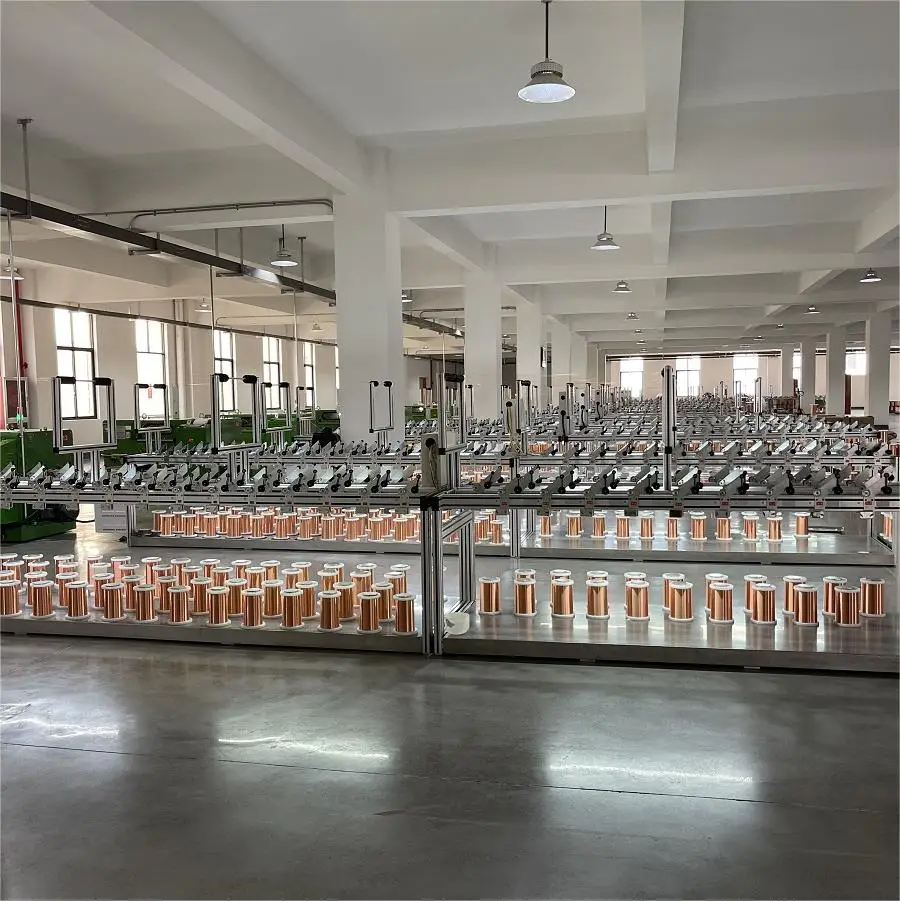

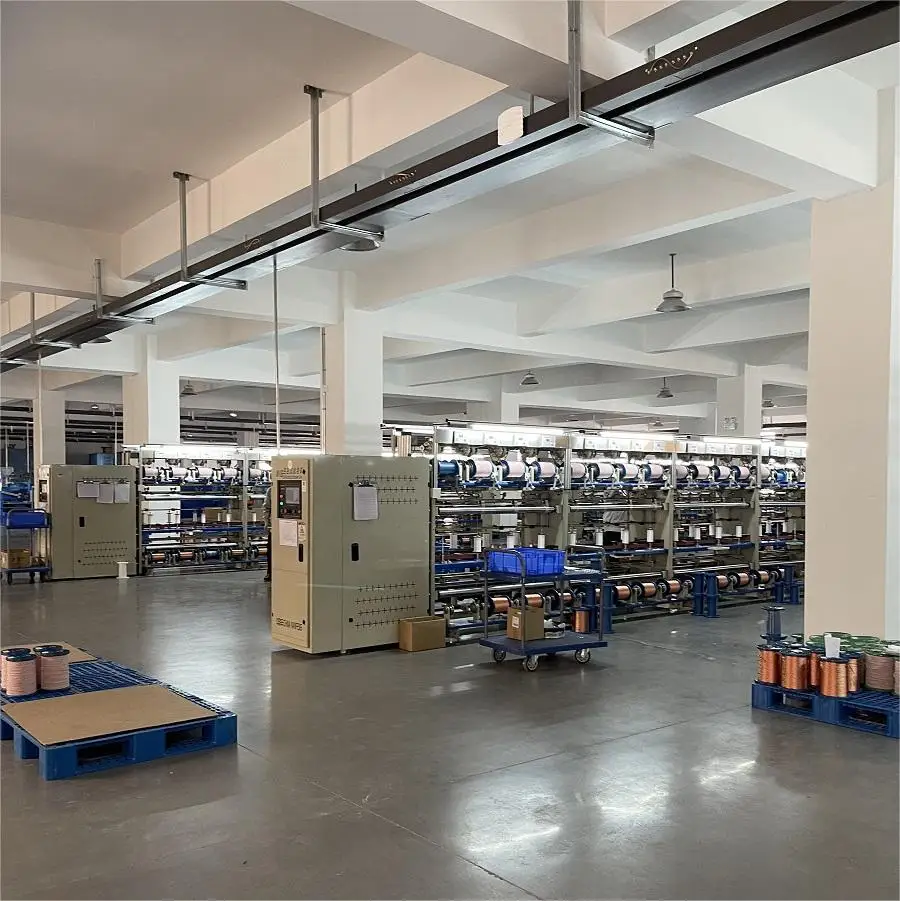

Our company have 3 factories, who can offer you silk covered litz wire, they are located in Jiangsu province, Zhejiang province,
and Guandong province. We will arrange this most near site to your warehouse and shipping port.
Our engineer team is keeping technological innovation;
Our QC team helps you control all the quality issues;
Our sales and marketing team offer you daily communication and business service.
and Guandong province. We will arrange this most near site to your warehouse and shipping port.
Our engineer team is keeping technological innovation;
Our QC team helps you control all the quality issues;
Our sales and marketing team offer you daily communication and business service.
Product introduction and details
Application Scenario

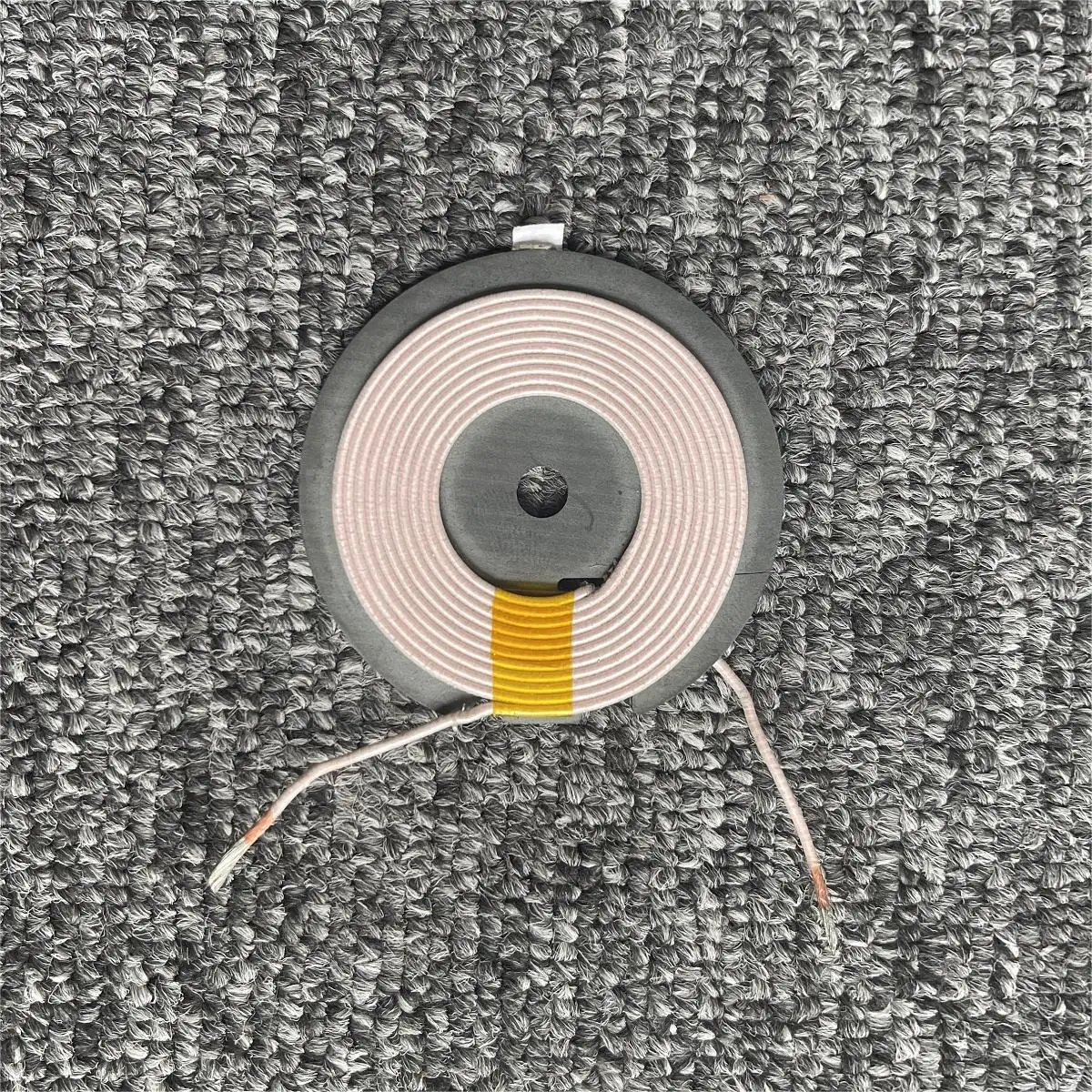

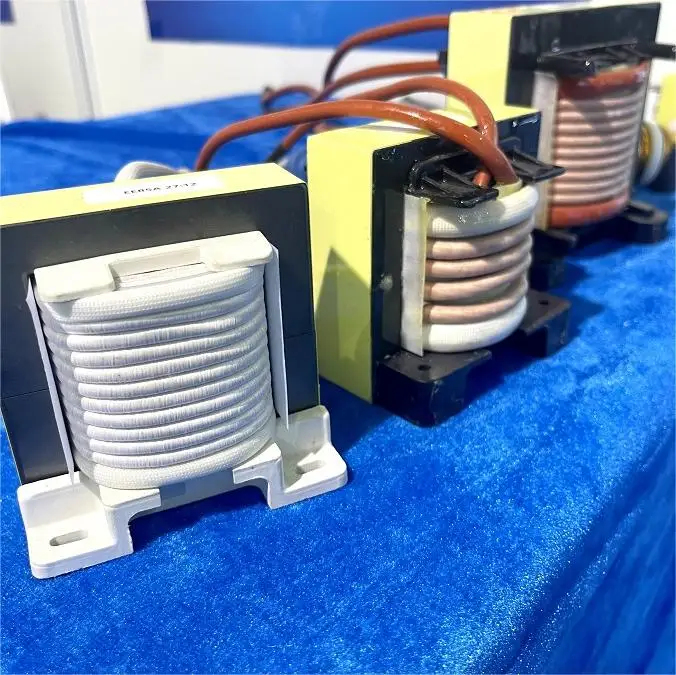

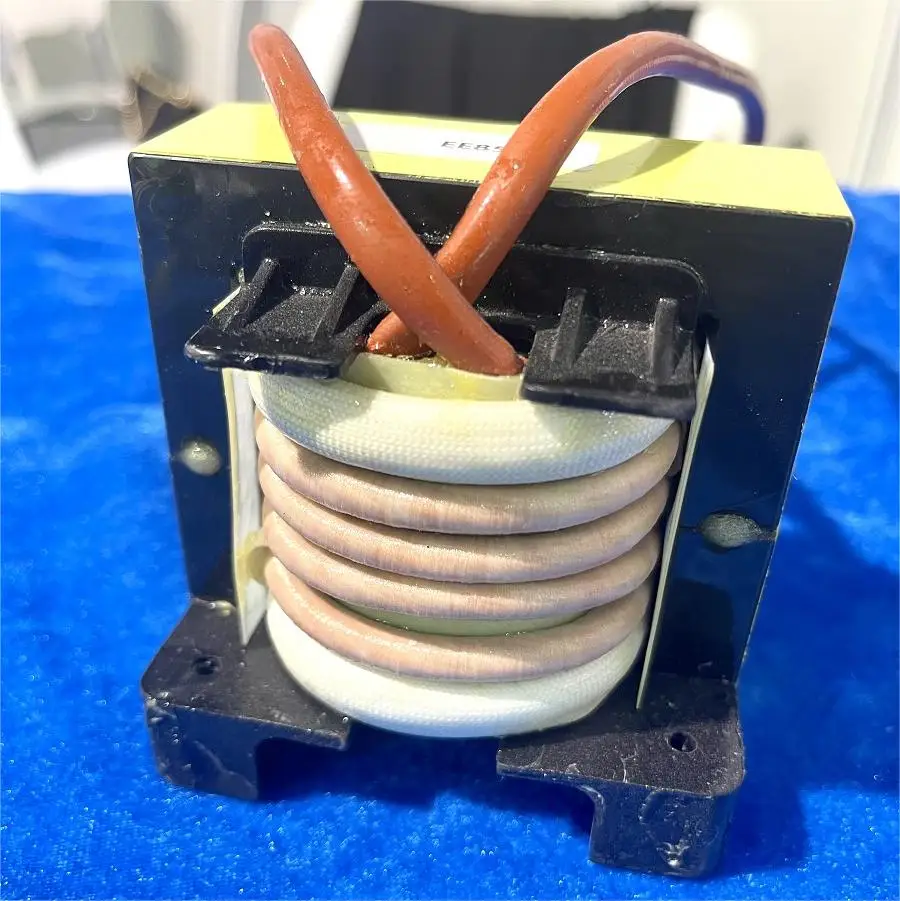

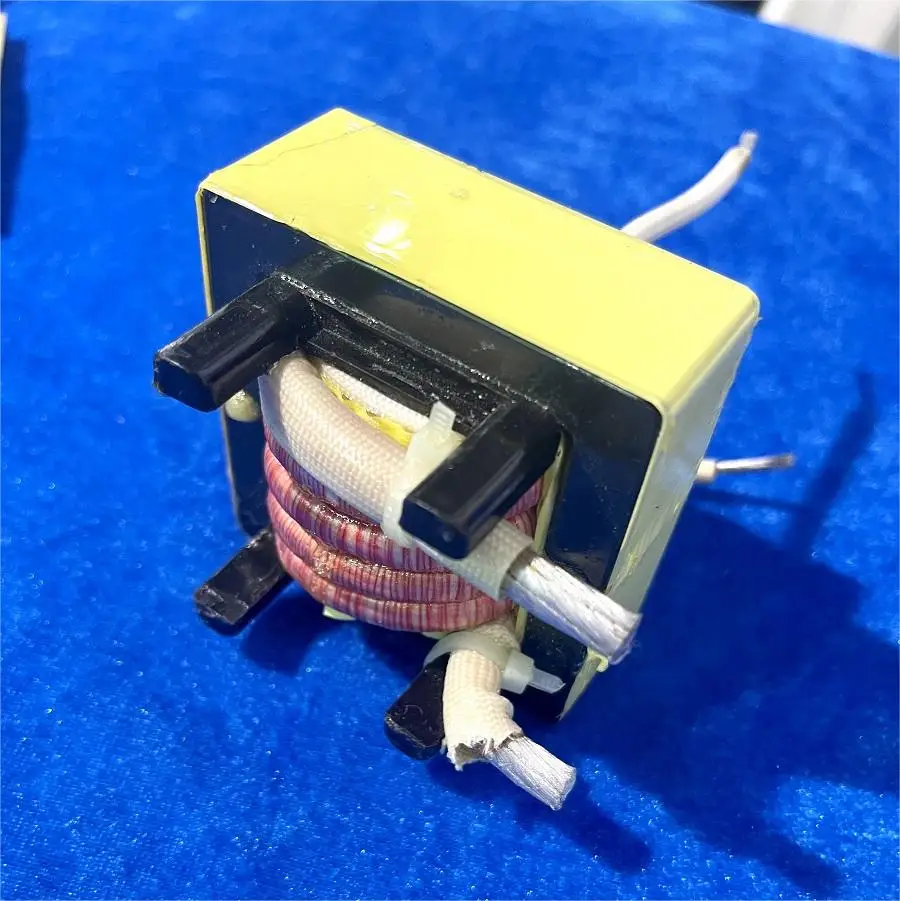

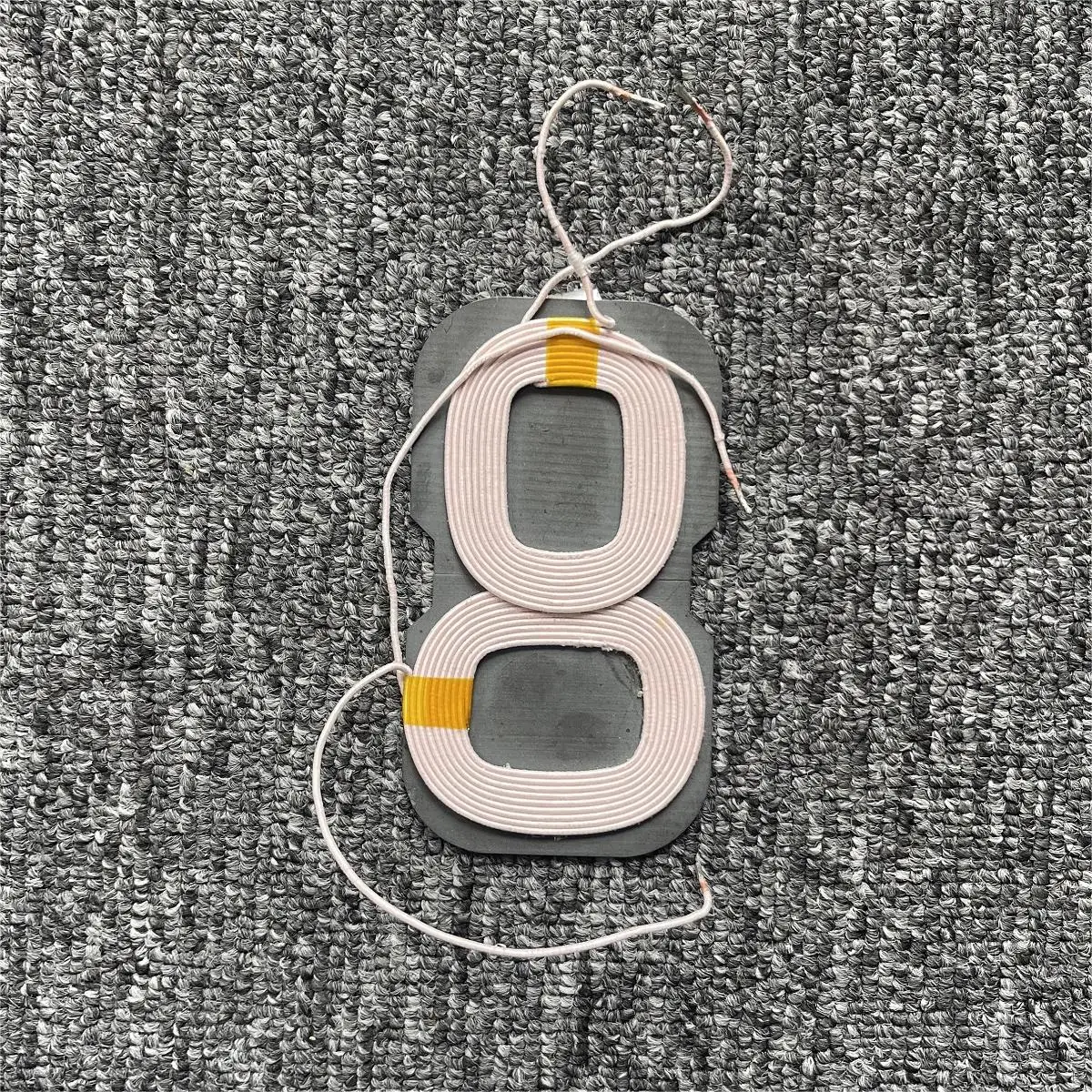

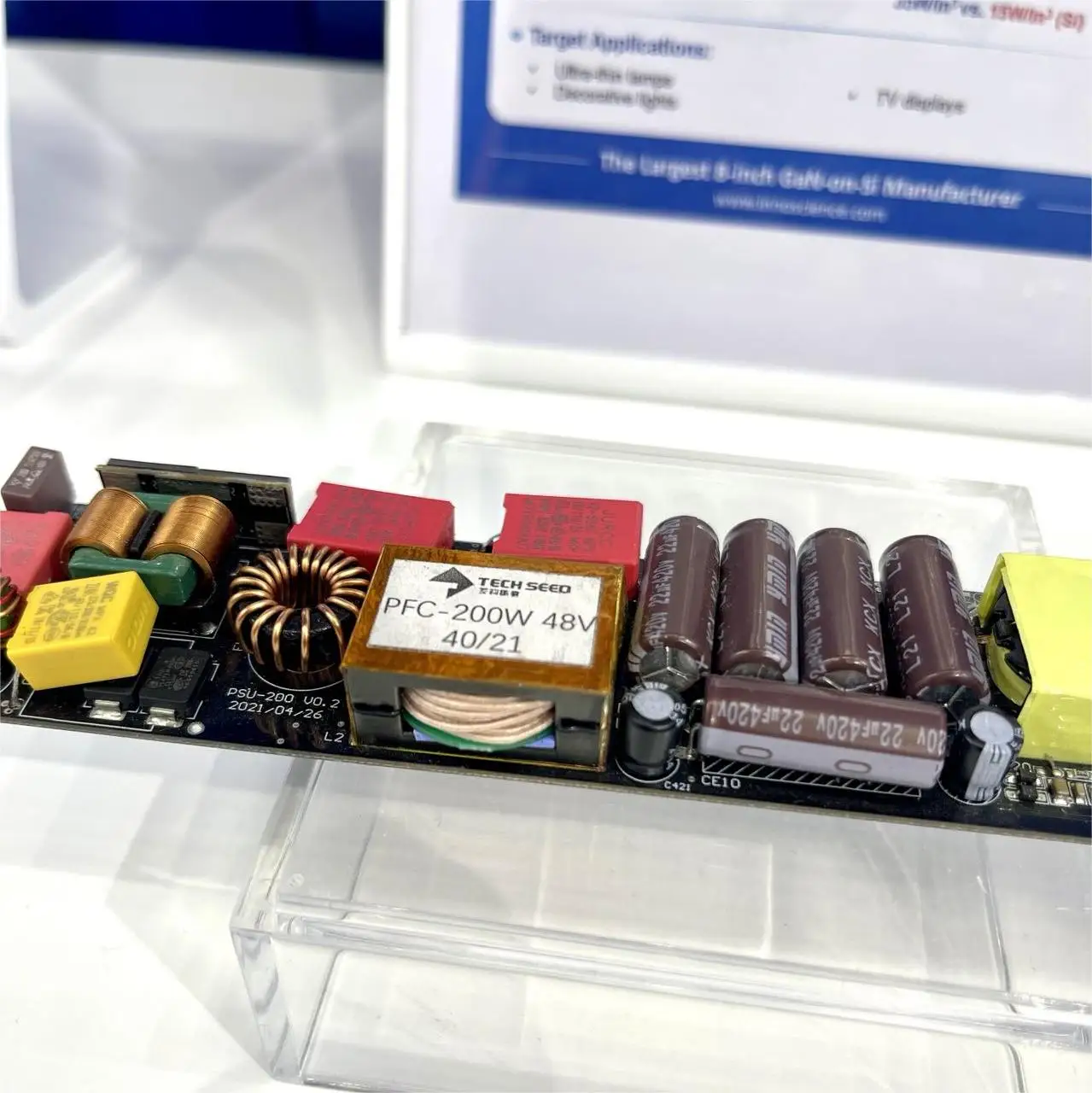

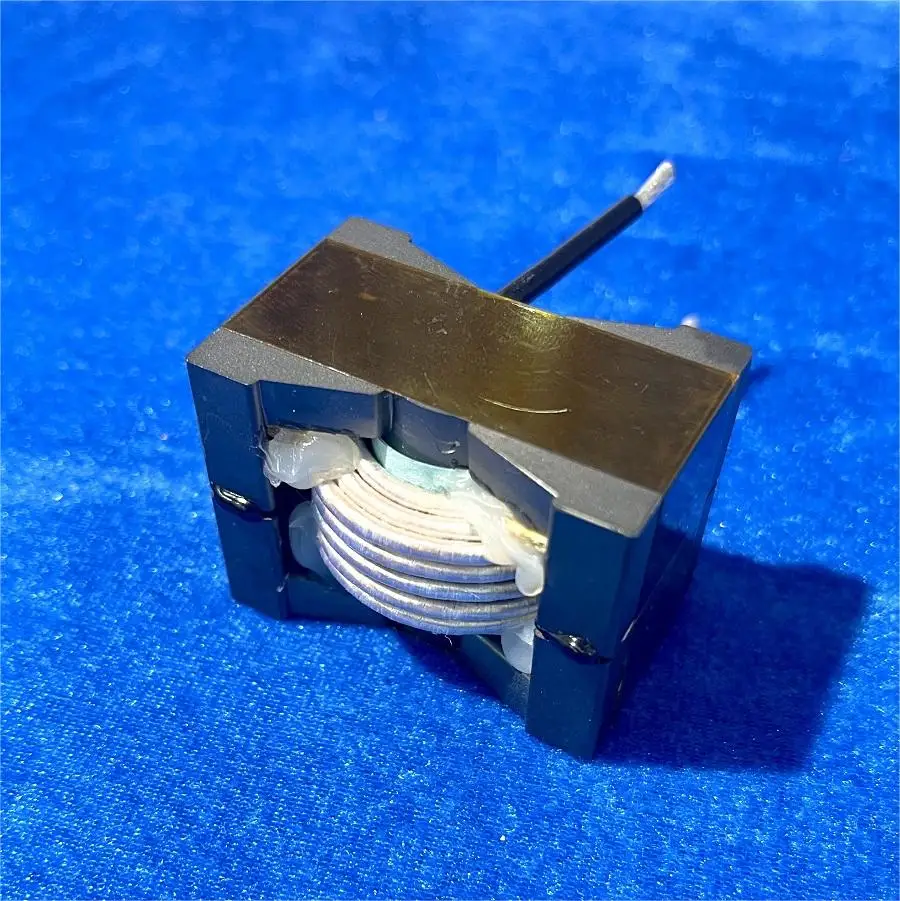

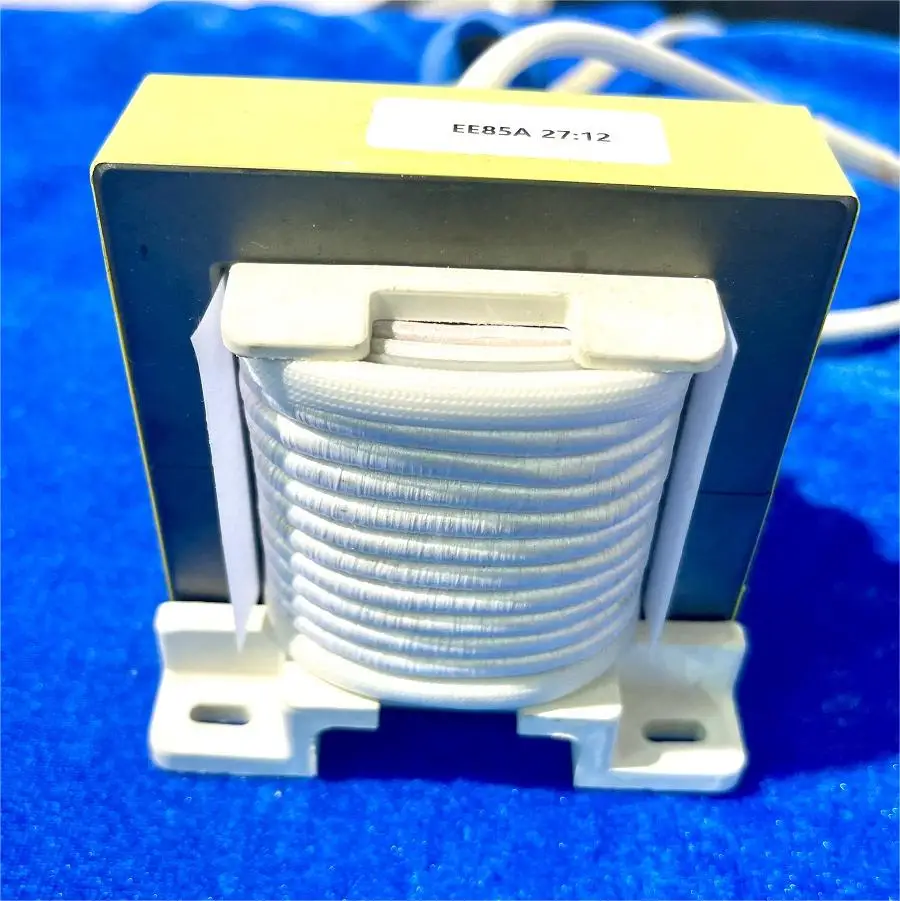

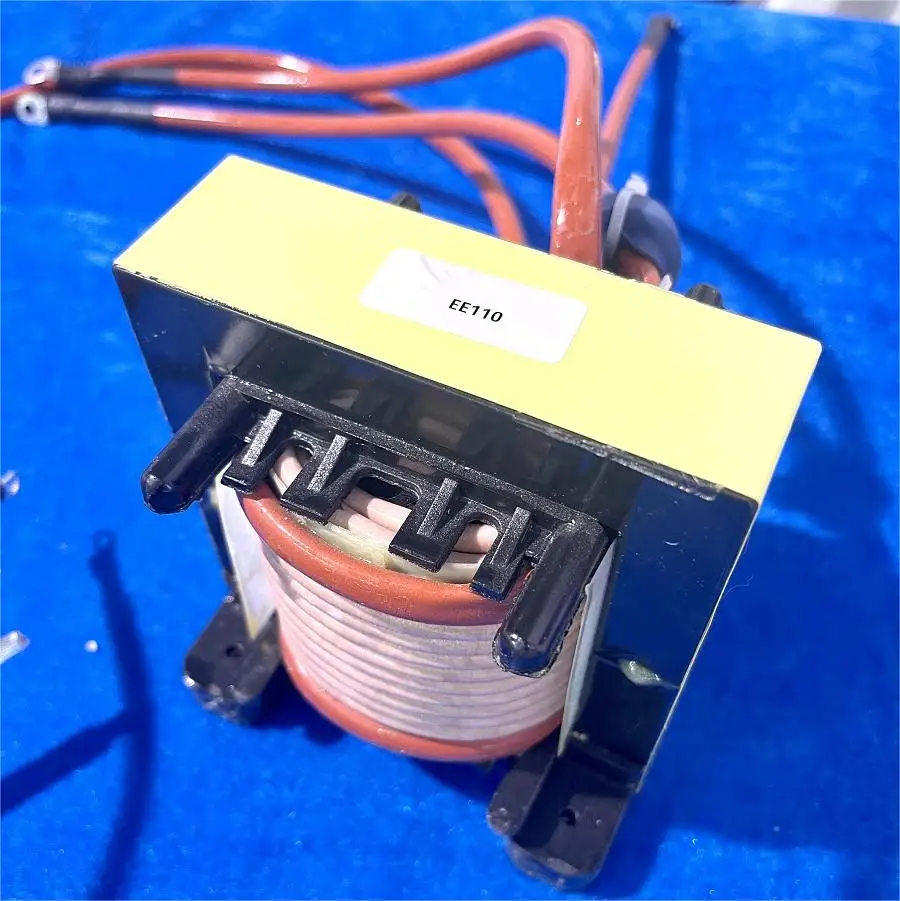

Silk covered litz wire is widely used in high power high-frequency transformer, wireless charger coils , antenna inductance, high power LED lighting, LCD TV, ultrasonic equipment, metal detector, mobile phone, and other related industries.
Packing & Delivery

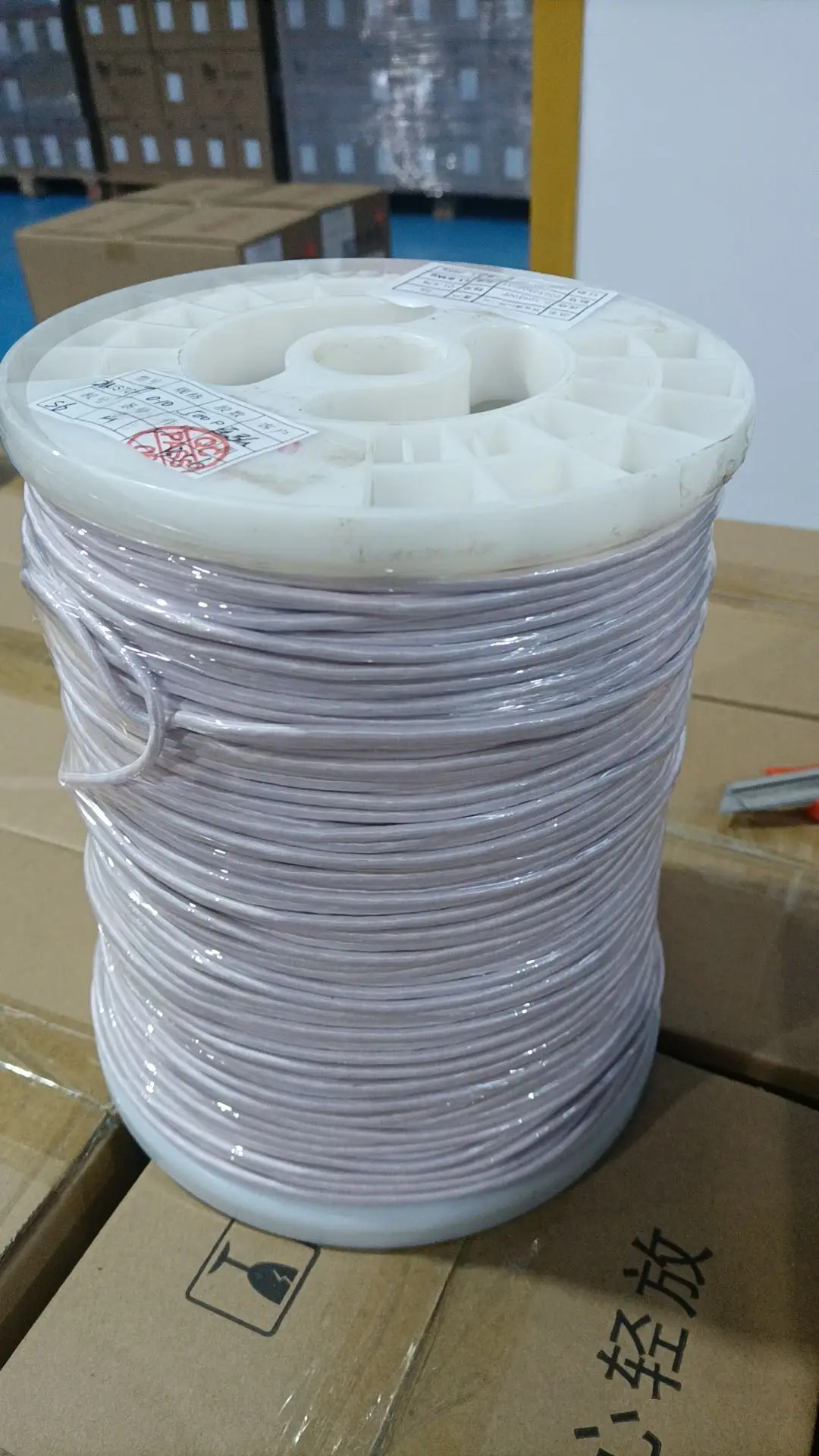

For small qty spools, rolls, we will pack with EPE FOAM and cartons;
For more qty spools,rolls, we will pack with pallet ,or wooden box.
If you have your own forwarder or warehouse in China, we can ship to your address;
If you have no forwarder or warehouse in China, we will arrange our forwarder for you with reasonable cost and excellent service.
Just let me know your address, we will arrange all details for you .
