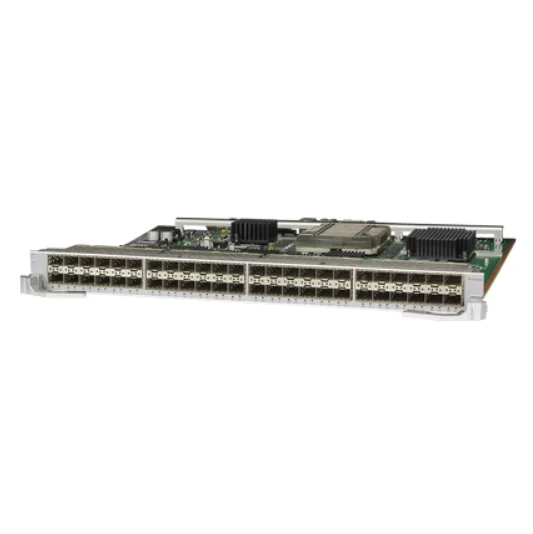

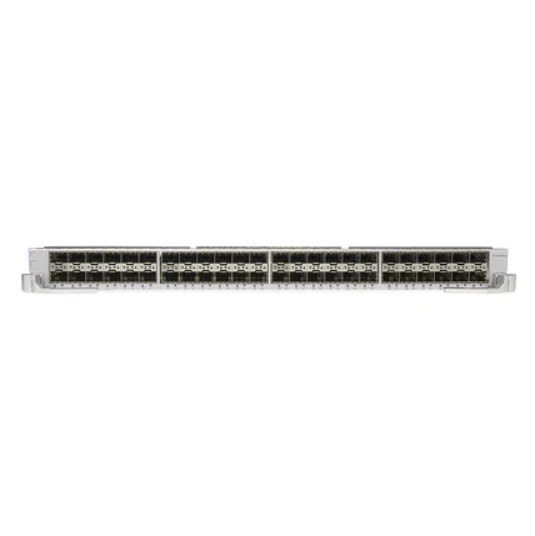

ES1D2G48SX1E HW 48 port 100M/Gigabit optical interface board (X1E SFP) for S7703/06/12 series switches
- Category: >>>
- Supplier: Shenzhen Toptoday Network Co. Ltd.
Share on (1601009703176):
Product Overview
Description
ES1D2G48SX1E HW 48-port 100M/Gigabit optical interface board (X1E SFP) for S7703/06/12 series switches
Version Mapping
Switch chassis and software versions matching the card
Card Name | S7700 Chassis |
|---|---|
ES1D2G48SX1E | S7703, S7706 and S7712 chassis: supported in V200R005C00 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions |
Introduction
The ES1D2G48SX1E provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
The ES1D2G48SX1E can be installed in:
- Slots 01 to 03 in an S7703 or S7703 PoE chassis.
- Slots 01 to 06 in an S7706 or S7706 PoE chassis.
- Slots 01 to 12 in an S7712 chassis.
Functions
The ES1D2G48SX1E provides the following functions:
- Communicates with the MPU and works under the control of the MPU.
- Searches for routes and destination addresses of data packets for forwarding.
- Forwards data packets.
Functions of the ES1D2G48SX1E
Specifications of the ES1D2G48SX1E
Function | Description |
|---|---|
Basic functions | Provides forty-eight GE optical ports for data access and switching. |
Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
Hot swapping | The ES1D2G48SX1E is hot swappable. |
Specifications of the ES1D2G48SX1E
Item | Description |
|---|---|
Physical specifications |
|
