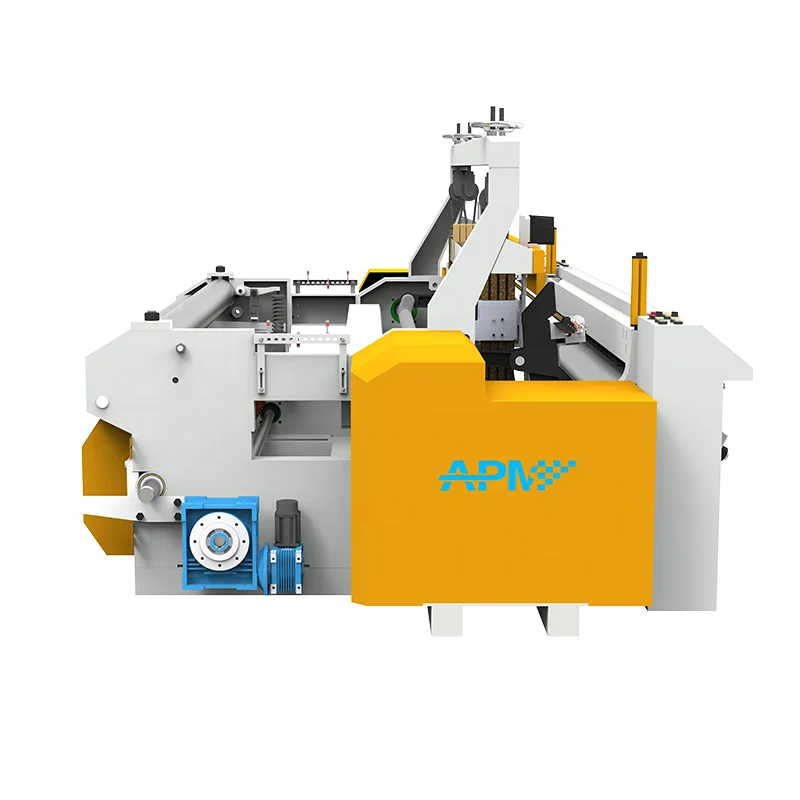

High efficiency and energy saving shutless wire mesh weaving machine making metal fence
- Category: >>>
- Supplier: Hebei Zonghang Machinery Manufacturing Co. Ltd.
Share on (1601009709131):
Product Overview
Description
Product Description
The machine adopts PLC programmable control system, through servo motor and turbine reducer control cloth take-up and warp let-off to achieve automatic mesh tension adjustment, so that the mesh precision is high. Which can be more accurate weaving 200 square mesh with the standard wire diameter and also weave up to 300 Dutch mesh, such as: plain weaving, Twill weave, Dutch weave and Reverse Dutch; The direct drive AC servo weft insertion can adjust the rapier return time and the length and time of the second pulling at will. The limit setting of the rapier belt not only effectively protects the rapier belt and head but also improves the safety factor of the rapier belt operation. The absolute encoder is used to prevent accidents and defects such as abnormal power failure, brake instability, and data loss resulting in the clamping of the rapier belt, making the operation more stable.
The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas filtration and solid particle screening.
Technical Parameter
Machine Type | Q |
Weaving Width | 1300mm, 1600mm, 2000- 2500mm |
Weaving Speed | Square Mesh: 0-200Mesh Dutch Mesh: 300Mesh |
Warp/Weft Wire Range | Blow 0.60mm |
Driver Way | Electromagnetic Brake Motor Driver, Variable frequency Speed Regulation |
Heddle Frame | 2 or 4 |
Shedding Mechanism | Aluminum heddle frame, Cam Shedding |
Beating Mechanism | The crankshaft is a 75mm diameter, 45 (55) steel monolithic forging, and the slay (70 square steel) is made of carbon structural steel after heat treatment; |
Weft Insertion | 2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion |
Warp let-off System | Servo motor drive, wire electronic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism |
Cloth Take-up System | Servo motor drive, 3Pu coating beam unlimited cloth mechanism, digital display braid length |
Control System | New weaving machine control system |

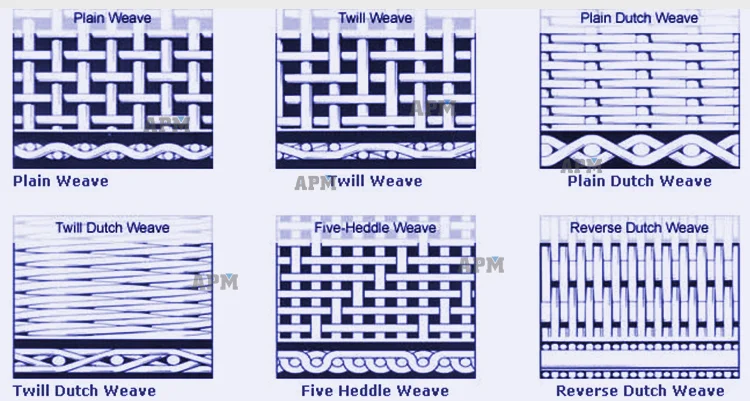

Weaving type

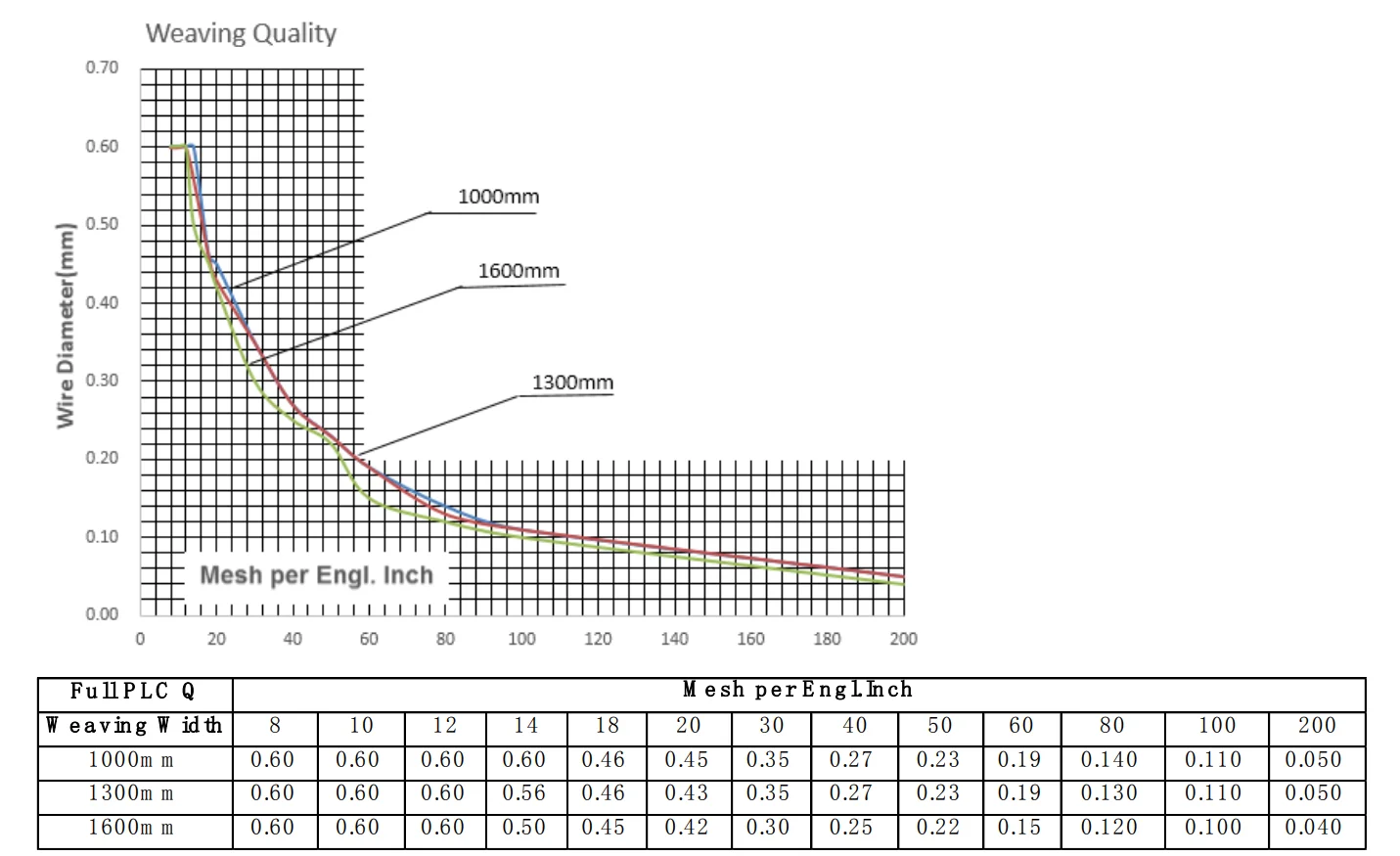

Weaving specification in plain

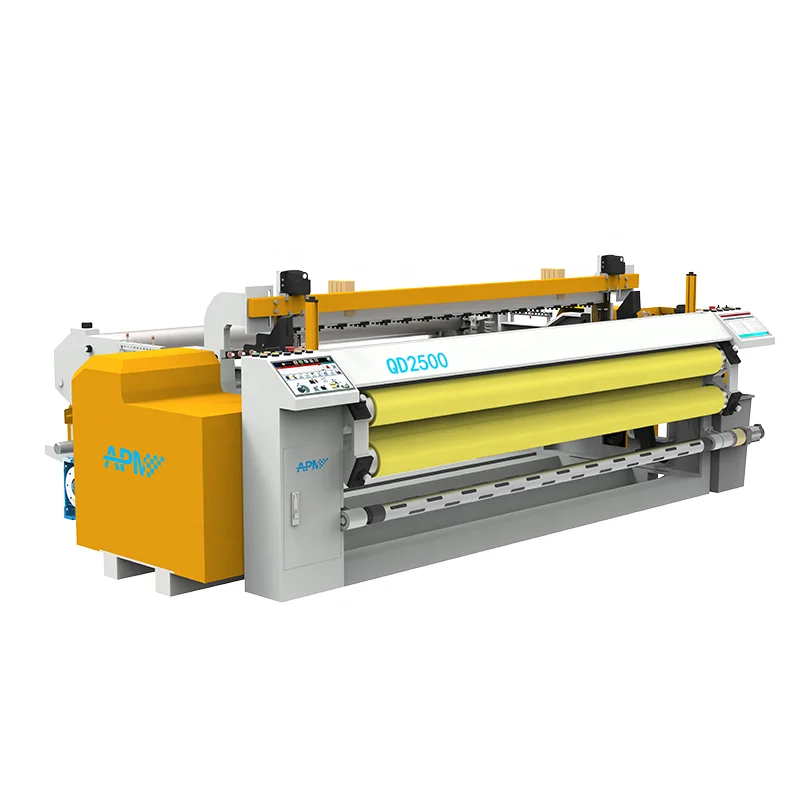

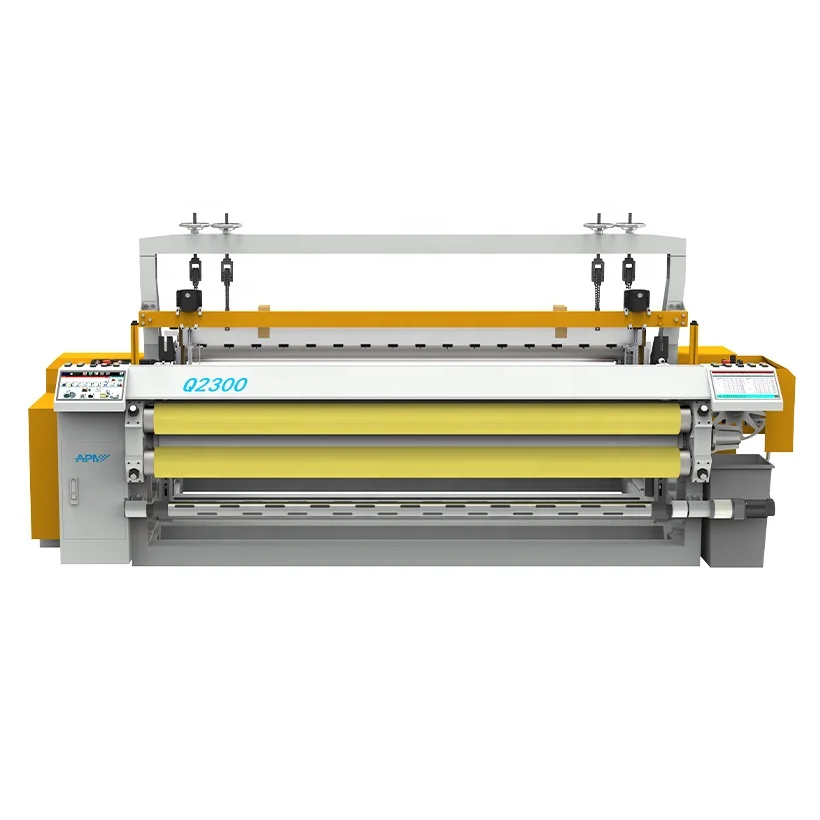

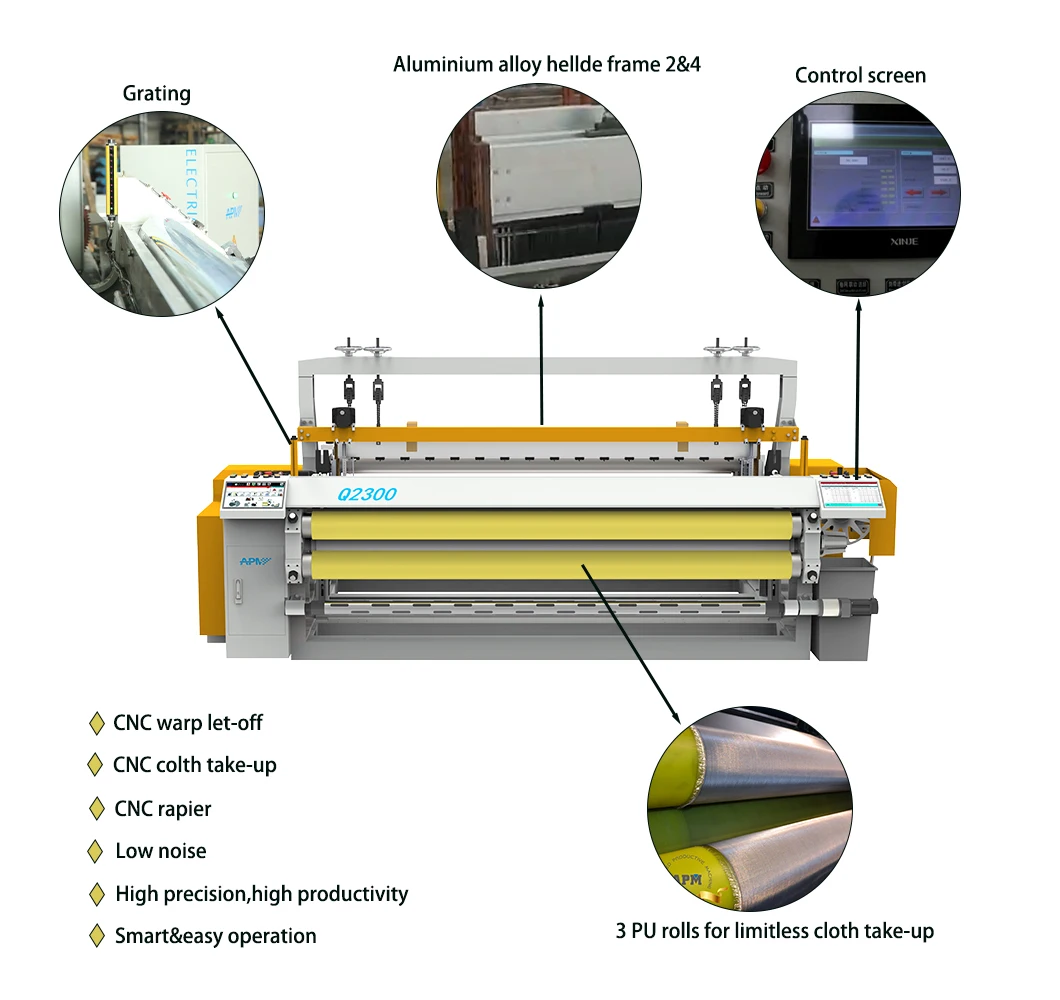

Detailed Images
Advantage
1. More accurate
It can ensures a consistent size of mesh (opening)
Its error range is much lower than industry standard
2. More automatic
It can adjust mesh size within range automatically
It can weave 24 hours per day without worker
3. Low noise
CNC system makes the machine working smooth with less gears and low energy consumption.
4.Easy operation
Just set up the parameters in advance,the machine will work automatically.
It is very friendly to new beginner who is not skilled or experienced in weaving.
5.Reduce the labor cost
Due to its high-automatic,one worker could deal with 20 weaving machines at most.

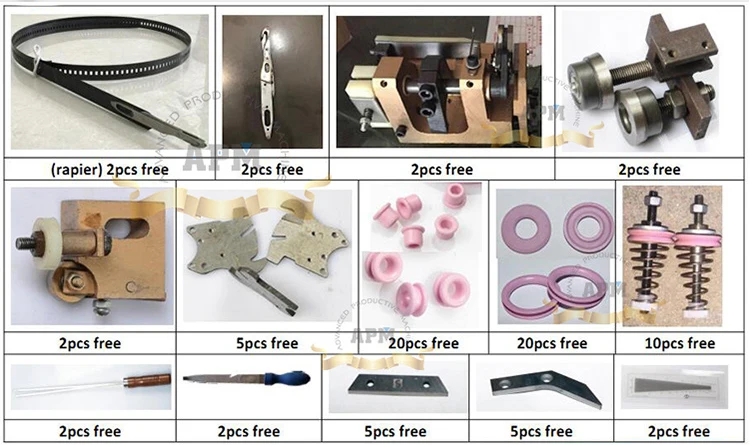

Free spare parts

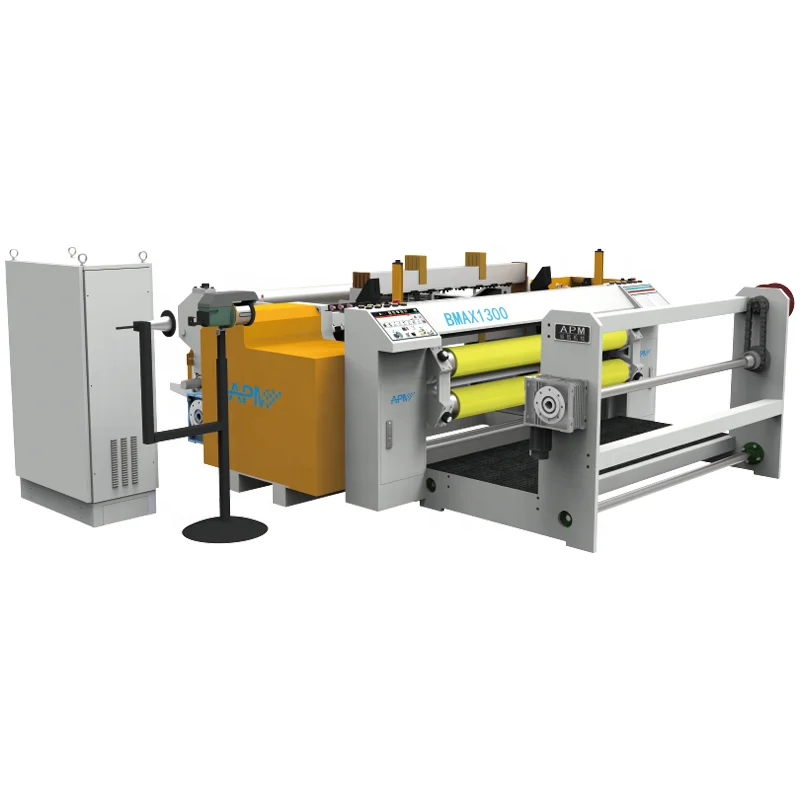

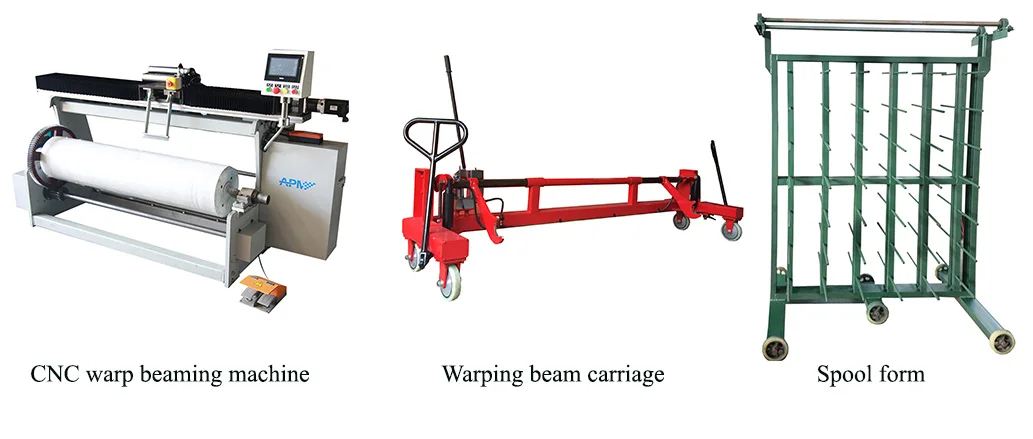

Auxiliary Machine

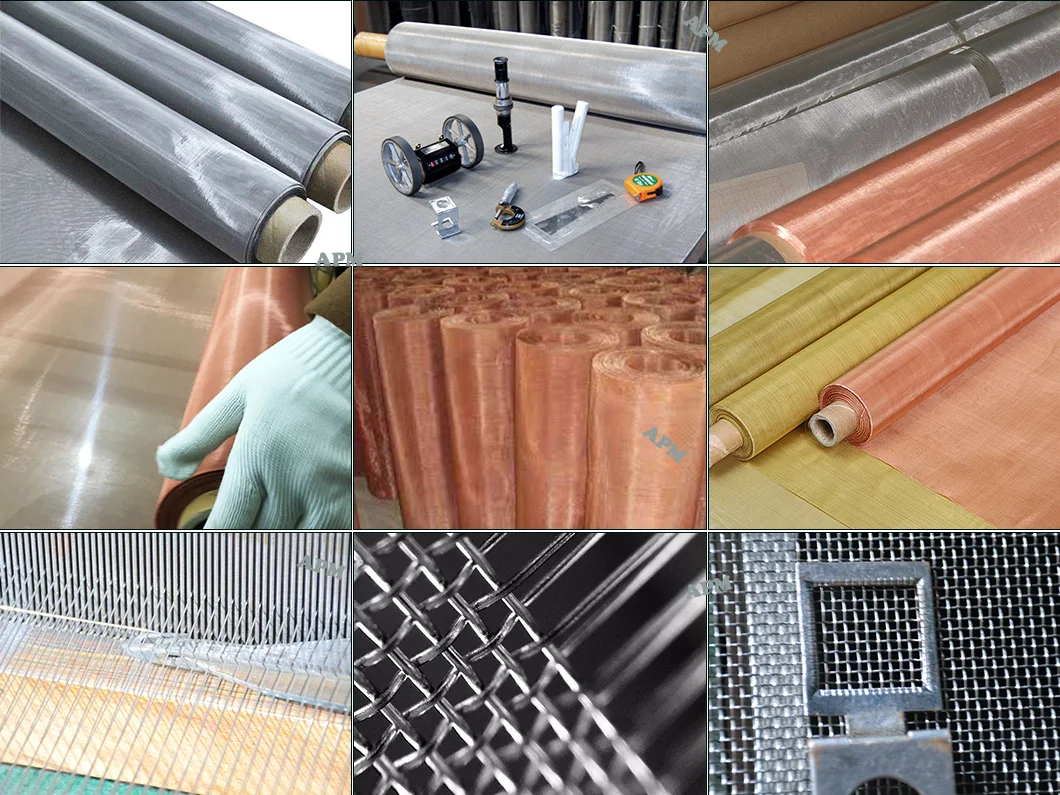

Finished products

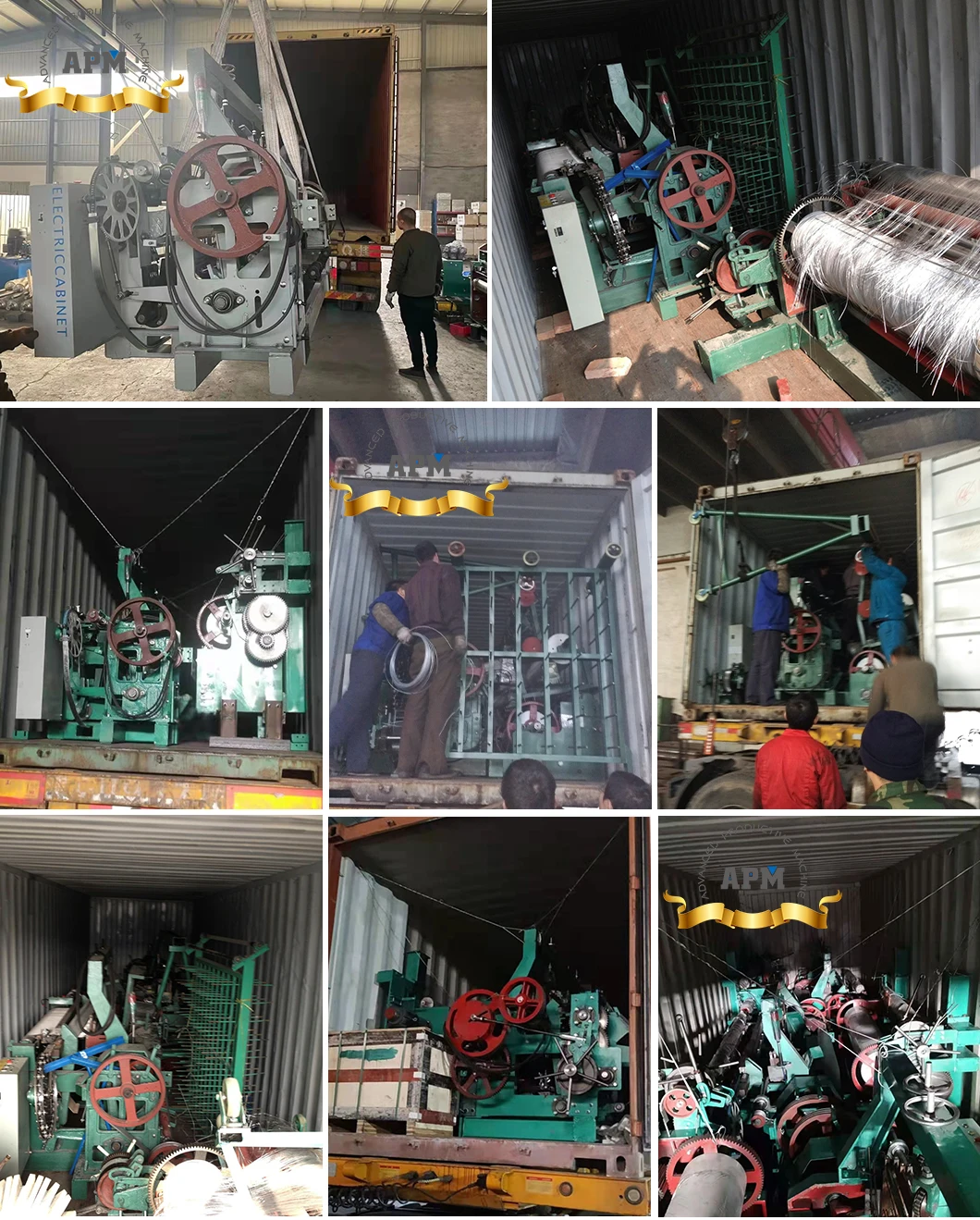

Packaging & Shipping
Company Information
Customers
Our Services
1, Maintenance period: one year
We can send our technicist to the buyers’ place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
2, The debugging fees: free
3, The training fees: Free. If buyers need the technicians,we will assign the technical staff to your company. And the fees ,such as round-trip tickets,accommodation etc, are all in buyers’ account.And a training fee is required.
4, The numbers of technical persons: one technical person per machines at most.
5, The fees: round-trip tickets, accommodation etc, are all in buyers’ account.
6, During the maintenance period: the parts damaged non-artificially will be provided free of charge.
7, After the maintenance period: If buyers need the machine parts, we will provide it as our cost.
Order Procedure
Information provided by customer
1.Wire material
2.Wire diameters
3.Aperture size(mesh count per inch)
4.Weaving width
5.Weaving type.

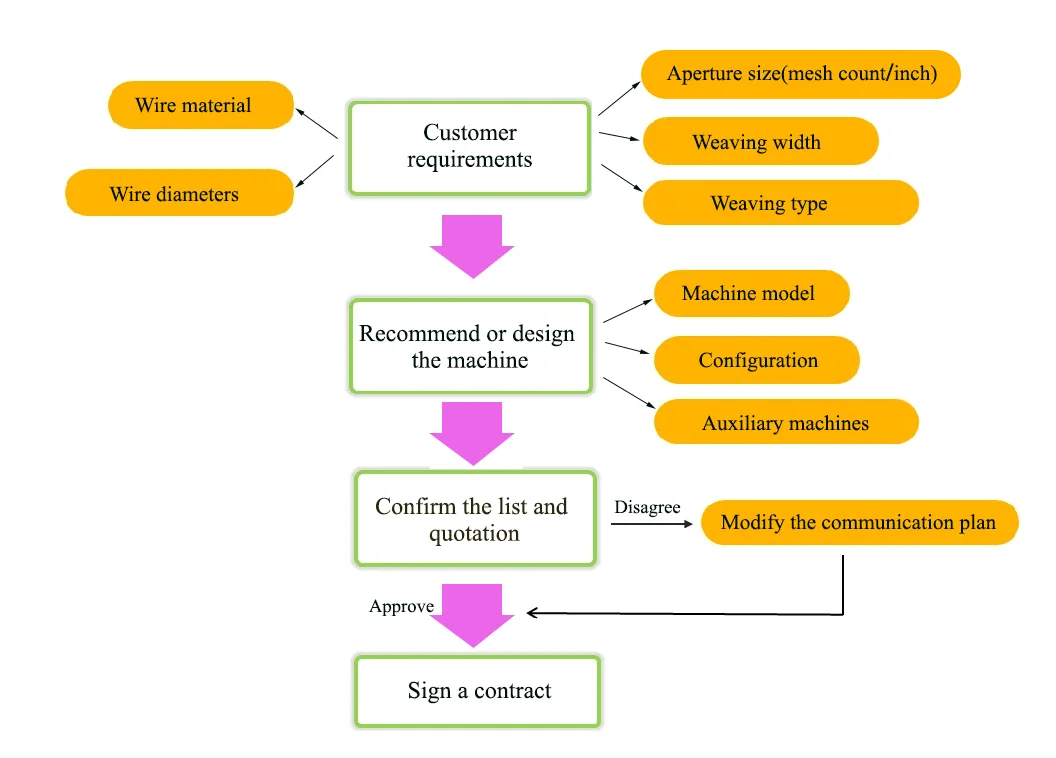

Cooperation Procedure
1.Customer provides above information
2.We recommend or design the machines.
3.APM team explains the machine to customer
4.If customer confirm, APM offers the quotation ;
If customer not confirm, APM modifies the drawing
5.When the quotation confirmed, APM issues the contract
6.When the contract be signed, customer arranges the deposit
7.When deposit received, APM arranges the production
8.When production finished, customer or APM arranges quality inspection
9.When inspection passes, customer arranges balance and customer or APM books the shipment.
10.When balance received, APM arranges export
11.When machinery received, customer arranges assembling and APM offers trainning support
12.whenever technique support needed, APM will be around with you.
FAQ
1.How about your machine’s working speed and output?
A:Please contact our professional salesman, you can get all the details.
2.How to learn the operation of your machine?
A: 1) We can send our engineer to your factory for training
2) You can send your machine operator to our factory
3) We can send you a video for learning
3.If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
2)Custom-made parts with detailed drawing can be provided
4. Are you trading company or manufacturer ?
A: We are factory.
5. How long is your delivery time?
A: Generally it is 30-45 days. It is according to quantity.
6. Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge but we can provide video
7. What is your terms of payment ?
A: Paymen 50% T/T in advance ,balance before shippment.
