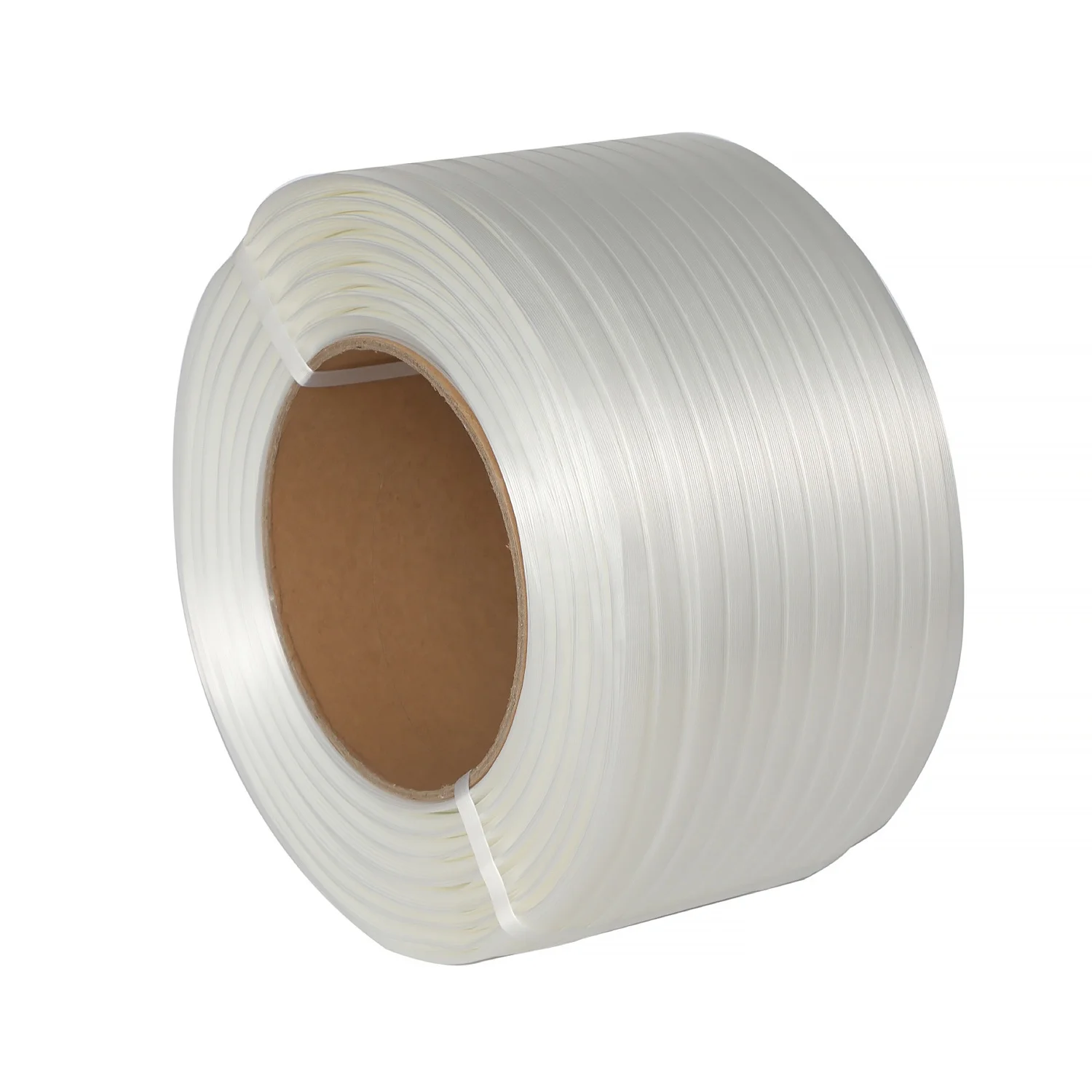

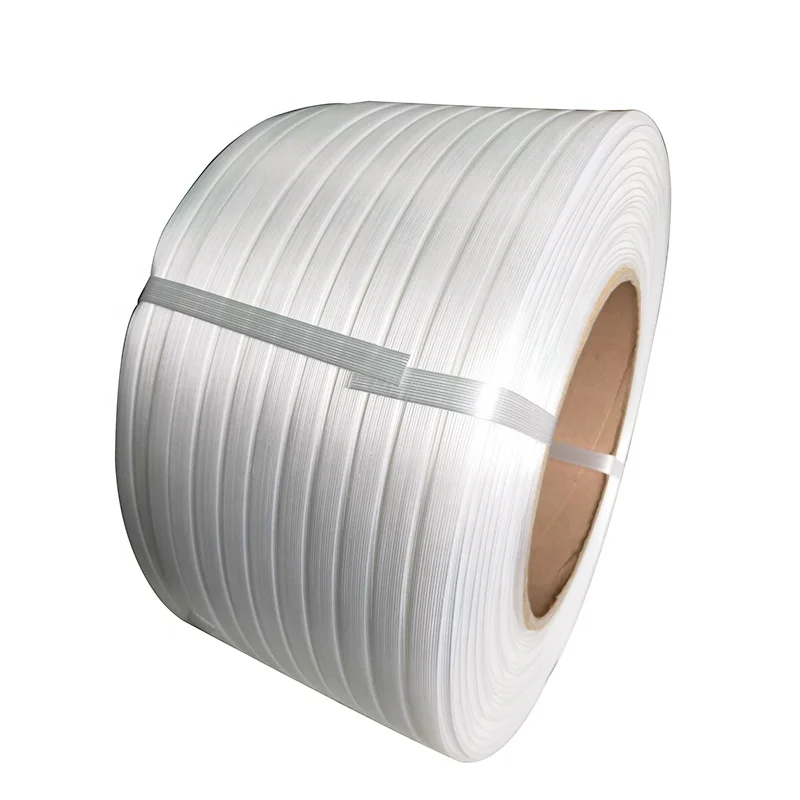

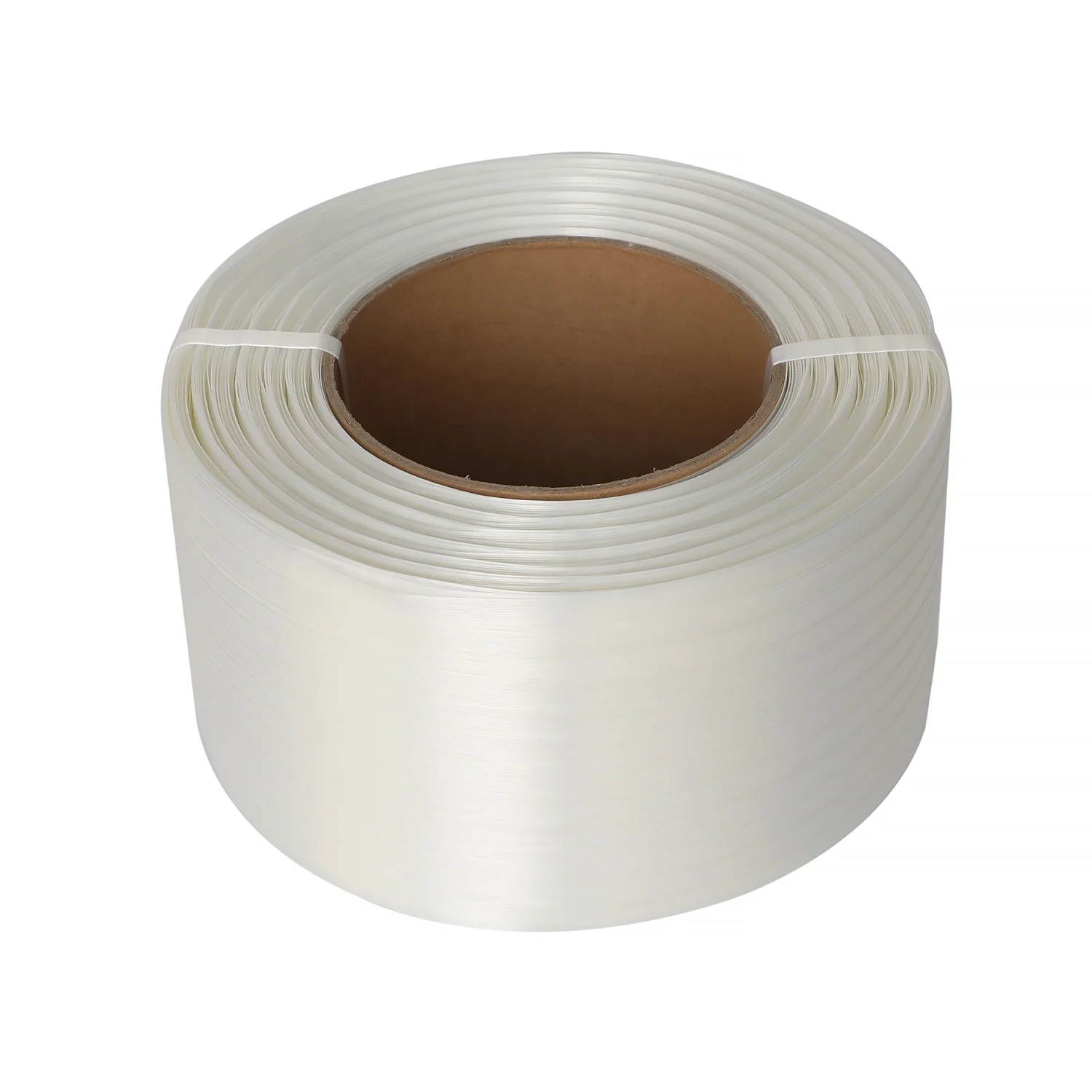

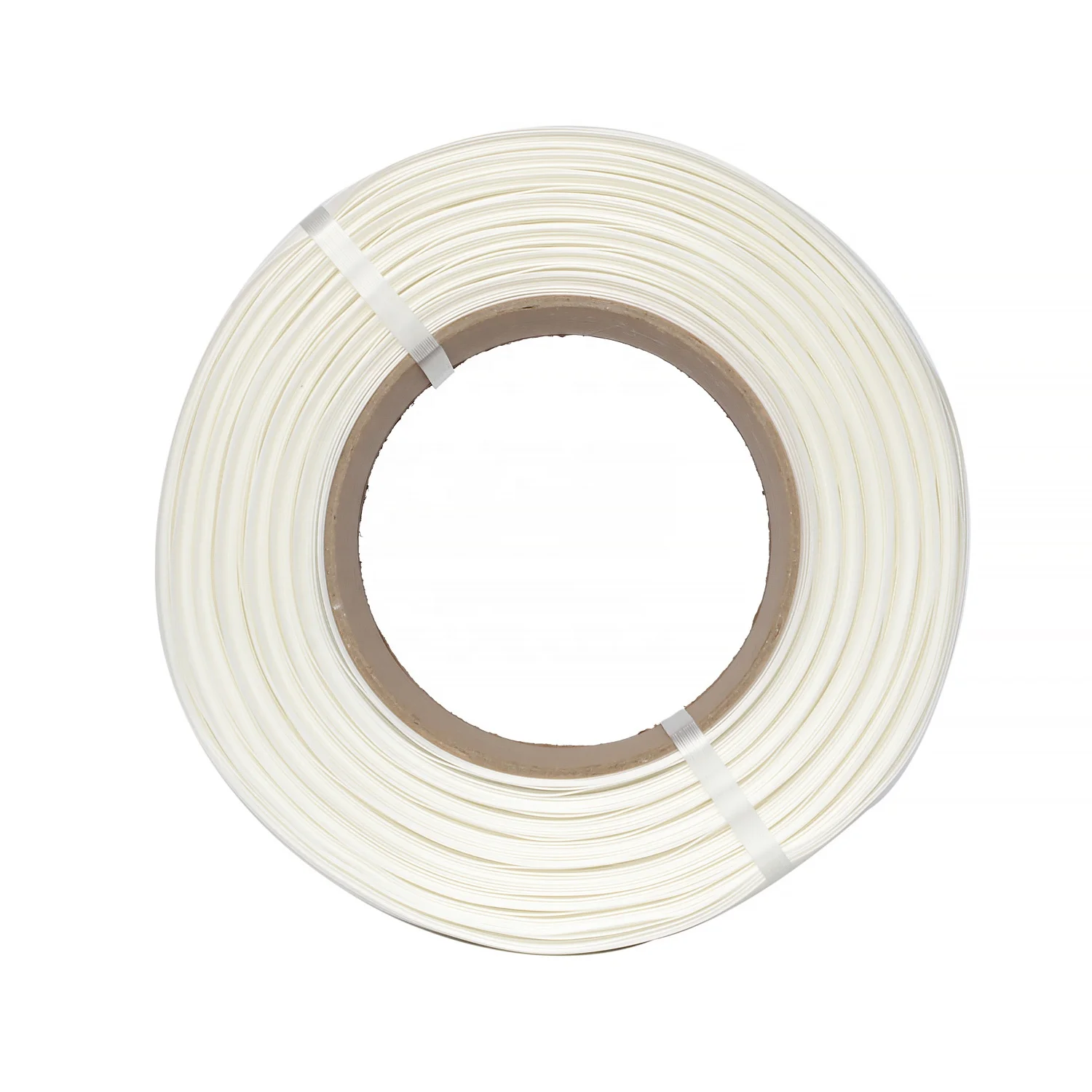

13mm Special Composite Packing Belt Packaging Banding Strapping For Securing Cargo Protection
- Category: >>>
- Supplier: Dongguan Qianyi Packaging Products Co. Ltd.
Share on (1601009709986):
Product Overview
Description
Product Description

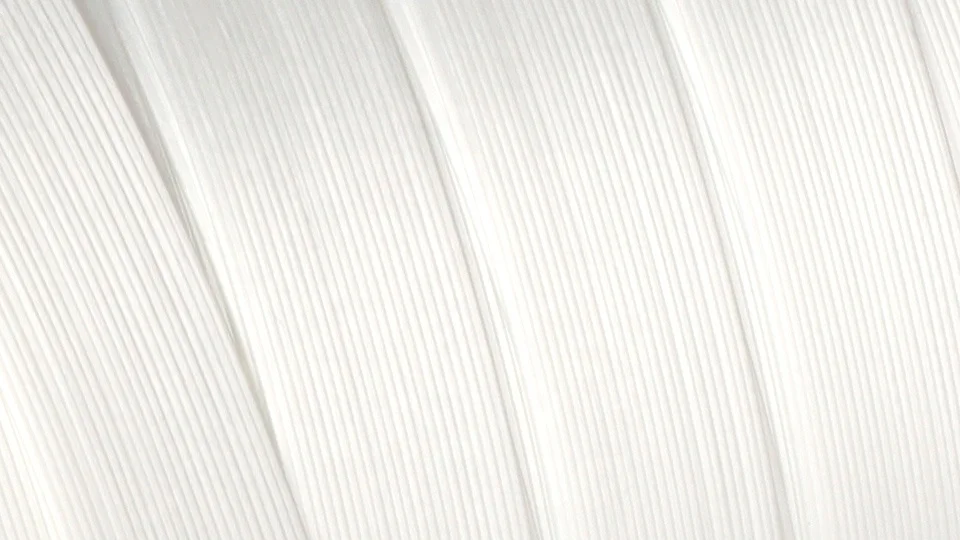

Composite cord strapping is co-extruded polyester strapping made from high tenacity polyester textile fibers. This belt composites of parallel lying polyester single threads with polypropylene encased. It is the latest development in non-metallic shipping technology and most commonly used. Made from high tenacity polyester filament yarns embeeded in a polymer coating. Composite cord strapping is often refered to as “synthetic steel”.

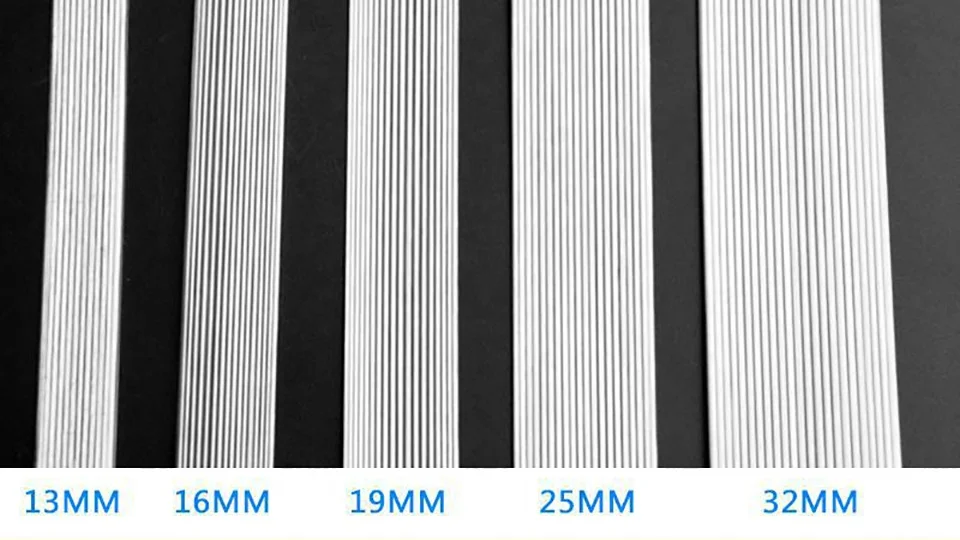

We have 2 types for options, untwisted yarn and twisted yarn.
Specification
Type | Width (mm) | Length/Roll (M) | Linear break (daN) | System break(daN) | Rolls per box | G.W/box (kg) | Rolls per pallet | Matching buckle | ||||||||
Light Range/Standard Range: | ||||||||||||||||
QY-CS-L40 | 13 | 1100 | 230 | 380 | 2 | 20.9 | 90 | 13*3.3 | ||||||||
QY-CS-40 | 13 | 1100 | 300 | 480 | 2 | 21.7 | 90 | 13*3.3 | ||||||||
QY-CS-L50 | 16 | 850 | 380 | 600 | 2 | 18.5 | 90 | 16*3.5 | ||||||||
QY-CS-50 | 16 | 850 | 430 | 700 | 2 | 20.9 | 90 | 16*3.5 | ||||||||
QY-CS-55 | 16 | 600 | 550 | 900 | 2 | 18.5 | 90 | 16*3.5 | ||||||||
QY-CS-60 | 19 | 600 | 500 | 800 | 2 | 17.7 | 90 | 19*4.0 | ||||||||
QY-CS-65 | 19 | 500 | 700 | 1120 | 2 | 18.4 | 90 | 19*4.0 | ||||||||
QY-CS-69 | 19 | 450 | 880 | 1400 | 2 | 19.9 | 90 | 19*4.5 | ||||||||
Heavy duty range: | ||||||||||||||||
QY-CS-85 | 25 | 500 | 950 | 1520 | 2 | 22.65 | 90 | 25*5.0 | ||||||||
QY-CS-86 | 25 | 450 | 1050 | 1760 | 2 | 22.85 | 90 | 25*5.0 | ||||||||
QY-CS-105 | 32 | 300 | 1600 | 2600 | 2 | 22.7 | 90 | 32*7.0 | ||||||||
QY-CS-105S | 32 | 250 | 1600 | 2600 | 2 | 19.2 | 90 | 32*7.0 | ||||||||
QY-CS-106 | 32 | 230 | 1600 | 2600 | 2 | 17.6 | 90 | 32*7.0 | ||||||||
QY-TC-105 (twist yarn) | 32 | 230 | 1700 | 2700 | 2 | 20.0 | 90 | 32*7.0 | ||||||||
Related Products

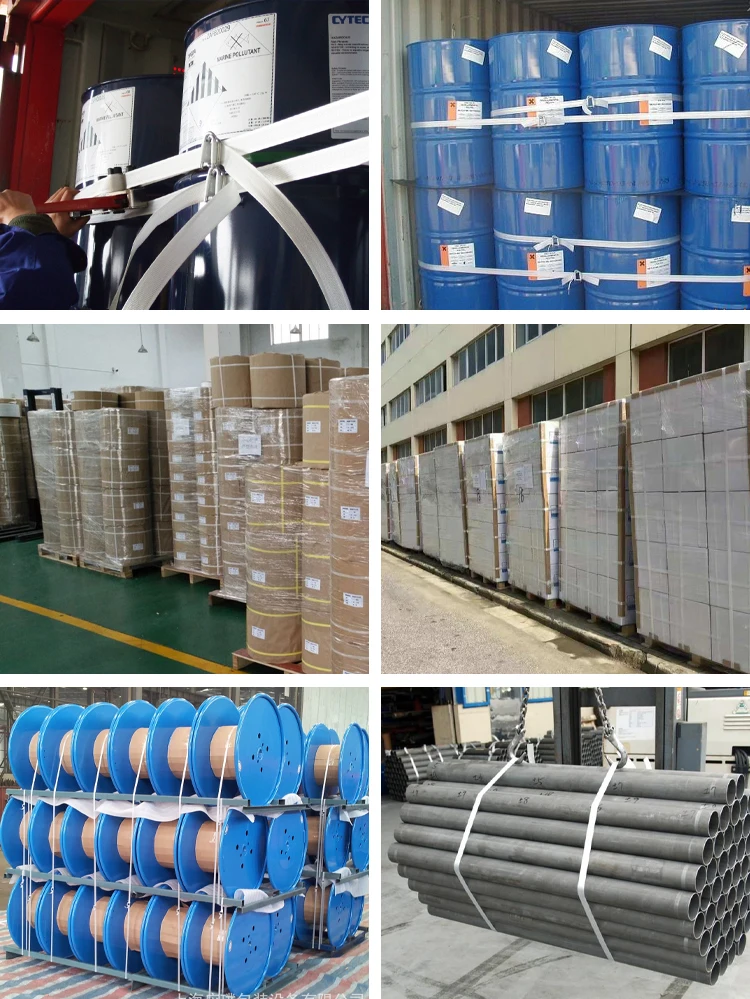

Application

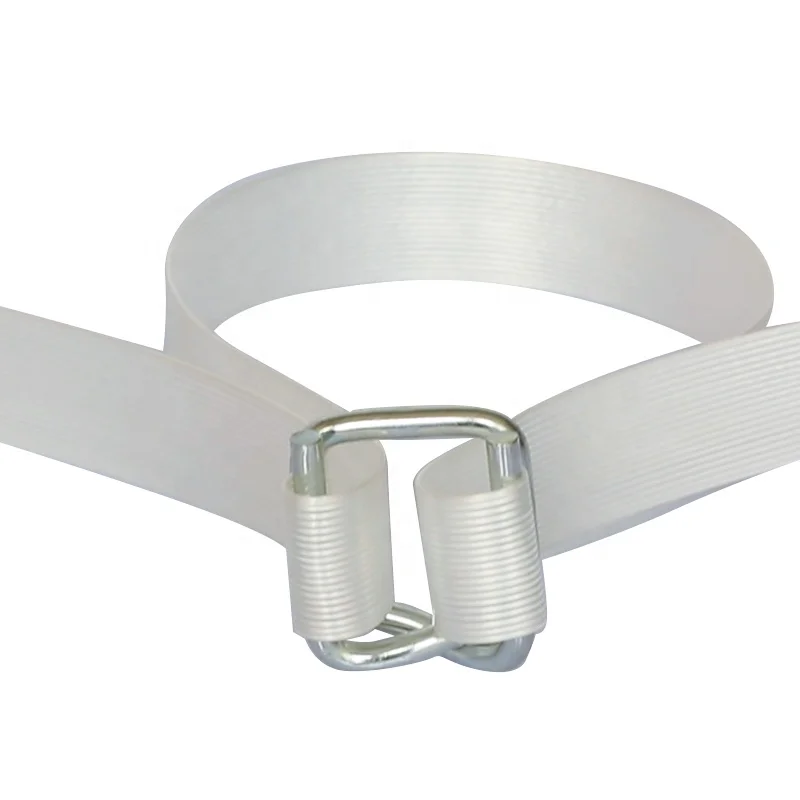

The fiber strapping has good tension, and one strap is equivalent to 5 ordinary PP straps. It greatly saves manual packing time.

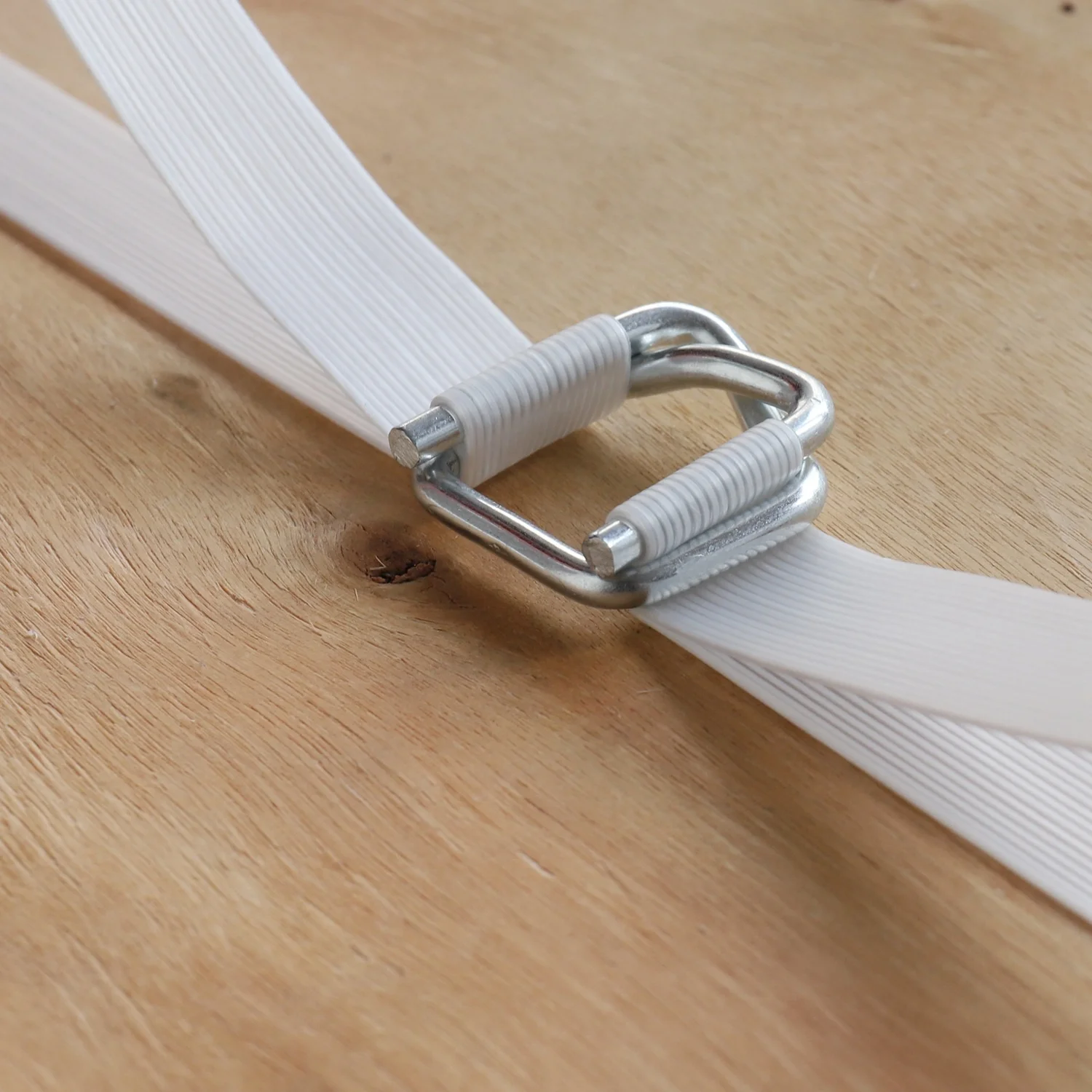

It is widely used in logistics packaging, mechanical equipment packaging, and elevator accessories packaging, with good tightness and no slipping.
It is widely used in logistics packaging, mechanical equipment packaging, and elevator accessories packaging, with good tightness and no slipping.
The 13mm-19mm fiber packing tape can be bonded by hot-melt without buckle, which will not damage the surface of the goods. It is widely used in electrical packaging.

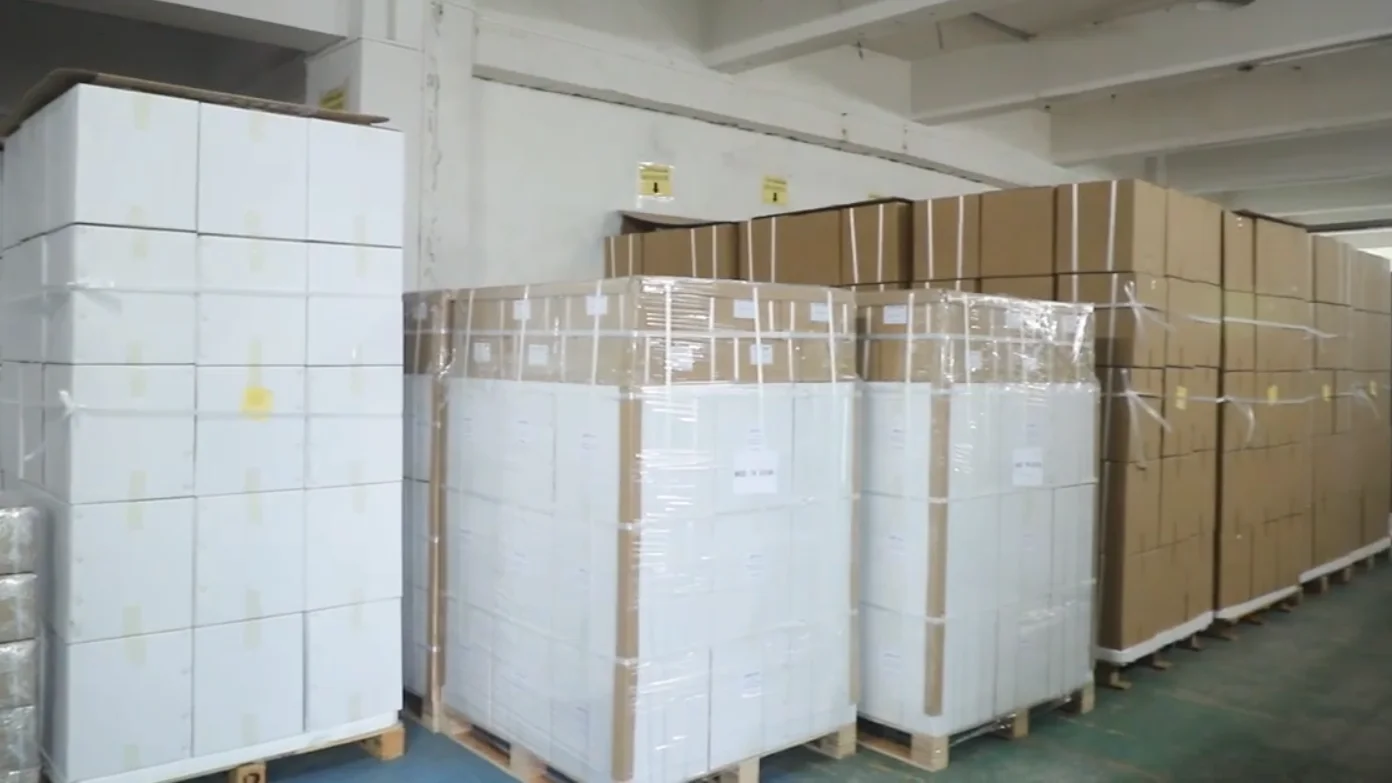

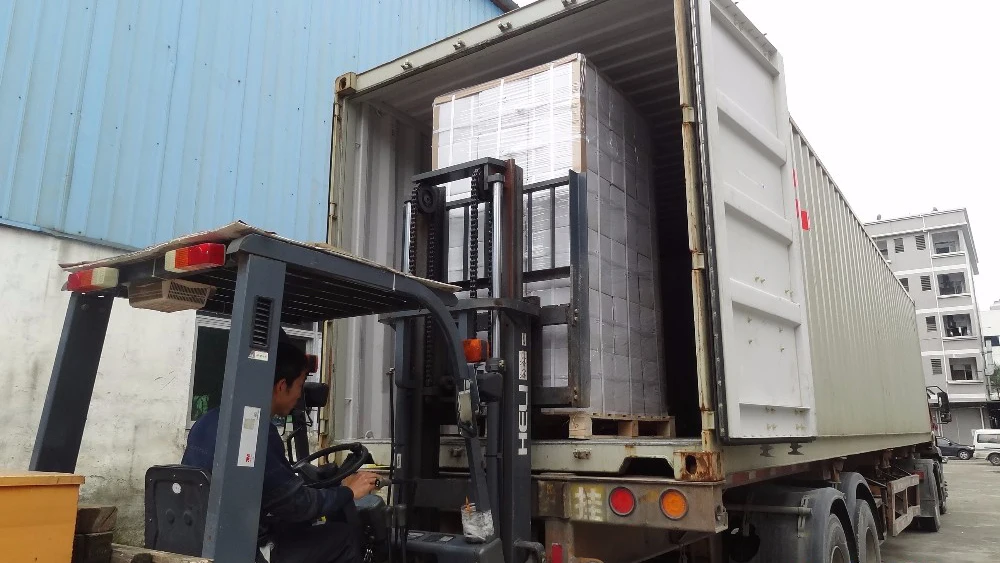

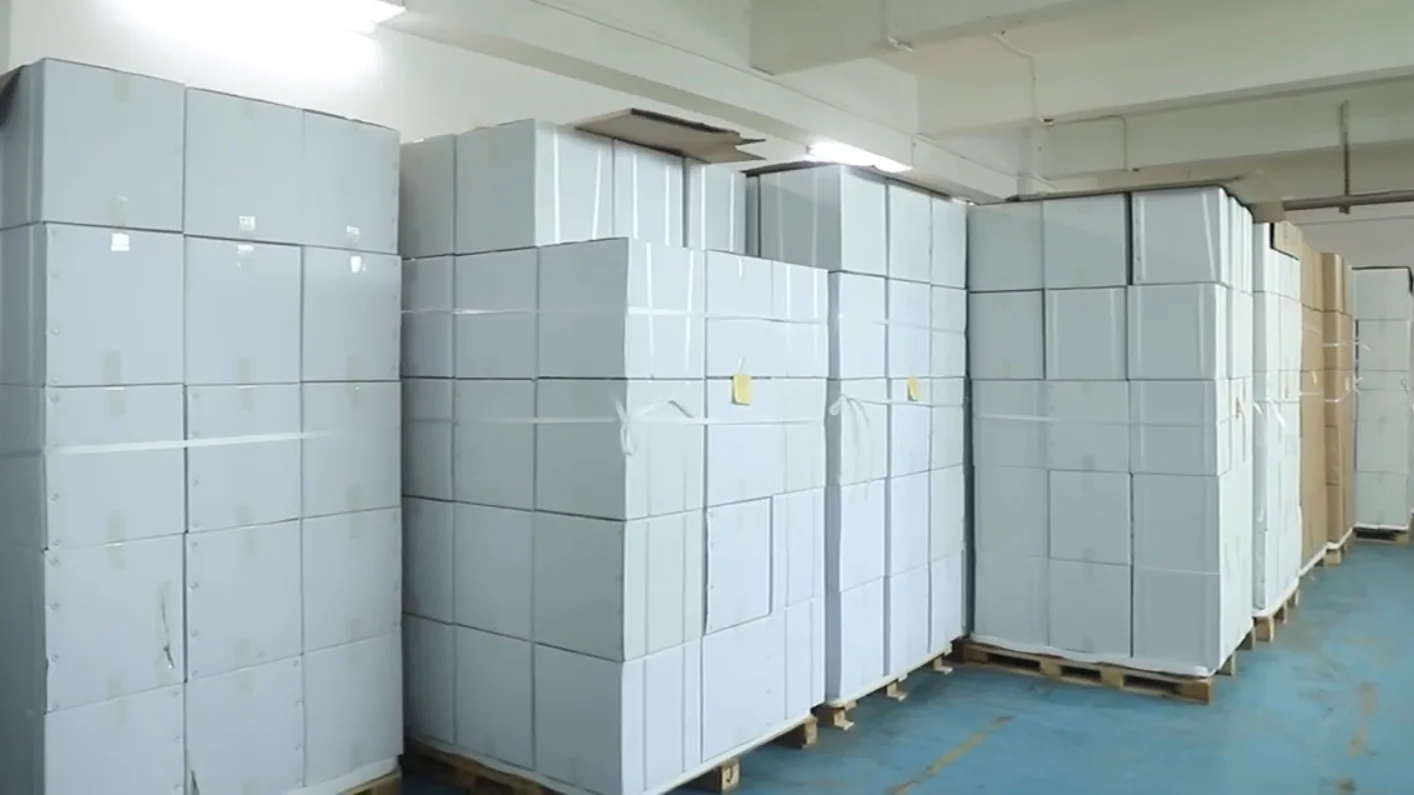

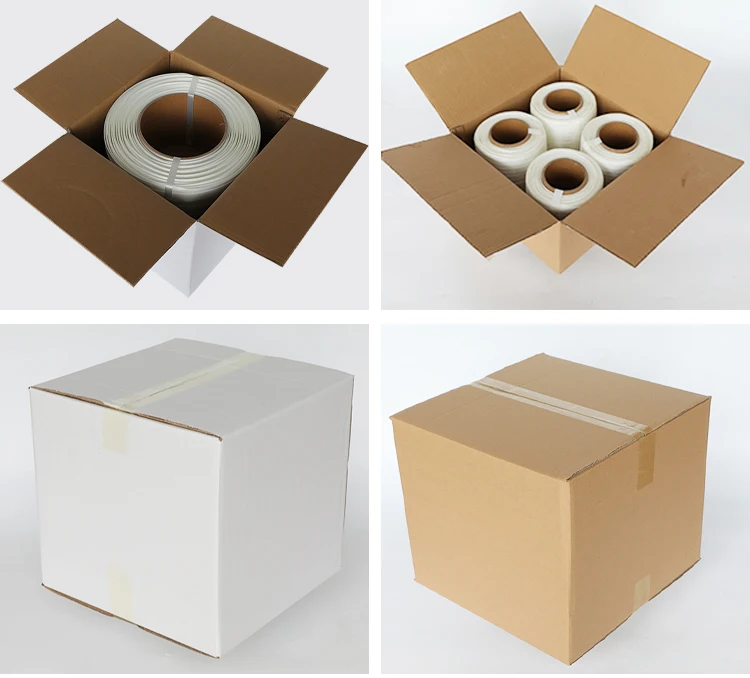

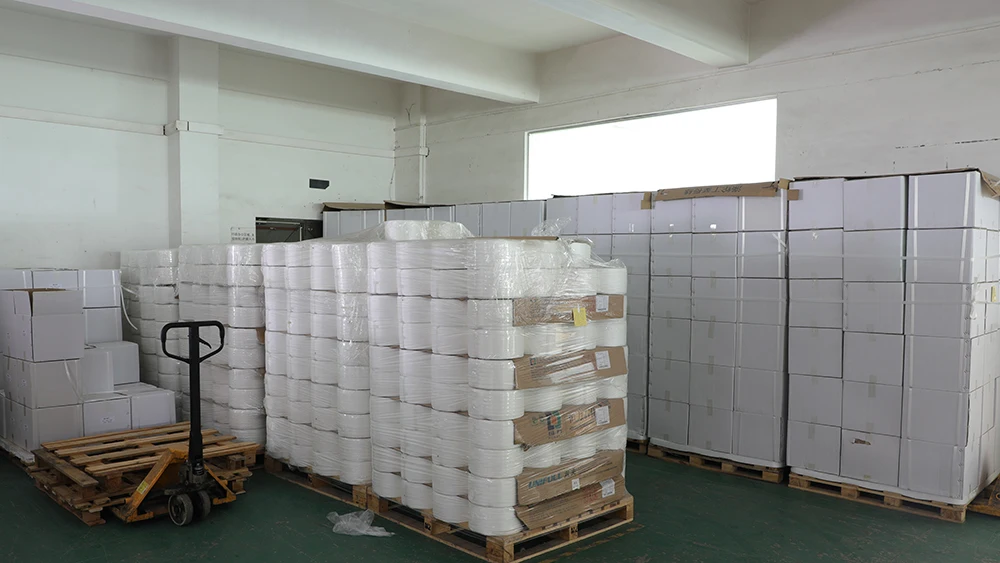

Packing & Delivery
We are now looking at our product packaging from the perspective of reducing waste and saving resources. We are also committed to improving transportation efficiency from the design stage of product development.
1. Our wooden cases are fumigated. No need for wood inspection, save transportation time.
2. If the product is a mechanical part, it will be coated with grease to prevent rust during overseas transportation
3. Nylon protective film will be the second line of defense against moisture
4. Important parts of the product are covered with soft material of pearl cotton for protection.
5. The outermost layer of the package is wooden case, fixed by template and fixed by strong packing tape.
1. Our wooden cases are fumigated. No need for wood inspection, save transportation time.
2. If the product is a mechanical part, it will be coated with grease to prevent rust during overseas transportation
3. Nylon protective film will be the second line of defense against moisture
4. Important parts of the product are covered with soft material of pearl cotton for protection.
5. The outermost layer of the package is wooden case, fixed by template and fixed by strong packing tape.
Our service
PRE SALE SERVICE
1. Provide technical guidance, equipment solutions and other information services according to your needs.
2. Welcome you to visit our company and equipment exhibition hall. And our engineers will offer the best explanation and demonstration. If you can't come to us, we will do a live broadcast to show you our factory and machine.
3. Provide sample service.
2. Welcome you to visit our company and equipment exhibition hall. And our engineers will offer the best explanation and demonstration. If you can't come to us, we will do a live broadcast to show you our factory and machine.
3. Provide sample service.
SELLING SERVICE
1. Technicians would offer field installation, debugging and training when they come to the customer's factory.
2. Ensure the equipment is delivered on time.
3. Train customer operators in strict accordance with the equipment operation process to ensure that they are proficient in the operation, maintenance and safe use of the equipment.
4. We have a specialized and independent department which just for arranging shipping for buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
2. Ensure the equipment is delivered on time.
3. Train customer operators in strict accordance with the equipment operation process to ensure that they are proficient in the operation, maintenance and safe use of the equipment.
4. We have a specialized and independent department which just for arranging shipping for buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
AFTER-SALE SERVICE
1. All products provide one-year warranty, for mechanical equipment to provide free software upgrade.
2. Except man-made factor, we provide the repairing service during the warranty period.
3. We will establish communication group including technicians, after-sales managers, salesmen and operators of customers.
2. Except man-made factor, we provide the repairing service during the warranty period.
3. We will establish communication group including technicians, after-sales managers, salesmen and operators of customers.

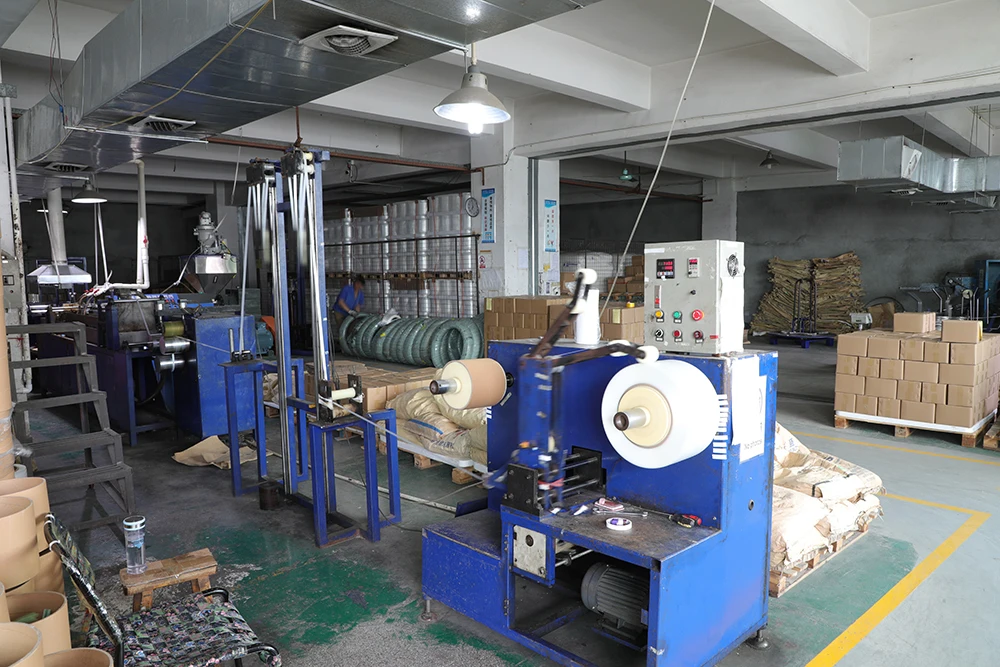

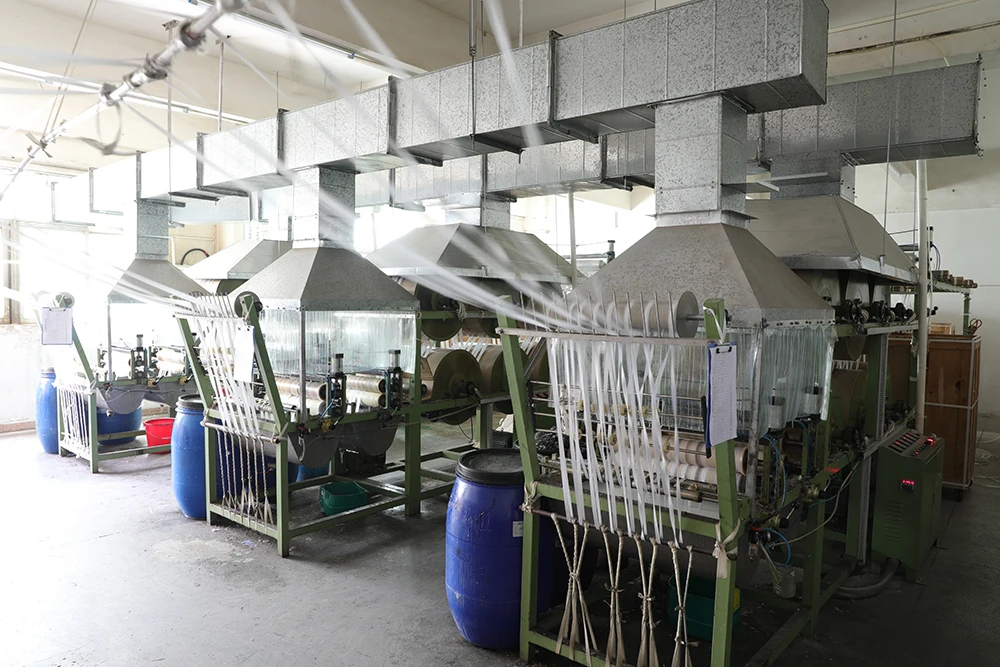

Company Profile
Company Profile:

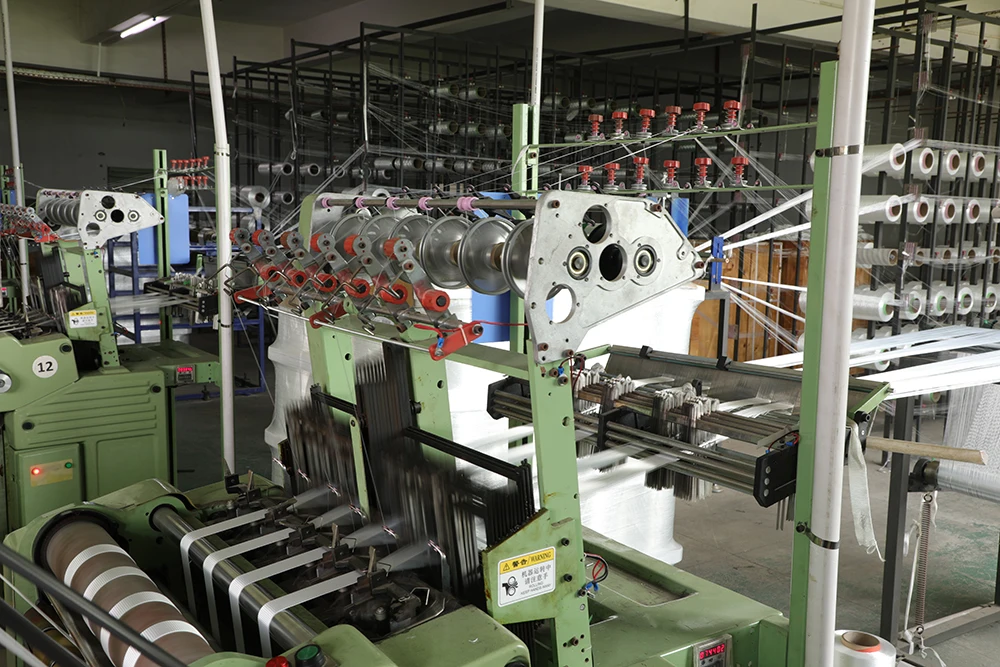

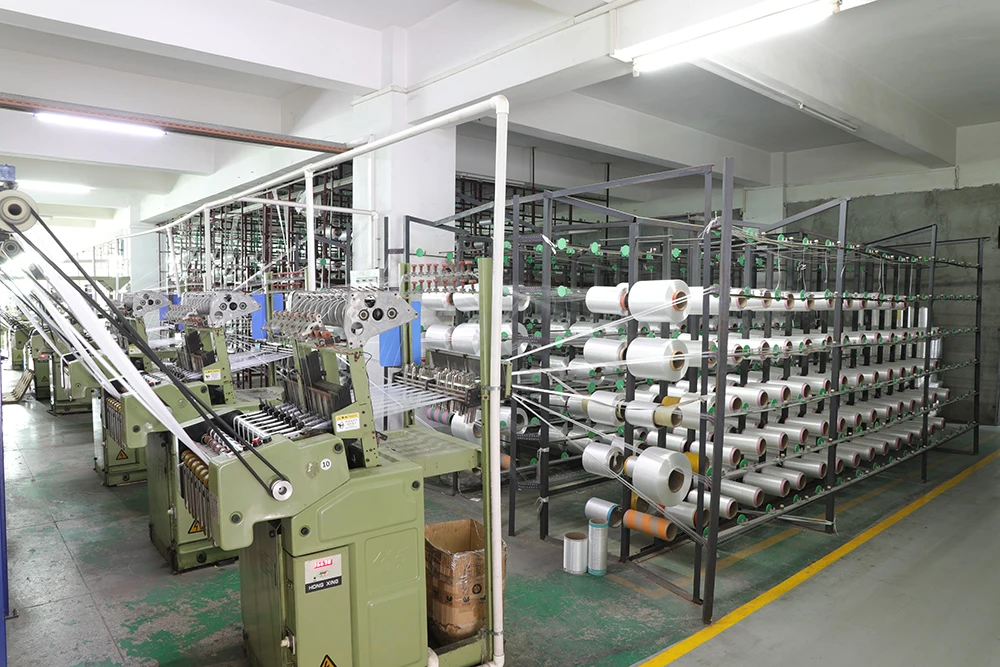

Dongguan Qianyi Packaging Products Co.,Ltd, is a professional manufacturer in respect of simple
packing products, the company insists on unity cooperation, professional production, technical creation, struggling enterprising, depending on our experienced technology, best quality, competitive price, full specifications, and good knowledge, we have won a good reputation, and our brand extending well over the country.
The main products includes:
Polyester Packaging Strap covers composite cord strap,polyester woven strap, bonded strap, woven
lashing,PET strap, PP strap and relative packaging tools include wire buckles,forged lashing buckle,
clips, strapping tensioners and strapping dispenser. Packing tapes covers Bopp tape, double-sided
adhesive tape,masking tape,kraft tape,ect. PE stretch film , Packaging Machinery covers production
line for manufacturing PP, PET ,Composite and woven strap.
Our Vision:
we aim to support the foreign companies to get high quality packaging tools with very competitive
price from Chinese market smoothly by flexible & fixed steps by the cheapest cost & the most effective way.
Dongguan Qianyi Packaging Products Co.,Ltd, is a professional manufacturer in respect of simple
packing products, the company insists on unity cooperation, professional production, technical creation, struggling enterprising, depending on our experienced technology, best quality, competitive price, full specifications, and good knowledge, we have won a good reputation, and our brand extending well over the country.
The main products includes:
Polyester Packaging Strap covers composite cord strap,polyester woven strap, bonded strap, woven
lashing,PET strap, PP strap and relative packaging tools include wire buckles,forged lashing buckle,
clips, strapping tensioners and strapping dispenser. Packing tapes covers Bopp tape, double-sided
adhesive tape,masking tape,kraft tape,ect. PE stretch film , Packaging Machinery covers production
line for manufacturing PP, PET ,Composite and woven strap.
Our Vision:
we aim to support the foreign companies to get high quality packaging tools with very competitive
price from Chinese market smoothly by flexible & fixed steps by the cheapest cost & the most effective way.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Eastern Europe(20.00%),Southeast Asia(10.00%),Mid East(10.00%),Western Europe(10.00%),Domestic Market(10.00%),Northern Europe(7.00%),North America(6.00%),Southern Europe(6.00%),Oceania(5.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Composite Cord Strap,Woven Strap,Strapping Buckle,Strapping Tensioner,Dispensor
4. why should you buy from us not from other suppliers?
Our factory covers an area of 10000 square,manufacture kinds of packaging products for different client's requirement. range from kinds of strapping, packaging tools , packing tapes and packaging machinery.
we supply good quality packaging products .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2013,sell to Eastern Europe(20.00%),Southeast Asia(10.00%),Mid East(10.00%),Western Europe(10.00%),Domestic Market(10.00%),Northern Europe(7.00%),North America(6.00%),Southern Europe(6.00%),Oceania(5.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Composite Cord Strap,Woven Strap,Strapping Buckle,Strapping Tensioner,Dispensor
4. why should you buy from us not from other suppliers?
Our factory covers an area of 10000 square,manufacture kinds of packaging products for different client's requirement. range from kinds of strapping, packaging tools , packing tapes and packaging machinery.
we supply good quality packaging products .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
