Product Overview
Description
Product application

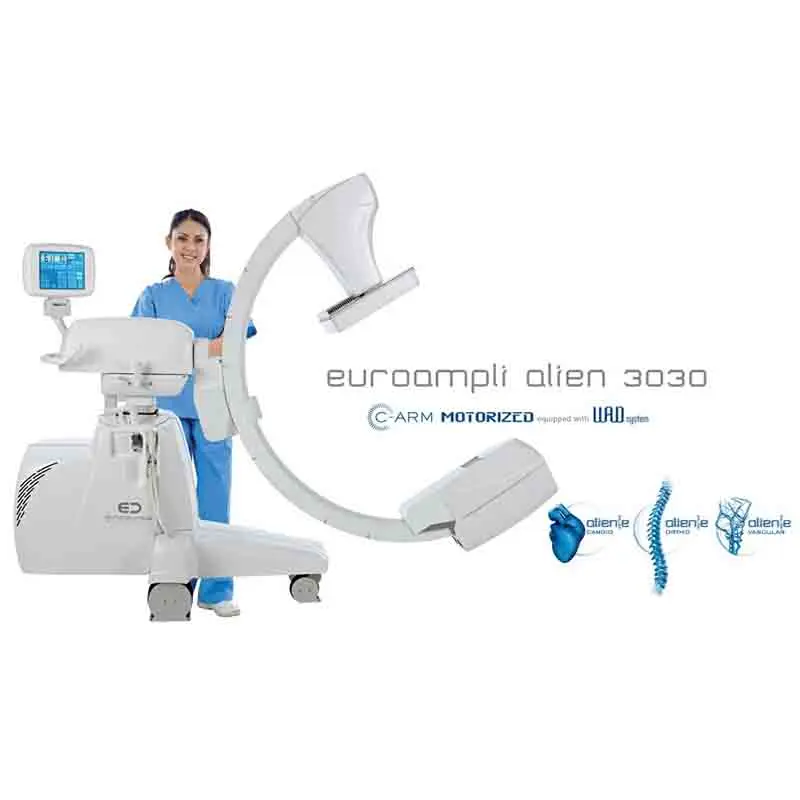

Alien E mobile X-ray C-arm interventional treatment is imported Italian mobile X-ray medical equipment, the product design is used for diagnosis, surgical and interventional treatment process to provide insight and digital image. Its clinical applications include orthopedics, neurology, vascular surgery, cardiology, critical care and emergency operation.
High-voltage generator | ||
Maximum voltage | 20kW | |
Inverter frequency | 40kHz, high frequency, microprocessor control | |
Exposure voltage range | 40-125KV | |
Fluoroscooy voltage range | 40-120KV | |
AEC( automatic exposure control) function | ||
Radiography acquisition voltage range | 40kV-120kV | |
Fluoroscopy current range | 10mA-63mA | |
Radiography acquisition current range | 40mA-200mA | |
Exposure current range | 40mA-200mA | |
Pulse fluoroscopy function | ||
X-ray tube | ||
Tube type | Dual focus, rotating anode,water cooling | |
Dual focus, big focus 0.6mm, small focus 0.3mm | Advanced WAD cooling technology | |
Anode speed | 1000r/min | |
Anode heat capacity | 300KHU | |
Collimator | ||
Control method | All-electric control | |
Blade window size | 0～75 mm×75 mm continuous adjustable | |
Windows opening size automatic tracking with the SID (intelligent tracking) | 205μm | |
An pair of electric lung field iris shielding copper plates | 1024×1024 | |
Virtual collimator adjustment and preview | ||
Dynamic flat panel detector | ||
Detector type | A-Si dynamic flat panel detector | |
Nominal area | 30cm×30cm | |
A/D range | 16 bit | |
Pixel pitch | 194 µm | |
DQE | 77% | |
Grid | ||
Removable grid | Two steps hand switch | |
Ratio | 10:1 | |
Density | 60L/cm | |
C-arm gantry | ||
Control method | All-electric control, isocentric | |
C-arm lift | 500mm | |
C-arm depth | 750mm | |
C-arm opening | 960mm | |
SID | 1050-1180mm | |
Horizontal movement | 220mm | |
WIG-WAG | 22° | |
C-arm rotation | ±200° | |
LAO/RAO | 200°/200°, error ±3° | |
C-arm sliding | 138° | |
CRA/CAU | 90°/45°, error ±3° | |
Image data management | ||
Intelligent image processing software: SEE | ||
Case management (patient records management, image processing history) | ||
Control device | ||
Hand switch | Two steps hand switch | |
Foot switch | Dual pedal | |
Console box | several joysticks | |
Image acquisition & processing system | ||
Real-time fluoroscopy function | ||
Have subtraction angiography image peak value holding function | ||
Radiography acquisition function, the highest rate is 25 fps. | ||
Has the option to show the image ratio and window adjustment | ||
With manual frame by frame playback, loop playback, playback rate for collecting rate of 10% ～200% is adjustable | ||
With functions of real-time digital subtraction angiography | ||
Fluoroscopy dynamic storage function | ||
Has the image 90 degrees, 180 degrees, 270 degrees and the function of image | ||
Dose control | ||
Indication of cumulative irradiation time | ||
Fluoroscopic time and cumulative dose report | ||
Pulse frequency is automatically controlled and optional | ||
Virtual Collimator without X-ray | ||
Proprietary ERCP dedicated exposure program in the abdominal module. | ||
Image post-processing | ||
With distance and Angle measurement | ||
Edge enhancement smooth noise reduction | ||
Has the function of image magnification and image sequence clipping | ||
Window width/level adjustment, Gamma curve correction, black and white | ||
Text annotation, region labeling | ||
Advance function | ||
Stenosis analysis function | ||
With the function of lower limb continuous angiography | ||
Print & Storage | ||
Display digital image library storage condition, memory: 300000 images | ||
USB port and storage are available, which can be saved in a variety of common formats such as DCM/JPG/AVI, without conversion or special browsing software | ||
DICOM3.0 (PRINT, STORAGE, WORKLIST, MPPS) | ||
