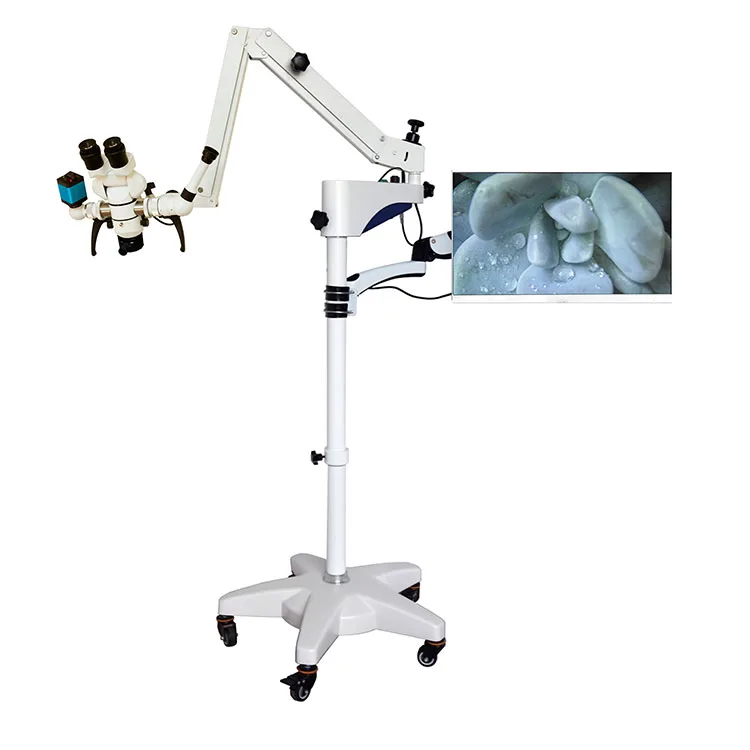

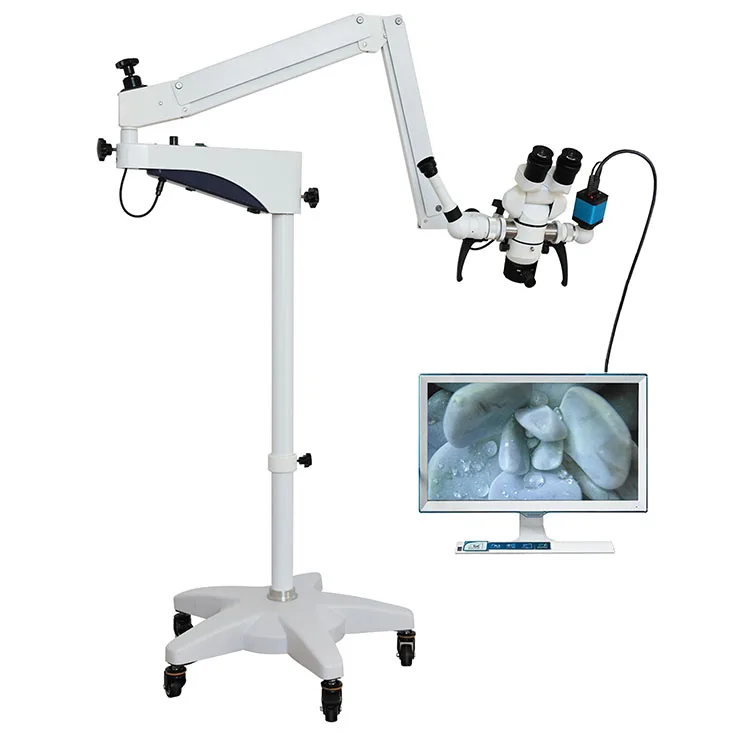

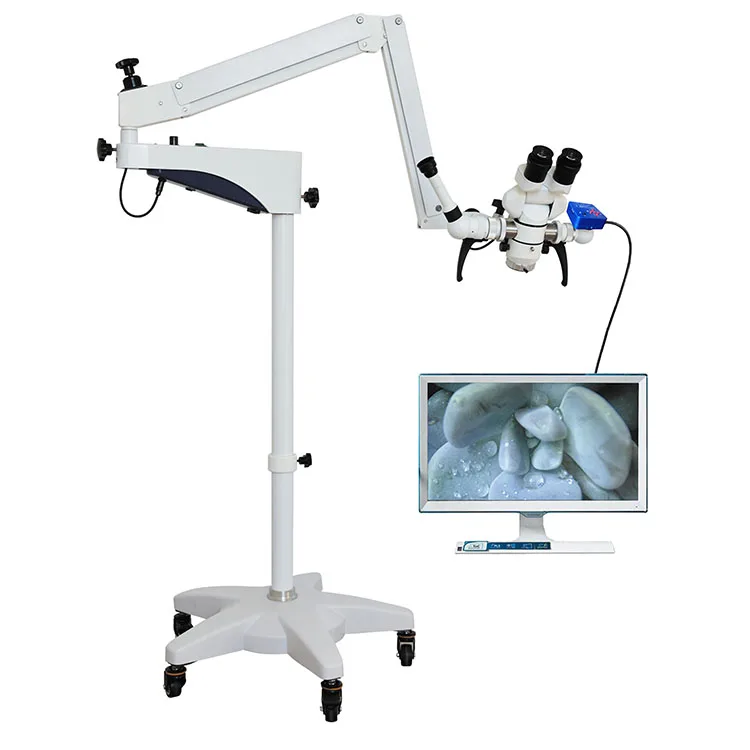

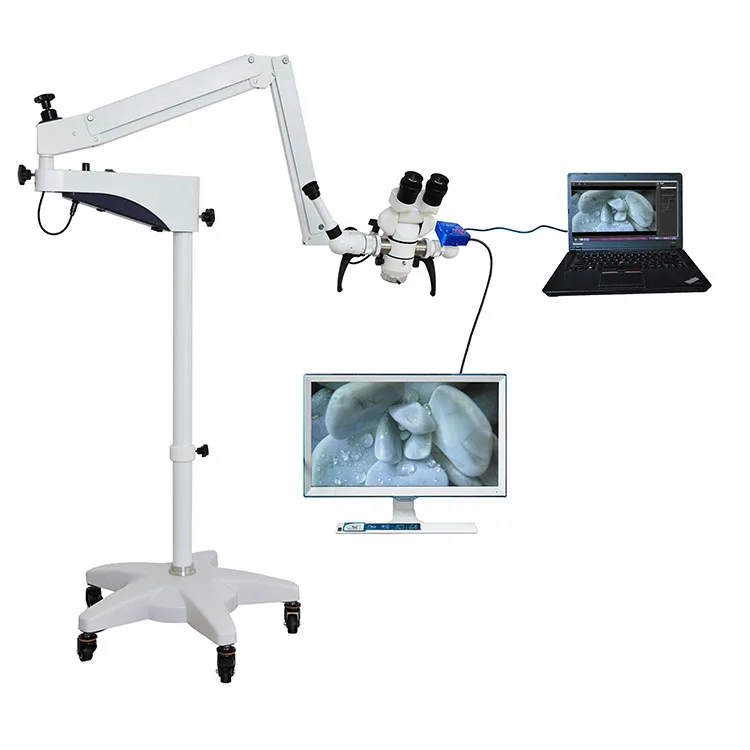

Hospital Ent Operating Ophthalmic Dental Microscope Surgery Ophthalmic Operating Microscope
- Category: >>>
- Supplier: Qingdao Conston Medical Technology Co. Ltd.
Share on (1601009739446):
Product Overview
Description
Product Paramenters
Magnification of binocular | 8X |
Binocular | 0-180° inclinable |
Magnification of eyepiece | 12.5X |
Interpupillary distance | 50mm-80mm |
Diopter | ±7D |
Focal length of objective | F=200mm and F=250mm two objectives |
Magnification changer | 3-step: 0.6X, 1X, 1.6X |
Total magnification | 4.8X, 8X, 12.8X, 6X, 10X, 16X |
Linear field | 50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
Fine focusing distance | 10mm |
Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
Filter | Build-in green and yellow filters |
Balancing arm | 2-part arm with universal joints, counterweight adjustable and can be locked |
Floor stand | 2-part column fitted on the five-star base with casters |
Power supply input | AC100V-240V, 50HZ-60HZ |
Power supply adapter | DC12V3A, 36W |
Optional accessories | Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080P2MPA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), Monitor (S24R352FHC, S24F350FHC), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket, Monitor mount (GM112B, GM112W) |
Main Products
1, Does the clip match Weck or Horizon brand? Yes.
2，Does your factory produce applier?
Yes, we produce appliers for open surgery and lap surgery.
3, How many sizes does Tiga clip have?
There are 6 sizes, Micro, S, MS, M, ML and L.
4, Does it have CE certificate?
Yes, at present the CE is under MDD, and we are making CE under MDR now.
2，Does your factory produce applier?
Yes, we produce appliers for open surgery and lap surgery.
3, How many sizes does Tiga clip have?
There are 6 sizes, Micro, S, MS, M, ML and L.
4, Does it have CE certificate?
Yes, at present the CE is under MDD, and we are making CE under MDR now.
