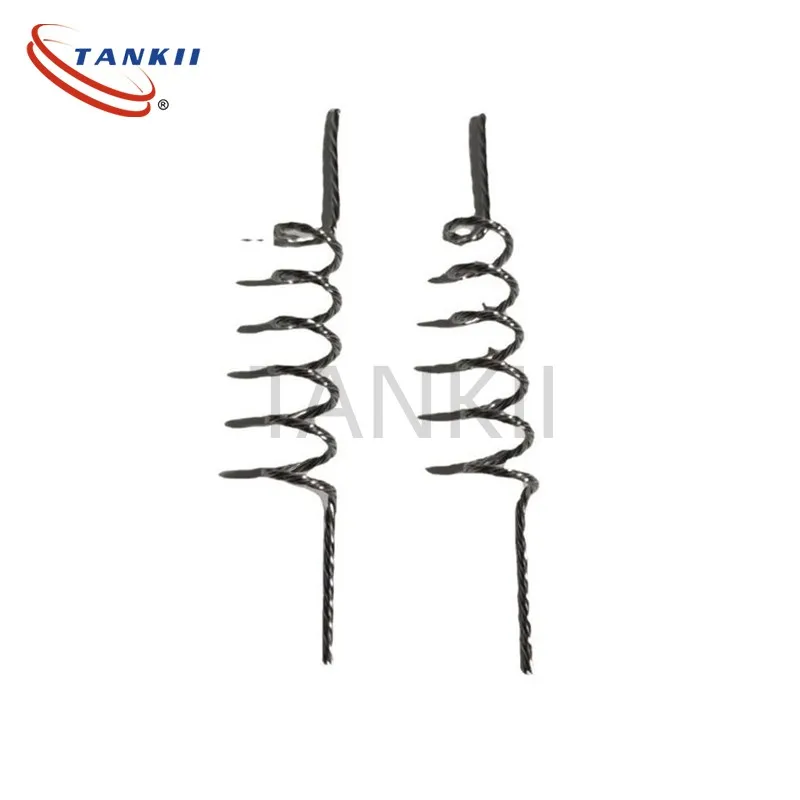

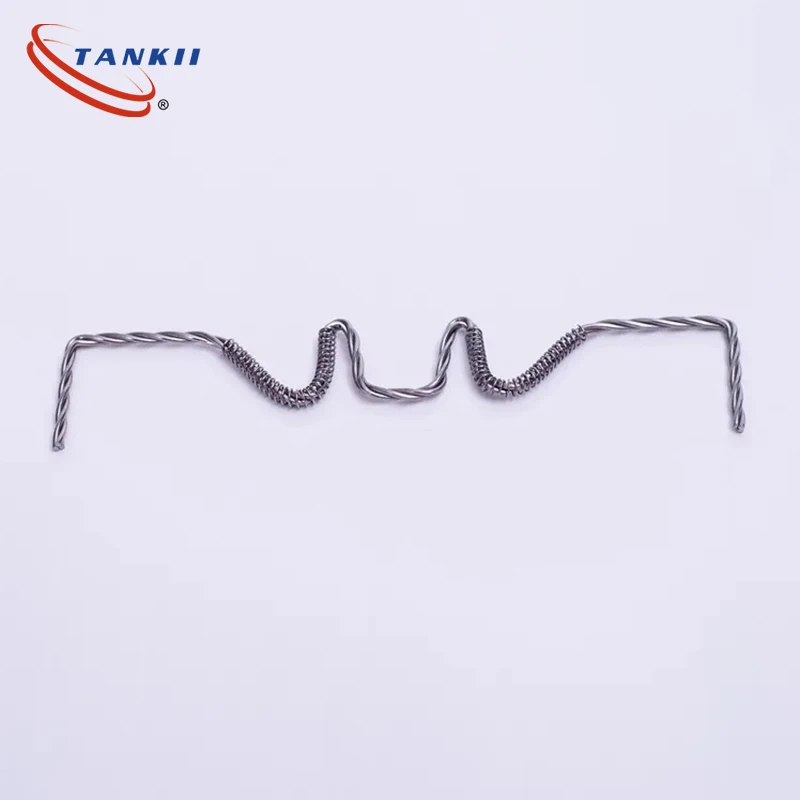

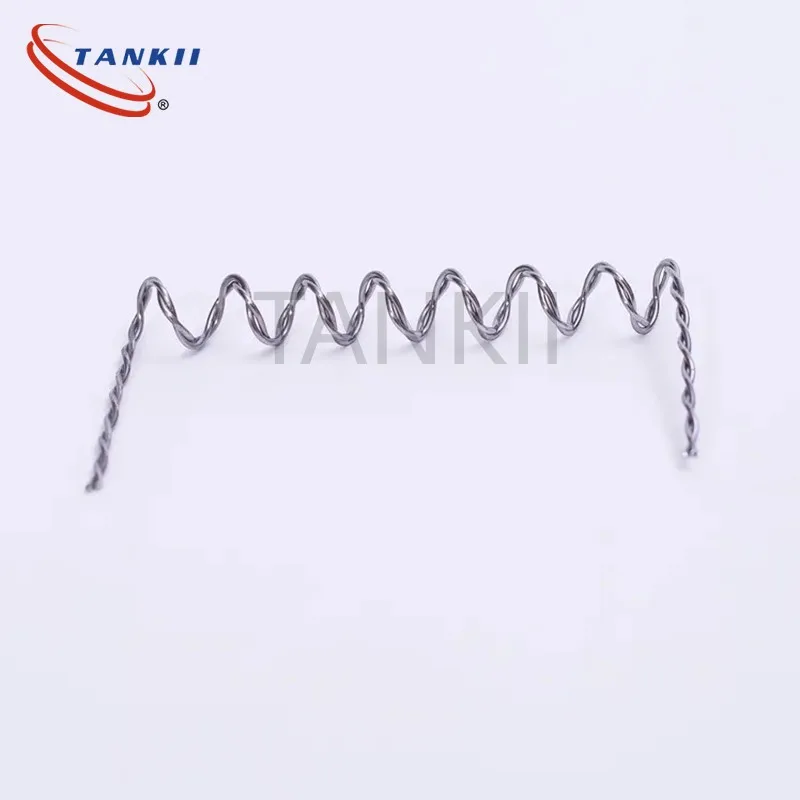

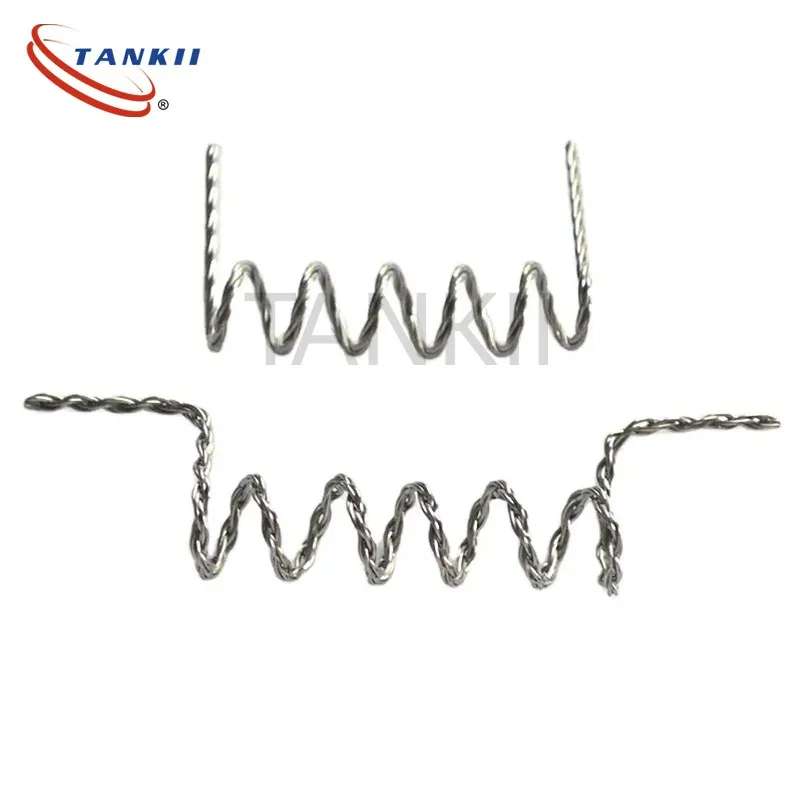

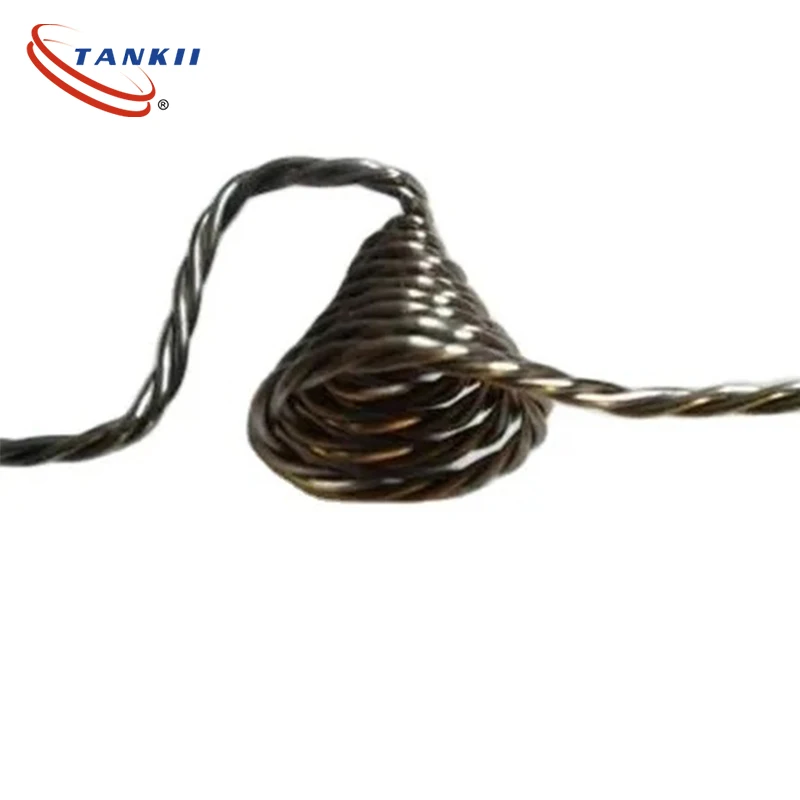

Tankii Heating stranded elements 99 95 Min Tungsten Wire Tungsten Filament Vacuum Coating Wire
- Category: >>>
- Supplier: Shanghai Tankii Alloy Material Co. Ltd.
Share on (1601009744052):
Product Overview
Description
Product Name | Heating Wire 0.8*3 stranded tungsten wire W heating element for vaccum plating |
Material | Pure Tungsten & Tungsten Alloy |
Surface | Black, Sliver, Bright, Chemical Cleaning or Electrolytic Polishing |
Application | Vacuum Metalizing, Heating Components, Filament, Electric Light Source |

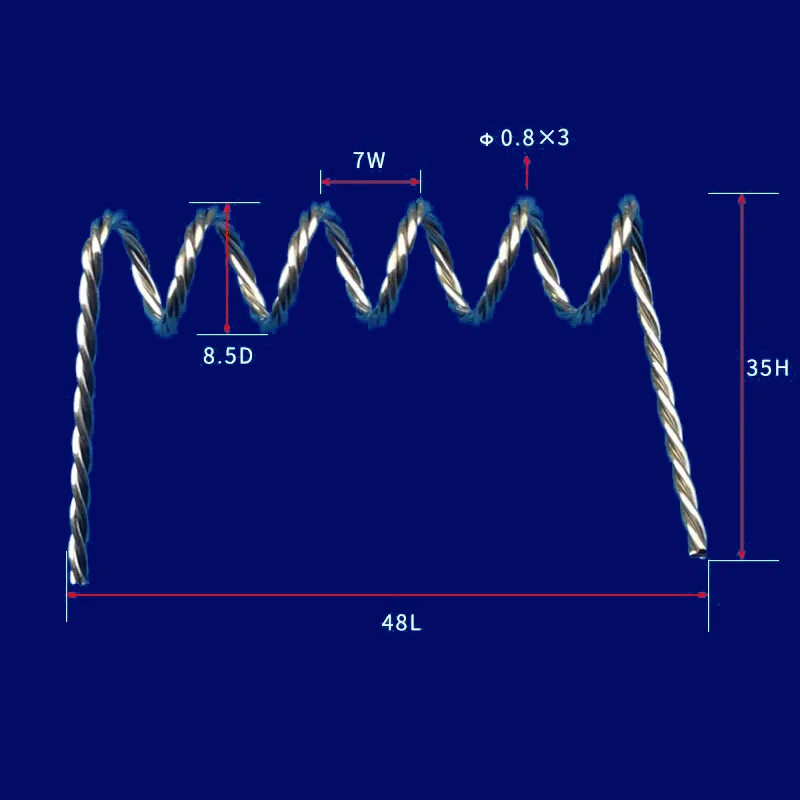

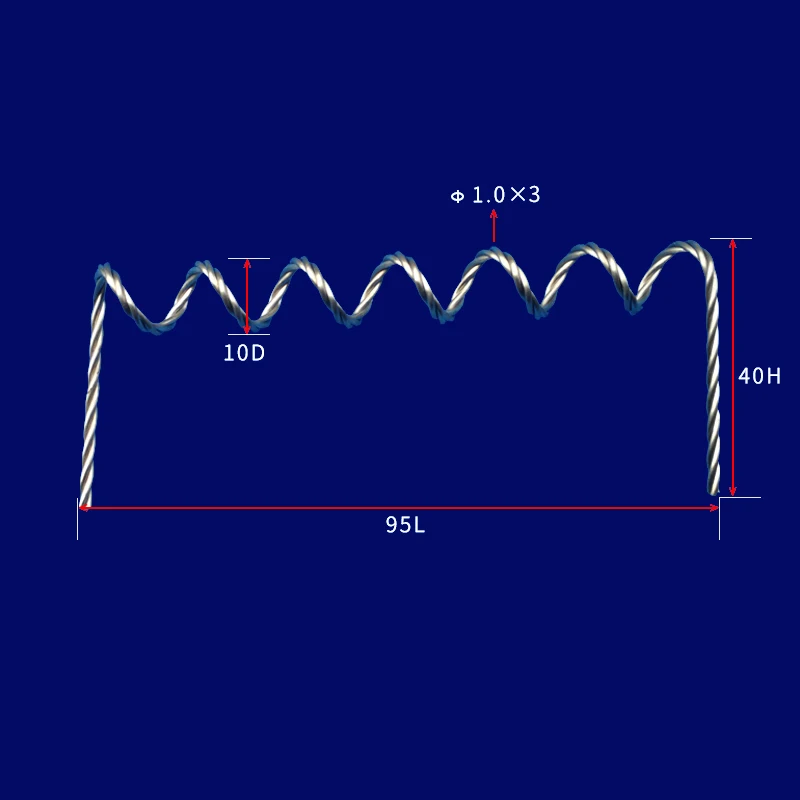

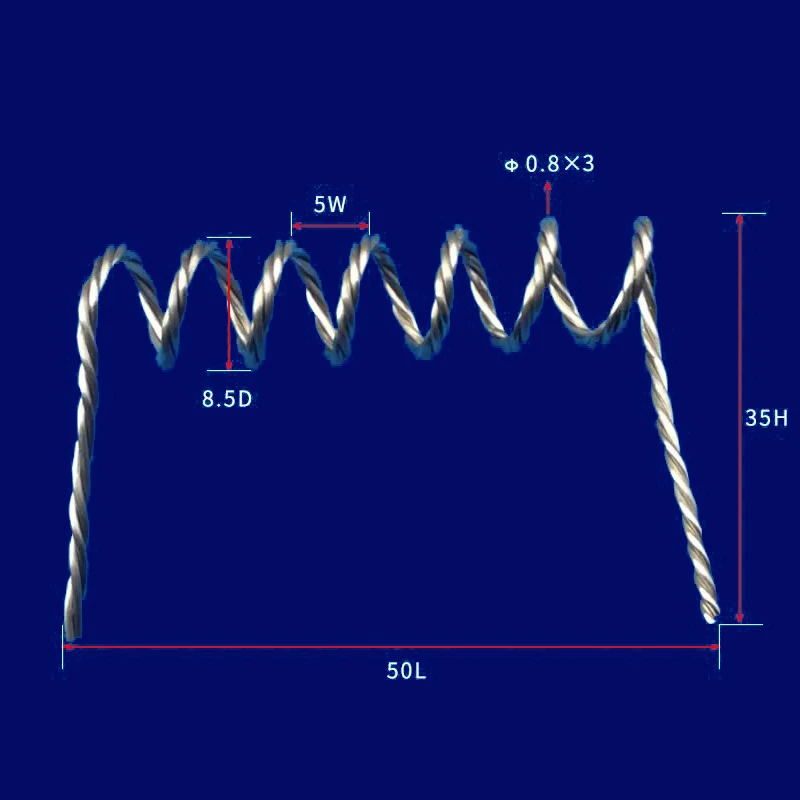

Dimension Range | Single wire diameter: 0.3mm to 1.5mm Tungsten wire twisted together: 3-4 wires is popular, 300 wires max |
Brand | TANKII |
Application of Tungsten Heating Element in Vacuum Evaporation Plating Machine
Steam plating is a type of vacuum coating technology, which involves placing the coating piece to be coated in a vacuum coating machine.
Steam plating is a type of vacuum coating technology, which involves placing the coating piece to be coated in a vacuum coating machine.
When the vacuum coating machine is powered on, the tungsten heater will heat up, causing the low melting point coating material hanging on its surface to vaporize or sublime.
The tungsten heater surface is opened up in the form of atoms, molecules or atomic groups, condensed on the surface of the coating piece at a certain temperature, and condensed into a thin film.
it is heated by a heater (tungsten twisted wire) to evaporate it.
When the mean free path of vapor molecules is larger than the linear dimension of the vacuum chamber, the atoms and molecules of the vapor escape from the surface of the evaporation source and are rarely impacted or obstructed by other molecules or atoms.
Its can be directly reached on the surface of the substrate being plated. The substrate has a lower temperature and condenses into a film.
Application:
* Vacuum Metalizing (picture tubes, mirrors, plastics, metal substrates, ABS, PP materials)
* Heating Components
* Filament
* Electric Light Source
* Heating Components
* Filament
* Electric Light Source
Advantages:
（1）Low MOQ: It can meet your promotional business very well. （2）OEM Accepted : We can produce any your design as long as you provide us the drawing.
（3）Good Service : We treat clients as friend.
（4）Good Quality：We have strict quality control system. Good reputation in the foreigner market.
（5）Fast & Cheap Delivery： We have big discount from forwarder (Long Contract).
FAQ
1. Who are we?
We （TANKII） have accumulated lots of experiences more than 35 years in this field and have been exported to over 60 countries in the world. We specialize in the R&D and production of Nicr Alloy（Nickel-chromium Alloy）, Fecral Alloy, Copper Nickel Alloy, other resistance alloy, thermocouple wire, thermocouple extension cable etc. Please send us inquiry, we offer more product information and quote.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Resistance Alloy,Thermocouple Wire,Precision Alloy,Nickel and Nickel Alloy,Copper and Copper Alloy
4. Why should you buy from us not from other suppliers?
Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
Quality with end to end production control
Technical support and customer Service
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean
We （TANKII） have accumulated lots of experiences more than 35 years in this field and have been exported to over 60 countries in the world. We specialize in the R&D and production of Nicr Alloy（Nickel-chromium Alloy）, Fecral Alloy, Copper Nickel Alloy, other resistance alloy, thermocouple wire, thermocouple extension cable etc. Please send us inquiry, we offer more product information and quote.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Resistance Alloy,Thermocouple Wire,Precision Alloy,Nickel and Nickel Alloy,Copper and Copper Alloy
4. Why should you buy from us not from other suppliers?
Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
Quality with end to end production control
Technical support and customer Service
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean
