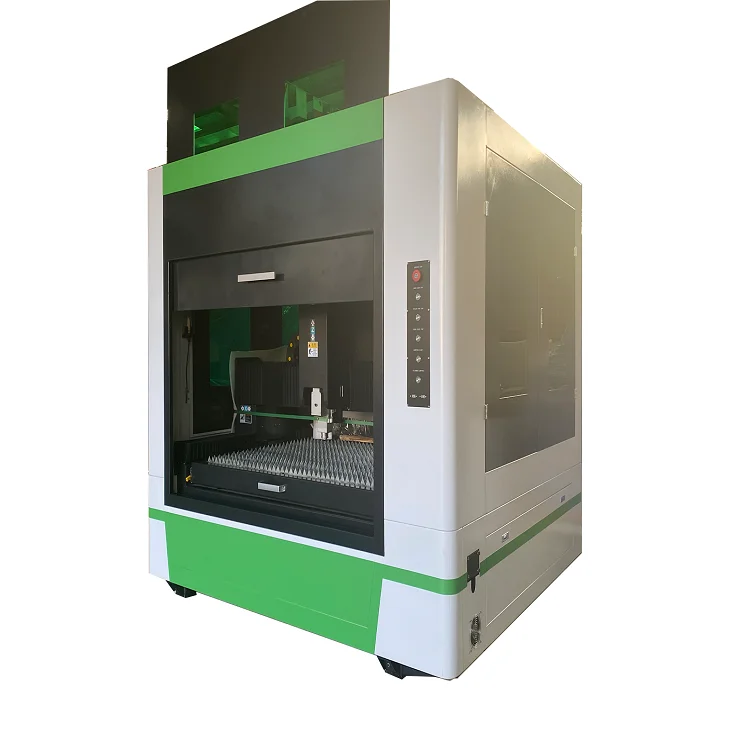

Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

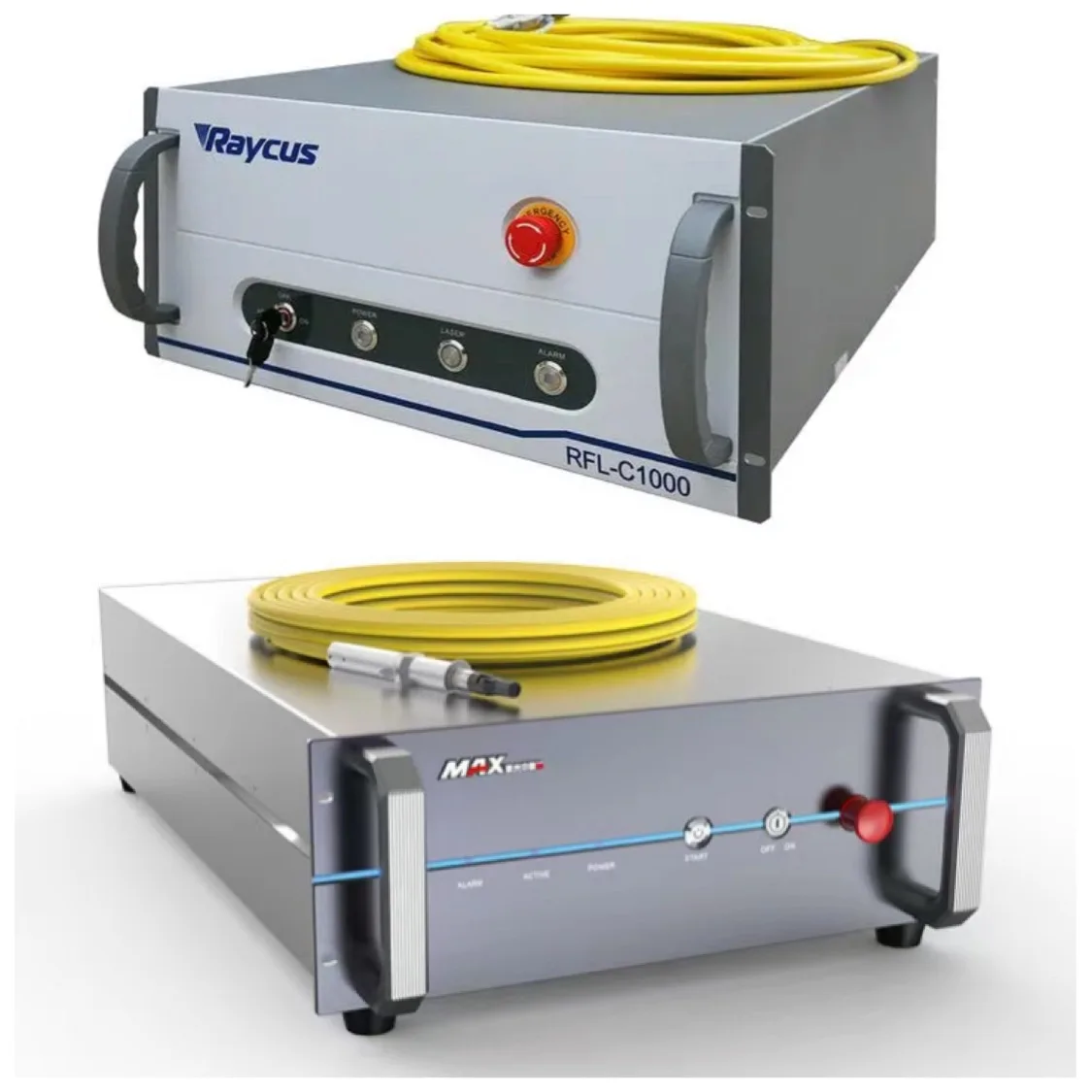

Automatic Fiber Laser Cutter with Raycus Laser Source Servo Motor Driving System Gantry Type Configuration Cuts with Ease
- Category: >>>
- Supplier: Suzhou Yiqiang Photoelectricity Technology Co. Ltd.
Share on (1601009746484):
Product Overview
Description
Sea freight has been greatly reduced since Sept.1st, 2022, it's a good chance to import at present.

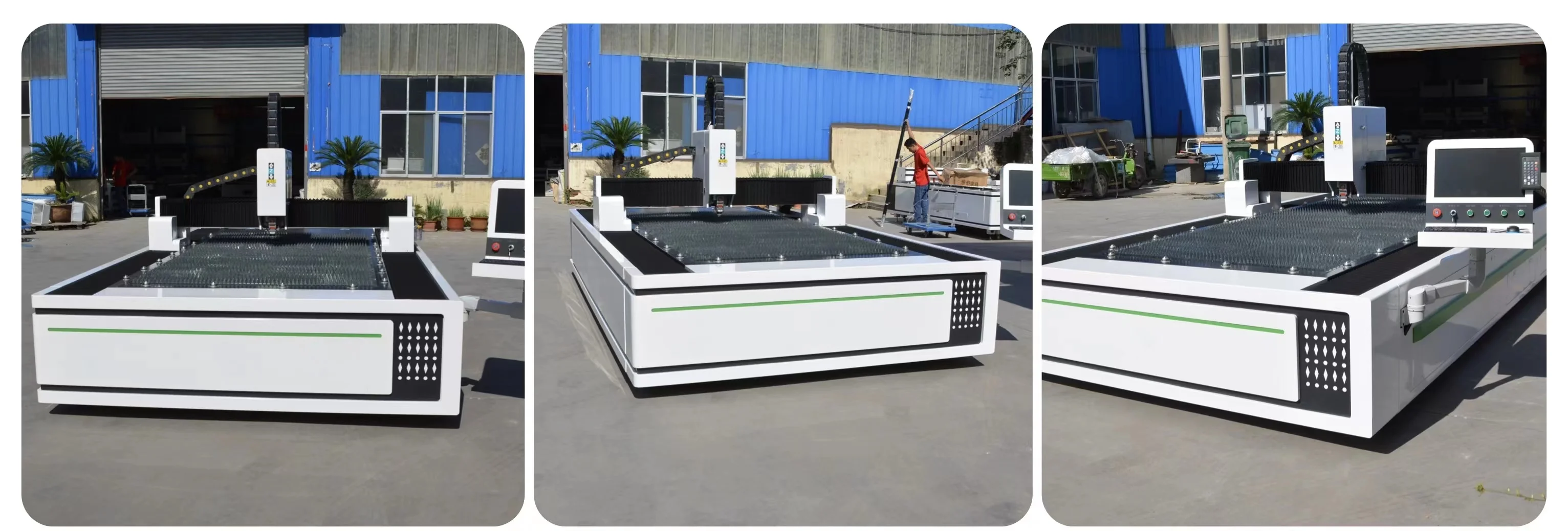

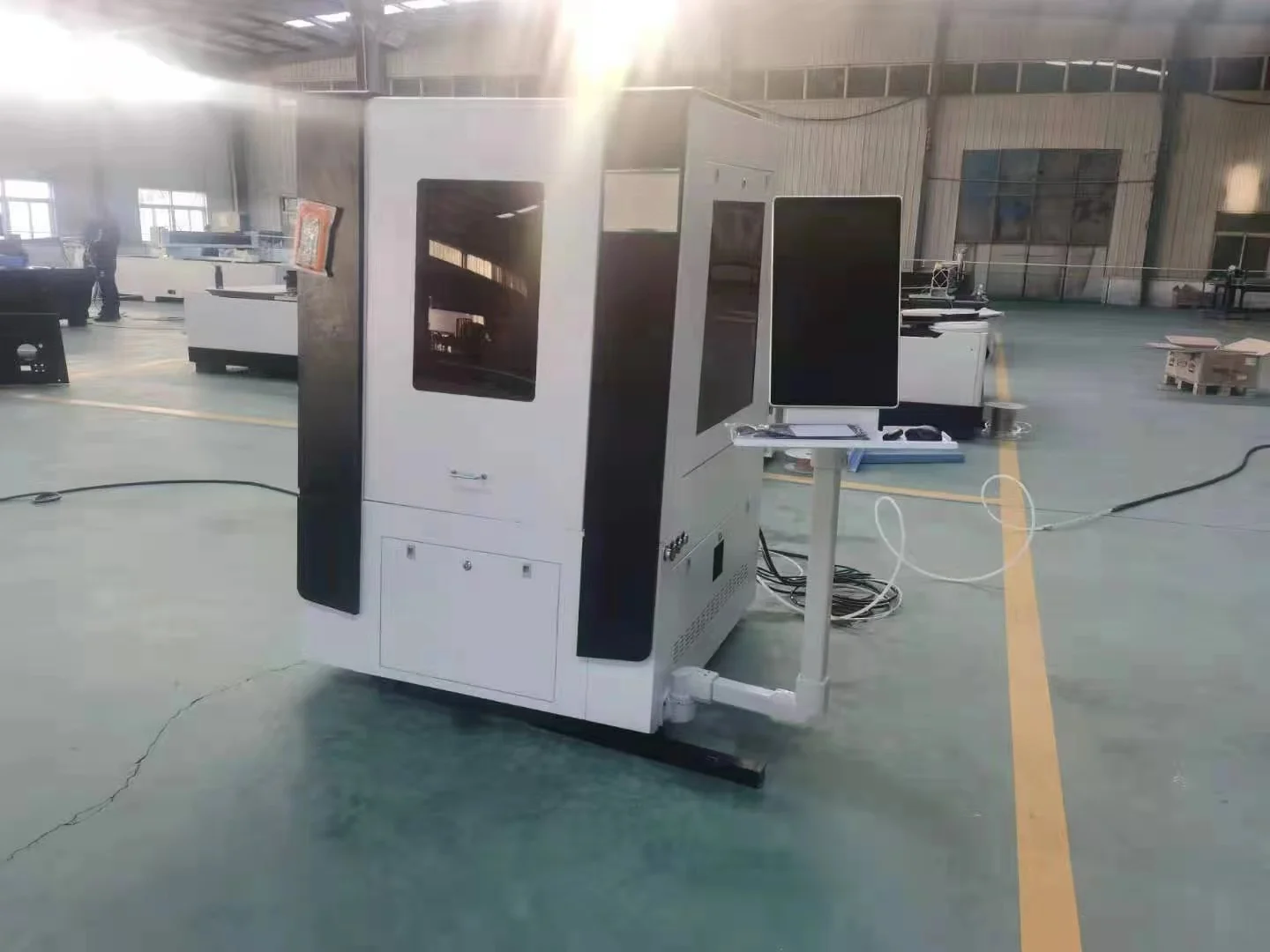

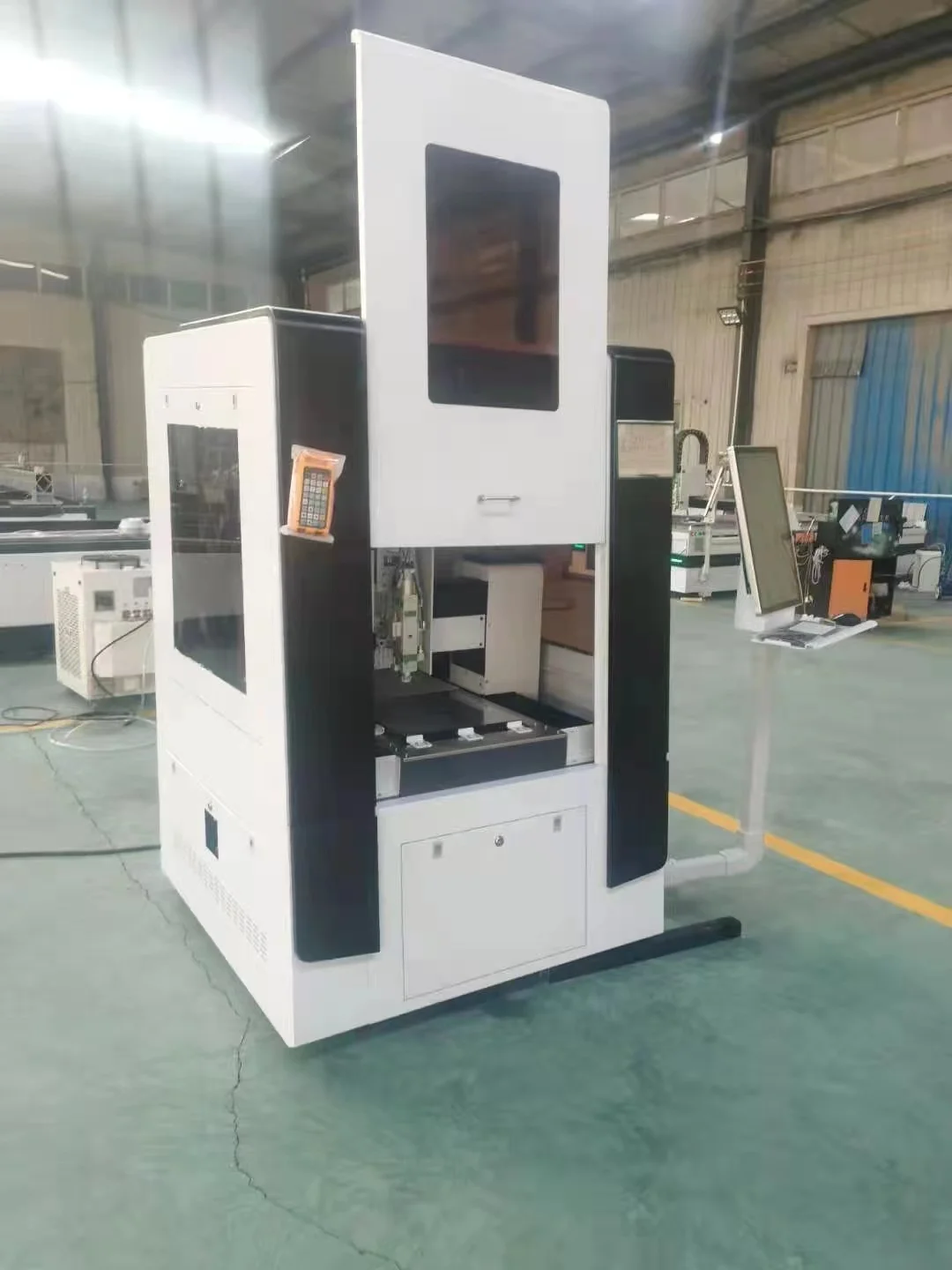

Real machine display

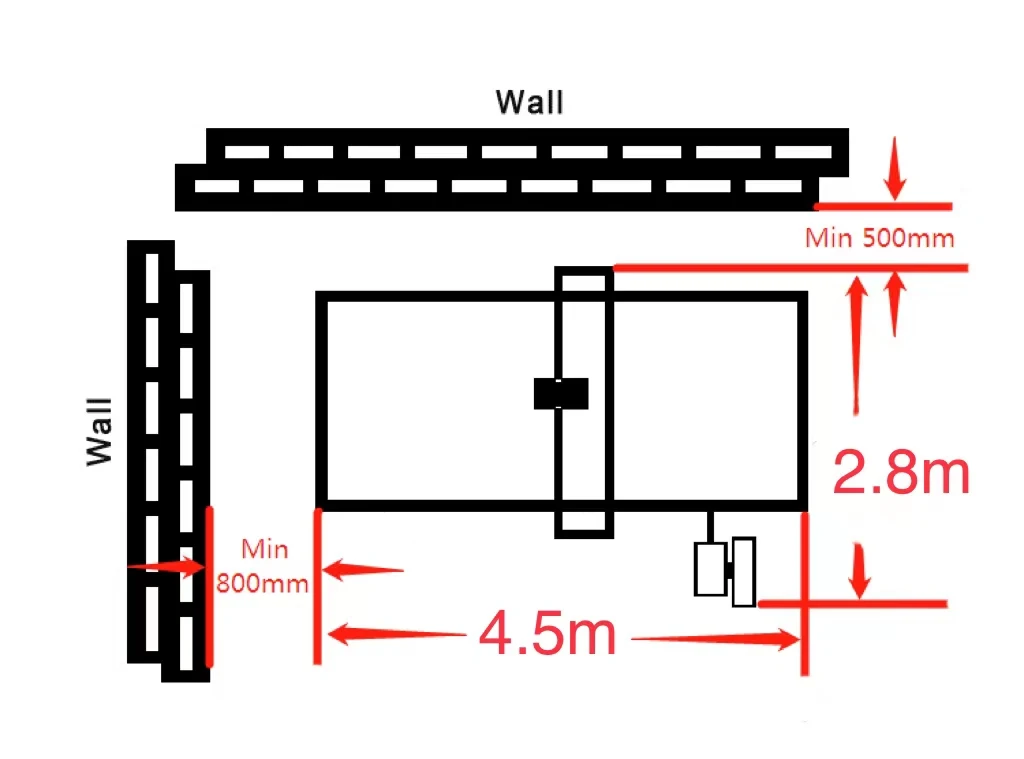

Length: 4.5m. Distance between machine and wall: at least 800mm.
Width: 2.8m. Distance between machine and wall: at least 500mm.
Width: 2.8m. Distance between machine and wall: at least 500mm.

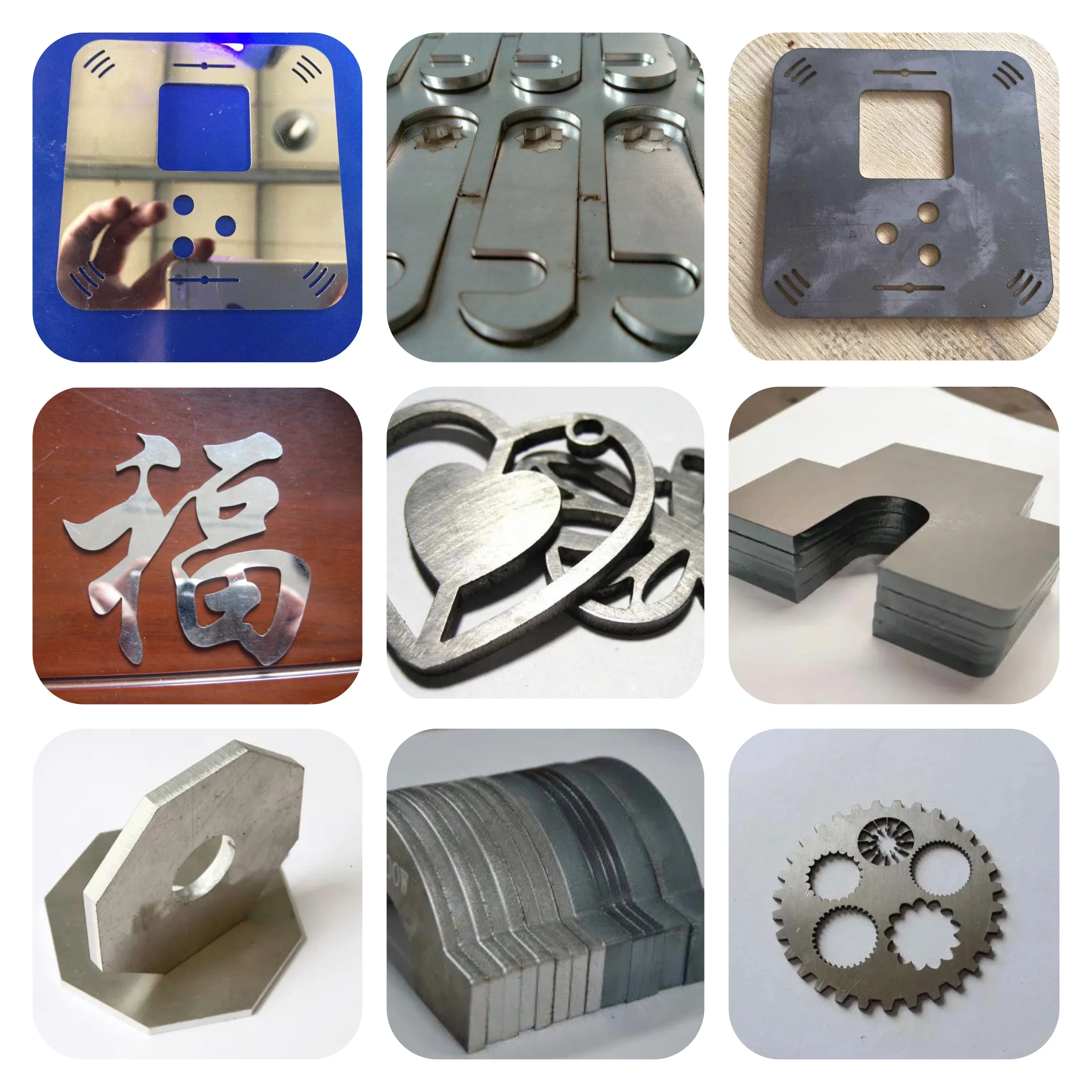

Cutting materials: stainless steel, carbon steel, alloy steel, galvanized sheet, spring steel, copper sheet, aluminum sheet, aluminum alloy and other gold metal sheets.
Model | YQ-FB1530 | ||||||
Working area | 1500×3000mm | ||||||
Laser type | Fiber laser | ||||||
Laser power | 1000W / 1500W / 2000W/ 3000W | ||||||

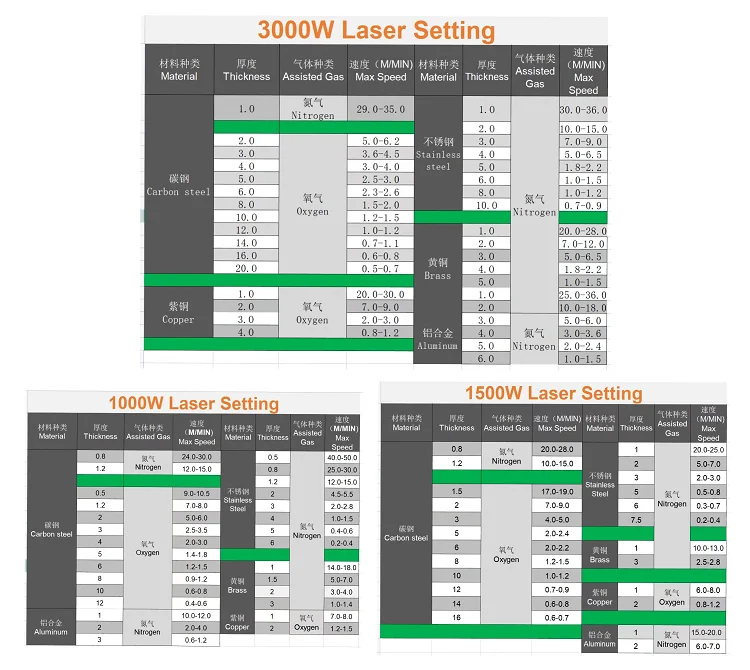

Cutting speed | Depending on the materials | ||||||
Maximum acceleration | 0.8G | ||||||
Auxiliary gas | Oxygen/Nitrogen/Compressed Air | ||||||
Positioning accuracy | 0.1mm | ||||||
Minimum line width | 0.1mm | ||||||
Cutting thickness | 0.1-20mm depending on the material | ||||||

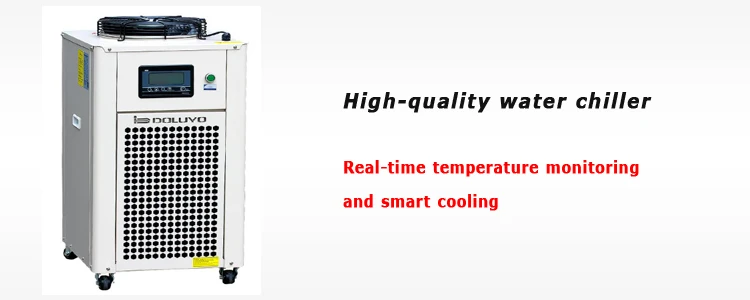

Laser cooling method | Industrial water chiller | ||||||

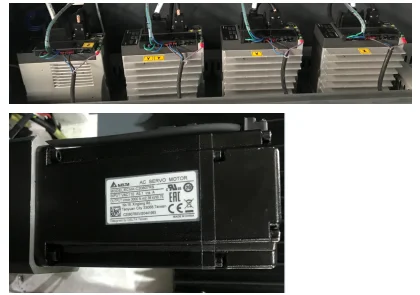

Drive mode | DELTA Servo Motor Drive | ||||||

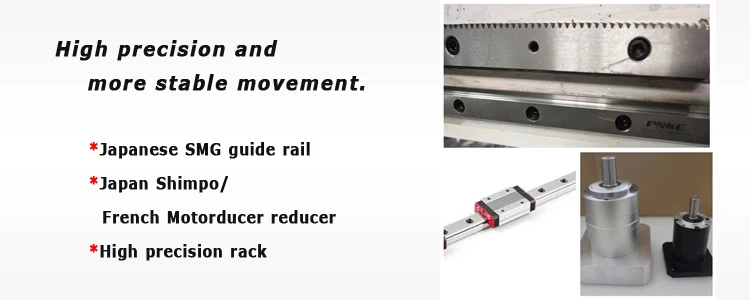

Way of transmission | Precision Racks and Rails | ||||||
Supported software formats | PLT, DXF, etc. | ||||||
Machine voltage | 380V 50HZ or 60HZ | ||||||
The total power of the whole machine | 9000W | ||||||
Total Weight | 1900kg | ||||||
Machine size | 4.4*2.27*1.97m | ||||||
Long working life: 100,000 hours (8-10 years).
Maintenance free
Y-axis is equipped with two servo motors
Positioning accuracy up to 0.01mm
The cutting accuracy is within 0.1mm

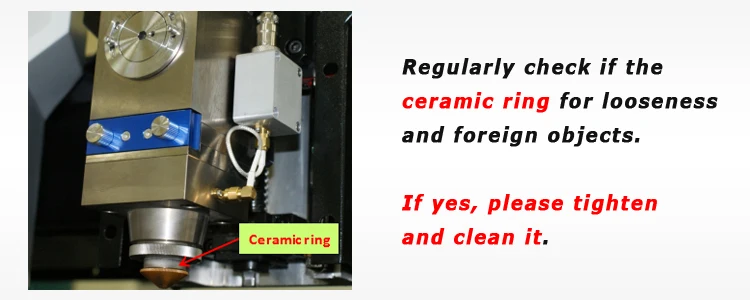

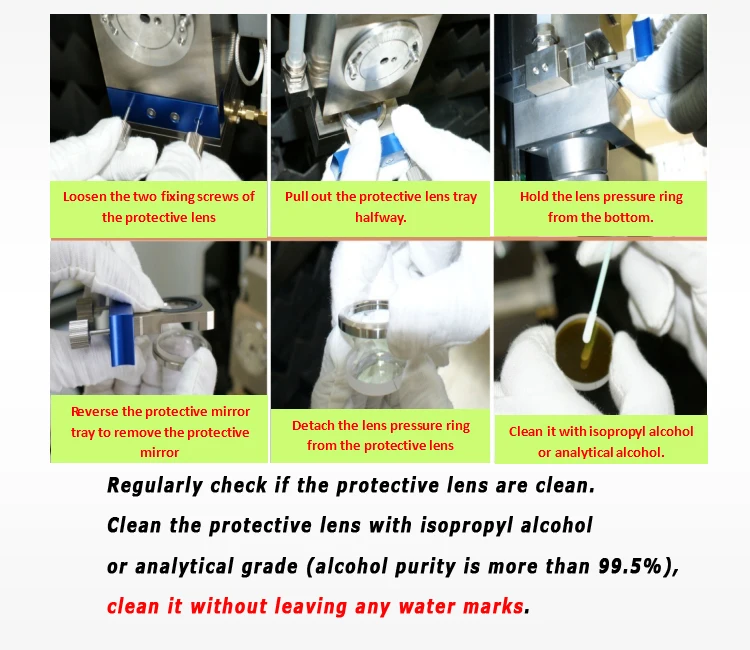

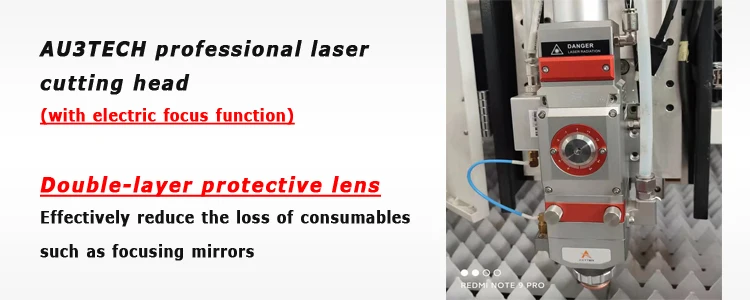

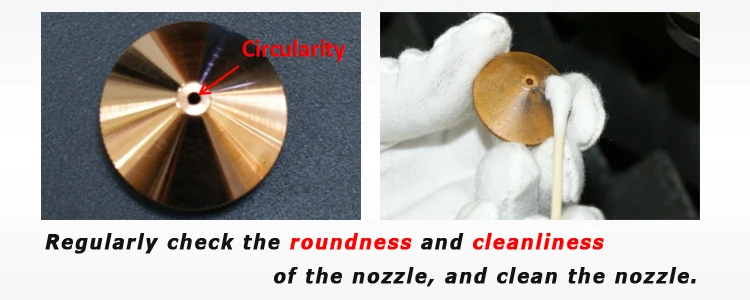

The main consumables of the machine include nozzles, ceramic rings, protective lens.
If you want to know more maintenance knowledge, please contact Yiqiang Laser.
