Mexico hot sell extrusion melt pump for convey melted PP and PE
Extrusion gear pump/melt pump

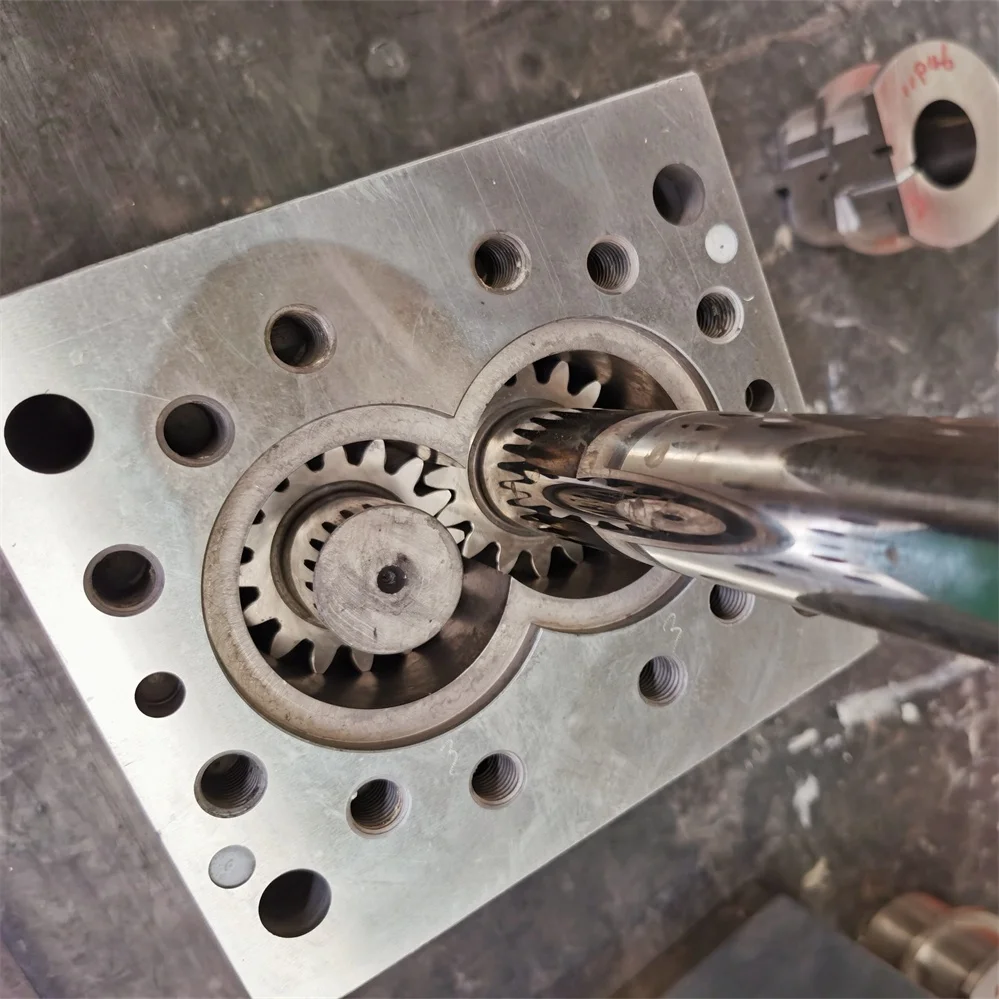

Melt pump belongs to positive displacement gear pump, there is a pair of cylindrical gear with external teeth relative rotation to transport high viscosity melt fluids. There are straight tooth, helical tooth and herringbone tooth, three types of tooth to
choose from. Every pair of gear is finished and assembled accurately to get precise flow rate. According to different extrusion situation, the pump and gear will do special disposition.
Advantages
**Extrusion melt pump almost totally eliminate the pressure variation from head, can control gauge precisely, pumping polymer efficiency
** Reduce the die head inlet pressure swings.
** Boost your extruder’s output---by lowering extruder back pressure. Yields more saleable product and much less scrap.
**Cut the scrap
**Lower product cost—save material due to tighter tolerance extrusion.
**Increase the life time of extruder components
**Save energy


FEATURES AT A GLANCE


Pump parameter
Pump models: 0.5CC-2000CC
Pump material: carbon steel and stainless steel 304/316/other required tool steel
Pump heating method: heater or conduction oil heating
Working temperature: ≤400 ℃
Clearing temperature: ≤450 ℃
Input pressure: ≤12Mpa
Output pressure: ≤45Mpa
Max pressure difference: ≤25Mpa
Material viscosity: 40000Pas



pump assemble
pump plate
pump spare parts


PRODUCT SPECIFICATIONS


Type
CC/Rev
Capacity
(L/H)
Heating power
(kw)
Driving power
(kw)
GY-5
5
2-15
1
1.1
GY-10
10
5-25
1
1.5
GY-20
20
10-50
2
2.2
GY-31.5
31.5
15-70
2
2.2
GY-50
50
25-100
3
4
GY-100
100
50-200
4
5.5
GY-150
150
70-300
5
7.5
GY-200
200
100-500
6
11
GY-250
250
125-600
8
15
GY-315
315
150-700
8
18.5
GY-500
500
250-1200
12
22
GY-800
800
400-1800
15
30
GY-1200
1200
600-2500
20
37


PRODUCT CONFIGURATION


Extrusion pump
Power--motor+reducer
Control system


Successful Project


Project in Germany
Project in India
Project in Russia


FAQ


Q1: What are the benefit of melt pump on extruder?
1.To improve the stability of the product size
2. Melting quality control
3. Increase output
4. Reduce the raw material consumption
5. Improve the flexible of the extruder
6. Protect the extrusion die ,extend the service life of the extruder

Q2:What are the benifits of installation the screen changer and melt gear pump together?
1. Improve the melt plasticity
2. Improve the quality of the products
3. Extend the service life of the extruder
4. Greatly increase the output of the products
5. Reduce the labor interference
6. Reduce the unqualified products

Q3:What do we need to pay attention when using the screen changer nad melt pump?
1. We should operate the screen changer and melt gear pump as the safety manual, prevent an electrical shock
2. To prevent ourselves scald
3.Do not disassemble the screen changer and the melt gear pump, any questions, please contact with the supplier

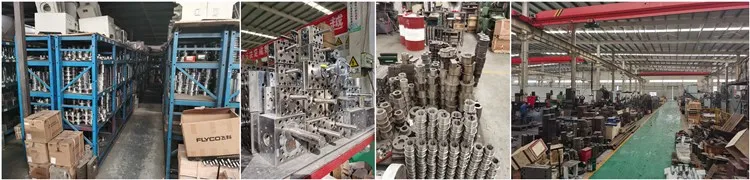

Corner of Factory
We have numbers of precission finishing machines to keep the products quality and keep enough finished products in storage to ensure the leading time.

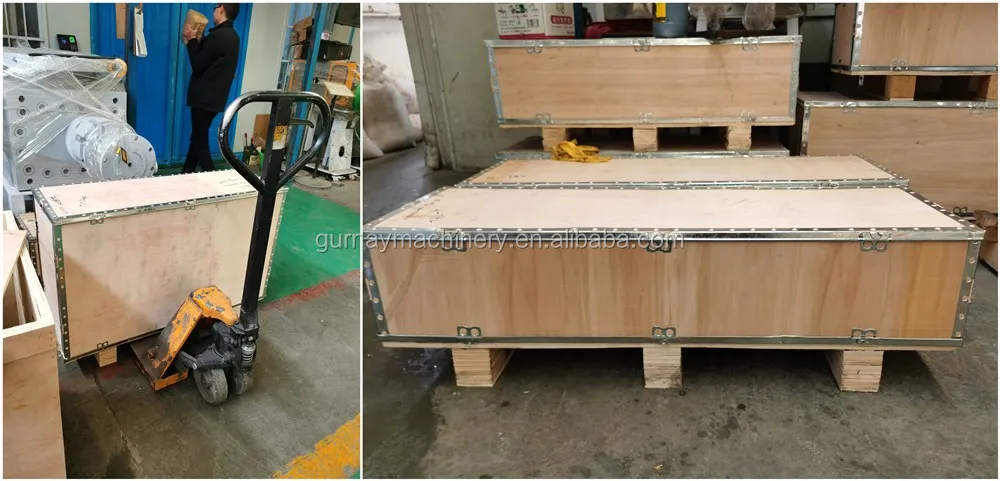

packing and shipping
Shipping method can be choosed by customers, by sea or by air.
