Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
HGTECH good price 1000w 2000w 3000w Raycus stainless steel carbon steel metal tube pipe laser cutting machine fiber laser cutter
- Category: >>>
- Supplier: HG STAR TECHNOLOGY CO. Ltd.
Share on (1601009826782):
Product Overview
Description
HGTECH good price 1000w 2000w 3000w Raycus stainless steel carbon steel metal tube pipe laser cutting machine fiber laser cutter
Product Description

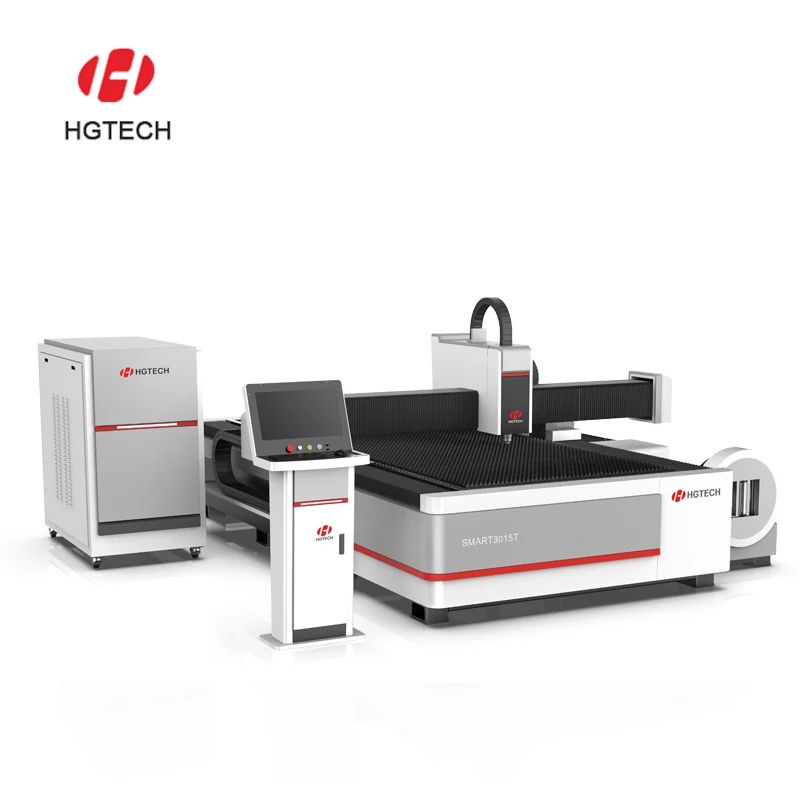

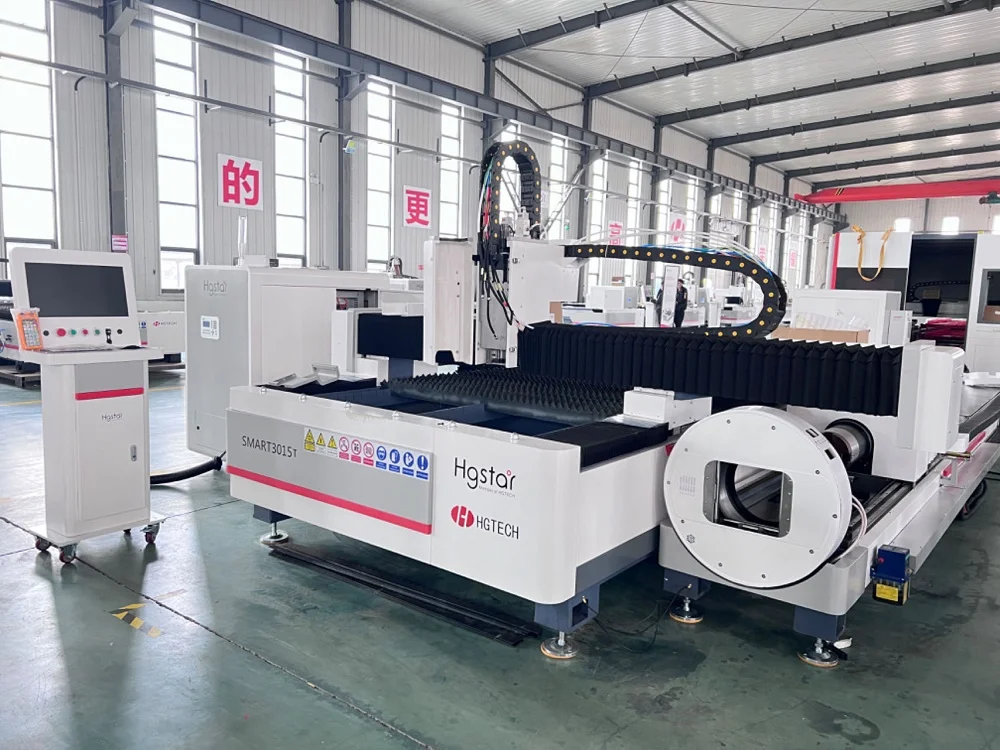

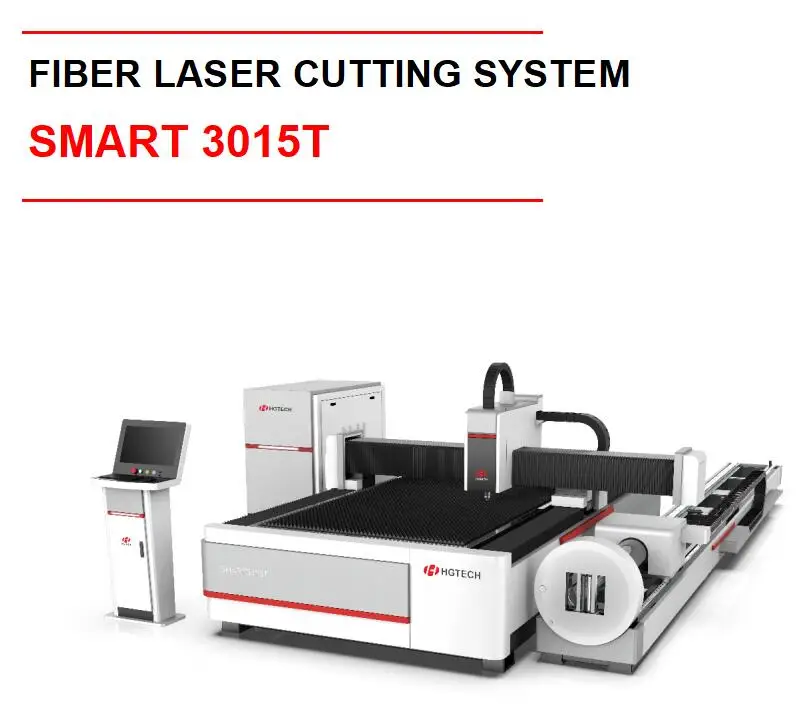

Metal Sheet and Pipe Fiber Laser Cutting Machine
Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w 3000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.The length of the tube can be selected from 3m or 6m,The machine adopts heavy-duty cast iron bed which will not deform within 20 years. And the equipped aviation aluminum beam runs stably. What’s more, the fully automatic dual-start chuck is strong and durable. Besides, the machine is equipped with imported transmission components which have high precision.
No. | Item | Name | Requirements | Remarks |
1 | Power Supply | Laser source | 5KVA | The total installed capacity is not less than 35 KVA. |
|
| Chiller | 5KVA |
|
|
| Machine tool | 10KVA |
|
|
| Others | 15KVA |
|
|
| Power supply | 380V±5%, 60Hz |
|
|
| Instability of power | Less than 2.5% |
|
|
| Grounding / Earthing | Less than 4Ohm |
|
2 | Water | Cooling water | Deionized Water (conductivity <10μS/cm) | The corrosion inhibitors are needed to add in the cooling water (user scope) |
3 | Compressed air | Gas supply capacity | 1.2m3/min | The air dryer and precision filters is required, This equipment is optional |
|
| Supply gas pressure | 12kg/cm2 |
|
|
| Oil content | <3ppm |
|
|
| Fixed particle | <0.01μm |
|
4 | Gas | Cutting gas | N2>99.95% |
|
|
|
| O2>99.95% |
|
5 | Working condition | Temperature | 5-40℃ | Laser source in AC room (user scope) |
|
| Humidity | Less than 70% |
|
|
| Foundation | There should be no vibration source nearby | If there is vibration source on site or nearby, the user is required to dig an anti-vibration trench around the foundation |
Features:
1. One machine for two purposes

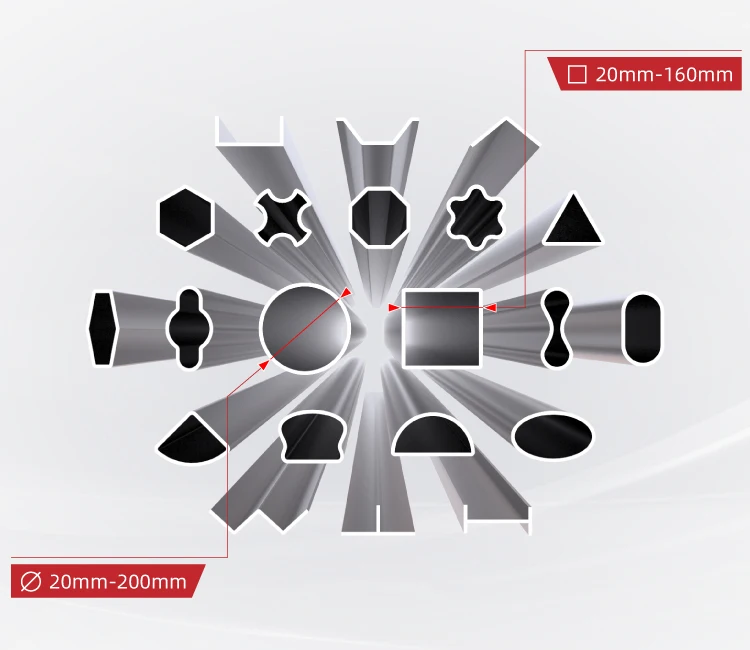

Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.
2. The strong steel bed to keep the machine for many years without distortion.
3. World-class components like guide rails and racks to guarantee the cutting accuracy.
4. The professional CNC pipe cutting system is easy and simple to operate and maintain.
5. Integrated large air volume dust removal system.
6. Imported high-end accessories to provide users with powerful cutting ability and efficiency, ensuring high-precision and stable operation of the machine.
1. One machine for two purposes
Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.
2. The strong steel bed to keep the machine for many years without distortion.
3. World-class components like guide rails and racks to guarantee the cutting accuracy.
4. The professional CNC pipe cutting system is easy and simple to operate and maintain.
5. Integrated large air volume dust removal system.
6. Imported high-end accessories to provide users with powerful cutting ability and efficiency, ensuring high-precision and stable operation of the machine.
Product details:

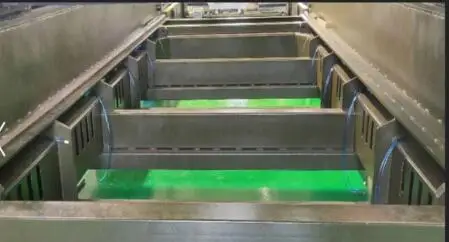

| Welding Machine Bed High Rigidity Stable and High Accuracy Easy to reduce stress,20 years’ no deformation |  |

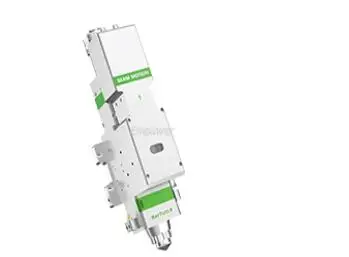

 | High accuracy laser head: Almost zero fault; Anti-collision design; height adjustment high sensitivit |

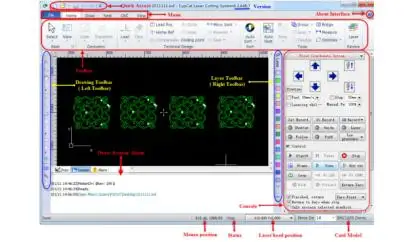

| FSCUT1000 control system support three-grade perforate support fly-cutting,leapfrog. automatic focus adjustment |  |

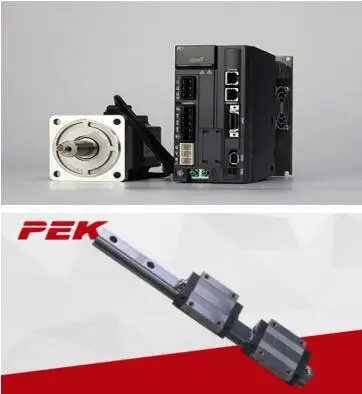

 | Servo and Motor: JAPAN Fuji servo high speed srvo motor Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work. ITALY PEK rail/LEITESEN Rack |

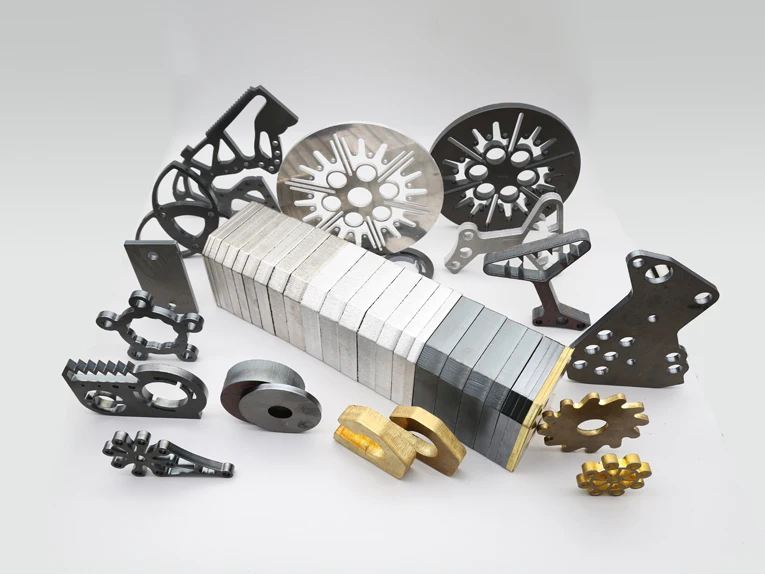

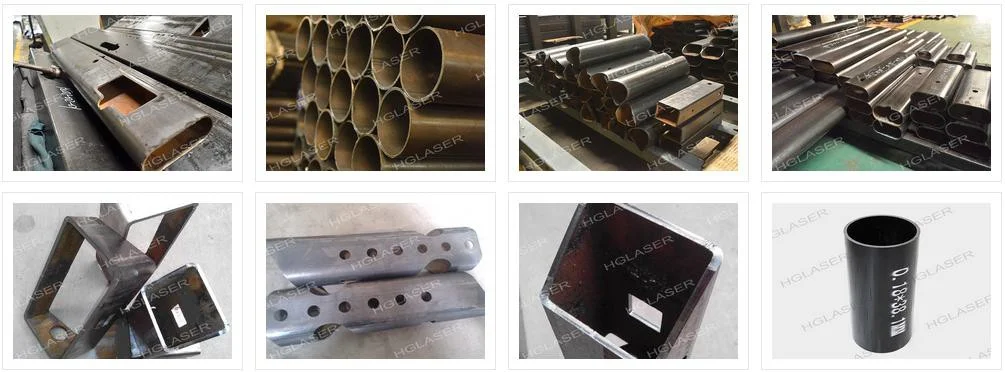

Cutting Samples:
Company Information
HGTECH Co.,Ltd is one of the largest laser equipment manufacturers in China.(Stock code: 000988)
HGstar has now established a flawless market service system. More than 40 offices are spread across major metropolitan areas in order to get closer to users and expand services.hgstar is a subsidiary of hgtech
We provide you with professional and timely services to fully meet your production needs by relying on forward-thinking process research, a full range of product systems, efficient delivery response, and a perfect after-sales system.
R&D and pilot test base: It has an R&D and pilot test base in China of more than 60,000 square meters, and six regional technology centers provide professional and timely process services.

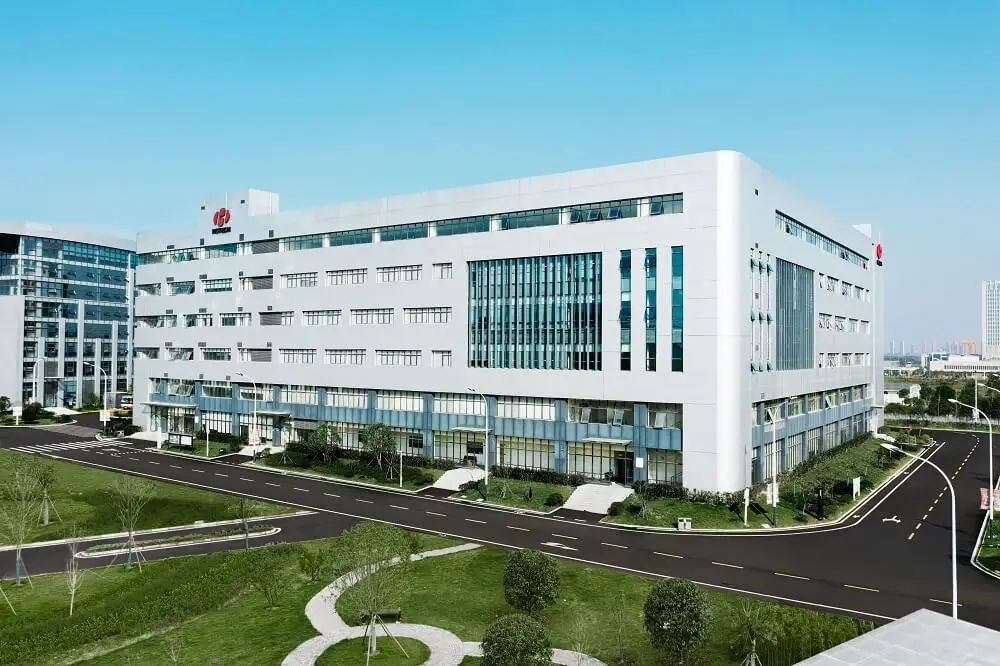

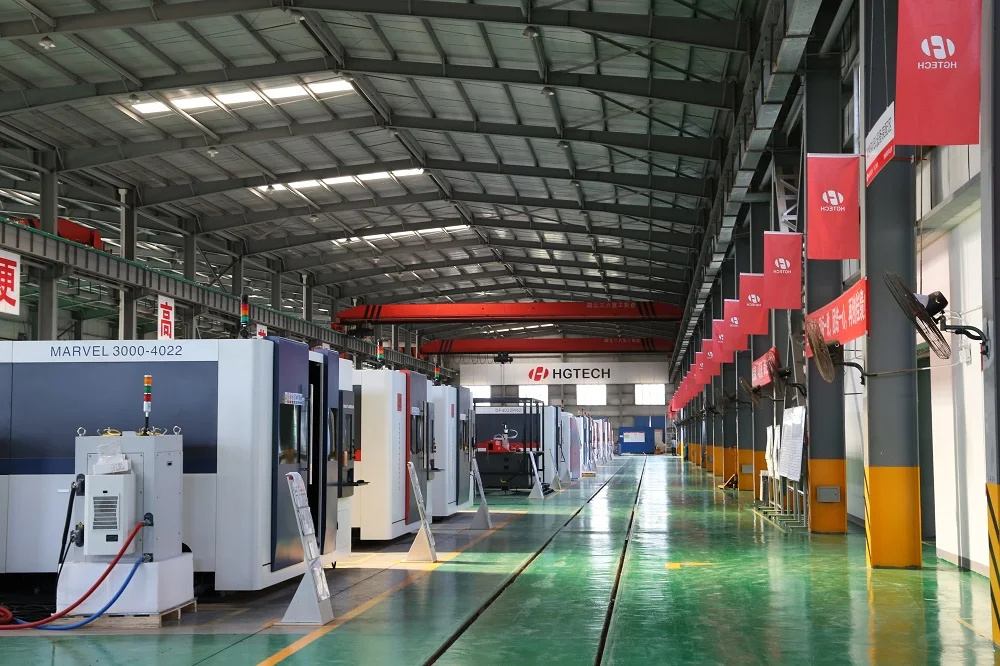

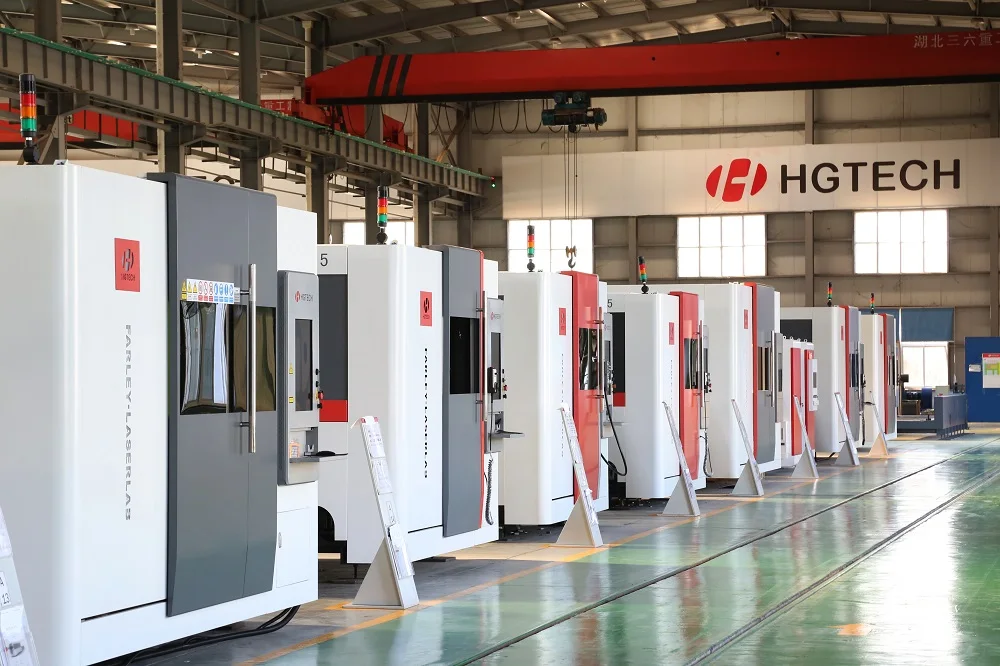

Production base: a smart manufacturing production base of more than 100,000 square meters in China, open 24 hours a day, 365 days a year to meet batch delivery demand.
Why choose HGTECH?
The main products of HGstar cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments.
What we do?
HGstar has always been dedicated to providing broad and comprehensive laser manufacturing solutions in the industrial manufacturing field, researching, manufacturing, and selling a variety of laser processing and plasma machining equipment, as well as providing tube laser cutting processing and oil pipeline trade services.
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
copper, etc.

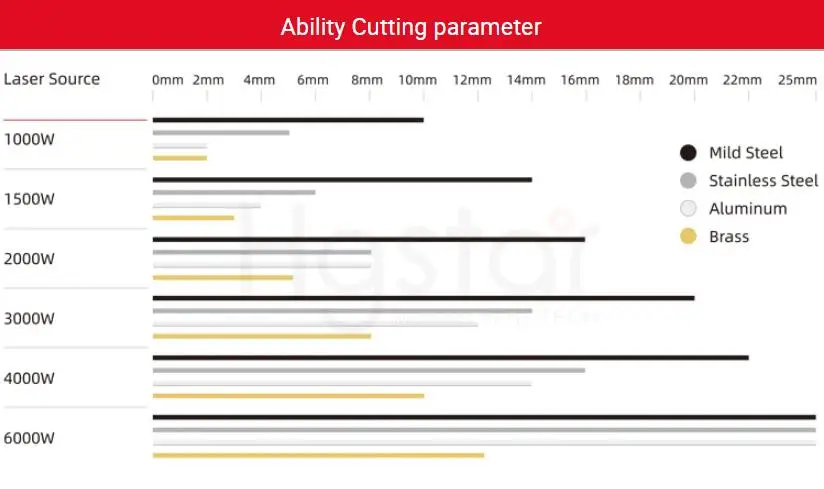

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team service till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
HGTECH 1000w 2000W 3000w 6kw metal sheet CNC fiber pipe laser cutting machine cutter for metal steel iron aluminum sheet tube
