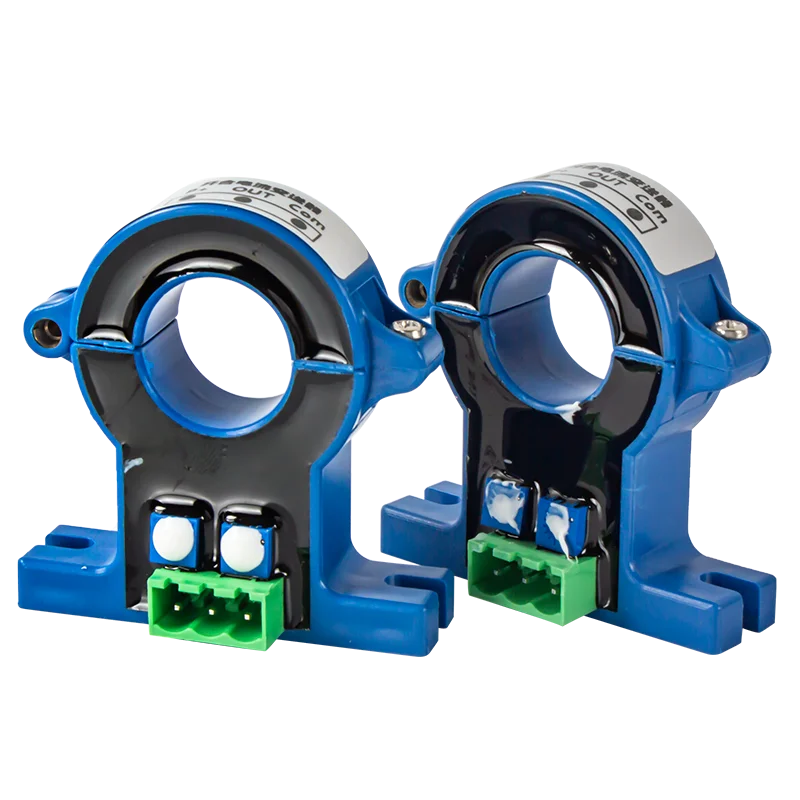

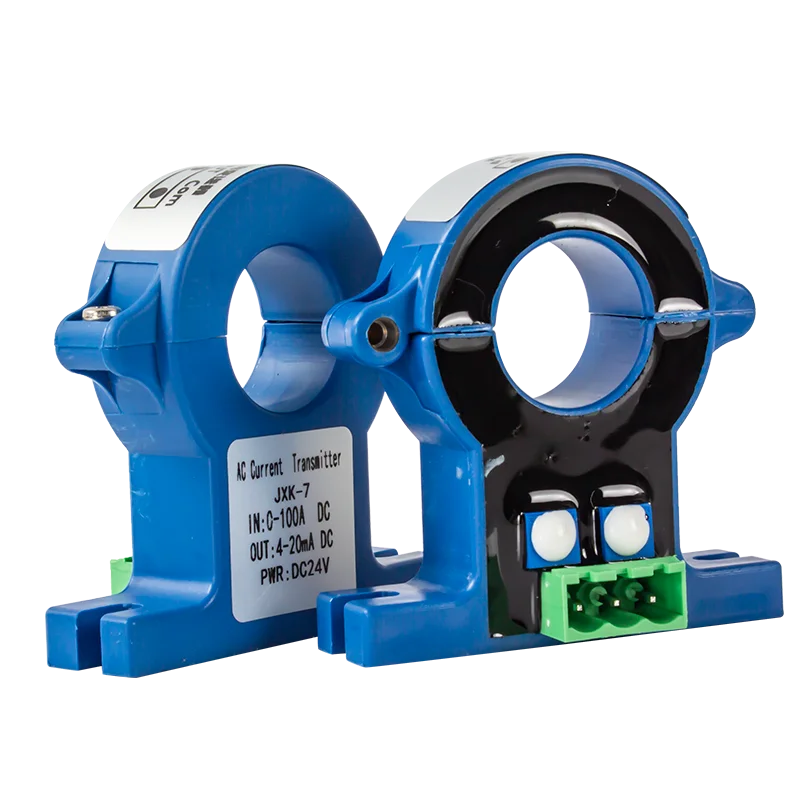

4 20mA output 0 500A DC input hall effect open loop current sensor

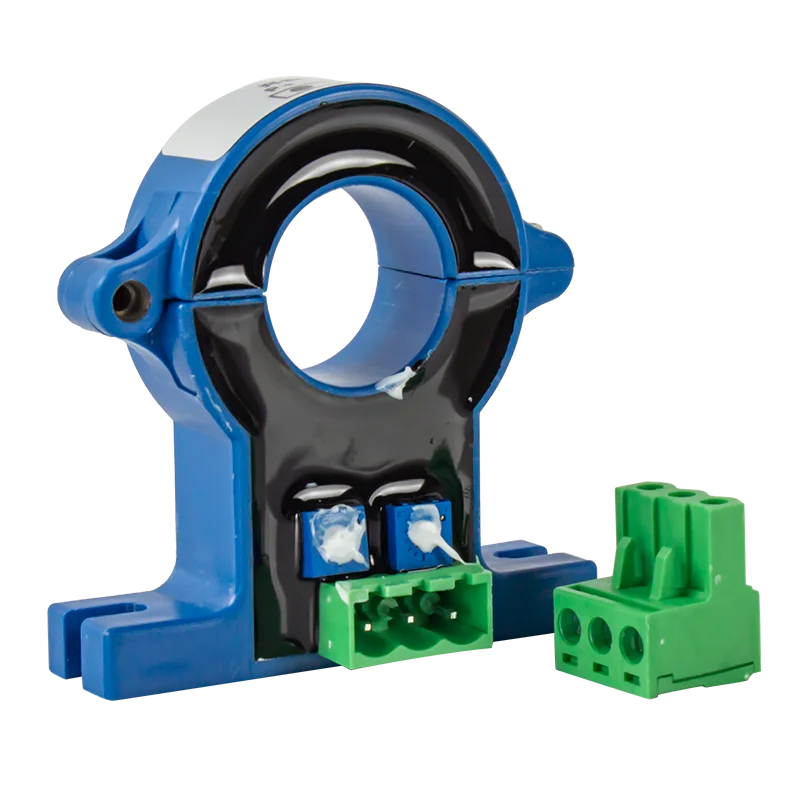

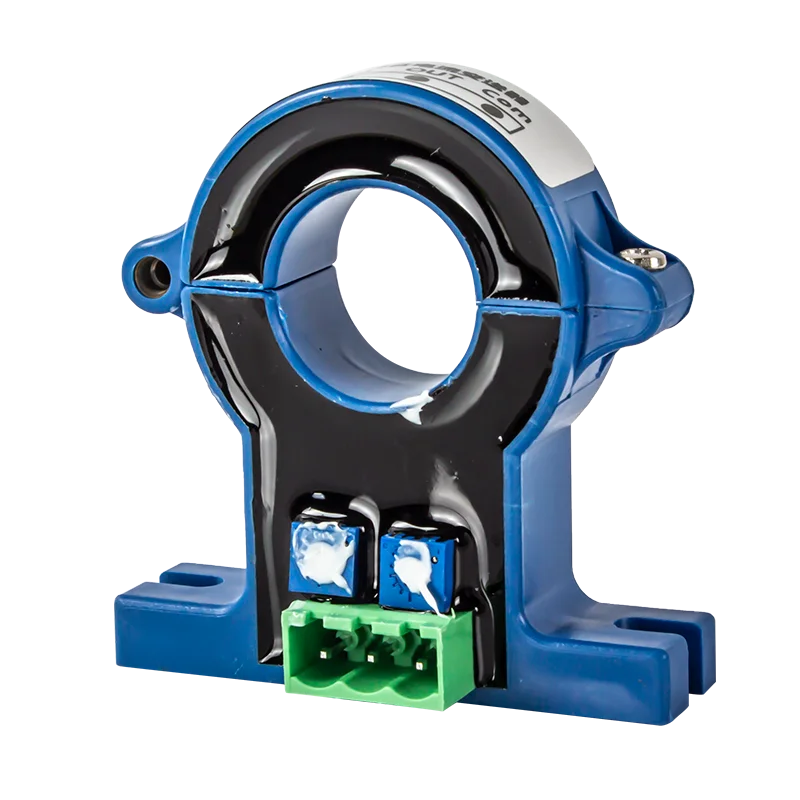

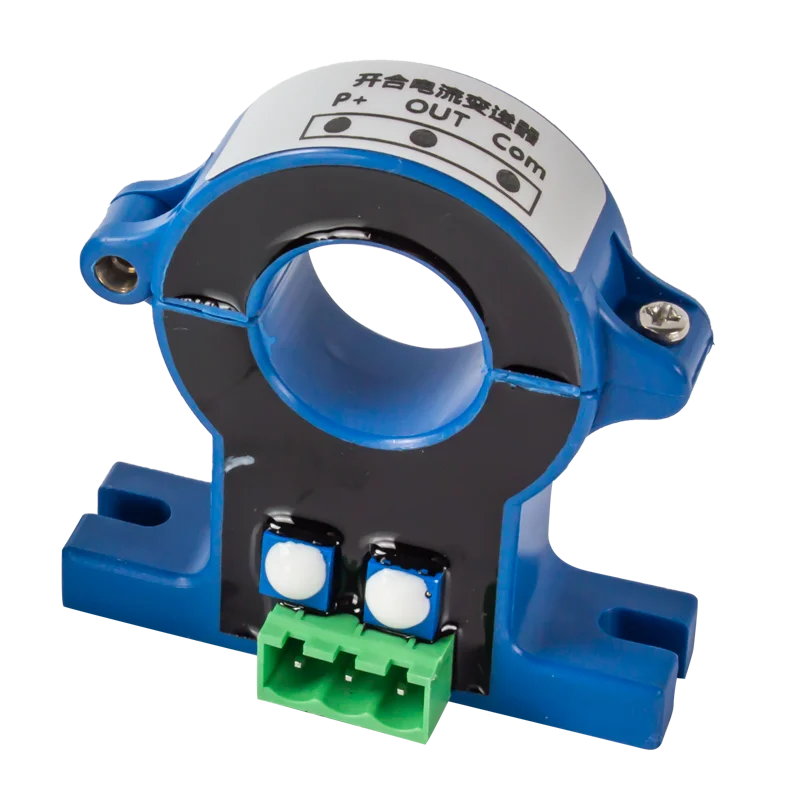

4-20mA output 0-500A DC input hall effect open loop current sensor
4-20mA output 0-500A DC input hall effect open loop current sensor
4-20mA output 0-500A DC input hall effect open loop current sensor
4-20mA output 0-500A DC input hall effect open loop current sensor
4-20mA output 0-500A DC input hall effect open loop current sensor
4-20mA output 0-500A DC input hall effect open loop current sensor

4 20mA output 0 500A DC input hall effect open loop current sensor

Share on (1601009842963):


Price:$20.00 - $45.00

Quantity:


Product Overview

Description





<1>. Working Principle: Open loop direct measurement.
<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation,
perforation input and no insertion loss.

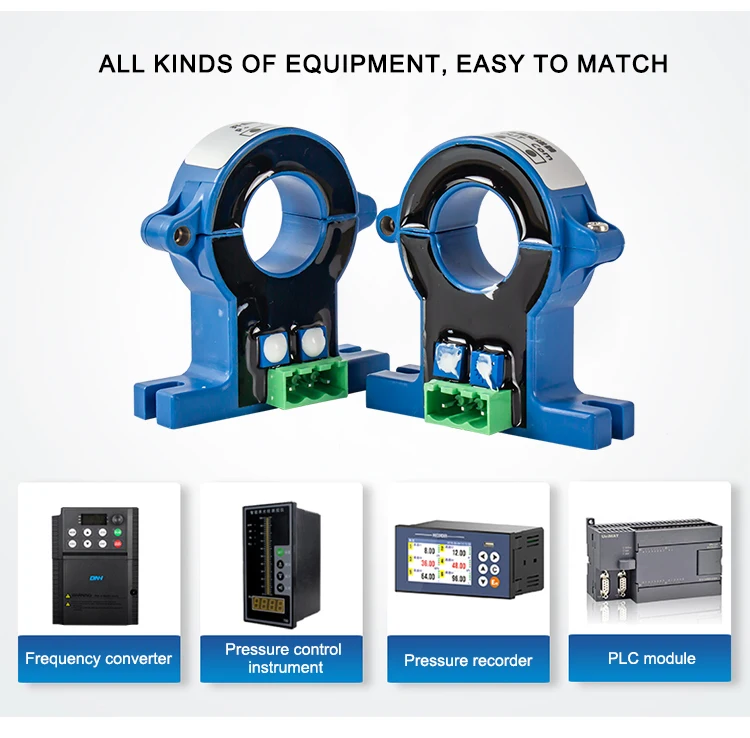

<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply
monitoring, electric locomotive, low level starting protection.

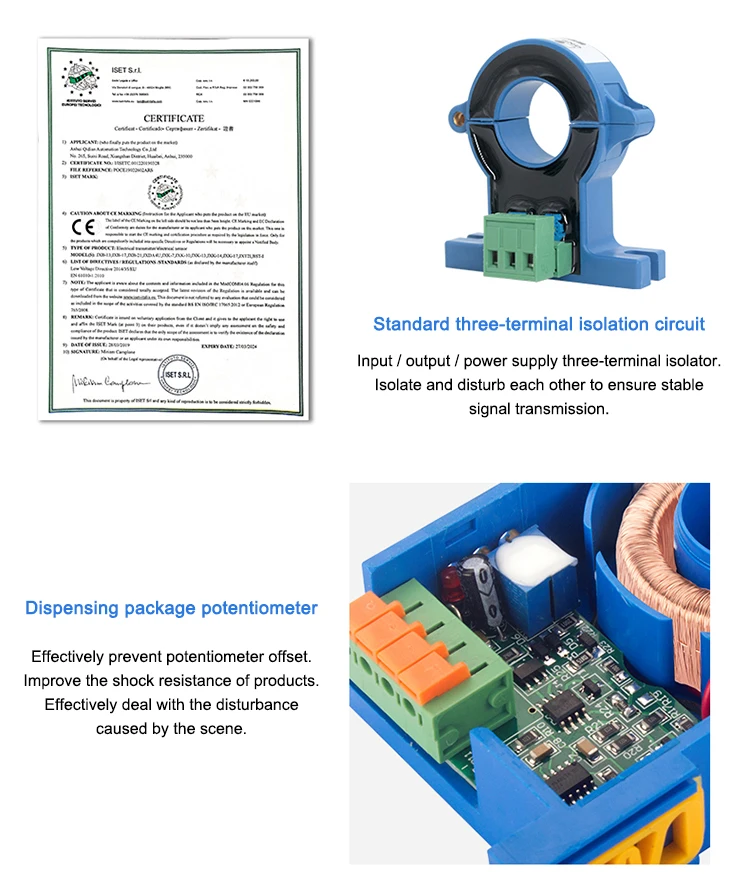

<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.Full
channel configuration,Parameter customizable.




Installation
Plane screw fixation
Original side rated current
50A;100A;200A;500A;
800A;1000A;customization
Original side measurement range
100A-1200A
Rated output
5V;DC0~20mA;DC4~20mA;customization
Auxiliary power supply
DC12V,DC24V,DC±12V,DC±15V
Load capacity
Voltage output:5mA;
Current output:6V;
Linearity
0.005
Accuracy
0.01
Response time
<200ms
Temperature drift
≤500PPM/℃
Band width
DC~20KHz
Consumption of current
≤25mA
Working temperature
-10℃~+70℃
Storage temperature
-25℃~+85℃
Isolation pressure resistance
2.5kV/50Hz,1Min
Offset voltage
≤20mvV
Zero output
≤0.15mA
di/dt follow
>50A/uS




































1. Are you manufacture ?

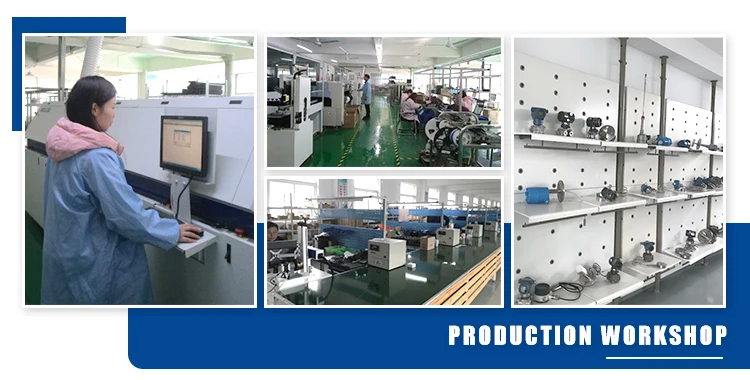

Yes,We are factory and exporter in china over 10 years experience,
with CE,ROHS,FCC ISO and 4 patents.
2. What is your delivery time?
It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
3. How is your quality assurance service?
All our products have 3 years warranty.
4. Could we make a visit to your factory?
We warmly welcome you to visit our factory and make good cooperation with you.
