Sperm Analyzer Automatic Semen Analyzer Sperm concentration rapid test,increase sperm count
- Category: >>>
- Supplier: Wuhan Jiutouniao Medical Instrument Development Co. Ltd.
Share on (1601009843892):
Product Overview
Description
Recommend Products
Indications

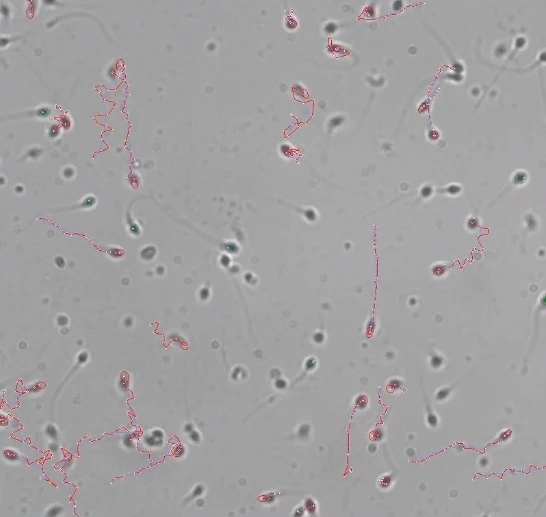

It is a high-tech intelligent product with the latest computer image processing analysis technology and advanced artificial intelligence technology used in modern reproductive medicine. It has automatic identification and automatic tracking sperm trajectory functions, which make it able to quickly and automatically complete multi parameters analysis accord with international standards WHO. It realizes the comprehensive quantitative analysis of sperm activity and static characteristics and applies to clinical semen test so as to provide an important scientific basis for inspection of male fertility.
Examination Items | ||
1 | Sperm density, Sperm activity rate, Sperm trajectory, Sperm motility distribution | |
2 | Average curvilinear motion speed total sperm of curvilinear motion Total motile sperm of curve motion Motility rate of curvilinear motion | |
3 | Average linear movement speed total sperm of linear motion Total motile sperm of linear motion Motility rate of linear motion | |
4 | Average path speed total sperm of average path Total sperm of mean motion Mean motion sperm motility rate | |
5 | Sperm movement speed classification: grade a rapid forward motility rate , grade b slow forward motility rate, grade c non-forward movement rate, grade d extremely slow or immobility rate | |
6 | Sperm side swing value of sperm swing Sperm whipped frequency Linear motion rate Total sperm | |
7 | Linear speed Sperm average moving angle linear motion sperm | |
Product Paramenters
Specification: | ||
Maximum of the tested sperms | 1000 | |
Range of test speed | 0-180µm/s | |
Number of image collection | unlimited(frame) | |
Grain diameter resolution(μm) | adjustable | |
Analysis time | 1-5 seconds or longer | |
Group number of collected images | unlimited | |
Microscope objective lens | 10x.20x.25x.40x | |
Displayed content of sperm test system is no less than | 1) distribution curve of static sperms | |
2) the features data of semen and statistical data from analysis of all the main functions | ||
3) sperm dynamic trajectory curve | ||
4) display various sperms motion speed and energy is arrhythmic map of sperms | ||
5) case information for management such as patients’ name | ||
Output content from sperms test system is no less than | 1) the main technical data of sperms | |
2) sperm dynamic trajectory curve | ||
3) analysis and determinant histogram | ||
4) case information for management such as patients’ name | ||
