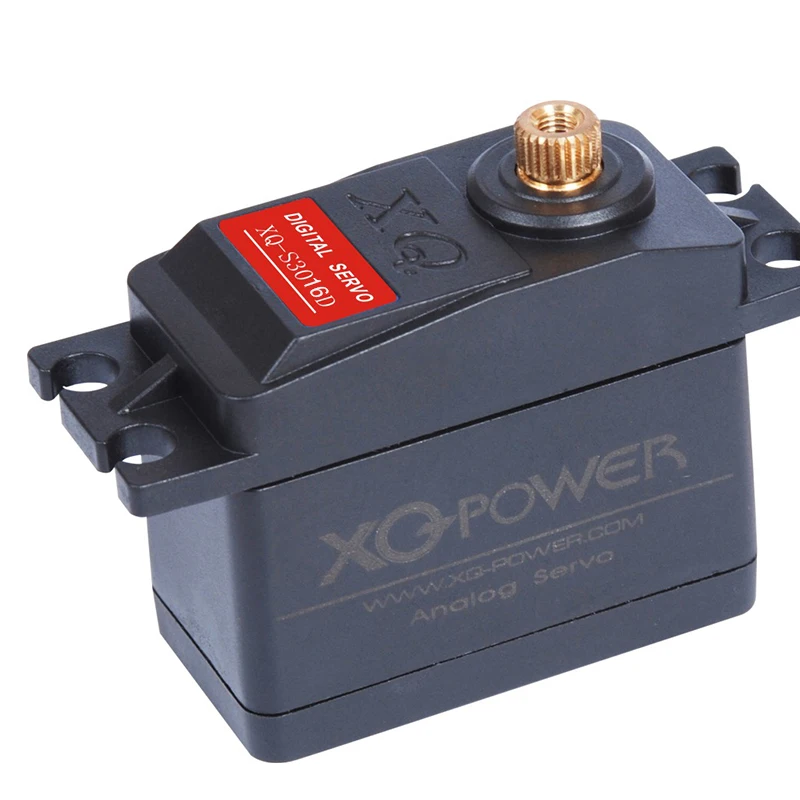

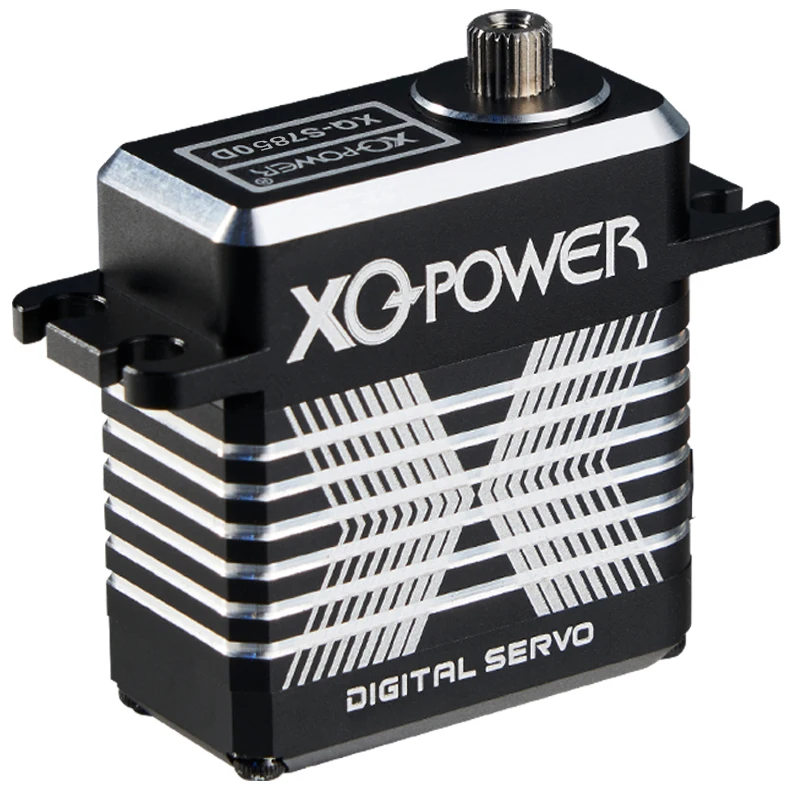

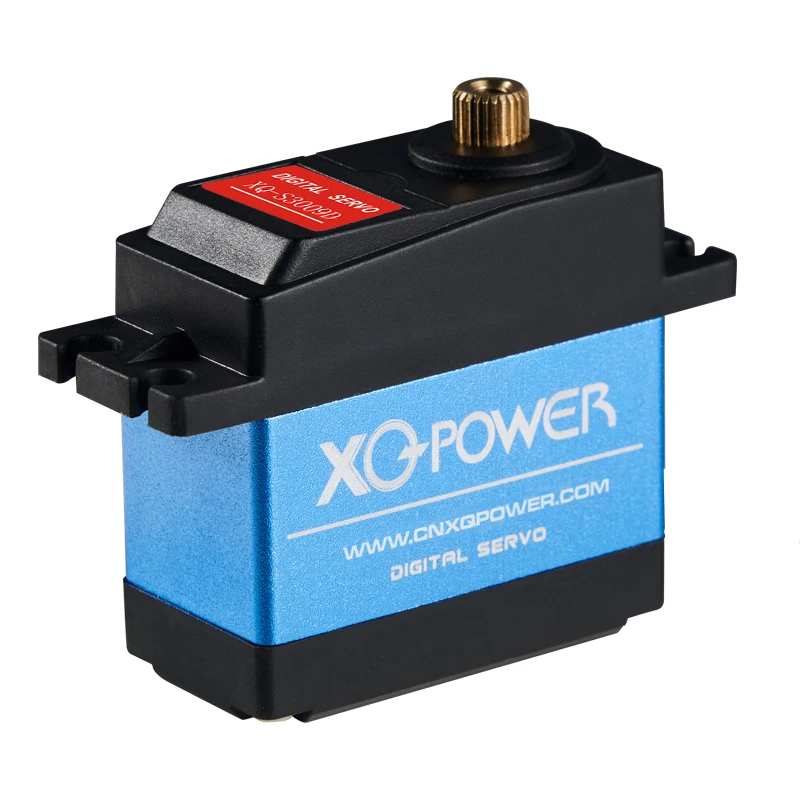

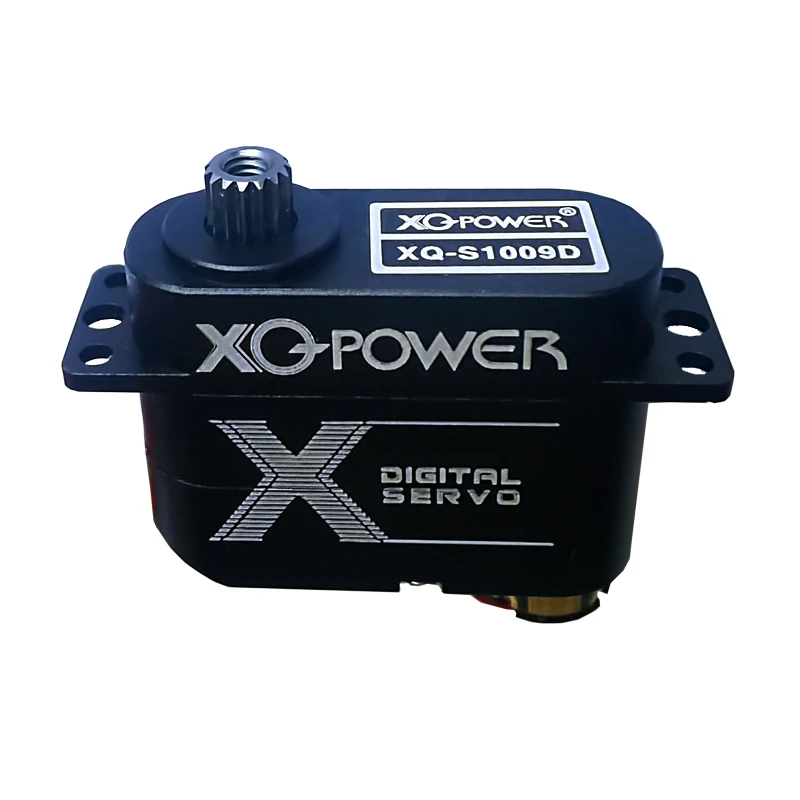

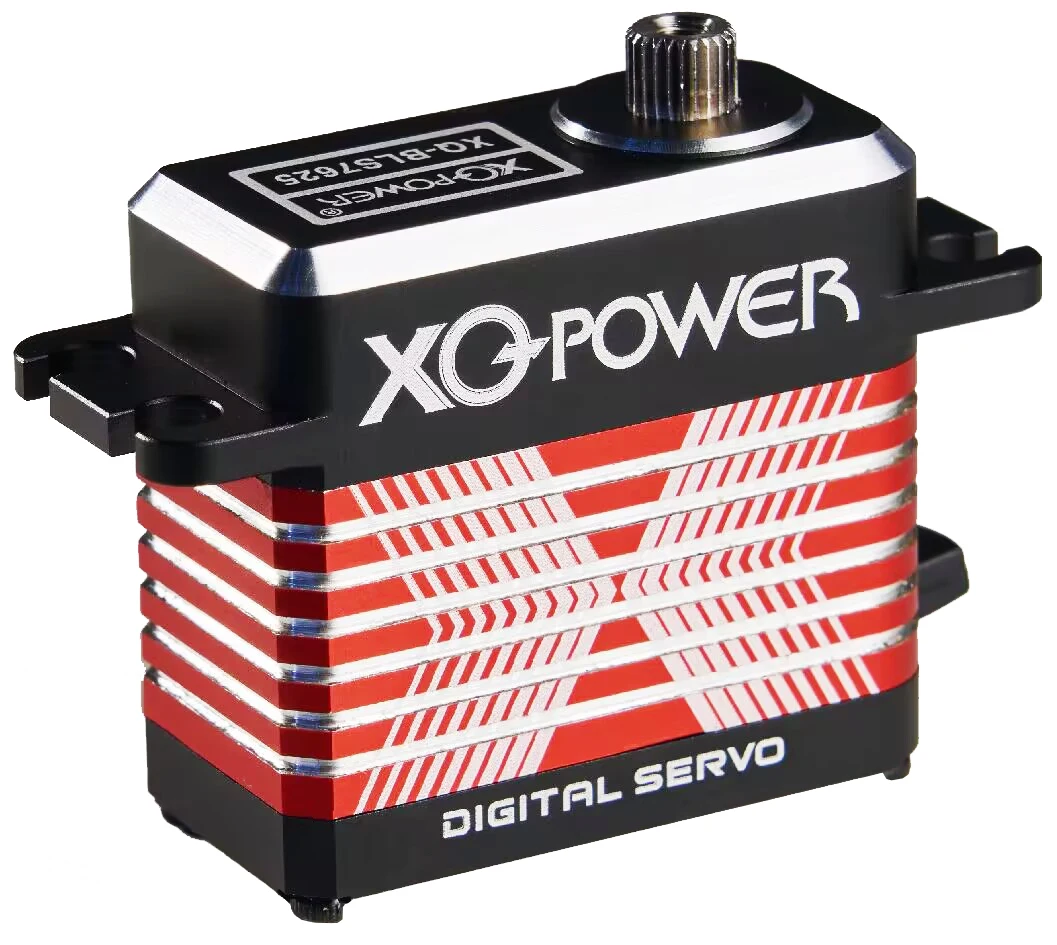

6v Large Torque 40kg Digital Servo Waterproof Ip66 With 25t Servo Arm For 1/8 1/10 Scale Rc Car Boat 180 / 270 Degree
- Category: >>>
- Supplier: Shenzhen Xq-Power Technology Co. Ltd.
Share on (1601009845083):
Product Overview
Description
Products Description
Product Name：8.4V45kg-cm Hight Voltage Digital Servo | ||||||
Model: XQ-S7640 | ||||||
1.Apply Environmental Condition | ||||||
No. | Item | Specification | ||||
1-1 | Storage Temperature Range | -20℃～70℃ | ||||
1-2 | Operating Temperature Range | -15℃～65℃ | ||||
2.Standard Test Environment | ||||||
No. | Item | Specification | ||||
2-1 | Temperature range | 25℃ ±5℃ | ||||
2-2 | Humidity range | 65%±10% | ||||
3.Mechanical Specification | ||||||
No. | Item | Specification | ||||

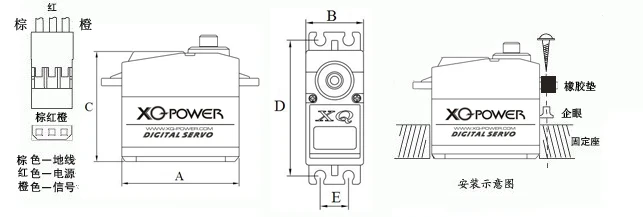

3-1 | Size | 20*40*38 mm | ||||
3-2 | Weight | 73g no including accessory | ||||
3-3 | Gear type | Stainless Steel | ||||
3-6 | Limit angle | 210° | ||||
3-7 | Bearing | 2 Ball bearings | ||||
3-8 | Horn gear spline | 25T-φ5.94mm | ||||
3-9 | Horn type | Plastic,POM | ||||
3-10 | Case | Aluminium CNC | ||||
3-11 | Connector wire | 300mm | ||||
3-12 | Motor | Coreless motor | ||||
3-13 | Splash water resistance | Yes | ||||
4.Electrical Specification (Function of the Performance) | ||||||
No. | Operating Voltage Range | 6.0 V | ||||
4-1 | No load speed | 0.144 sec/60° | ||||
4-2 | Runnig current(at no load) | 320 mA | ||||
4-3 | Peak stall torque | 37 kg.cm | ||||
4-4 | Stall current | 3.7 A | ||||
No. | Operating Voltage Range | 7.4 V | 8.4 V | |||
4-1 | No load speed | 0.122 sec/60° | 0.106 sec/60° | |||
4-2 | Runnig current(at no load) | 370 mA | 440 mA | |||
4-3 | Peak stall torque | 42 kg.cm | 47 kg.cm | |||
4.5 A | 5.2 A | |||||
Certifications

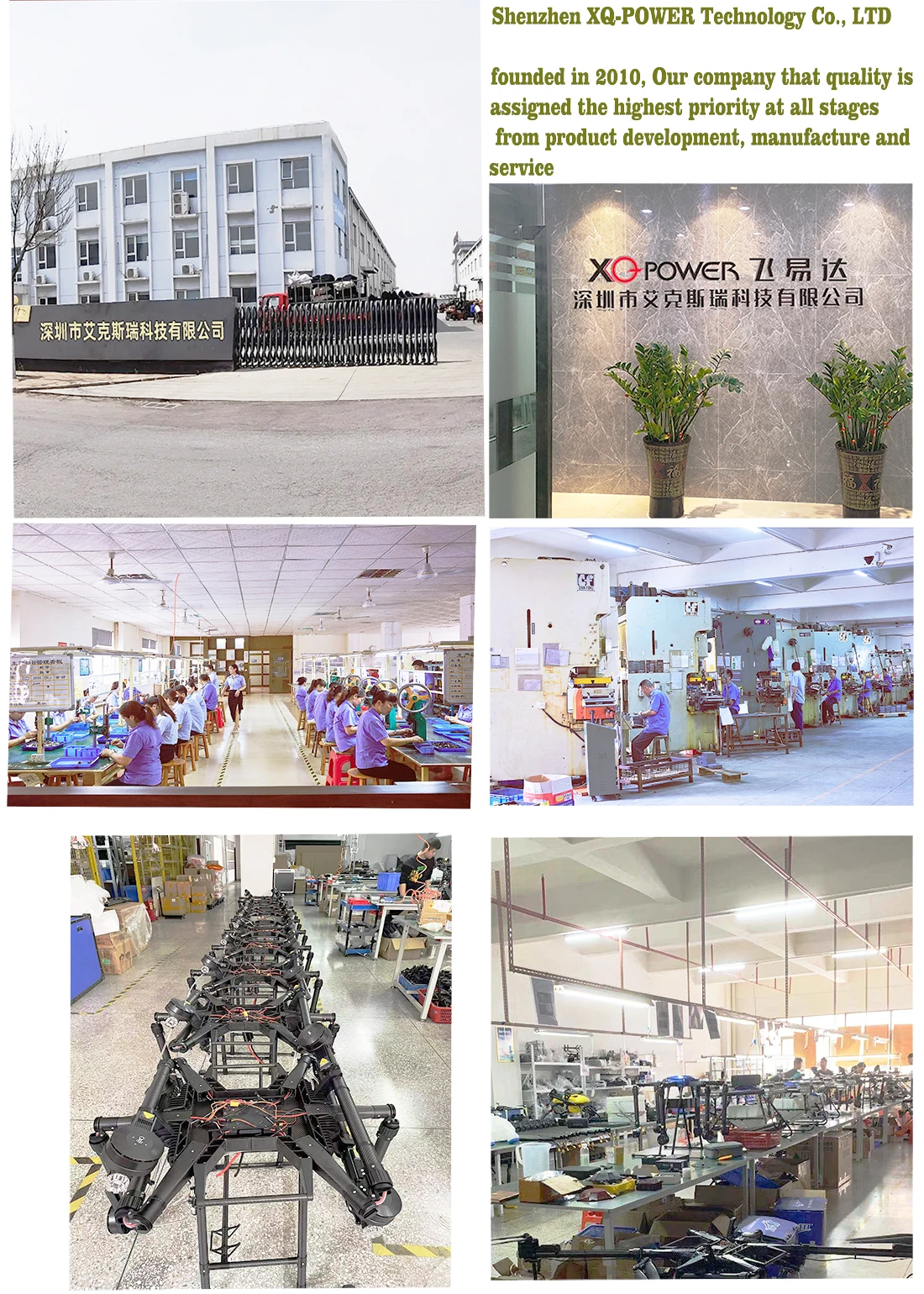

Manufacturing Technique

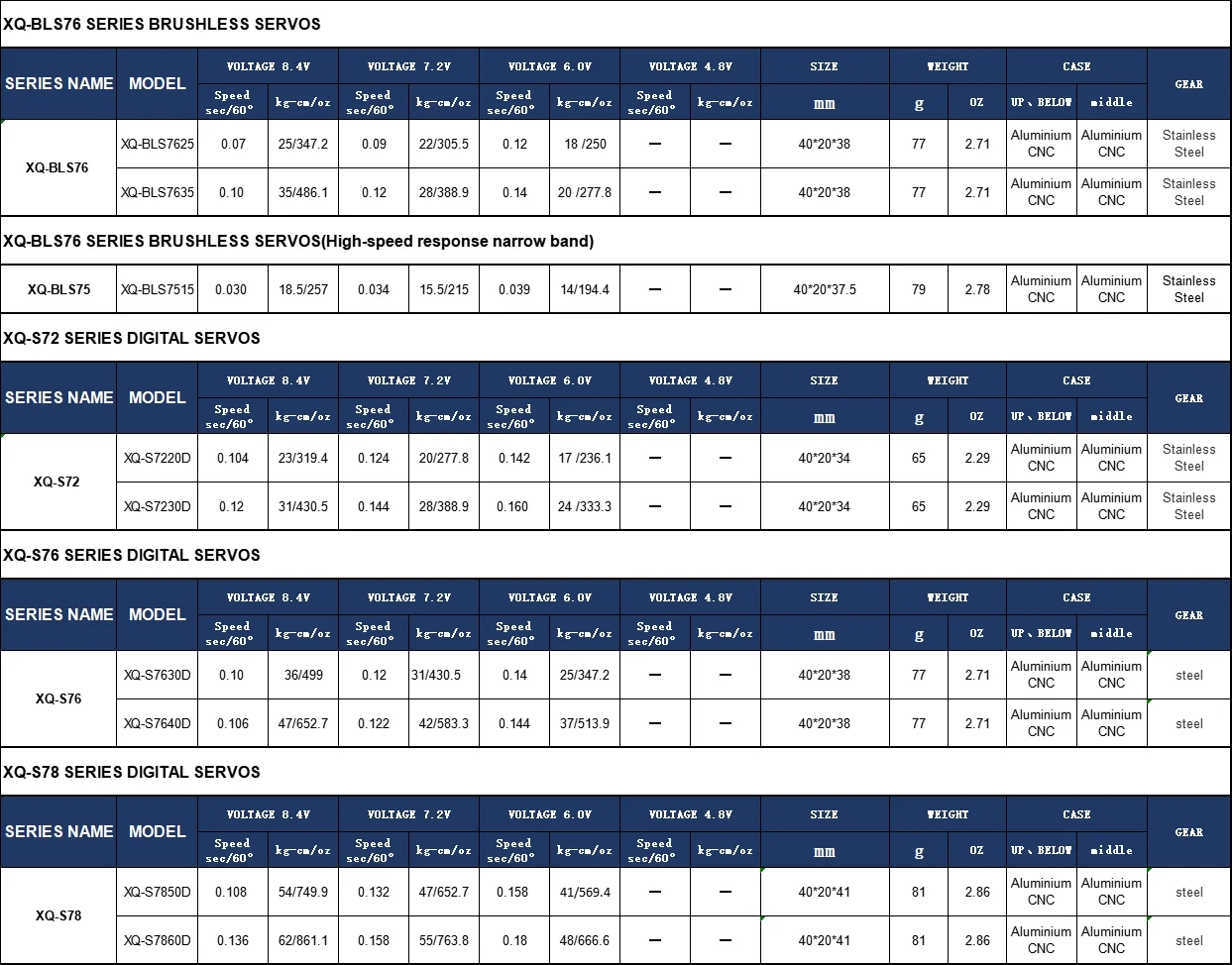

Product Paramenters
