Haitian 200Ton Used Plastic PET injection molding machine Plastic Injection Molding Machine for sale

Product Overview

Description

Shenzhen Deligao Mould Plastic Co.,Ltd
DELIGAO INDUSTRIAL(HK)CO.,LTD
Engaged in used injection molding machine for 19 years. Have a lot of experience.
Technically, our company can provide customers with: Recondition and Repaint. Overseas assembly. Transform variable pump, servo. Wait one stop service.
Our company has huge warehouse and source of goods.
The existing injection molding machine in the warehouse:
Provide various kinds from 30T-4000T,
Place of origin:Japan,Korean,Taiwan,HK,China mainland.
Overall functions and stable capacity and high quality
Low cost, high efficiency and big ROI!
The stock keep more than 300 set of machines, provide different series and size of brands.Such as Engel,JSW,NESSEI,NIIGATA,TOSHIBA,TOYO,FCS,ChenHsong,HAITIAN...

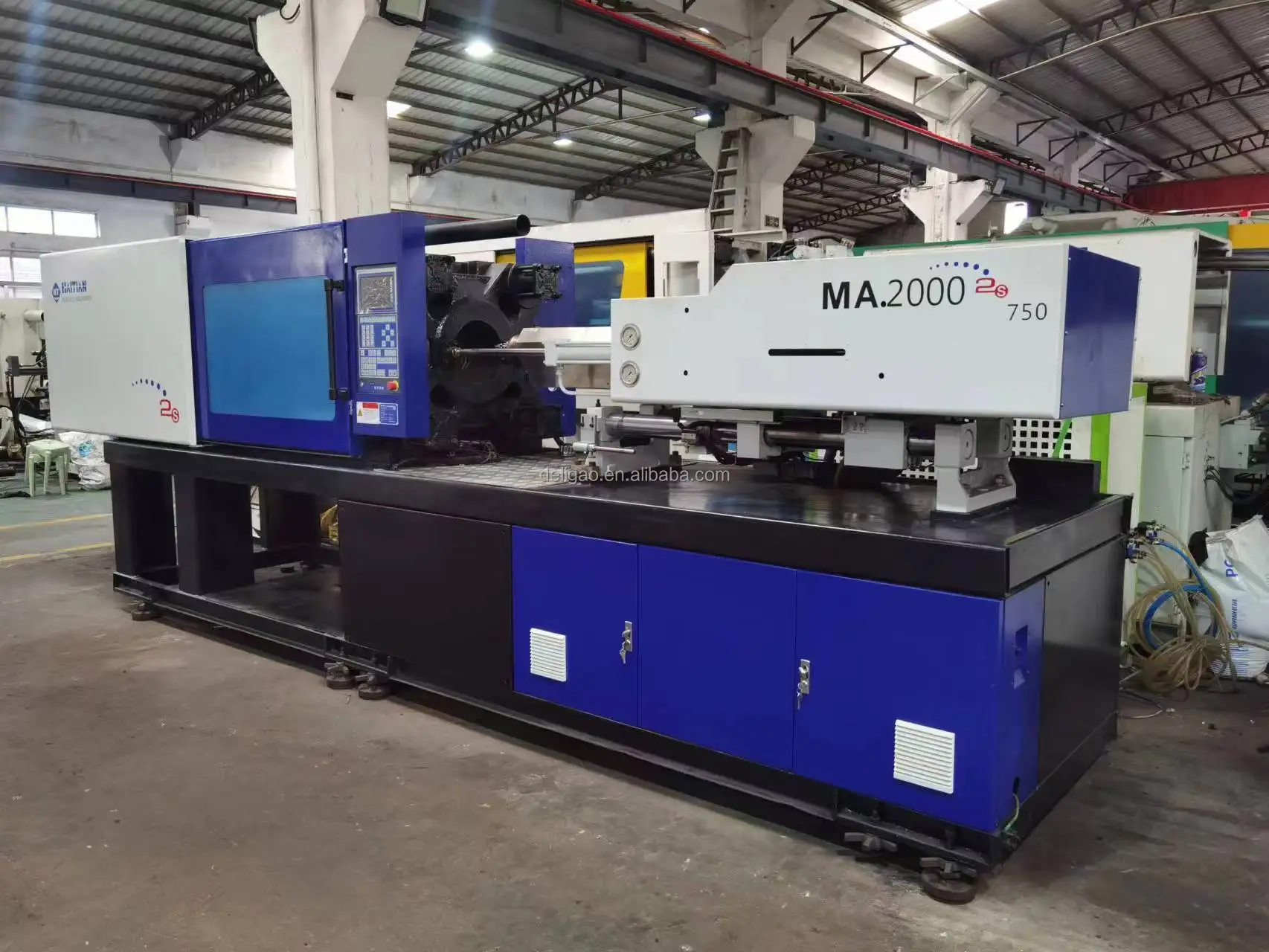

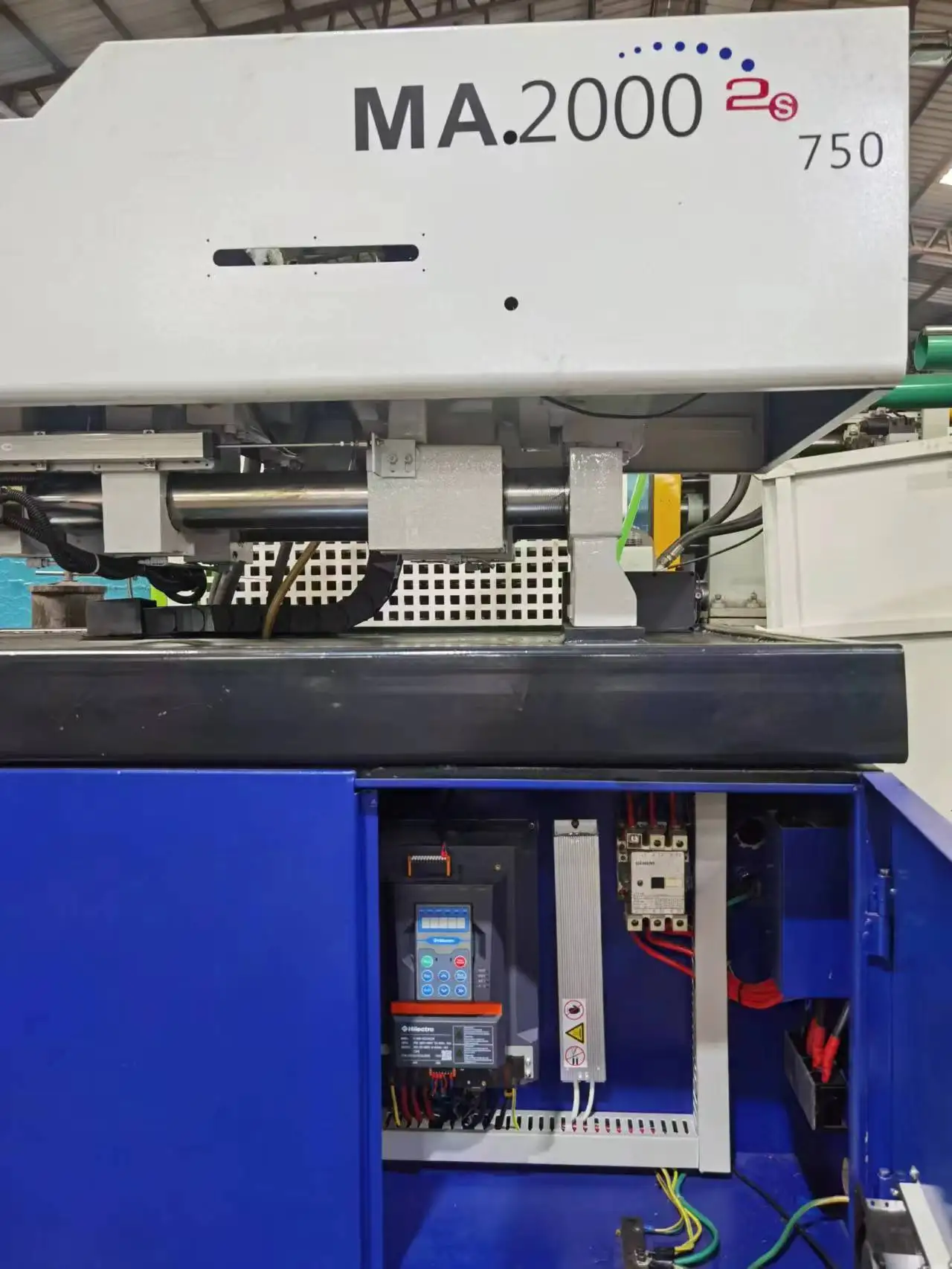

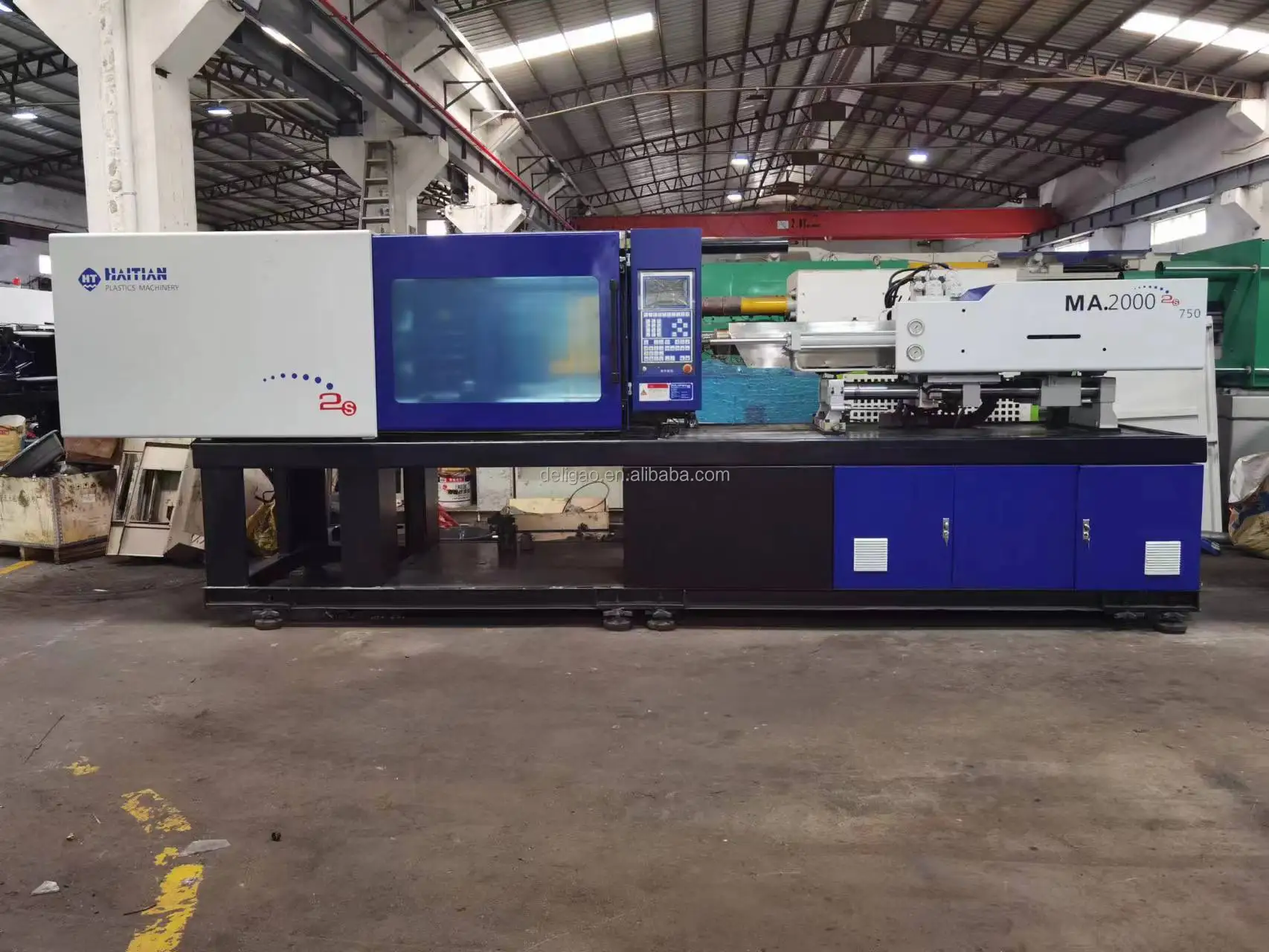

MA2000IIs

INJECTION UNIT		B
Screw Diameter	mm	60
Screw L/D Ratio	L/D	18.3
Shot Size(Theoretical)	cm3	636
Injection Weight(PS)	g	579
Injection Pressure	Mpa	142
Screw Speed	rpm	0~165
CLAMPING UNIT
Clamp Tonnage	KN	2000
Toggle Stroke	mm	470
Space Between Tie Bars	mm	510x510
Max.Mold Height	mm	510
Min.Mold Height	mm	200
Ejector Stroke	mm	130
Ejector Tonnage	KN	62
Ejector Number	Piece	9
OTHERS
Max.Pump Pressure	MPa	17.5
Pump Motor Power	kw	18.5
Heater Power	kw	14.25
Machine Dimension(LxWxH)	m	5.3x1.6x2.1
Machine Weight	t	6.8
Hopper Capacity	kg	50
Oil Tank Capacity	L	390

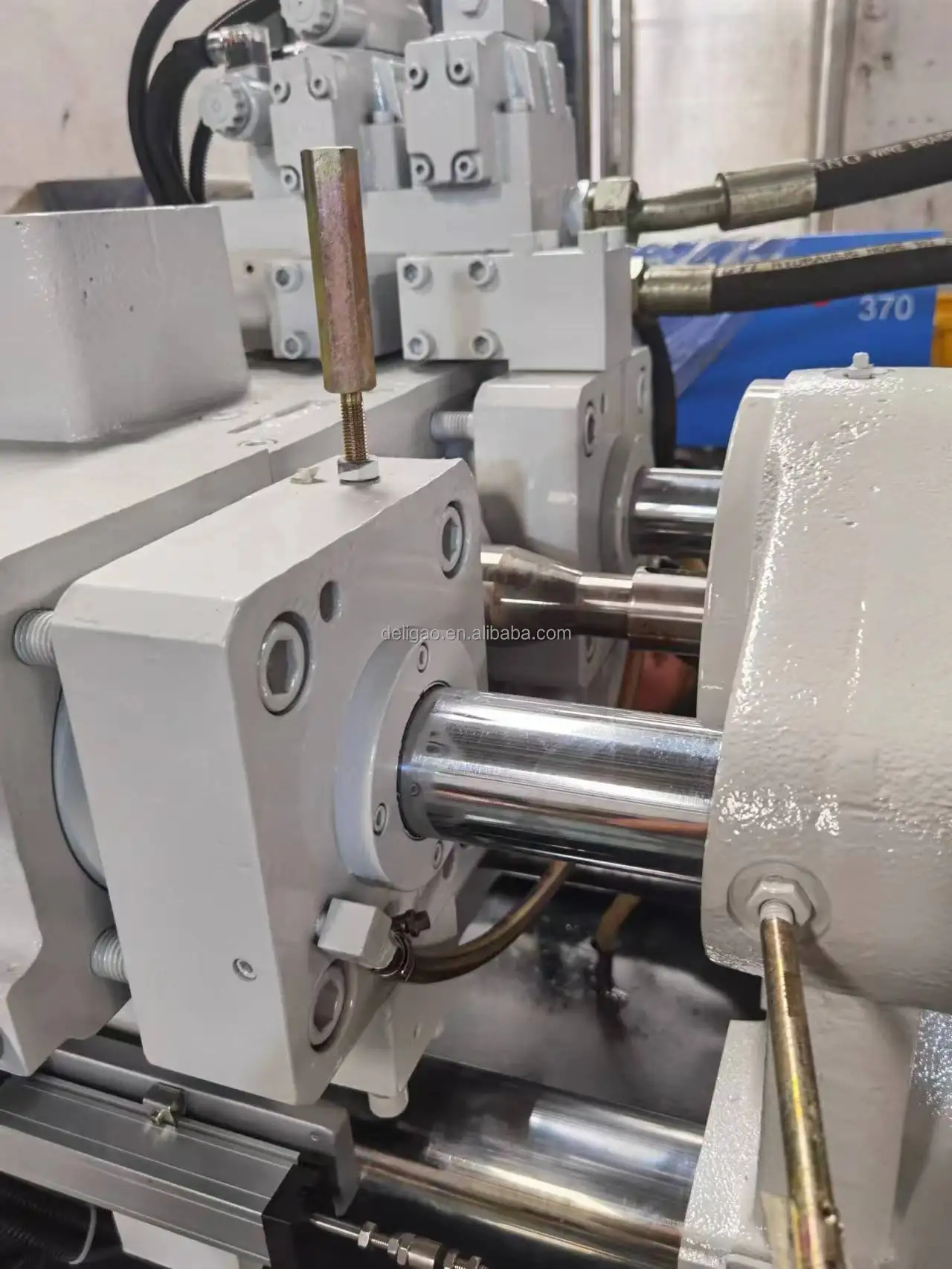

High hardness: the template stress distribution is uniform, the deformation is small, and the precision of the product is effectively improved; the pressure center template structure is adopted to effectively improve the precision of the product.

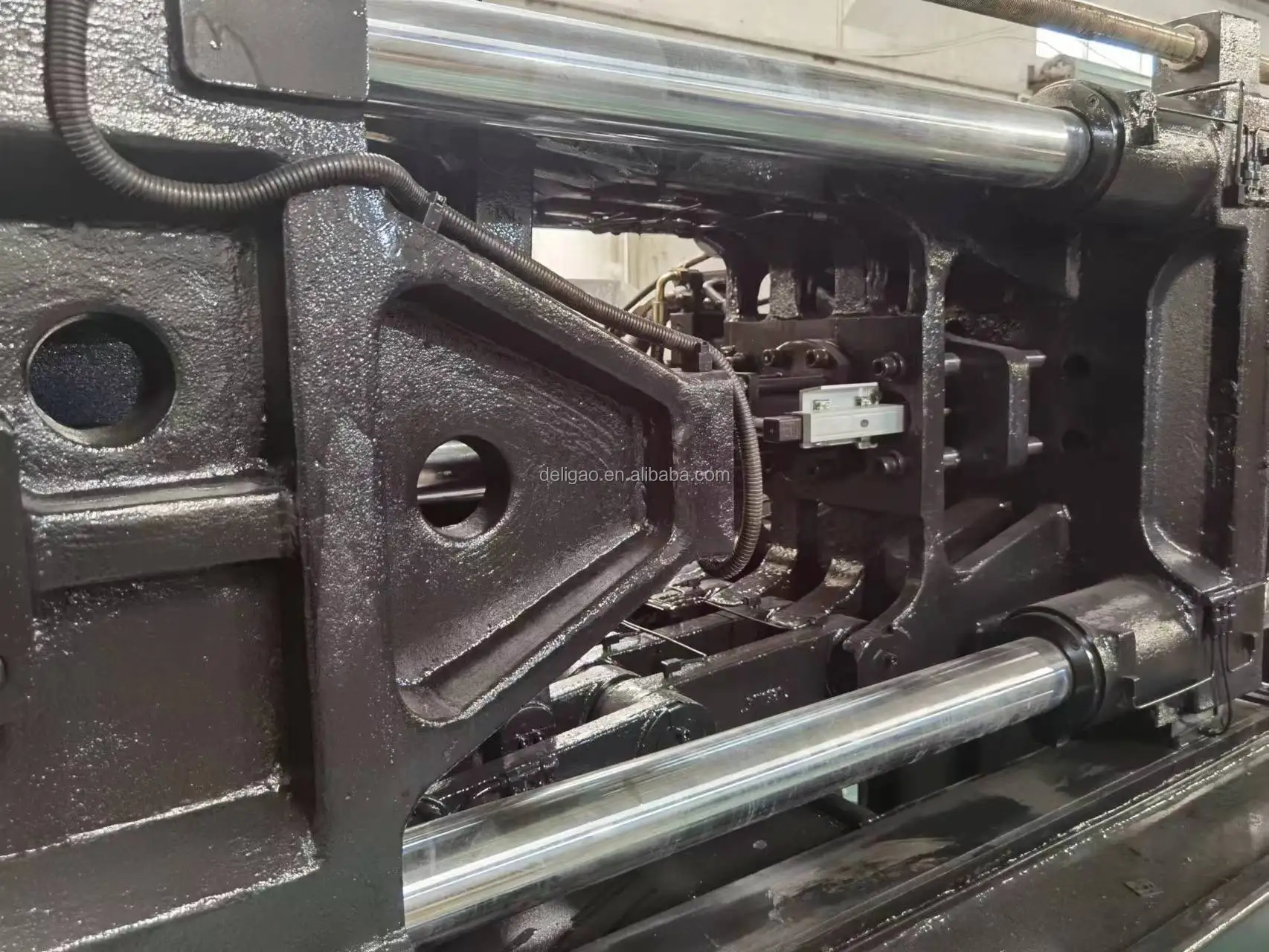

Longer life: The new graphite steel casing greatly enhances the lubrication of the crankshaft and tie rods, smooth running of the mold clamping, longer service life and less maintenance.More precise: integral guide rod support, double-cylinder balanced injection device, so that the screw is evenly balanced during the advancement of the injection, linear advancement.
More efficient: highly optimized clamping unit, smoother high-speed opening and closing mold, effectively shortening cycle time,Innovative drive system, patented servo motor gear pump design.
