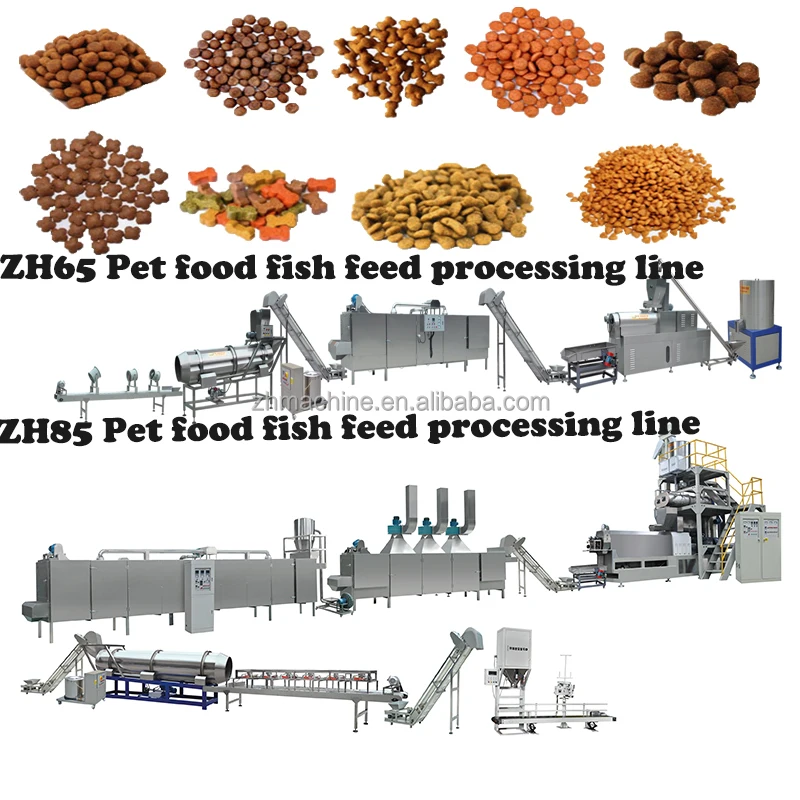

Automatic Extruded Dry Pet Dog Cat Food Treats Pellet Make Wet Production Line making Machines Line

Blend Mixer:

Motor: 3kw, 4kw, 7.5kw etc.

Capacity: 60kg/time, 100kg/time, 300kg/time, 500kg/time etc.
Material: stainless steel, carbon steel
Zhuoheng's Blend Mixer is a high standard two-way ribbon mixing machine. It includes material tank, screw mixing paddles and drive parts

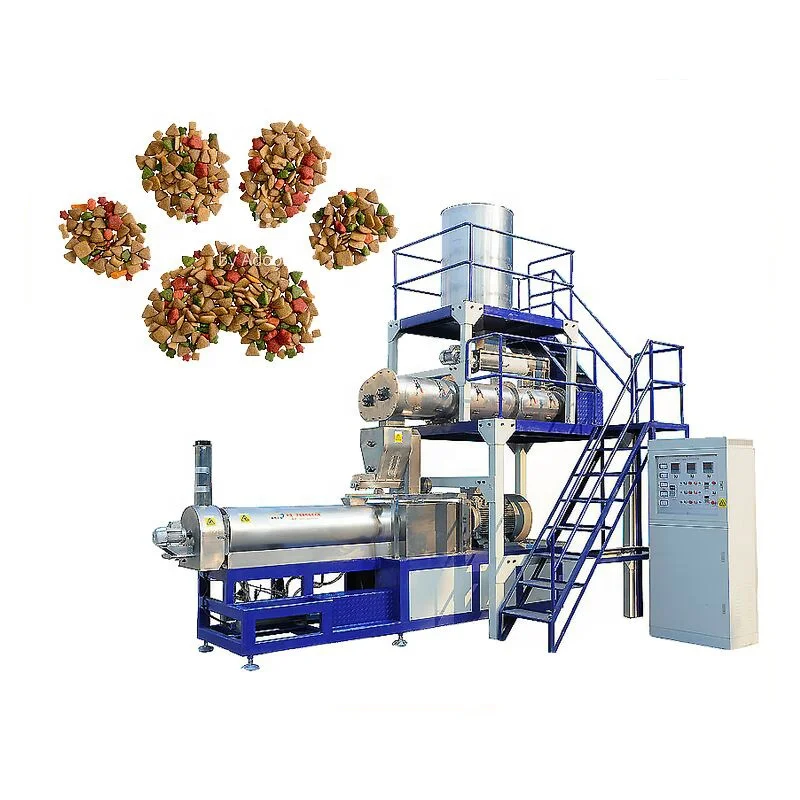

ZH 85 Double Screw Extruder Unit:

Motor: 55kw, 75kw etc.

Capacity: 500kg/h, 1000kg/h etc.
Material: Screw materials 38CrMoAl
stainless steel, carbon steel
Pet feed extrudr unit consist of bucket elevator, Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller and operation platform. The extruder includes drive system, extrusion system, cutting system, heating system, lubricating system and extraction steam system.

Dryer:

Type: 5 layers 5 meters, 5 layers 7 meters, 5 layers 12meters, 7 layers 12 meters.
Heating source: electric, gas, steam, oil, diesel.
Material: stainless steel, carbon steel
1. Heat With Infrared Ray Heating Tube, Raise And Lower Down Temperature Quickly, Small Heat Inertia And High Heat Efficiency.
2. Adjustable Transit Speed Of Net Belt With Accurate Temperature Control Device. Sliding Board Bottom Of Dryer For Easy Cleaning.
Hot Wind Cycle Device Makes Heating Energy Equally In The Dryer
3. Double-Roller Chain And Chain Drive Make Stable And Smooth Running

Single Drum Flavoring Line

Motor: 0.75kw, 1.1kw etc.
Capacity: 100kg-1000kg/h
Material: stainless steel
1. It’s consist of hoistor, drum machine, flavoring machine and oil sprayer.
2. The oil sprayer sprinkle the atomized oil to the products in the drum.By continuous rolling material, the drum will make oil and seasoner evenly adhere to the surface of products. To prevent feed leakage, the hoister is used wavy baffle belt.
3. The oil sprayer can bear high temperature and pressure. Safe and durable. Mixing atomized oil and products evenly in the flavoring drum.
4. Inverter to adjust the speed of spices. Easy to control.
5. The drum drive run stably .No slipping no jumping.
The whole unit is reasonable allocation, simple operation; All materials mixing well, excellent quality.

Packing Machine

Type: automatic, semi-automatic.
Weight range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material: stainless steel, carbon steel
1.The serious of electronic scale is net type,it using today’s latest technology,suitable for packing irregular materials.such as:fish dog cat food.melon seeds.peanuts.lotus seed.walnut etc.
2.Feeding system adopts a bariety of ways:double door type vibration feeding,feeding size and blanking instantaneous stop.
Gurantee the packaging accuracy and speed effectively.

Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

 After-Sales Service:

 * Training how to instal the machine

 *  Supply the formula

 * Engineers available to service machinery overseas
