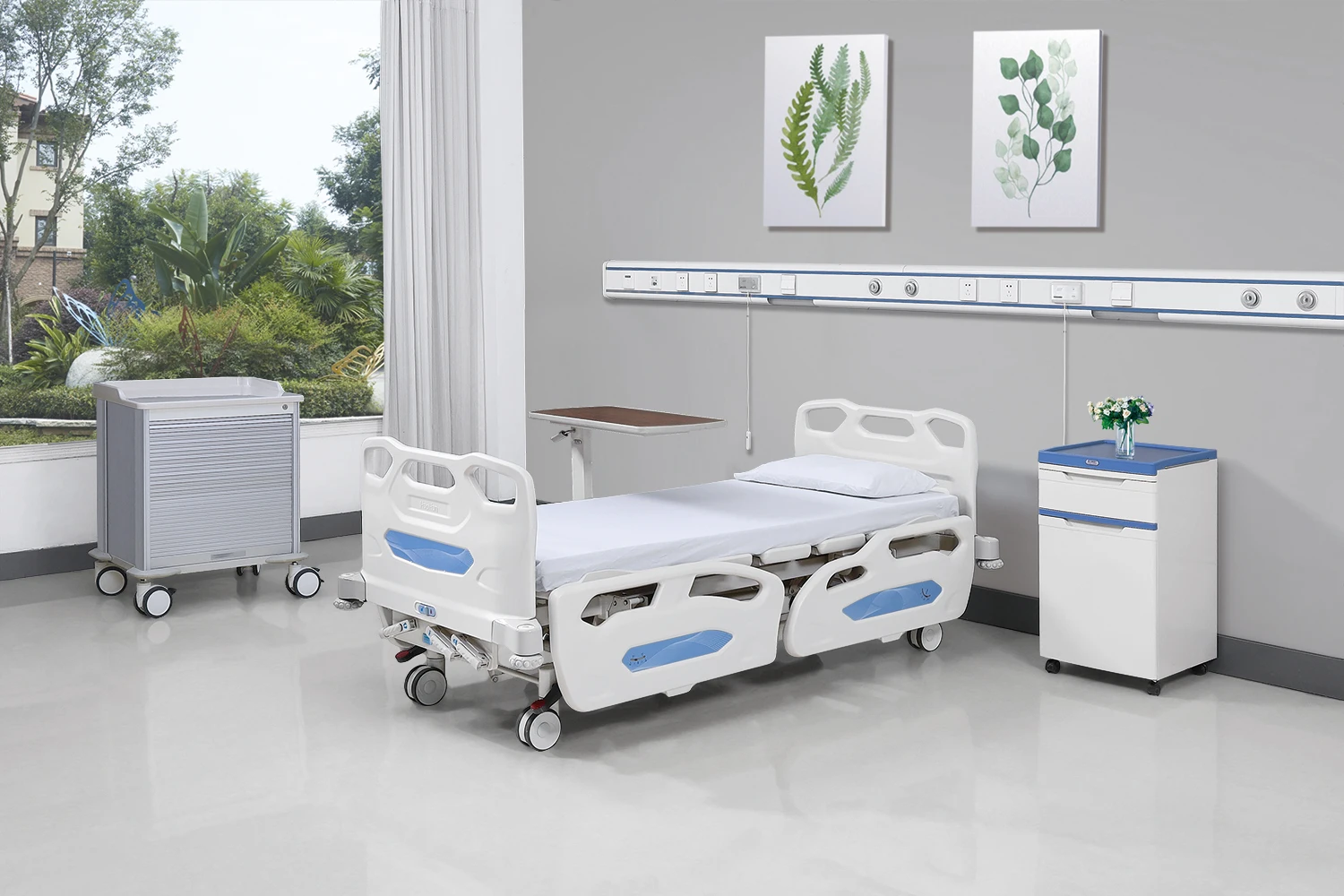

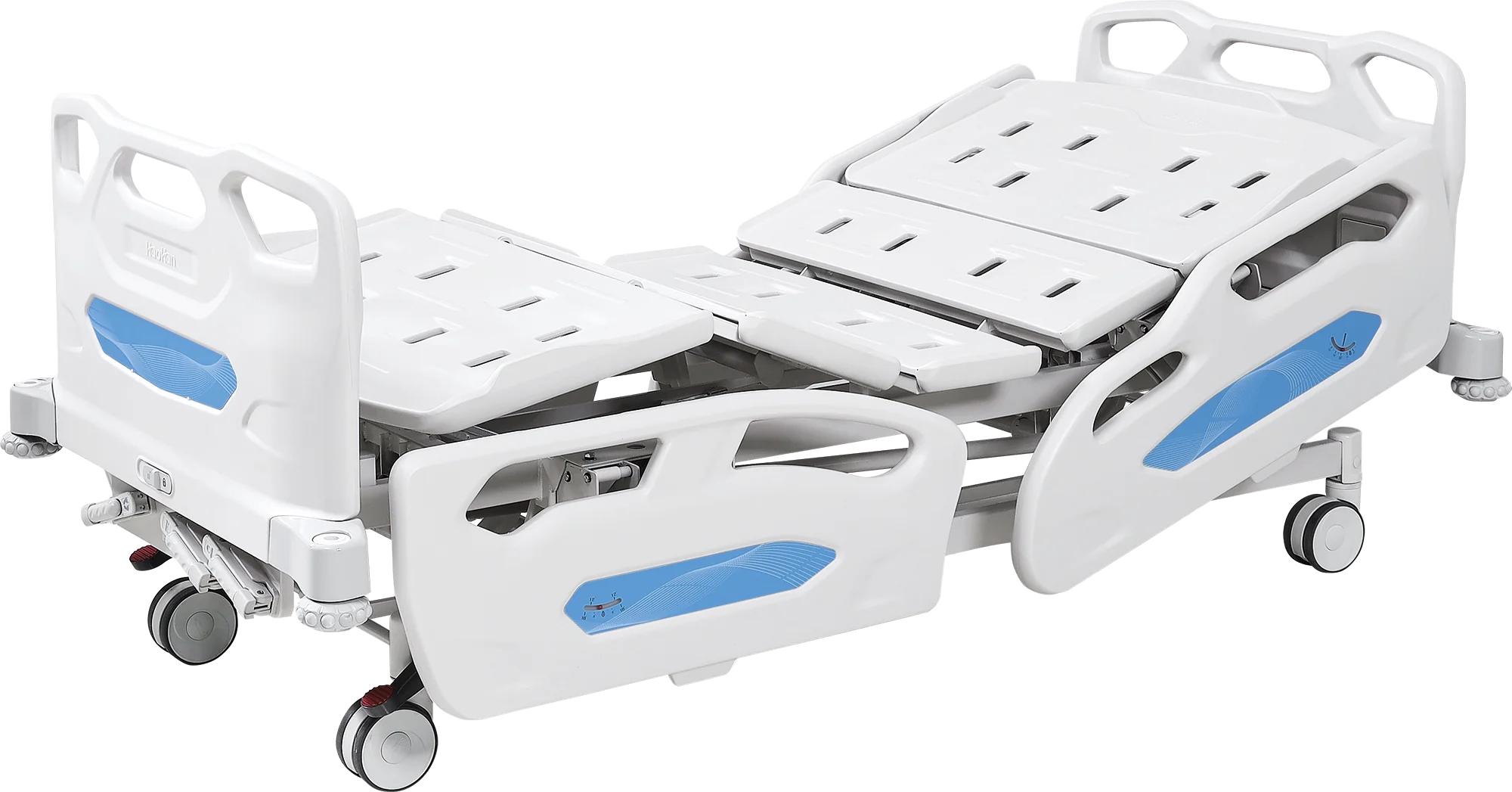

HH/SJC II G 010 Adjustable Metal Hospital Bed with 3 Crank Backrest Portable Manual Medical Bed 1 Year Warranty for Sale
- Category: >>>
- Supplier: Chengdu Haohan Medical Equipment Co. Ltd.
Share on (1601009911447):
Product Overview
Description
Features: |
* Quick removal of bedside |
* Removable and washable plastic bed surface |
* Two-way sliding screw device |
* Abdominal self-extension relief |
* Foot segment rack support |
* Whole Bed Lifting |
Parameter | Category |
Model | HH/SJC-Ⅱ-G-010 |
External L*W*H | 2270×1085×500～760mm |
Mattress Platform | 1960×900mm |
Safe Working Load | 135kg |
Maximum Static Load | 400kg |
Back Section Adjustable | 0～70°±5° |
Foot Section Adjustable | 0～45°±5° |
Angle Indicator | 0-90° |
Manual Cranks | 3 pcs |
Central Locking Castors | 4 pcs |
ABS Back Side Rail with Control | 1 pair |
ABS Foot Side Rail | 1 pair |
ABS Bed Ends One Step Removable | 1 set |
Drainage Hook | 4 pcs |
IV Pole | 1 pcs |
IV Stand Holder | 4 pcs |
Anti-collision Rubber | 4 pcs |
Mattress | Optional |
Advantage:
* The bedside locking structure adopts a plug-in shaft pin sliding locking device and has a switch mark.
* The enclosed safety guardrail gap is ≤60 mm, effectively avoiding the risk of falling.
* The double support arm unloading structure of the back section disperses the load-bearing force and reduces the deformation of the back plate when the load is unevenly distributed.
* Made up of 5 plastic panels, the bed surface can be quickly disassembled and washed.
* The back panel and lifting structure are separated for easy cleaning and disinfection.
* Electrophoresis and surface powder coating, double-layer coating technology.
* The calf board has 6 height adjustment levels to adjust the position.
* Indicator for lifting angle on the outside of back guardrail.
* The overall lifting thrust is synchronized with double-pull linkage structure, and the force is even and consistent.
* The enclosed safety guardrail gap is ≤60 mm, effectively avoiding the risk of falling.
* The double support arm unloading structure of the back section disperses the load-bearing force and reduces the deformation of the back plate when the load is unevenly distributed.
* Made up of 5 plastic panels, the bed surface can be quickly disassembled and washed.
* The back panel and lifting structure are separated for easy cleaning and disinfection.
* Electrophoresis and surface powder coating, double-layer coating technology.
* The calf board has 6 height adjustment levels to adjust the position.
* Indicator for lifting angle on the outside of back guardrail.
* The overall lifting thrust is synchronized with double-pull linkage structure, and the force is even and consistent.
