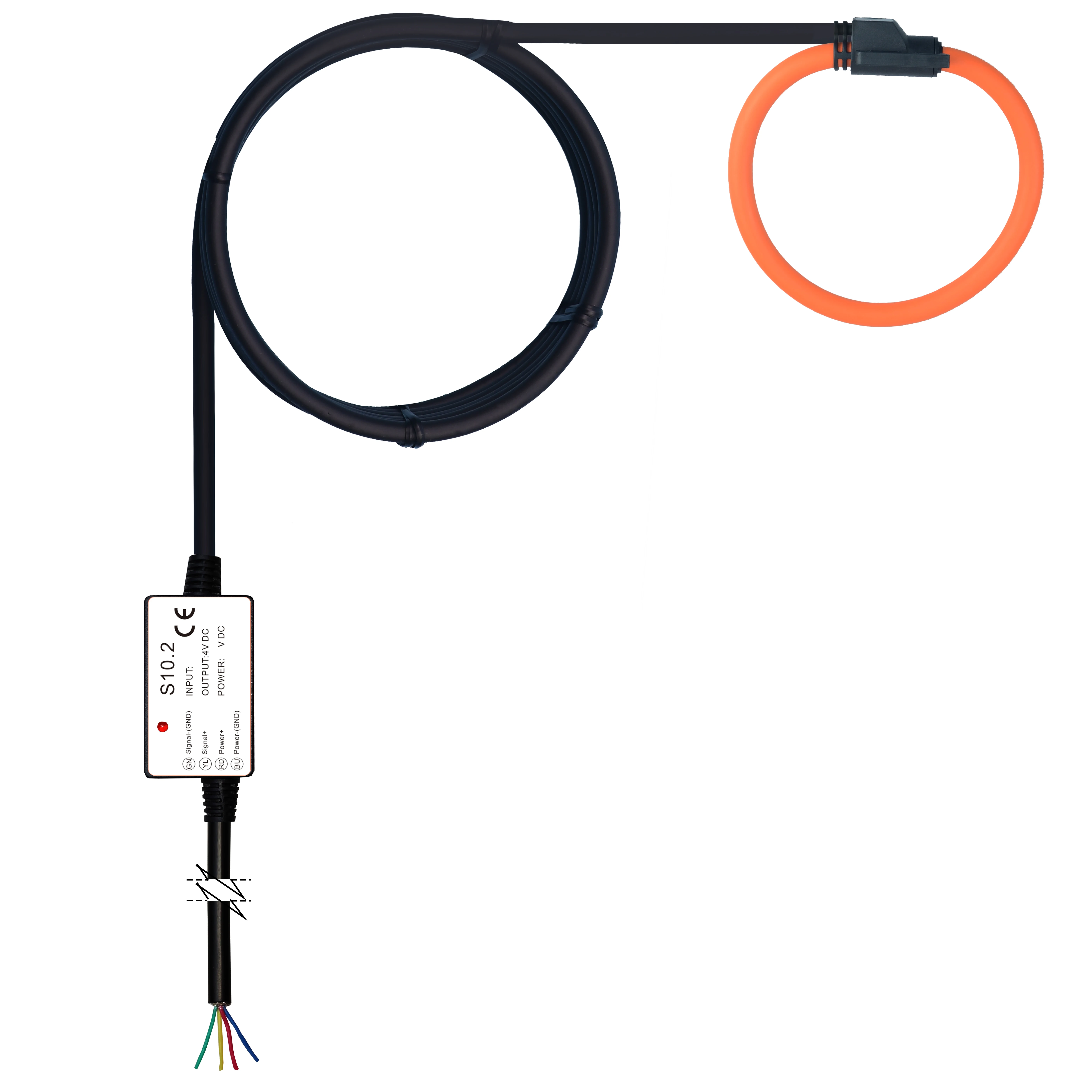

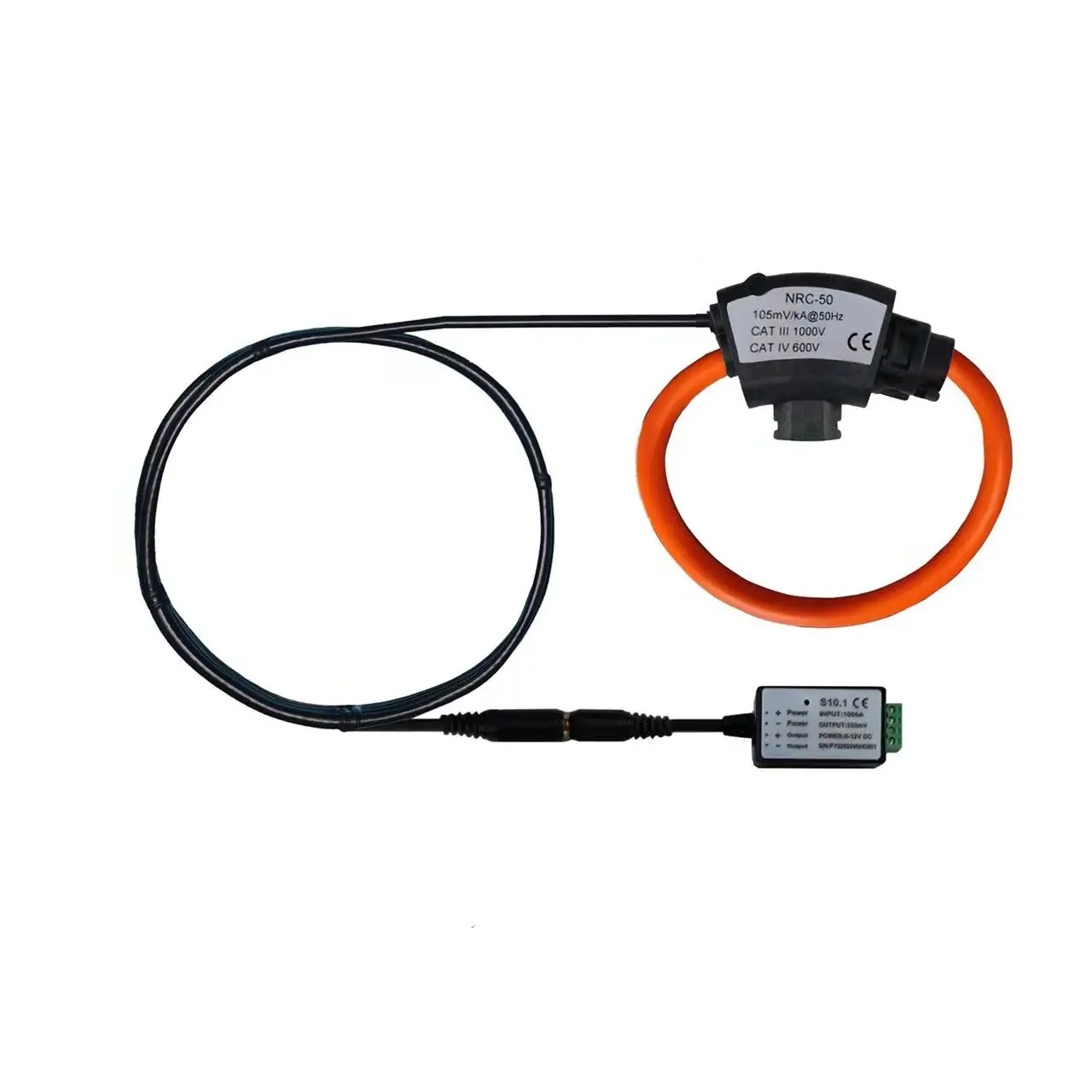

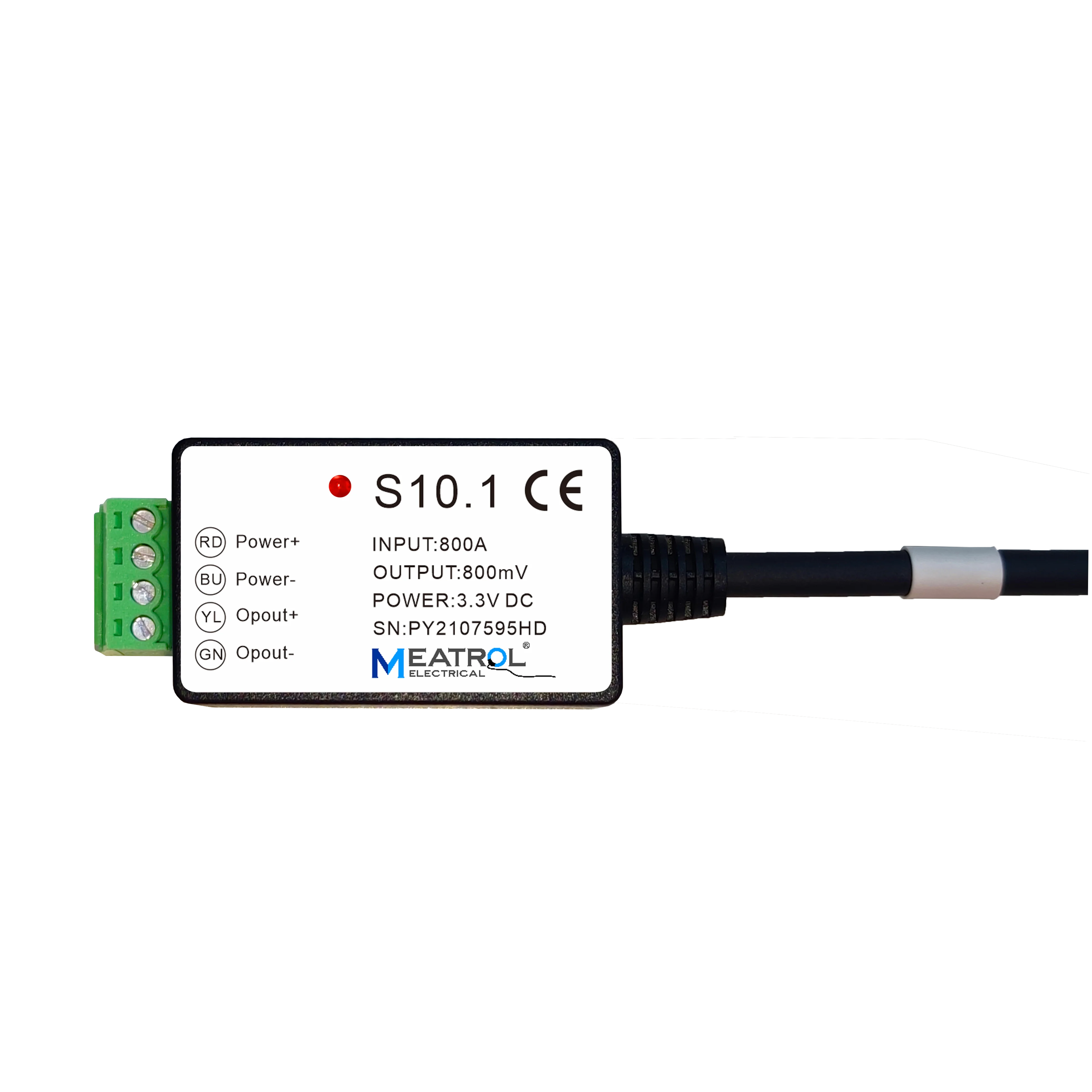

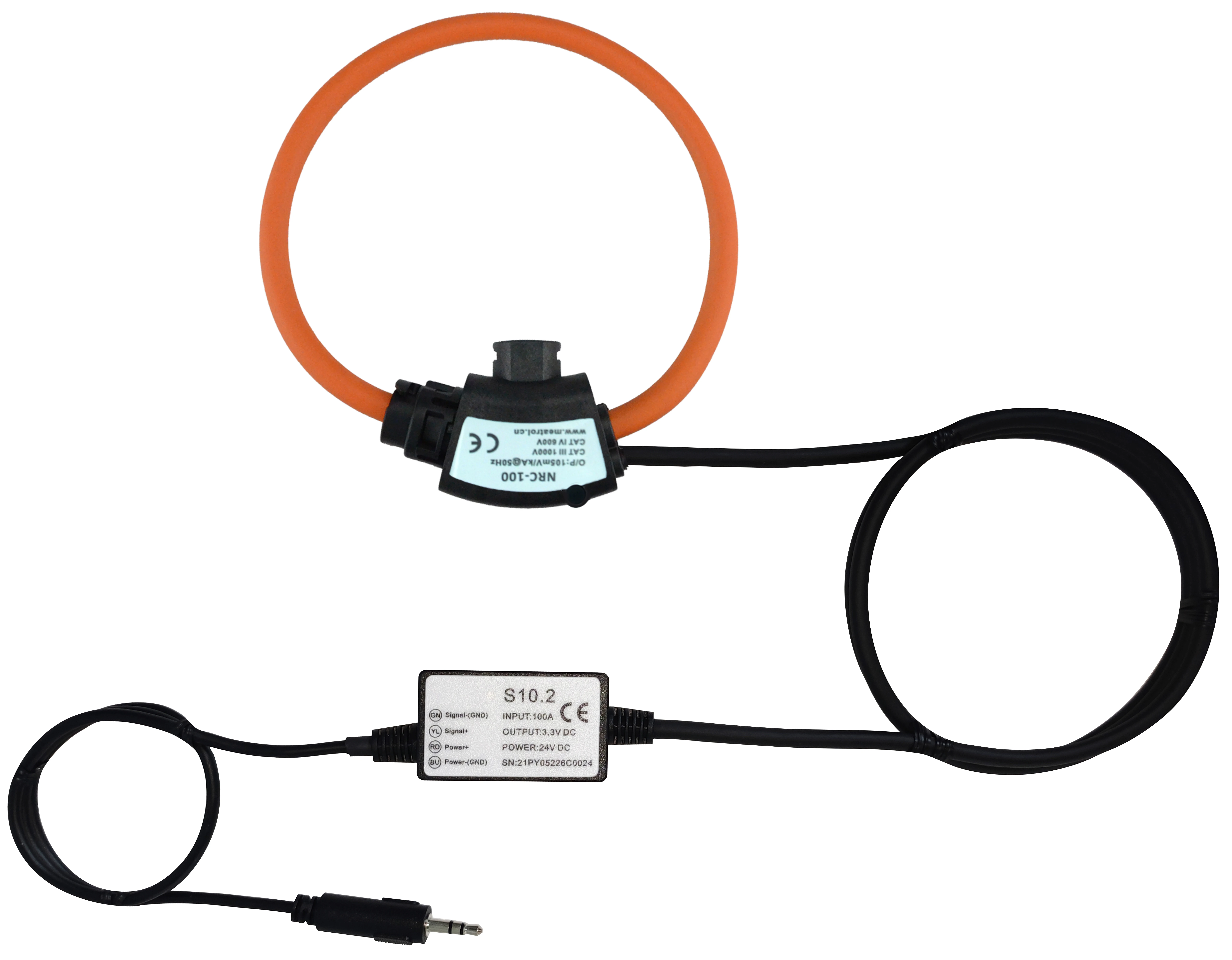

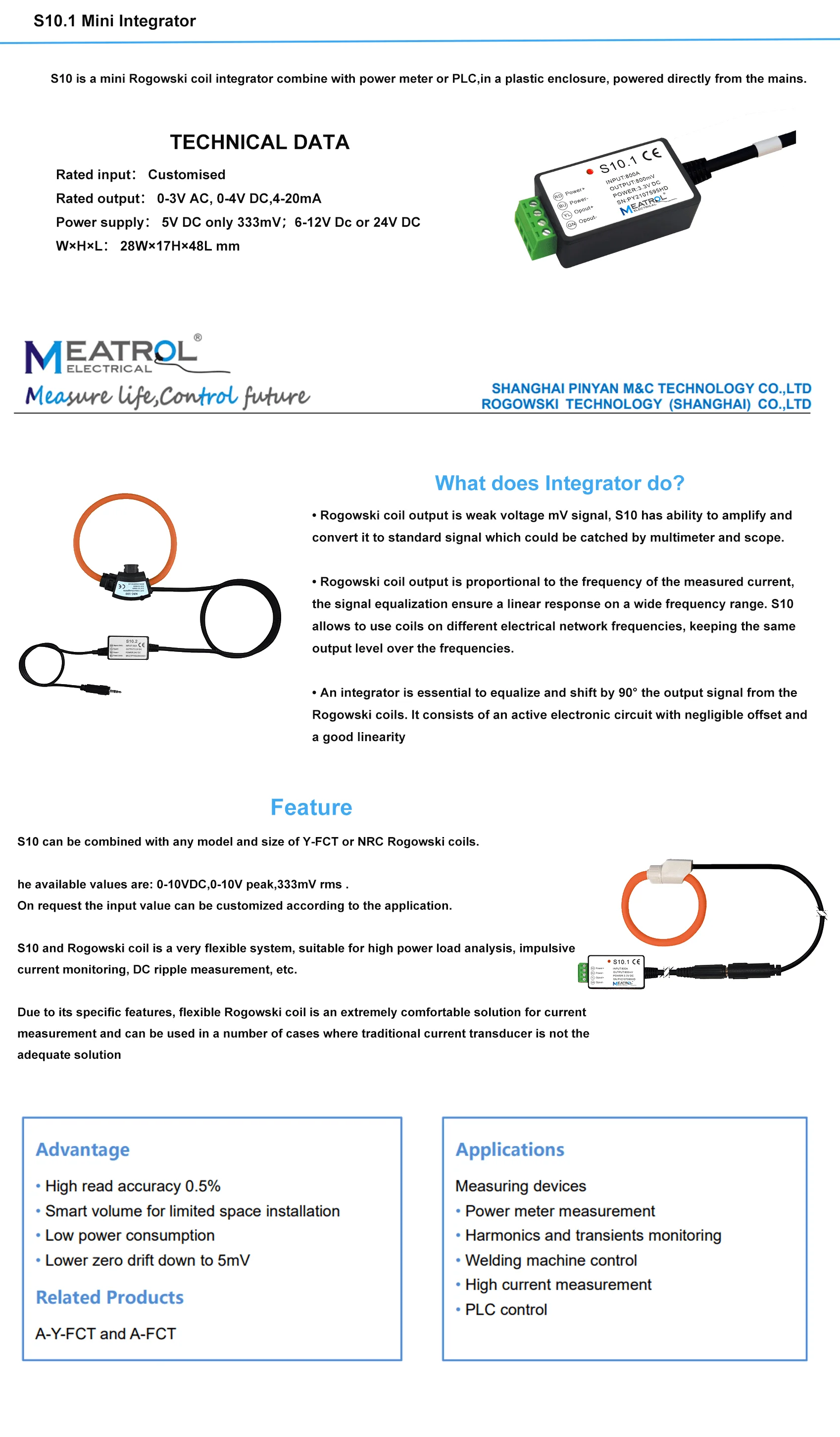

S10.1 Miniature Integrator Precision at 0.5%, Superior Linearity, Wide Dynamic Range, and Low Power Consumption
- Category: >>>
- Supplier: Shanghai Pinyan M&C Technology Co. Ltd.
Share on (1601009986265):
Product Overview
Description
Specification
Model | S10.1 | S10.2 | ||
Rated output | 333mV，3V AC rms | 4V DC(true-rms) | ||
Maximum Output(overload) | 4.5V AC peak | 4.5V DC | ||
Output Ripple factor | 1% | Default 5% (relay to Response time) | ||
Response time | ≤1us | Default 100ms(adjustable) | ||
Power consumption | 70mW | 100mW | ||
Bandwidth | 10Hz to 10kHz | 30Hz to 1kHz | ||
Power supply | 5V only for output 333mV; or 6-12V or 24VDC （universal for all output） | 5V only for output 333mV； or 6-12V or 24VDC （universal for all output） | ||
Rated Input | 100A 600A 1000A 3000A 6000A | |||
Read Accuracy | 1% typical at 1%(≥10A) to 200% of rated Current @25℃ | |||
Phase error | ≤0.5° | |||
Linearity | ±0.2% of reading(1% to 200% of range) | |||
Minimum Current measurement | 1A (Ripple 100mA) | |||
Output on 0A （zero drift） | ≤5mV （rated outut ≥2.5V：zero drift<10mV） | |||
Temperature drift | 200ppm/℃ | |||
Dimension | 48L*28*17mm | |||
Protection degree: | IP20 | |||
Other requirements, please contact us to OEM. | ||||
