  • Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe
Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe

Hdpe Pipe Supplier In Saudi Arabia Standard Sizes 2 6 8 Inch 500Mm Dubai Sdr 26 Pn10 Pe 100 250Mm Hdpe Sprinkler Hdpe Pipe

Share on (1601009997678):


Price:$0.69 - $8.90

Quantity:


Product Overview

Description



Uae Kenya Supplier Manufacturers Grade High Density Polyethylene Poly Sizes And Classes Sdr 17 110 Mm Plastic Hdpe Pipe Prices


Company Profile






Applications


1. Municipal engineering water supply and drainage.
2. Chemical industry water supply and drainage.
3. Mining area slurry transportation.
4. Farmland irrigation and animal husbandry.
5. Fish farming & breeding system.
6. Seawater desalination & water treatment.




Precautions:
DO ✔：
Keep the pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Before you need to use pipes
and fittings, keep the protective packaging intact. Prevent dust or other materials from entering the pipe. Untie the pipe and
allow it to heat up in the sun before burial.

DON"T ❌:
Throw pipe from delivery vehicles. Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive
materials. Heat pipe with an open flame.


Certifications




Products Description


Supply
HDPE pipes and fittings
Standard
ISO4427/ IPS/DIPS
Sizes
DN110-DN800mm




HDPE pipe is a perfect solution for municipal engineering system and urban water supply and drainage system. HDPE pipe adopts high-quality original PE100 or PE80 raw material with the size range of DN 20-2500mm, and the performance conforms to ISO4427 standard and other national certification standards. HDPE pipes for water supply can be manufactured with different rated pressures mainly: SDR26/0.6MPa, SDR21/0.8MPa, SDR17/1.0MPa, SDR13.6/1.25MPa, SDR11/1.6MPa, etc.


Product Paramenters


HDPE Pipe Size
PN2.0MPa
PN1.6MPa
PN1.25MPa
PN1.0MPa
PN0.8MPa
PN0.6MPa
SDR 9
SDR 11
SDR 13.6
SDR 17
SDR 21
SDR 26
OD(inch)
OD
(mm)
thickness
thickness
thickness
thickness
thickness
thickness
4
110
12.3
10.0
8.1
6.6
5.3
4.2
5
125
14.0
11.4
9.2
7.4
6.0
4.8
140
15.7
12.7
10.3
8.3
6.7
5.4
6
160
17.9
14.6
11.8
9.5
7.7
6.2
7
180
20.1
16.4
13.3
10.7
8.6
6.9
8
200
22.4
18.2
14.7
11.9
9.6
7.7
225
25.2
20.5
16.6
13.4
10.8
8.6
10
250
27.9
22.7
18.4
14.8
11.9
9.6
11
280
31.3
25.4
20.6
16.6
13.4
10.7
12
315
35.2
28.6
23.2
18.7
15.0
12.1
14
355
39.7
32.2
26.1
21.1
16.9
13.6
16
400
44.7
36.3
29.4
23.7
19.1
15.3
18
450
50.3
40.9
33.1
26.7
21.5
17.2
20
500
55.8
45.4
36.8
29.7
23.9
19.1
22
560
62.5
50.8
41.2
33.2
26.7
21.4
24
630
70.3
57.2
46.3
37.4
30.0
24.1
28
710
79.3
64.5
52.2
42.1
33.9
27.2
32
800
89.3
72.6
58.8
47.4
38.1
30.6

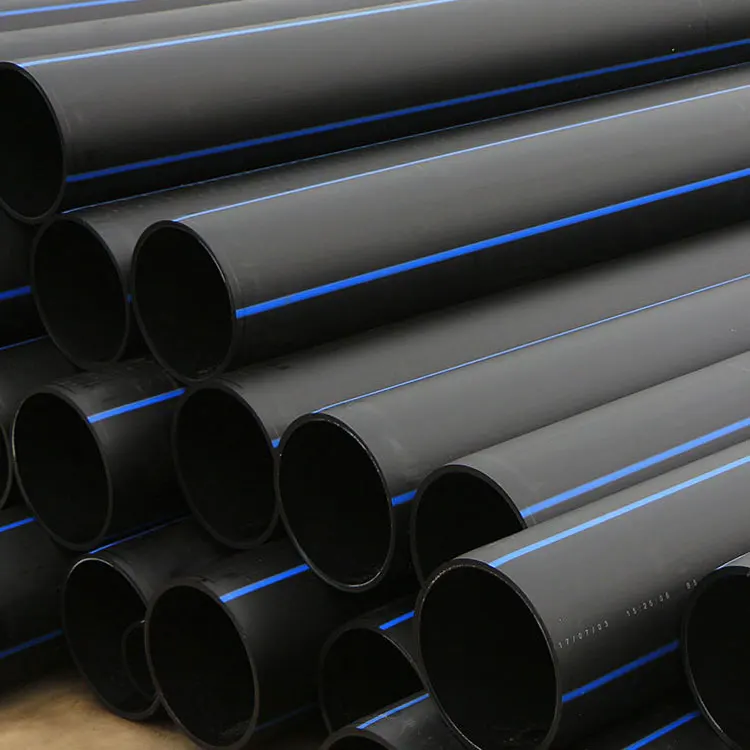

Details Images


Features Of HDPE Pipe
Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy.
1. High resistant to corrosion and weather, recent studies conclude it will last at least 50 years.
2. Its light weight and flexibility make it easy to install, eliminating the need for fittings required with directional changes,
and make it highly suitable for use in earthquake prone areas.
3. Its high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation.
4. The increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.

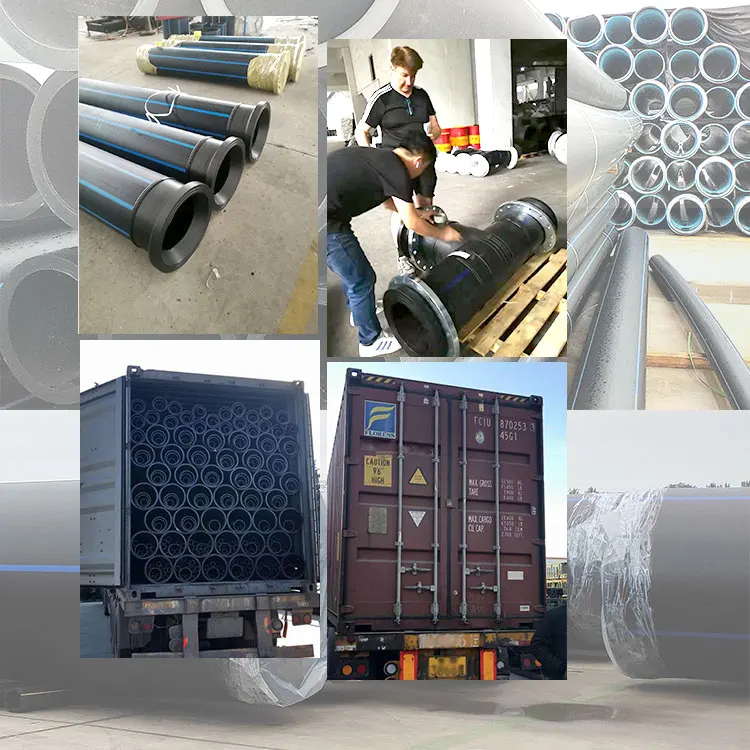

Packing&Shipping




FAQ


Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately.More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: Do you havecustomized pipe and fittings?
A: We can make any plastic pipe and fittings according customer drawings.

Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
