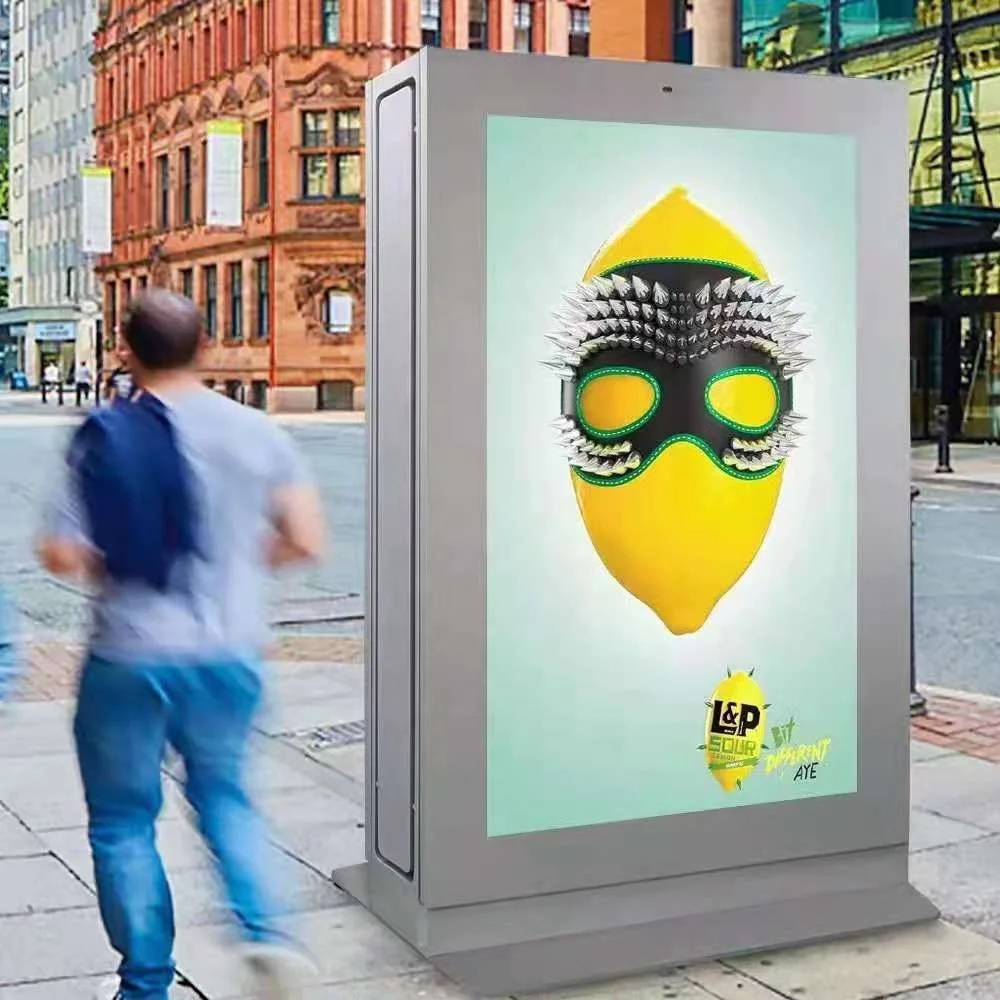

4K Outdoor TOTEM Sun readable standing bus station Digital Signage, 2500cd/m2 brightness
- Category: >>>
- Supplier: Shenzhen Yaxunda Lcd Display Equipment Co. Ltd.
Share on (1601010013583):
Product Overview
Description
55inch / 65inch / 75inch / 86inch outdoor totem, Sun readable standing bus station outdoor digital signage, 2500cd/m2 brightness
Panel Size: 55 Inch-86inch
Brightness:2500cd/M2( 2000cd/M2 & 3000cd/M² Option)
7*24 Hours: Yes
Resolution: 3840x2160
Cooling System:Fan cooling (Air-conditioner cooling system Option)
Waterproof: Yes
Dustproof: Yes
----------------------------------------------------------------
Brightness:2500cd/M2( 2000cd/M2 & 3000cd/M² Option)
7*24 Hours: Yes
Resolution: 3840x2160
Cooling System:Fan cooling (Air-conditioner cooling system Option)
Waterproof: Yes
Dustproof: Yes
----------------------------------------------------------------
1. CE/FCC/ROHS/IP55 certificate.
2. IK10 temperated AR Glass, transmittance 99%, tempered explosion-proof.
3. LED direct backlight, brightness 2500 and 3000nits，3500nits, visible under sunlight.
4. Reliable 24/7 operation with a simple solution for remote content management.
5. Available as a wall mounted and floor standing screen from sizes 43″ through to 86″
6. 4K resolution, support UHD, FHD display
Optional
7. Double-Side Screens or LCD Screen on one side and Light Box on the other
8. PCAP touch screen
9. Windows / Android / HDMI input ports
10. Audience measurement
2. IK10 temperated AR Glass, transmittance 99%, tempered explosion-proof.
3. LED direct backlight, brightness 2500 and 3000nits，3500nits, visible under sunlight.
4. Reliable 24/7 operation with a simple solution for remote content management.
5. Available as a wall mounted and floor standing screen from sizes 43″ through to 86″
6. 4K resolution, support UHD, FHD display
Optional
7. Double-Side Screens or LCD Screen on one side and Light Box on the other
8. PCAP touch screen
9. Windows / Android / HDMI input ports
10. Audience measurement
Manufacturing Technique
Panel Size | 55"(16:9) | Operating System | Android |
Resolution | 3840x2160 | CPU | Android RK3288 |
Pixel Pitch | 0.420 mm x 0.315 mm | Memory | 2GB |
Contrast ratio | 1400:1 | Storage | 8GB/ 16GB |
Active area | 1210 x 680 | OS | Android 5.1/7.1 |
Brightness | 2500cd/m2 | Storage port | USB, SD card, SATA port hard disk storage |
Viewing angle | 89/89/89/89 | WiFi | Yes, inbuild WiFi(802.11b/g/n); 3G/GPS/Bluetooth(optional) |
Camera | Optional | Other ports | USB x 2, SD x 1, RJ45 x 1, HD -MI out x 1,Audio out x 1 |
Products Description
1. Bus Shelters / Train Station
Advertising Display In Bus Shelters / Train Station, Collect The Gaze Eyes And High Footfalls Near Bus/Train Stops
2. Street Totem Kiosk
For Pedestrians And Vehicles On The Road, 75inch Large-Size 4k Advertising Promotion And Information Display.
At The Same Time Can Provide Daily Map And Information Query
3. Retail Display
Stand Outside Buildings, Stores, Restaurants, Supermarket, Parking Station Etc
Provide Classified Advertisements For Different Crowd. Easy Renew The Promotion Advertising Every Day, Every Time.
4. Brightness Adjustable
Brightness adjustable, Let The Screen Display Adjust Based On Different Time Of Day And Night, Which Can Provide The Best
Experience To The Viewer.
It Also Allows To Extends The Life Of Screen And Save Energy Costs, Lower Heat
5. Various Content
Support Video, Picture, File, Audio, Subtitle, Webpage Etc
6. Long Remote Content Management System
Engineers can achieve 90% monitoring and management in the office
Support long-distance online publishing, monitor current broadcast programs, manage multiple devices etc
Advertising Display In Bus Shelters / Train Station, Collect The Gaze Eyes And High Footfalls Near Bus/Train Stops
2. Street Totem Kiosk
For Pedestrians And Vehicles On The Road, 75inch Large-Size 4k Advertising Promotion And Information Display.
At The Same Time Can Provide Daily Map And Information Query
3. Retail Display
Stand Outside Buildings, Stores, Restaurants, Supermarket, Parking Station Etc
Provide Classified Advertisements For Different Crowd. Easy Renew The Promotion Advertising Every Day, Every Time.
4. Brightness Adjustable
Brightness adjustable, Let The Screen Display Adjust Based On Different Time Of Day And Night, Which Can Provide The Best
Experience To The Viewer.
It Also Allows To Extends The Life Of Screen And Save Energy Costs, Lower Heat
5. Various Content
Support Video, Picture, File, Audio, Subtitle, Webpage Etc
6. Long Remote Content Management System
Engineers can achieve 90% monitoring and management in the office
Support long-distance online publishing, monitor current broadcast programs, manage multiple devices etc
Customer Photos

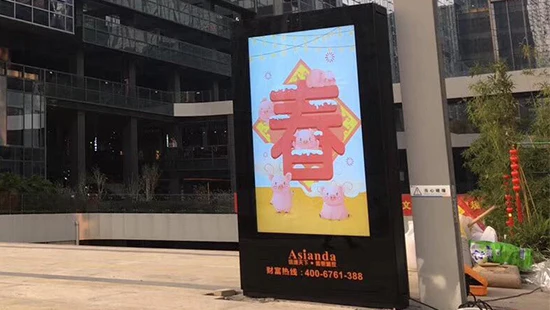

Street advertising player

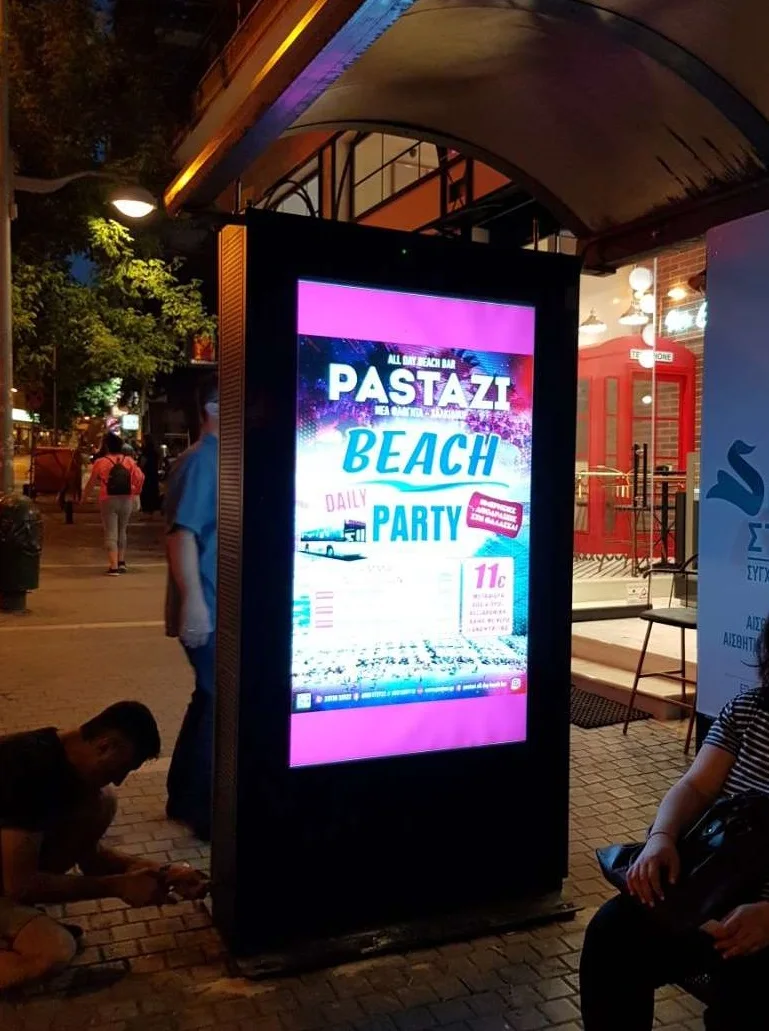

Bus station advertising player

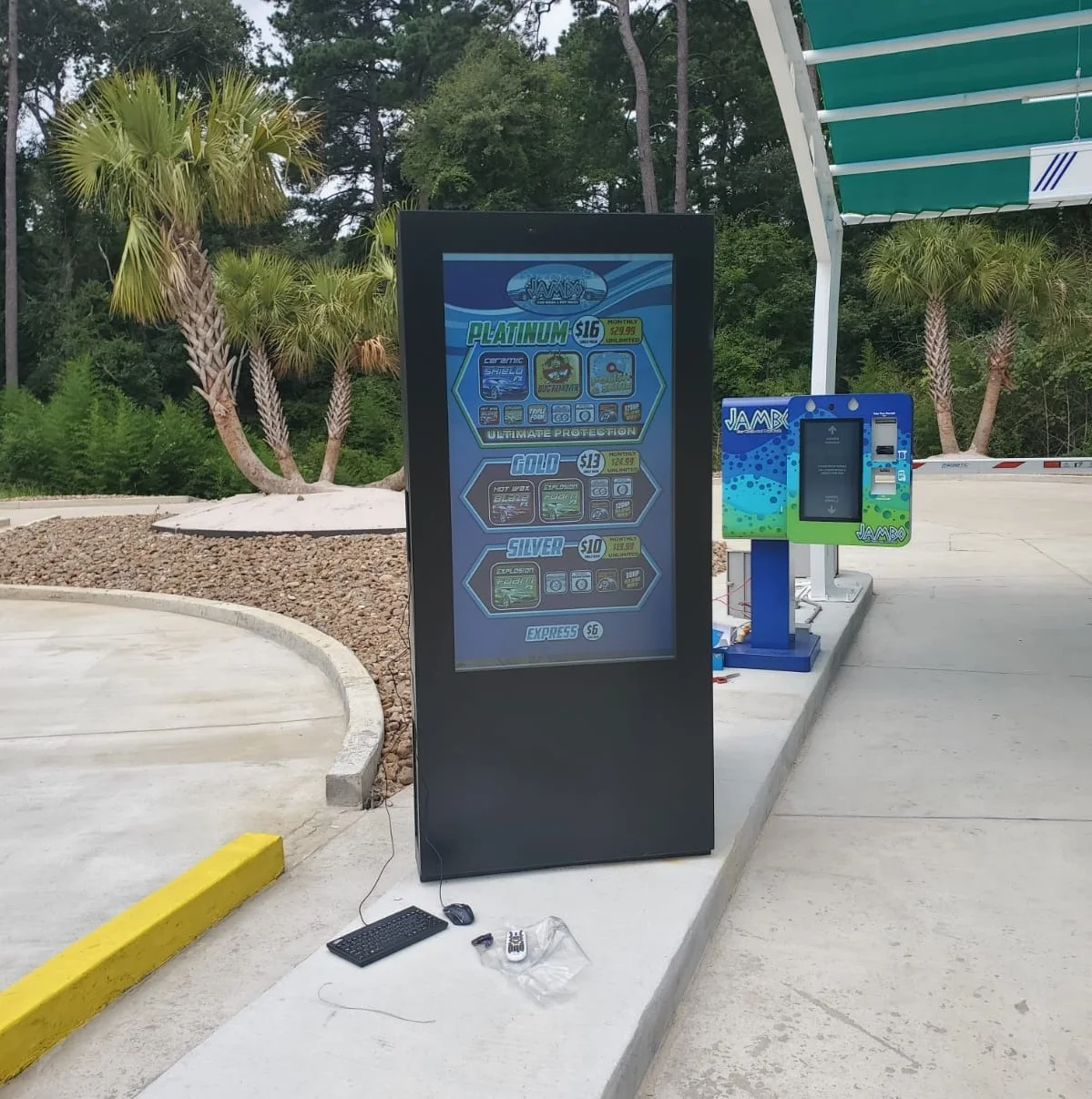

Car parking lot entrance advertising player
Bus station advertising player
Bus station advertising player
Playground, double-sided horizontal screen solution advertising player
UP open solution-Street advertising player
Street advertising player
Train / Air station advertising player

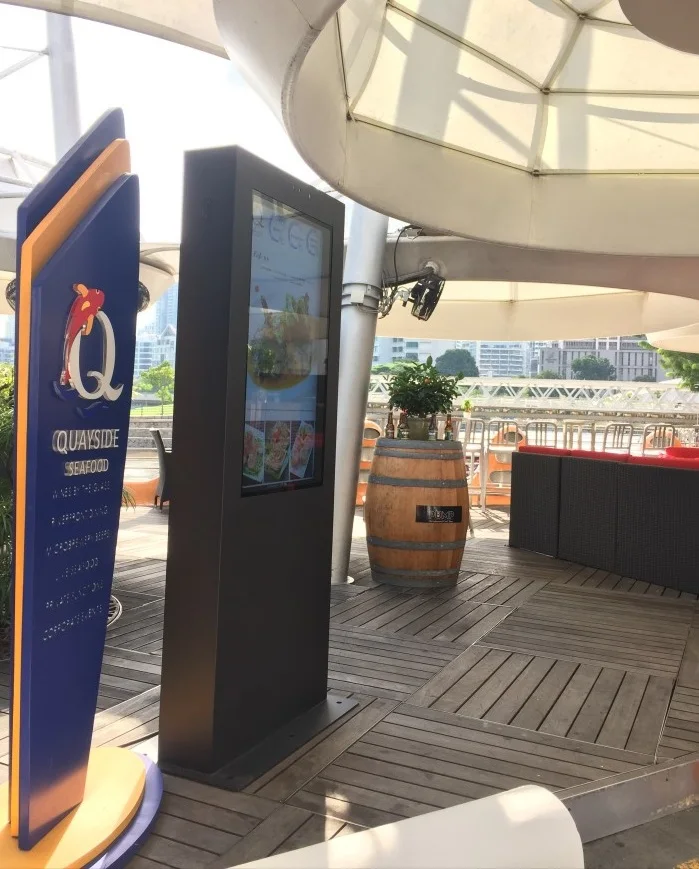

Outside the restaurants
Outside the office building
Our Advantages

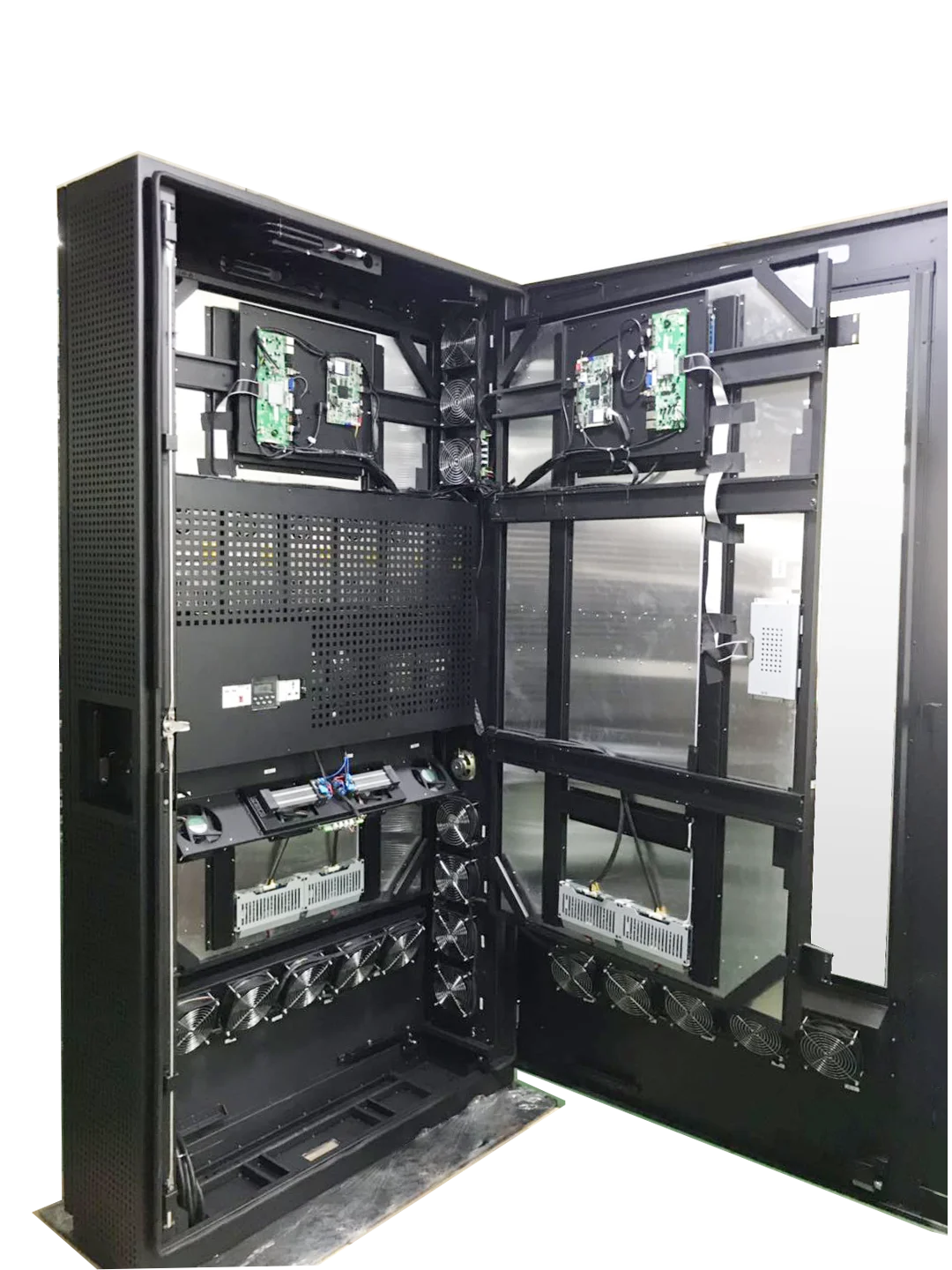

Hide Air Inlet/outlet fans
Hide Air Inlet /outlet (inside)
Side - Hide Air Inlet/outlets
Option 1: Hydraulic opening and closing structure
Option 2: Side door structure
Option 1: Fan cooling system (-20-50 degree)
Option 2: Air condition (-30 - 60 degree)
Ensure the safety of users and equipment, and provide multiple protections.
Lightning protection
Exceeding load protection
Leakage Protection
Over temperature protection

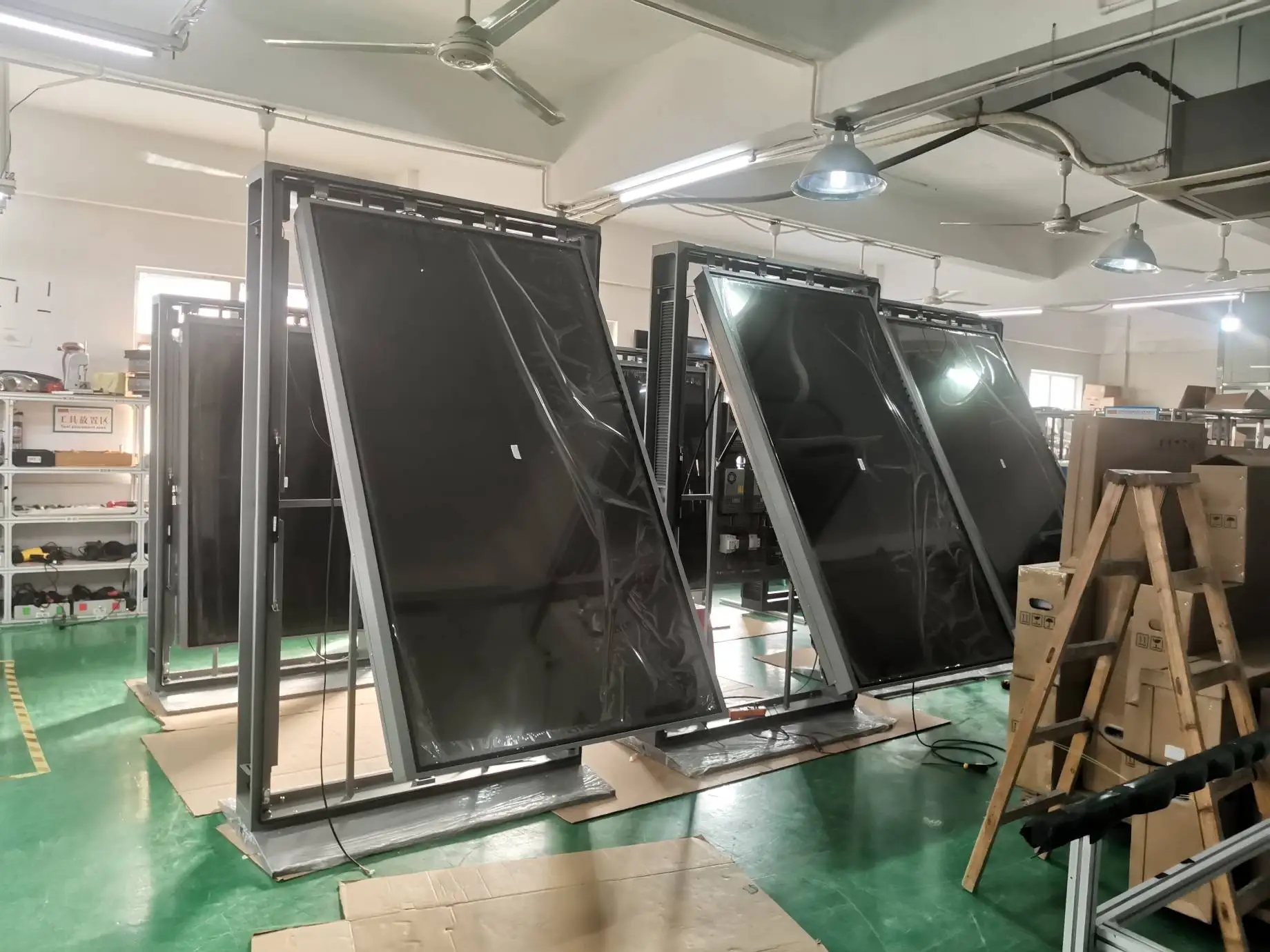

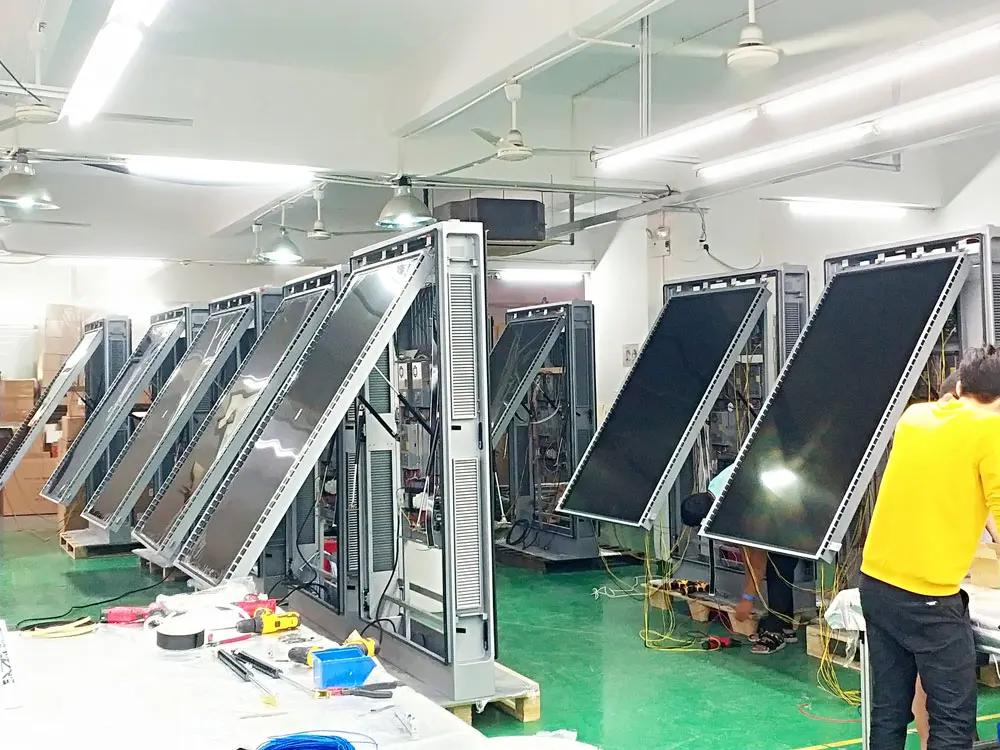

Production Pictures
Company Information
Shenzhen Yaxunda Lcd Display Equipment Co., Ltd.
Was Established In 2001 By A Group Of Entrepreneurs Who Were Running Successful Flat TV Business In China. Led By The Chief Founder Mr. Daniel Ouyangwho Saw A Great Opportunities In The Growing Digital Signage Sector And Set Up One Of The First Commercial LCD Factories , The Company Had Grown Into A Leading Firm With Over 30 Million US Dollar Annual Sales. The Company Has Become A One-Stop Shop For All Kinds Of Professional LCD Display Products In Virtually Any Size Below 120 Inches, Such As Indoor And Outdoor LCD Advertising Display, 4K LCD Video Walls, Touch Interactive Kiosks, Digital Signage, Good At Large LCD Screen Project, And Commercial Lcd Advertising Display.
After More Than 15 Years Development, We Are Proud To Be One Of The Top 5 Suppliers In Asia. Our Products Are Equipped With High Profile Components From Chimei, AUO, Samsung, LG And Sharp, To Whom We Have Set Up Good Business Relations And The CEOs And VPs Of These Panel Suppliers Visited Us In China Frequently. And Our Design Engineers And Quality Assurance Teams Work Closely Together To Make Sure All Products Are Compliant With , CE, FCC, UL And RoHS Standards. Due To Us Conforming To The International Standards, Exporting Business Accounts For About 65 Percent Of The Total Revenue.
After More Than 15 Years Development, We Are Proud To Be One Of The Top 5 Suppliers In Asia. Our Products Are Equipped With High Profile Components From Chimei, AUO, Samsung, LG And Sharp, To Whom We Have Set Up Good Business Relations And The CEOs And VPs Of These Panel Suppliers Visited Us In China Frequently. And Our Design Engineers And Quality Assurance Teams Work Closely Together To Make Sure All Products Are Compliant With , CE, FCC, UL And RoHS Standards. Due To Us Conforming To The International Standards, Exporting Business Accounts For About 65 Percent Of The Total Revenue.
