DN150mm PTFE Tantalum Electrode Electromagnetic Flowmeter Chloric Acid Wastewater Rubber Digital Magnetic Flow Meter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1601010033708):
Product Overview
Description
Products Description

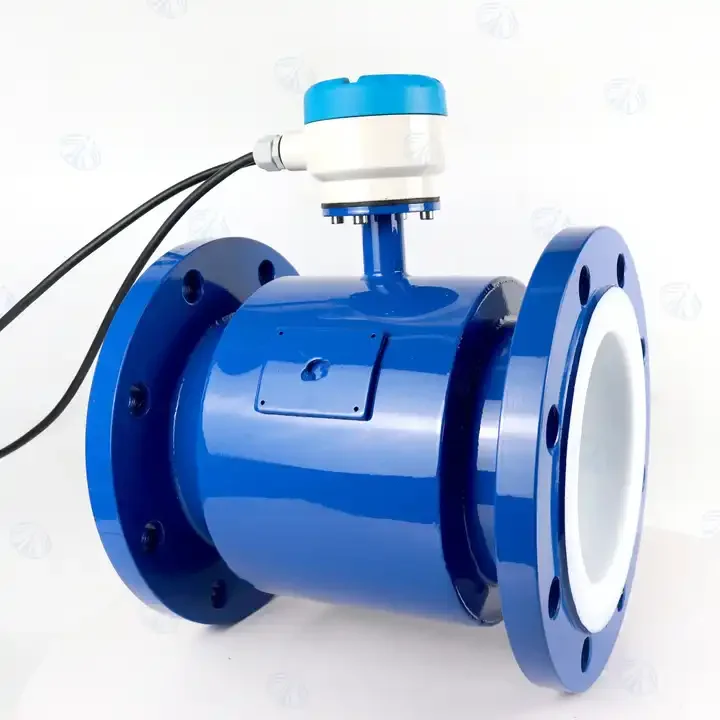

DN150mm PTFE Tantalum Electrode Electromagnetic Flowmeter Chloric Acid Wastewater Rubber Digital Magnetic Flow Meter
Price 2 inch Conductive Liquid Split Type Electromagnetic Flowmeter Flow Meter introduction: 1. Variety of power supply methods 220VAC/ 24VDC/battery and signal output using RS485 serial communication interface , and support MODBUS/RTU protocol, GPRS and other way of communications as well as accumulative pulse output. 2. It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries. |
Product Feature
Manufacturers Salt Solution Split Electromagnetic Flowmeter features: | ||||||||
1. | There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming. | |||||||
2. | Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity. | |||||||
3. | Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes | |||||||
4. | The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS. | |||||||
5. | With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss. | |||||||
Specification
Product name: | Flange Electromagnetic flow meter |
Size: | DN6~DN3000mm |
Medium: | Conductive liquid, slurry |
Medium Temperature: | E grade∠60°C.H grade∠180°C |
Conductivity: | ≥5 u S/cm |
Accuracy: | ±0.25% . ±0.5% |
Repeatability: | ±0.1% . ±0.17% |
Rated Pressure: | 0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer ) |
Display : | Instantaneous flowrate, total flow, velocity, flowrate percentage with back light |
Signal Output: | 4-20mA current output, pulse output, pulse output, RS-485, Hart. |
Power Supply: | AC:85V~265V, DC:18V~38V |
Converter Type: | Integral, remote |
Protection Grade: | IP67/IP68 |
Explosion Proof: | Ex deibmb IIC T3~6 |
Velocity: | 0.05~12m/s ( 0.1~15m/s as required ) |
Liner: | PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/ F46(FEP) (DN10~DN200)/ PFA (DN10~30) |
Flowing Direction: | Forward, Reverse |
Electrode Material: | 316L, Pt, Ta, Ti, HB, HC, WC |
Flange Material: | SS/CS |
Alarm (normal open): | Empty, excitation, upper/lower limit |
Ambient: | Temperature: -30~+60°C, Humidity: <90% |
Protocal: | RS-485/ Hart |
Details Images

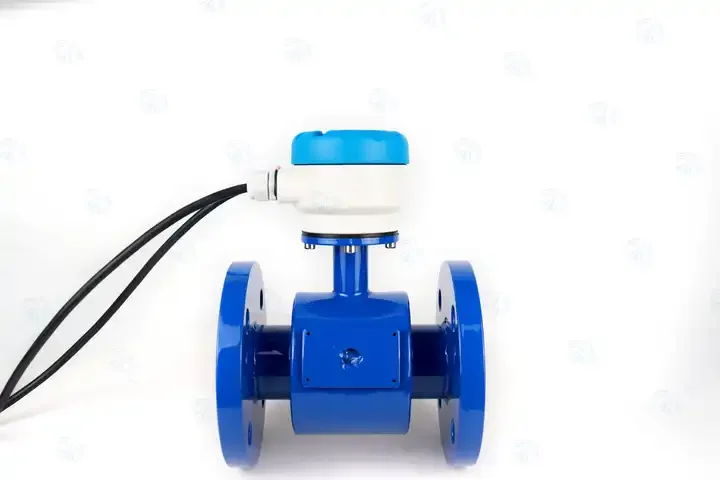

The body material can be customized as carbon steel/304/316 stainless steel.
Liners and electrodes are provided with product suggestions based on medium,

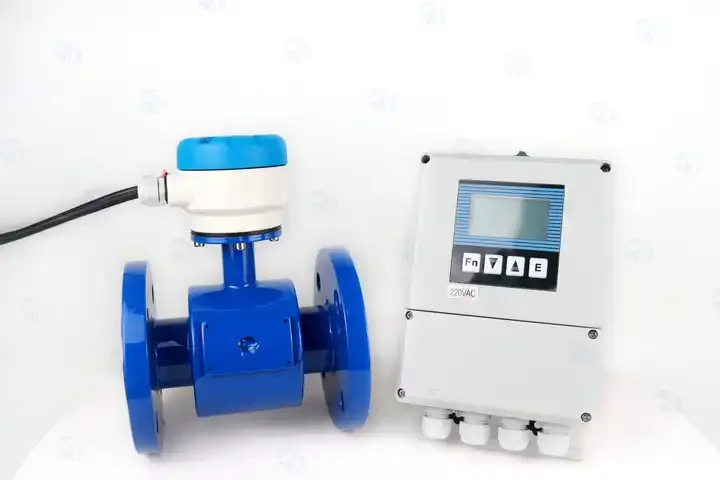

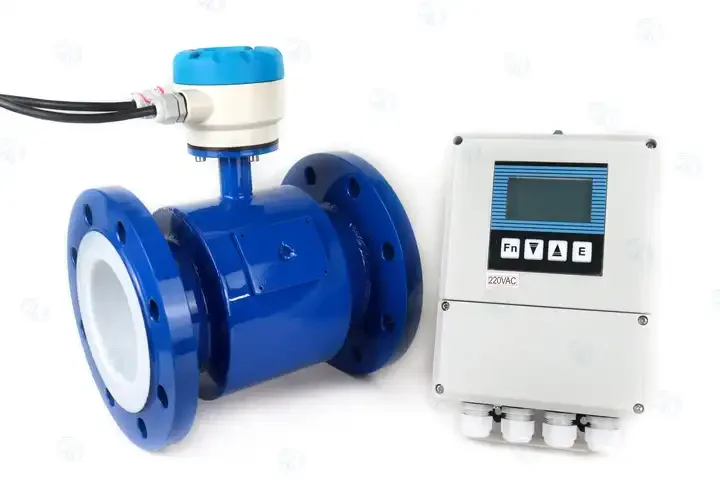

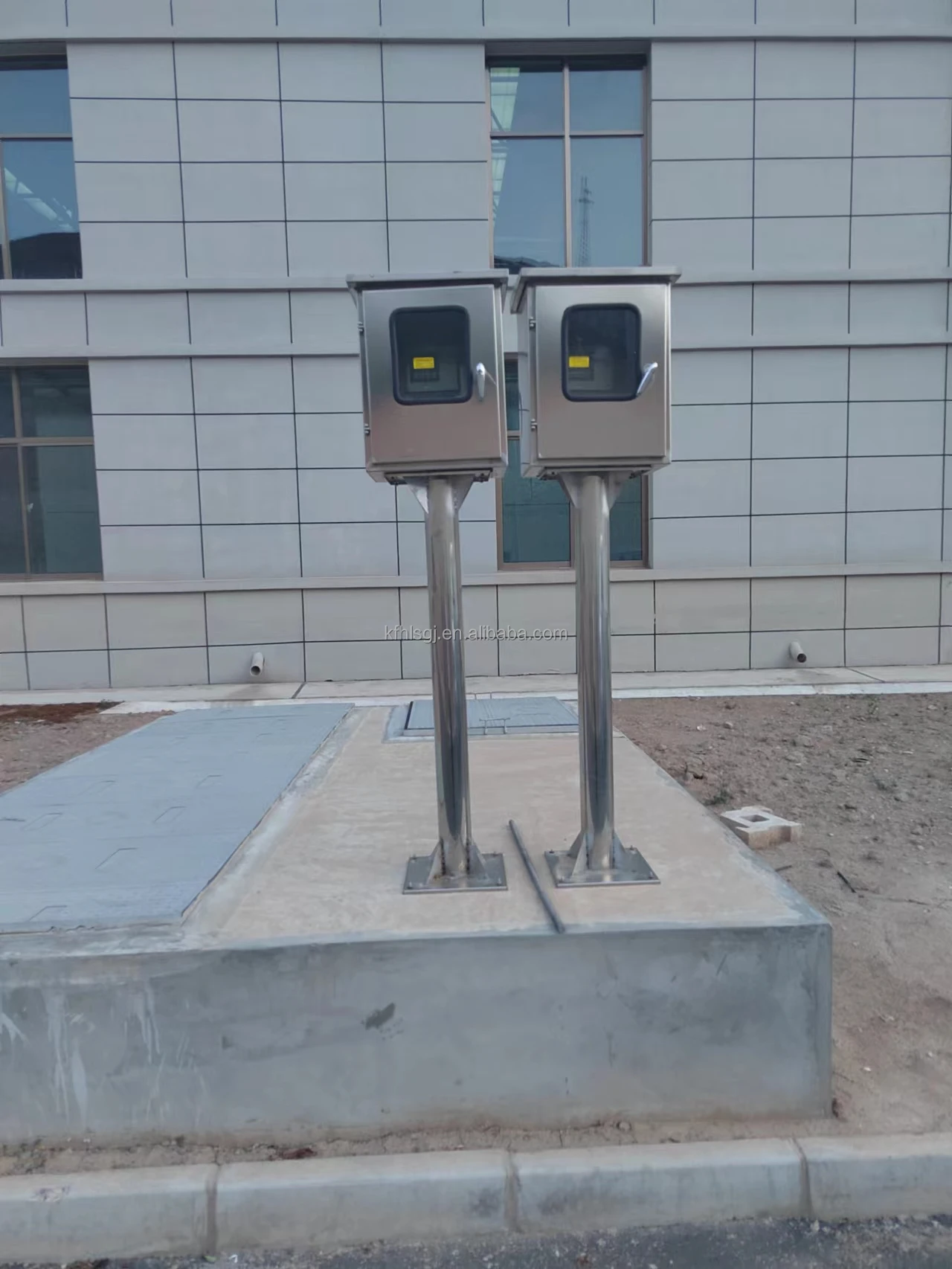

Split type with 15m cable, RS485 communication,

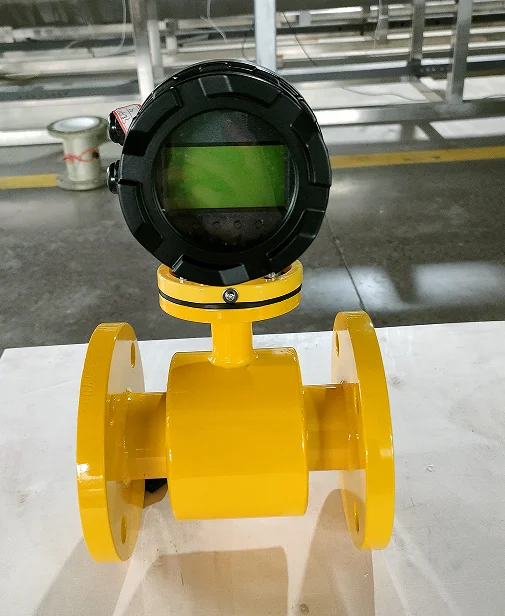

Flowmeter color can be customized,

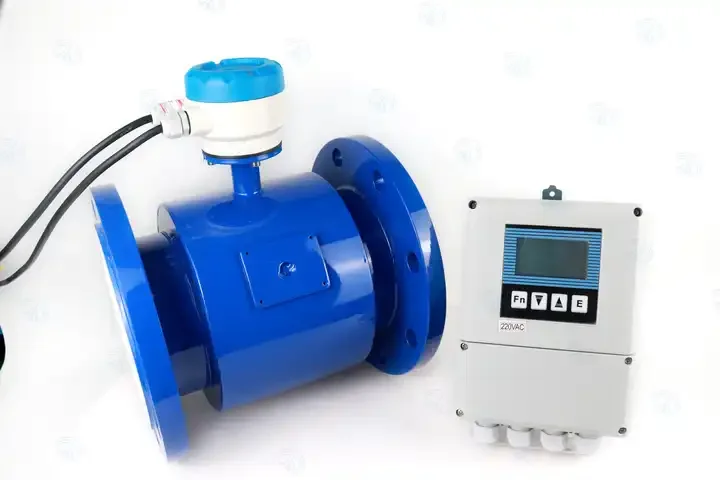

The electromagnetic transmitter displays instantaneous/cumulative flow and rate,
Chemical Split TypePool Well Water Electromagnetic Flowmeter Application area: | ||||||||
1. | Drinking water supply, water supply, reservoir and pumping station etc. | |||||||
2. | Chemical acid, lye, conductive solution, cooling fluid, additives etc. | |||||||
3. | Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc. | |||||||
4. | Sewage, industrial sewage discharge, sewage etc. | |||||||
5. | Control of metal industrial pump,cooling water and the flow of water. | |||||||
6. | The textile industry of water, pigments, chemicals, bleaching chemicals etc. | |||||||

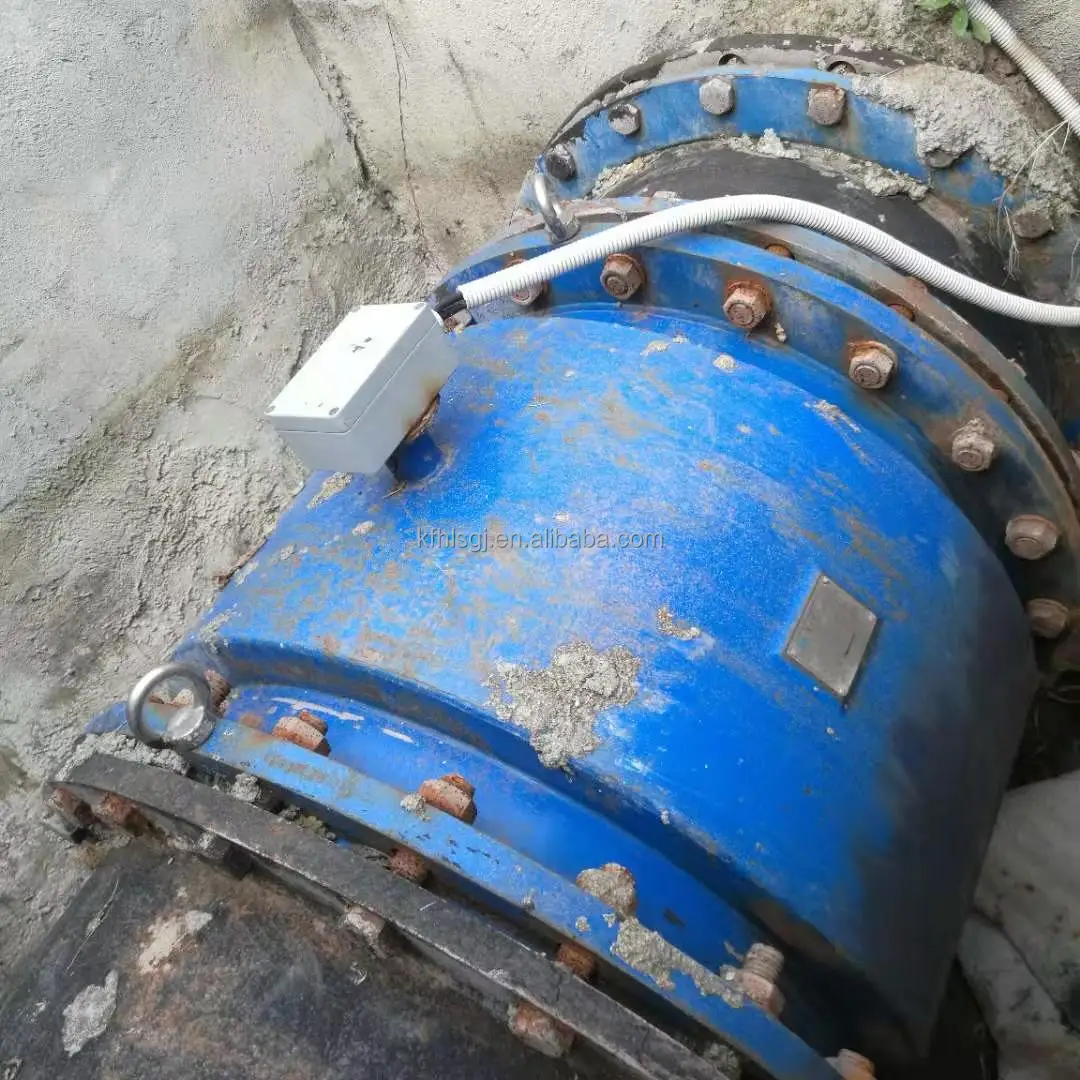

Scope of Application

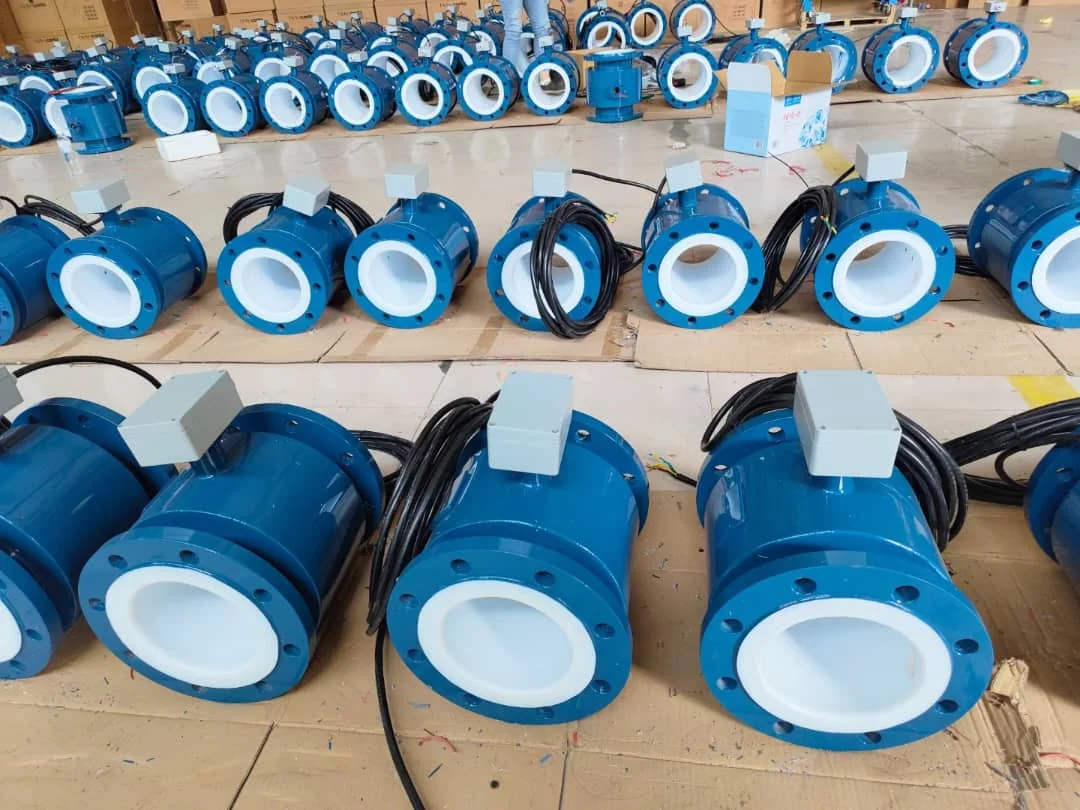

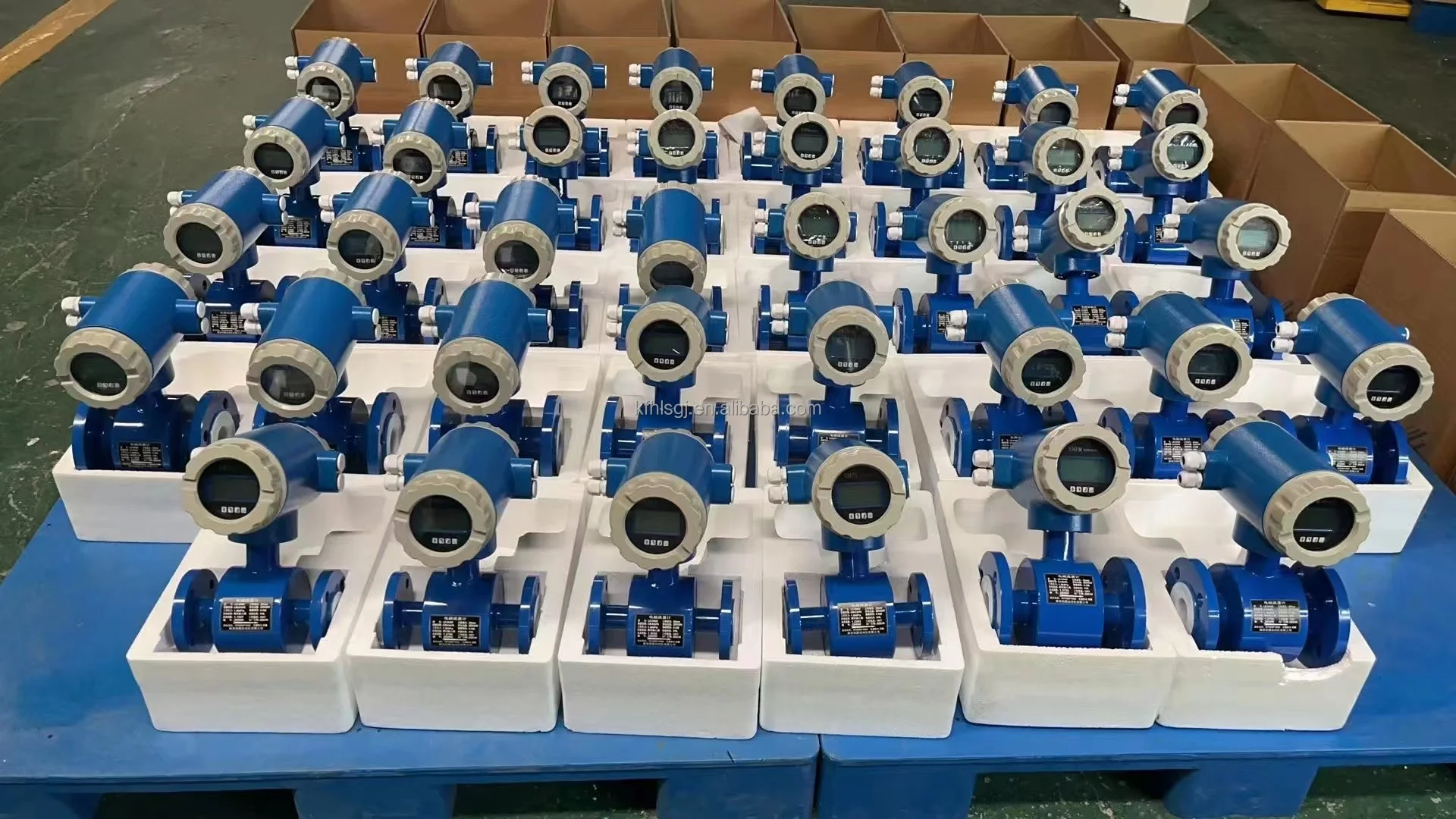

Packing & Delivery
Company Profile
FAQ
1. Q: Are you a manufacturer or a trading company? A: We are a leading manufacturer of various instruments. Welcome to visit our factory at any time. | ||||||||
2. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. | ||||||||
3. Q:How is the price? A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price. | ||||||||
4. Q:Can I have my own logo of the products? A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement. | ||||||||
5. Q: How about the Warranty time ? A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support . | ||||||||
6. Q: Could I visit your factory? A: Of course, please contact us in advance, we would like to tour you arround our the factory and our city. | ||||||||
7. Q:How about the payment terms ? A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance and so on. | ||||||||
