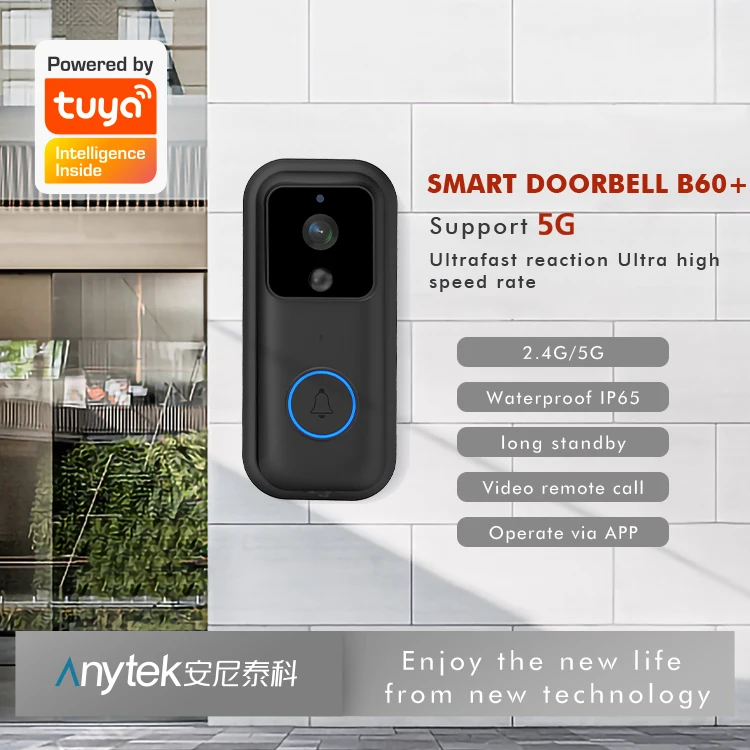

Tuya Smart Video Doorbell Wireless Dual Band WiFi 1080P Home Camera Monitor Intercom Two Way Audio IR Night Vision Door Phone

Share on (1601010037683):


Price:

Quantity:


Product Overview

Description







Product Description

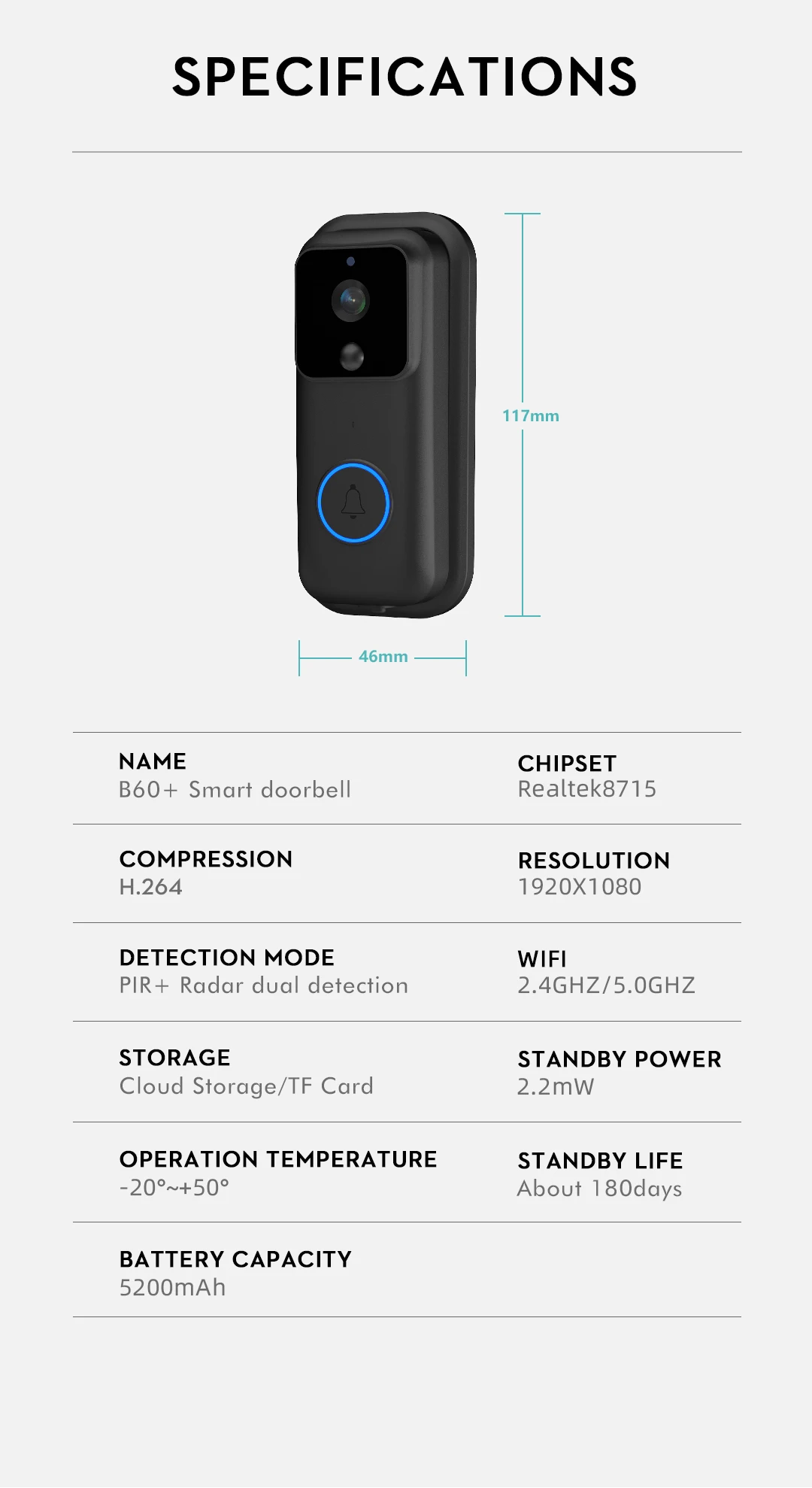

Specification


Item
Content
Description
Platform Information
Hardware solution
Realtek8715+F37

Chipset
Chipset
Realtek8715
RAM
32MB
Flash
8MB






Sensor
Detection range
1-3m,110 degrees
Sensitivity
Hight/Middle/Low
Sensor Model
F37
Sensor Type
1/2.9" Progressive Scan CMOS
Effective of pixels
2.0MP
EFL
3.6mm
aperture
F2.1
Viewing angle
D*H*V 103°*90°*45°
Nighvision
IR-LED
6*EXIR ,7m(wavelength:850nm)
IR-CUT
Normal
Low illumination
0Lux
Indicator
Working Indicator
blue&red indicator*1
Charge indecator
blue&red indicator*1




Hardware
Standard
Speed:Max.75Mbps,Distance(Open place)≥200m
Mic
Full duplex,Sensitivity:≥-38±3dBm
Speaker
8Ω/1W

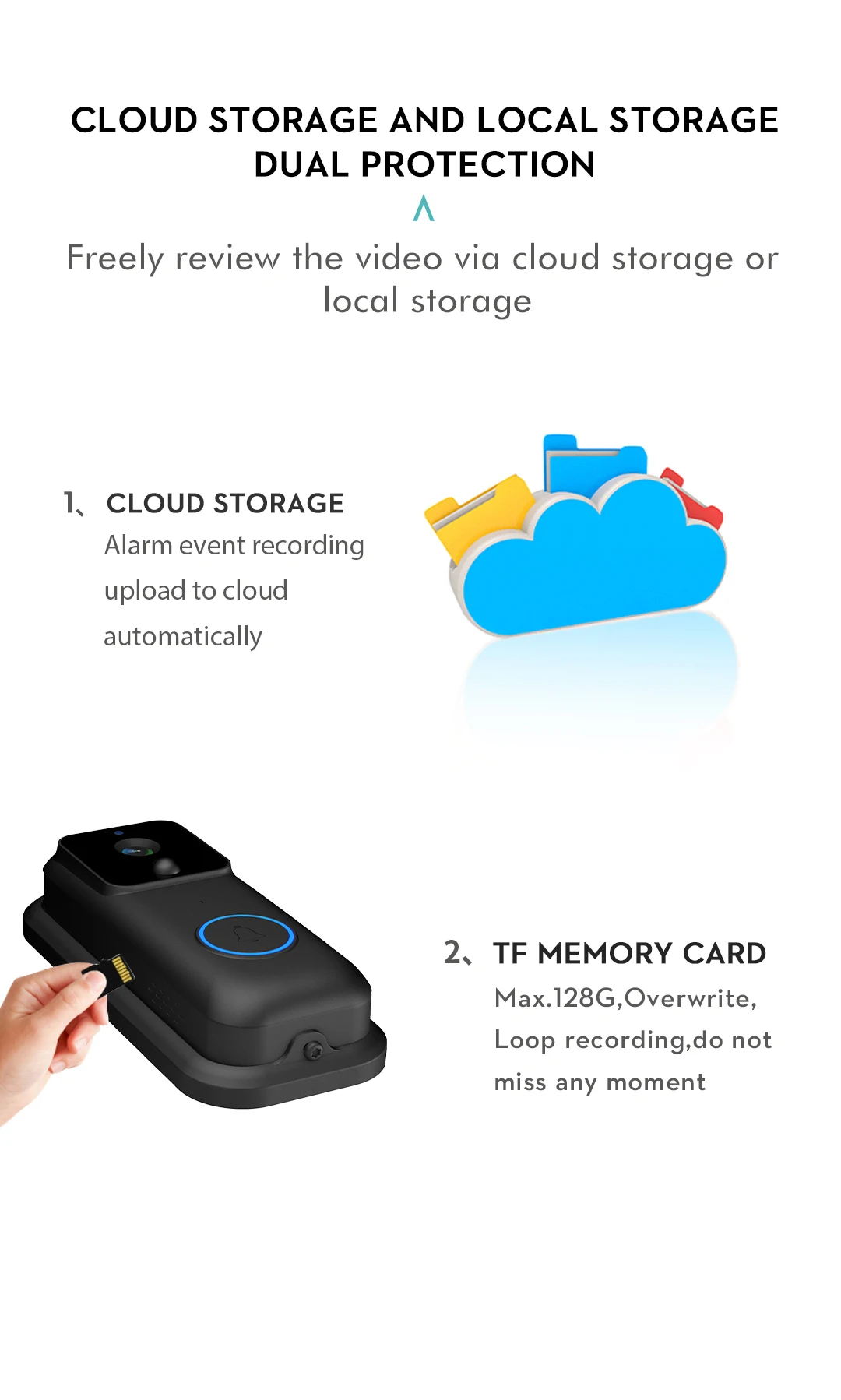

TF Card
128G(max.)
Button Switch
Reset*1,Doorbell*1
wireless 433MHz
Wakeup chime
Antenna
3DBi * 1, 433 Ant*1


Battery
Battery Type
Detachable li-ion battery,18650*2
Battery Capacity
2600mAh * 2
Measurement accuracy
≥5%
Standby life
About 180days(10times per day)





Hardware performance
Maximum rate
75Mbps
distance
Open place≥180m
standard
IEEE 802.11 b/g/n
Power Supply
DC 5V 1A
Charge Current
1A
standby power
2.2mW
Operational power consumption
1.1W
I/O
Input port
TF Card*1,Micro USB*1,Mic*1,PIR*1,
Output port
Speaker*1;
key type
Tact Switch*2
Indicator light
blue&red indicator*2

Audio
Echo cancellation
Support
Two-Way Talk
Support
Compression method
G.711a


Video
Video Format
H.264
Video stream
20fps
Resolution & frame rate
1080P,multi-stream:FHD
IR-control
IR turned ON:
enable night view,IR,ICR














APP
Andorid
Andorid 4.3
IOS
IOS 9.X-10.X
Application
Tuya / Smart Life
Cloud platform
Tuya
Language
Chinese/English
Mobile APP
configuration/review/replay/audio/vol/video/record/format
Communication Protocol
WIFI、MQTT
Cloud recording storage
Support(Extra service)
On line visitor
Max.5 persons
Remote control and monitoring
Support
Power failure memory
Support
Max recording duration
Depends on the memory
Pairing
Scan QR Code
OTA upgade
Support
Storage device full management
Rewrite the first file and the next
Live browsing
Open the APP
Accessories
AC Adapter
DC 5V 1A
Temperature
Temperature setting
Working: -20 ~ 50 ℃, Humidity
