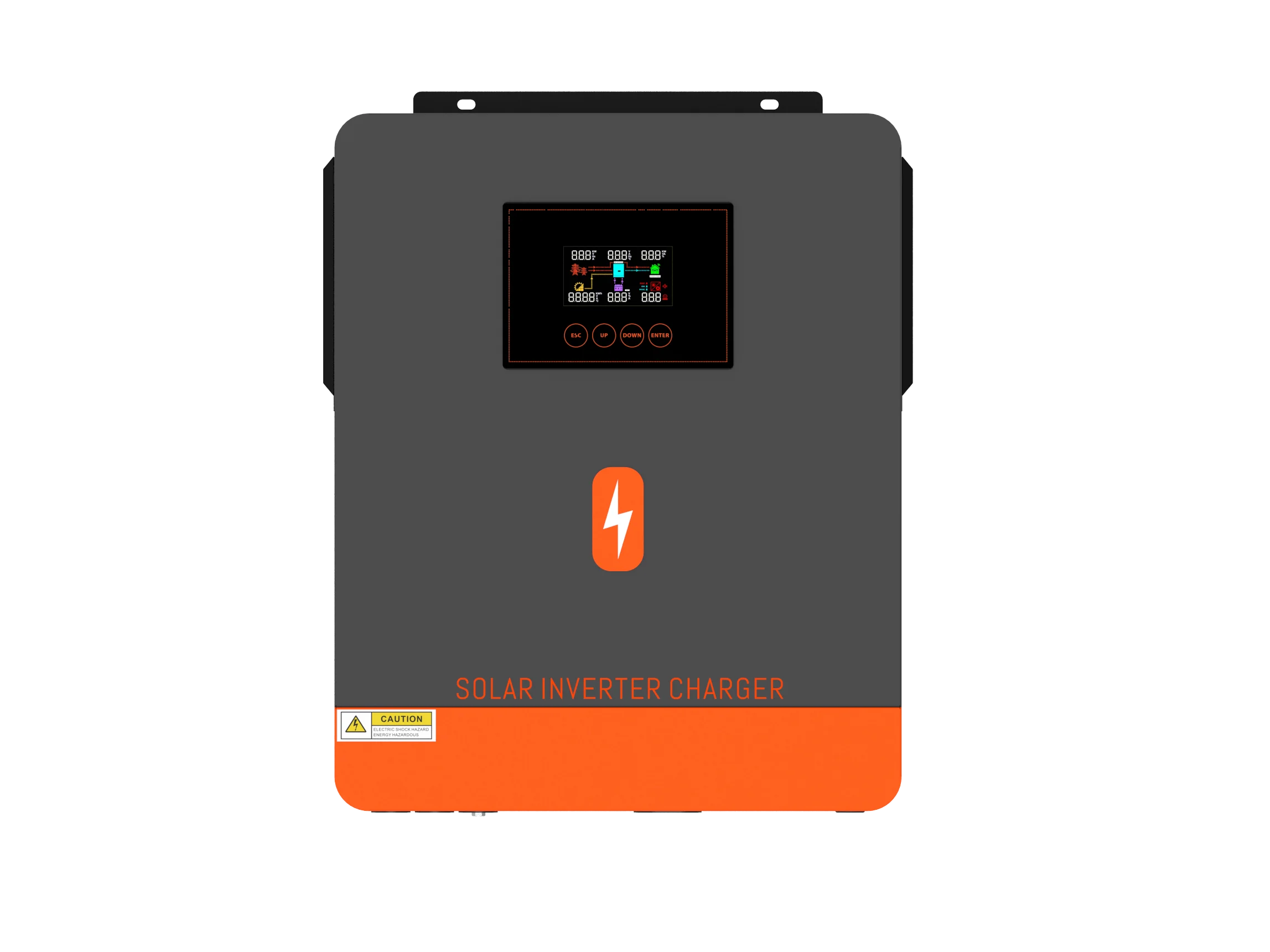

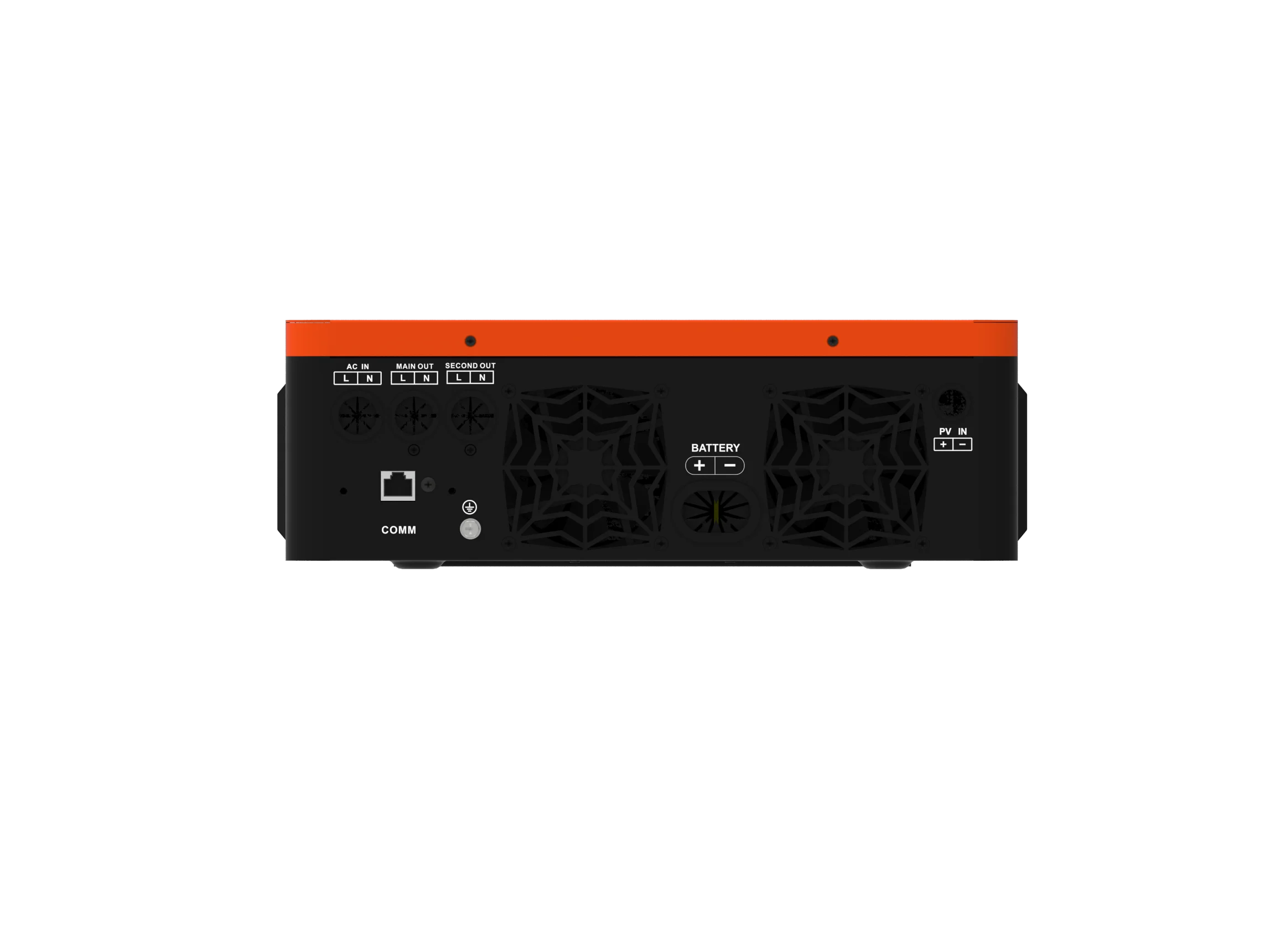

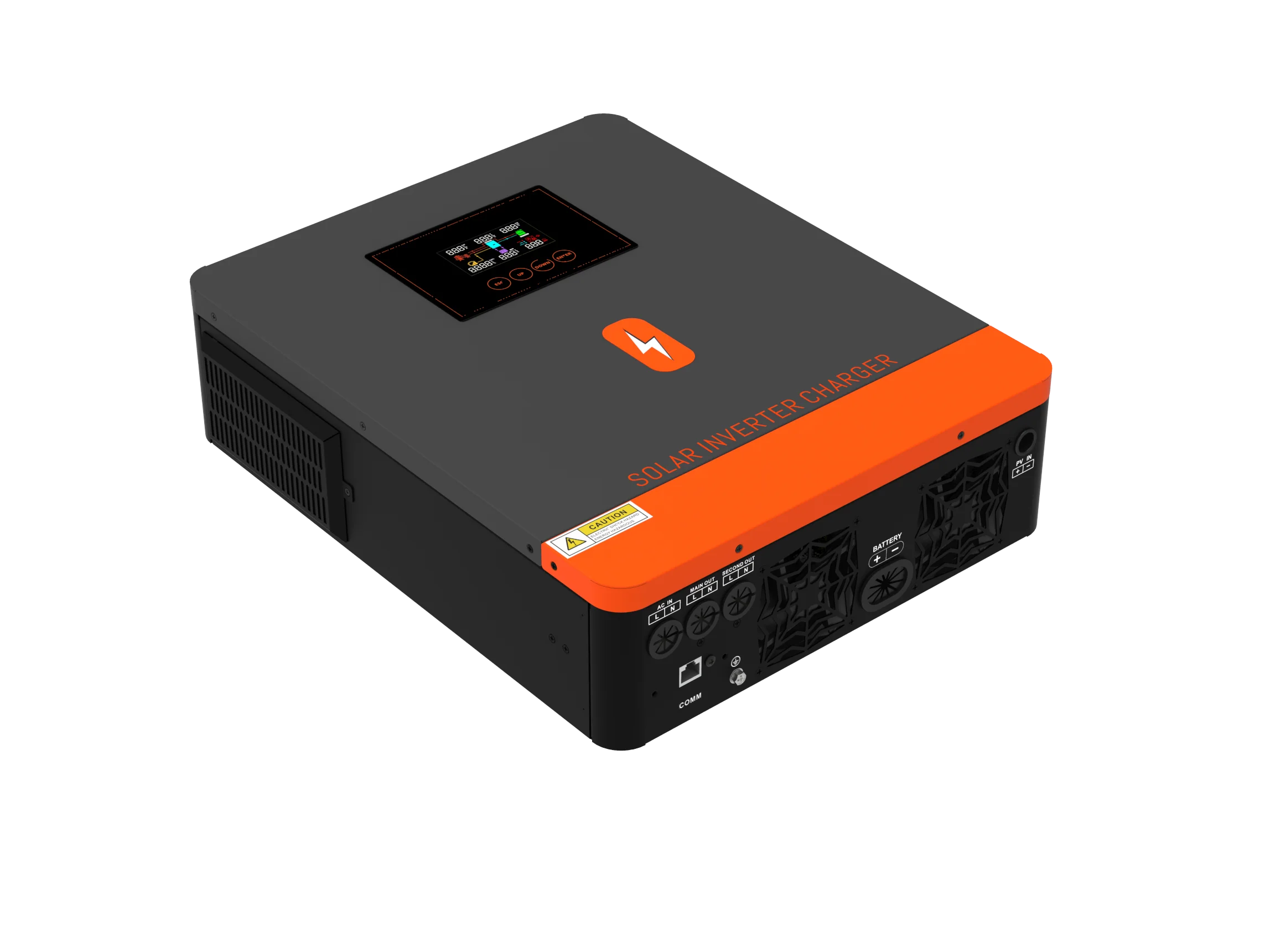

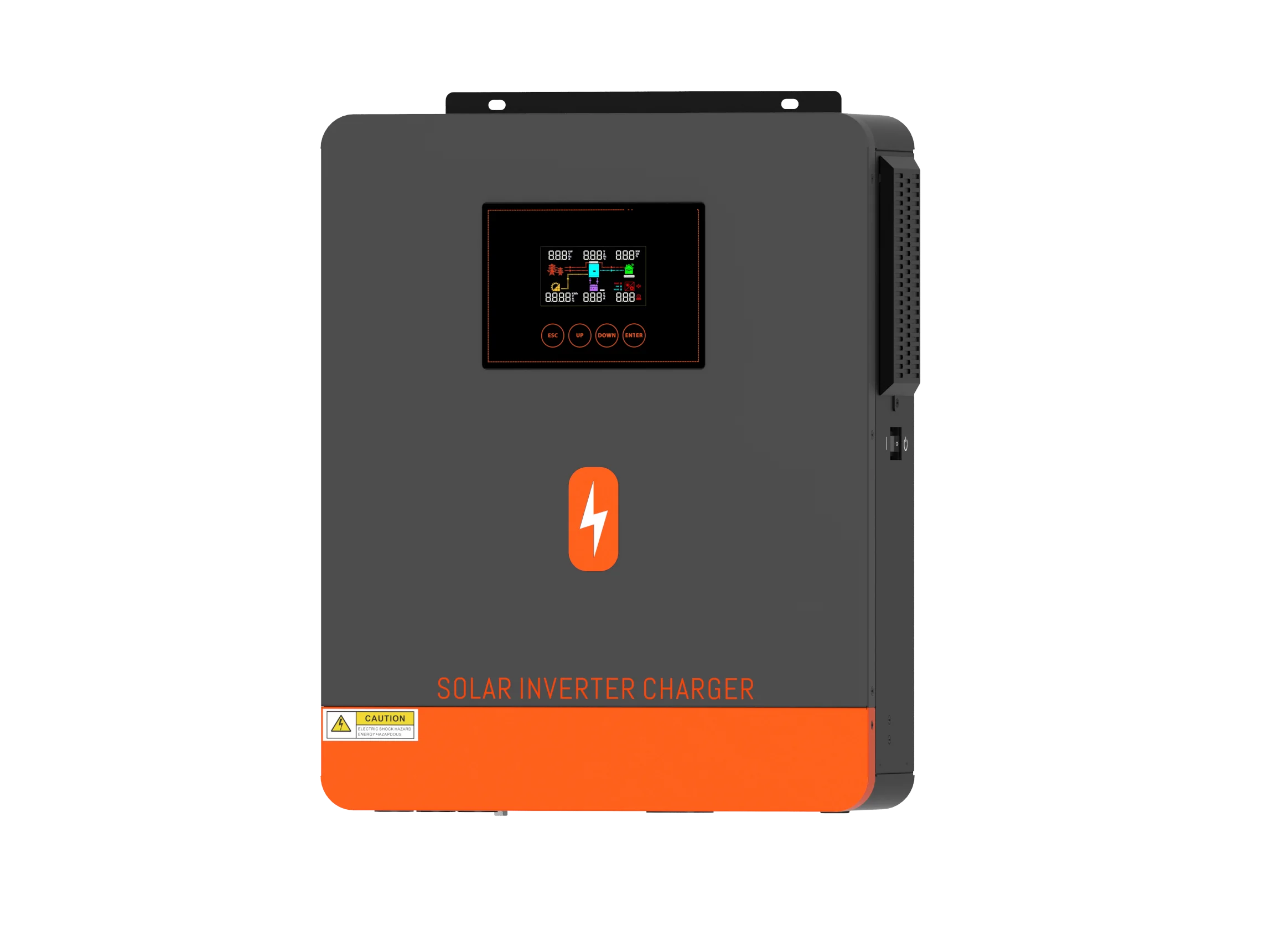

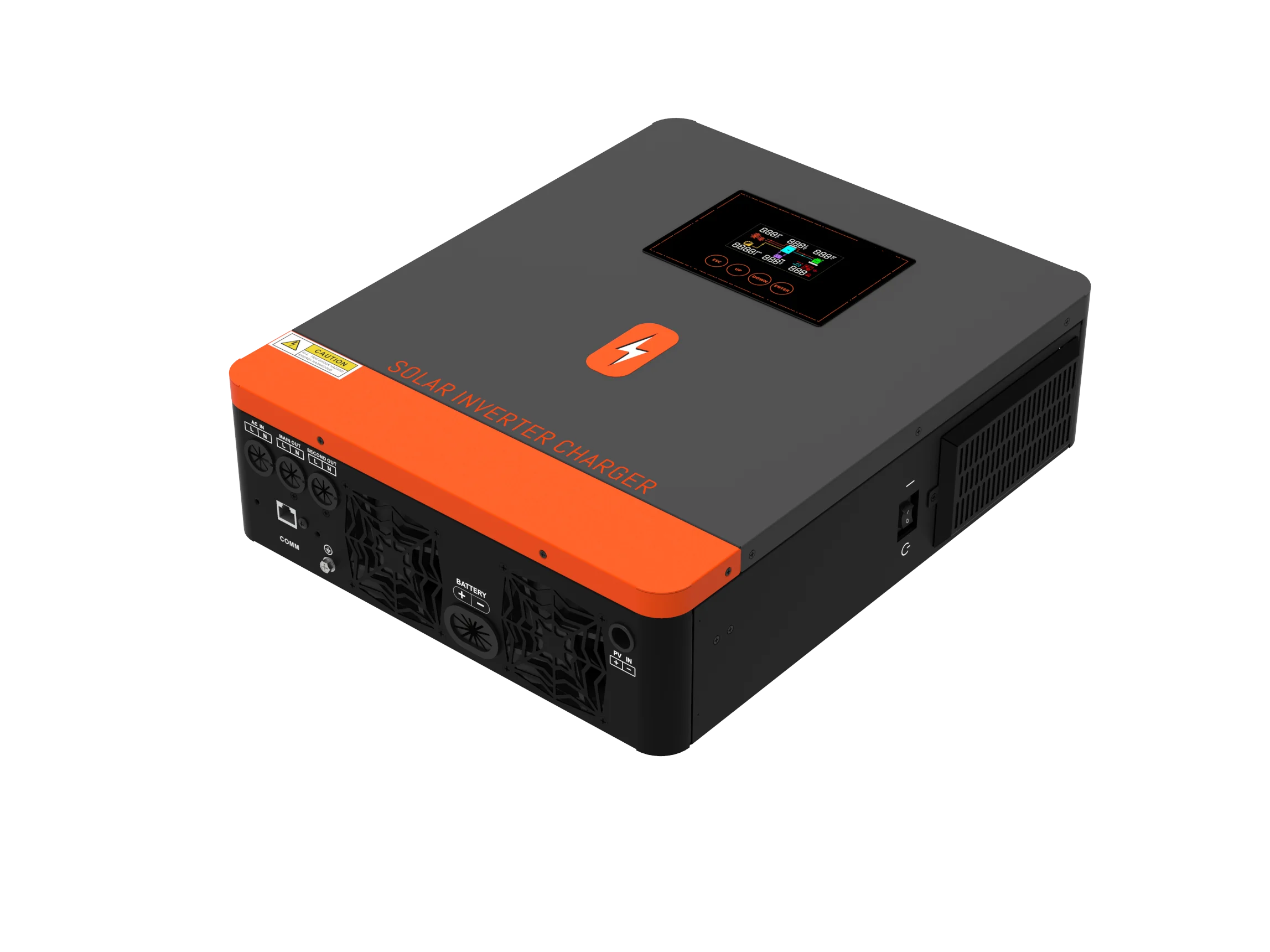

PowMr String Inverter 6200W 48V Off Grid Solar Inverter 220V Pure Sine Wave Solar Inverter For Home Appliance
- Category: >>>
- Supplier: Shenzhen Hehe Jin Industrial Co. Ltd.
Share on (1601010101427):
Product Overview
Description
Product Description
Specification
MODEL | POW-HVM6.2M-48V-N | |
Phase | 1-phase | |
Maximum PV Input Power | 6200W | |
Rated Output Power | 6200W | |
Maximum Charging Power | 6200W | |
GRID-TIE OPERATION | ||
PV Input(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
Start-up Voltage/initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 90VDC~450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/27A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195.5-253VAC | |
Nominal Output Current | 15.7A 26.1A | |
Power Factor | >0.9 | |
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) | 97% | |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Anto Restart Voltage | 120-140VAC/180VAC | |
Acceptable Input Voltage Range | 90-280VAC OR170-280VAC | |
Maximum AC Input Current | 40A | |
PV Input(DC) | ||
Nominal DC Voltage | 500VDC | |
MPPT Voltage Range | 90VDC-450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/27A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 24VDC 48VDC | |
Output Waveform | Pure sine wave | |
Efficiency(DC to AC) | 94% | |
HYBRID OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
Start-up Voltage/initial Feeding Voltage | 120VDC | |
MPPT Voltage Range | 90VDC-450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/27A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195.5-253VAC | |
Nominal Output Current | 15.7A 26.1 A | |
AC INPUT | ||
AC Start-up Voltage/Anto Restart Voltage | 120-140VAC/180VAC | |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
Maximum AC Input Current | 40A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Efficiency (DC to AC) | 94% | |
BATTERY & CHARGE | ||
Nominal DC Voltage | 48VDC | |
Maximum Solar Charging Current | 120A | |
Maximum AC Charging Current | 120A | |
Maximum Charging Current | 120A | |
PHYSICAL | ||
Dimension D *W *H | 110*334*423 | |
Net Weight(kgs) | 10 | |
INTERFACE | ||
Communication Port | RS232/WIFI/BMS | |
ENVIRONMENT | ||
Humidity | 0-90% | |
Operating Temperature | -10 to 50 °C | |
Products Description
FAQ
Q1: How to insatll and use the solar inverter? A1: We have the English teaching manual and videos; All the videos about every step
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
Q1: How to insatll and use the solar inverter? A1: We have the English teaching manual and videos; All the videos about every step
of machine Disassembly, assembly, operation will be sent to our customers. Q2: What if I don't have export experience ? A2: We
have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the
most suitable shipping service. Q3. We want to know month capacity. A3: 20000-30000PCS per Month. Q4: How is your technical
support? A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer
you video call anytime,our engineer will also go to oversea help our customers if necessary. Q5: How can I make sure it's a secure
transaction ? A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money. Q6: Can you get the the solar inverter customized for us ? A6: Of course, brand name, machine
color, designed unique patterns available for customization. Q7:How to become your agent? A7:Contact us through Alibaba, we will
give you the best price and look forward to your greetings
