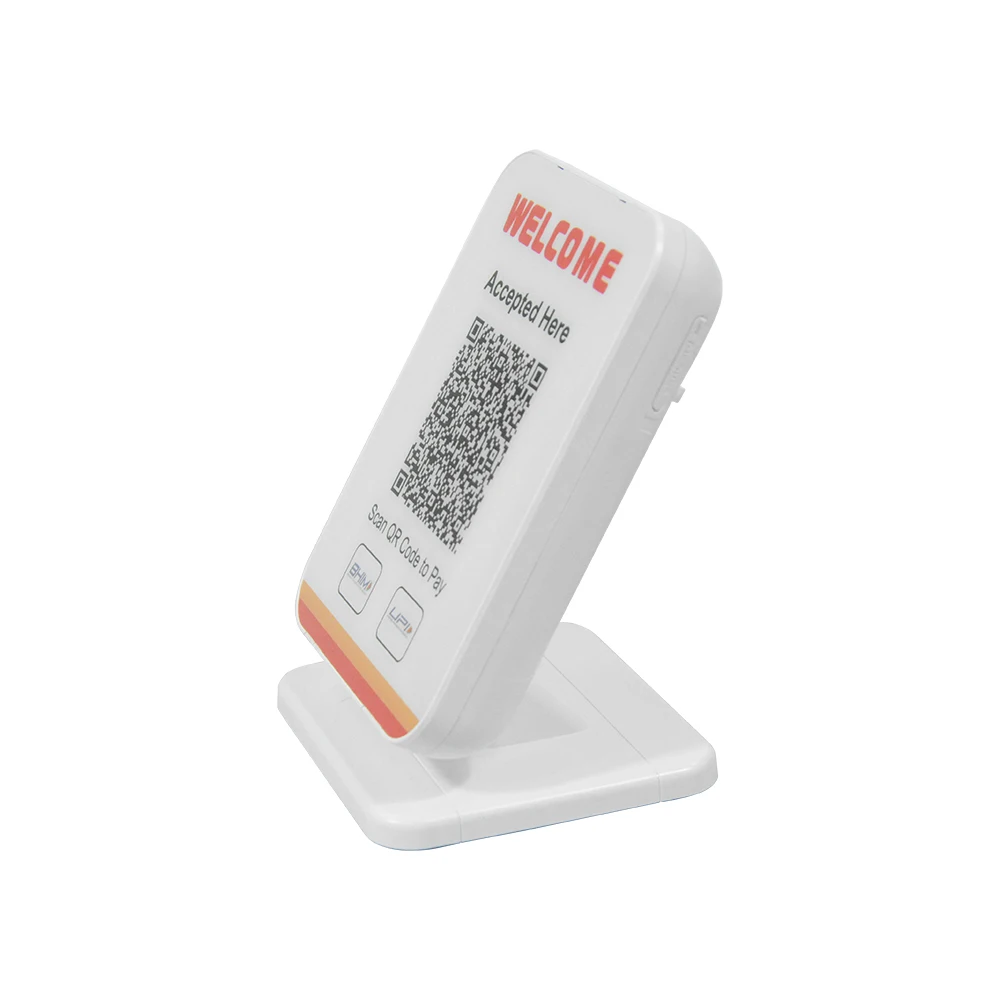

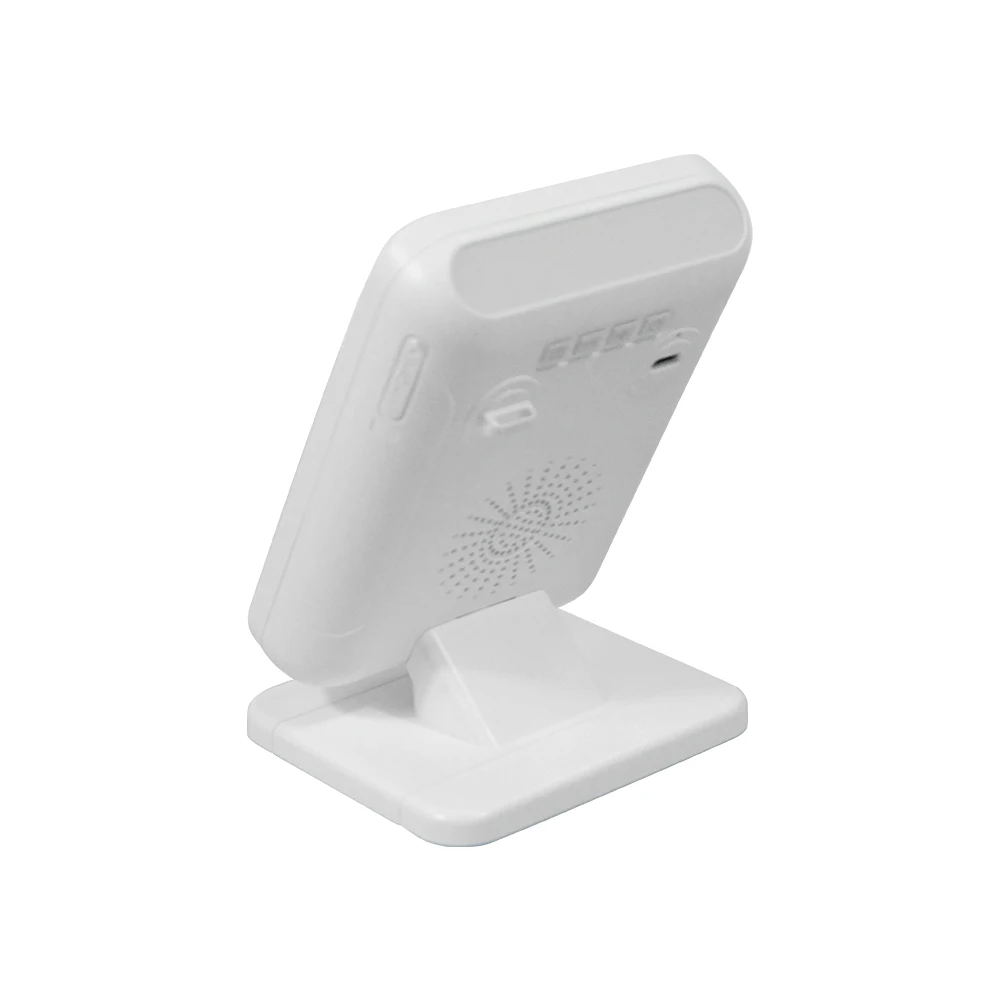

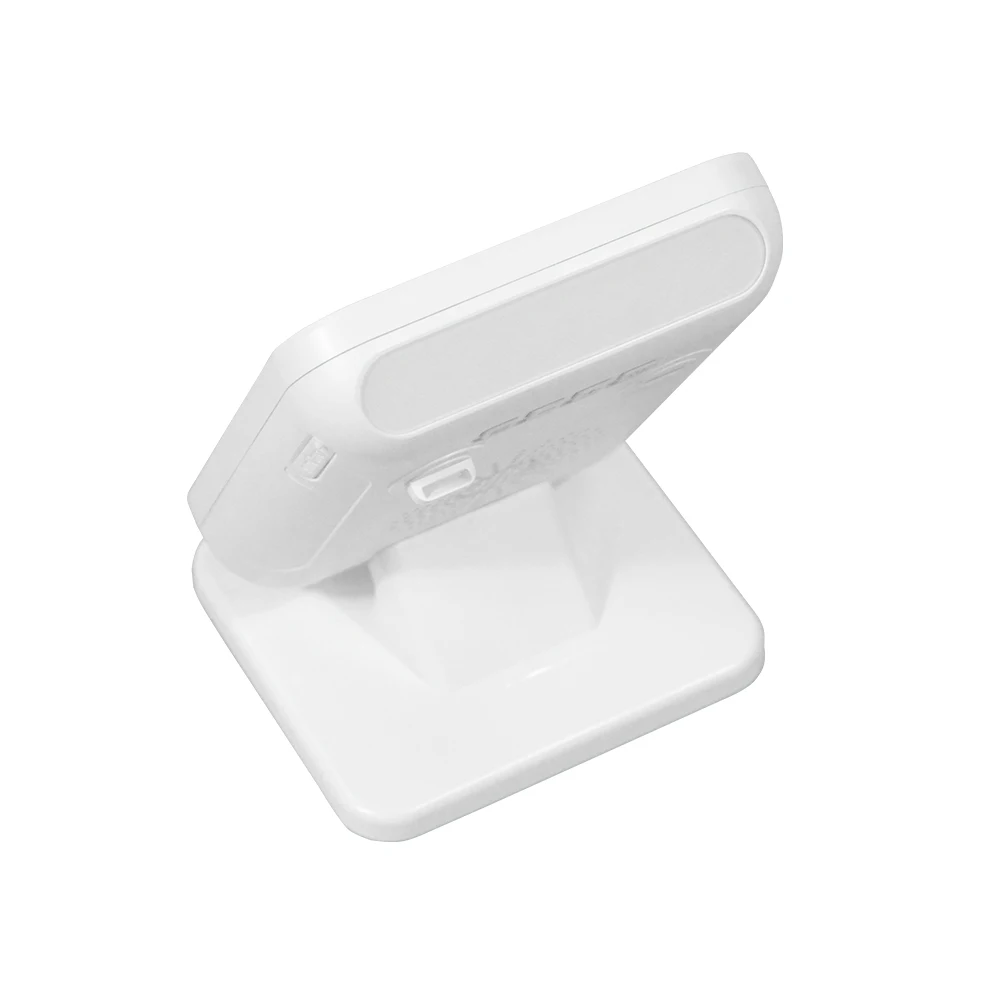

4G Wireless TTS Voice Payment Speaker Desk QR Payment Display Z10 A
- Category: >>>
- Supplier: Shenzhen Hcc Technology Co. Ltd.
Share on (1601010104931):
Product Overview
Description
Products Description
Z10-A QR code payment SoundBox is a terminal based on online-offline payment modules, to build an intelligent city in the era of mobile Internet, and make much easier business for traders, and avoid payment fraud.
Specifications
CPU | ARM Cortex-A5 |
Memory | ROM:8MB,RAM:16MB, Flash: 6MB/8MB/4MB (Optional) |
Communication | GPRS/4G, Wi-Fi (Optional) |
Frequency Range | FDD-LTE ：B1/B3/B5/B8 TDD-LTE ：B34/B38/B39/B40/B41 GSM ：900MHz/1800MHz |
WI-FI | 2.4Ghz 802.11B/G/N(optional) |
Charging Voltage | DC 5V/1A |
Operating Voltage | 3.7V-4.2V |
Operating Current | 90~320mA@3.7V |
Stand-by Current | ≤10mA |
Size of Amount Display Screen | 60mm×42mm |
Size of Dynamic QR Code Display | Z10-A: Without LCD to display; Z10-B: Support, 2.4 inches(black and white screen) |

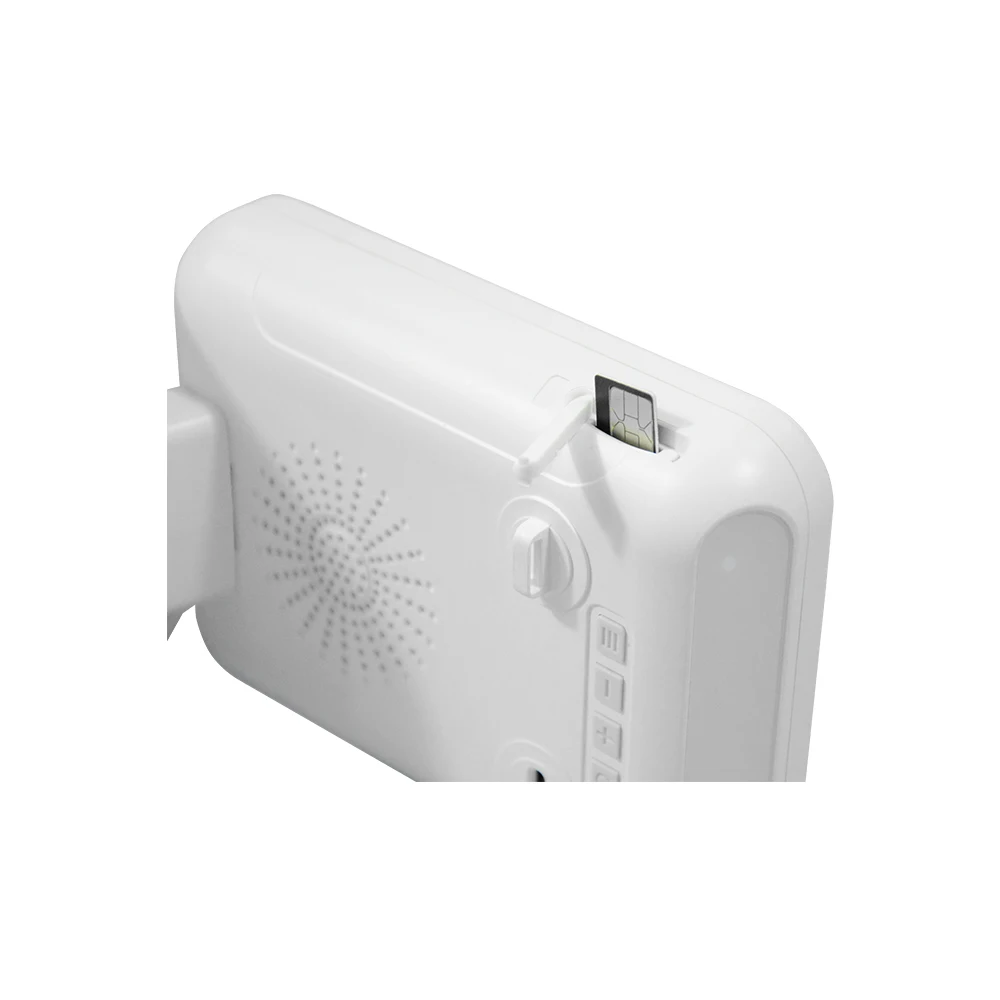

Card Slots | 1*SIM |
Keys | 1 * Power Key,1 * Function Key,2 * Volume Up/Down Keys |
Peripheral Ports | 1 * Powered Type-C |
Speaker | 4Ω3W, 110±3dB |
Voice Type | TTS Supported (Optional)/ Customized Voice |
Protocol | MQTT |
Encryption Method | TLS |
Dimensions | L135mm*W27.5*H137mm |
Weight | 260g |
Indicator Lights | 3 color LED indicator light (blue,green and red) |
Battery | 2000mAh Li-ion Battery/2500mAh ( Optional) |
Standby Time Full Power | ≥150H |

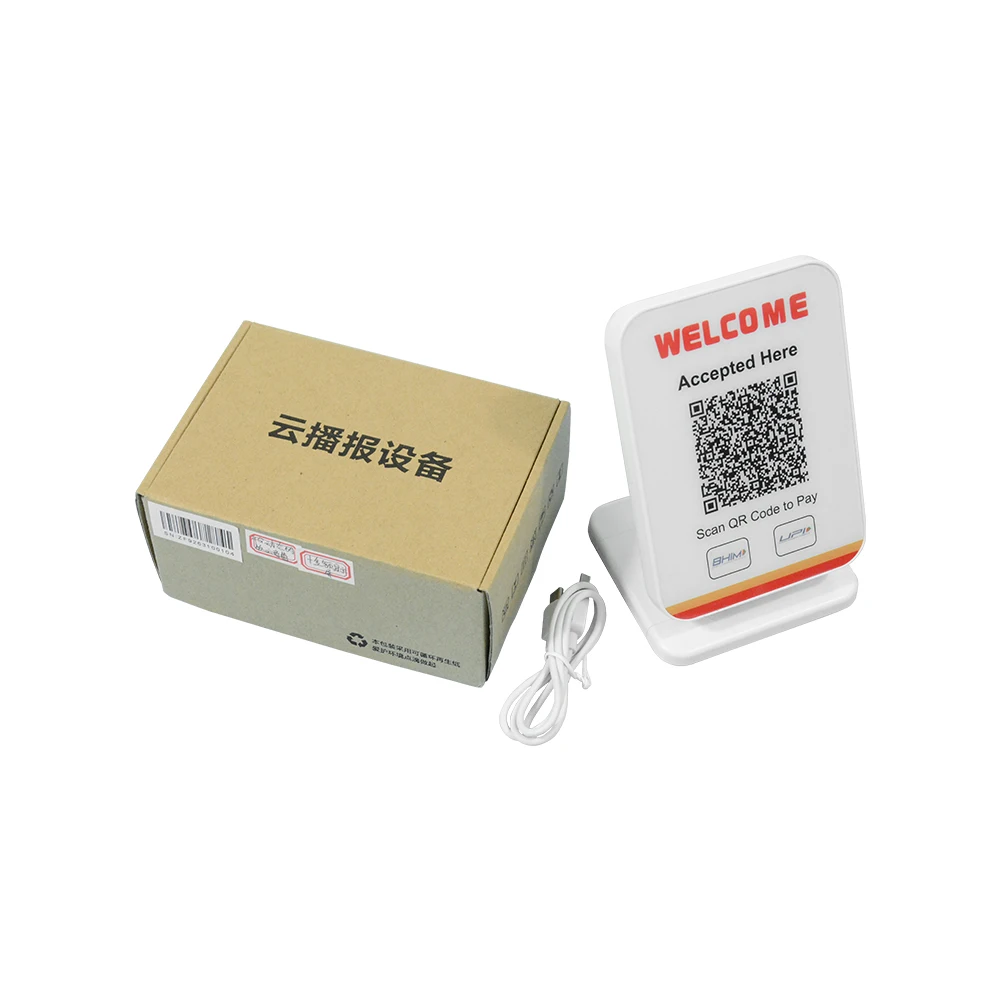

Accessory | Charging Cable |
Environmental | Operating Temperature: -10℃～60℃ Storage Temperature: -20℃～70℃ Relative Humidity: 5℅～95℅, Non-condensing |
Product Function Table
Broadcast of Payment Information | Network Connection -> Configuration Parameters -> Get Online Parameters -> Connect to Server -> Receive Receipt Push Messages -> Analyze and Make Voice Broadcast |
Volume + | Short press in volume mode: increase the volume Short press: View the last transaction information (the device stores 10 transaction information by default) |
Volume - | Short press in volume mode: volume down Short press: View the next transaction information (the device stores 10 transaction information by default) |
Off Button | Long press: power on/off |
Function Button | Long press: access volume adjustment mode Short press: broadcast current power & network connection status & server connection status |
Screen Display | Receipt amount |
Related Products
Company Profile
Recommend Products
Certifications
Package & Shipping
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14+ years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4.What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
