Simple Head Model Dental Simulator Phantom Manikin With Teeth For Dentist Teaching Practice Training Heads Study Dentistry
- Category: >>>
- Supplier: Foshan Tuojin Medical Technology Co. Ltd.
Share on (1601010119619):
Product Overview
Description
Product Description

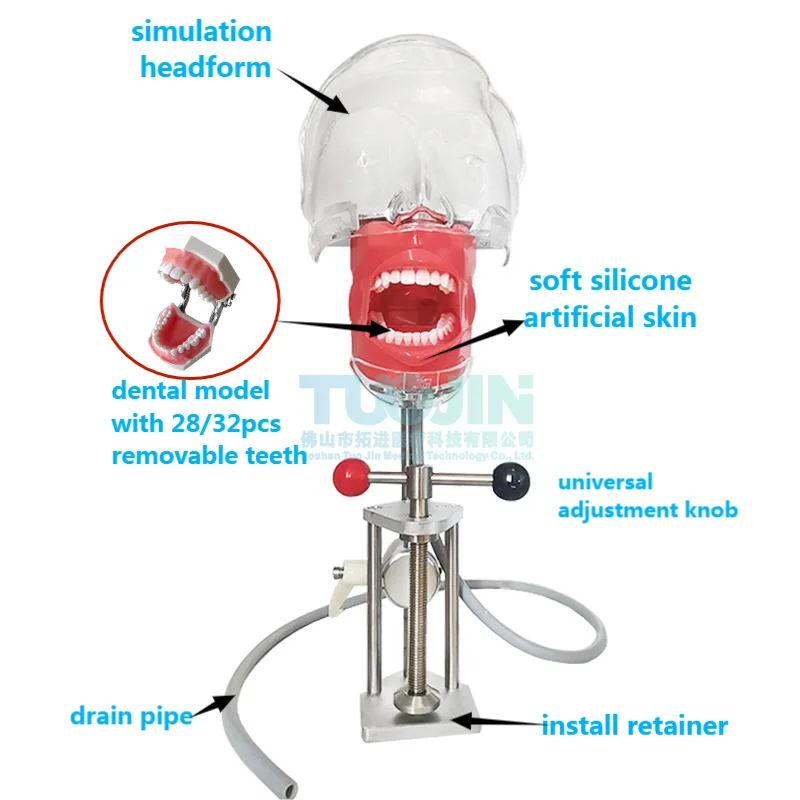

1) Head shape: The head cover made of high-strength transparent resin material is smoothly processed. According to the anatomical requirements, the orbital ear plane, the alar ear plane, the jaw plane and the mandibular tangent point are reproduced, and the anatomical outer ear is used for facial arch practice.

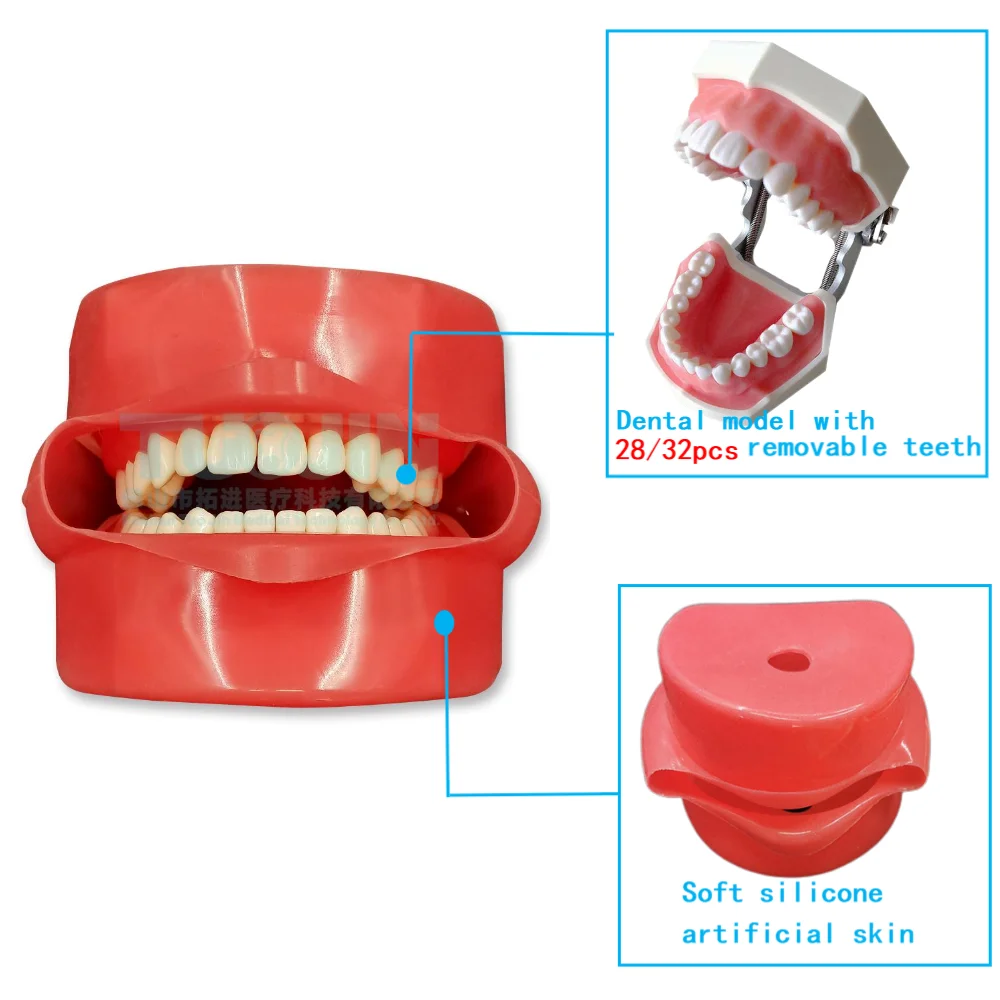

2) Face mask: It is made of bionic rubber material, with vivid color, close to human skin feel, comfortable feel, and durable. Exclusively designed drainage device
3) Shoulder support rod: made of stainless steel, green and environmentally friendly, simulating a normal human body.
4) FE articulator: made of aluminum alloy, which can open and close the mouth, reach forward, and move laterally to simulate mandibular movement. The inclination of the advancing condyle is 30 degrees, the inclination of the lateral condyle is 15 degrees, the distance between the condylar heads on both sides is 110mm, and the maximum opening distance is 50mm.

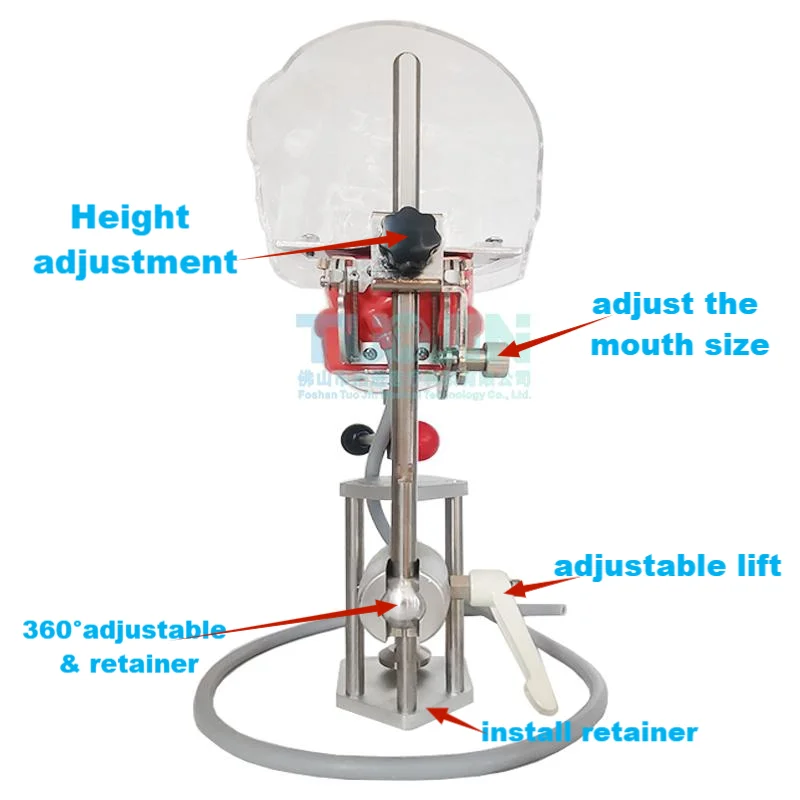

5) Universal adjustment handle: By adjusting the large and small universal joints, the position of the imitation head mold and the shoulder body can be adjusted at will.
2) Face mask: It is made of bionic rubber material, with vivid color, close to human skin feel, comfortable feel, and durable. Exclusively designed drainage device
3) Shoulder support rod: made of stainless steel, green and environmentally friendly, simulating a normal human body.
4) FE articulator: made of aluminum alloy, which can open and close the mouth, reach forward, and move laterally to simulate mandibular movement. The inclination of the advancing condyle is 30 degrees, the inclination of the lateral condyle is 15 degrees, the distance between the condylar heads on both sides is 110mm, and the maximum opening distance is 50mm.
5) Universal adjustment handle: By adjusting the large and small universal joints, the position of the imitation head mold and the shoulder body can be adjusted at will.
Installation instruction:
1.Installation of Articulator and Head Cover.
A.Put the axle which is used to fix the installation into the articulator
B.Make the cutting side of axle right face the inside of articulator ,tightening the hand grip till these two fix good.
C.Set the maxillary plate straight into the groove on the head cover.It's done when you hear "bang".
2.Installation of silicone Face Cover and Dental Model.
A.Loose the screws in the back of dental model,take the articulator down;
B.Strut the silicone face cover with hand,put the upper and lower jaw model into it and make it rightdirection;
C.Twist the 4screws in the back of jaw model,and make the silicone fce cover fixed .
3.The installation of dental model and articulator.
A.Loose the 2 screws in the articulator ,pull lower jaw to the most front;

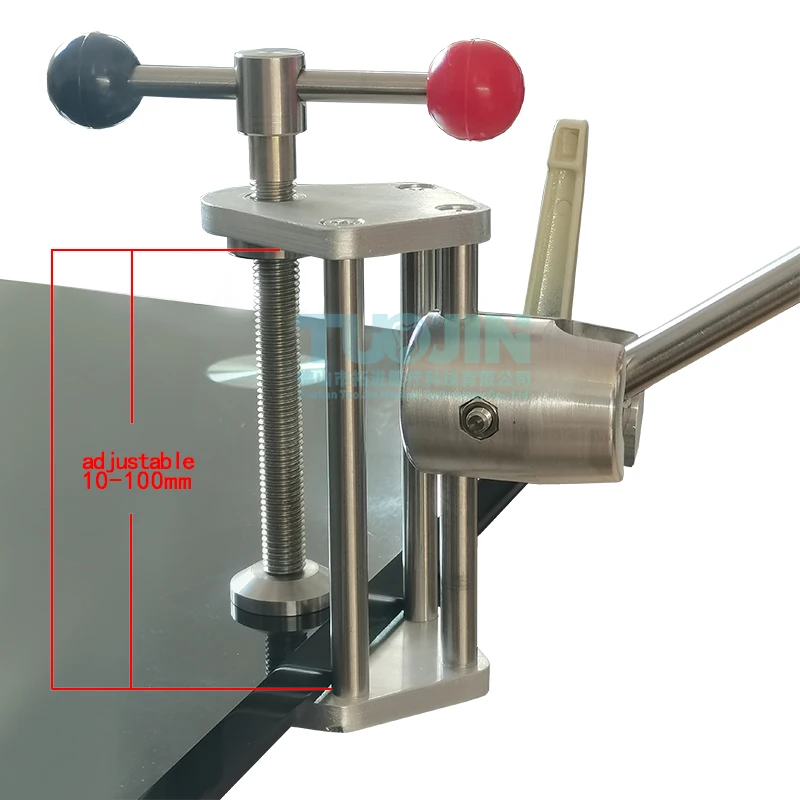

B.Fit the table adge in the gripping holder uttermost.
C.Tighten the cross handle.
1.Installation of Articulator and Head Cover.
A.Put the axle which is used to fix the installation into the articulator
B.Make the cutting side of axle right face the inside of articulator ,tightening the hand grip till these two fix good.
C.Set the maxillary plate straight into the groove on the head cover.It's done when you hear "bang".
2.Installation of silicone Face Cover and Dental Model.
A.Loose the screws in the back of dental model,take the articulator down;
B.Strut the silicone face cover with hand,put the upper and lower jaw model into it and make it rightdirection;
C.Twist the 4screws in the back of jaw model,and make the silicone fce cover fixed .
3.The installation of dental model and articulator.
A.Loose the 2 screws in the articulator ,pull lower jaw to the most front;
B.Fit the table adge in the gripping holder uttermost.
C.Tighten the cross handle.
Specification
item | value |
Subject | Medical Science |
Type | Skeleton Model |
Model Number | TJMA02 |
Place of Origin | China |
Guangdong | |
Brand Name | TUOJIN |
Product name | Simple Head Model Dental Simulator |
Application | Dental teaching and practice |
Material | Metal + Plastic |
Advantage | This manikin is very simple but widely applied to working places and homes for students,out-patient service trainee ,dentistry assistant. It can satisfy all aspects of dental practice. |
