Thru Hole 2 Position Dip Switch Red Color and Blue Color
- Category: >>>
- Supplier: Shenzhen Eker Electronic Co. Ltd.
Share on (1601010160334):
Product Overview
Description
1,2,3,4,5,6,7,8,9,10,12 POSITONS SLIDE TYPE DIP SWITCHES
EKER's series of slide type DIP switches, surface mount half-pitch DIP switches, right angle type DIP switches, piano type DIP switches, 2.54mm pitch IC type DIP switches, tri-state DIP switches, rotary and coded DIP switches, rotary selector DIP switches feature a variety of extended actuator and flush actuator styles. EKER DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.
PRODUCT FEATURES AND BENEFITS

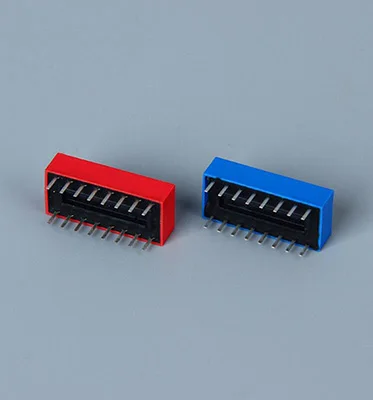

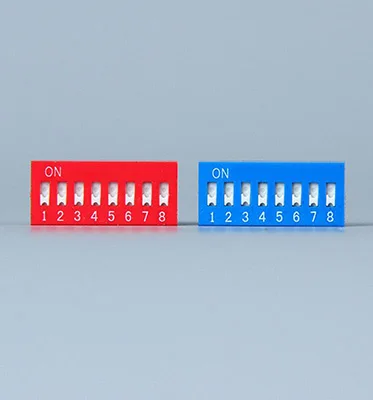

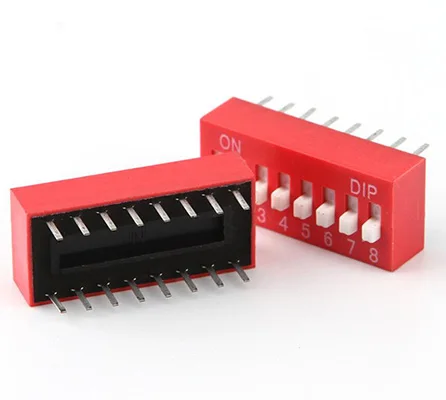

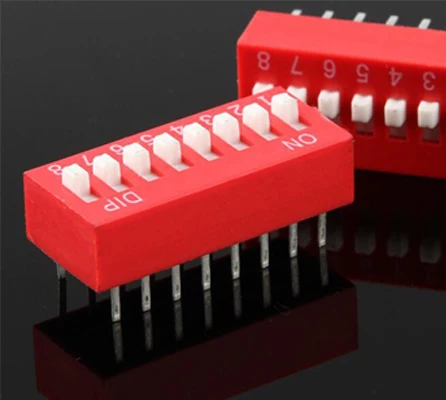

8 Position 8 Pin Slide Type Dip Switch
* Traditional full profile DIP switch
* Extended actuator for easy actuation
*Open bottom construction allows for solder washing without the need for tape seal
* RoHS compliant
PRODUCT SPECIFICATIONS
SWITCH TYPE: | 2.54MM Pitch Slide Type | ||||||
NUMBER OF POSITIONS: | 8 | ||||||
CIRCUIT: | SPST | ||||||
ACTUATOR: | Raised | ||||||
THRU-HOLE TERMINAL: | Yes | ||||||
OPERATION TEMPERATURE: | -30deg C to +85 ℃ | ||||||
STORAGE TEMPERATURE: | -40deg C to +85 ℃ | ||||||
OPERATION FORCE: | 1000g Max | ||||||
TRAVEL: | 2.0mm | ||||||
SWITCHING RATING: | 25mA, 24VDC | ||||||
NON-SWITCHING RATING: | 100mA, 50VDC | ||||||
CONTACT RESISTANCE: | 50mOhms max. at initial;100mOhms max.after life test | ||||||
ELECTRICAL LIFE: | 3000cycles | ||||||

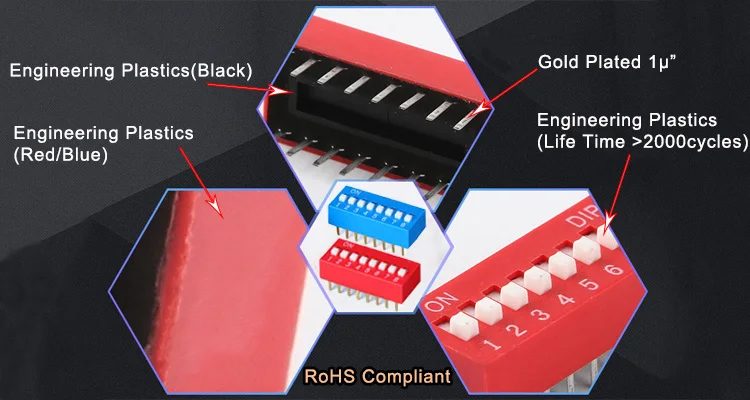

DIP SWITCH MATERIALS:

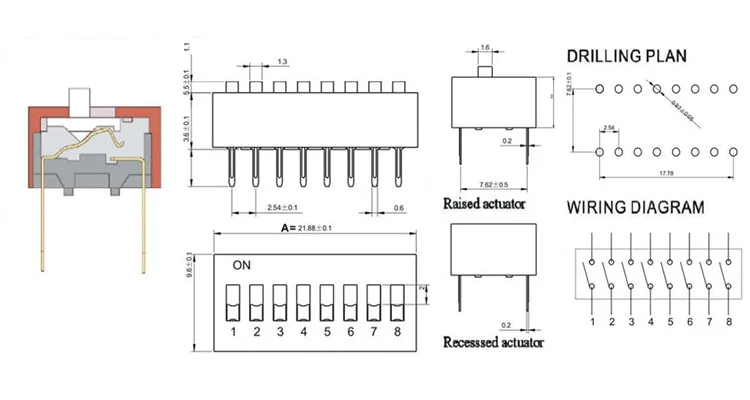

8 Position 8 Pin Slide Type Dip Switch
Position No | 1 | 2 | 3 | 4 |
DIM.A(mm) | 3.54 | 6.64 | 9.18 | 11.72 |
Position No | 5 | 6 | 7 | 8 |
DIM.A(mm) | 14.26 | 16.80 | 19.34 | 21.88 |
Position No | 9 | 10 | 12 | |
DIM.A(mm) | 24.42 | 26.96 | 32.04 |

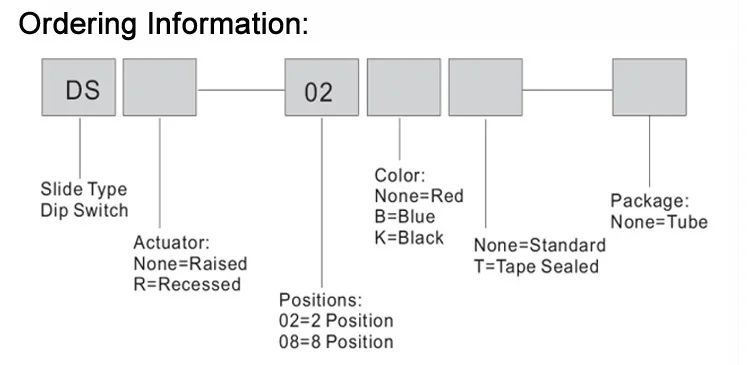

DS08=8 position slide type dip switch, raised actuator, red color, standard, tube package
* 1. Offer free sample. We can produce 1 to 12 position. With raised or recessed actuator, tube
packing.
* 2. 15+ years OEM&ODM.
* 3. Supply 1000000+ pcs per month.
* 4. Using high quality BeCu and LCP materials.
* 5. Long lifespan, high strength, abrasion resistance, excellent thermal stability, etc.
packing.
* 2. 15+ years OEM&ODM.
* 3. Supply 1000000+ pcs per month.
* 4. Using high quality BeCu and LCP materials.
* 5. Long lifespan, high strength, abrasion resistance, excellent thermal stability, etc.

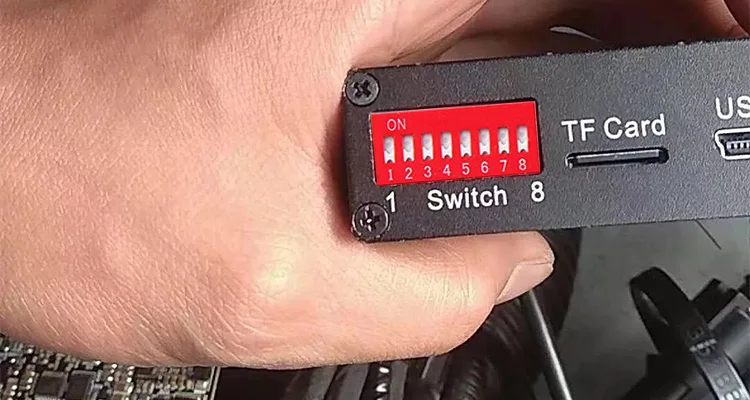

APPLICATION
TYPICAL APPLICATIONS

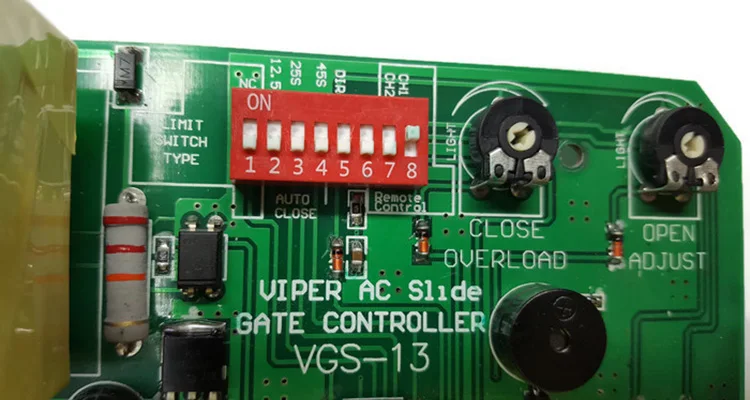

* Address switch for industrial controls
* Logic switching for computers and peripherals
* Function controlling for numerous applications
* Logic switching for computers and peripherals
* Function controlling for numerous applications
WHY CHOOSE US

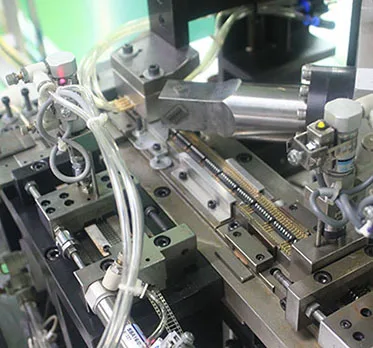

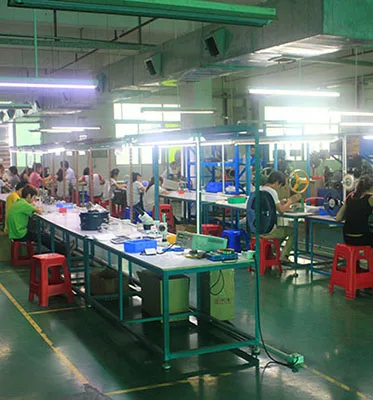

1.25 Years' experience of Manufacture.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs are welcome.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
8.OEM available, Customers' designs are warmly welcome.
9.Excellent Service.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs are welcome.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
8.OEM available, Customers' designs are warmly welcome.
9.Excellent Service.

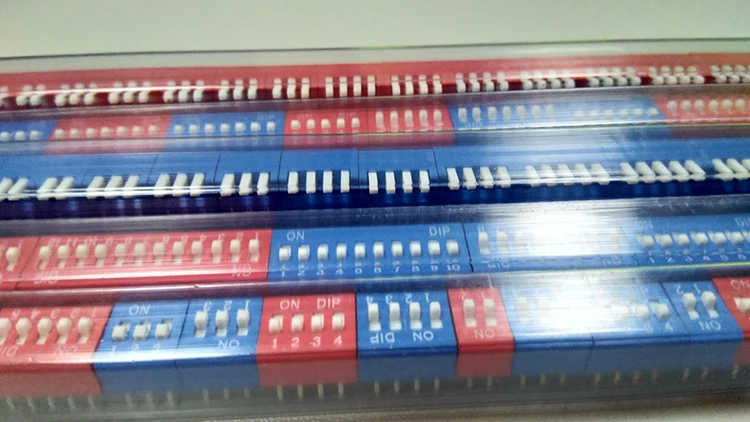

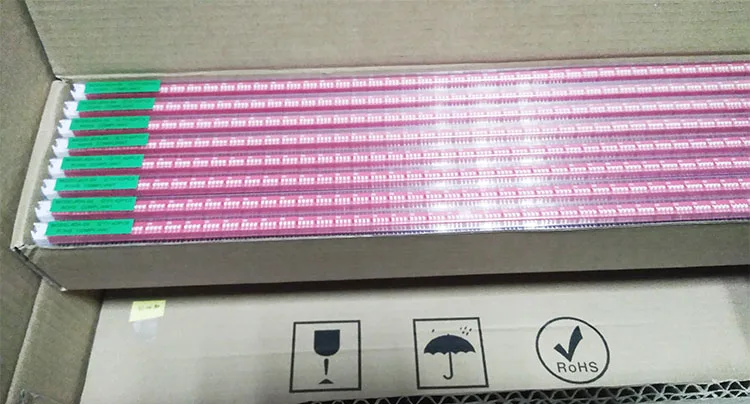

PACKING AND SHIPPING
FAQ
Q1: Can I get free sample of smd dip switch for test before place an order?
A1: Yes, we offer FREE SAMPLE for you test.
Q2: Does your company accept small order?
A2: Yes, we accept small trial order.
Q3: Does your company accept online order?
A3: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
Q4: How can I do if there is some problem with the goods?
A4: You can ask for FULL REFUND if there is any quality problems with our products, except human factors.
A1: Yes, we offer FREE SAMPLE for you test.
Q2: Does your company accept small order?
A2: Yes, we accept small trial order.
Q3: Does your company accept online order?
A3: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
Q4: How can I do if there is some problem with the goods?
A4: You can ask for FULL REFUND if there is any quality problems with our products, except human factors.
