Product Overview
Description
Product Description
DBET type proportional relief valve is a precise control valve with a conical valve core design, used to limit system pressure. It is driven by a proportional electromagnet. This valve can root
According to the set value of the electrical signal, the system pressure can be continuously adjusted.

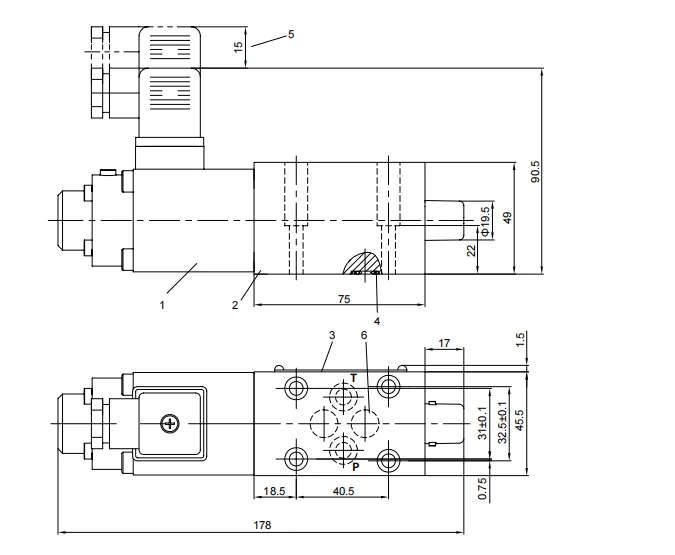

The valve mainly consists of a valve body (1), a proportional electromagnet (2), a valve seat (3), and a conical valve core (4).
A proportional electromagnet converts the current value into mechanical force proportionally, and an increase in current value will cause the output force of the electromagnet to increase proportionally. The armature of the electromagnet
The chamber is filled with oil and the pressure is balanced.
The system pressure is set by a proportional electromagnet (2) based on the set value, and the electromagnetic force pushes the conical valve core (4) to the valve seat (3). If on the conical valve core (4)
If the hydraulic pressure is equal to the electromagnetic force, the set pressure is controlled by lifting the conical valve core away from the valve seat (3), so that the oil will flow from port P to port T.
In the case of zero input, the minimum control current will result in the minimum regulating pressure.
According to the set value of the electrical signal, the system pressure can be continuously adjusted.
The valve mainly consists of a valve body (1), a proportional electromagnet (2), a valve seat (3), and a conical valve core (4).
A proportional electromagnet converts the current value into mechanical force proportionally, and an increase in current value will cause the output force of the electromagnet to increase proportionally. The armature of the electromagnet
The chamber is filled with oil and the pressure is balanced.
The system pressure is set by a proportional electromagnet (2) based on the set value, and the electromagnetic force pushes the conical valve core (4) to the valve seat (3). If on the conical valve core (4)
If the hydraulic pressure is equal to the electromagnetic force, the set pressure is controlled by lifting the conical valve core away from the valve seat (3), so that the oil will flow from port P to port T.
In the case of zero input, the minimum control current will result in the minimum regulating pressure.
Specification
Item | Value |
Application | General |
Warranty | 1 years |
Place of Origin | China |
Model Number | DBET (E) series |
Power | Hydraulic |
Temperature of Media | Medium Temperature, Normal Temperature |
Brand Name | Macroway |
Structure | Safety |
Media | Oil |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | DBET (E) series proportional relief valves |
Body material | Cast Steel |
Pressure | Normal Pressure |
Connection | Terminal |
Size | Φ6 |
Color | Silver |
MOQ | 1 Piece |
Seal Material | FKM |
Element Size
Packing & Delivery
Packing with wood or Corrugated Carton box.
