Good Quality Tuna Fish Factory Machine Cooking Autoclave Tuna Cooker
$15,800.00-16,900.00

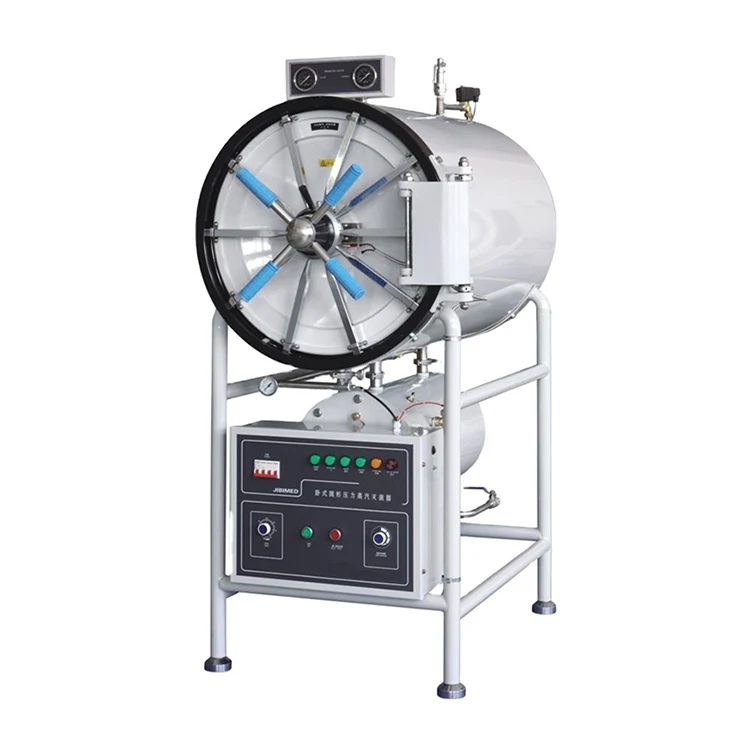

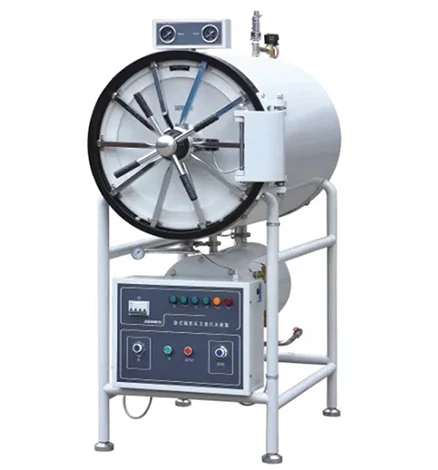

Horizontal Cylindrical High Pressure Steam Sterilizer/Autoclave
- Category: >>>
- Supplier: Zhengzhou Well-Known Instrument & Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601010177125):
Product Overview
Description
Products Description
This horizontal pressure sterilizer adopts the gravity displacement method to remove the cold air in the inner chamber, so that the cold air content of the steam in the inner chamber is less, and the sterilization is more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the steam intake and exhaust steam according to the temperature of the inner room. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and scientific research laboratories and other units to sterilize medical and experimental cloth items, surgical instruments and utensils.
Product Features
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8.150L,200L,280L optional.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8.150L,200L,280L optional.
Product Paramenters
Model | WS- 90YDA | WS- 150YDA | WS- 200YDA | WS- 280YDA | WS- 400YDA | WS- 500YDA | |||||
Chamber volume | 90L | 150L | 200L | 280L | 400L | 500L | |||||
working pressure | 0.22MPa | ||||||||||
Working temperature | 134℃ | ||||||||||
Adjustment of temperature | 105℃ - 134℃ | ||||||||||
Time of sterilization | 0-60 min | ||||||||||
Time of drying | 0-60 min | ||||||||||
Heat average | ≤±1℃ | ||||||||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz | |||||
Overall dimension | 1100×600× 1300 | 1400×600× 1300 | 1400×670× 1650 | 1400×770× 1780 | 1430×880× 1830 | 1800×900× 1820 | |||||
Transport dimension | 1250×750× 1850 | 1550×750× 1850 | 1560×820× 1850 | 1680×920× 2100 | 1800×1050× 2100 | 1850×1050× 2100 | |||||
G.W/N.W | 270/200 KG | 320/240 KG | 350/260 KG | 465/365 KG | 530/520 KG | 580/470 KG | |||||
Details Images
Company Introduction
Zhengzhou Well-known Instrument & Equipment Co.,Ltd,founded in 2001,specialized in manufacturing extraction and distillation equipment from lab scale to production scale for almost 20 years.
Our main products include Freezer dryer, Rotary evaporator, Glass reactor, Heating&cooling circulator,Water circulating vacuum pump, Vacuum drying oven, Low temp cooling liquid circulating pump and so on.
So far, our products have been sold all over Asia, Europe and America. Also,we have covered most of laboratories in China.
So far, our products have been sold all over Asia, Europe and America. Also,we have covered most of laboratories in China.
Well-known has become one of the most popular and trustworthy brand.We are a manufacturer, so we can also customized products as you need. Because our quality and service, many customer buy second times from us. Most of our standard products are in stock and ready to ship.
Certificate
Packing&Shipping
Packaging
-The glass parts will be wrapped with foam, then put into the carton, the main body portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
-The glass parts will be wrapped with foam, then put into the carton, the main body portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
FAQ
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality
problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality
problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
