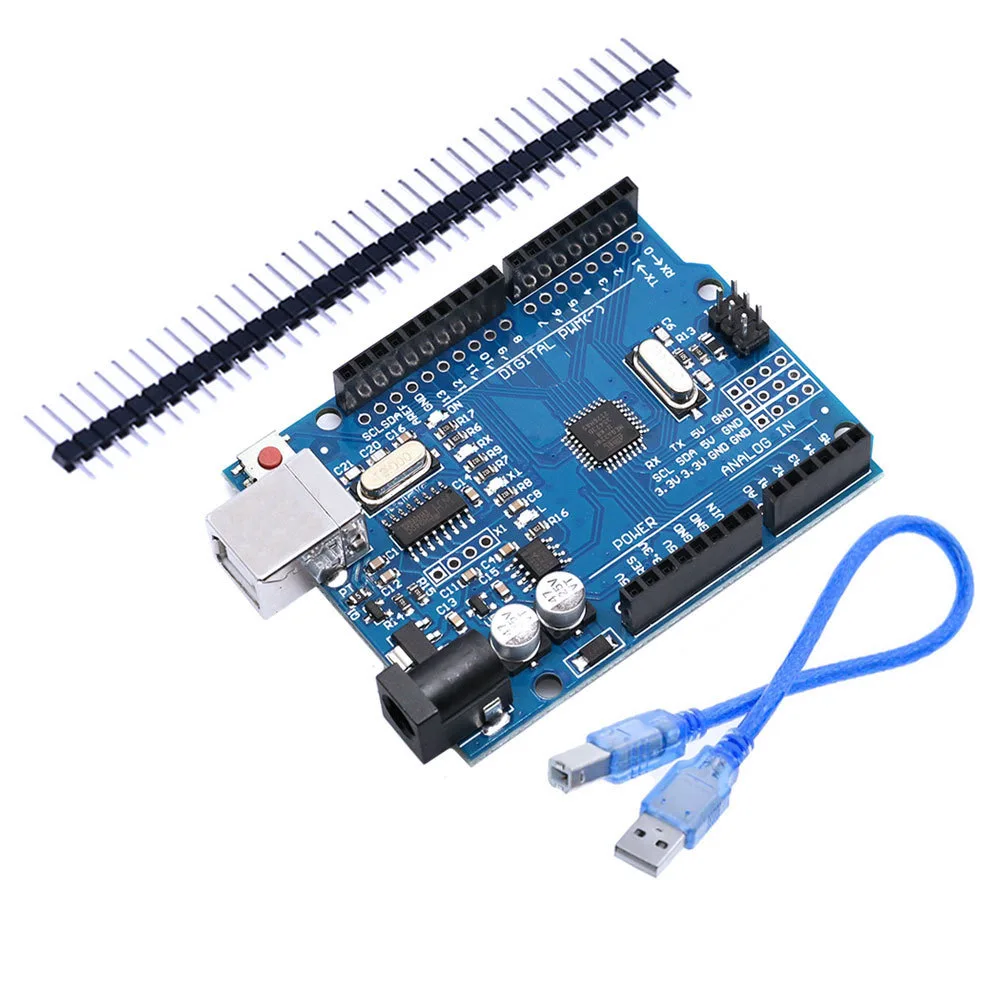

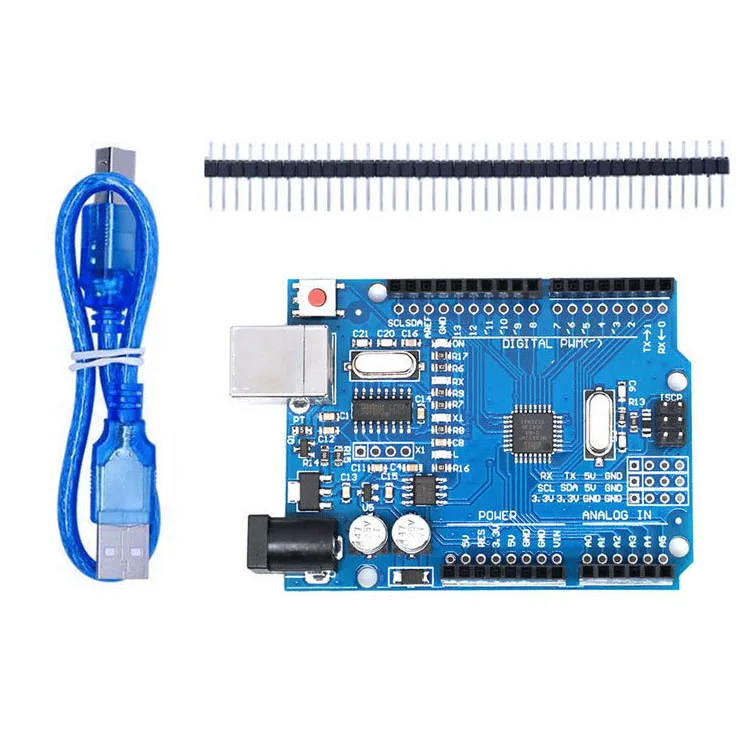

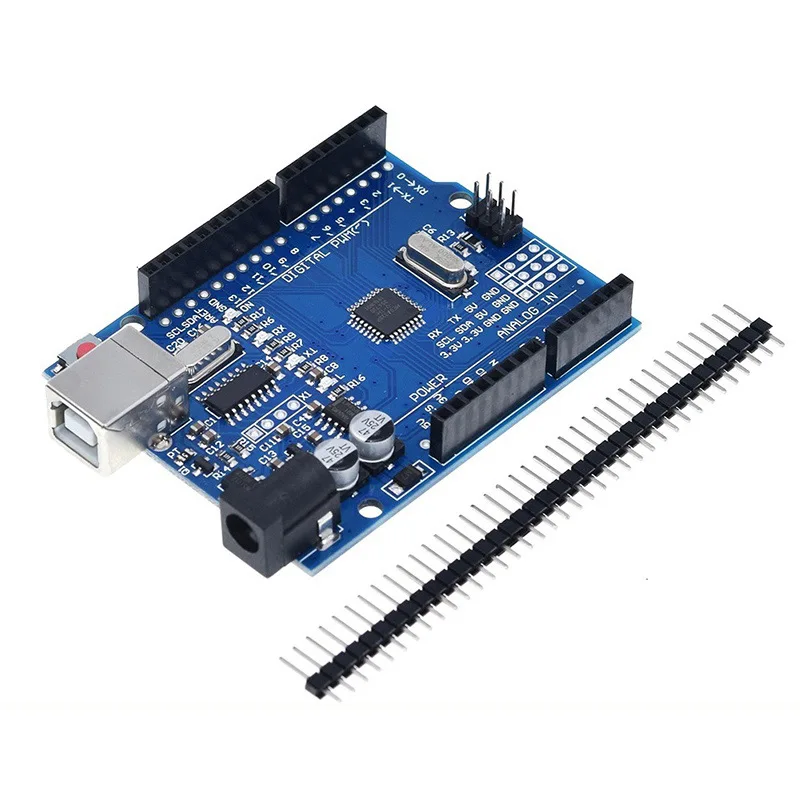

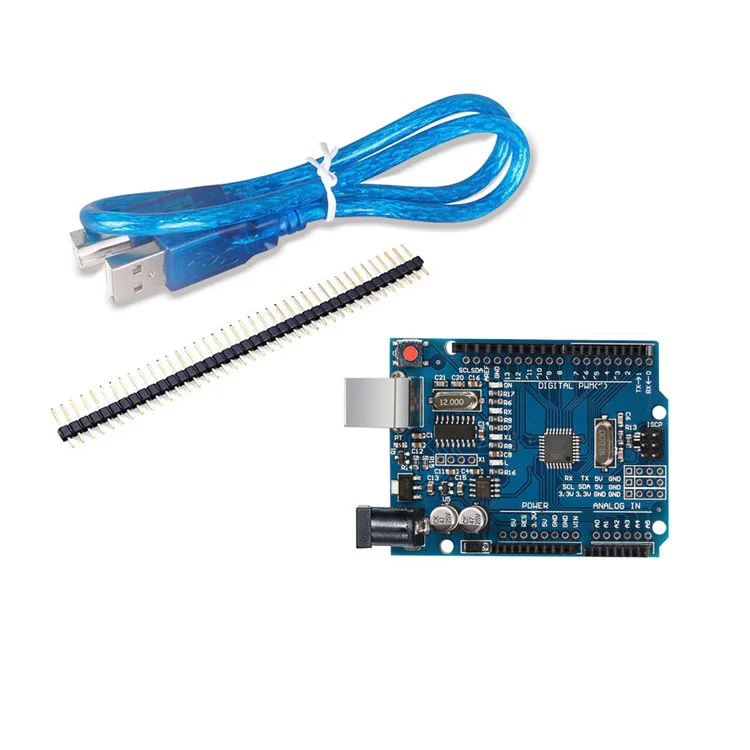

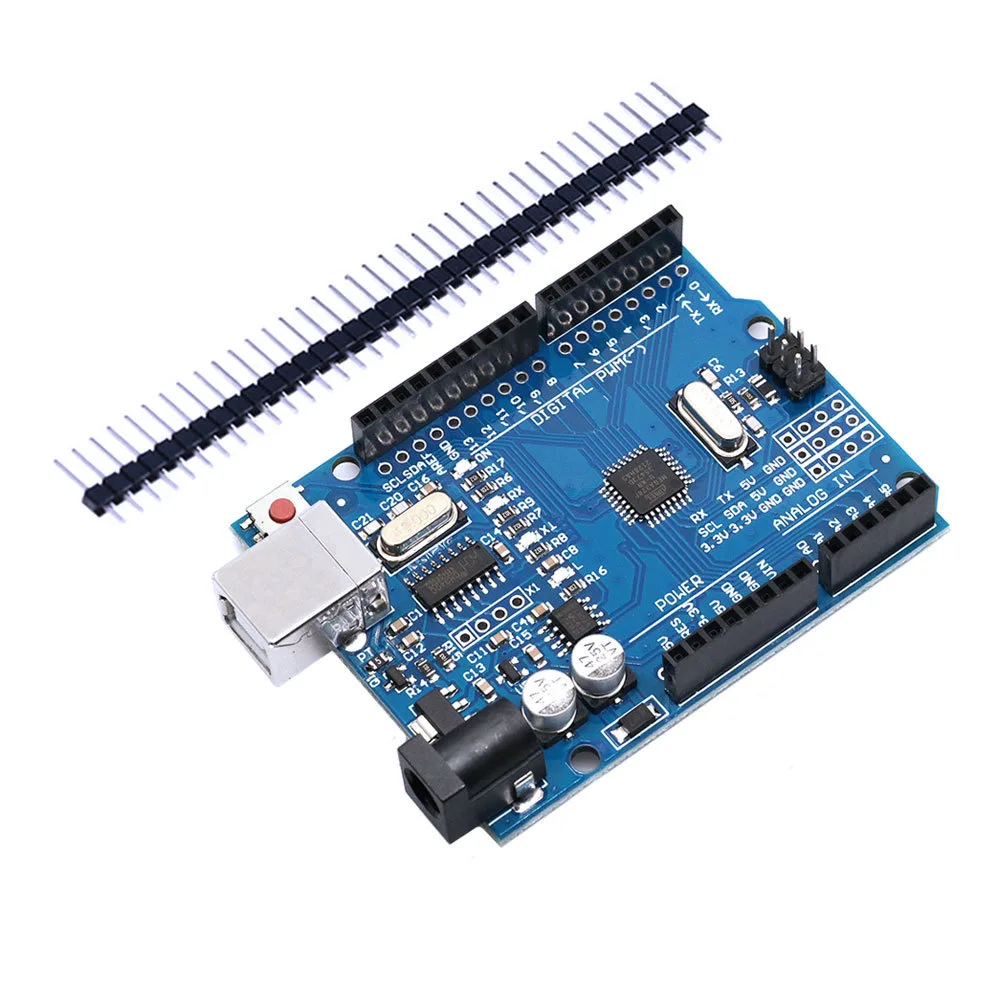

UNO R3 improved version CH340G MEGA328P UNO development board module compatible with Arduino
- Category: >>>
- Supplier: Shenzhen Jiangyuan Microelectronics Technology Co. Ltd.
Share on (1601010397783):
Product Overview
Description
Product Description
This version is an optimization of the original version, It ensures complete compatibility with the original version and is convenient for everyone to use.
Advantages:
Solved the incompatibility and instability of traditional UNO boards on Win7 and Win8 systems.
Added a pin insertion port to facilitate the use of DuPont cables.
Replacing 16u2 reduces costs by half, providing consumers with great benefits
Open circuit diagrams with original design, free download of development software interface, and customizable modifications according to requirements. The download program is simple and convenient. It is easy to use sensors and various electronic components to connect (such as LED lights, buzzers, buttons, photoresistors, etc.) to create a variety of interesting works
Using a high-speed microprocessor controller (ATMEGA328), the development interface and environment are very simple and easy to understand, making it very suitable for beginners to learn.
Performance Description
Digital I/O digital input/output terminals range from 0 to 13.
Analog I/O analog input/output terminals are 0~5 in total.
Support ISP download function.
Input voltage: When connected to the computer USB, there is no need for external power supply. The external power supply is 5V~9V DC voltage input.
Output voltage: 5V DC voltage output and 3.3V DC voltage output.
Advantages:
Solved the incompatibility and instability of traditional UNO boards on Win7 and Win8 systems.
Added a pin insertion port to facilitate the use of DuPont cables.
Replacing 16u2 reduces costs by half, providing consumers with great benefits
Open circuit diagrams with original design, free download of development software interface, and customizable modifications according to requirements. The download program is simple and convenient. It is easy to use sensors and various electronic components to connect (such as LED lights, buzzers, buttons, photoresistors, etc.) to create a variety of interesting works
Using a high-speed microprocessor controller (ATMEGA328), the development interface and environment are very simple and easy to understand, making it very suitable for beginners to learn.
Performance Description
Digital I/O digital input/output terminals range from 0 to 13.
Analog I/O analog input/output terminals are 0~5 in total.
Support ISP download function.
Input voltage: When connected to the computer USB, there is no need for external power supply. The external power supply is 5V~9V DC voltage input.
Output voltage: 5V DC voltage output and 3.3V DC voltage output.
Specification
item | value |
Place of Origin | Guangdong,China |
Model Number | UNO R3 |
Mounting Type | development board module |
Size / Dimension | 70*50*20MM |
Description | development board module |
Product Name | R3 atmega328p-pu CH340 Development board |
Color | Blue |
MOQ | 1pcs |
size | 70*50*20MM |
weight | 0.052 |
Packing & Delivery
box
Company Profile
We company was founded in 2011 and has 9 years of PCB manufacturing and PCBA assembly experience, we have a professional technical team. The quality of PCB and PCBA is stable and reliable, the yield is high and the speed is fast. We have sample and mass
production workshop, batch and sample have independent production line. This kind of production makes us more efficient and
flexible.
production workshop, batch and sample have independent production line. This kind of production makes us more efficient and
flexible.
The industries the company has cooperated with include: medical treatment, consumer electronics, industrial control,
security, transportation, etc. The fabricated package devices include BGA, LGA, CSP, QFP, TQFP, QFN, PLCC, sot, SOIC, 0805 0603
0402 0201, etc.
security, transportation, etc. The fabricated package devices include BGA, LGA, CSP, QFP, TQFP, QFN, PLCC, sot, SOIC, 0805 0603
0402 0201, etc.
