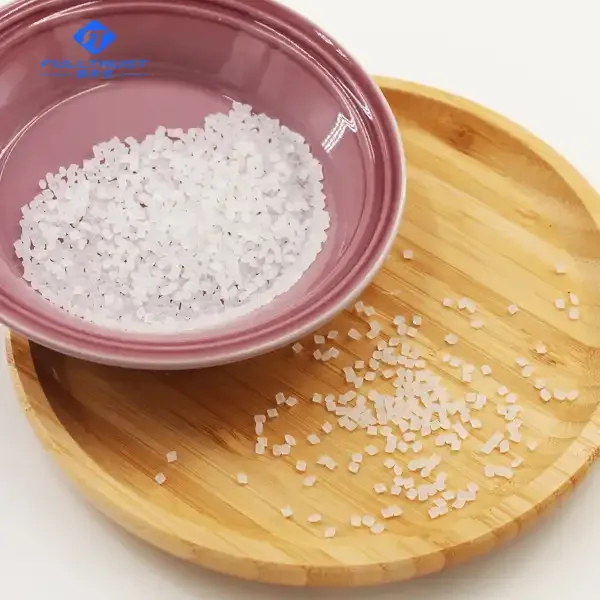

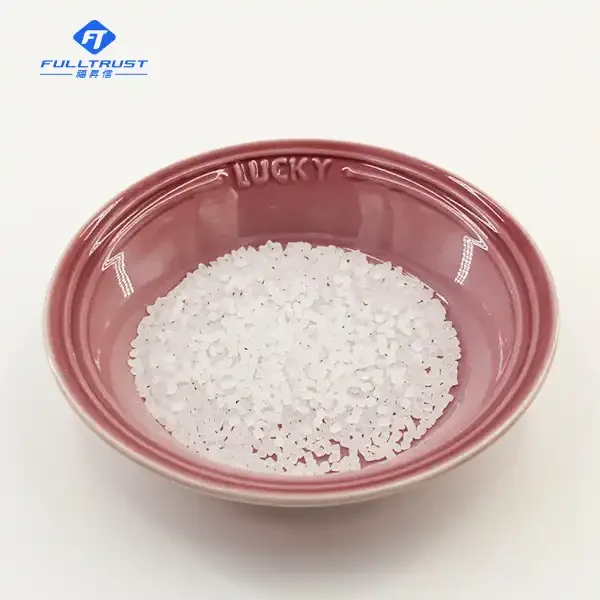

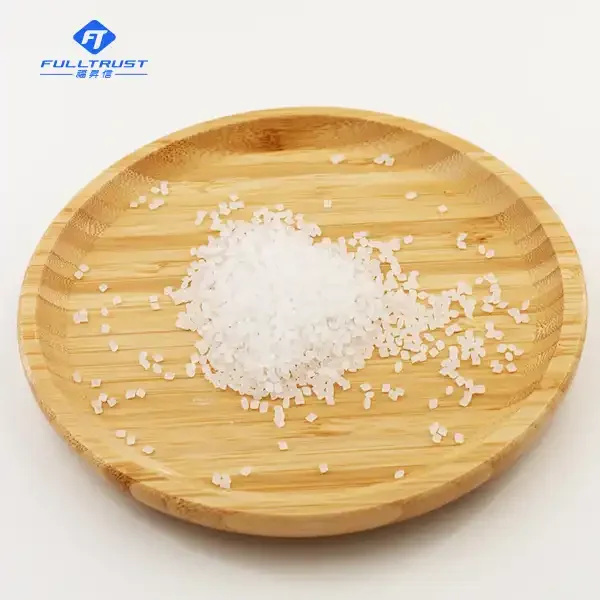

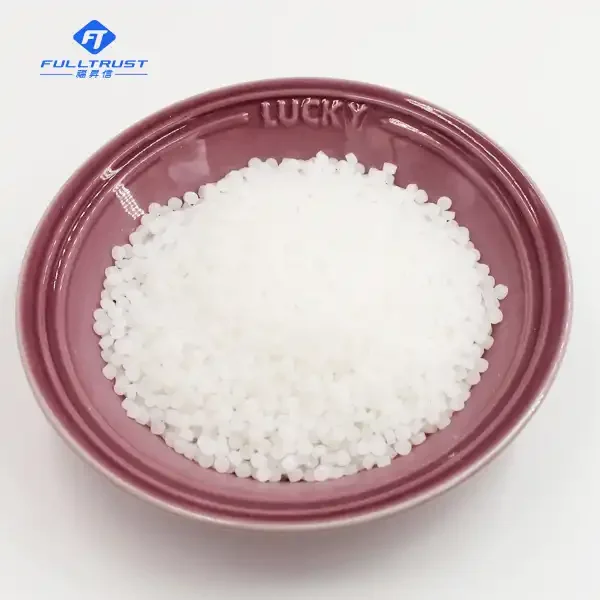

pa66 granules 1603 2 NF2004 43% glass fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material
pa66 granules 1603-2 NF2004 43% glass-fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material

pa66 granules 1603 2 NF2004 43% glass fiber high strength stiffness PA66 pellets polyamide66 resin plastic raw material

Share on (1601010442908):


Price:$2.46 - $6.84

Quantity:


Product Overview

Description









Physical Properties
Metric
English
Comments
Density
1.50 g/cc
0.0542 lb/in³
ISO 1183
Water Absorption
4.8 %
4.8 %
ISO 62
Moisture Absorption at Equilibrium
1.4 %
1.4 %
23°C/50% R.H.; ISO 62
Linear Mold Shrinkage
0.0030 cm/cm
0.0030 in/in
ASTM Data; MD
Mechanical Properties
Metric
English
Comments
Tensile Strength at Break
234 MPa
33900 psi
0.2 in/min; ASTM Test
Tensile Strength, Ultimate
235 MPa
34100 psi
5mm/min; ISO 527
Elongation at Break
3.0 %
3.0 %
5mm/min; ISO 527
3.0 %
3.0 %
0.2 in/min; ASTM Test
Tensile Modulus
13.8 GPa
2000 ksi
1mm/min; ISO 527
Flexural Strength
331 MPa
48000 psi
ASTM Test
Flexural Modulus
11.0 GPa
1600 ksi
ASTM Test
12.9 GPa
1870 ksi
ISO Data
Izod Impact, Notched
1.39 J/cm
@Thickness 3.17 mm
2.60 ft-lb/in
@Thickness 0.125 in
ASTM Test
Izod Impact, Notched (ISO)
16.0 kJ/m²
7.61 ft-lb/in²
ISO Test
Charpy Impact Unnotched
10.0 J/cm²
47.6 ft-lb/in²
ISO 179
8.00 J/cm²
@Temperature -30.0 °C
38.1 ft-lb/in²
@Temperature -22.0 °F
ISO 179
Charpy Impact, Notched
1.60 J/cm²
7.61 ft-lb/in²
ISO 179
1.40 J/cm²
@Temperature -30.0 °C
6.66 ft-lb/in²
@Temperature -22.0 °F
ISO 179
Thermal Properties
Metric
English
Comments
Melting Point
257 °C
495 °F
10 K/min
257 °C
495 °F
ASTM Test
Deflection Temperature at 0.46 MPa (66 psi)
264 °C
507 °F
ISO 75
Deflection Temperature at 1.8 MPa (264 psi)
253 °C
487 °F
ASTM Test
256 °C
493 °F
ISO 75
Descriptive Properties
Color
Natural
Commercial Status
Active America
Impact Modified
No
Primary Processing Technique
Injection Molding
