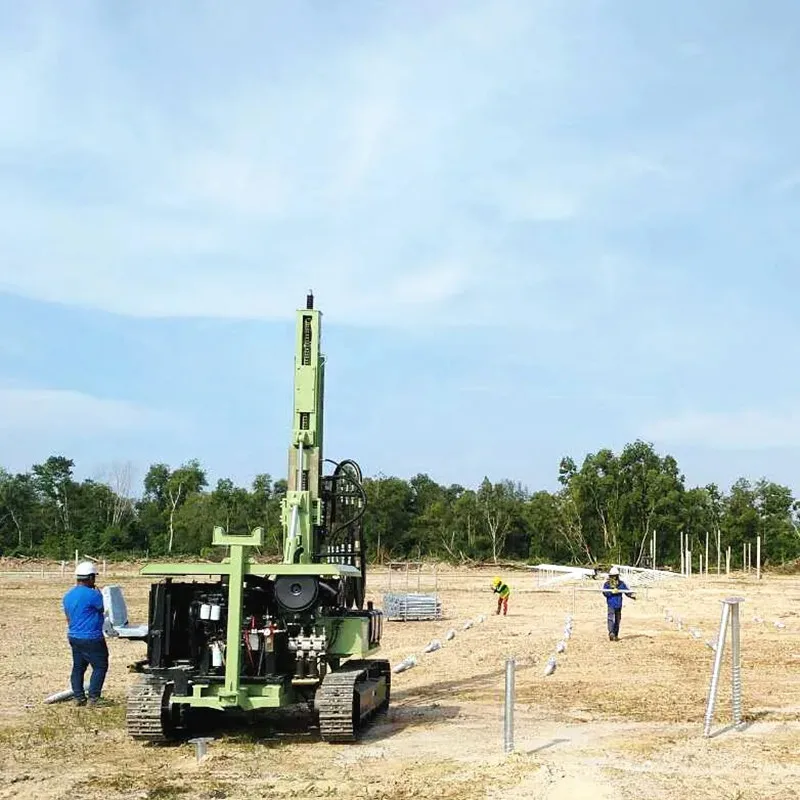

crawler mounted solar ground screw mounting pile driver for sale

Product Overview

Description

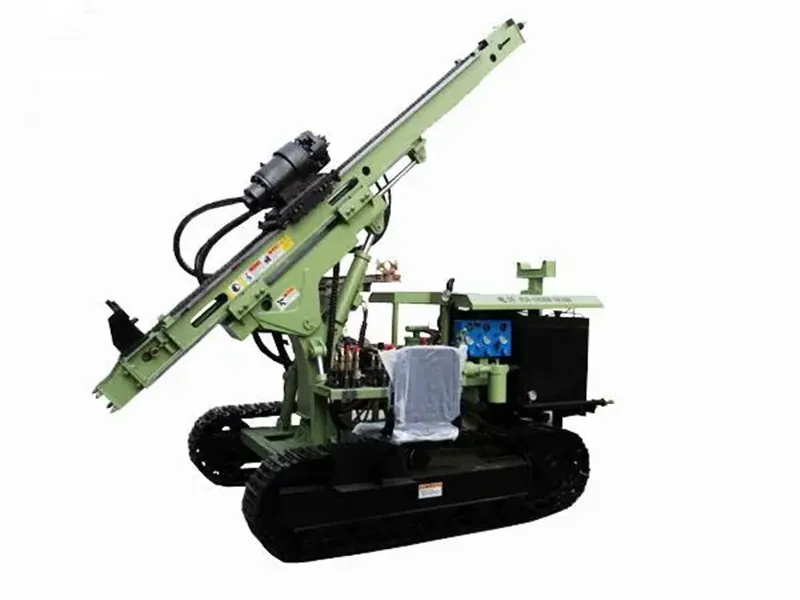

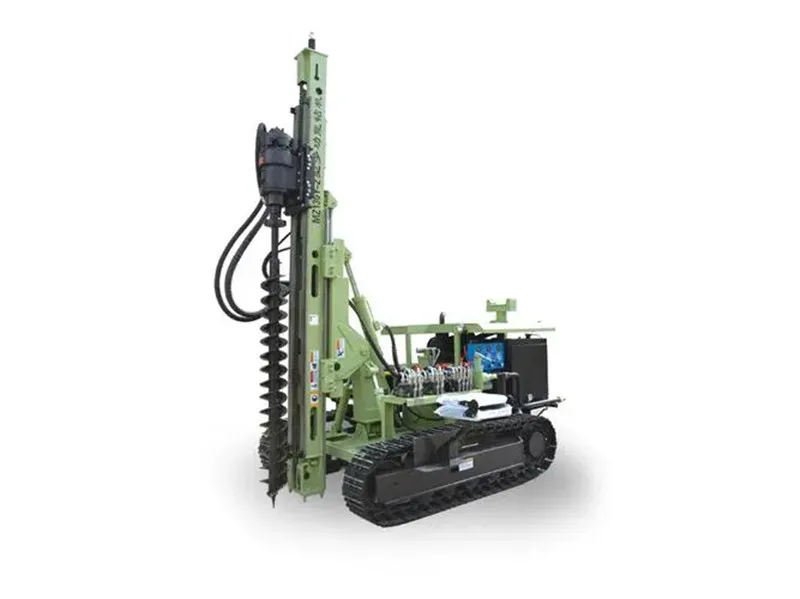

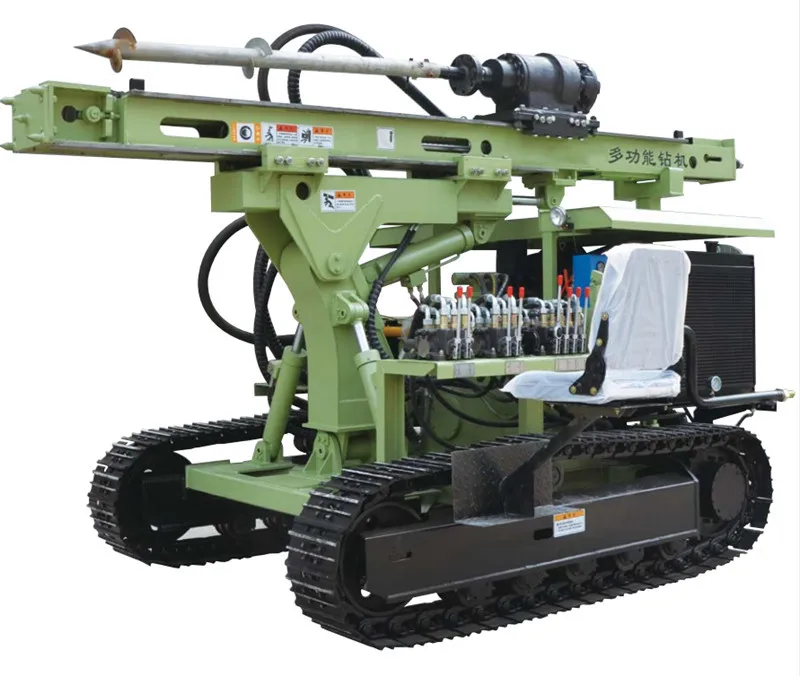

MZ130Y-2 hydraulic crawler drill rig,using new type of hydraulic technology,low consumption,large rotary torque,convenient hole defection.The drilling machine structure is compact,.while the mast has adjustable compensation function,when drilling ,the mast supported on the ground,borehole stability is good.MZ130Y-2 drilling rig has reliable performance,high efficiency,suitable for operating conditions.It also reduce costs and improve the efficiency.

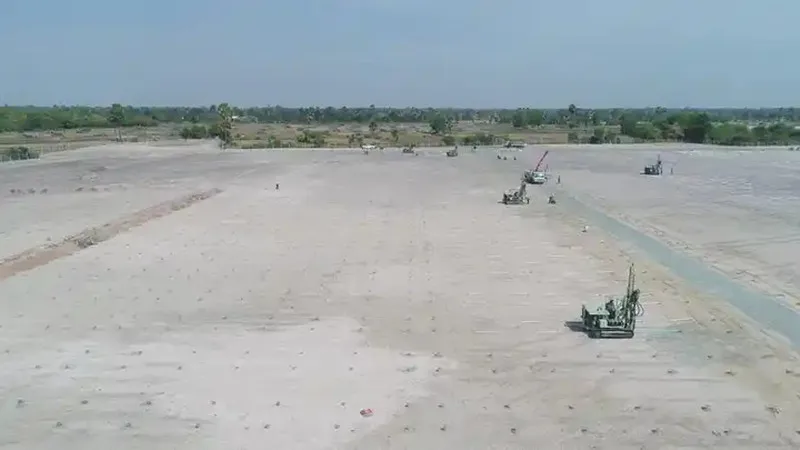

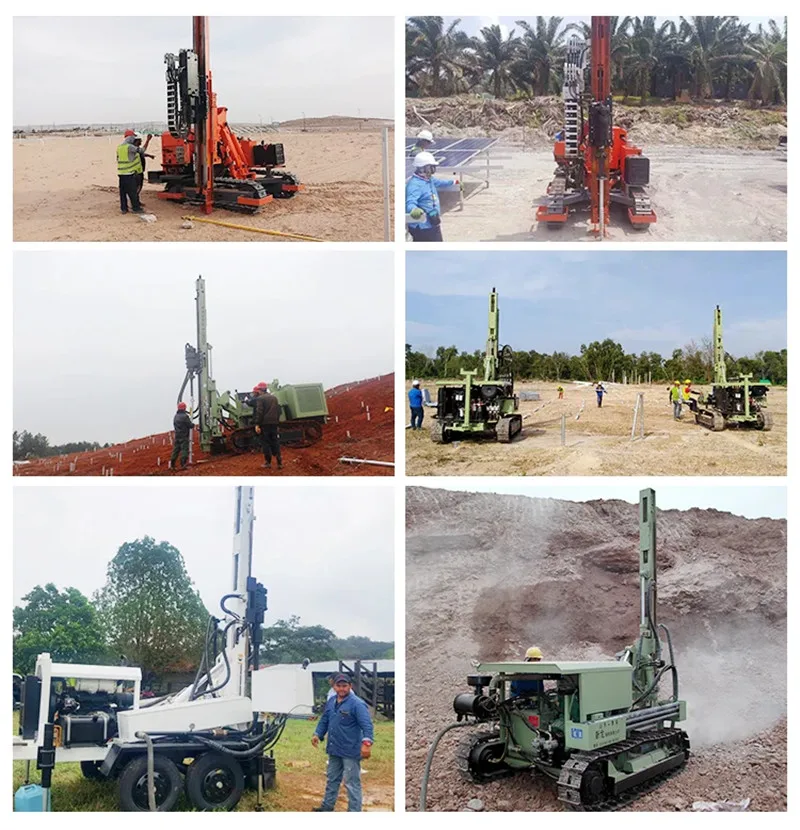

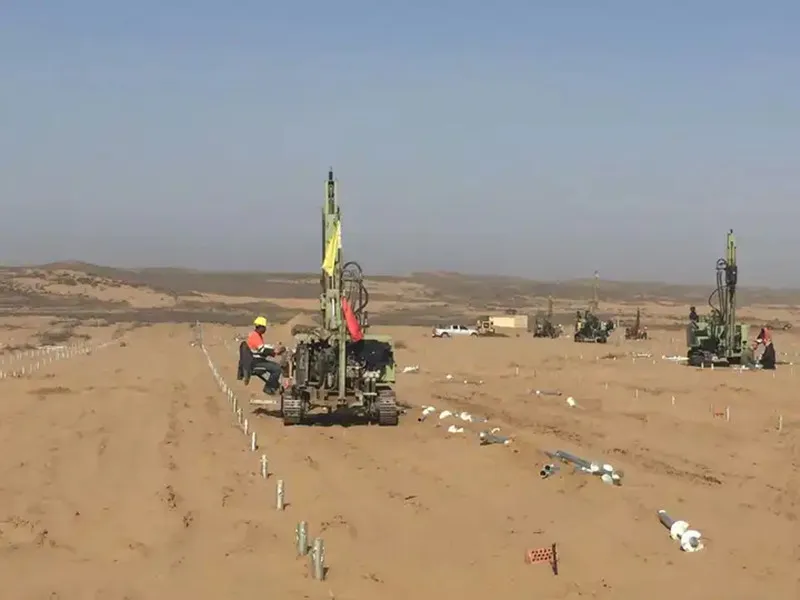

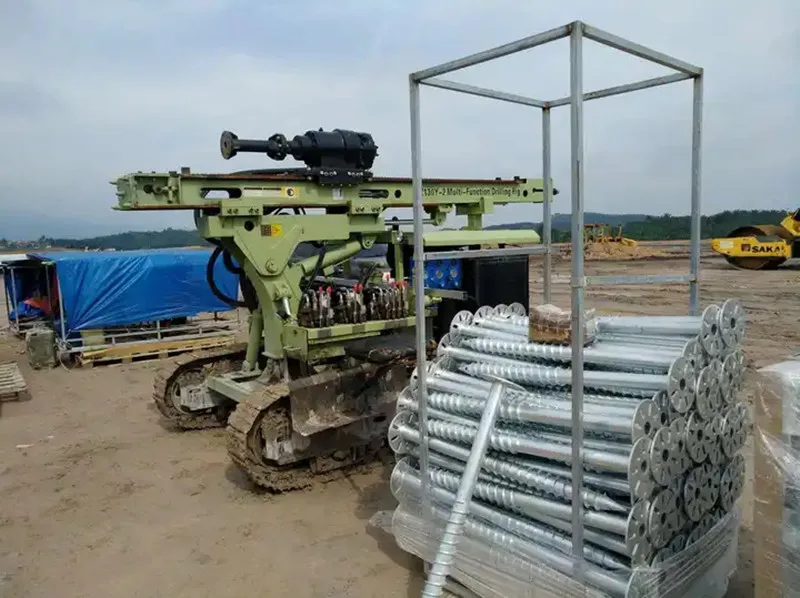

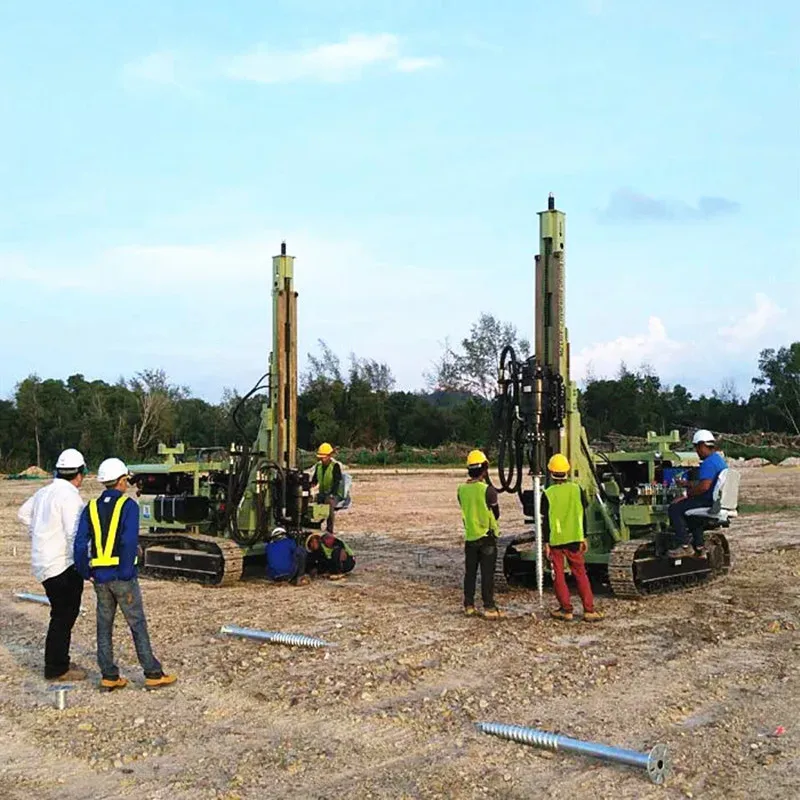

The drilling rig is mainly used for piling anchor,water wells,photovoltaic solare spiral pile,DHL blasting construction.etc.

Technical paremeters:

hole diameter	90-300mm
Drilling hole depth	20-100m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa
Pipe diameter	76/89mm
Rock hardness adaptation	6-20F
Bore hole diameter(screw)	400mm max
Screw drilling depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	2000mm
Skid pitch	100°
Swinging angle of skid	40°
Rotation speed	0-70r/min
Host power	56KW
Climb ability	35°
Walk speed	0-2.5km/h
Dimension	4500*1970*2440mm
Weight	4710kgs
