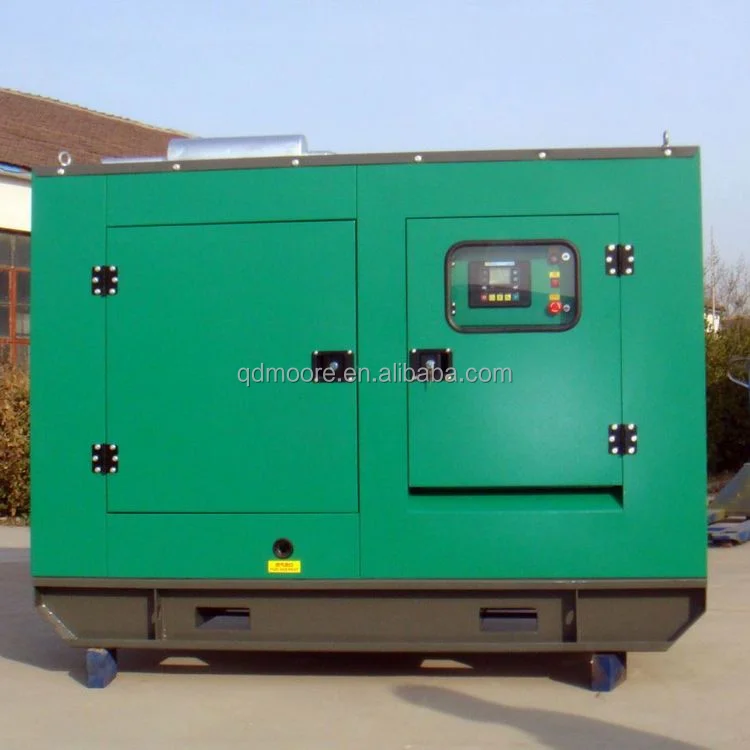

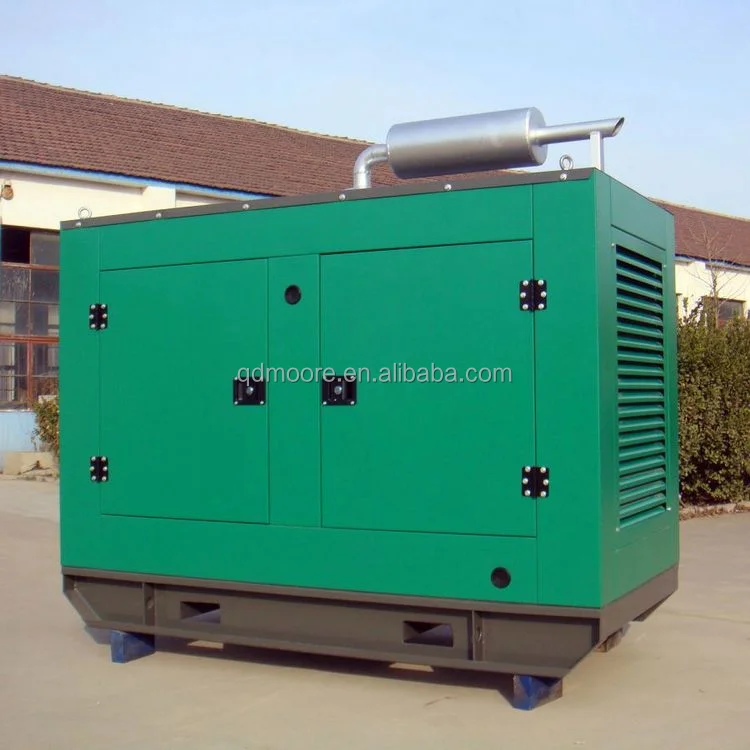

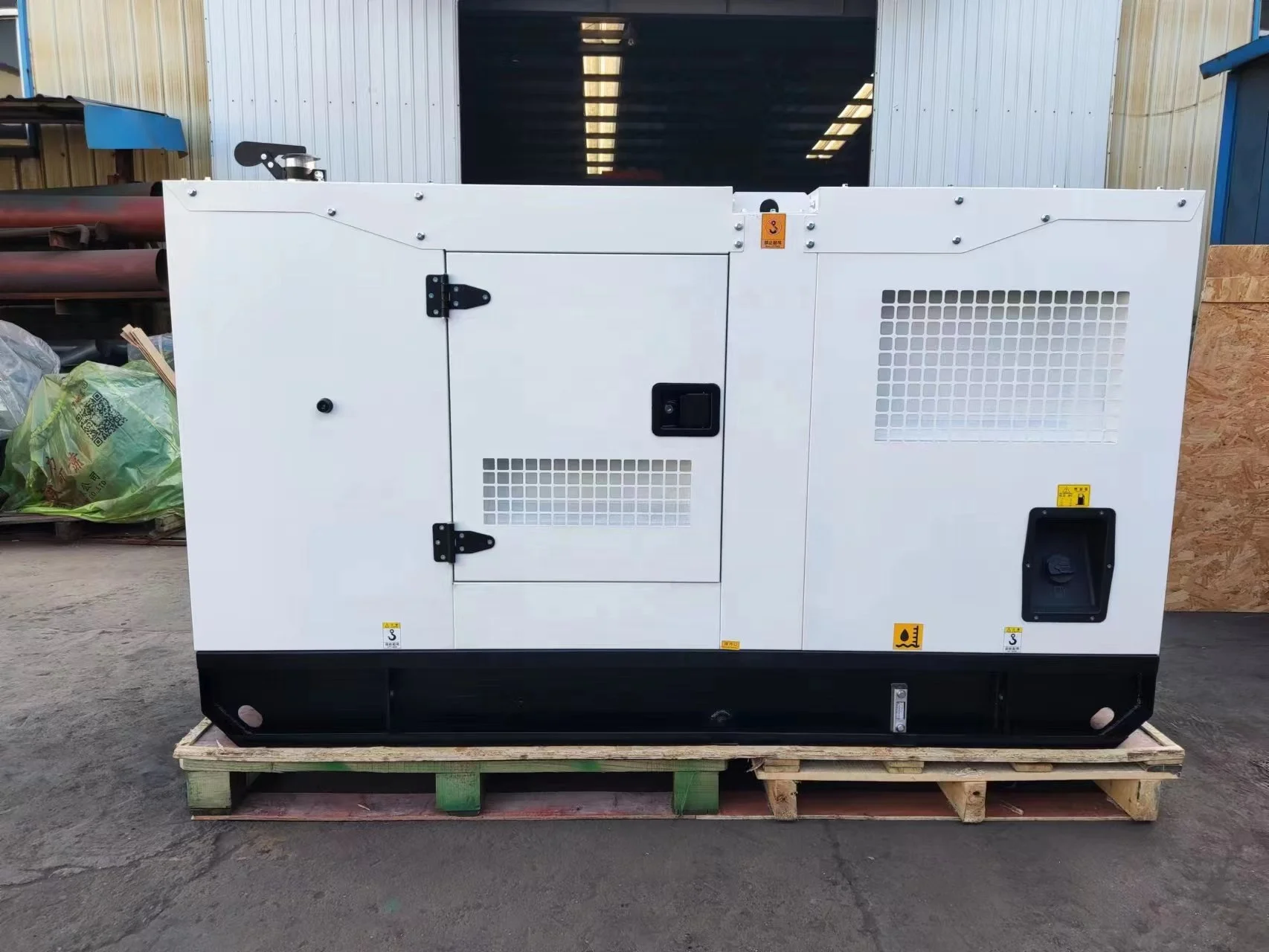

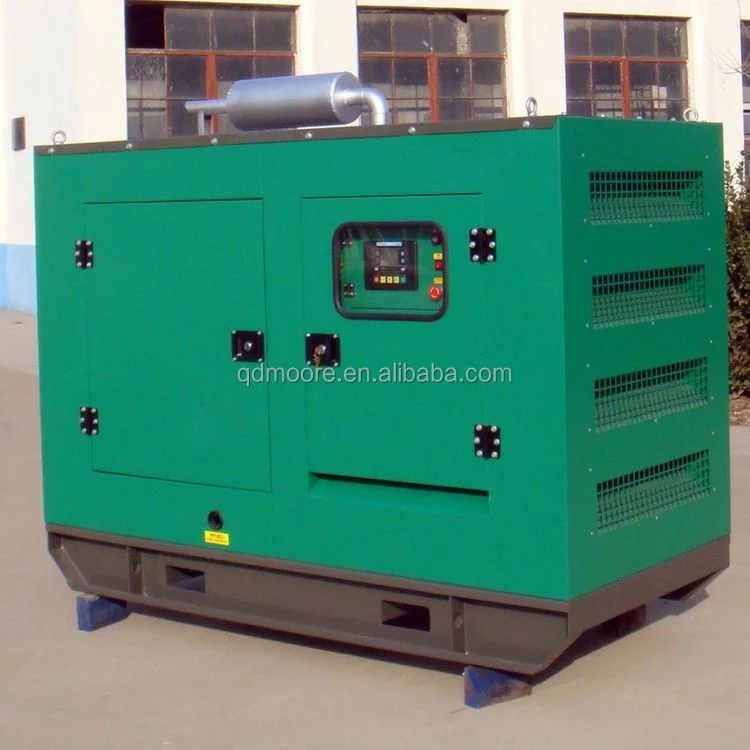

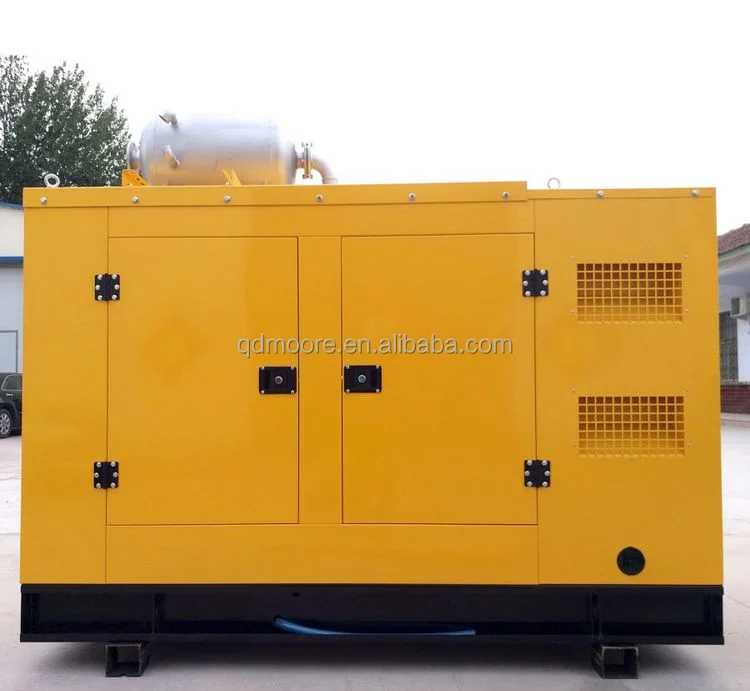

30kw 37.5kva silent 50hz ac three phase diesel generator with Ricardo Engine
- Category: >>>
- Supplier: Qingdao Moore Golden International Trade Co. Ltd.
Share on (1601010501847):
Product Overview
Description
Product Description
Specification
Technical parameters of diesel generator set 30kw | ||
Generator set model：MG30GF | Steady state voltage adjustment rate (%):≤± 1 | |
Generator power:30kW/37.5kVA | Voltage fluctuation rate (%):≤ ± 0.5 | |
Power factor:COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%):＋20 ～－15 | |
Output voltage:400V/230V | Voltage stabilization time (s):≤1 | |
Generator set current:54A | Steady state frequency adjustment rate (%):≤ ± 1 | |
Rated frequency:50Hz | Frequency fluctuation rate (%):≤ ± 0.5 | |
Rated speed:1500rpm | Transient frequency adjustment rate (%):+ 10 ~ -7 | |
Fuel grade:(standard) 0 # light diesel (normal temperature) | Frequency stabilization time (S):≤3 | |
Diesel generator size:1720*600*1200 （L*W*H mm） | Diesel generator fuel consumption (100% load):205g/kW·h | |
Diesel generator weight:700kg | Diesel generator volume(LP7m):95dB（A） | |
Technical parameters of diesel engine | ||
Diesel engines brand：Ricardo engine | Cooling method: Closed water-cooling | |
Diesel engines model: ZH4100D | Oil supply method: direct injection | |
Engine cylinder number: 4 / L Type | Speed regulation method: Mechanical | |
Bore stroke: 108*115 mm | Intake method: Natural inhalation | |
Compression ratio: 19：1 | Overload capacity: 110% | |
Start method：DC 12V Electric start | Diesel engines Speed: 1500rpm | |
Technical parameters of generator | ||
Generator brand：LY Brushless Generator | Protection level：IP22 | |
Generator Model：LY-30 | Wiring mode：Three-phase four-wire, Y-connection | |
Generator power: 30kW/37.5kVA | Adjustment method: AVR (Automatic Voltage Regulator) | |
Rated voltage: 400V / 230V | Output frequency: 50Hz | |
Insulation class: H class | Output factor: COSΦ = 0.8 (lag) | |
Genset standard features | Optional accessories（Extra charged） | |
1)、Direct injection internal combustion engine(Diesel)； | 1)、Engine oil、diesel、water jacket、Anti-condensation heater | |
2)、AC synchronous generator（Single Bearing）； | 2)、Battery floating charger | |
3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards； | 3)、Self-protection unit/self-starting control panel | |
4)、Generation output air switch、Standard control panel； | 4)、Tree-remote control panel | |
5)、Steel common base with shock absorber； | 5)、ATS AUTO-loaded transferring screen | |
6)、Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator； | 6)、Daily fuel tank、Integral fuel tank | |
7)、starter battery and connecting cables； | 7)、Waterproof type(Cabinet) | |
8)、Industrial 9dB muffler and accessories； | 8)、Mobile trailer(Drip proof) | |
9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet； | 9)、Mobile trailer(Silent type) | |
Packing & Delivery
plywood case packages
Company Profile
Qingdao Moore Power is located in the diesel engine manufacturing city, Weifang. For many years, we have become a professional manufacturer of diesel generators.
The power range of our generating set is from 5KW to 2200KW. It is coupled by world famous brand engine such as CUMMINS, PERKINS, DEUTZ, DOOSAN, YUCHAI etc., with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. And we are the OEM manufacturer of Cummins, Doosan, Yuchai and so on. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.
QD Moore has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.
We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.
The power range of our generating set is from 5KW to 2200KW. It is coupled by world famous brand engine such as CUMMINS, PERKINS, DEUTZ, DOOSAN, YUCHAI etc., with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. And we are the OEM manufacturer of Cummins, Doosan, Yuchai and so on. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.
QD Moore has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.
We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.
FAQ
1. Are you a factory or trader ?
We are factory,it is located in Weifang city which is the biggest area of power manufacturing inChina. And we get the import and export right by QingDao Moore Golden trading in order to supply one-stop service which can save lots of cost and time for our customers.
2. What is our warranty for the machine? How about our warranty?
We will provide 1-year warranty for each machine. If some parts of the machine cannot work, just send a small video to us, and we will be able to judge which parts cannot work, and mail the non working parts to you for free, vividly instructing you to replace them.
3.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide aconfidentiality agreement "trade secret contract" for your design security.
4. How to operate the disel generator set?
a. Add water/antifreeze (depending on temperature)
b. Add oil, recommend CD/CF grade
c. Add No. 0 diesel d. Connect the output wire
e.Connect the cables
f. Start the generator to output electricity
