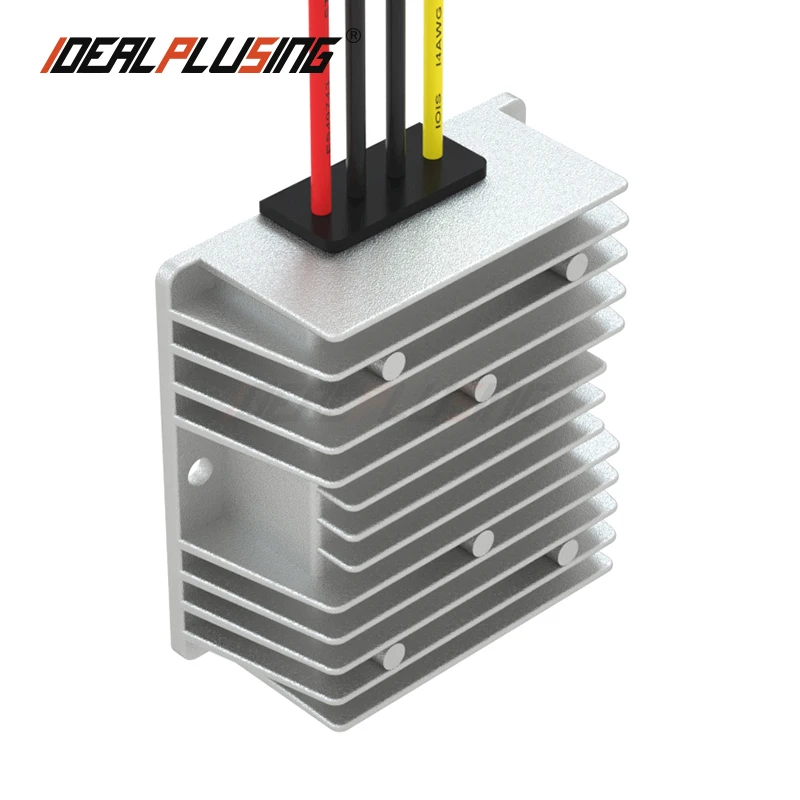

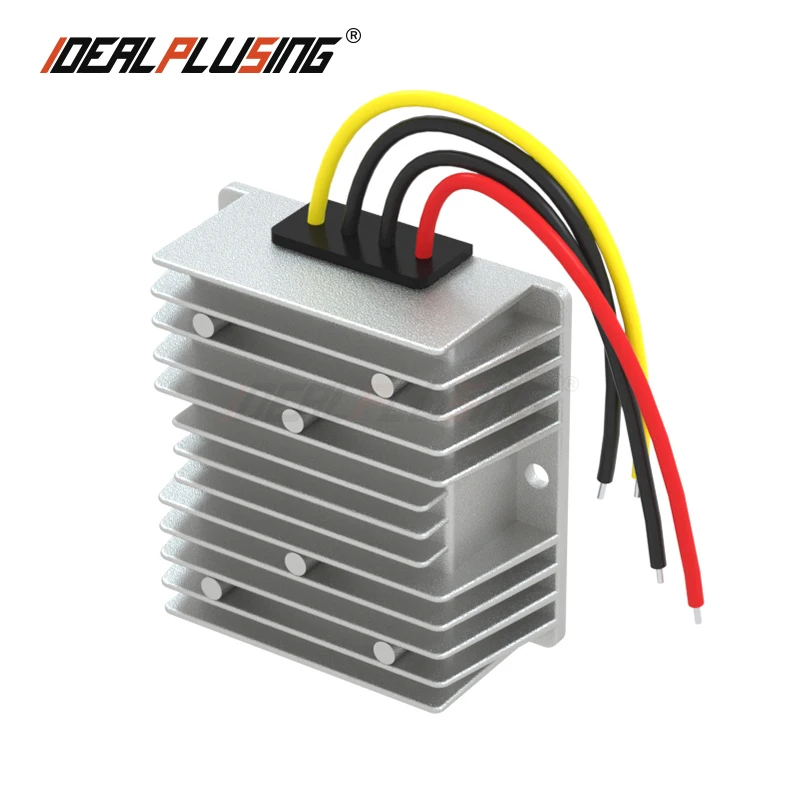

IDEALPLUSING Waterproof step down ac dc Converter 12/24V to 5V 5A 25W Transformer 12/24 Volt to 5Volt

Share on (1601010504417):


Price:$10.37 - $10.58

Quantity:


Product Overview

Description



dc converter

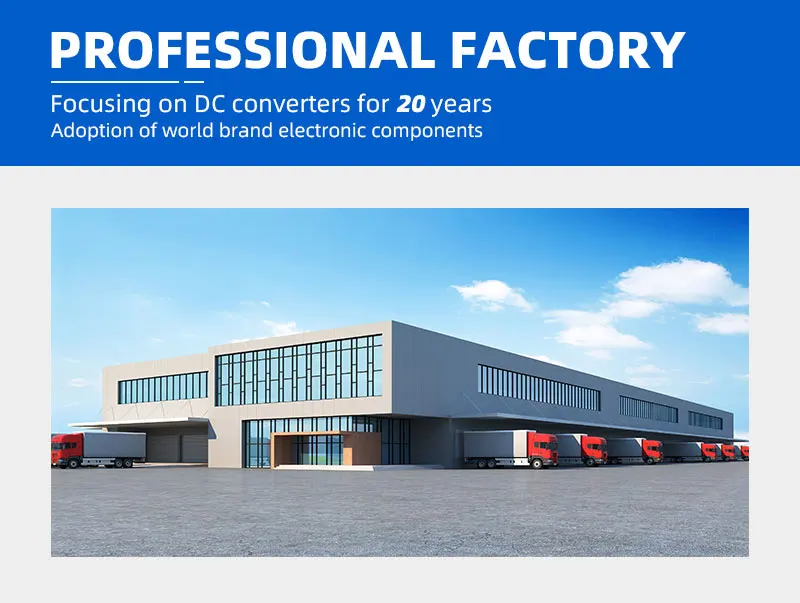

01





IDEALPUSING is a company specializing in power conversion solutions.


Our products are widely used in electric vehicles, automobiles, RVs, and other vehicles, in the marine, communication, and military industries.


Since 2001, our team has been providing power solutions.


In 2008, our company set up a factory in Shenzhen, Guangdong, China, and started to produce power supplies. And in 2019, we set up a factory in Dongguan, Guangdong, China.


We have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts.


Our R&D team has more than 24 years of experience, and production management experience of more than 16 years, and we have perfect test equipment and management process to ensure the high reliability of our products. The design life of the products is 15 to 20 years, and the warranty of some products is 1-3 years. The products meet the high requirements of customers in China, the United States, Europe, and Japan, and are suitable for complex working environments.





IDEALPUSING will continue to innovate and customize power supplies for global customers, providing high quality and high specification power supplies, and is your reliable power supply supplier.

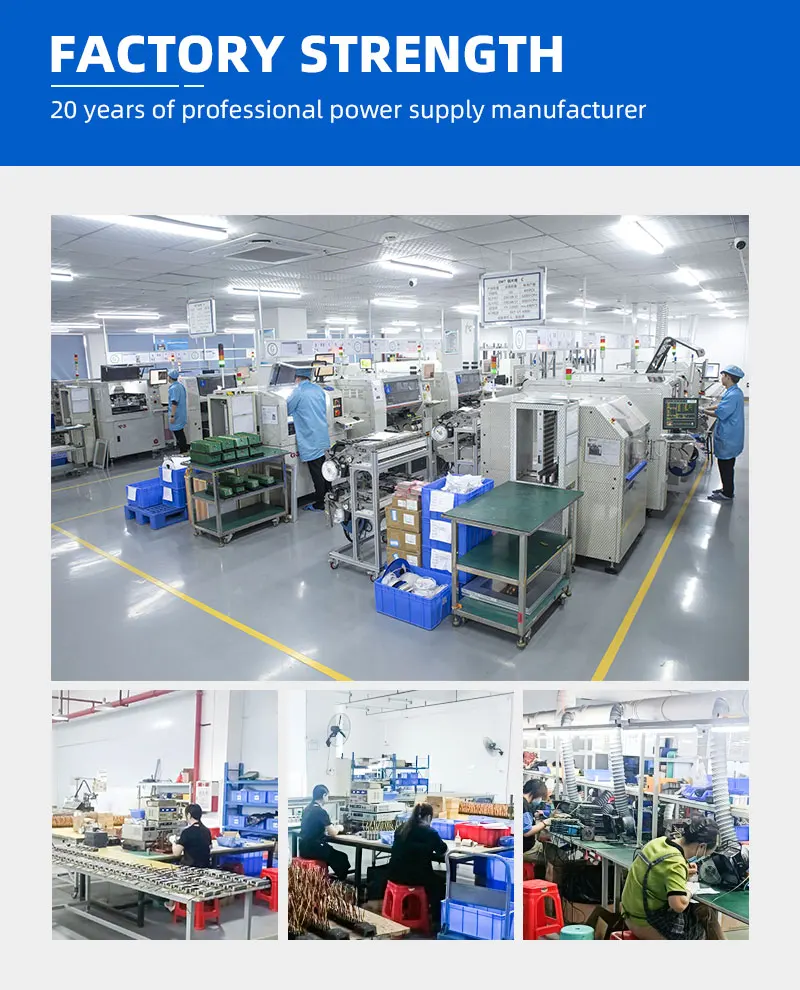

02





03


1. We are good at customizing products according to customers' different usage scenarios and actual usage loads, if you can't find the product you want in this link, please be sure to contact the business, and our professional sales engineers will make a plan for you.


2.  Please do not hesitate to tell us.


3. Because it will not cost you one cent when you ask us anything, but it may be a chance for both of us.


4. Contact us and Click Send inquiry.





04




























































































































 Parameter of step down ac dc 12/24 volt to 5 volt
 BrandIDEALPLUSING
 Product Namestep down ac dc 12/24 volt to 5 volt
TypeNon-Isolate
 ModelIPS-DTD1224S55
INPUT
 Input rated voltage12/24VDC
 Input voltage range8~28 or 11~39VAC
OUTPUT
 Conversion Efficiency96%
 Output voltage5DC
 Output current5A
 Output rated power25W
 Output peak power125%
OTHERS
 Voltage regulation< 1%
 Load regulation < 2%
 Ripple (full load test)< 50mV
 No-load current< 20mA
 Working Temperature-40°c ~ +80°c
 Waterproof ratingIP65
 ProtectionsOver-load,Over-current,Over-temperature,Short-circuit, Over-voltage optional

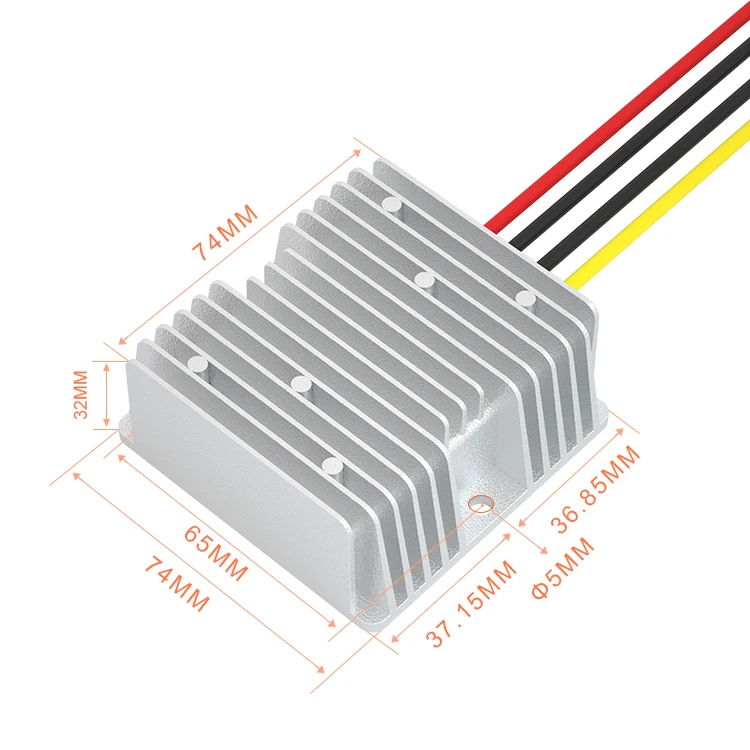

 Machine size74*74*32(MM)
 NW300G
 Cooling wayFree air convection
 CertificationsCE, RoHS
 Customize Support
Sampel order Support
OEM & ODM Support
Package White & colorful package optinal

Size222300g





06

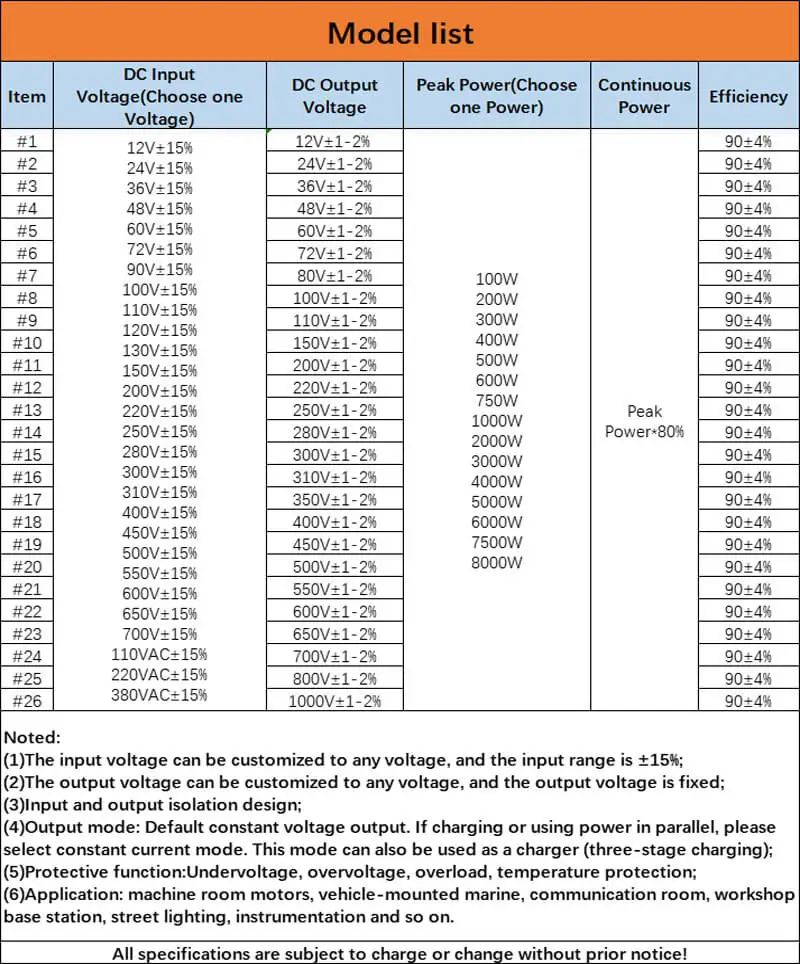

 1-MODEL LIST -





07


08


Customize your packaging2Small aluminum shell


09

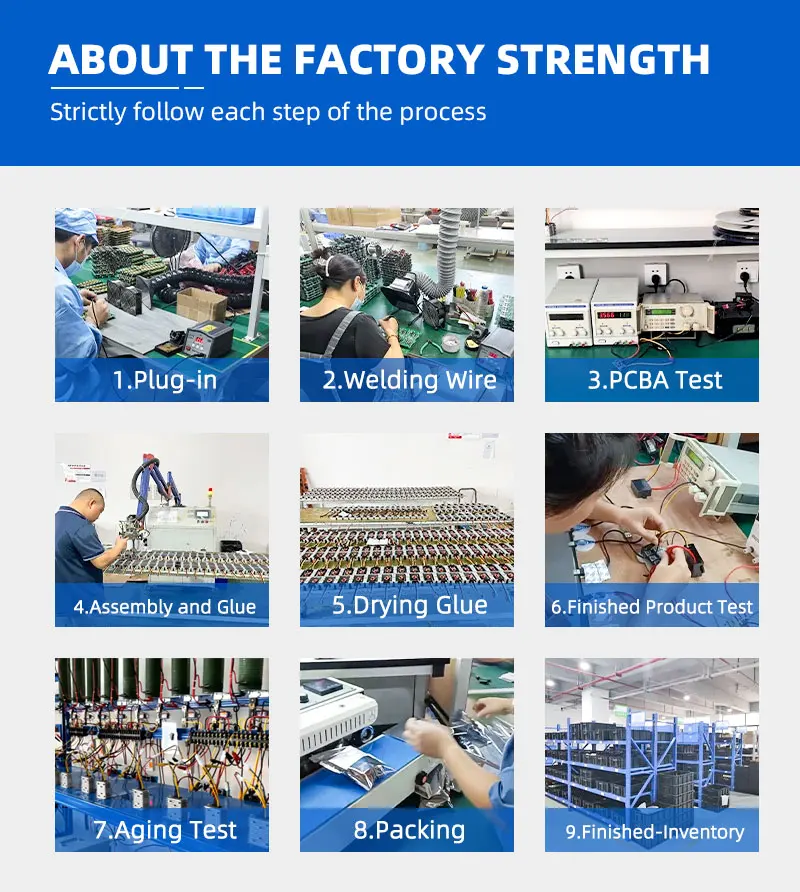

10
